What you'll build​

Build an automation that connects to Smartsheet using a secure Bearer token and retrieves a list of all sheets in your account. The integration uses the ballerinax/smartsheet connector to authenticate and call the Smartsheet API.

Operations used:

  • listSheets : Retrieve all sheets accessible to the authenticated user

Architecture​

Prerequisites​

  • A valid Smartsheet account and a Personal Access Token (generated in Smartsheet → Account → Apps & Integrations → API Access)

Setting up the Smartsheet integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Smartsheet connector​

Step 1: Open the add connection palette​

In the left-hand sidebar tree, expand Connections, then select the + (Add Connection) button. The Add Connection palette opens on the right.

Smartsheet connector palette open with search field before any selection

Step 2: Search for and select the Smartsheet connector​

  1. Enter smartsheet in the search box.
  2. Select the Smartsheet (ballerinax/smartsheet) connector card to open the connection configuration form.

Configuring the Smartsheet connection​

Step 3: Fill in the connection parameters​

Bind the connection parameters to configurable variables in the connection form:

  • Config : Holds the authentication settings for the connector; enter the expression { auth: { token: smartsheetAccessToken } }, referencing a configurable variable named smartsheetAccessToken
  • Connection Name : Leave as smartsheetClient

To create the smartsheetAccessToken configurable variable:

  1. Select inside the Config expression text box to open the helper panel.
  2. Navigate to the Configurables tab.
  3. Select + New Configurable.
  4. Set Name to smartsheetAccessToken and Type to string.
  5. Select Save.

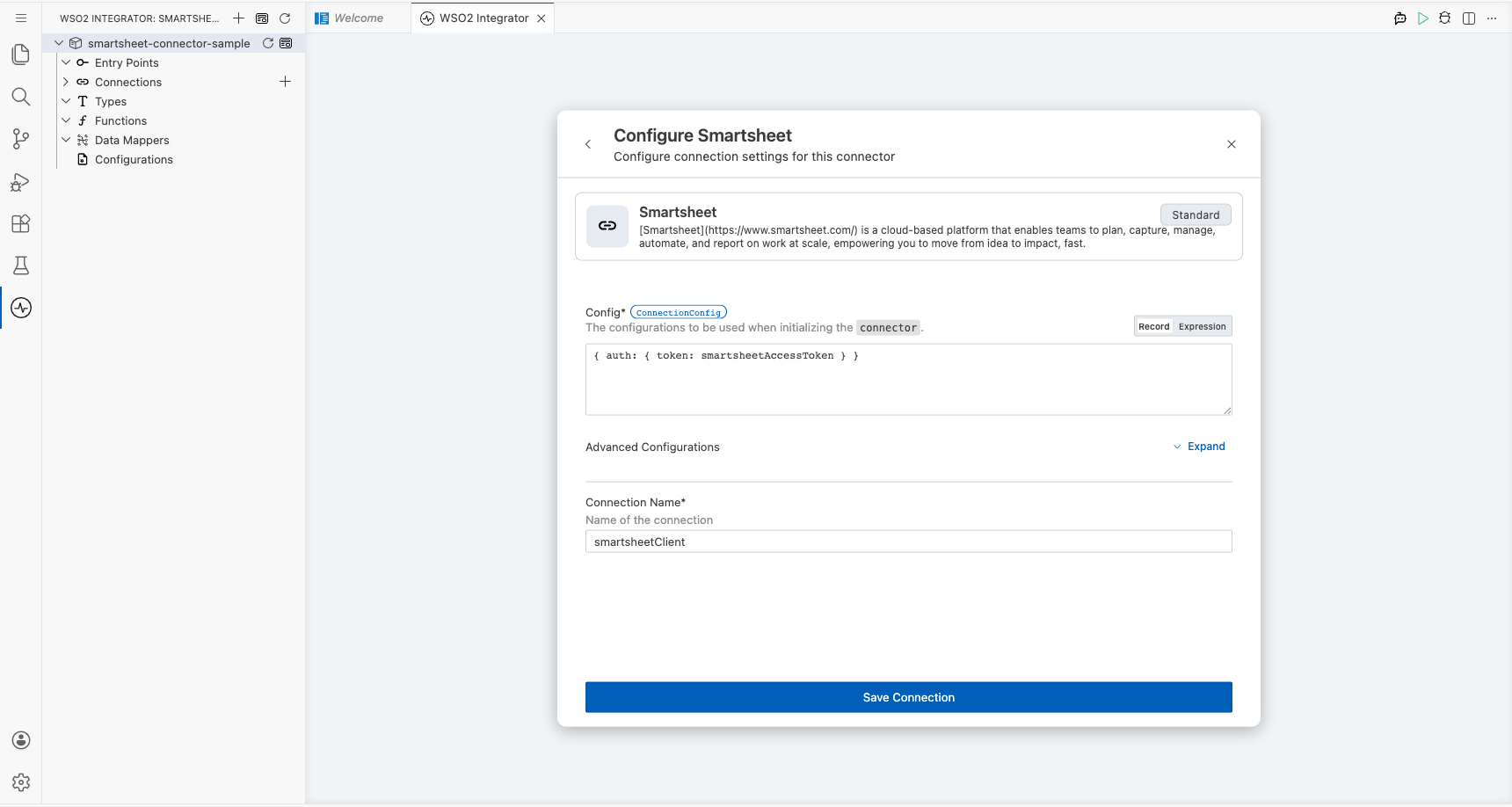

Smartsheet connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save Connection. WSO2 Integrator saves the connection definition and returns to the integration design canvas. The smartsheetClient node is now visible on the canvas.

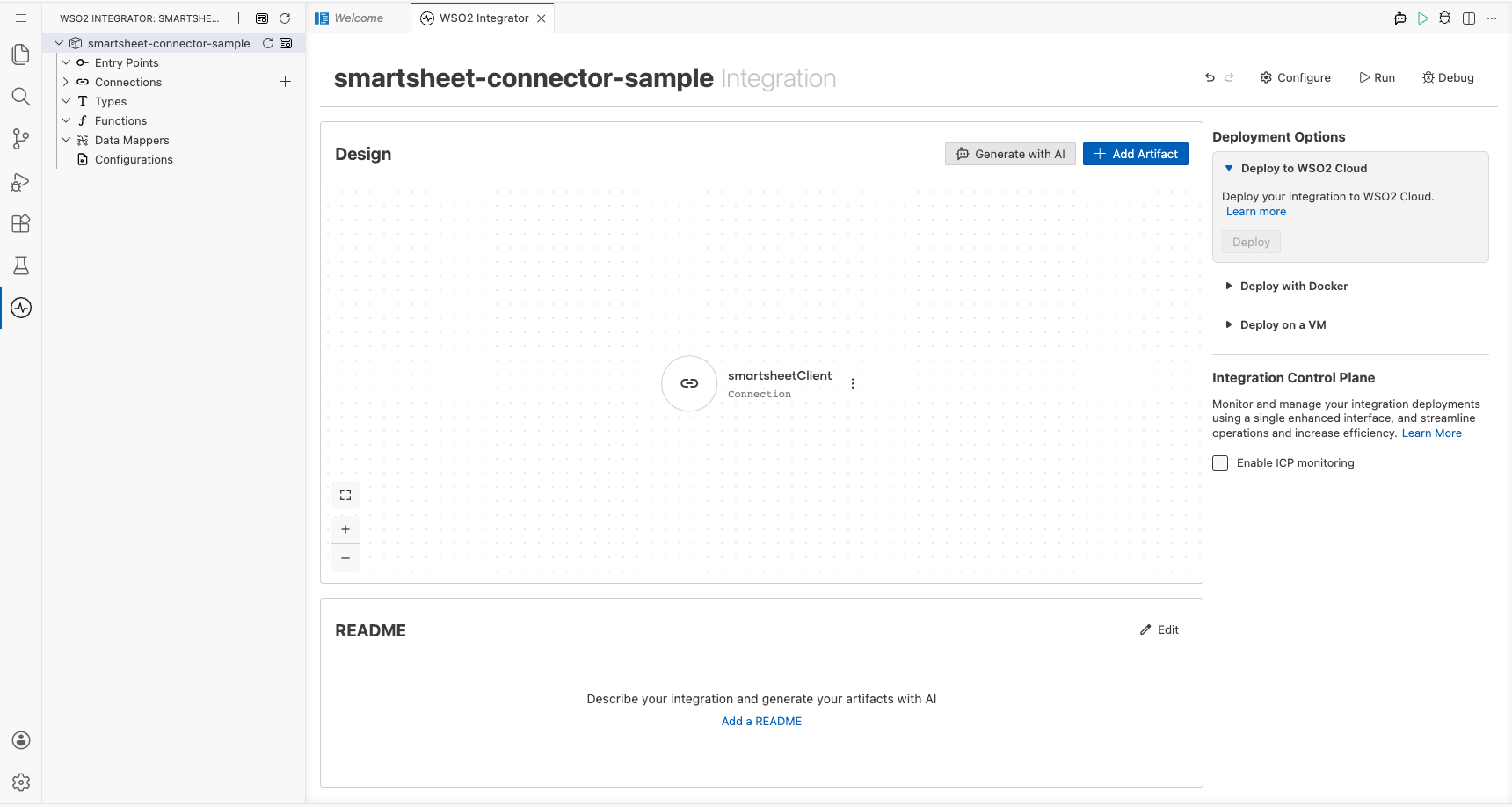

Smartsheet Connections panel showing smartsheetClient entry after saving

Step 5: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • smartsheetAccessToken (string) : Your Smartsheet Personal Access Token, generated in Account → Apps & Integrations → API Access

Configuring the Smartsheet listSheets operation​

Step 6: Add an automation entry point​

  1. On the integration design canvas, select + Add Artifact.
  2. In the artifact picker, select Automation.
  3. In the Create New Automation panel, leave the defaults and select Create.

WSO2 Integrator adds an Automation entry point named main under Entry Points in the sidebar tree and opens the Automation flow canvas.

Step 7: Select and configure the listSheets operation​

  1. On the Automation flow canvas, select the + button between the Start node and the Error Handler node.
  2. In the Connections section of the node panel, select smartsheetClient to expand it.
  3. Select List Sheets to open the operation configuration panel.

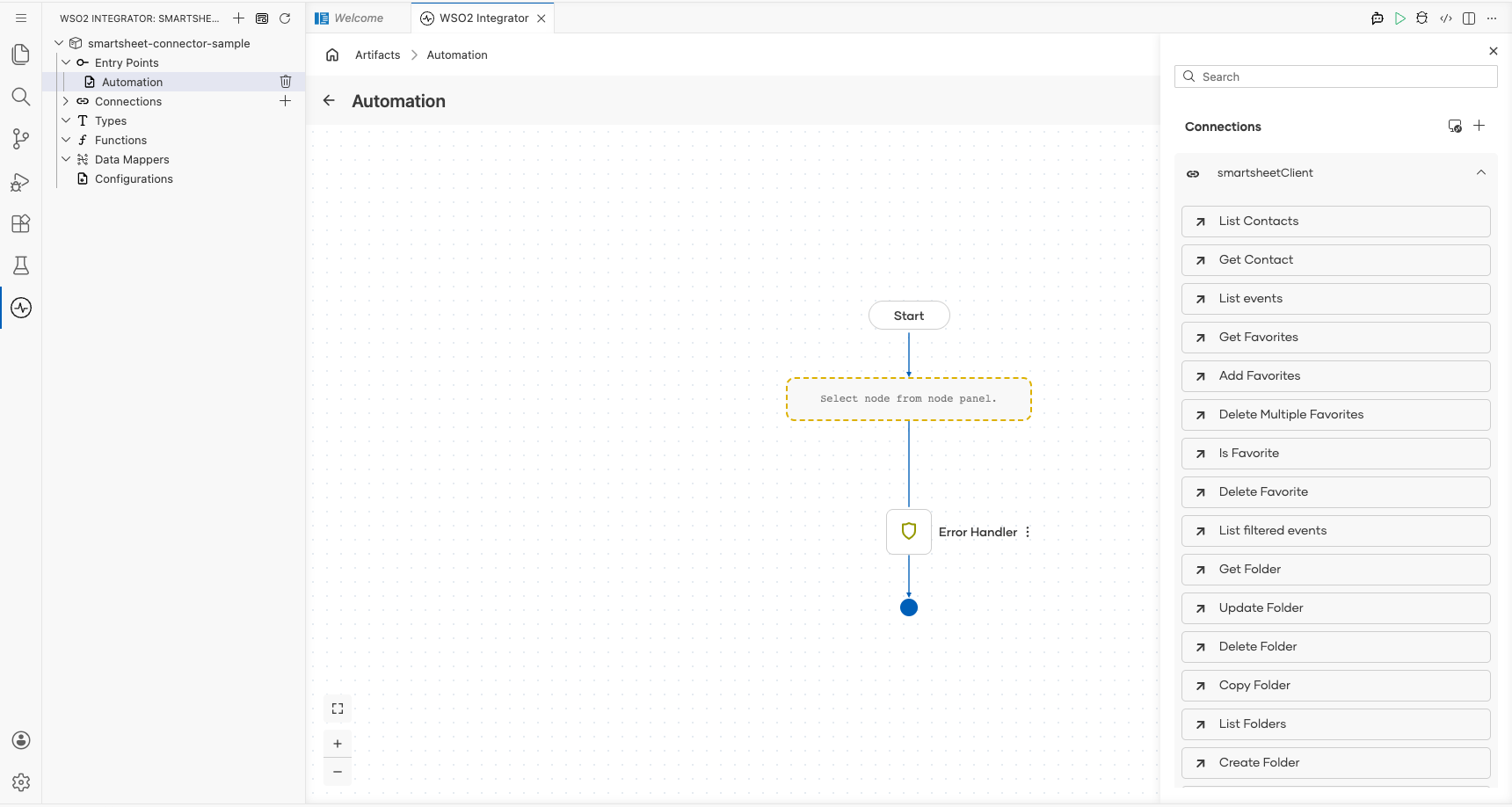

Smartsheet connection node expanded showing all available operations before selection

Configure the following parameter:

  • Result : Enter listSheetsResult as the result variable name

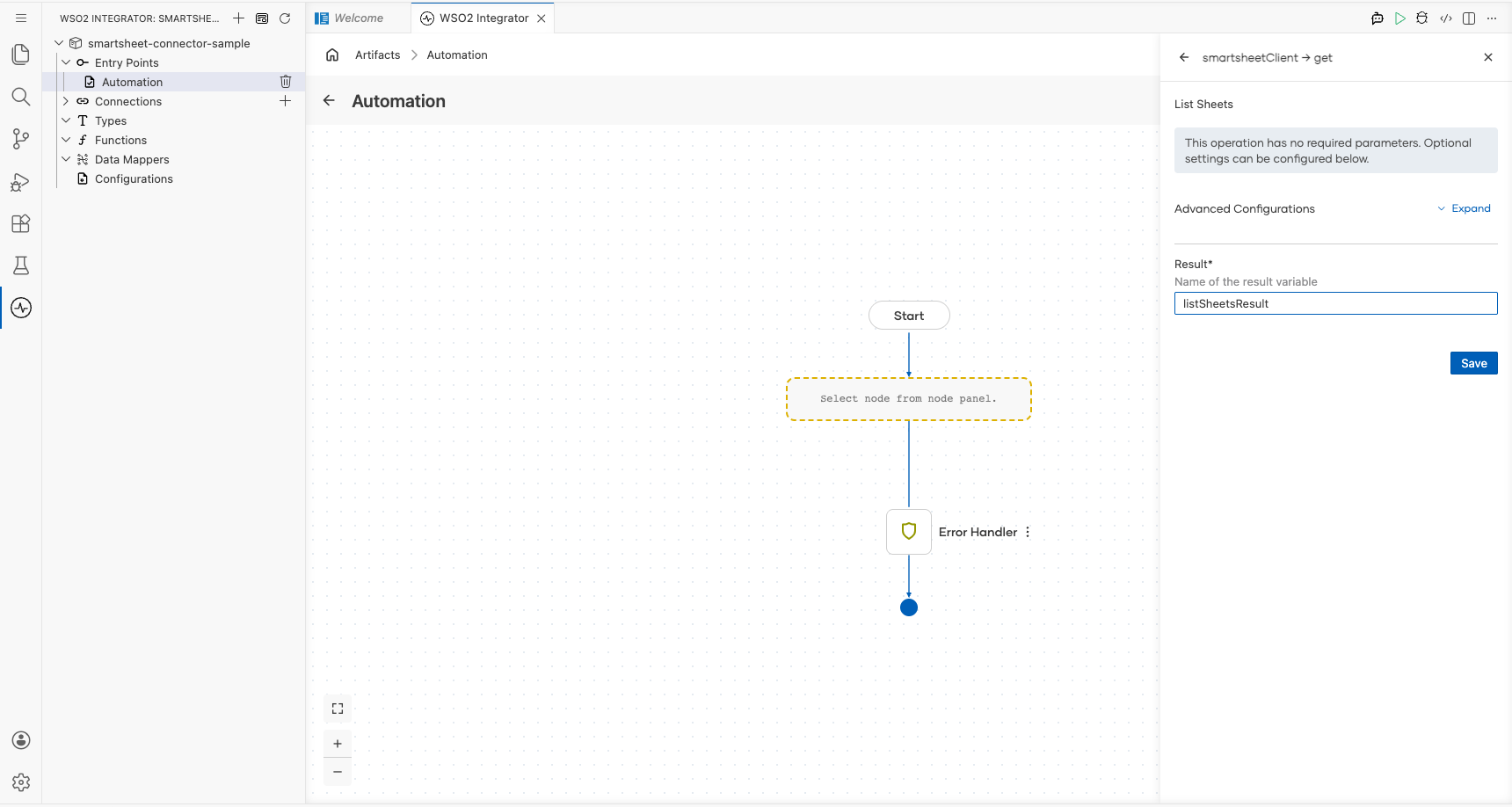

Smartsheet listSheets operation configuration filled with all values

Select Save to add the node to the flow.

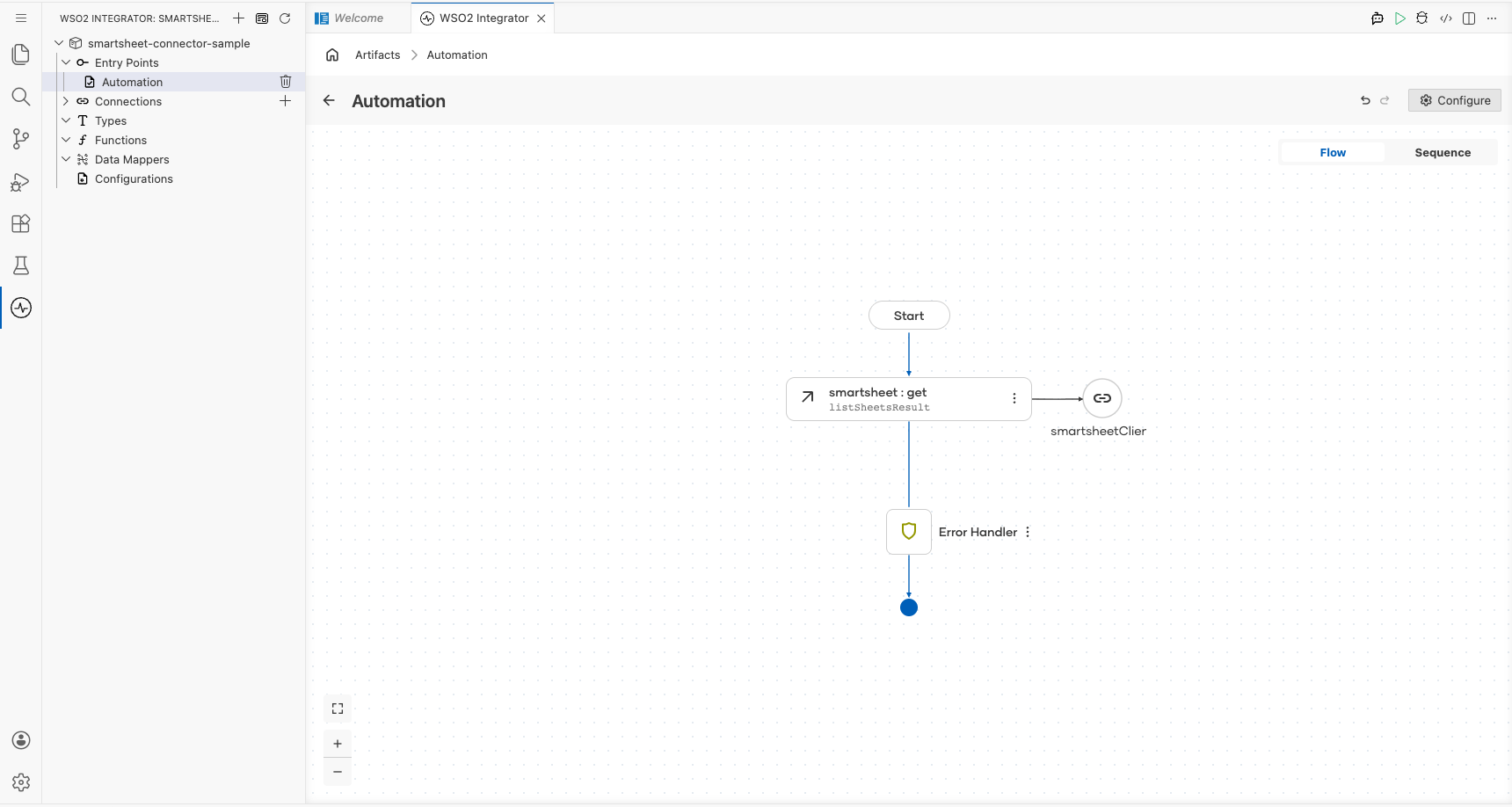

Completed Smartsheet automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Smartsheet connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Project task management - Demonstrates how to automate project task creation using Ballerina connector for Smartsheet.
