What you'll build​

Build a WSO2 Integrator automation that creates a new card in a Trello list using the ballerinax/trello connector. The integration authenticates with the Trello API using an API key and token, then posts a new card with a name and description to a specified list.

Operations used:

  • post : Creates a new card in a specified Trello list using the card's list ID, name, and description.

Architecture​

Prerequisites​

  • A Trello account with an API key and token

Setting up the Trello integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Trello connector​

Step 1: Open the add connection panel​

In the WSO2 Integrator sidebar, expand your project and select Connections → + Add Connection to open the connector palette.

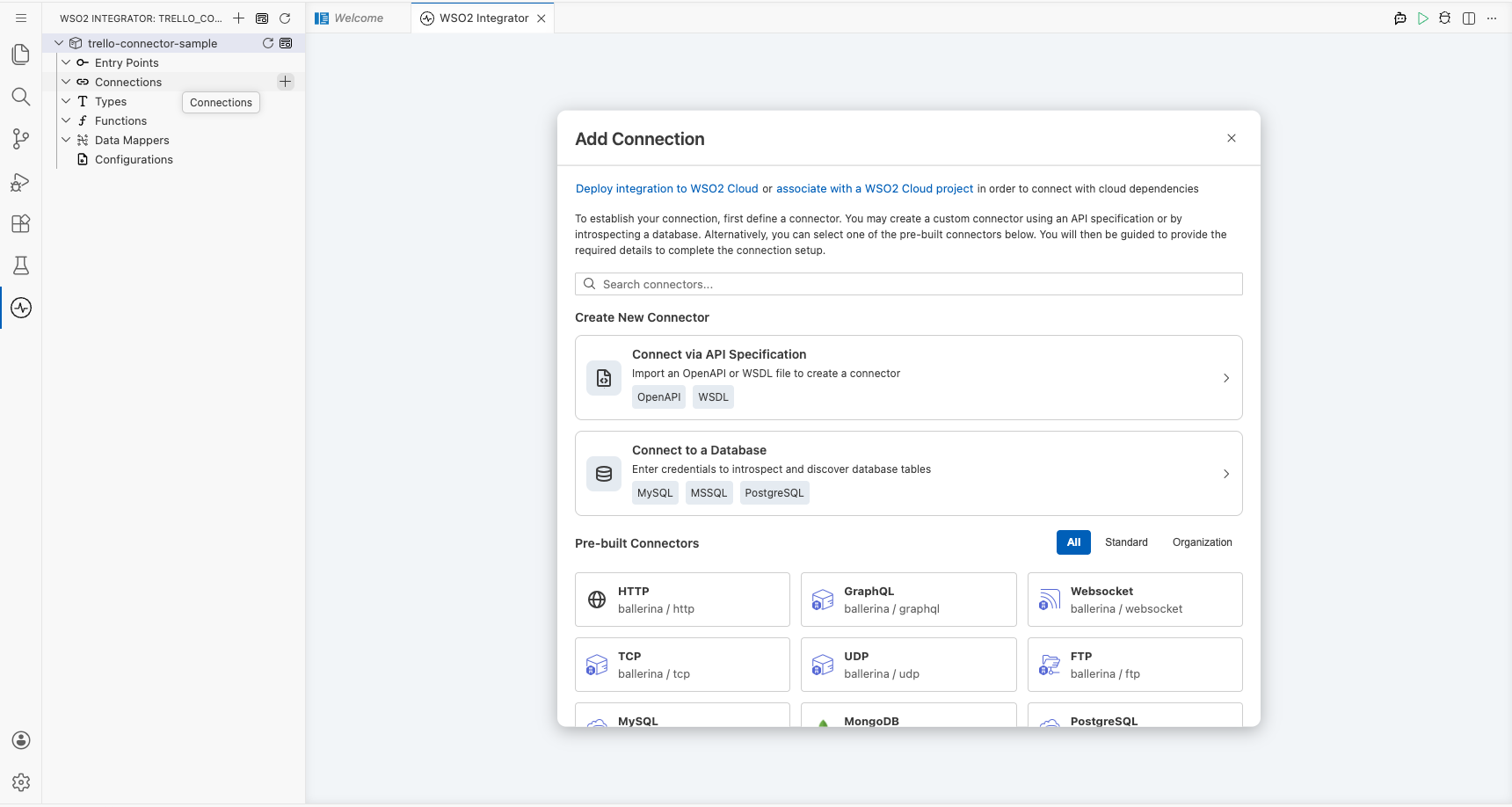

Trello connector palette open with search field before any selection

Step 2: Select the Trello connector​

Enter trello in the search box and select ballerinax/trello from the results to open the connection form.

Configuring the Trello connection​

Step 3: Fill in the connection parameters​

In the Configure Trello form, bind each field to a configurable variable:

  • connectionName : Enter trelloClient as the connection name
  • apiKeyConfig : Set to the ApiKeysConfig record referencing trelloApiKey and trelloApiToken configurable variables

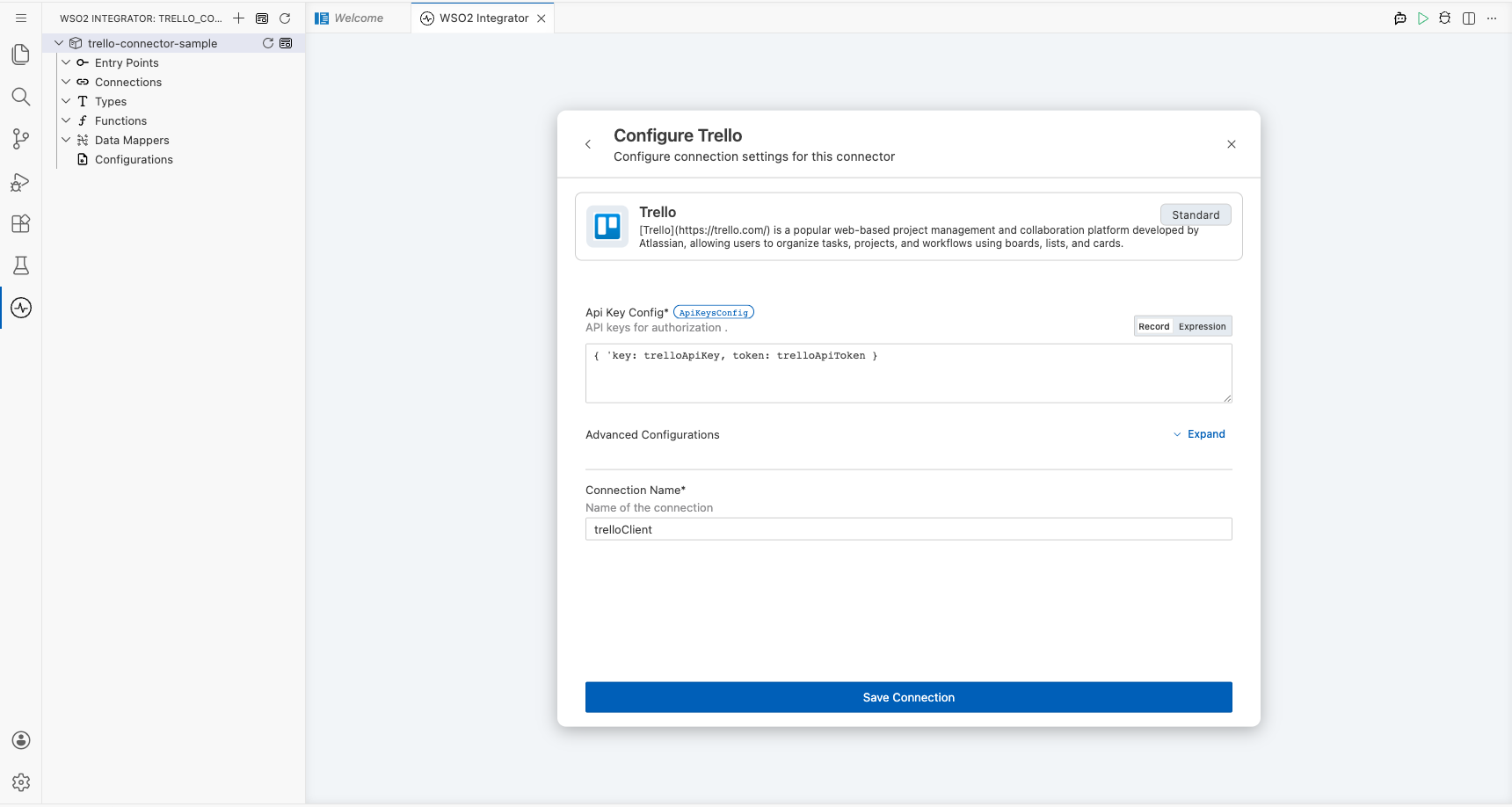

Trello connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save Connection to persist the connection. Confirm that trelloClient appears in the Connections panel and on the canvas.

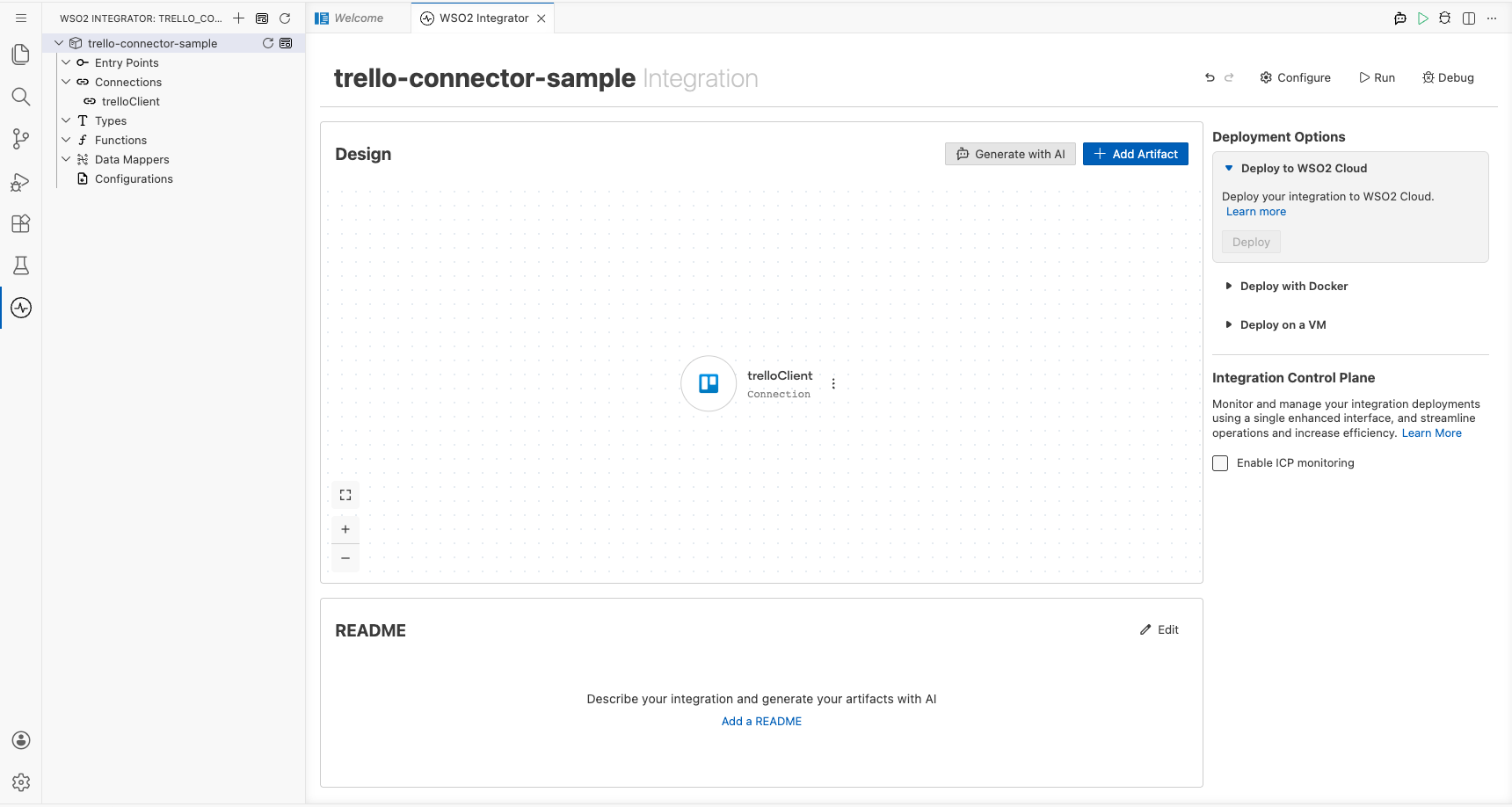

Trello Connections panel showing trelloClient entry after saving

Step 5: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • trelloApiKey (string) : Your Trello API key
  • trelloApiToken (string) : Your Trello API token
  • trelloListId (string) : The ID of the Trello list where the card will be created

Configuring the Trello post operation​

Step 6: Add an automation entry point​

  1. In the sidebar, select Entry Points → + Add Entry Point.
  2. Select Automation as the entry point type.
  3. Accept the default name (main) or enter a custom name.
  4. Select Save. The Automation canvas opens showing a Start node and an Error Handler.

Step 7: Select and configure the post operation​

On the Automation canvas, select the + button between Start and Error Handler to open the node panel. Expand trelloClient to see available operations, then select Create a new Card (post).

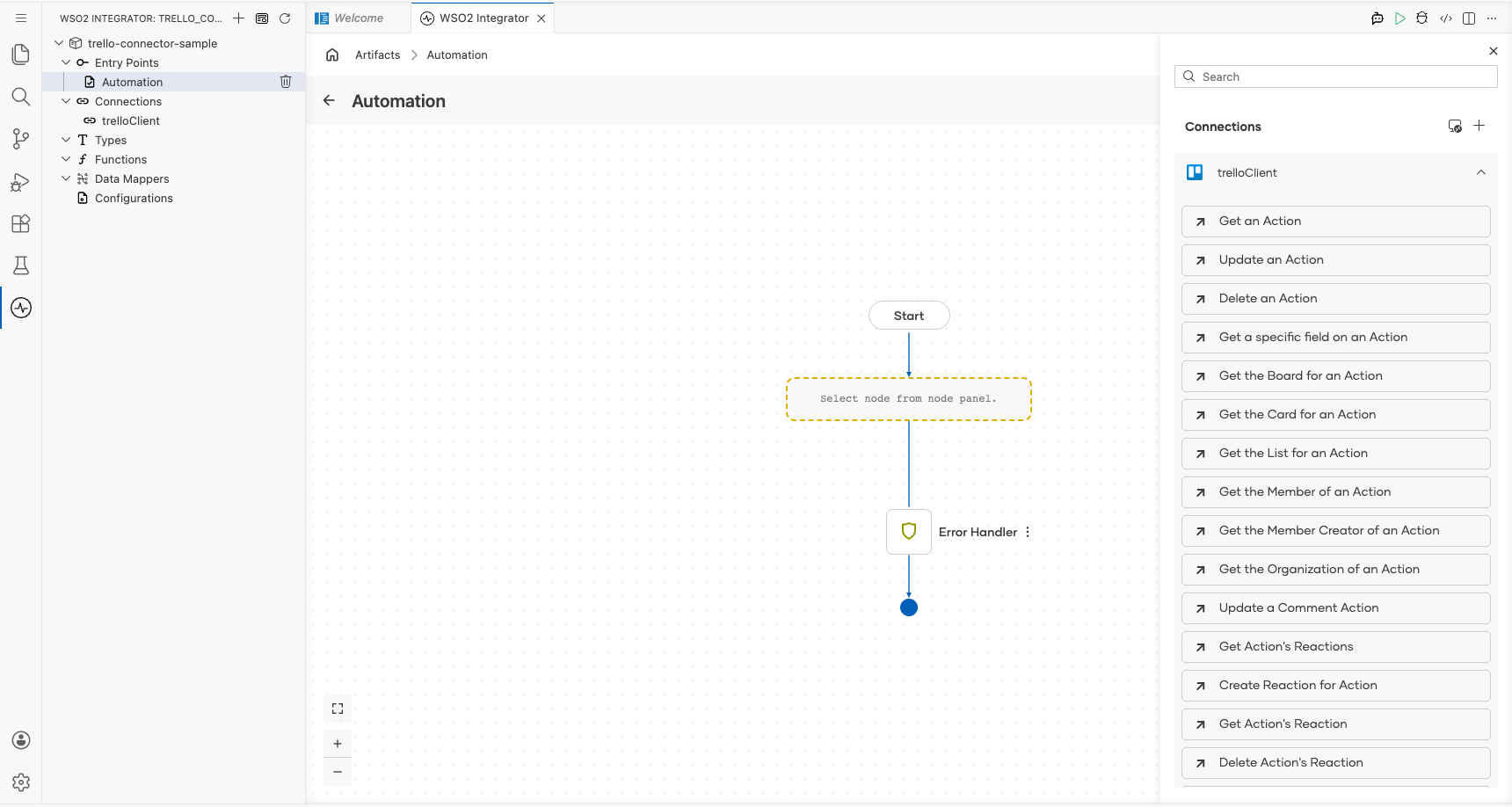

Trello connection node expanded showing all available operations before selection

In the configuration form, fill in the following fields:

  • idList : Set to the trelloListId configurable variable to specify which list receives the card
  • name : Enter Integration Test Card
  • desc : Enter Sample card created by Trello connector integration
  • result : Accept the pre-filled value trelloCard to hold the API response

Select Save to add the operation to the canvas flow.

Trello post operation configuration filled with all values

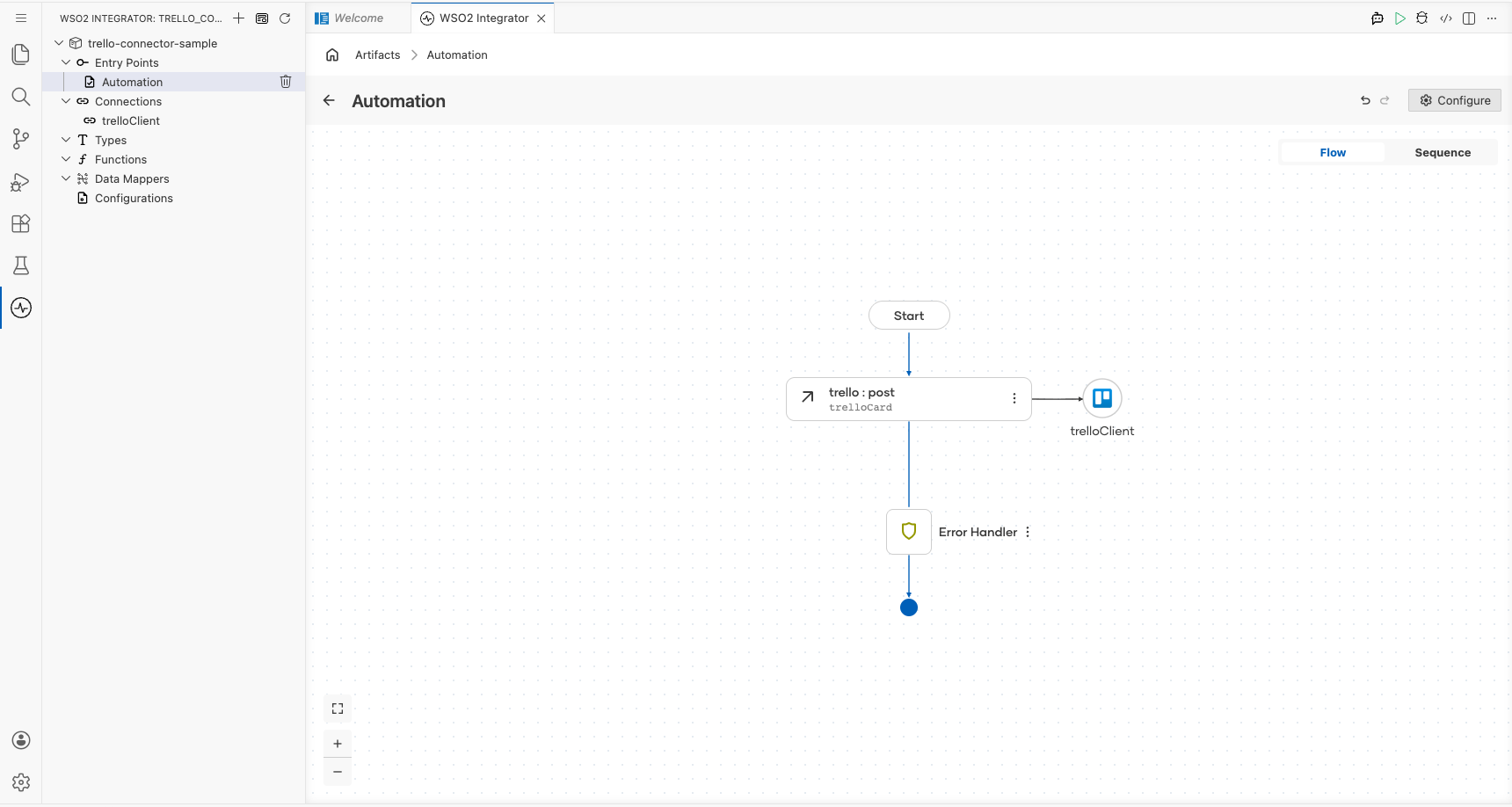

Completed Trello automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Trello connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Create and retrieve a list and cards in Trello - Create a new list in a specific Trello board and retrieve its details using the list ID.
  2. Create, update fetch and add a label to a card in Trello - Create a new card in a Trello list and update the card's name add a label to it and view it.
