Configuration Reference

Everything you can configure in an integration project, in one place:

Configuration management​

Integration projects typically run across multiple environments — development, staging, and production — each with different endpoints, credentials, and feature flags. WSO2 Integrator uses Ballerina's built-in configuration system to keep these settings out of source code and supply them at runtime.

note

This guide is the deeper reference for the configuration model. For the fundamentals of using configurable variables, see Configurations.

Configurable variables​

A configurable variable is a module-level binding declared with Ballerina's configurable keyword. The runtime resolves its value at startup from one of the configuration value sources, and the resolved value is accessible across all flows and nodes in your integration project.

In the Visual Designer, configurable variables appear under Configurations in the project sidebar. Use the Add Configurable Variable panel to declare a new variable — set the name and type, and either provide a default value (optional) or leave it empty (required).

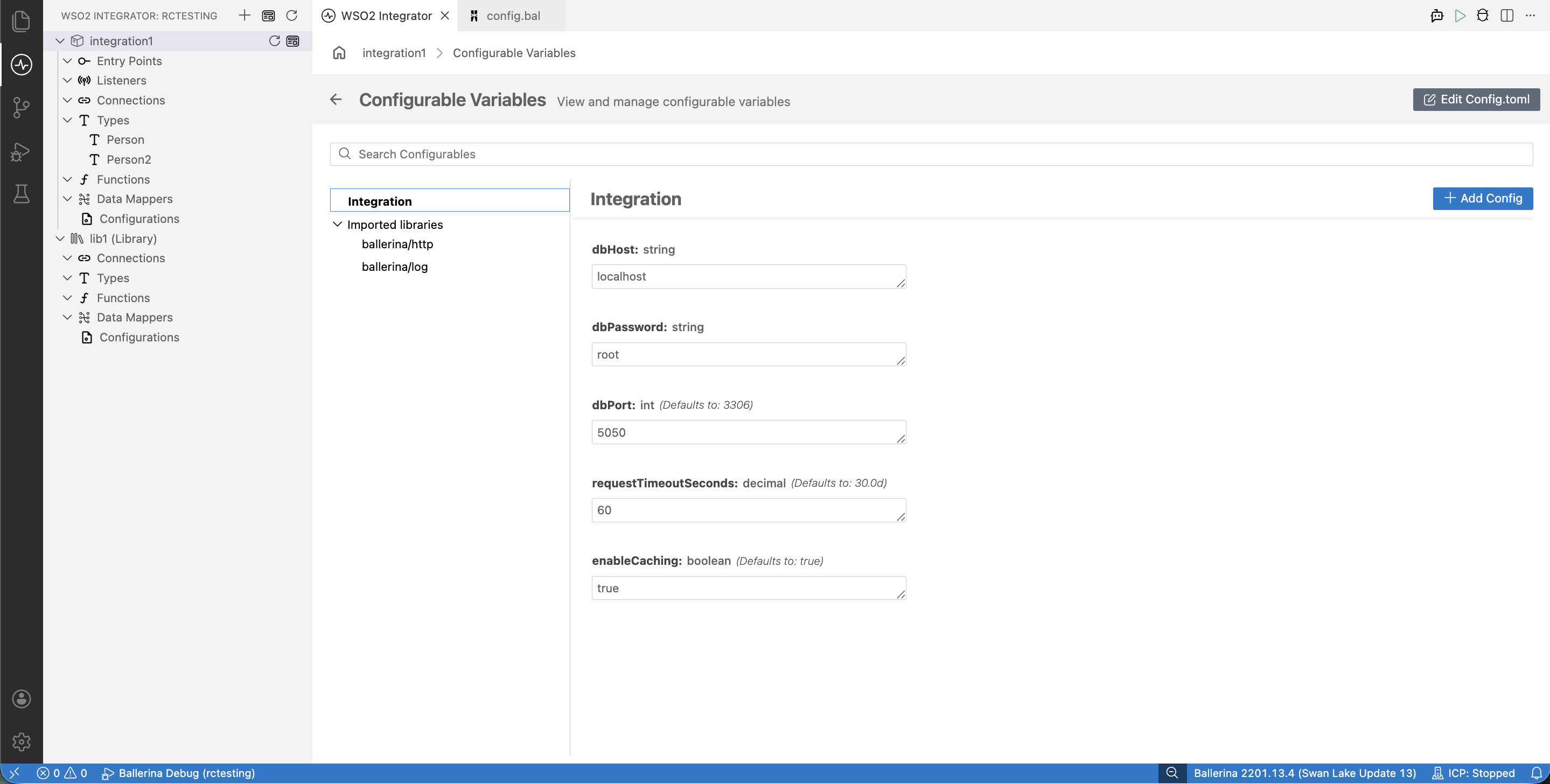

Configurable Variables panel in WSO2 Integrator showing dbHost, dbPassword, dbPort, requestTimeoutSeconds, and enableCaching variables with their types and current valuesConfigurable Variables panel in WSO2 Integrator showing dbHost, dbPassword, dbPort, requestTimeoutSeconds, and enableCaching variables with their types and current values

Supported types​

A configurable variable's type must describe plain-data values that the runtime can parse from a configuration source and hold safely for the lifetime of the program.

This covers Ballerina's basic types (nil, boolean, int, byte, float, decimal, string, xml) and structured types built from them (arrays, maps, records, tables). Common examples are shown below.

TypeExample
intconfigurable int port = 8080;
byteconfigurable byte maxRetries = 3;
floatconfigurable float threshold = 0.75;
decimalconfigurable decimal taxRate = 0.08d;
stringconfigurable string apiKey = ?;
booleanconfigurable boolean debug = false;
Arraysconfigurable string[] allowedOrigins = ["*"];
Mapsconfigurable map<string> headers = {};
Recordsconfigurable DatabaseConfig dbConfig = ?;
Tablesconfigurable table<Employee> key(id) employees = table [];

Structured configuration​

When you have many related settings — for example, the host, port, credentials, and pool size for a single database — declaring each one as a separate configurable variable becomes hard to read and easy to mis-wire. Group them into a record type instead, and declare a single configurable variable of that type.

Use the Visual Designer's type creator to define a new record type (or the type picker to select an existing one), then add a configurable variable of that record type the same way as any primitive.

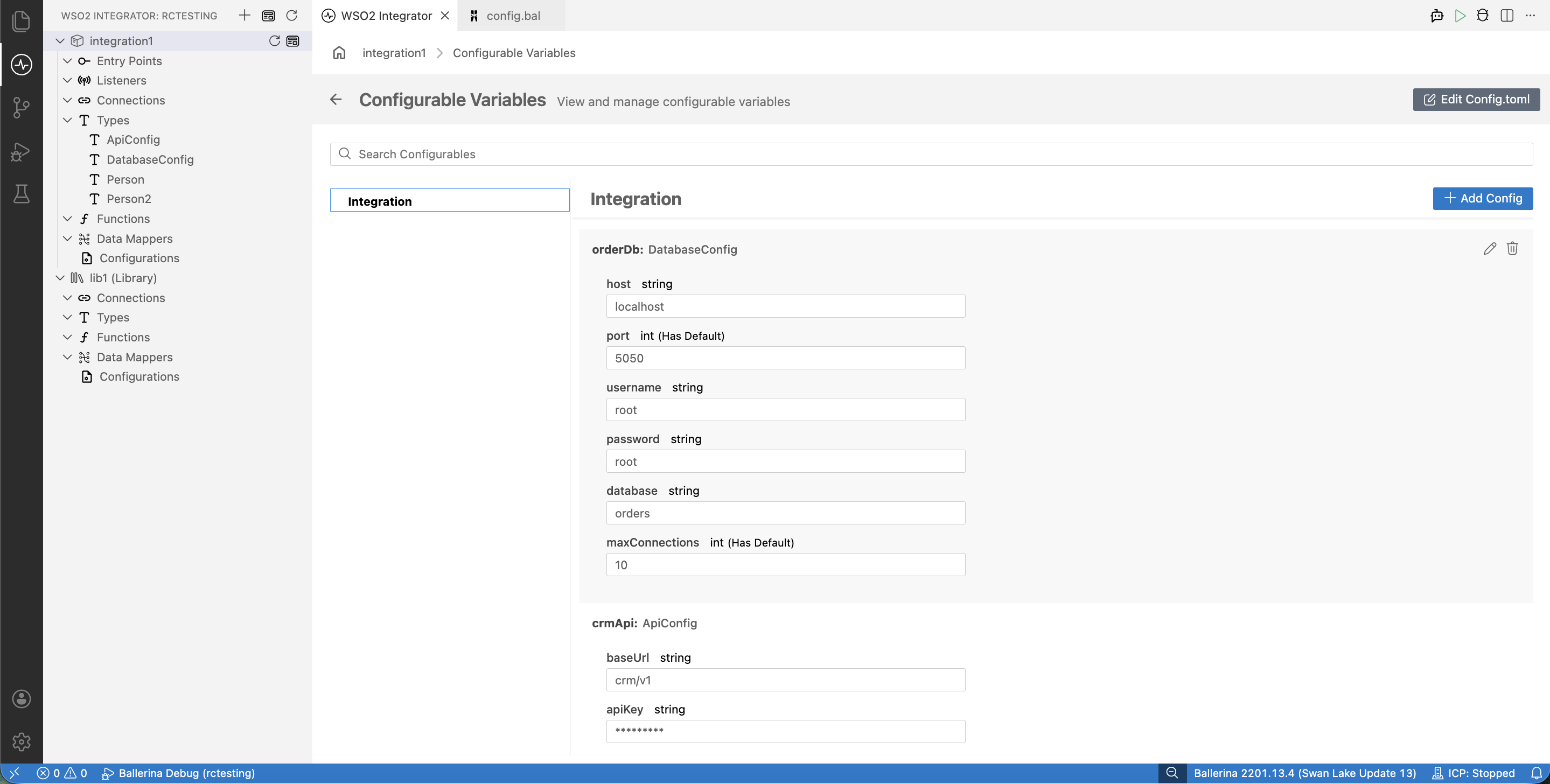

Configurable Variables panel in WSO2 Integrator showing record-typed configurables orderDb (DatabaseConfig) and crmApi (ApiConfig) expanded into their nested fieldsConfigurable Variables panel in WSO2 Integrator showing record-typed configurables orderDb (DatabaseConfig) and crmApi (ApiConfig) expanded into their nested fields

Configuration value sources​

Configurable values can be supplied from several sources. When the same variable is set in more than one place, the runtime resolves it using the first source from the table below (top → bottom, highest to lowest precedence):

SourceExampleTypical use
Command-line argumentsbal run -- -CdbHost=localhostOne-off overrides, local testing
Individual env vars (BAL_CONFIG_VAR_*)BAL_CONFIG_VAR_DBHOST=localhostCI/CD pipelines, containers, secrets
Inline TOML (BAL_CONFIG_DATA)BAL_CONFIG_DATA='dbHost="localhost"'Containerized runs without a config file
TOML files (Config.toml / BAL_CONFIG_FILES)dbHost = "localhost"Per-environment configuration
Code defaultsconfigurable string dbHost = "localhost";Development fallback
note

Command-line arguments support only basic primitive types (boolean, int, float, decimal, string, xml). For arrays, maps, records, and tables, supply values via TOML files or BAL_CONFIG_VAR_* instead.

Config.toml​

Config.toml is the primary configuration file. Place it in the project root directory (alongside Ballerina.toml). The runtime reads it automatically at startup. Values you enter through the Visual Designer's Config Editor are written to this same file.

For TOML syntax, type-by-type encoding, and module-qualified key conventions, see the Config.toml reference.

Environment variables​

Three environment variables shape how the runtime reads configuration: BAL_CONFIG_VAR_* sets individual values, BAL_CONFIG_FILES selects which TOML files to load, and BAL_CONFIG_DATA passes TOML content inline.

BAL_CONFIG_VAR_*​

Override individual configurable variables via specially named environment variables. The name pattern is:

  1. Start with BAL_CONFIG_VAR_.
  2. For root-module variables, append the variable name in uppercase.
  3. For non-root modules or external packages, include the module path with dots replaced by underscores, all uppercase.
# Root module: configurable int port = 8080;
export BAL_CONFIG_VAR_PORT=9090

# Non-root module myapp.db: configurable string host = ?;
export BAL_CONFIG_VAR_MYAPP_DB_HOST="db.example.com"

# External package org=ballerinax, package=mysql: configurable int port = 3306;
export BAL_CONFIG_VAR_BALLERINAX_MYSQL_PORT=5432

The env-var value is parsed as the declared Ballerina type:

Ballerina typeEnv-var value
intInteger literal: 9090
floatDecimal literal: 30.5
booleantrue or false
stringPlain text: api.example.com
decimalDecimal literal: 0.08
BAL_CONFIG_FILES​

Specifies one or more TOML files to load as configuration sources. Files listed earlier take precedence over later ones. The list separator is : on Linux/macOS and ; on Windows.

# Single file
export BAL_CONFIG_FILES="/app/Config.toml"

# Multiple files — secret.toml takes precedence
export BAL_CONFIG_FILES="/run/secrets/secret.toml:/app/Config.toml"
info

When BAL_CONFIG_FILES is set, the default Config.toml in the working directory is not loaded automatically. Include it explicitly in the list if you still need it.

BAL_CONFIG_DATA​

Passes TOML configuration content directly as an environment-variable value. Useful in container environments and CI/CD pipelines where creating a file is inconvenient.

export BAL_CONFIG_DATA='port=9090
hostname="api.example.com"
enableSSL=true'

When both BAL_CONFIG_FILES and BAL_CONFIG_DATA are set, values from BAL_CONFIG_FILES take precedence.

Per-environment configuration​

Most integration projects need different values for development, staging, and production — different hosts, credentials, and feature flags. The recommended pattern is to keep a separate TOML file per environment and select the right one at runtime with BAL_CONFIG_FILES. A common layout keeps a default Config.toml at the project root for local work, with environment-specific files under a config/ subdirectory.

my-integration/
├── Ballerina.toml
├── Config.toml # Default / development
├── config/
│ ├── dev.toml
│ ├── staging.toml
│ └── prod.toml
└── main.bal
# config/dev.toml
dbHost = "localhost"
dbPort = 3306
dbUser = "root"
dbPassword = "dev-password"
dbName = "orders_dev"
crmBaseUrl = "https://sandbox.crm.example.com"
enableCaching = false
logLevel = "DEBUG"
# config/prod.toml
dbHost = "db.prod.internal"
dbPort = 3306
dbUser = "app_user"
dbPassword = "prod-encrypted-password"
dbName = "orders"
crmBaseUrl = "https://api.crm.example.com"
enableCaching = true
logLevel = "WARN"
BAL_CONFIG_FILES=config/dev.toml bal run
BAL_CONFIG_FILES=config/prod.toml bal run

Never commit secret-bearing configuration files to version control. For production credential handling, secret managers, and TLS configuration, see Secrets and encryption.

Config.toml reference​

Config.toml provides runtime values for configurable variables declared in Ballerina source code. Place it in the project root (alongside Ballerina.toml), or specify one or more config files via the BAL_CONFIG_FILES environment variable. Ballerina uses TOML syntax with module-qualified keys to map configuration values to their corresponding configurable declarations.

note

This page is the TOML encoding reference for Config.toml. For the basics of using configurable variables, see Configurations. For the complete configuration reference, see Configuration management.

Module-qualified names​

When configurable variables are in non-root modules or external packages, use TOML table headers to specify the module context.

Root module​

Variables in the root module of the current package need no qualifier. They map directly to top-level TOML keys.

// main.bal — root module
configurable int port = 8080;
configurable string hostname = "localhost";
configurable boolean enableSSL = false;
port = 9090
hostname = "api.example.com"
enableSSL = true

Non-root module (same package)​

Variables in a sub-module use the module name as the TOML table header.

// modules/db/db.bal — module mypackage.db
configurable string dbHost = ?;
configurable int dbPort = 3306;
[mypackage.db]
dbHost = "db.example.com"
dbPort = 5432

External package​

Variables declared as configurable in a dependency use the org-name.package-name (or org-name.package-name.module-name) qualifier.

[ballerinax.mysql]
host = "db.example.com"
port = 3306
user = "admin"

For ICP runtime bridge configuration (the wso2/icp.runtime.bridge package used when connecting to ICP):

[wso2.icp.runtime.bridge]
environment = "dev"
project = "my-project"
integration = "my-integration"
runtime = "my-integration-1"
secret = "<generated-secret>"

Supported types​

Each subsection below shows the Ballerina configurable declaration followed by the corresponding Config.toml entry.

Primitive types​

Ballerina primitive types map directly to TOML scalar values.

configurable boolean enableSSL = false;
configurable int port = 8080;
configurable byte maxRetries = 3;
configurable float timeout = 30.5;
configurable decimal taxRate = 0.08d;
configurable string hostname = "localhost";
configurable xml template = xml `<greeting>Hello</greeting>`;
enableSSL  = true
port = 9090
maxRetries = 5
timeout = 60.0
taxRate = 0.15
hostname = "api.example.com"
template = "<greeting>Hello</greeting>"

Enum types​

Constrain a string-typed configurable to a fixed set of values using a union of string literals. The TOML value must exactly match one of the members.

type LogLevel "DEBUG"|"INFO"|"WARN"|"ERROR";
type Environment "dev"|"staging"|"prod";

configurable LogLevel logLevel = "INFO";
configurable Environment environment = "dev";
logLevel    = "WARN"
environment = "prod"

Arrays​

Configurable arrays of primitives use TOML inline arrays.

configurable string[] allowedOrigins = [];
configurable int[] retryIntervals = [];
configurable boolean[] featureFlags = [];
allowedOrigins = ["https://app.example.com", "https://admin.example.com"]
retryIntervals = [1, 2, 5, 10]
featureFlags = [true, false, true]

Records​

Configurable record types map to TOML tables.

type DatabaseConfig record {|
string host;
int port;
string user;
string password;
string database;
|};

configurable DatabaseConfig dbConfig = ?;
[dbConfig]
host = "db.example.com"
port = 3306
user = "admin"
password = "secret"
database = "orders"

Nested records​

Nested records use dot-separated TOML table headers.

type SSLConfig record {|
string certPath;
string keyPath;
|};

type ServerConfig record {|
int port;
SSLConfig ssl;
|};

configurable ServerConfig server = ?;
[server]
port = 443

[server.ssl]
certPath = "/certs/server.crt"
keyPath = "/certs/server.key"

Array of records​

Configurable arrays of records use TOML array-of-tables syntax ([[...]]).

type Endpoint record {|
string name;
string url;
int timeout;
|};

configurable Endpoint[] endpoints = ?;
[[endpoints]]
name = "orders"
url = "https://orders.example.com"
timeout = 30

[[endpoints]]
name = "inventory"
url = "https://inventory.example.com"
timeout = 15

Maps​

Configurable map types use TOML tables where each key-value pair becomes a map entry.

configurable map<string> headers = ?;
[headers]
"Content-Type" = "application/json"
"X-API-Key" = "abc123"
Authorization = "Bearer token"

Tables​

Configurable table types use TOML array-of-tables. Each [[...]] entry becomes one row, with the key field acting as the primary key.

type Employee record {|
readonly int id;
string name;
string department;
|};

configurable table<Employee> key(id) employees = ?;
[[employees]]
id = 1
name = "Alice"
department = "Engineering"

[[employees]]
id = 2
name = "Bob"
department = "Marketing"

Ballerina.toml reference​

The Ballerina.toml file is the project manifest for a Ballerina package. It defines package metadata, build options, dependencies, platform-specific libraries, and code generation tool configurations. This file must reside in the root directory of every Ballerina package.

[package]​

Defines the core metadata for the package.

[package]
org = "wso2"
name = "healthcare_integration"
version = "1.2.0"
distribution = "2201.13.3"
visibility = "private"
readme = "README.md"
icon = "icon.png"
license = ["Apache-2.0"]
authors = ["WSO2 Inc."]
keywords = ["healthcare", "integration", "hl7"]
repository = "https://github.com/wso2/healthcare-integration"
include = ["resources/**", "data/*.json"]
FieldTypeRequiredDescription
orgstringYesOrganization name registered on Ballerina Central. Must be lowercase alphanumeric with underscores.
namestringYesPackage name. Defaults to the directory name if omitted. Must be lowercase alphanumeric with underscores.
versionstringYesSemantic version of the package (e.g., "1.0.0"). Defaults to "0.1.0".
distributionstringNoMinimum Ballerina distribution version required to build the package.
visibilitystringNoSet to "private" to restrict package access to organization members only on Ballerina Central.
readmestringNoPath to a custom README markdown file used in generated documentation.
iconstringNoPath to a PNG icon file (max 128x128 pixels) for package documentation.
licensestring[]NoArray of SPDX license identifiers (e.g., ["Apache-2.0"]).
authorsstring[]NoArray of author names.
keywordsstring[]NoArray of searchable keywords describing the package.
repositorystringNoURL of the source code repository.
includestring[]NoGlob patterns for additional files/directories to include in the .bala archive.

[build-options]​

Configures build-time behavior. These options can also be passed as CLI flags to bal build.

[build-options]
observabilityIncluded = true
offline = false
skipTests = false
testReport = true
codeCoverage = true
cloud = "k8s"
graalvm = false
graalvmBuildOptions = "--no-fallback -H:+ReportExceptionStackTraces"
FieldTypeDefaultDescription
observabilityIncludedbooleanfalseInclude the observability module in the build to enable metrics and tracing.
offlinebooleanfalseBuild without downloading dependencies from Ballerina Central.
skipTestsbooleanfalseSkip test execution during the build.
testReportbooleanfalseGenerate an HTML test report after running tests.
codeCoveragebooleanfalseEnable code coverage analysis and generate a coverage report.
cloudstring""Cloud deployment target. Use "k8s" for Kubernetes, "docker" for Docker, or "choreo" for WSO2 Integration Platform.
graalvmbooleanfalseBuild a GraalVM native executable instead of a JAR file.
graalvmBuildOptionsstring""Additional arguments passed to the GraalVM native-image tool.

[[dependency]]​

Declares explicit package dependencies. In most cases, dependencies are automatically resolved and recorded in Dependencies.toml. Use this section only when you need to pin a version or use a local repository.

[[dependency]]
org = "ballerinax"
name = "mysql"
version = "1.13.0"

[[dependency]]
org = "myorg"
name = "shared_utils"
version = "2.0.0"
repository = "local"
FieldTypeRequiredDescription
orgstringYesOrganization name of the dependency package.
namestringYesPackage name of the dependency.
versionstringYesMinimum required semantic version.
repositorystringNoSet to "local" to resolve from the local repository (~/.ballerina/repositories/local).

[[platform.java21.dependency]]​

Declares Java platform dependencies (JAR files) required by the package at compile time or runtime. Use Maven coordinates or a direct file path.

# Maven dependency
[[platform.java21.dependency]]
groupId = "com.mysql"
artifactId = "mysql-connector-j"
version = "8.3.0"

# Local JAR file
[[platform.java21.dependency]]
path = "./libs/custom-codec-1.0.jar"
modules = ["healthcare_integration"]
scope = "provided"
graalvmCompatible = true

# Test-only dependency
[[platform.java21.dependency]]
groupId = "org.mockito"
artifactId = "mockito-core"
version = "5.11.0"
scope = "testOnly"
FieldTypeRequiredDescription
groupIdstringYes*Maven group ID. Required when using Maven coordinates.
artifactIdstringYes*Maven artifact ID. Required when using Maven coordinates.
versionstringYes*Maven version. Required when using Maven coordinates.
pathstringYes*Absolute or relative path to a JAR file. Required when not using Maven coordinates.
modulesstring[]NoRestrict JAR visibility to specific modules within the package.
scopestringNoDependency scope: "testOnly" (tests only) or "provided" (compile-time only, not packaged).
graalvmCompatiblebooleanNoMark this JAR as compatible with GraalVM native compilation.
info

Use platform.java17.dependency or platform.java21.dependency depending on the target Java platform version.

[[platform.java21.repository]]​

Configures custom Maven repositories for resolving platform dependencies.

[[platform.java21.repository]]
id = "wso2-nexus"
url = "https://maven.wso2.org/nexus/content/repositories/releases/"
username = "user"
password = "pass"
FieldTypeRequiredDescription
idstringYesA unique identifier for the repository.
urlstringYesThe Maven repository URL.
usernamestringNoAuthentication username.
passwordstringNoAuthentication password.

[platform.java21]​

Package-level platform settings.

[platform.java21]
graalvmCompatible = true
FieldTypeDefaultDescription
graalvmCompatiblebooleanfalseIndicates whether the entire package is compatible with GraalVM native compilation.

[[tool.<command>]]​

Configures code generation tools (such as the OpenAPI, GraphQL, or gRPC tools) that run automatically during the build.

[[tool.openapi]]
id = "petstore"
filePath = "./openapi/petstore.yaml"
targetModule = "petstore_client"
options.mode = "client"
options.nullable = true

[[tool.grpc]]
id = "order_service"
filePath = "./proto/order.proto"
targetModule = "order_grpc"
FieldTypeRequiredDescription
idstringYesUnique identifier for the tool invocation.
filePathstringYesPath to the specification file (OpenAPI YAML, proto file, etc.).
targetModulestringNoDestination module for the generated code.
optionstableNoTool-specific configuration options.

Complete example​

[package]
org = "wso2"
name = "order_management"
version = "1.0.0"
distribution = "2201.12.0"
license = ["Apache-2.0"]
authors = ["WSO2 Inc."]
keywords = ["orders", "integration"]
repository = "https://github.com/wso2/order-management"

[build-options]
observabilityIncluded = true
cloud = "k8s"
testReport = true
codeCoverage = true

[[dependency]]
org = "ballerinax"
name = "mysql"
version = "1.13.0"

[[platform.java21.dependency]]
groupId = "com.mysql"
artifactId = "mysql-connector-j"
version = "8.3.0"

[[tool.openapi]]
id = "inventory_api"
filePath = "./openapi/inventory.yaml"
targetModule = "inventory_client"
options.mode = "client"

Cloud.toml reference​

Cloud.toml configures cloud deployment settings for a Ballerina package, including Docker container images, Kubernetes resource limits, autoscaling, health probes, and configuration file mounting. Place this file in the package root alongside Ballerina.toml. All fields are optional; the compiler applies sensible defaults for any unspecified values.

Enable cloud artifact generation​

Set the cloud build option in Ballerina.toml to activate Cloud.toml processing:

[build-options]
cloud = "k8s" # Kubernetes + Docker artifacts

Alternatively, pass it as a CLI flag without modifying Ballerina.toml:

bal build --cloud=k8s     # Kubernetes + Docker
bal build --cloud=docker # Docker only

[container.image]​

Configures the Docker container image built during bal build.

[container.image]
repository = "wso2inc"
name = "order-service"
tag = "v1.2.0"
base = "ballerina/jvm-runtime:2.0"
user = { run_as = "ballerina" }
FieldTypeDefaultDescription
repositorystring""Docker registry or repository prefix (e.g., "docker.io/wso2inc", "ghcr.io/myorg").
namestringPackage nameContainer image name. Defaults to the Ballerina package name.
tagstring"latest"Image version tag.
basestringBallerina defaultBase image for the Dockerfile. Override to use a custom JVM runtime image.
user.run_asstring"ballerina"Non-root user the container process runs as.

[cloud.deployment]​

Defines Kubernetes deployment resource requests and limits.

[cloud.deployment]
min_memory = "256Mi"
max_memory = "512Mi"
min_cpu = "200m"
max_cpu = "1000m"
FieldTypeDefaultDescription
min_memorystring"100Mi"Minimum memory allocation (Kubernetes resource request).
max_memorystring"256Mi"Maximum memory limit (Kubernetes resource limit).
min_cpustring"500m"Minimum CPU allocation in millicores (Kubernetes resource request).
max_cpustring"500m"Maximum CPU limit in millicores (Kubernetes resource limit).

[cloud.deployment.autoscaling]​

Configures horizontal pod autoscaling.

[cloud.deployment.autoscaling]
min_replicas = 2
max_replicas = 5
cpu = 60
memory = 80
FieldTypeDefaultDescription
min_replicasint1Minimum number of pod replicas.
max_replicasint2Maximum number of pod replicas.
cpuint50Target CPU utilization percentage that triggers scaling.
memoryint80Target memory utilization percentage that triggers scaling.

[cloud.deployment.probes.liveness]​

Configures the Kubernetes liveness probe. The liveness probe restarts the container when it stops responding.

[cloud.deployment.probes.liveness]
port = 9091
path = "/probes/healthz"
initialDelaySeconds = 30
periodSeconds = 10
FieldTypeDefaultDescription
portintService portPort the liveness probe hits.
pathstring"/probes/healthz"HTTP path for the liveness check endpoint.
initialDelaySecondsint10Seconds to wait before the first probe after container start.
periodSecondsint10How often in seconds the probe is performed.

[cloud.deployment.probes.readiness]​

Configures the Kubernetes readiness probe. The readiness probe gates traffic to the container until it is ready to serve requests.

[cloud.deployment.probes.readiness]
port = 9091
path = "/probes/readyz"
initialDelaySeconds = 15
periodSeconds = 5
FieldTypeDefaultDescription
portintService portPort the readiness probe hits.
pathstring"/probes/readyz"HTTP path for the readiness check endpoint.
initialDelaySecondsint10Seconds to wait before the first probe after container start.
periodSecondsint10How often in seconds the probe is performed.

[[cloud.deployment.storage.volumes]]​

Declares persistent volume claims for stateful workloads.

[[cloud.deployment.storage.volumes]]
name = "data-volume"
mountPath = "/data"
readOnly = false
size = "5Gi"
FieldTypeRequiredDescription
namestringYesName of the persistent volume claim.
mountPathstringYesContainer path where the volume is mounted.
readOnlybooleanNoWhether the volume is mounted as read-only. Defaults to false.
sizestringNoRequested storage size (e.g., "1Gi", "500Mi").

[cloud.config]​

Controls how configuration files and secrets are injected into the container at runtime.

[[cloud.config.files]]​

Mounts local configuration files into the container as Kubernetes ConfigMaps.

[[cloud.config.files]]
file = "./Config.toml"

[[cloud.config.files]]
file = "./resources/datasource.toml"
FieldTypeRequiredDescription
filestringYesPath to the local configuration file to mount into the container.

[[cloud.config.secrets]]​

Mounts sensitive configuration as Kubernetes Secrets rather than ConfigMaps. Use this for files containing passwords, tokens, and API keys.

[[cloud.config.secrets]]
file = "./Secret.toml"
FieldTypeRequiredDescription
filestringYesPath to the local secret configuration file.

Complete example​

[container.image]
repository = "ghcr.io/wso2"
name = "order-service"
tag = "v1.2.0"

[cloud.deployment]
min_memory = "256Mi"
max_memory = "512Mi"
min_cpu = "200m"
max_cpu = "1000m"

[cloud.deployment.autoscaling]
min_replicas = 2
max_replicas = 10
cpu = 60

[cloud.deployment.probes.liveness]
port = 9091
path = "/probes/healthz"
initialDelaySeconds = 30
periodSeconds = 10

[cloud.deployment.probes.readiness]
port = 9091
path = "/probes/readyz"
initialDelaySeconds = 15
periodSeconds = 5

[[cloud.config.files]]
file = "./Config.toml"

[[cloud.config.secrets]]
file = "./Secret.toml"
