Govern APIs using API Designer

You can use API Designer to assess and improve your OpenAPI 3.x specification for AI readiness, design quality, and secure production use.

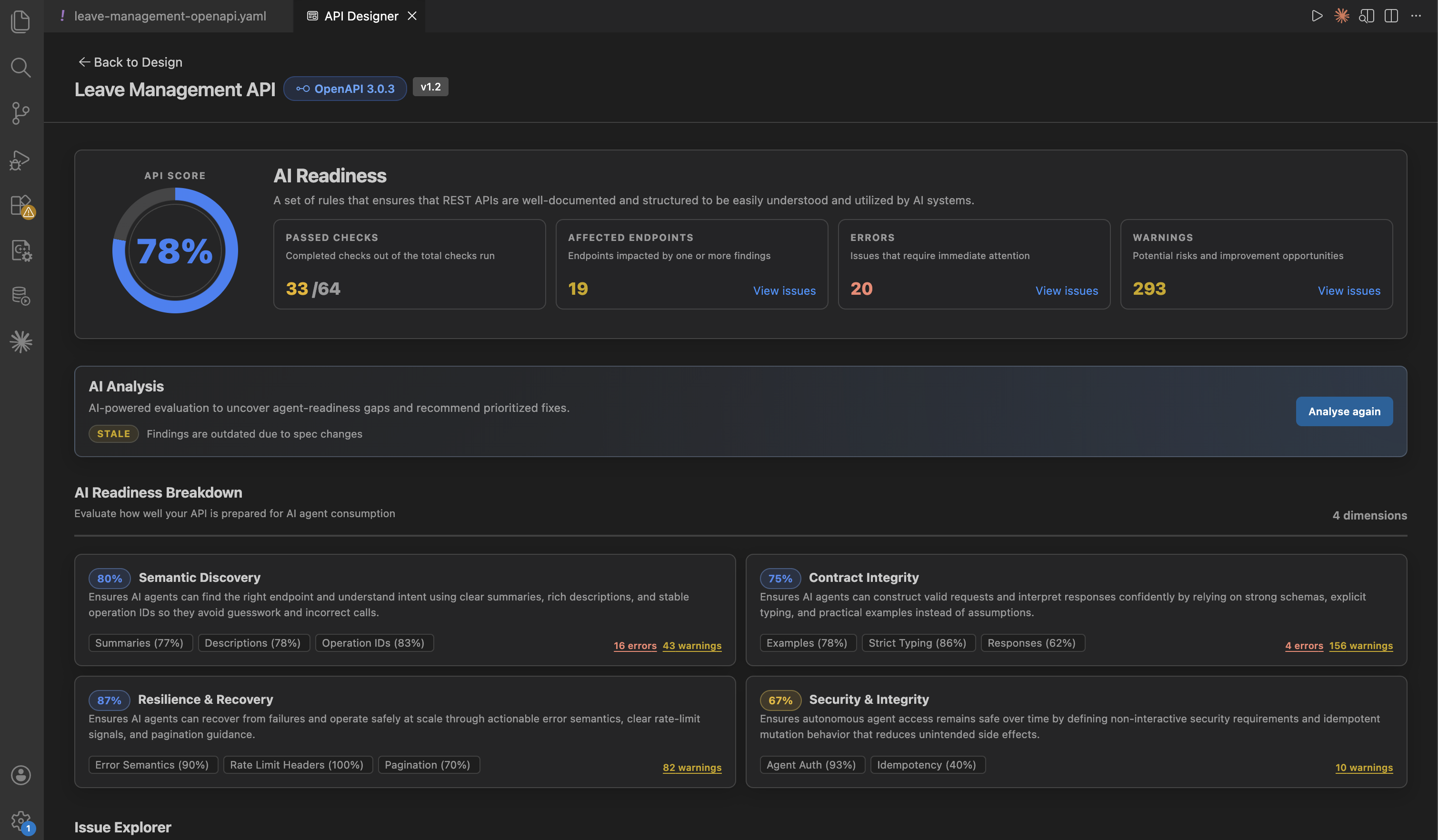

AI Readiness full report for Leave Management API showing 78% score, 33/64 passed checks, 19 affected endpoints, 20 errors, 293 warnings, and AI readiness breakdown by dimension

Why this matters

  • AI agents rely on clear descriptions, examples, and predictable API behavior.
  • Early governance helps you improve specification quality before publishing.

What you can review

API Designer applies governance checks using Spectral rulesets and AI. You can review:

  • Overall scores and summary metrics.
  • Category-level breakdown to quickly identify weak areas.
  • Violations grouped by rule, severity, or area of the specification.

Reports in API Designer

API Designer includes the following reports:

Report focus What it emphasizes
WSO2 REST API AI Readiness Guidelines Readiness for AI agents and automated clients
WSO2 REST API Design Guidelines REST design quality and consistency
OWASP API Security Top 10 API security best-practice checks

AI readiness first

AI readiness is a core governance area in API Designer. It helps you identify specification issues that block reliable agent usage.

Focus on these first:

  • Missing or weak operation ids, summaries and descriptions.
  • Incomplete request and response examples.
  • Ambiguous parameter or schema intent.
  • Contract gaps that reduce machine readability.

For each issue, review the provided details to understand what is wrong and why it affects agent behavior.

AI-assisted analysis (AI readiness)

For AI readiness, API Designer combines rule-based results with AI-assisted narrative analysis: not only what failed a rule, but why it matters for agents and tools (for example ambiguous descriptions, weak examples, or gaps that cause wrong calls).

You can run AI analysis on demand and get AI feedback to improve your specification.

How to fix findings

You can resolve findings using:

  1. GitHub Copilot Chat with the api-design skill
    Use this for targeted fixes or rule-driven remediation.
  2. Form-based editing in Design
    Use this for precise changes to operations, parameters, responses, and schemas.

Important

  • Some fixes are breaking (for example path renames). Treat those as API versioning decisions, not silent edits.
  • Security items may require real URLs, policies, or auth server metadata—do not invent production values with AI.

Custom rulesets and overrides

By default, API Designer runs the three bundled Spectral rulesets listed above. You can point it at a ruleset folder instead, either to override individual rules or to replace a report's rules entirely. Configure this from the settings user interface (UI), or by editing settings.json directly.

Using the Settings UI:

  1. Open Settings: press Ctrl+, (Cmd+, on macOS). You can also open the Command Palette (Ctrl+Shift+P / Cmd+Shift+P) and run Preferences: Open Settings (UI).
  2. Search for apiDesigner.spectral.rulesetFolder.
  3. Choose the User tab to apply the setting across all of VS Code, or the Workspace tab to scope it to the current project.
  4. Enter a GitHub folder URL (for example https://github.com/<org>/<repo>/tree/main/<path>) or an absolute local directory path. API Designer rescans the folder automatically.

Using settings.json:

  1. Open the Command Palette (Ctrl+Shift+P / Cmd+Shift+P).
  2. Run Preferences: Open User Settings (JSON) for a setting shared across all of VS Code, or Preferences: Open Workspace Settings (JSON) to scope it to the current project.
  3. Add the setting:
{
  "apiDesigner.spectral.rulesetFolder": "https://github.com/<org>/<repo>/tree/main/<path>"
}

Use the Workspace option (.vscode/settings.json) when different projects need different ruleset folders. Otherwise, a single User-level setting applies to every workspace you open.

Start from the bundled rulesets. The simplest way to build a custom ruleset is to copy WSO2's bundled ones and customize them: WSO2 bundled Spectral rulesets.

Name your file to match the report you're overriding:

Report Required filename
WSO2 REST API AI Readiness Guidelines ai-readiness.yaml
OWASP API Security Top 10 owasp_top_10.yaml
WSO2 REST API Design Guidelines wso2_rest_api_design_guidelines.yaml

Overriding an existing rule vs. adding a new one: editing an existing rule works correctly across all three reports. If you want to add new rules to OWASP, use the same format as the bundled rules—owasp:apiN:2023-<description> (for example owasp:api1:2023-custom-check)—so they're categorized correctly. For REST API Design Guidelines, new rules are grouped under a general Others category instead of a specific theme. We recommend against adding new rules to AI Readiness, since that report doesn't support them.

If a custom ruleset fails to load or parse, API Designer shows a warning. It then falls back to the bundled default for that report, so analysis is never blocked.

Debugging ruleset failures

If a report unexpectedly shows the bundled default instead of your custom ruleset, check the API Designer output channel for the underlying error:

  1. Open the Command Palette (Ctrl+Shift+P / Cmd+Shift+P) and run View: Toggle Output. You can also use View > Output from the menu.
  2. In the output panel's channel dropdown (top right), select API Designer.
  3. Re-run analysis and look for a [Governance] or [Spectral] log line describing the failure. For example, a YAML (YAML Ain't Markup Language) parse error, a missing rules property, or a 401 or 403 error on a private GitHub folder.

Fix the reported issue in your ruleset file. For a 401 or 403 on a private GitHub folder, check your GitHub sign-in and repository access. Then re-run analysis to confirm the custom ruleset now loads.
