Manage Integrations

An integration in ICP represents a deployable Ballerina or MI application that runs in one or more environments. Each integration belongs to a project and is the primary unit for viewing logs, metrics, and runtime status in the ICP console. This page guides you through creating integrations and navigating the integration home.

Create an integration

1. Navigate to a project's home page.

2. Click + Create Integration. The Create New Integration form opens.

   Field	Required	Description
   Display Name	Yes	Human-readable name shown in the console (e.g. Order Create)
   Name	Auto	URL-safe slug derived from the display name. Click the edit icon to override.
   Description	No	Optional free-text description of the integration
   Technology	Yes	WSO2 Integrator (default profile, Ballerina) or WSO2 Integrator: MI (Micro Integrator). Defaults to WSO2 Integrator.
   Integration Type	No	What the integration does: Integration as API, Automation, Workflow, File Integration, Event Integration, AI Agent, or MCP Server. Workflow is available only for WSO2 Integrator.

3. Click Create.

ICP opens the new integration's overview.

Edit an integration

1. On the project home, click the Edit icon on the integration's row.
2. Update the Display Name, Integration Type, or Description. The Name and Technology cannot be changed.
3. Click Save.

Delete an integration

1. On the project home, click the Delete icon on the integration's row.
2. Type the integration's display name to confirm, then click Delete.

You can only delete an integration that has no registered runtimes. Delete its runtimes first (see Manage runtimes). This action cannot be undone.

Integration home

The integration overview shows one environment card per environment. Each card displays:

• Environment name and a badge showing how many runtimes are active (e.g. 1/1 Active or 0/1 Active).
• View Runtimes, a refresh icon to reload runtime status, and a Settings icon.
• An Endpoint selector listing the services and automations exposed by the integration. For a selected service, the card shows its resources and the listeners it is attached to.
• For MI integrations, Entry Points and Supporting Artifacts tabs.
• + Add Runtime link when no runtimes are registered yet.

When no runtimes are connected, the card shows: "No entry points found for this integration. Add runtime to get started."

Integration sidebar

The sidebar changes to integration scope when you navigate into an integration:

Item	Description
Overview	Environment cards with entry points and runtime status
Test	Send test requests to the integration's services. Not shown for workflow integrations.
Runtimes	Runtime instances connected to this integration
Workflows	Workflows and executions for this integration. Shown only for workflow integrations.
Human Tasks	Human tasks for this integration's workflows. Shown only for workflow integrations.
Logs	Integration-specific logs from connected runtimes
Loggers	Configure log levels per runtime
Metrics	Per-integration request metrics and latency data
Access control	Role assignments scoped to this integration

Runtimes

The Runtimes page groups runtime instances by environment. Each environment section shows a search bar, a refresh icon, and a runtime table:

Column	Description
Runtime Name	Display name assigned when connecting the runtime
Runtime ID	Unique identifier (UUID)
Type	WSO2 Integrator (default profile) or WSO2 Integrator: MI
Status	RUNNING or OFFLINE
Version	Runtime version
Platform	Ballerina runtime version (e.g. Ballerina 2201.13.4 (Swan Lake Update 13))
OS	Operating system of the host machine
Registration time	When the runtime first connected to ICP
Last heartbeat	Timestamp of the most recent heartbeat received
Actions	Delete icon to remove the runtime, available only when the runtime is OFFLINE

Logs

The Logs page shows runtime log entries when both a connected runtime and an observability provider are configured. See Observability setup to enable this.

When operational, the page provides:

• Filtering: Environment, log level (INFO, WARN, ERROR, DEBUG), time range, and a keyword search bar
• Display controls: Sort order (Newest first / Oldest first), auto-fetch toggle for automatic reload, and an entry count showing how many entries are loaded
• Actions: Refresh button for manual reload and a download button to export log entries
• Log entries: Each entry shows a timestamp, level, and message

Loggers

The Loggers page lets you change the log level of a running Ballerina integration without restarting it. Loggers are grouped by environment, and each row is a logger reported by the connected runtimes, such as the root logger, with its current log level.

Column	Description
Component Name	Name of the logger (e.g. root)
Log Level	Current log level: DEBUG, INFO, WARN, or ERROR

Change the log level

1. Navigate to Loggers in the integration sidebar.
2. Find the environment section for the environment you want to update.
3. In the Log Level column, click the dropdown next to the component and select a new level.

The change is applied immediately to all runtimes connected to that integration in the selected environment. A spinner appears next to the dropdown while the update propagates. Once the runtimes acknowledge the new level, the spinner clears.

The available log levels for Ballerina integrations are:

Level	When to use
DEBUG	Verbose output for troubleshooting; logs all detail including internal state
INFO	Standard operational messages; recommended for normal production use
WARN	Potentially harmful situations that do not cause a failure
ERROR	Error events that may still allow the integration to continue running

Click View Runtimes on any logger row to see which runtime IDs are receiving log level commands for that component.

Metrics

The Metrics page shows request performance data when both a connected runtime and an observability provider are configured. See Observability setup to enable this.

When operational, the page provides:

• Summary cards: Total Requests, Error Count, Error Percentage, and P95 Latency
• Overview charts: Requests Per Minute and Request Latency (average, P50, P95, P99)
• Most Used APIs: Table with per-endpoint request counts, error counts, and average response times
• Statistics of APIs: Section with an API filter dropdown, showing Requests Per Minute, Average Request Latency, Successful Requests by API, and Failed Requests by API charts

Listeners

Ballerina listeners (HTTP, TCP, and other transport listeners) appear on the integration Overview, under the service they are attached to. Each listener row shows its name, protocol, host and port, and its state (Enabled or Disabled). You can start or stop individual listeners directly from the console, which sends a control command to all runtimes running that listener in the selected environment.

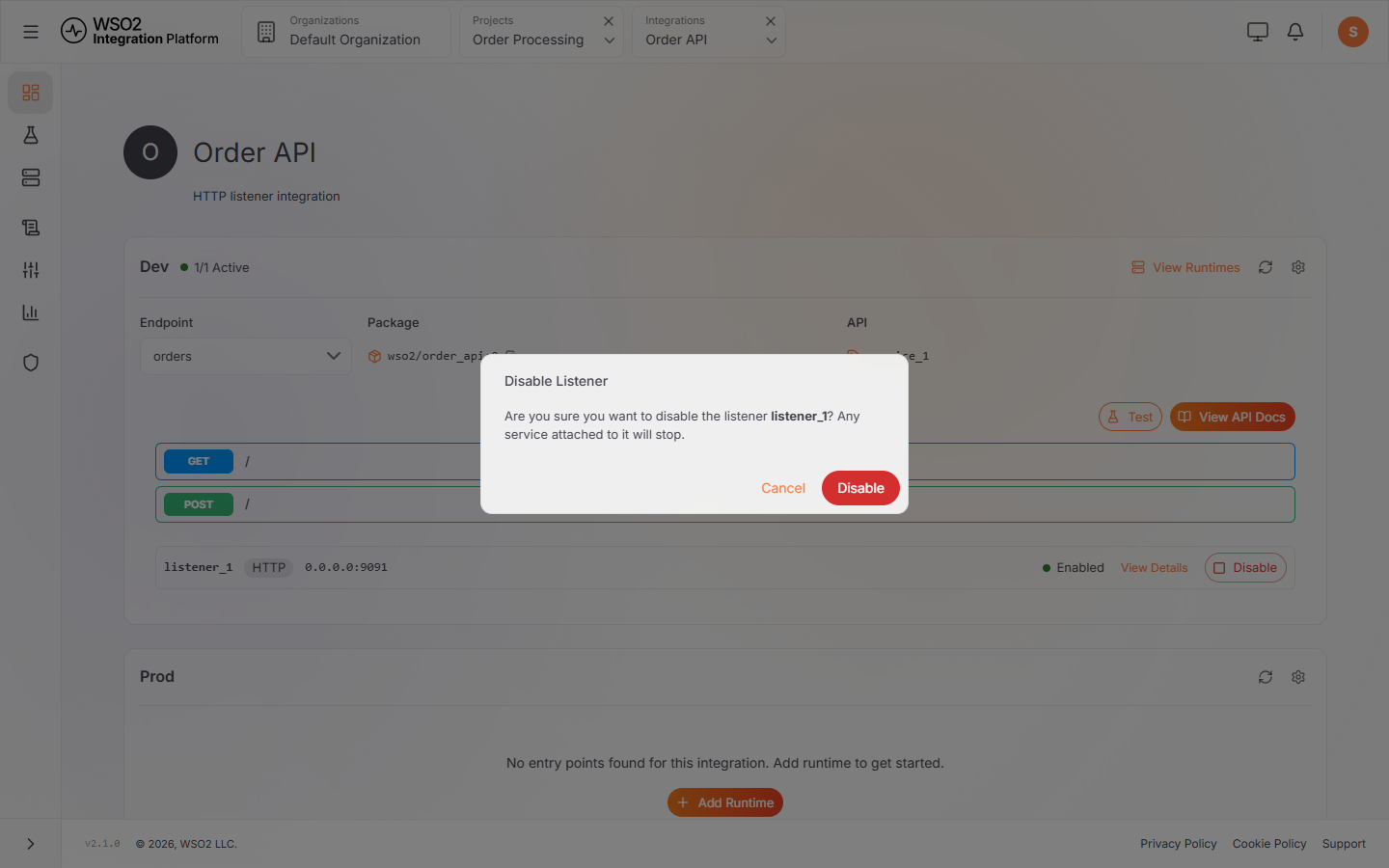

Start or stop a listener

1. Open the integration and go to Overview.
2. In the environment card, select the service in the Endpoint selector.
3. On the listener row, click Disable or Enable. To see the listener's details, click View Details.
4. A confirmation dialog appears. Click Disable or Enable to confirm.

ICP sends a START or STOP command to every runtime associated with the listener. The listener state updates to Enabled or Disabled once the runtimes acknowledge the command.

Detail field	Description
Package	Module that provides the listener (e.g. ballerina/http:2)
Protocol	Transport protocol (e.g. HTTP, TCP)
Host	Hostname the listener is bound to
Port	Port the listener is bound to

What's next

• Connect an integration to ICP — register a runtime to start sending heartbeats and status updates
• Observability setup — enable centralized logs and metrics for connected runtimes
• Manage runtimes — view and manage runtime instances across integrations
