OpenAPI Tool

The bal openapi tool bridges OpenAPI specifications and Ballerina code. It generates type-safe Ballerina service stubs and client connectors from OpenAPI (Swagger) YAML or JSON files, and can also export an OpenAPI specification from an existing Ballerina service. This keeps your integrations aligned with the API contract and removes the need to write boilerplate code.

Generating a Ballerina service from OpenAPI

Create a service skeleton that matches an OpenAPI specification. The generated code includes resource functions, request/response types, and validation constraints.

Visual Designer

1. In the canvas, click + Add Artifact (or Add Artifact manually if the integration has no artifacts yet), or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select HTTP Service under Integration as API.

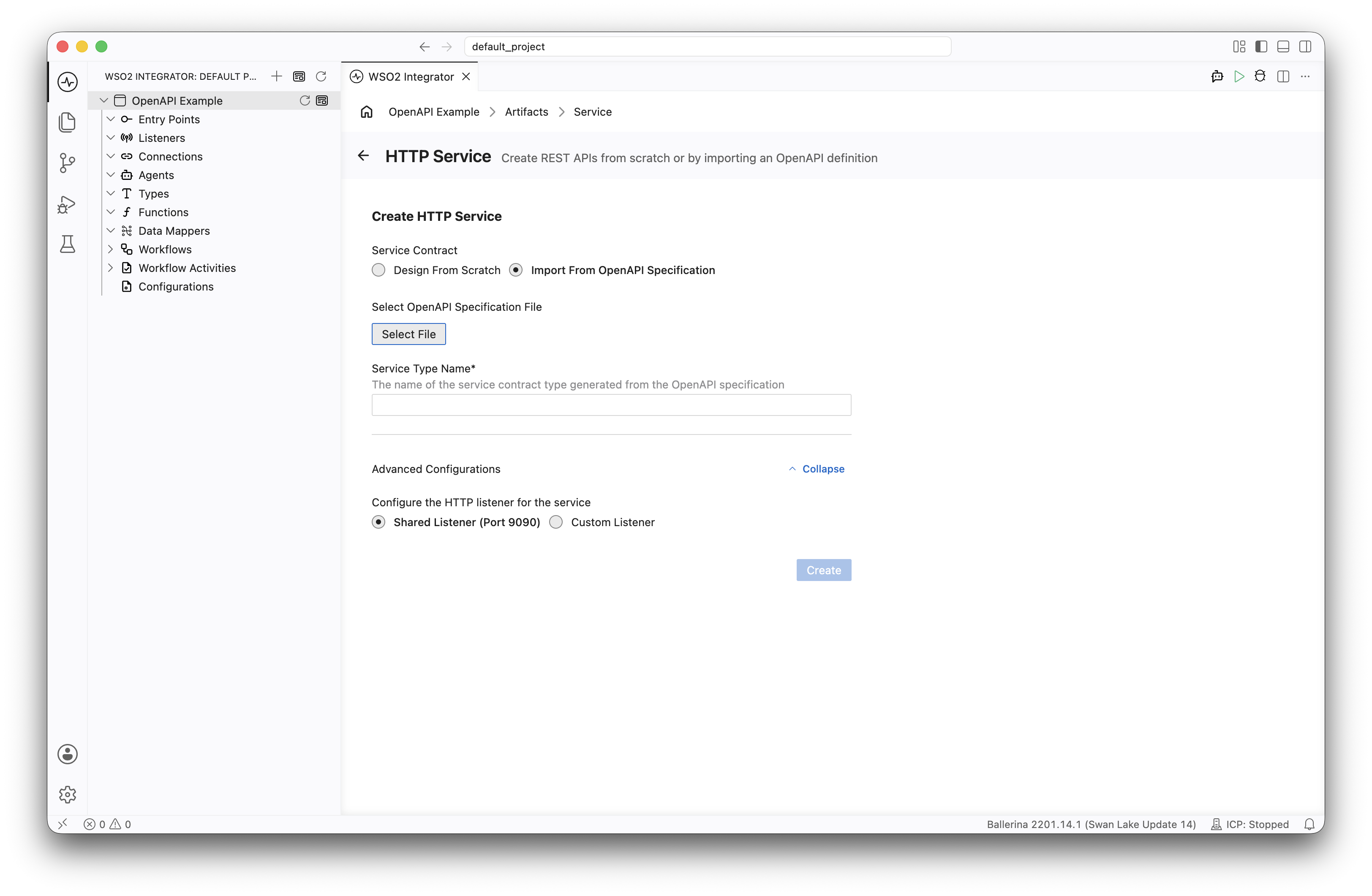

3. Select Import From OpenAPI Specification under Service Contract.



4. Click Select File and choose your OpenAPI specification file (YAML or JSON).

5. Enter a Service Type Name. Optionally, expand Advanced Configurations to choose between the Shared Listener (Port 9090) and a Custom Listener.

6. Click Create.

7. WSO2 Integrator generates the service with resource function stubs, request/response types, and validation constraints matching your OpenAPI specification.

Ballerina Code

Basic service generation

# Generate a service stub from an OpenAPI spec
bal openapi -i openapi.yaml --mode service

# Generate a service contract type from an OpenAPI spec
bal openapi -i openapi.yaml --mode service --with-service-contract

Generated service structure

For an OpenAPI spec defining a /orders resource, the tool generates:

project/
├── service_contract.bal    # Service contract type with resource function definitions
├── types.bal               # Request/response record types

The generated service contract file contains a service type with resource functions that match each OpenAPI operation:

import ballerina/http;

@http:ServiceConfig {basePath: "/api"}
type OASServiceType service object {
    *http:ServiceContract;

    // GET /orders
    resource function get orders(string? status, int 'limit = 20)
            returns Order[]|http:InternalServerError;

    // POST /orders
    resource function post orders(OrderRequest payload)
            returns http:Created|http:BadRequest;

    // GET /orders/{orderId}
    resource function get orders/[string orderId]()
            returns Order|http:NotFound;
};

The generated types file includes record definitions derived from the OpenAPI schemas:

// Auto-generated from OpenAPI schema definitions
type Order record {|
    string id;
    string customerId;
    LineItem[] items;
    decimal total;
    "PENDING"|"CONFIRMED"|"SHIPPED" status;
|};

type OrderRequest record {|
    string customerId;
    LineItem[] items;
|};

type LineItem record {|
    string productId;
    int quantity;
    decimal unitPrice;
|};

To implement the service, attach the generated service contract type to an HTTP listener and implement each resource function:

import ballerina/http;

listener http:Listener httpDefaultListener = http:getDefaultListener();

service OASServiceType on httpDefaultListener {

    // GET /orders
    resource function get orders(string? status, int 'limit = 20)
            returns Order[]|http:InternalServerError {
        // TODO: Implement logic
    }

    // POST /orders
    resource function post orders(OrderRequest payload)
            returns http:Created|http:BadRequest {
        // TODO: Implement logic
    }

    // GET /orders/{orderId}
    resource function get orders/[string orderId]()
            returns Order|http:NotFound {
        // TODO: Implement logic
    }
}

Generating a Ballerina client from OpenAPI

Create a type-safe HTTP client that wraps all API operations defined in the spec.

Visual Designer

1. In the canvas, click + Add Artifact (or Add Artifact manually if the integration has no artifacts yet).

2. In the Artifacts panel, select Connection under Other Artifacts.

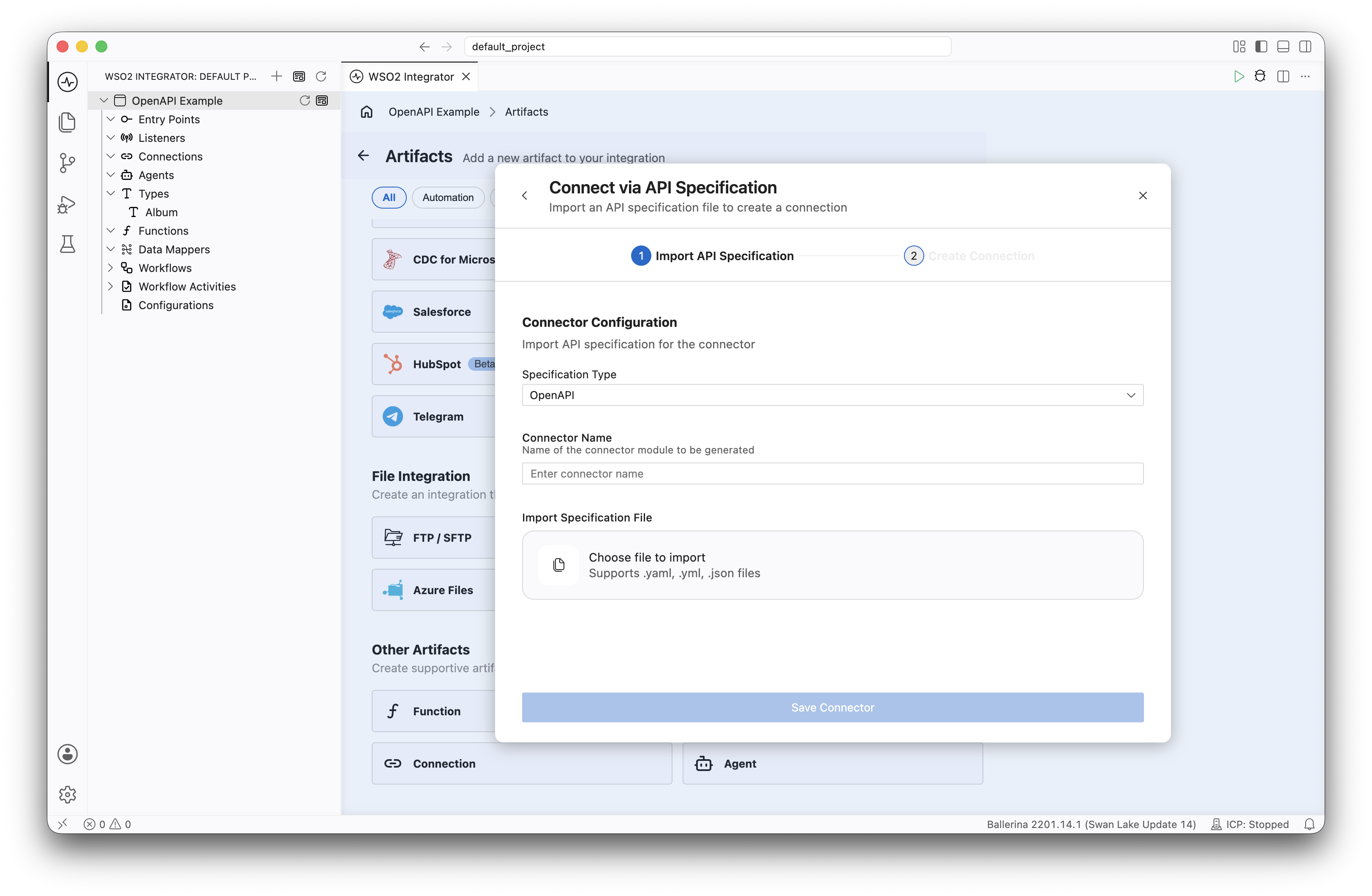

3. Select Connect via API Specification. In the Import API Specification step, keep Specification Type as OpenAPI, enter a Connector Name, choose your OpenAPI specification file under Import Specification File, and click Save Connector.

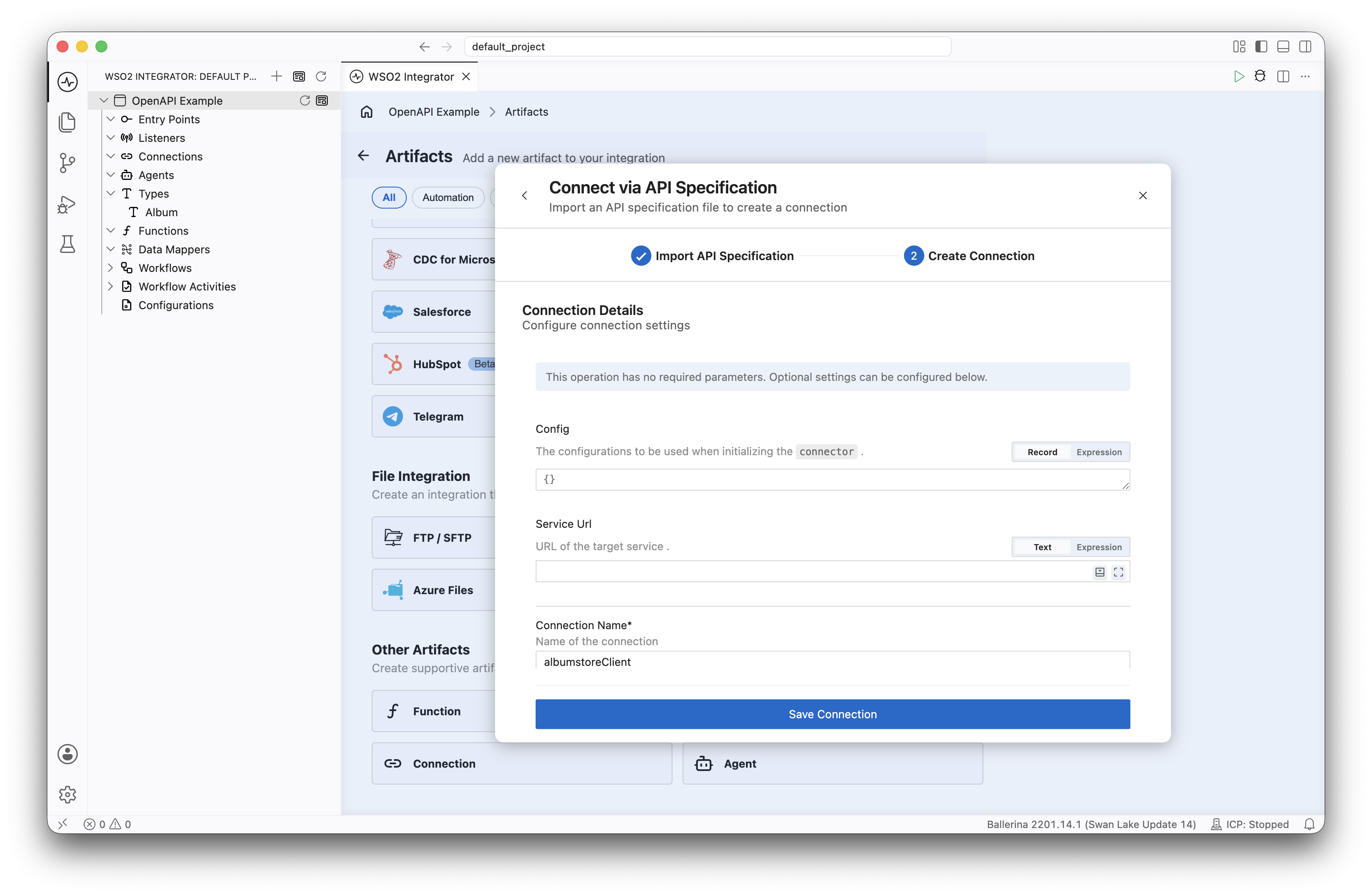

4. In the Create Connection step, configure the optional connection settings:

   • Config: The configurations to use when initializing the connector.
   • Service Url: URL of the target service.


5. Enter a Connection Name for the generated client (for example, openapiClient).

6. Click Save Connection.

7. WSO2 Integrator generates a type-safe client connector with methods matching each API operation.

Ballerina Code

Basic client generation

# Generate a client connector
bal openapi -i openapi.yaml --mode client

# Generate client with remote methods
bal openapi -i openapi.yaml --mode client --client-methods remote

Using the generated client

import ballerina/http;

configurable string apiUrl = ?;
configurable string apiKey = ?;

final Client orderClient = check new (apiUrl, {
    httpVersion: http:HTTP_1_1,
    customHeaders: {"X-API-Key": apiKey}
});

function getOrders(string? status) returns Order[]|error {
    // The client method name matches the operationId from the spec
    return orderClient->getOrders(status = status);
}

function createOrder(OrderRequest req) returns Order|error {
    return orderClient->createOrder(req);
}

Generating both service and client

# Generate service and client together
bal openapi -i openapi.yaml

# This creates both:
#   openapi_service.bal  -- Service stub
#   client.bal           -- Client connector
#   types.bal            -- Shared types

Exporting OpenAPI from a Ballerina service

Generate an OpenAPI specification from an existing Ballerina HTTP service:

Visual Designer

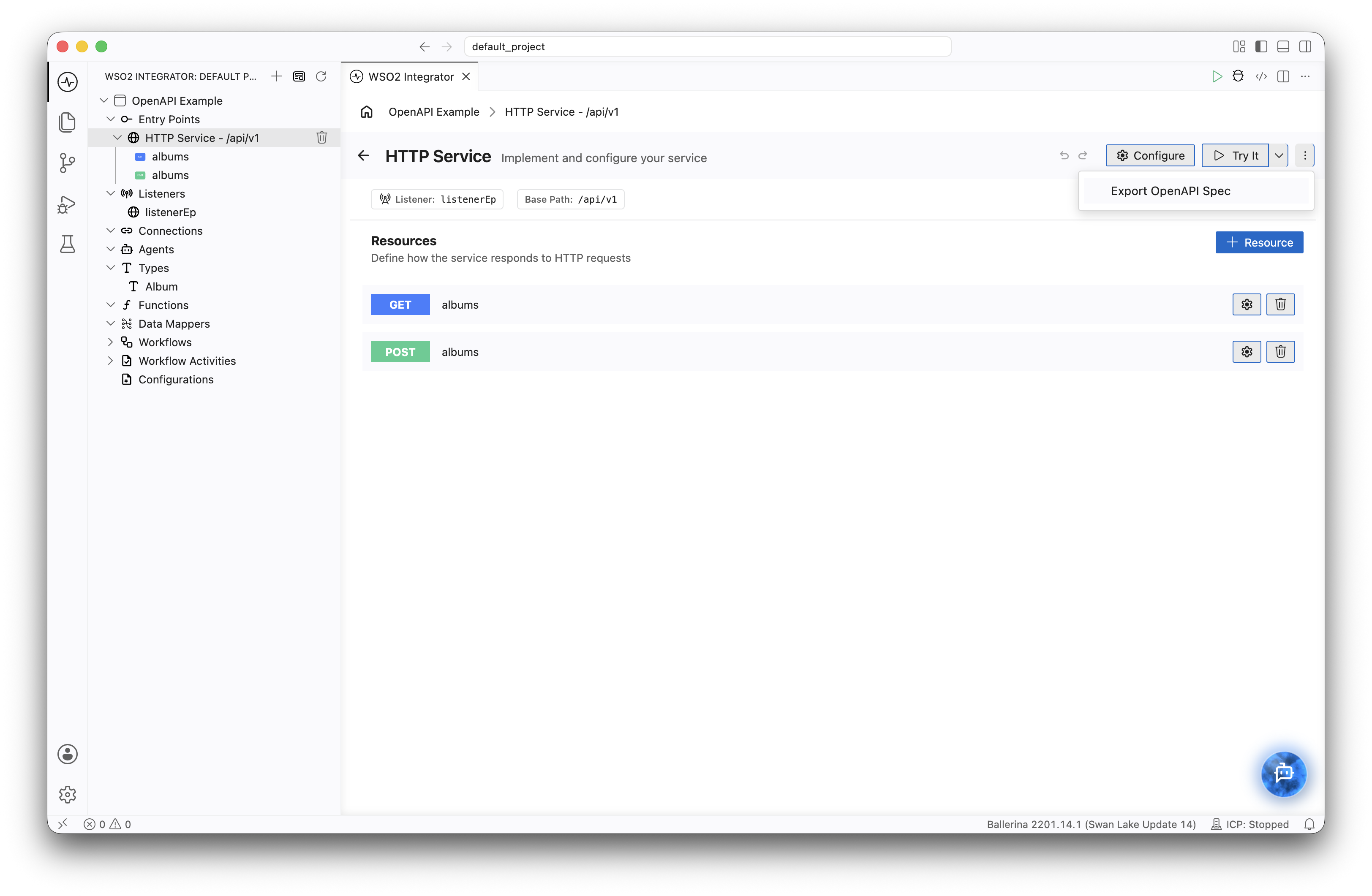

1. Open the HTTP service in the Service Designer.

2. Click the ⋮ (more options) icon in the service header.

3. Select Export OpenAPI Spec.



4. Choose the folder to save the specification in, and click Select OAS Save Location.

Ballerina Code

# Export OpenAPI spec from a Ballerina project
bal openapi -i service.bal

# Export as a JSON file
bal openapi -i service.bal --json

# Export to a specific file
bal openapi -i service.bal -o api-spec/

Given this service:

service /api on new http:Listener(8090) {
    resource function get orders() returns Order[]|error { ... }
    resource function post orders(OrderRequest req) returns Order|http:BadRequest|error { ... }
    resource function get orders/[string id]() returns Order|http:NotFound|error { ... }
}

The tool produces an OpenAPI YAML describing the paths, request/response schemas, and status codes.

Command reference

Generate flags

bal openapi -i <openapi-spec-path> [options]

Flag	Alias	Required	Default	Description
-i, --input	—	Yes	—	Path to the OpenAPI specification file (YAML or JSON)
--mode	—	No	Both	Generation mode: client, service, or omit for both
-o, --output	—	No	Current directory	Output directory for generated files
--tags	—	No	All tags	Comma-separated list of tags to include
--operations	—	No	All operations	Comma-separated list of operation IDs to include
--nullable	—	No	false	Generate nullable types for optional fields
--client-methods	—	No	resource	Client method type: resource or remote
--with-tests	—	No	false	Generate test skeletons for the client or service
--with-service-contract	—	No	false	Generate a service contract type for compile-time service validation
--license	—	No	—	Path to a license header file to include in generated files
--status-code-binding	—	No	false	Generate status-code-specific return types
--single-file	—	No	false	Generate all types and client/service in a single file

Export flags

bal openapi -i <ballerina-service-file> [options]

Flag	Required	Default	Description
-s, --service	No	All services	Base path of the service to export
-o, --output	No	Current directory	Output directory for the specification file
--json	No	false	Export in JSON format (default is YAML)

Customizing generated code

Filtering by tags or operations

# Generate only order-related operations
bal openapi -i openapi.yaml --mode service --tags orders

# Generate specific operations
bal openapi -i openapi.yaml --mode client --operations getOrders,createOrder

Handling nullable fields

# Treat all optional fields as nullable
bal openapi -i openapi.yaml --nullable

Workflow examples

Connecting to an external API

If the API provider supplies an OpenAPI spec, generate a type-safe client from it. The tool derives the endpoints, operations, and request/response types from the spec, so you don't have to define them manually as you would with a generic HTTP connector.

1. Obtain the OpenAPI spec from the API provider.
2. Generate the client: bal openapi -i partner-api.yaml --mode client
3. Use the generated client and types in your integration logic.

Contract-first service design

Design your API as an OpenAPI spec first, then generate service stubs from it. The generated service contract type is validated at compile time, so your implementation can't drift from the agreed contract.

1. Author your OpenAPI spec.
2. Generate service stubs: bal openapi -i my-api.yaml --mode service --with-service-contract
3. Implement the generated resource functions.

Publishing your API

Once your service is built, export its OpenAPI specification and share it with consumers. They can then use it to generate their own type-safe clients, just as you would when connecting to an external API.

1. Export the spec from your service: bal openapi -i service.bal
2. Share the generated spec with your API consumers.

OpenAPI to Ballerina type mapping

OpenAPI type	OpenAPI format	Ballerina type
string	—	string
string	date	string
string	date-time	string
string	byte	byte[]
string	binary	byte[]
integer	int32	int
integer	int64	int
number	float	float
number	double	decimal
boolean	—	boolean
array	—	T[]
object	—	record {}
oneOf	—	Union type
allOf	—	Type inclusion
