Test GraphQL Service

The Try-It tool for GraphQL services opens a built-in GraphiQL editor where you can browse your schema, write queries and mutations, and execute them against your running service. Use it during development to verify your GraphQL operations before writing automated tests.

Open the GraphiQL editor​

  1. Run the integration by selecting the play button.
  2. After the integration starts, a popup appears asking whether you want to open the Try-It panel. Select Yes.
  3. If the popup does not appear, open the Command Palette (Cmd+Shift+P on macOS, Ctrl+Shift+P on Windows/Linux), type Try It, and select the command. Choose the correct service and port from the list.

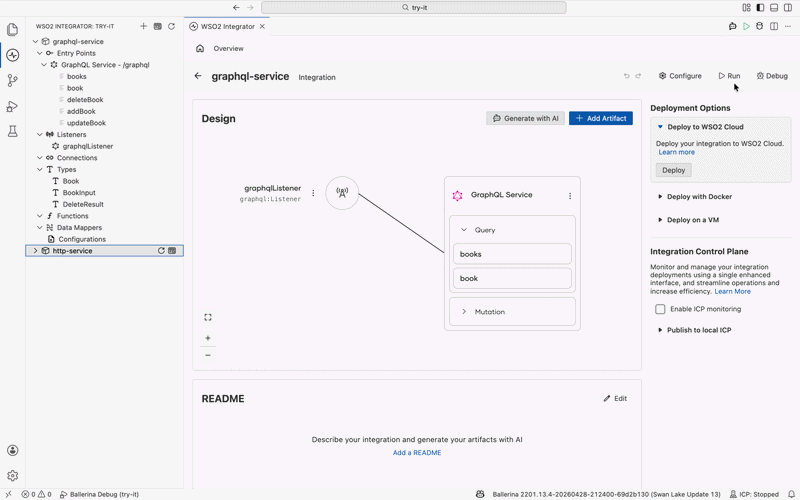

GraphQL Try-It showing the full flow from opening the editor to executing a query

The GraphiQL editor​

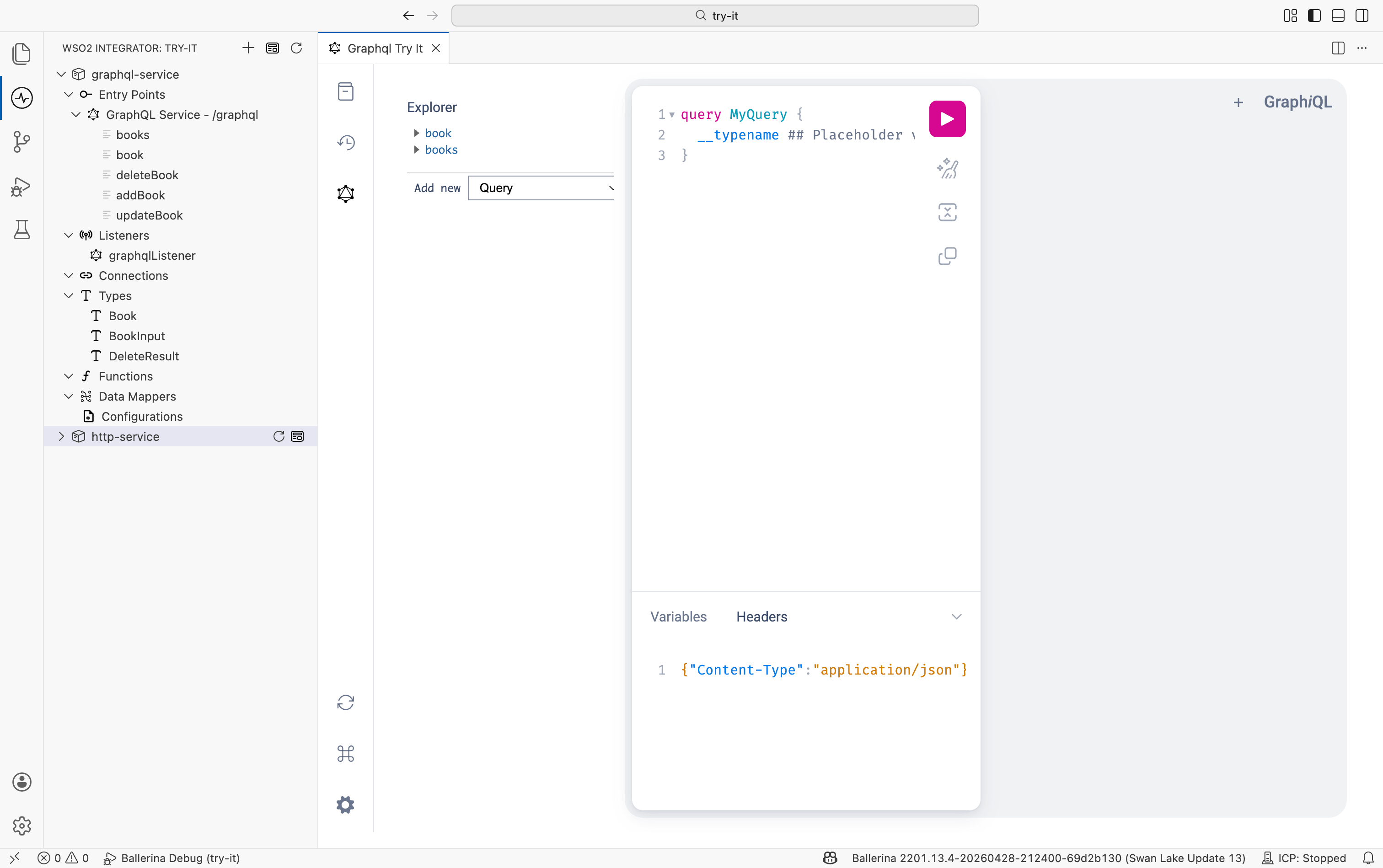

GraphiQL editor with Explorer, query editor, Variables and Headers tabs

The editor is divided into three areas:

Explorer​

The Explorer panel on the left lists every query, mutation, and subscription available in your service's schema. Expand a node to see its fields and select fields to automatically add them to the query editor. This is the fastest way to discover what your service exposes without reading the schema manually.

At the bottom of the Explorer you can select Add new and choose a type (Query, Mutation, or Subscription) to scaffold a new operation in the editor.

Query editor​

The center editor is where you write or review your GraphQL operations. Three action icons appear on the right side of the editor:

IconAction
PrettifyFormats and re-indents the query for readability.
MergeMerges query fragments into a single operation.
CopyCopies the current query to the clipboard.

Select the pink play button at the top right of the editor to execute the query against the running service.

Variables and headers​

The bottom panel has two tabs:

  • Variables: pass input values for parameterized queries and mutations in JSON format, for example {"id": 1}.
  • Headers: add or override request headers such as Authorization or Content-Type.
note

The Explorer may show No Schema Available if schema introspection is disabled in your service configuration. You can still write and execute queries manually in the query editor.
