Persist Tool

The bal persist tool generates type-safe client APIs for data persistence across multiple data stores. You define your data model using Ballerina record types, and the tool generates the client code to perform CRUD operations without writing store-specific queries.

Supported data stores

Data store	Module
In-memory tables	Built-in
MySQL	ballerinax/persist.sql
PostgreSQL	ballerinax/persist.sql
MSSQL	ballerinax/persist.sql
Google Sheets	ballerinax/persist.googlesheets
Redis	ballerinax/persist.redis

Connect to a database

Visual Designer

The Visual Designer provides a guided wizard to connect to an existing database, introspect its tables, and generate a type-safe connection.

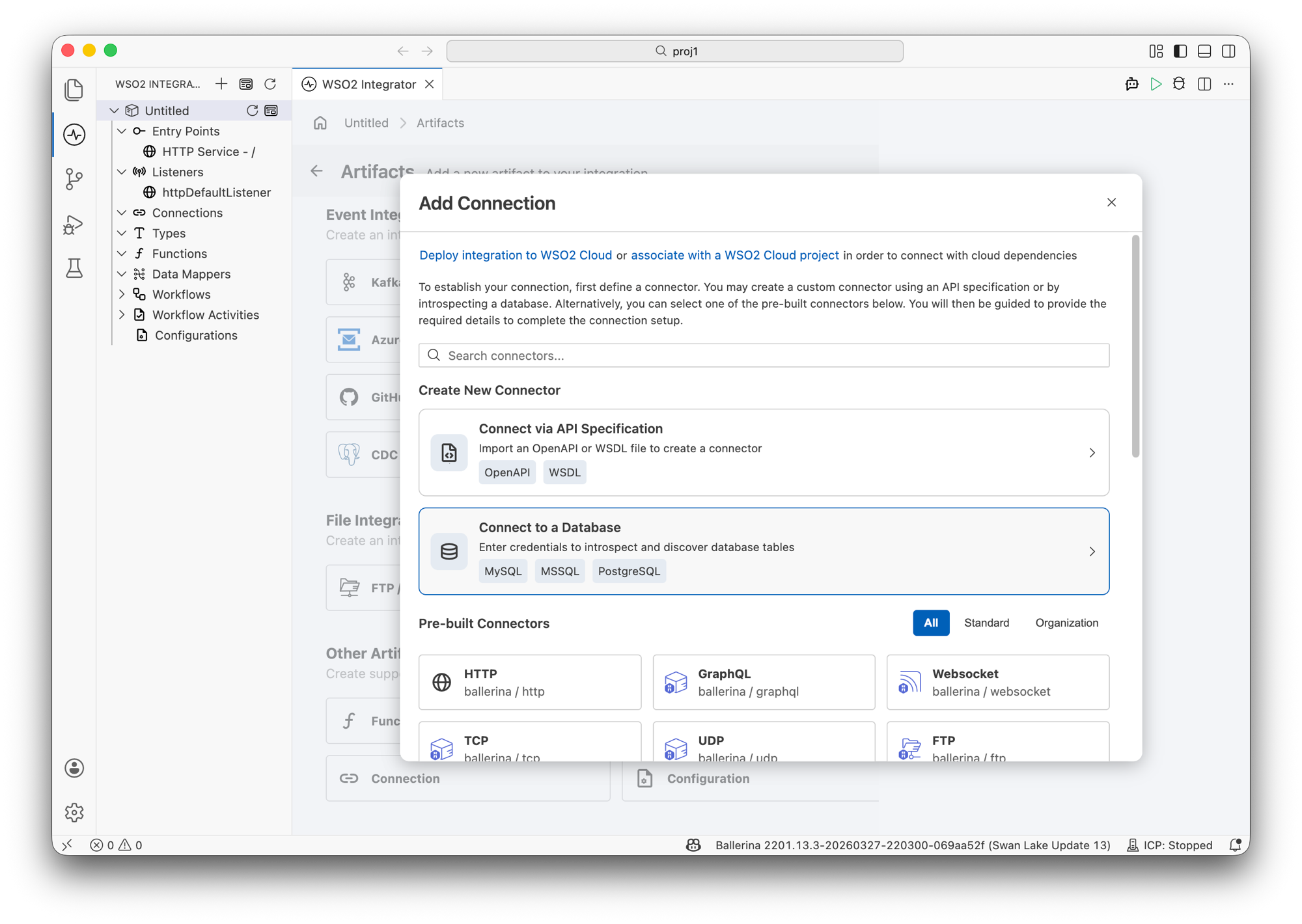

Step 1: Add a connection

1. In the Artifacts page, click Connection under Other Artifacts.

2. In the Add Connection panel, select Connect to a Database. The supported database systems are MySQL, MSSQL, and PostgreSQL.

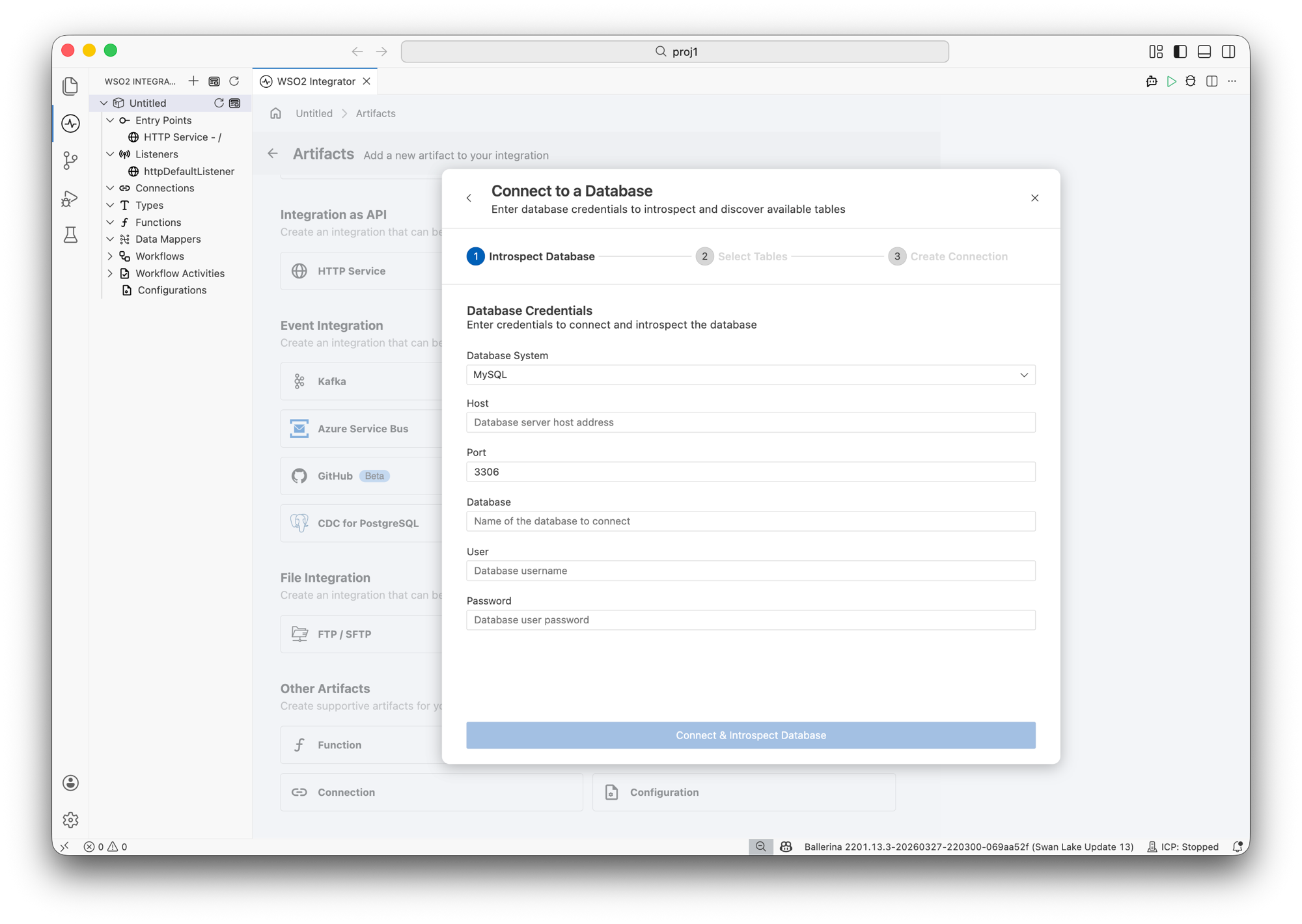

Step 2: Introspect database

1. Select the Database System (MySQL, MSSQL, or PostgreSQL).

2. Enter the database credentials:

   • Host — Database server host address.
   • Port — Database server port (for example, 3306 for MySQL).
   • Database — Name of the database to connect.
   • User — Database username.
   • Password — Database user password.

3. Click Connect & Introspect Database.

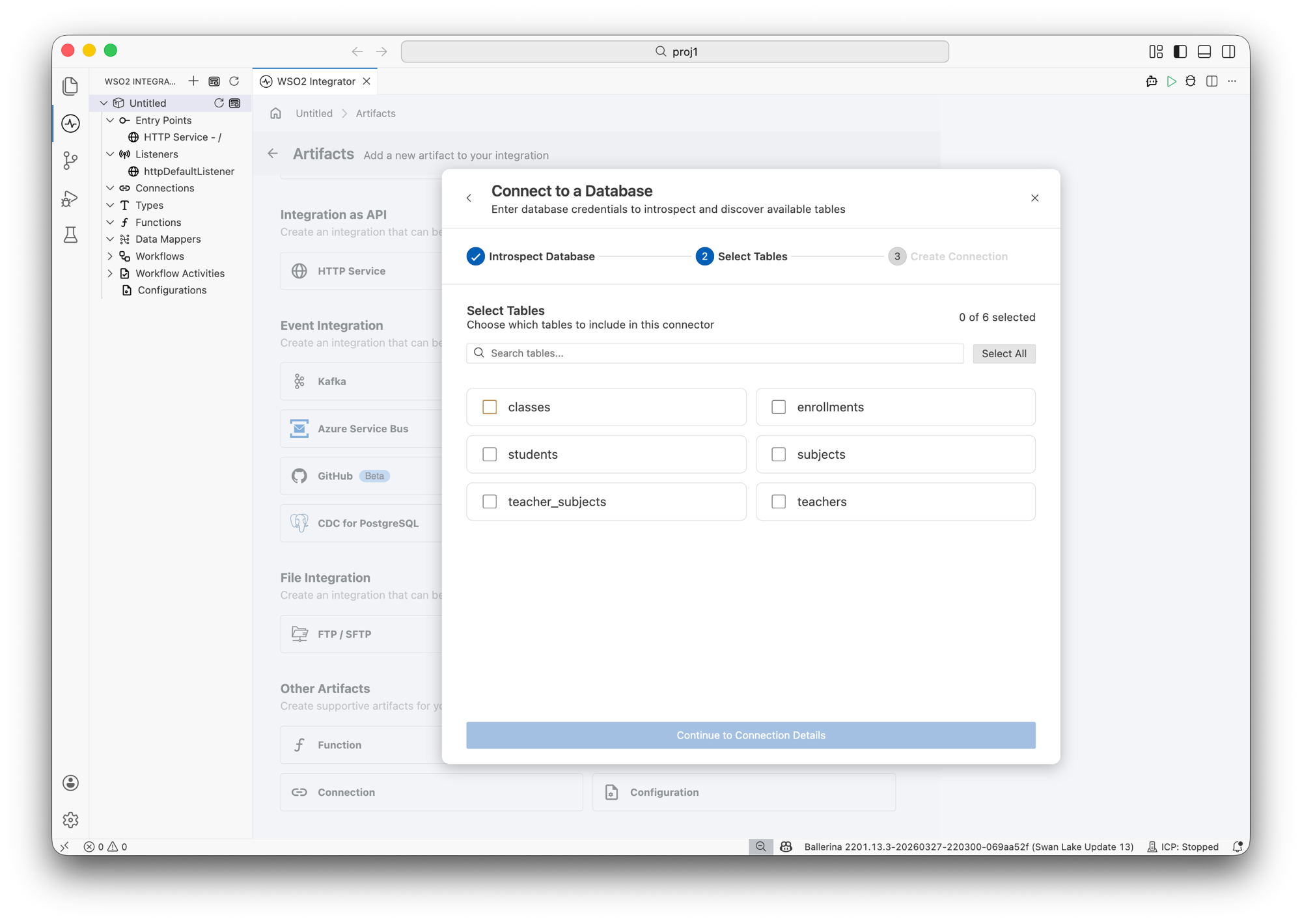

Step 3: Select tables

1. Choose which tables to include in this connector. You can search for tables or click Select All.

2. Click Continue to Connection Details.

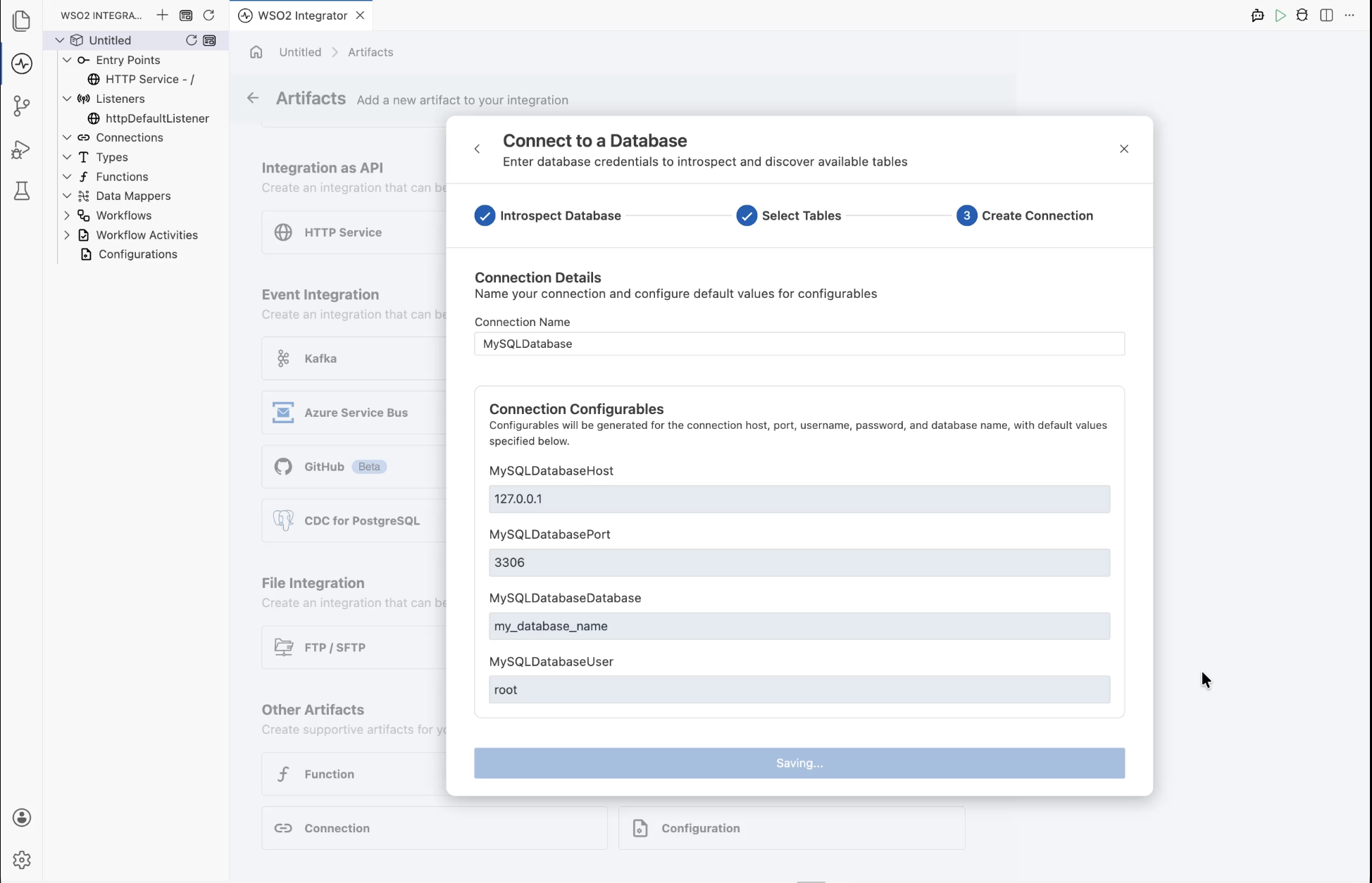

Step 4: Create connection

1. Enter a Connection Name (for example, MySQLDatabase).

2. Review the Connection Configurables — configurable variables are generated for the connection host, port, username, password, and database name with default values.

3. Click Save.



Working with the connection

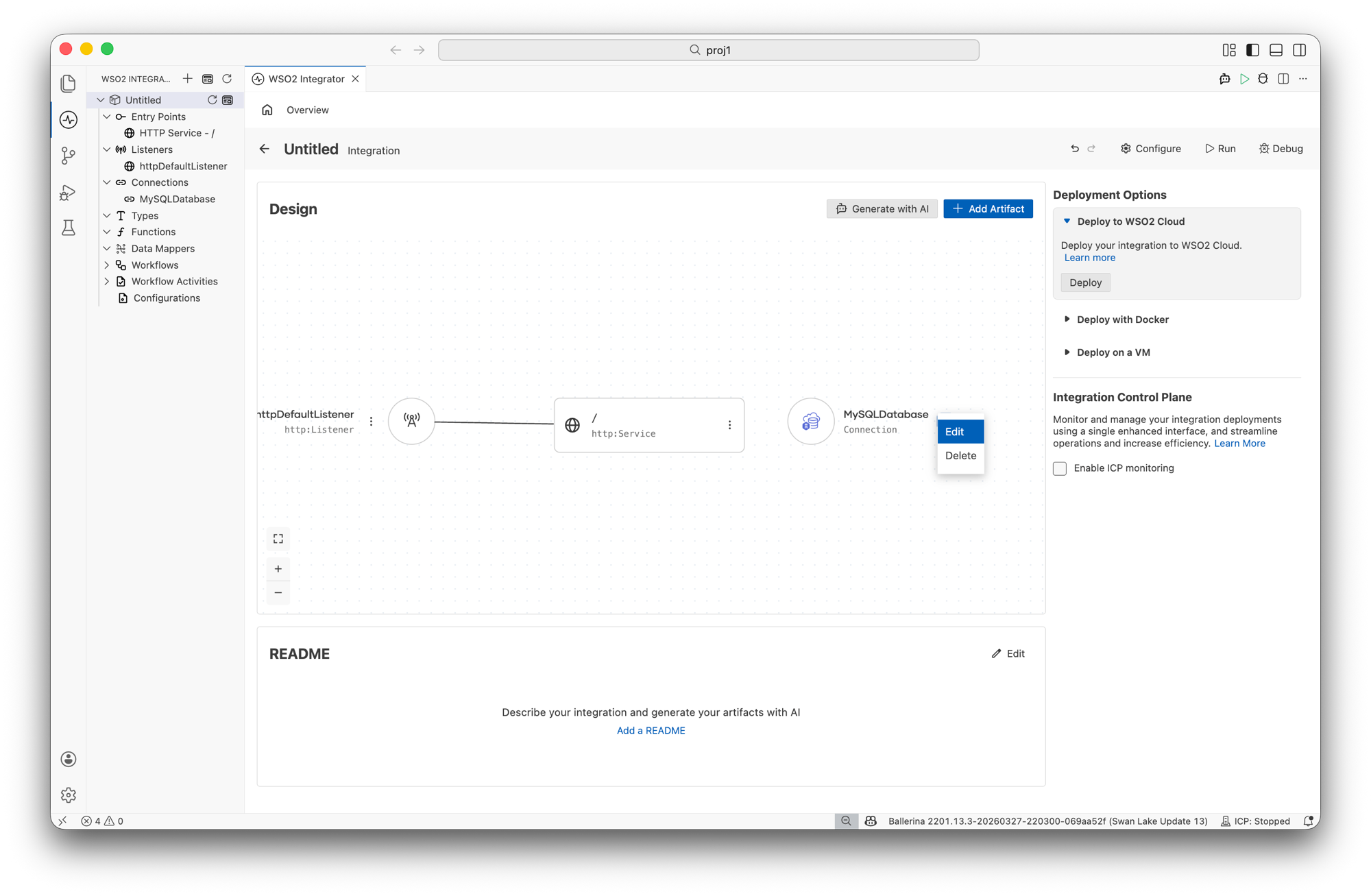

Once the connection is saved, it appears in the design view as a connection artifact.

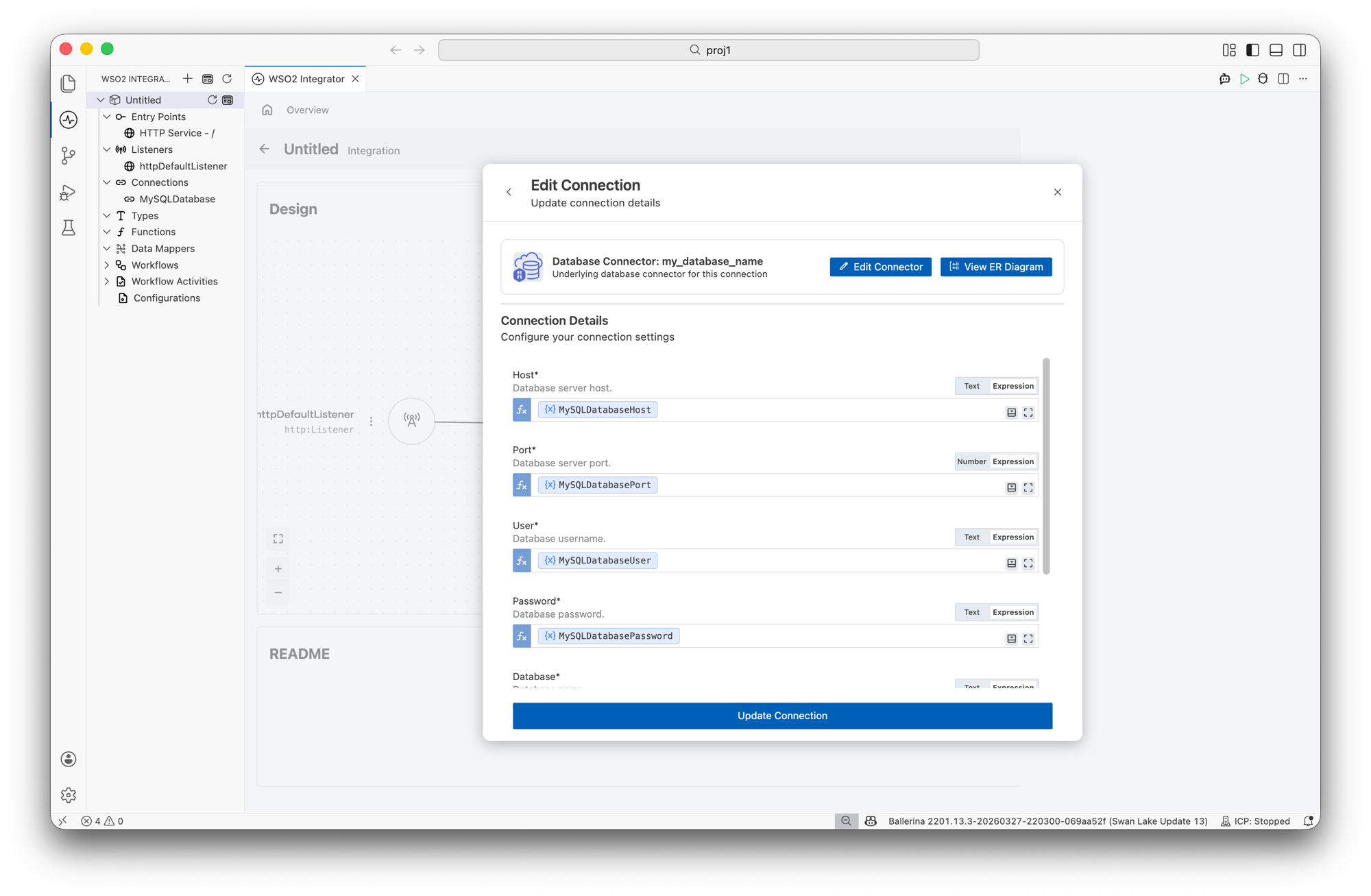

Click Edit on the connection to update connection details. From the edit panel, you can:

• Click Edit Connector to modify the underlying database connector.

• Click View ER Diagram to visualize the entity relationships between the selected tables.

• Update connection settings such as Host, Port, User, Password, and Database.



Use connection functions in integration logic

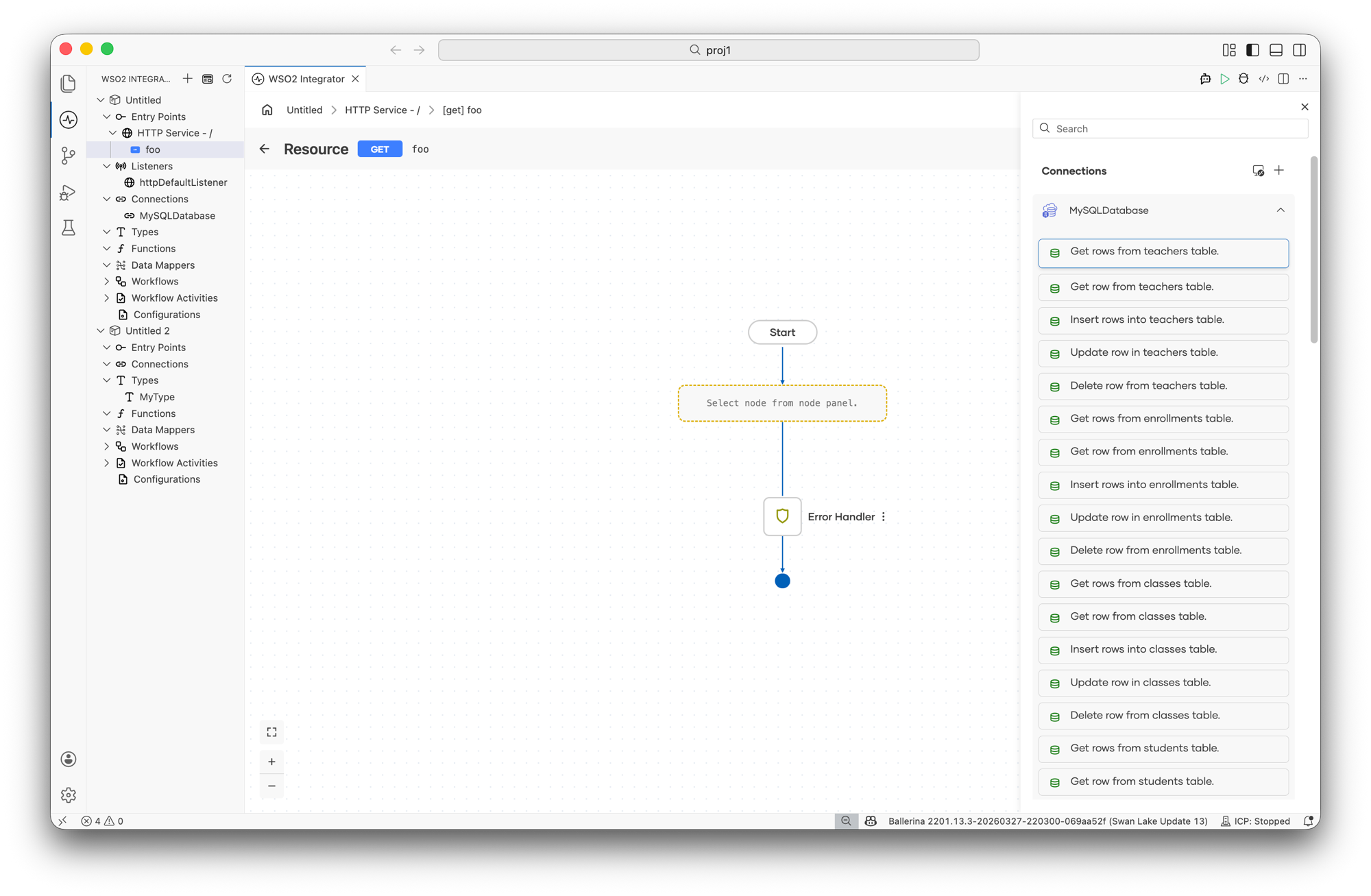

When designing integration logic in the flow diagram, the connection functions appear in the Connections panel. These provide pre-built CRUD operations for each selected table, such as:

• Get rows / Get row

• Insert rows

• Update row

• Delete row



Each function provides advanced configuration options where you can set Where Clause, Order By Clause, Limit Clause, Result variable name, and Target Type to select specific fields from the table.

Ballerina Code

Initialize a persist project

# Add persist support to an existing project
bal persist add

# Initialize persist directory and model file
bal persist init

This creates a persist directory with a model.bal file where you define your data model.

Define a data model

Define entities as Ballerina record types in persist/model.bal. Mark primary key fields as readonly:

type Employee record {|
    readonly int id;
    string name;
    string department;
    decimal salary;
|};

type Department record {|
    readonly string code;
    string name;
    Employee[] employees;
|};

tip

When you have an active database, you could use bal persist pull command to introspect the specific database and generate the required model file

Generate the client

# Generate client API (integrates with build)
bal persist generate --datastore mysql

# Introspect an existing database to generate the model
bal persist pull --datastore mysql --host localhost --port 3306 --user root --database mydb

Use the generated client

The generated client provides type-safe resource methods for CRUD operations:

import ballerina/persist;

final Client sClient = check new ();

// Create a record
int[]|error ids = sClient->/employees.post([{
    id: 1, name: "Alice", department: "Engineering", salary: 5000.0
}]);

// Read a record by key
Employee|error emp = sClient->/employees/1;

// Update a record
Employee|error updated = sClient->/employees/1.put({salary: 6000.0});

// Delete a record
Employee|error deleted = sClient->/employees/1.delete();

// List all records
stream<Employee, error?> employees = sClient->/employees;

Migrate the schema

Create database migration scripts based on changes to the data model. This command compares the current data model with the previous state and generates incremental migration scripts.

bal persist migrate --datastore <datastore> --module <module> <migration-label>

Argument / Flag	Required	Default	Description
migration-label	Yes	—	A descriptive label for the migration (for example, add_email_column)
--datastore	Yes	—	Target data store: mysql, mssql, or postgresql
--module	Yes	—	Name of the module containing the data model

# Create a migration after modifying the data model
bal persist migrate --datastore mysql --module db add_phone_column

The command generates a timestamped migration directory under persist/migrations/:

persist/
  migrations/
    20240115120000_add_phone_column/
      script.sql     # Incremental SQL migration script
      model.bal      # Snapshot of the data model at this point

Push the schema

Pushes the current data model schema directly to the target data store. Useful for development and testing environments where migration tracking is not needed.

bal persist push --datastore <datastore> --module <module>

Flag	Required	Default	Description
--datastore	Yes	—	Target data store: mysql, mssql, postgresql, or sqlite
--module	Yes	—	Name of the module containing the data model

warning

bal persist push drops and recreates tables. Use this only in development environments. For production, use bal persist migrate.

Command reference

bal persist init

bal persist init --datastore <datastore> --module <module>

Flag	Required	Default	Description
--datastore	No	inmemory	Target data store: mysql, mssql, postgresql, sqlite, googlesheets, redis, inmemory
--module	No	—	Name of the submodule for persistence definitions

bal persist generate

bal persist generate --datastore <datastore> --module <module>

Flag	Required	Default	Description
--datastore	Yes	—	Target data store: mysql, mssql, postgresql, sqlite, googlesheets, redis, inmemory
--module	Yes	—	Name of the module containing the data model

bal persist migrate

bal persist migrate --datastore <datastore> --module <module> <migration-label>

Flag	Required	Default	Description
--datastore	Yes	—	Target data store: mysql, mssql, or postgresql
--module	Yes	—	Name of the module containing the data model
migration-label	Yes	—	Descriptive label for the migration

bal persist push

bal persist push --datastore <datastore> --module <module>

Flag	Required	Default	Description
--datastore	Yes	—	Target data store: mysql, mssql, postgresql, or sqlite
--module	Yes	—	Name of the module containing the data model

Data store migration support

Data store	--datastore value	Migrations	Notes
MySQL	mysql	Yes	Full SQL support
Microsoft SQL Server	mssql	Yes	Full SQL support
PostgreSQL	postgresql	Yes	Full SQL support
SQLite	sqlite	No	File-based, no migration support
Google Sheets	googlesheets	No	Requires OAuth2 configuration
Redis	redis	No	Key-value store
In-memory	inmemory	No	For testing and prototyping
