YAML & TOML Processing

Work with YAML and TOML configuration formats commonly used in cloud-native deployments, CI/CD pipelines, and application configuration management. Ballerina provides native support for reading, writing, and transforming both formats through dedicated library modules.

YAML processing

YAML is widely used for Kubernetes manifests, CI/CD configurations, and application settings. Ballerina's ballerina/data.yaml module handles parsing and serialization. File I/O is composed with ballerina/io (fileReadBytes / fileWriteString) because data.yaml operates on strings, byte arrays, and streams rather than on file paths directly.

Parsing YAML

Read YAML content and convert it into Ballerina values with type safety.

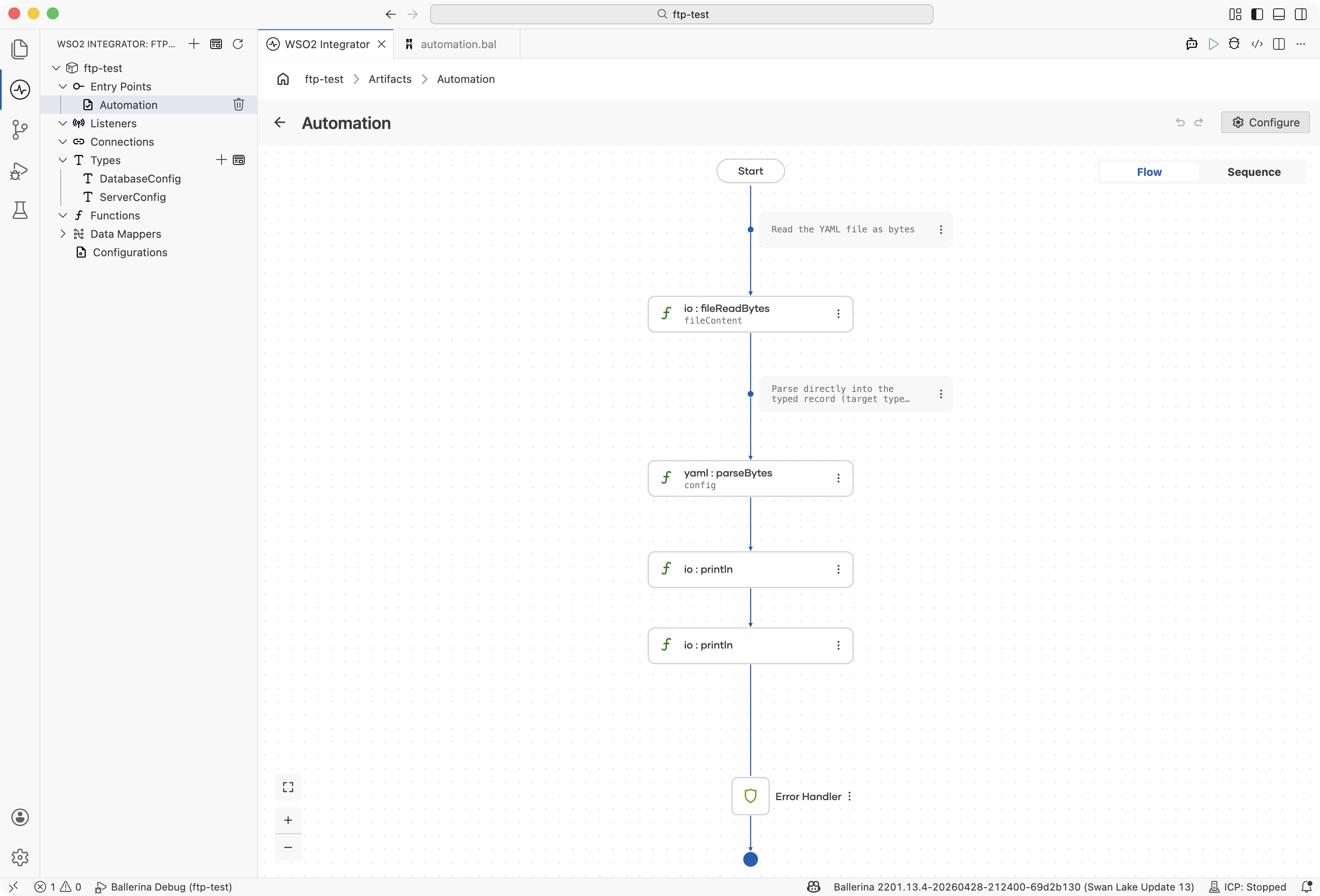

Visual Designer

1. Define the record types: Navigate to Types in the sidebar and click + to add a new type. Select Create from scratch, set Kind to Record, and name it DatabaseConfig. Add fields using the + button:

   Field	Type
   url	string
   username	string
   poolSize	int

   Then add a second record type named ServerConfig with fields:

   Field	Type
   host	string
   port	int
   allowedOrigins	string[]
   database	DatabaseConfig

   For details on creating types, see Types.

2. Add a Function Call step to read the file as bytes: In the flow designer, click + and select Function Call. Search for io:fileReadBytes in the library picker and select it (this adds the ballerina/io import). Pass "config.yaml" as the path argument and assign the return value to a variable named fileContent. The variable type is fixed at byte[] & readonly by the function's return signature.

3. Add a Function Call step to parse into the typed record: Click + and select Function Call. Search for yaml:parseBytes in the library picker and select it (this adds the ballerina/data.yaml import). Pass fileContent as the argument and assign the return value to a variable named config of type ServerConfig. The target type is inferred from the variable, so no separate type-conversion step is needed.

4. Add a Function Call step to print the server info: Click + and select Function Call. Search for io:println. The function accepts a list of values — add two arguments. Set the first argument to "Server: " + config.host + ":" (string concatenation works between strings) and the second argument to config.port (kept separate because + cannot mix a string with an int).

5. Add a Function Call step to print the database pool size: Click + and select Function Call. Search for io:println and add two arguments: "DB Pool Size: " and config.database.poolSize.



Ballerina Code

import ballerina/io;
import ballerina/data.yaml;

type DatabaseConfig record {|
    string url;
    string username;
    int poolSize;
|};

type ServerConfig record {|
    string host;
    int port;
    string[] allowedOrigins;
    DatabaseConfig database;
|};

public function main() returns error? {
    // Read the YAML file as bytes
    byte[] & readonly fileContent = check io:fileReadBytes("config.yaml");

    // Parse directly into the typed record (target type is inferred)
    ServerConfig config = check yaml:parseBytes(fileContent);

    io:println("Server: " + config.host + ":", config.port);
    io:println("DB Pool Size: ", config.database.poolSize);
}

Parsing YAML strings

Parse YAML content directly from a string value.

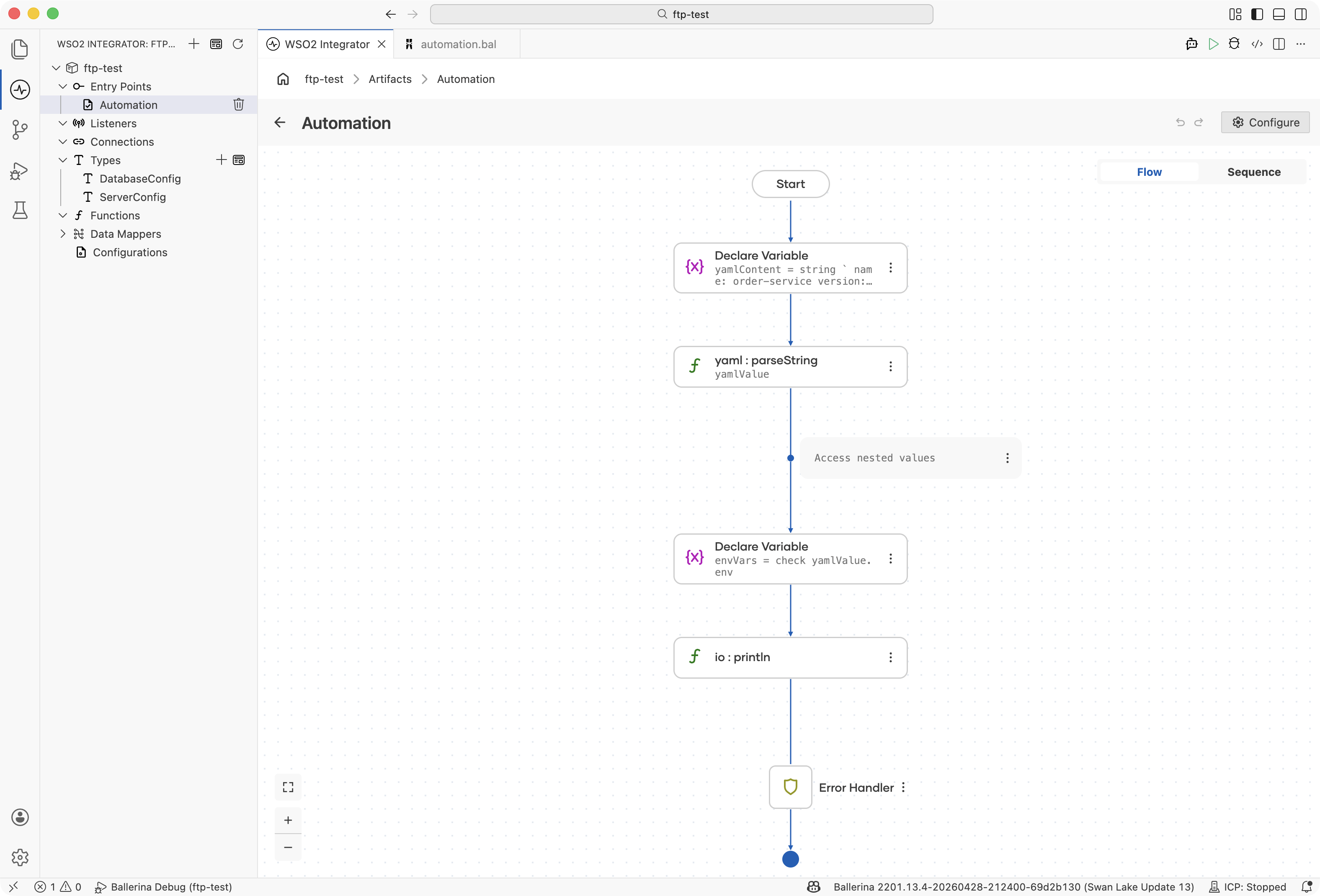

Visual Designer

1. Add a Variable step for the YAML content: In the flow designer, click + and select Declare Variable. Set the name to yamlContent, the type to string, and enter the following YAML as a multi-line string template in the expression field:

   name: order-service
   version: 1.2.0
   replicas: 3
   env:
     - name: DB_HOST
       value: postgres.svc.local
     - name: LOG_LEVEL
       value: INFO

2. Add a Function Call step for parsing: Click + and select Function Call. Search for yaml:parseString in the library picker and select it (this adds the ballerina/data.yaml import). Pass yamlContent as the argument and assign the return value to a variable named yamlValue of type json.

3. Add a Variable step for nested access: Click + and select Declare Variable. Set the name to envVars, the type to json, and the expression to check yamlValue.env.

4. Add a Function Call step to print the env vars: Click + and select Function Call. Search for io:println and add two arguments: "Env vars: " and envVars (kept separate because + cannot mix a string with a json value).



Ballerina Code

import ballerina/io;
import ballerina/data.yaml;

public function main() returns error? {
    string yamlContent = string `
        name: order-service
        version: 1.2.0
        replicas: 3
        env:
          - name: DB_HOST
            value: postgres.svc.local
          - name: LOG_LEVEL
            value: INFO
    `;

    json yamlValue = check yaml:parseString(yamlContent);
    // Access nested values
    json envVars = check yamlValue.env;

    io:println("Env vars: ", envVars);
}

Writing YAML

Serialize Ballerina values back to YAML format.

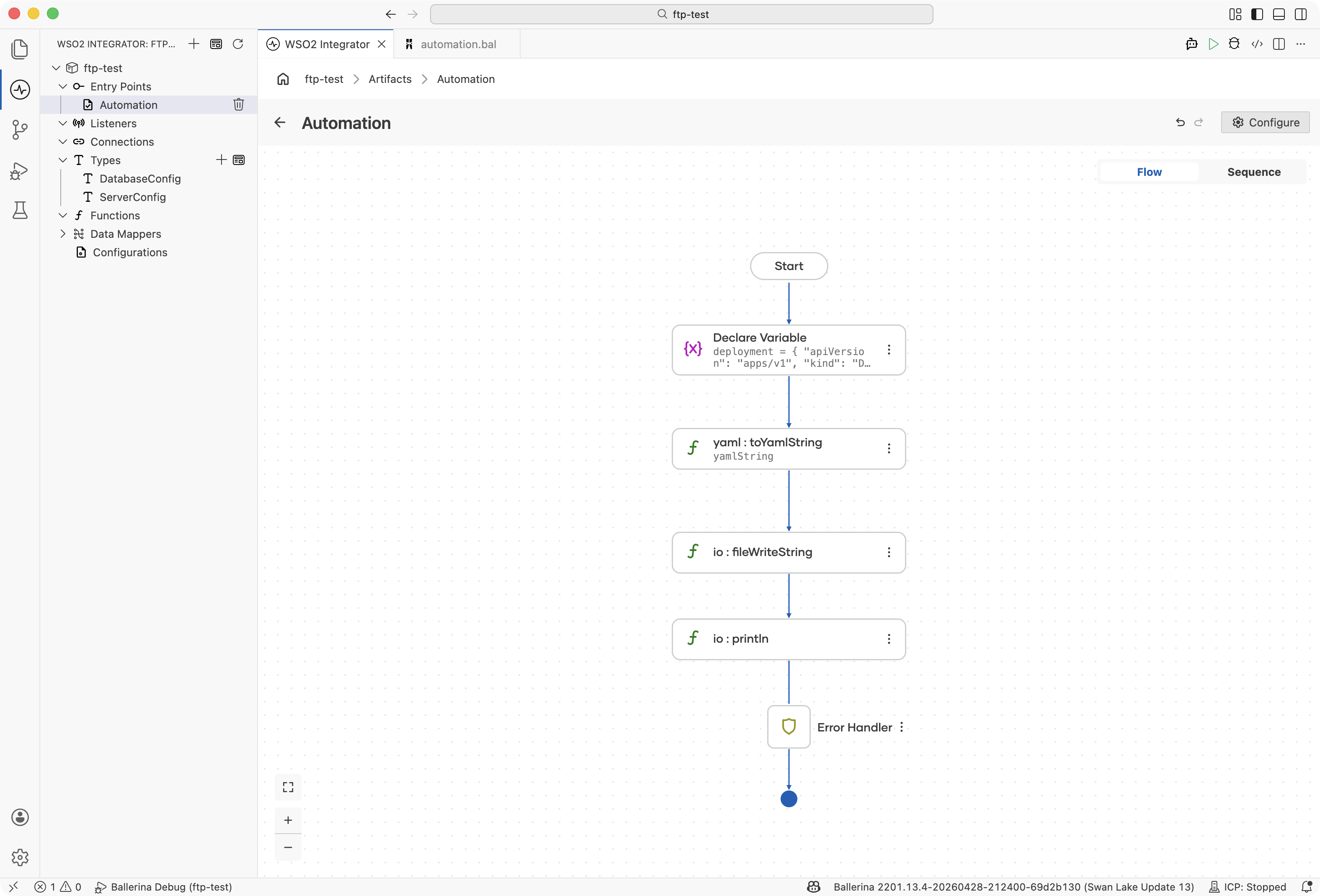

Visual Designer

1. Add a Variable step for the deployment object: In the flow designer, click + and select Declare Variable. Set the name to deployment, the type to map<json>, and enter the following as the expression:

   {
       "apiVersion": "apps/v1",
       "kind": "Deployment",
       "metadata": {
           "name": "integration-service",
           "labels": {
               "app": "integrator"
           }
       },
       "spec": {
           "replicas": 3
       }
   }

2. Add a Function Call step to serialize to a YAML string: Click + and select Function Call. Search for yaml:toYamlString in the library picker and select it (this adds the ballerina/data.yaml import). Pass deployment as the argument and assign the return value to a variable named yamlString of type string.

3. Add a Function Call step to write to a file: Click + and select Function Call. Search for io:fileWriteString in the library picker and select it (this adds the ballerina/io import). Pass "deployment.yaml" as the path argument and yamlString as the content argument.

4. Add a Function Call step to print the YAML: Click + and select Function Call. Search for io:println and pass yamlString as the argument.



Ballerina Code

import ballerina/io;
import ballerina/data.yaml;

public function main() returns error? {
    map<json> deployment = {
        "apiVersion": "apps/v1",
        "kind": "Deployment",
        "metadata": {
            "name": "integration-service",
            "labels": {
                "app": "integrator"
            }
        },
        "spec": {
            "replicas": 3
        }
    };

    // Serialize the map to a YAML string
    string yamlString = check yaml:toYamlString(deployment);

    // Write the YAML string to a file
    check io:fileWriteString("deployment.yaml", yamlString);

    io:println(yamlString);
}

Multi-Document YAML

Handle YAML files with multiple documents separated by ---.

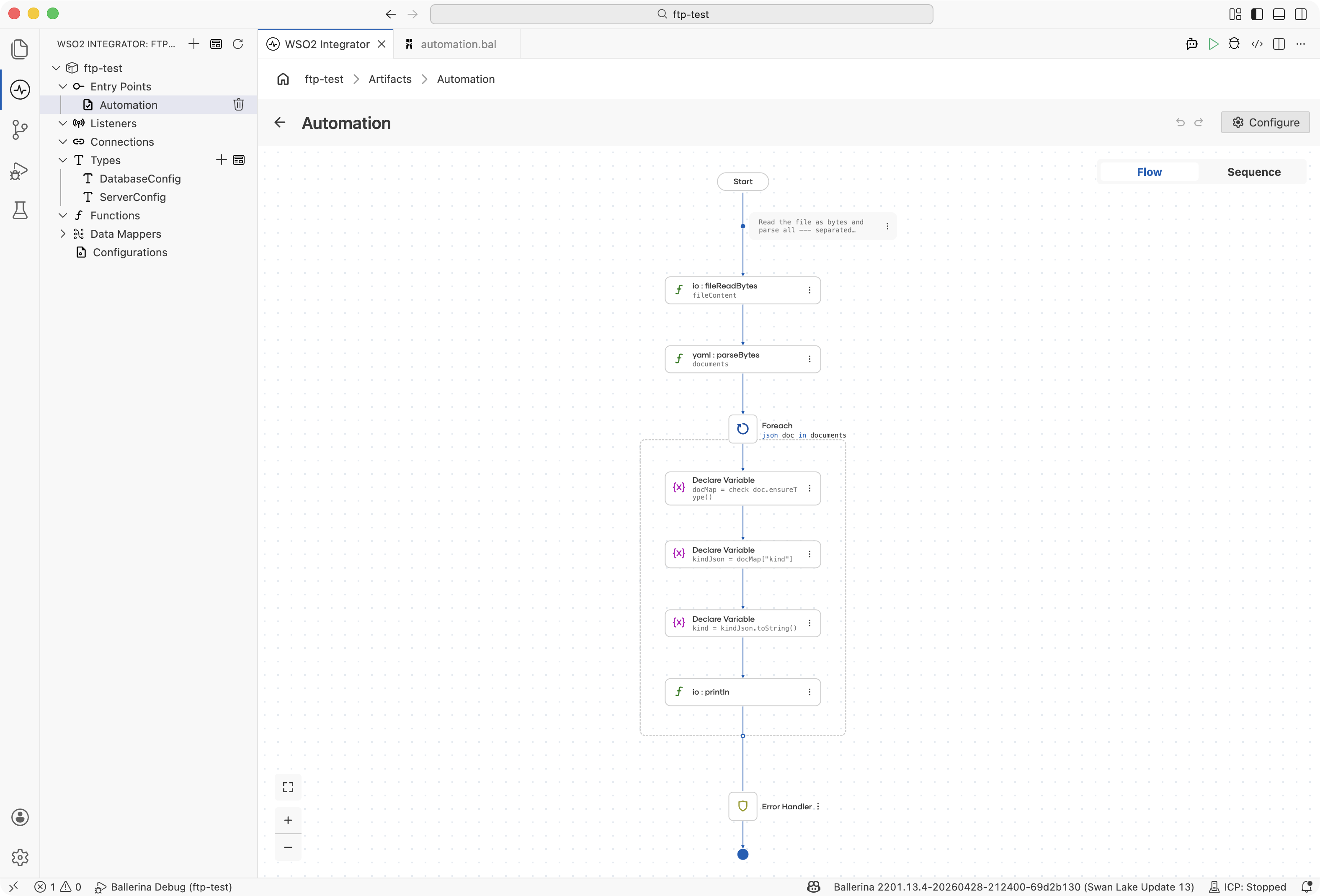

Visual Designer

1. Add a Function Call step to read the file as bytes: In the flow designer, click + and select Function Call. Search for io:fileReadBytes in the library picker and select it (this adds the ballerina/io import). Pass an appropriate YAML file path (such as "k8s-manifests.yaml") as the path argument and assign the return value to a variable named fileContent. The variable type is fixed at byte[] & readonly by the function's return signature.

2. Add a Function Call step to parse the documents: Click + and select Function Call. Search for yaml:parseBytes in the library picker and select it (this adds the ballerina/data.yaml import). In the S (Source byte[] value) field, switch the input to expression mode and pick fileContent from the variable picker. Set Result* (the result variable name) to documents and T* (the target type) to json[]. The function parses all ----separated documents into the array automatically.

3. Add a Foreach step: Click + and select Foreach under Control. Set the Collection to documents, the Variable name to document, and the Variable type to json.

4. Add a Variable step inside the loop for the document map: Click + inside the loop body and select Declare Variable. Set the name to documentMap, the type to map<json>, and the expression to check document.ensureType().

5. Add a Variable step inside the loop for the kind value: Click + and select Declare Variable. Set the name to kindJson, the type to json, and the expression to documentMap["kind"].

6. Add a Variable step inside the loop to convert the kind to a string: Click + and select Declare Variable. Set the name to kind, the type to string, and the expression to kindJson.toString().

7. Add a Function Call step inside the loop to print the kind: Click + and select Function Call. Search for io:println and add two arguments: "Processing: " and kind.



Ballerina Code

import ballerina/io;
import ballerina/data.yaml;

public function main() returns error? {
    // Read the file as bytes and parse all --- separated documents into a json array
    byte[] & readonly fileContent = check io:fileReadBytes("k8s-manifests.yaml");
    json[] documents = check yaml:parseBytes(fileContent);

    foreach json document in documents {
        map<json> documentMap = check document.ensureType();
        json kindJson = documentMap["kind"];
        string kind = kindJson.toString();
        io:println("Processing: ", kind);
    }
}

TOML processing

TOML is the standard configuration format for Ballerina projects (Ballerina.toml, Dependencies.toml) and many modern tools. The ballerina/toml module provides parsing and writing support.

Parsing TOML

Read TOML files into Ballerina maps and records.

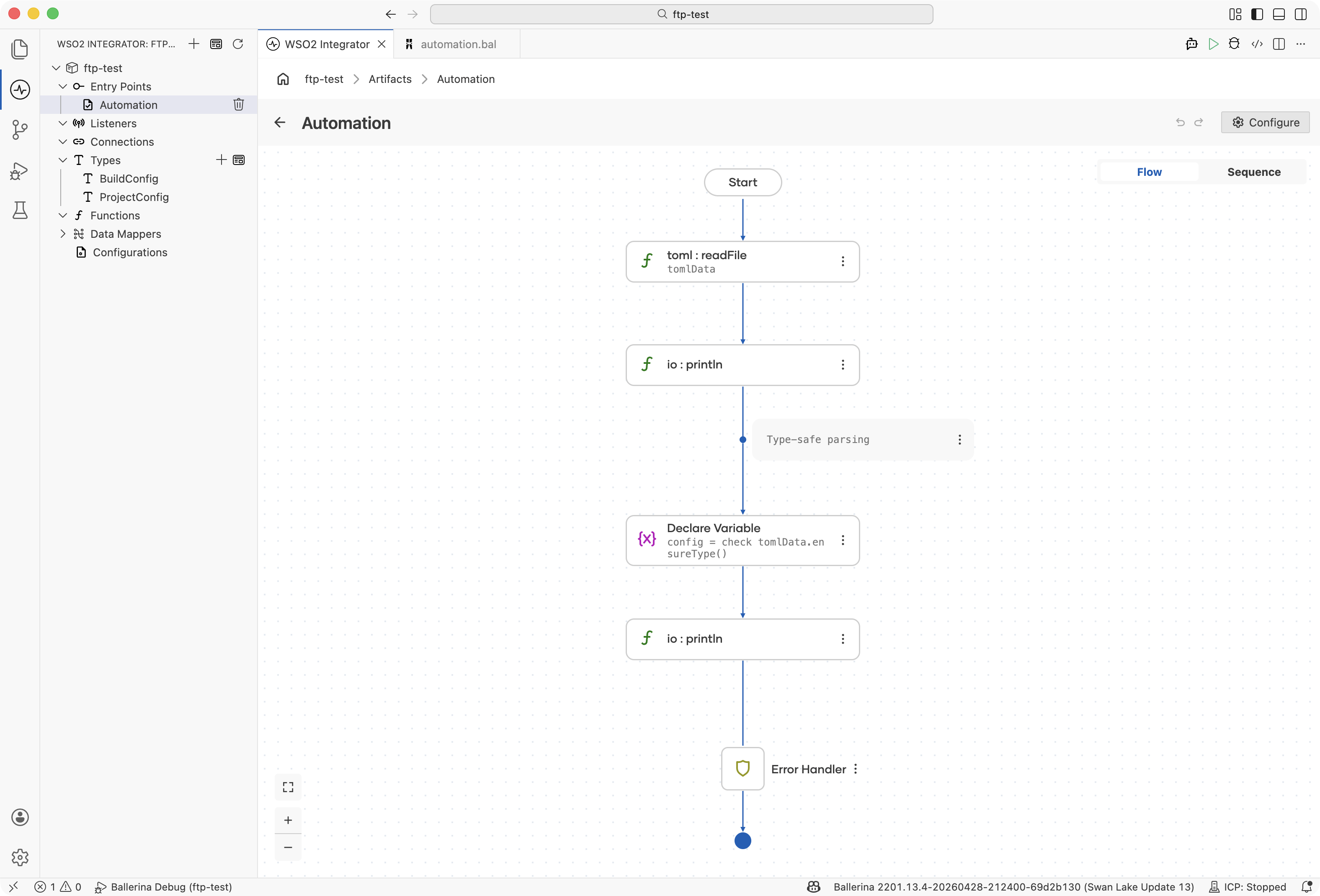

Visual Designer

1. Define the record types: Navigate to Types in the sidebar and click + to add a new type. Select Create from scratch, set Kind to Record, and name it BuildConfig. Add fields using the + button:

   Field	Type
   observability	boolean
   target	string

   Then add a second record type named ProjectConfig with fields:

   Field	Type
   name	string
   version	string
   dependencies	map<string>
   build	BuildConfig

   For details on creating types, see Types.

2. Add a Function Call step to read the file: In the flow designer, click + and select Function Call. Search for toml:readFile in the library picker and select it (this adds the ballerina/toml import). Pass "project.toml" as the path argument and assign the return value to a variable named tomlData of type map<json>.

3. Add a Function Call step to print the project name: Click + and select Function Call. Search for io:println and add two arguments: "Project: " and tomlData["name"].

4. Add a Variable step for typed conversion: Click + and select Declare Variable. Set the name to config, the type to ProjectConfig, and the expression to check tomlData.ensureType().

5. Add a Function Call step to print the project version: Click + and select Function Call. Search for io:println and add two arguments: "Version: " and config.version.



Ballerina Code

import ballerina/io;
import ballerina/toml;

type BuildConfig record {|
    boolean observability;
    string target;
|};

type ProjectConfig record {|
    string name;
    string version;
    map<string> dependencies;
    BuildConfig build;
|};

public function main() returns error? {
    // Parse a TOML file
    map<json> tomlData = check toml:readFile("project.toml");

    io:println("Project: ", tomlData["name"]);

    // Type-safe parsing
    ProjectConfig config = check tomlData.ensureType();
    io:println("Version: ", config.version);
}

Writing TOML

Generate TOML content from Ballerina data structures.

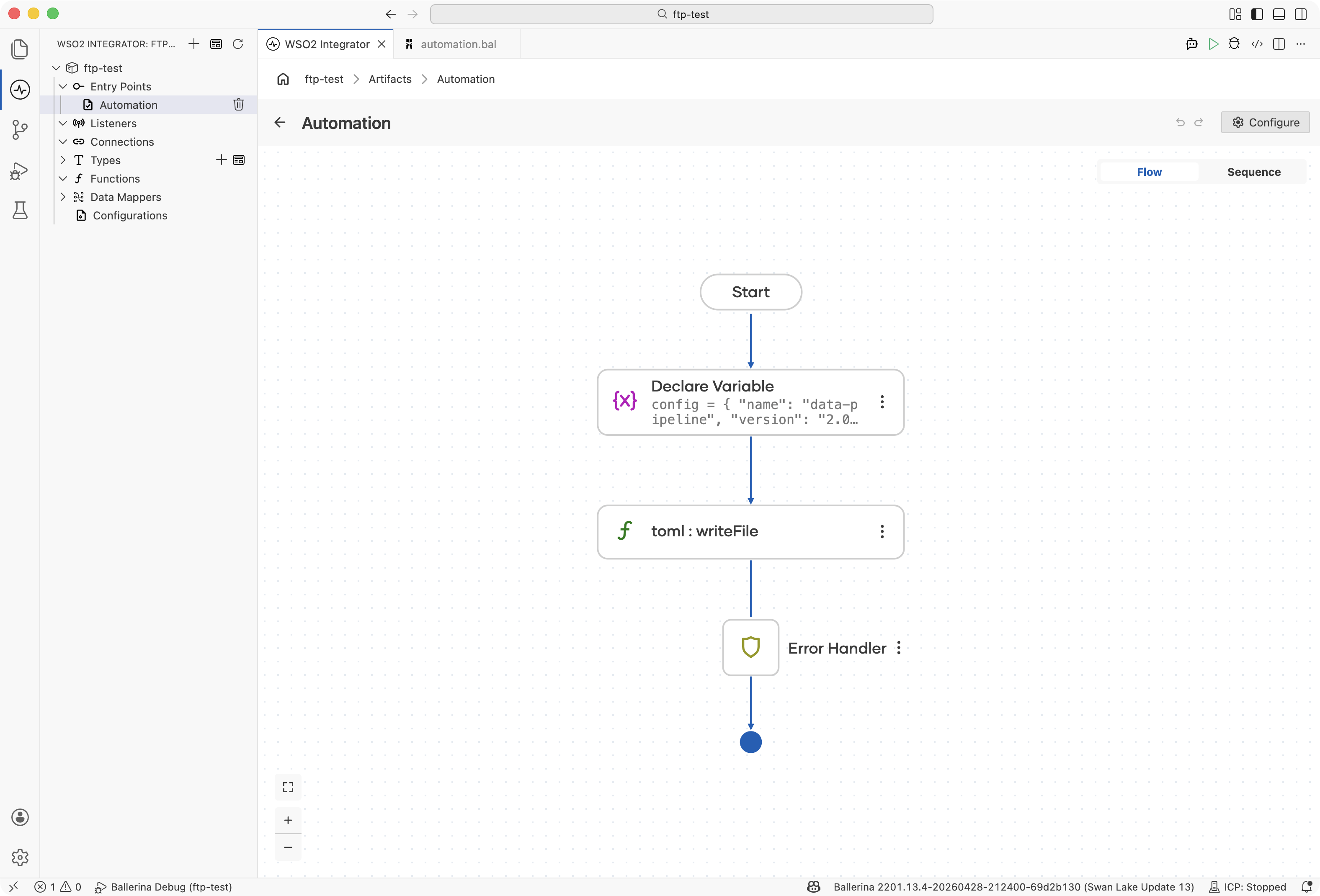

Visual Designer

1. Add a Variable step for the configuration object: In the flow designer, click + and select Declare Variable. Set the name to config, the type to map<json>, and enter your content (for example, the following) as an expression:

   {
       "name": "data-pipeline",
       "version": "2.0.0",
       "dependencies": {
           "ballerinax/kafka": "4.2.0",
           "ballerinax/postgresql": "1.14.0"
       },
       "build": {
           "observability": true,
           "target": "cloud"
       }
   }

2. Add a Function Call step to write the file: Click + and select Function Call. Search for toml:writeFile in the library picker and select it (this adds the ballerina/toml import). Pass "pipeline.toml" as the path argument. For the TOML structure field, switch the input to expression mode and pick config from the variable picker.



Ballerina Code

import ballerina/toml;

public function main() returns error? {
    map<json> config = {
        "name": "data-pipeline",
        "version": "2.0.0",
        "dependencies": {
            "ballerinax/kafka": "4.2.0",
            "ballerinax/postgresql": "1.14.0"
        },
        "build": {
            "observability": true,
            "target": "cloud"
        }
    };

    check toml:writeFile("pipeline.toml", config);
}

YAML-to-JSON and TOML-to-JSON conversion

Convert between configuration formats for systems that expect different inputs.

Visual Designer

Create both functions first via + on the Functions entry in the left sidebar: yamlToJson(string yamlFilePath) returns json|error and jsonToYaml(json data, string outputPath) returns error?. Then open each flow to add the steps below.

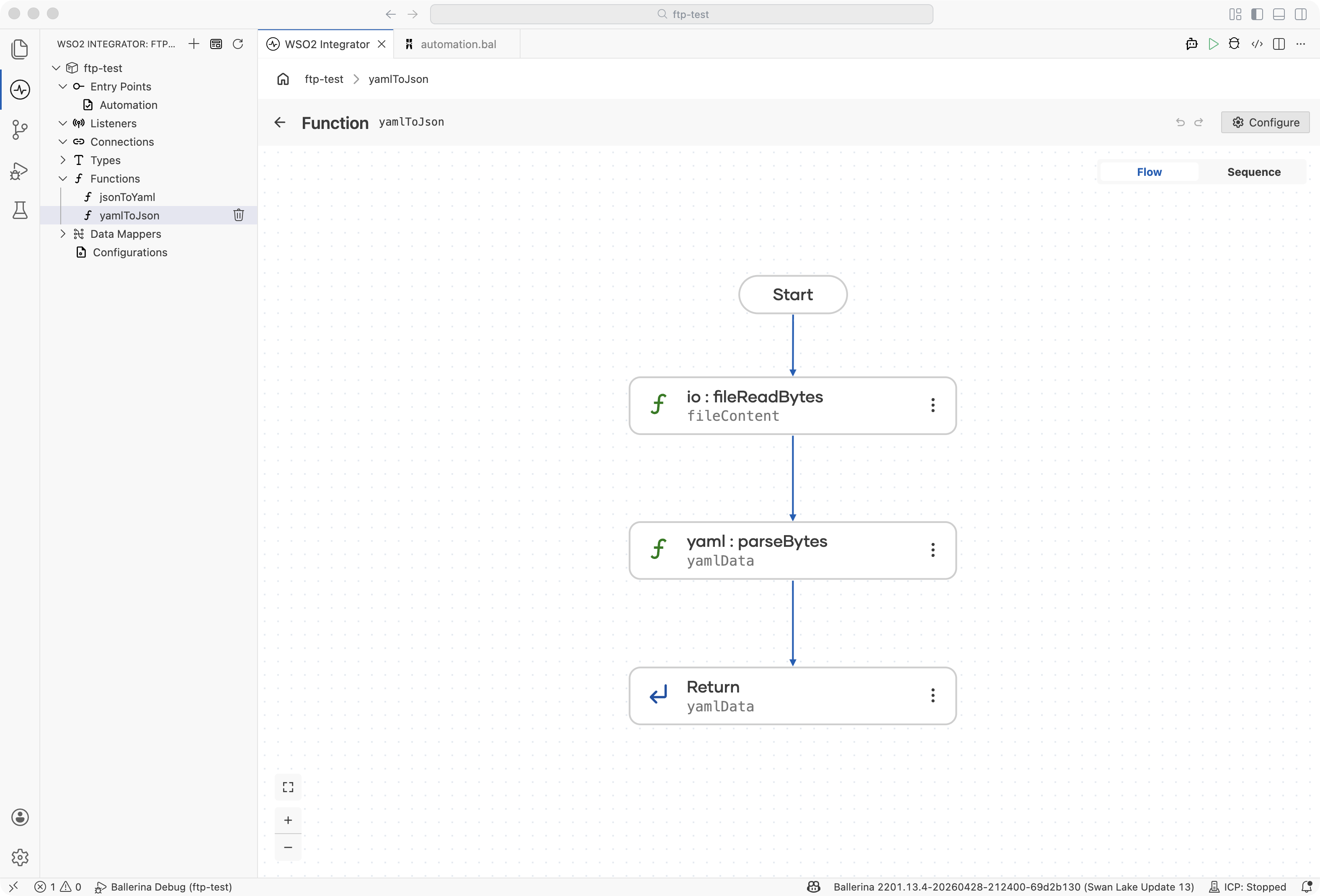

In the yamlToJson function flow:

1. Add a Function Call step to read the file as bytes: Click + and select Function Call. Search for io:fileReadBytes in the library picker and select it (this adds the ballerina/io import). Pass yamlFilePath as the path argument and assign the return value to a variable named fileContent. The variable type is fixed at byte[] & readonly.

2. Add a Function Call step to parse: Click + and select Function Call. Search for yaml:parseBytes in the library picker and select it (this adds the ballerina/data.yaml import). In the S (Source byte[] value) field, switch the input to expression mode and pick fileContent. Set Result* to yamlData and T* to json.

3. Add a Return step: Click + and select Return. Set the expression to yamlData.

In the jsonToYaml function flow:

4. Add a Function Call step to serialize: Click + and select Function Call. Search for yaml:toYamlString in the library picker and select it. Pass data as the argument and assign the return value to a variable named yamlString of type string.

5. Add a Function Call step to write to the file: Click + and select Function Call. Search for io:fileWriteString in the library picker and select it. Pass outputPath as the path argument and yamlString as the content argument.



Ballerina Code

import ballerina/io;
import ballerina/data.yaml;

// Convert YAML configuration to JSON for API consumption
public function yamlToJson(string yamlFilePath) returns json|error {
    byte[] & readonly fileContent = check io:fileReadBytes(yamlFilePath);
    json yamlData = check yaml:parseBytes(fileContent);
    return yamlData;
}

// Convert JSON API response to YAML for config files
public function jsonToYaml(json data, string outputPath) returns error? {
    string yamlString = check yaml:toYamlString(data);
    check io:fileWriteString(outputPath, yamlString);
}

Integration example: Dynamic configuration loader

Build a configuration loader that reads from YAML or TOML based on file extension.

Visual Designer

1. Define the record type: Navigate to Types in the sidebar and click + to add a new type. Select Create from scratch, set Kind to Record, and name it AppConfig. Add fields using the + button:

   Field	Type
   appName	string
   port	int
   logLevel	string
   features	map<string>

   For details on creating types, see Types.

2. Create the loadConfig function: Click + on the Functions entry in the left sidebar and create loadConfig(string filePath) returns AppConfig|error.

3. Find the position of the file extension: In the loadConfig flow, click + and select Declare Variable. Set the name to dotIndex, the type to int?, and the expression to filePath.lastIndexOf(".").

4. Add an If step for paths without an extension: Click + and select If under Control. Set the condition to dotIndex is (). Inside the branch, add a Return step with expression error("Unsupported config format: " + filePath).

5. Extract the extension: Click + and select Declare Variable. Set the name to ext, the type to string, and the expression to filePath.substring(dotIndex + 1).

6. Add an If step for the YAML branch: Click + and select If under Control. Set the condition to ext == "yaml" || ext == "yml". Inside the branch:

   • Add a Function Call for io:fileReadBytes. Pass filePath and assign the return value to a variable named fileContent. The variable type is fixed at byte[] & readonly.
   • Add a Function Call for yaml:parseBytes (adds the ballerina/data.yaml import). In S, switch the input to expression mode and pick fileContent. Set Result* to appConfig and T* to AppConfig.
   • Add a Return step with expression appConfig.

7. Add an Else If branch for TOML: From the If step, add an else if branch with condition ext == "toml". Inside:

   • Add a Function Call for toml:readFile (adds the ballerina/toml import). Pass filePath and assign the return value to tomlData of type map<json>.
   • Add a Declare Variable step. Set the name to appConfig, type to AppConfig, and expression to check tomlData.ensureType().
   • Add a Return step with expression appConfig.

8. Add an Else branch for unsupported formats: Add a Return step with expression error("Unsupported config format: " + ext).

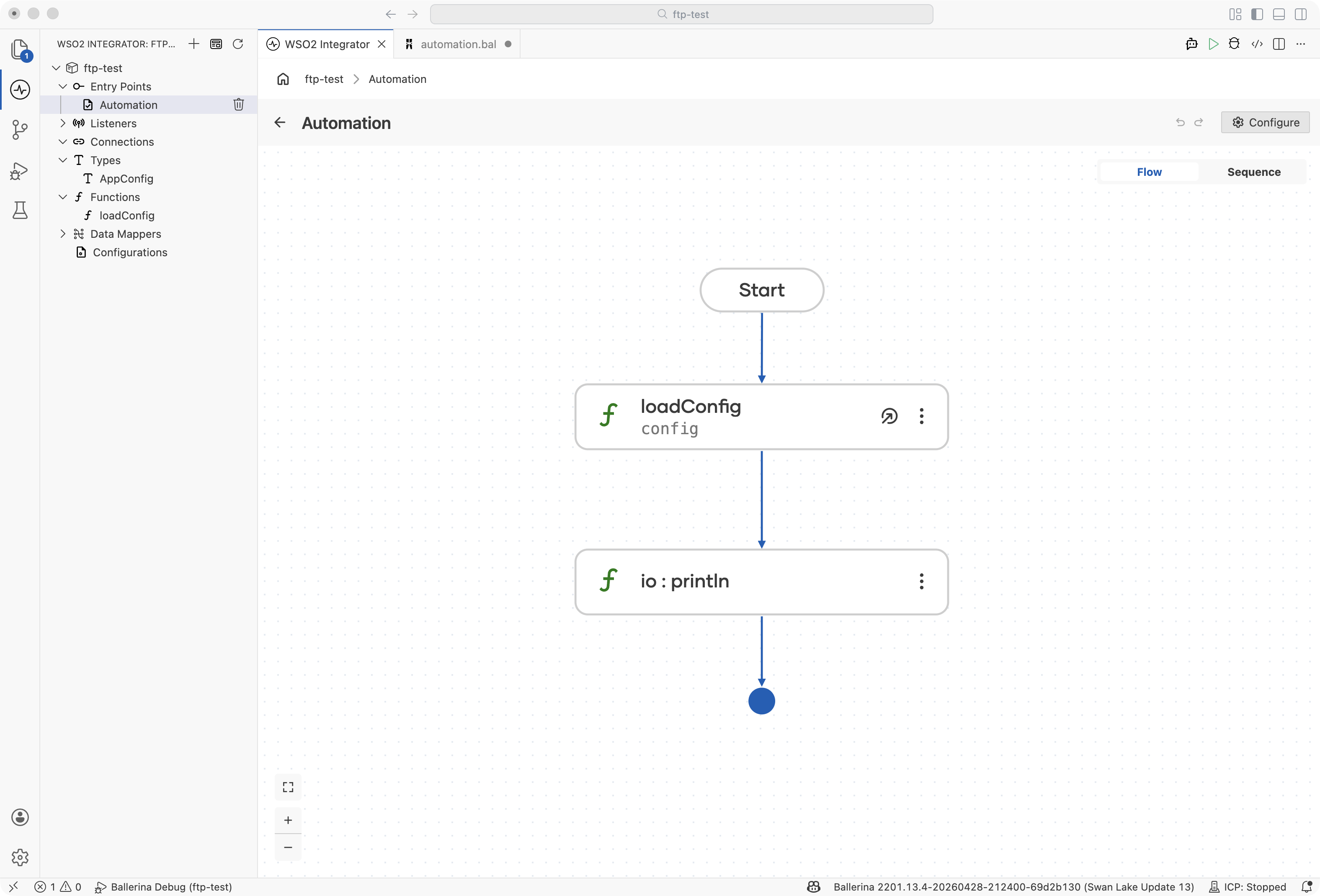

9. In the main function flow, call loadConfig: Add a Function Call step, search for loadConfig (it appears as a user-defined function), pass "app-config.yaml" as the file path, and assign the result value to a variable named config of type AppConfig.

10. Add a Function Call to print the startup message: Click + and select Function Call. Search for io:println and add two arguments: "Starting " + config.appName + " on port " (string concatenation between strings) and config.port.

Ballerina Code

import ballerina/io;
import ballerina/toml;
import ballerina/data.yaml;

type AppConfig record {|
    string appName;
    int port;
    string logLevel;
    map<string> features;
|};

public function loadConfig(string filePath) returns AppConfig|error {
    int? dotIndex = filePath.lastIndexOf(".");
    if dotIndex is () {
        return error("Unsupported config format: " + filePath);
    }
    string ext = filePath.substring(dotIndex + 1);

    if ext == "yaml" || ext == "yml" {
        byte[] & readonly fileContent = check io:fileReadBytes(filePath);
        AppConfig appConfig = check yaml:parseBytes(fileContent);
        return appConfig;
    } else if ext == "toml" {
        map<json> tomlData = check toml:readFile(filePath);
        AppConfig appConfig = check tomlData.ensureType();
        return appConfig;
    }
    return error("Unsupported config format: " + ext);
}

public function main() returns error? {
    AppConfig config = check loadConfig("app-config.yaml");
    io:println("Starting " + config.appName + " on port ", config.port);
}

Best practices

• Use typed records for parsing: define Ballerina record types that match your YAML/TOML structure for compile-time safety
• Validate early: parse configuration at startup and fail fast on missing or invalid values
• Handle multi-document YAML carefully: Kubernetes manifests often contain multiple documents in a single file
• Prefer TOML for Ballerina configs: TOML aligns with Ballerina's native configuration format (Ballerina.toml)
