Types

Type artifacts define the data structures used throughout your integration. They ensure type safety across services, event handlers, and transformations. Define named types once and reuse them across all artifacts in your project.

The visual designer exposes five type kinds: Record, Enum, Service Class, Union, and Array. Each kind maps to a Ballerina type definition in source.

Adding a type

Visual Designer

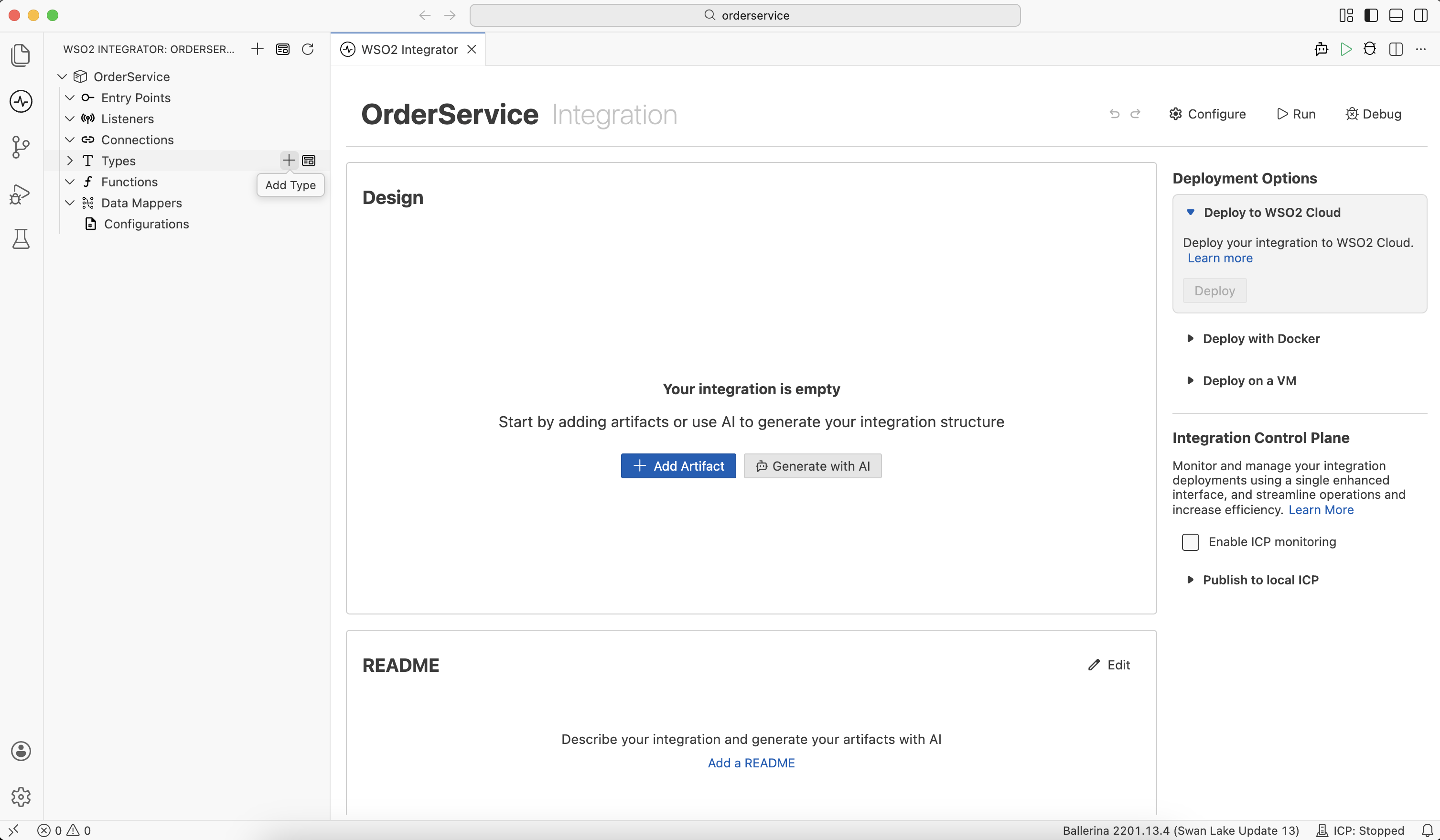

1. Open or create an integration/library in WSO2 Integrator.

2. Click + next to Types in the sidebar (or click + Add Type from the Types canvas).

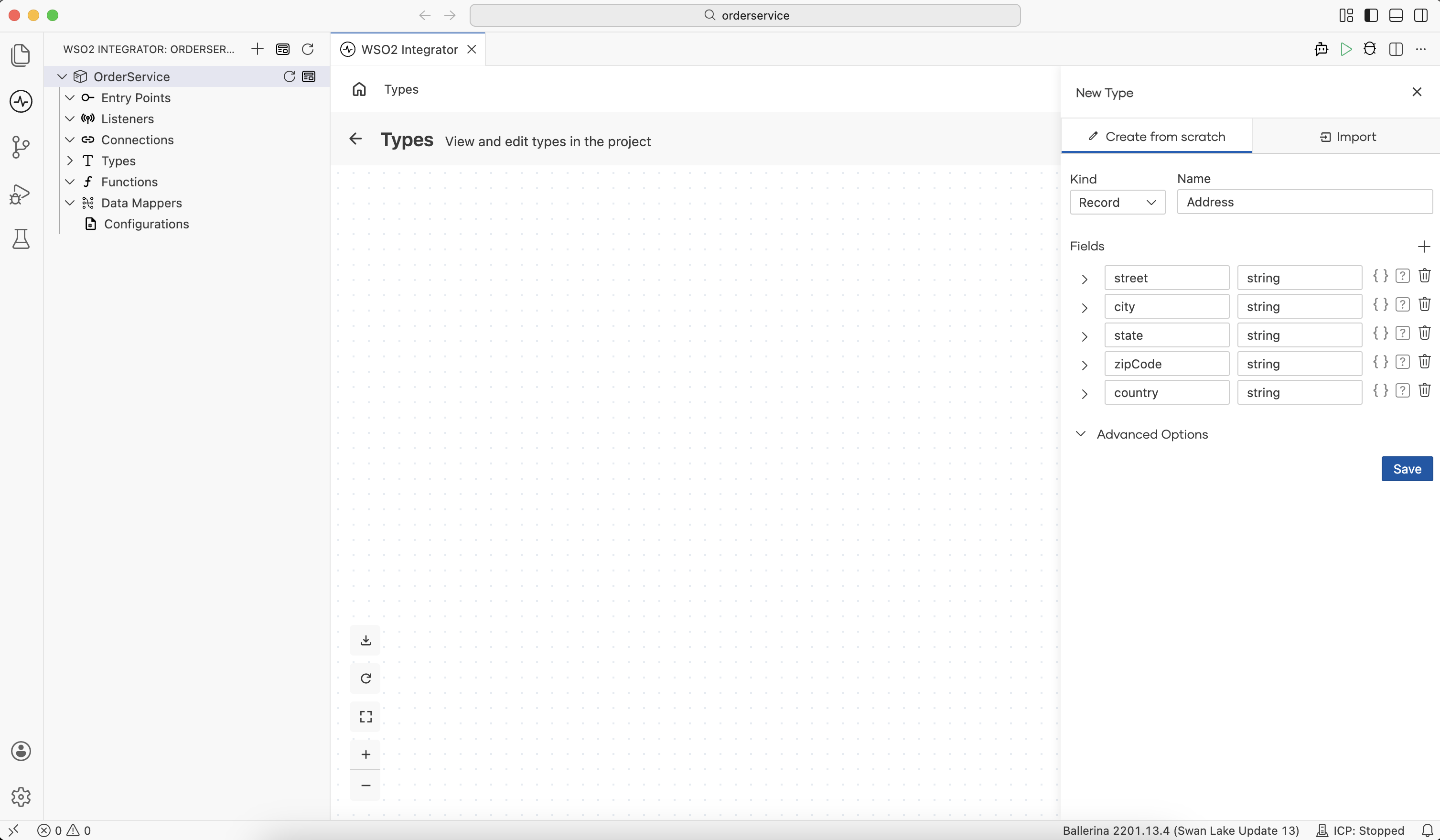

3. In the New Type panel, choose Create from scratch or Import to generate a type from sample JSON or XML.



   Field	Description
   Kind	The type kind: Record, Enum, Service Class, Union, or Array.
   Name	A unique name for the type (for example, Address).
   Members / Fields / Resource Methods	The structural members for the selected kind. The label changes to match the kind.
   Advanced Options	Per-kind options such as Allow Additional Fields, Is Readonly Type, and Accessible by Other Integrations.

4. Click Save. The type is added to your project and appears in the type diagram.

Alternatively, click + Add Artifact in the Design panel and click Type under Other Artifacts or Library Artifacts.

Ballerina Code

type Address record {|
    string street;
    string city;
    string state;
    string zipCode;
    string country;
|};

Type diagram

Visual Designer

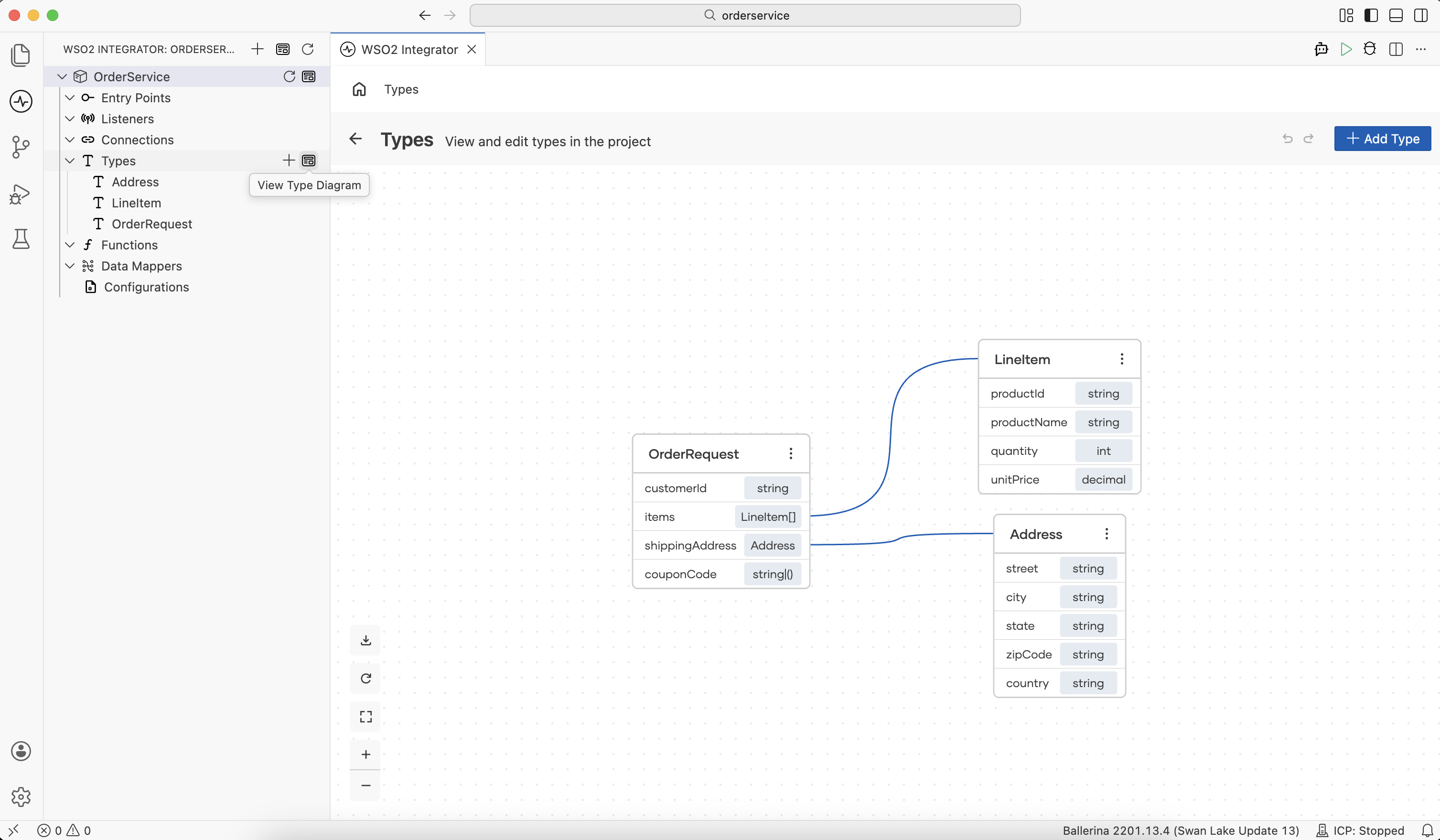

Click View Type Diagram next to Types in the sidebar to open the visual type diagram. The canvas renders all types in your project as nodes, with arrows showing relationships between the types.

Use the toolbar buttons at the bottom left to zoom in, zoom out, fit the diagram to the screen, or export it as an image.

Ballerina Code

A record that contains a field of another user-defined record type creates an association in the diagram:

type Address record {|
    string street;
    string city;
    string state;
    string zipCode;
    string country;
|};

type LineItem record {|
    string productId;
    string productName;
    int quantity;
    decimal unitPrice;
|};

type OrderRequest record {|
    string customerId;
    LineItem[] items;      // references LineItem
    Address shippingAddress; // references Address
    string? couponCode;
|};

Type kinds

Record

A record defines a mapping type with named fields and specific types for each field.

Visual Designer

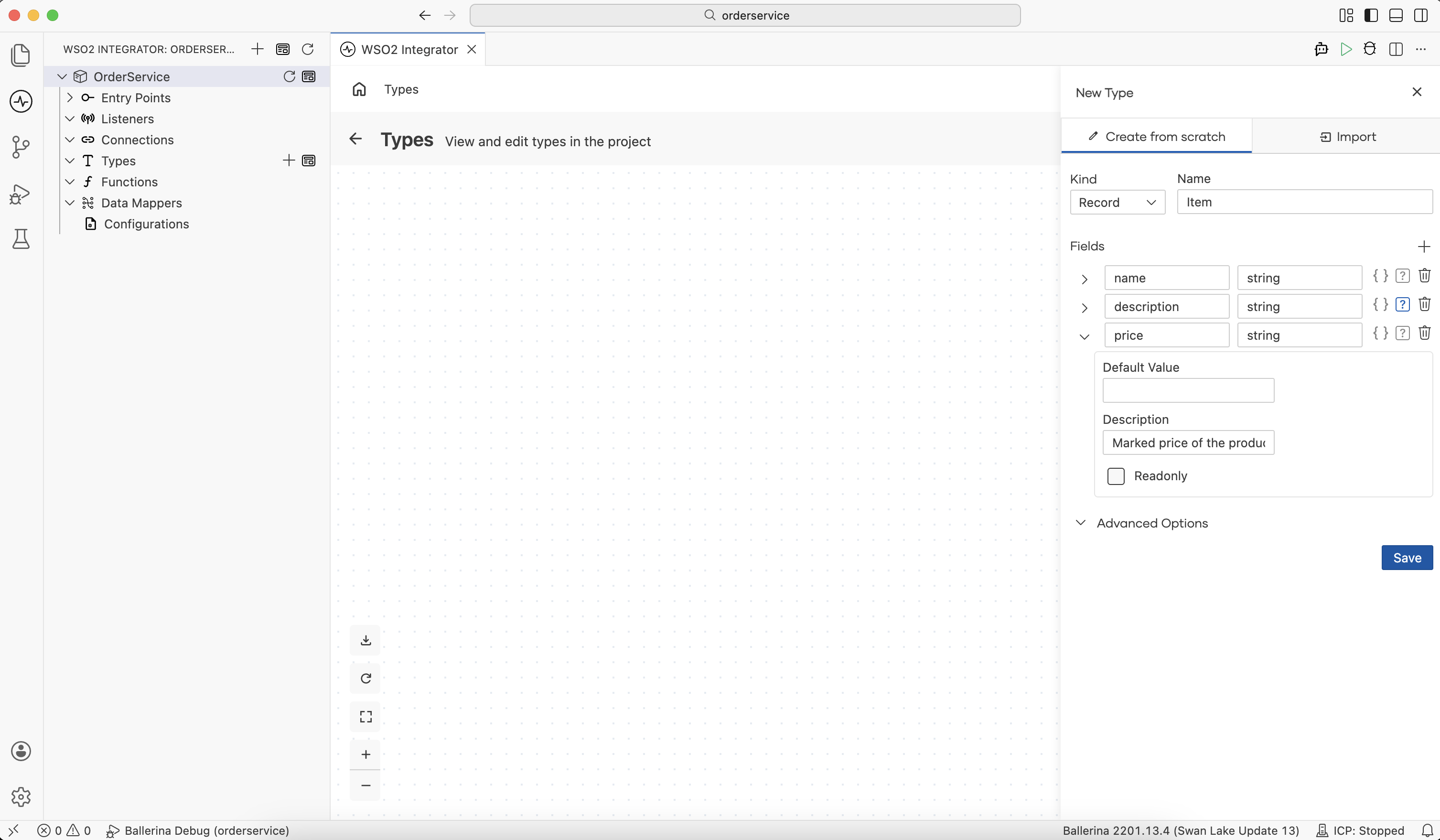

Select Record from the Kind dropdown, then add one row per field using +.

For each field:

Control	Description
Name	The field name.
Type	The field type (built-in or user-defined).
Inline record ({})	Define a record-typed field's type as a nested record inline, instead of referencing an existing type.
Optional (?)	Marks the field as optional. The field may be absent at runtime.
Delete (Trash)	Remove the field.

Expand a field row to set:

Option	Description
Default Value	The default value to use for the field when a value is not specified explicitly.
Description	Documentation for the field. Added as Ballerina field documentation.
Readonly	Marks the field as immutable. The value set to the field must be immutable and the field cannot be assigned to once a value of this type is created.

Advanced Options:

Option	Description
Allow Additional Fields	Generates an open record that accepts fields that are not explicitly defined. Leave unchecked for a closed record that accepts only the defined fields.
Is Readonly Type	Marks the entire type as immutable. Fields cannot be assigned to once a record value is created, and the values set for all the fields must also be immutable.
Accessible by Other Integrations	Adds the public qualifier so the type can be imported from other packages.

Ballerina Code

type Item record {|
    # Name of the item
    readonly string name;
    # Description of the item
    string description?;
    # Marked price of the item
    decimal price;
|};

Enum

An enum defines a fixed set of named string values.

Visual Designer

Select Enum from the Kind dropdown, then add each member using +.

For each member:

Control	Description
Enum member name	The member identifier (for example, PENDING).
Constant Expression	The string value bound to the member. Leave empty to use the member name as the value.

Ballerina Code

enum OrderStatus {
    PENDING,
    CONFIRMED = "confirmed",
    SHIPPED = "shipped",
    DELIVERED = "delivered",
    CANCELLED
}

Service class

A service class defines an object with resource and remote methods. It is commonly used to model GraphQL object types, where each resource method becomes a field resolver.

Visual Designer

Create a service class

Select Service Class from the Kind dropdown, then add one row per resource method using +.

For each resource method:

Control	Description
Name	The resource path/name (for example, orders).
Type	The return type of the resource method.
+ Add Parameter	Add an input parameter. Each parameter takes a Parameter Name, Parameter Type, and an optional Default Value.
Delete (Trash)	Remove the resource method.

Edit the service class

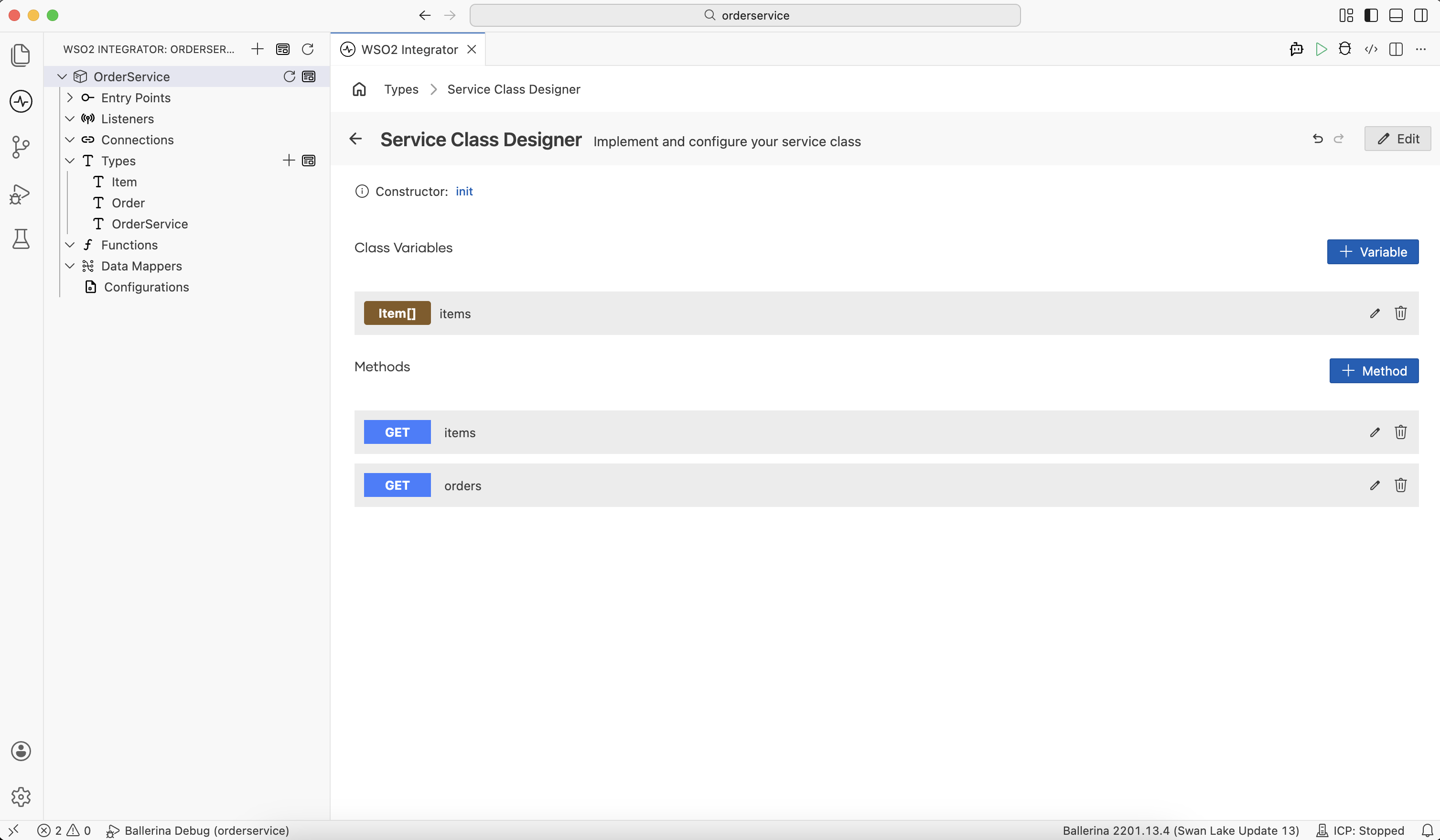

The editing experience for a service class differs from other kinds. Click Edit on the type to open the Service Class Designer panel.

Click on Edit in the Service Class Designer panel to edit the name or the description of the class.

Control	Description
Class Name	Rename the service class.
Description	Free-text documentation rendered as Ballerina documentation.

Class Variables: Click + Variable to open the Add Variable panel.

Control	Description
Variable Name	The variable identifier.
Variable Type	The variable type.
Default Value	The initial value assigned at construction.

Methods: Click + Method to open the Add Method panel. Choose the method kind from the dropdown (resource or remote), then fill in:

Control	Description
Resource Path/Function Name	The resource path (for resources) or method name (for remote methods).
Description	Documentation for the method.
Parameters	Use + Add Parameter to add inputs (name, type, optional default value).
Return Type	The method return type.

Use the pencil and trash icons next to each existing method to edit or remove it.

Click on Constructor: init to modify the initializer method.

Ballerina Code

types.bal

type Item record {|
    # Name of the item
    readonly string name;
    # Description of the product
    string description?;
    # Marked price of the product
    string price;
    # Labels
    string[] labels;
|};

type Order record {|
    readonly string customerId;
    Item[] items;
|};

service class OrderService {

    private Item[] items = [];

    function init() {
    }

    resource function get items(string filterLabel) returns Item[] {
        return from Item item in self.items
            where item.labels.indexOf(filterLabel) is int
            select item;
    }

    resource function get orders(string customerId) returns Order[] {
        return [];
    }
}

functions.bal

function loadOrderData() returns Order[] {
    return [
        {
            customerId: "C001",
            items: [
                {name: "Laptop", description: "15-inch gaming laptop", price: "1299.99", labels: ["electronics", "computers"]},
                {name: "Mouse", description: "Wireless ergonomic mouse", price: "49.99", labels: ["electronics", "accessories"]}
            ]
        },
        {
            customerId: "C002",
            items: [
                {name: "Desk Chair", description: "Adjustable office chair", price: "349.99", labels: ["furniture", "office"]},
                {name: "Monitor", description: "27-inch 4K display", price: "599.99", labels: ["electronics", "computers"]},
                {name: "Keyboard", description: "Mechanical keyboard", price: "129.99", labels: ["electronics", "accessories"]}
            ]
        },
        {
            customerId: "C003",
            items: [
                {name: "Headphones", description: "Noise-cancelling over-ear headphones", price: "249.99", labels: ["electronics", "audio"]},
                {name: "Webcam", description: "1080p HD webcam", price: "89.99", labels: ["electronics", "accessories"]}
            ]
        }
    ];
}

Union

A union type lets a value take one (or more) of several member types. It is used to model alternatives, including error returns (T|error) or optional values.

Visual Designer

Select Union from the Kind dropdown, then add each member type using +. Members can be built-in types or other user-defined, named types.

Advanced Options:

Option	Description
Is Readonly Type	Makes the type immutable. A value belongs to the union type only if it belongs to at least one member type and is immutable.
Accessible by Other Integrations	Adds the public qualifier so the type can be imported from other packages.

Ballerina Code

public type PaymentMethod CreditCard|BankTransfer|DigitalWallet;

type CreditCard record {|
    string cardNumber;
    string expiryDate;
    string cvv;
|};

type BankTransfer record {|
    string bankName;
    string accountNumber;
    string routingNumber;
|};

type DigitalWallet record {|
    string provider;
    string walletId;
|};

Array

An array defines an ordered list of values of a single member type.

Visual Designer

Select Array from the Kind dropdown.

Control	Description
Type of the Array	The member type (required).
Size of the Array	A fixed length. Leave empty for an unbounded array.

Advanced Options:

Option	Description
Is Readonly Type	Makes the array immutable. Any members specified when creating the array must also be immutable.
Accessible by Other Integrations	Adds the public qualifier so the type can be imported from other packages.

Ballerina Code

// Unbounded array
public type LineItems string[];

// Fixed-length array
type Coordinates float[3];

Generate type from JSON or XML

Types can be generated from sample JSON or XML values instead of manually defining each field.

Visual Designer

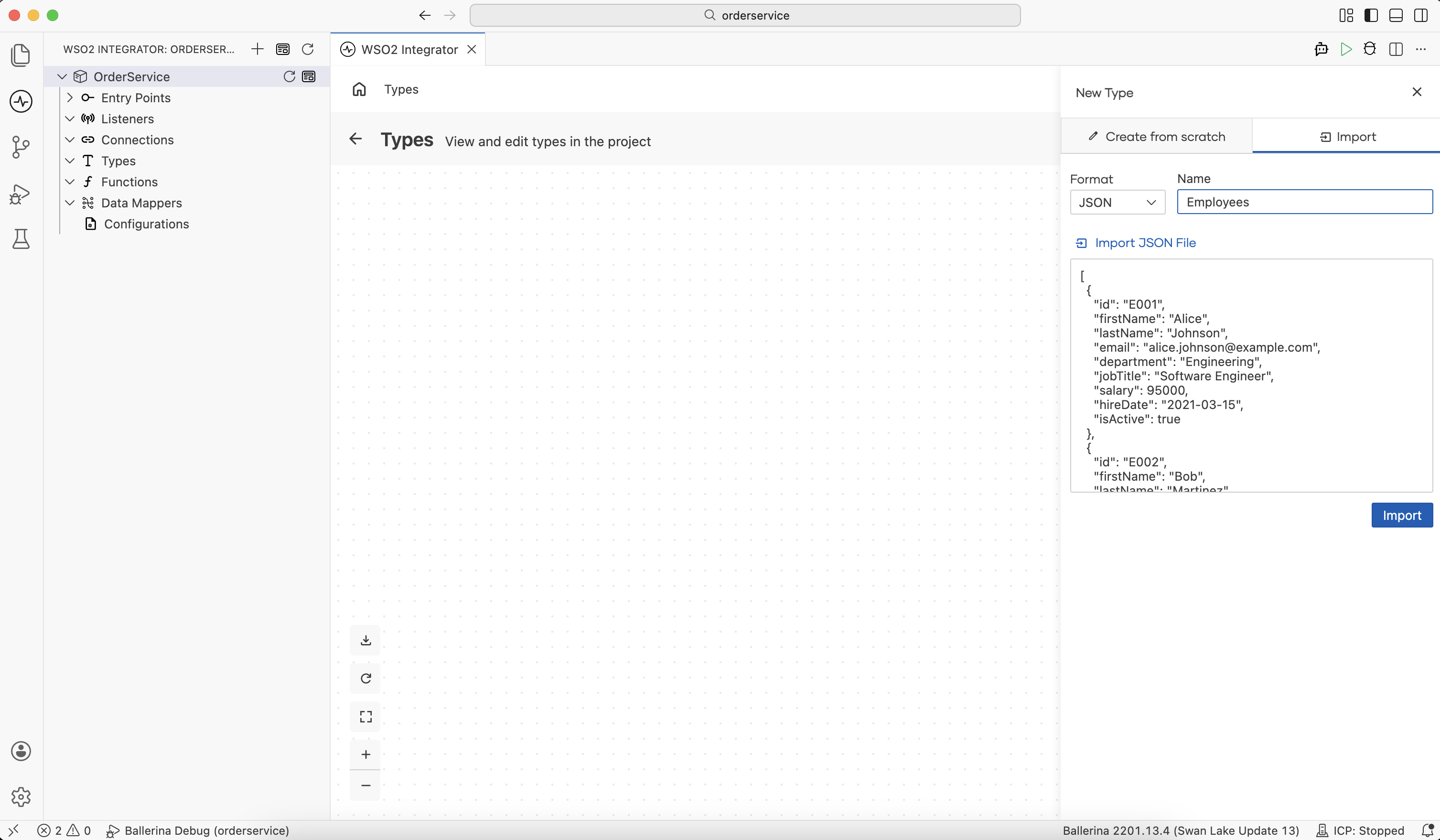

1. In the New Type creation view, switch to the Import tab.

2. Specify the source data format and the name of the type to generate.

   Field	Description
   Format	The source data format: JSON or XML.
   Name	A unique name for the type (for example, Employees).



3. Click Save. The types are added to your project and appear in the type diagram.

Sample JSON

[
  {
    "id": "E001",
    "firstName": "Alice",
    "lastName": "Johnson",
    "email": "[email protected]",
    "department": "Engineering",
    "jobTitle": "Software Engineer",
    "salary": 95000,
    "hireDate": "2021-03-15",
    "isActive": true
  },
  {
    "id": "E002",
    "firstName": "Bob",
    "lastName": "Martinez",
    "email": "[email protected]",
    "department": "Marketing",
    "jobTitle": "Marketing Manager",
    "salary": 85000,
    "hireDate": "2019-07-01",
    "isActive": true
  }
]

Ballerina Code

public type EmployeesItem record {|
    string id;
    string firstName;
    string lastName;
    string email;
    string department;
    string jobTitle;
    int salary;
    string hireDate;
    boolean isActive;
|};

public type Employees EmployeesItem[];

Map types

The visual designer does not expose Map as a Kind. To model dynamic key/value data, define a record instead:

• For a known set of keys, define the fields in a closed record (record {| ... |}).
• For arbitrary string keys and plain data values, use an open record with Allow Additional Fields enabled.

If you are editing source directly, the equivalent Ballerina form is map<T> or record {| T...; |}. For example, map<string> or record {| string...; |} is the equivalent for a string-valued map.

Best practices

Practice	Description
Closed records	Leave Allow Additional Fields unchecked unless you actually need extra keys.
Reuse across artifacts	Define types once and reference them from services, event handlers, and functions.
Prefer Readonly over conventions	Mark fields or whole types Readonly for immutable data, instead of relying on convention.
Use records instead of maps	Where finer control is required over fields, use records instead of maps.

What's next

• Connections — Define reusable connections to external systems.
• Configurations — Externalize values such as endpoints and credentials.
• Functions — Encapsulate reusable logic in Ballerina functions.
• Data mapper — Map between record types visually.
