GraphQL Tool

The bal graphql tool generates Ballerina service skeletons and client code from GraphQL Schema Definition Language (SDL) files. It creates type-safe resolver stubs, input/output types, and client operations that match your GraphQL schema, letting you focus on implementing business logic rather than writing boilerplate.

Generating a service from a GraphQL schema

Visual Designer

1. Click the + Add Artifacts button in the canvas or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select GraphQL Service under Integration as API.

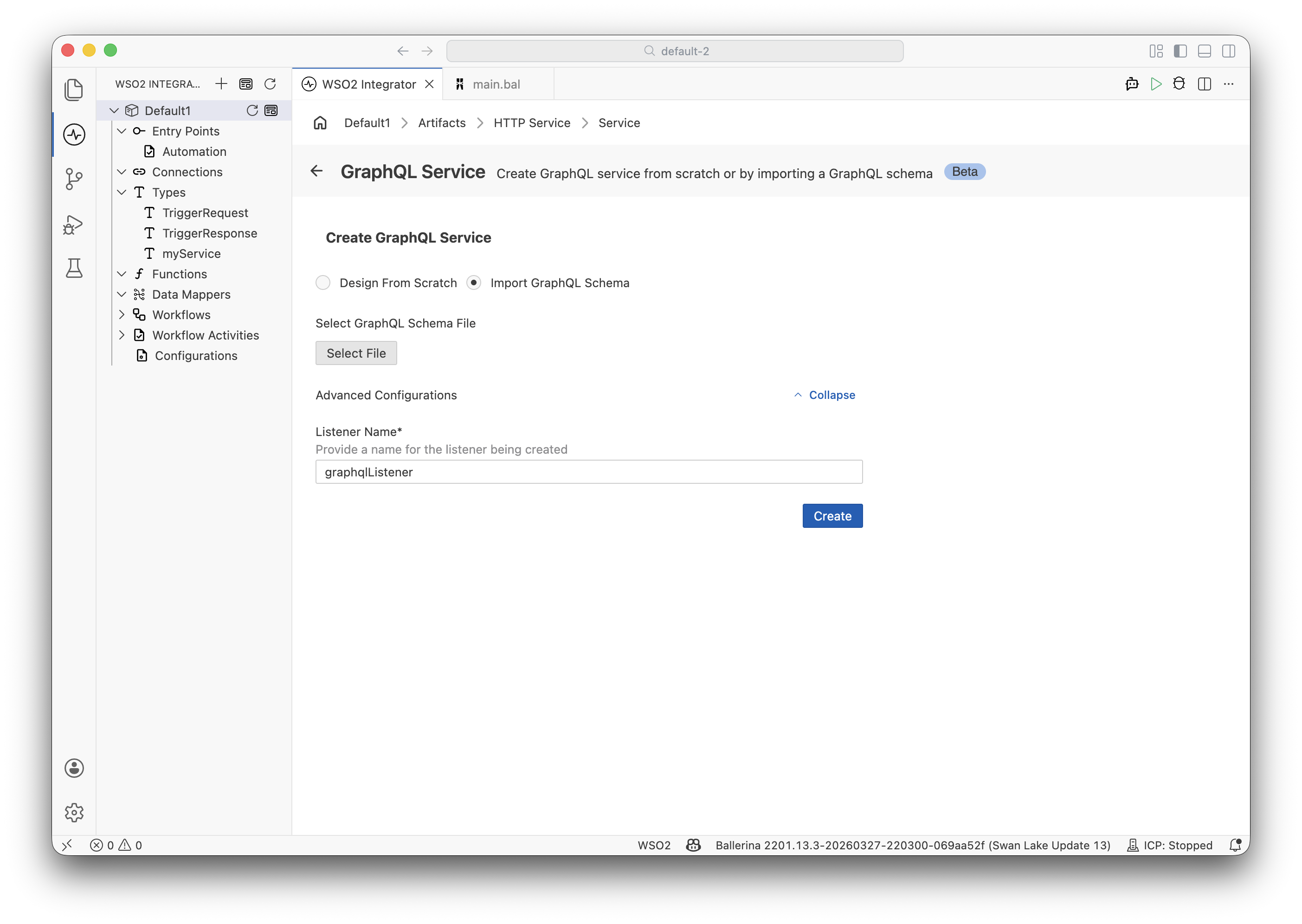

3. Select Import From GraphQL Schema under Service Contract.



4. Browse or enter the path to your GraphQL SDL file.

5. Configure the Service Base Path and listener settings.

6. Click Create.

7. WSO2 Integrator generates the service with resolver stubs and types matching your GraphQL schema.

Ballerina Code

Basic service generation

# Generate a Ballerina GraphQL service from an SDL file
bal graphql -i schema.graphql --mode service

# Specify output directory
bal graphql -i schema.graphql --mode service -o generated/

# Generate record types instead of service classes for object types where possible
bal graphql -i schema.graphql --mode service --use-records-for-objects

Command usage for service generation

 bal graphql [-i | --input] <graphql-schema-file-path>
              [-o | --output] <output-location>
              [-m | --mode] service
              [-r | --use-records-for-objects]

Command options for service generation

Command option	Description	Mandatory/Optional
-i, --input	The input command option specifies the path of the GraphQL schema file (for example, schema.graphql).	Mandatory
-o, --output	The output command option specifies the output location of the generated files. If this command option is not specified, the Ballerina files will be generated at the same location in which the bal graphql command is executed.	Optional
-m, --mode	The mode parameter specifies the operation mode. It indicates the way to process the schema file. If the mode flag is not specified, the graphql tool will infer the mode from the input file extension. The mode should be service for the service generation.	Optional
-r, --use-records-for-objects	The use-records-for-objects flag generates record types instead of service classes for GraphQL object types where possible. This flag can only be used with the service mode.	Optional

Example schema

Given the following schema.graphql:

type Query {
    customer(id: ID!): Customer
    orders(customerId: ID!, first: Int = 10): [Order!]!
}

type Mutation {
    createOrder(input: OrderInput!): Order!
    updateOrderStatus(orderId: ID!, status: OrderStatus!): Order!
}

type Customer {
    id: ID!
    name: String!
    email: String!
    orders: [Order!]!
}

type Order {
    id: ID!
    customerId: ID!
    items: [LineItem!]!
    total: Float!
    status: OrderStatus!
}

type LineItem {
    productId: ID!
    quantity: Int!
    unitPrice: Float!
}

input OrderInput {
    customerId: ID!
    items: [LineItemInput!]!
}

input LineItemInput {
    productId: ID!
    quantity: Int!
}

enum OrderStatus {
    PENDING
    CONFIRMED
    SHIPPED
    DELIVERED
    CANCELLED
}

Generated service code

The tool generates two files: types.bal and service.bal.

types.bal contains a service object type named after the schema file, and the types used in the schema. By default, GraphQL object types are generated as service classes:

import ballerina/graphql;

type schema service object {
    *graphql:Service;
    resource function get customer(@graphql:ID string id) returns Customer?;
    resource function get orders(@graphql:ID string customerId, int? first = 10) returns Order[];
    remote function createOrder(OrderInput input) returns Order;
    remote function updateOrderStatus(@graphql:ID string orderId, OrderStatus status) returns Order;
};

public type OrderInput record {|
    @graphql:ID
    string customerId;
    LineItemInput[] items;
|};

public type LineItemInput record {|
    @graphql:ID
    string productId;
    int quantity;
|};

public enum OrderStatus {
    PENDING,
    CONFIRMED,
    SHIPPED,
    DELIVERED,
    CANCELLED
}

public distinct service class Customer {
    resource function get id() returns @graphql:ID string {
    }

    resource function get name() returns string {
    }

    resource function get email() returns string {
    }

    resource function get orders() returns Order[] {
    }
}

public distinct service class Order {
    resource function get id() returns @graphql:ID string {
    }

    resource function get customerId() returns @graphql:ID string {
    }

    resource function get items() returns LineItem[] {
    }

    resource function get total() returns float {
    }

    resource function get status() returns OrderStatus {
    }
}

public distinct service class LineItem {
    resource function get productId() returns @graphql:ID string {
    }

    resource function get quantity() returns int {
    }

    resource function get unitPrice() returns float {
    }
}

service.bal contains the service that implements the service object type, with a resolver stub for each Query and Mutation field:

import ballerina/graphql;

configurable int port = 9090;

service schema on new graphql:Listener(port) {
    resource function get customer(@graphql:ID string id) returns Customer? {
    }

    resource function get orders(@graphql:ID string customerId, int? first = 10) returns Order[] {
    }

    remote function createOrder(OrderInput input) returns Order {
    }

    remote function updateOrderStatus(@graphql:ID string orderId, OrderStatus status) returns Order {
    }
}

Exporting a GraphQL schema from an existing GraphQL service

note

Schema generation from GraphQL service is currently supported only through the Ballerina CLI (pro-code). Visual Designer support for GraphQL schema generation is not yet available.

Generate a GraphQL SDL file from an existing Ballerina GraphQL service:

 # Export SDL from a Ballerina service
 bal graphql -i service.bal --mode schema

 # Export to a specific directory
 bal graphql -i service.bal --mode schema -o schema/

Command usage for schema generation

 bal graphql [-i | --input] <ballerina-graphql-service-file-path>
              [-o | --output] <output-location>
              [-s | --service] <service-base-path>

Command options for schema generation

Command option	Description	Mandatory/Optional
-i, --input	The input command option specifies the path of the Ballerina GraphQL service file (for example, service.bal).	Mandatory
-o, --output	The output command option specifies the output location of the generated GraphQL schema files. If this command option is not specified, the schema files will be generated at the same location in which the bal graphql command is executed.	Optional
-m, --mode	The mode parameter specifies the operation mode. It indicates the way to process the schema file. If the mode flag is not specified, the graphql tool will infer the mode from the input file extension. The mode should be schema for the schema generation.	Optional
-s, --service	The service command option specifies the base path of the Ballerina GraphQL service of which the schema needs to be generated. If this command option is not specified, schemas will be generated for each of the GraphQL services in the given file.	Optional

Generating a client from a GraphQL schema (experimental)

note

Client generation from GraphQL schemas is currently supported only through the Ballerina CLI (pro-code). Visual Designer support for GraphQL client generation is not yet available.

• Create a queries.graphql file with the operations your client needs.

 query GetCustomer($id: ID!) {
     customer(id: $id) {
         id
         name
         email
     }
 }

 query GetOrders($customerId: ID!, $first: Int) {
     orders(customerId: $customerId, first: $first) {
         id
         total
         status
     }
 }

• Create a graphql.config.yaml configuration file that specifies the schema and query documents as follows.

 schema: schema.graphql
 documents:
   - queries.graphql

• Generate the client by running the following command.

 bal graphql -i graphql.config.yaml

Command usage for client generation

 bal graphql [-i | --input] <graphql-configuration-file-path>
              [-o | --output] <output-location>

Command options for client generation

Command option	Description	Mandatory/Optional
-i, --input	The input command option specifies the path of the GraphQL config file (for example, graphql.config.yaml) configured with GraphQL schemas specified by the Schema Definition Language and GraphQL documents.	Mandatory
-o, --output	The output command option specifies the path of the output location of the generated files. If this command option is not specified, the Ballerina files will be generated at the same location in which the bal graphql command is executed.	Optional
-m, --mode	The mode parameter specifies the operation mode. It indicates the way to process the schema file. If the mode flag is not specified, the graphql tool will infer the mode from the input file extension. The mode should be client for the client generation.	Optional
