XLSX Processing

Microsoft Excel files in the XLSX format are a common medium for reports, partner data exchange, and bulk import and export. Spreadsheets move tabular data between business users and systems, often with multiple sheets, typed columns such as dates and amounts, and structured Excel Tables.

WSO2 Integrator provides built-in support for XLSX through the ballerina/xlsx module, which binds spreadsheet rows to strongly typed Ballerina records. It combines a one-shot functional API (parseSheet, writeSheet, parseTable, writeTable) for single-sheet and single-table work with an object-based Workbook API for multi-sheet operations, byte-array I/O, and cell-level control.

All processing is local, with no external service dependency. The sections below progress from reading and writing a single sheet, through read options, Excel Tables, and typed columns such as dates and times, to less frequent needs: headerless and fail-safe reads, multi-sheet workbooks, large files, and edge cases.

note

The Workbook API for multi-sheet, byte-array, and cell-level work is not available from the visual designer's + menu. It only offers the four one-shot functions: parseSheet, writeSheet, parseTable, and writeTable.

Workbook API methods should be implemented in Ballerina code. Once they exist in the source, you can find them on the canvas to review and adjust the flow as needed.

Mapping spreadsheet columns to records​

Declare a record type with the fields you want to extract. The xlsx:parseSheet() function matches Excel column headers to record field names, builds one record per row, and ignores any columns not declared in the record. The record drives what gets read, so you don't need to mirror the sheet column-for-column. Whether the source has 5 columns or 50, only the fields you declare are populated.

This flexibility is the foundation for everything that follows. Full row mapping, file and byte reading, multi-sheet operations, and tables all build on the same column-to-field matching rule.

  1. Define a record with only the columns you need. Navigate to Types and click +. Select Create from scratch, set Kind to Record, and name it EmployeeSummary. Add only the fields you care about (for example, name (string) and salary (decimal)). For details on creating types, see Types.

  2. Parse the sheet. Click + and select Call Function. Search for parseSheet and select it under xlsx. Configure:

    • Path*: employees.xlsx
    • Result*: summaries
    • T*: EmployeeSummary[]

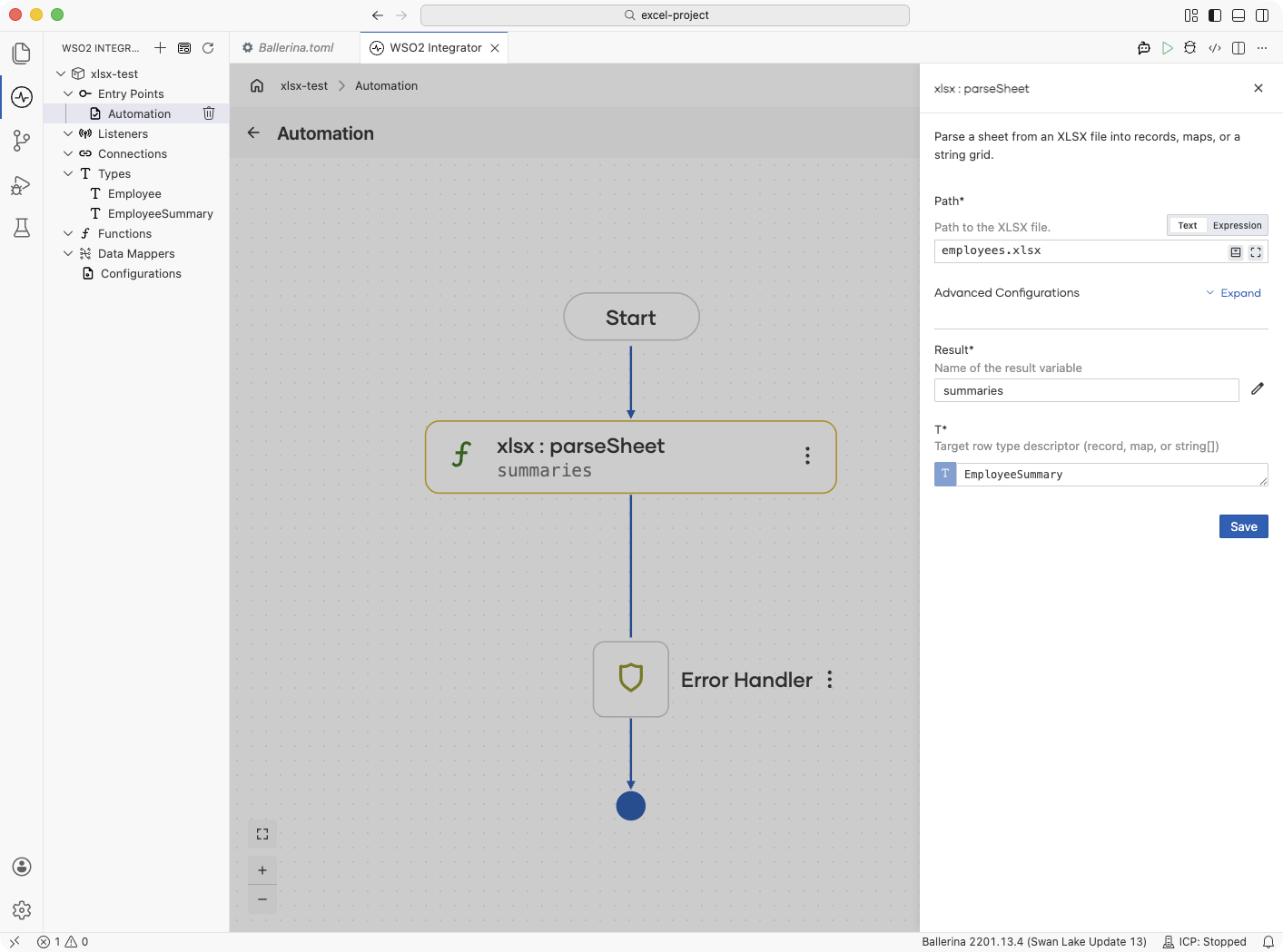

    Flow designer showing a subset record type used for sheet parsingFlow designer showing a subset record type used for sheet parsing

Reading a sheet into records​

When you do need every column, declare a record that includes all of them and iterate over the parsed array. The mapping rule is the same as in Mapping spreadsheet columns to records: this is just the case where the record covers the full row. By default parseSheet reads the first sheet (index 0). Pass a sheet name or a 0-based index as the second argument to choose another.

  1. Define the record type. Navigate to Types and click +. Select Create from scratch, set Kind to Record, and name it Employee. Add fields using the + button:

    FieldType
    namestring
    departmentstring
    salarydecimal
    yearsOfServiceint

    For details on creating types, see Types.

  2. Parse the sheet. Click + and select Call Function. Search for parseSheet under xlsx. Configure:

    • Path*: employees.xlsx
    • Sheet: "Staff" (a sheet name, or a 0-based index such as 0)
    • Result*: employees
    • T*: Employee[]

  3. Add a Foreach step. Click + and select Foreach under Control. Set the collection to employees, the variable name to emp, and the variable type to Employee.

  4. Add println inside the loop. Inside the Foreach body, click + and select Call Function. Search under standard library → io → select println, and print the fields you need.

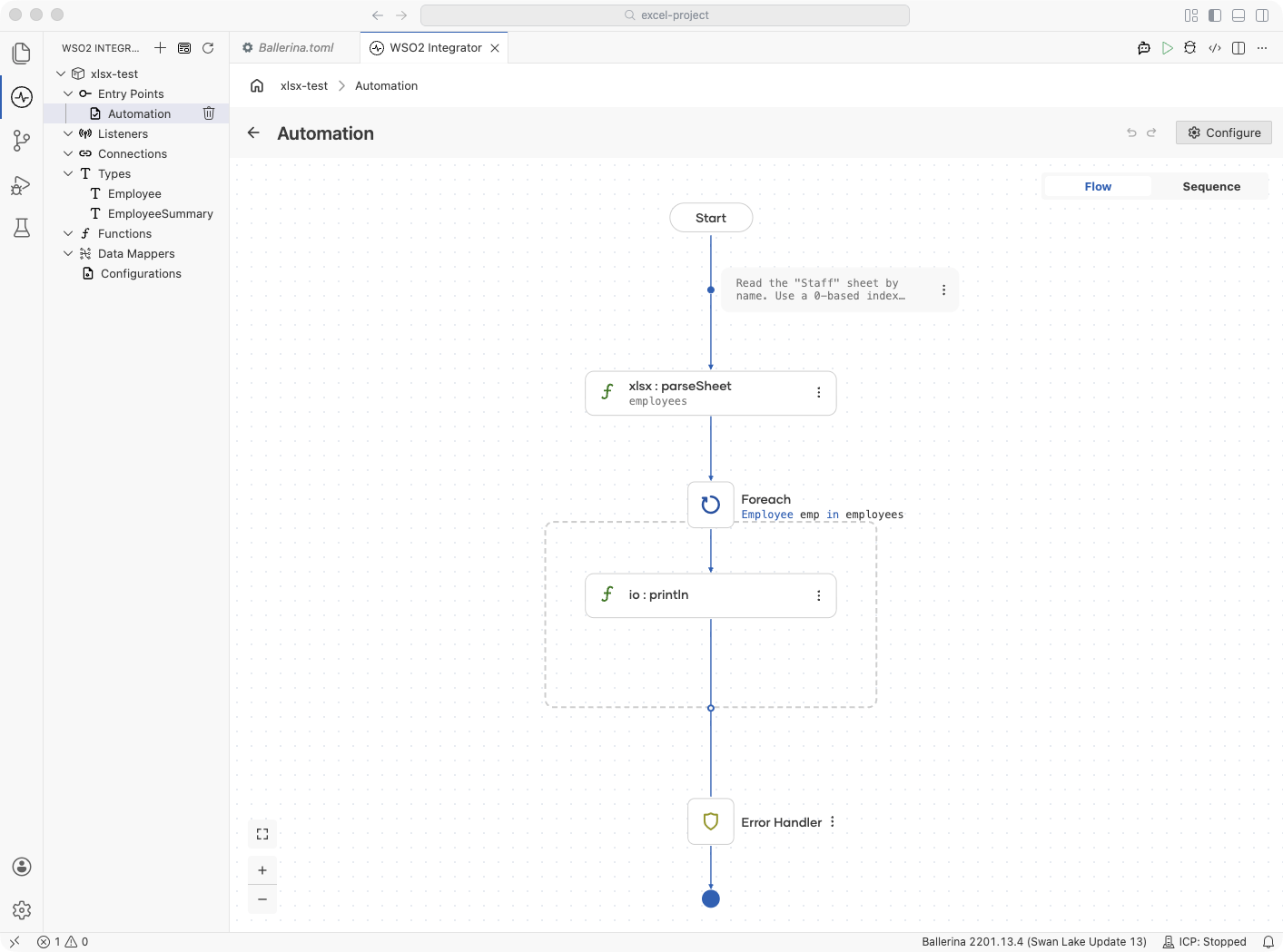

    Flow designer showing sheet parsing and a foreach loopFlow designer showing sheet parsing and a foreach loop

Reading from files and bytes​

Read a sheet directly from a file path with xlsx:parseSheet(), or open a workbook held in a byte array with xlsx:fromBytes(). The byte path suits payloads pulled from SFTP, an HTTP request, or a message queue, where the file never touches disk. Both paths use the same column-to-field mapping from Mapping spreadsheet columns to records.

The module loads each workbook fully into memory (the DOM model). There is no row-streaming API, so it does not read files incrementally. For very large workbooks, see Working with large workbooks.

  1. Define the record type. Create a record named Order with fields id (int), customer (string), and amount (decimal). For details, see Types.

  2. Read from a file path. Click + and select Call Function. Search for parseSheet under xlsx. Configure:

    • Path*: orders.xlsx
    • Result*: orders
    • T*: Order[]

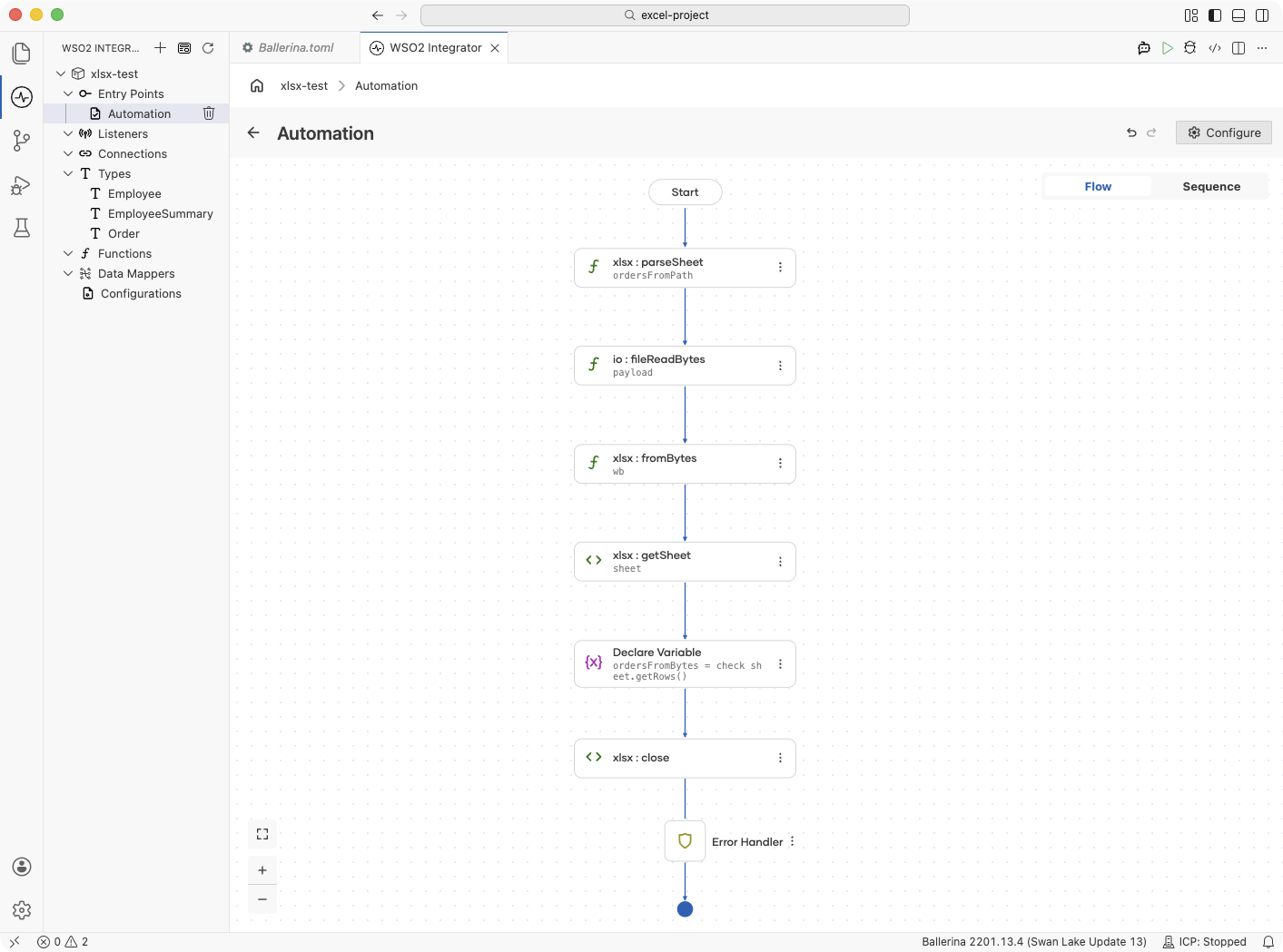

    Flow designer showing a file read and a sheet parse stepFlow designer showing a file read and a sheet parse step

Reading from a byte array instead uses the Workbook API (fromBytes, getSheet, getRows, close), shown in the Ballerina Code tab. The + menu offers only the four one-shot functions.

Writing a sheet​

Write an array of records to a sheet with xlsx:writeSheet(). If the file already exists, it is opened and only the named sheet is affected, so every other sheet, table, and formula is preserved. The write is atomic, so a failed write never destroys the original file.

note

Writing rewrites only the cell values, so a parseSheet followed by writeSheet does not preserve the target sheet's formulas, formatting, or charts.

The sheetWriteMode option controls what happens when the target sheet already exists. The default, FAIL_IF_EXISTS, refuses to overwrite data by accident. Opt in to REPLACE to drop and recreate the sheet, or APPEND to add rows below the existing data.

  1. Define the record type. Create a record named Product with fields id (string), name (string), price (decimal), and stock (int). For details, see Types.

  2. Build the data. Add a variable named products of type Product[] with the rows to write.

  3. Write the sheet. Call writeSheet under xlsx. Configure:

    • Data*: products
    • Path*: catalog.xlsx
    • Sheet Name: "Catalog"

  4. (Optional) Choose a write mode. Under Advanced Configurations → Options, set sheetWriteMode to REPLACE or APPEND to write into a sheet that already exists.

    Flow designer showing a writeSheet stepFlow designer showing a writeSheet step

Read options​

All of the read functions (xlsx:parseSheet, xlsx:parseTable, Sheet.getRows, and the single-row and column readers) accept options that control how the input is interpreted. Use these to handle formula cells, match headers case-insensitively, locate the header and data rows, cap how many rows are read, validate against record constraints, or enable fail-safe processing.

In the visual designer, read options live under Advanced Configurations → Options on the parse step. The field is empty by default ({}), meaning all defaults apply.

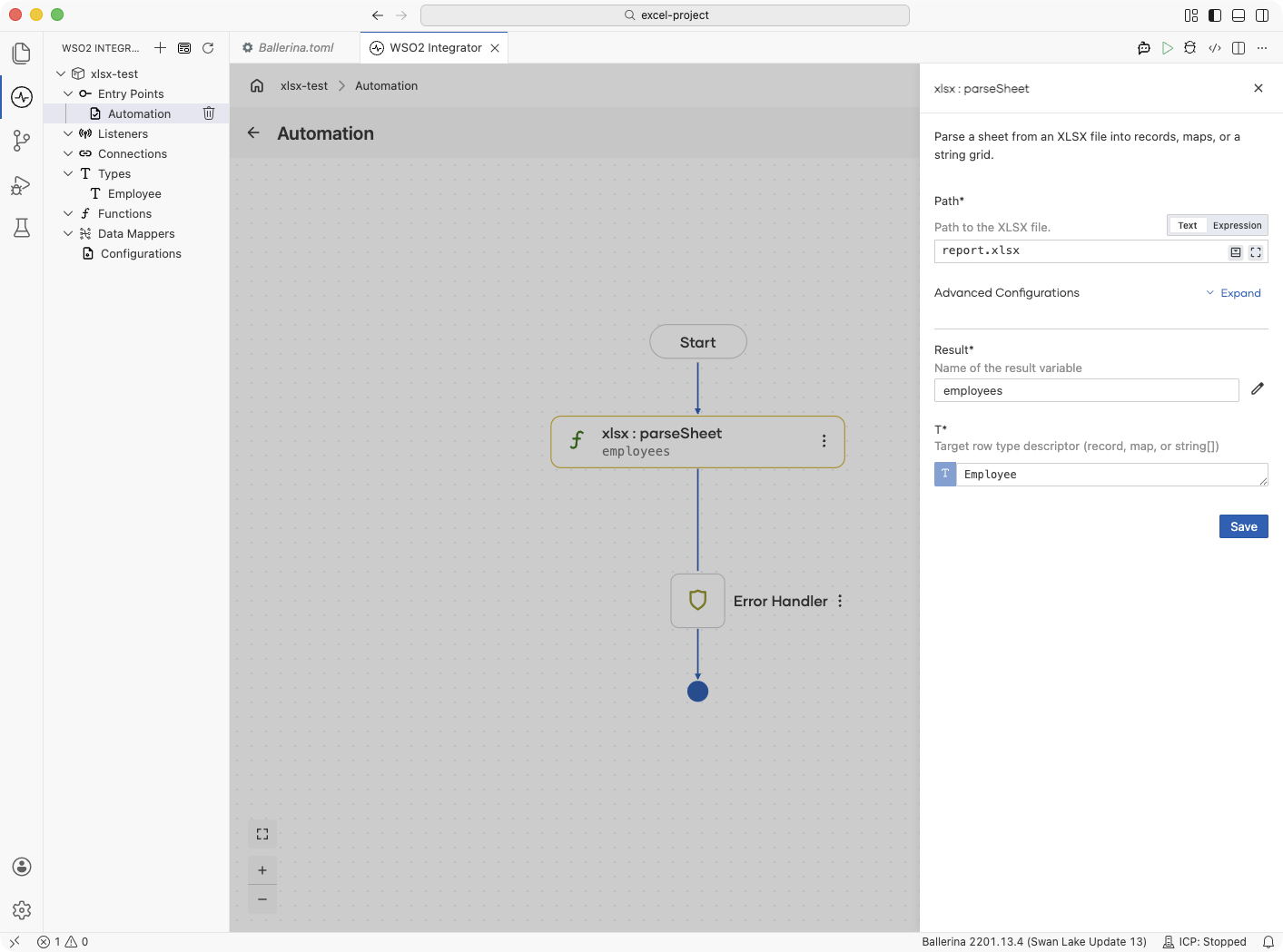

parseSheet step with the Options field under Advanced ConfigurationsparseSheet step with the Options field under Advanced Configurations

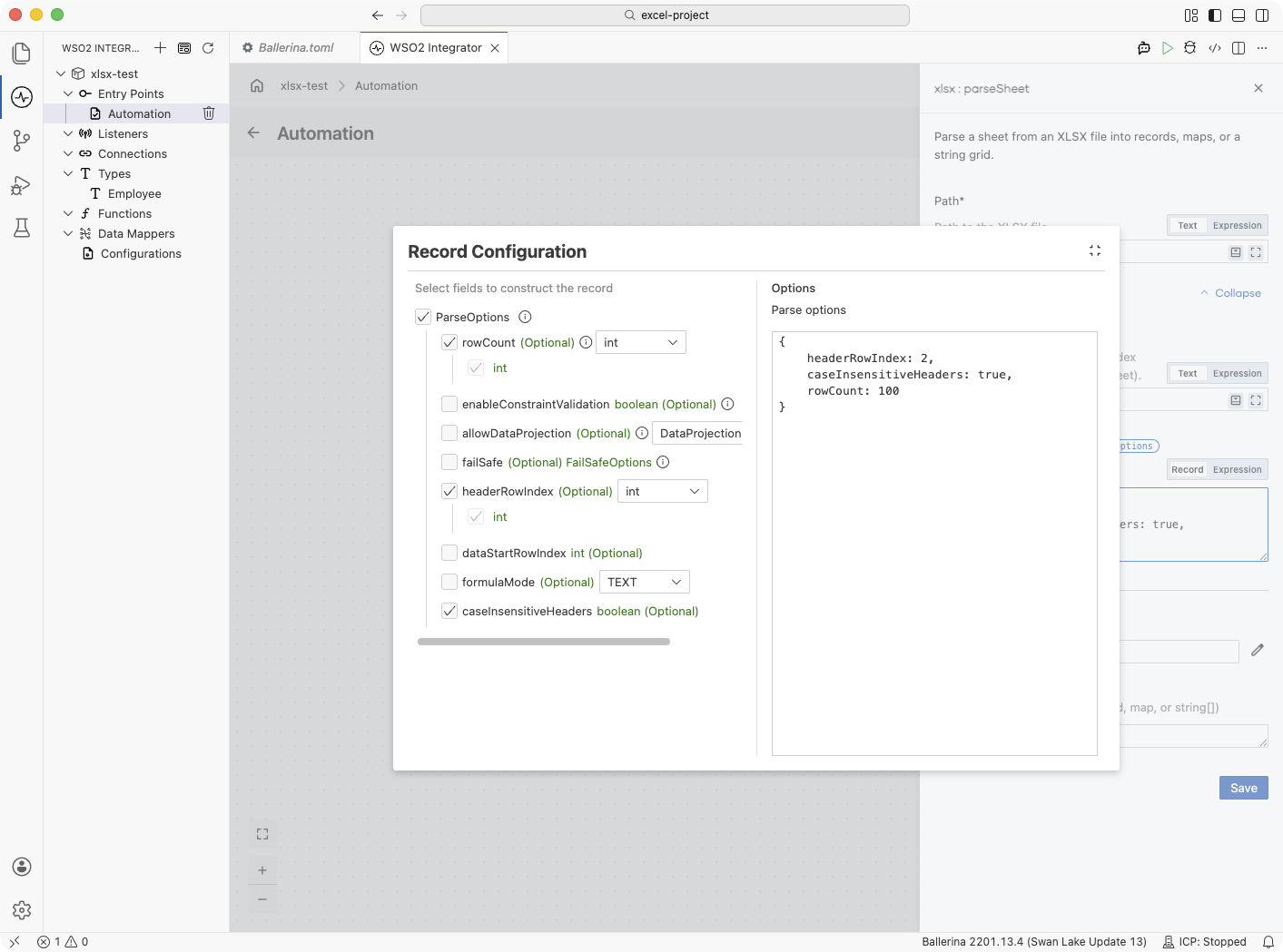

Click the Options field to open the Record Configuration helper. Tick the checkbox next to any option you want to set, fill in the value, and click Save.

Record Configuration helper listing the available ParseOptions fieldsRecord Configuration helper listing the available ParseOptions fields

Available options​

The fields below match the ParseOptions record used by sheet reads. Table reads use TableParseOptions, which omits the positional headerRowIndex and dataStartRowIndex fields because a table is self-describing.

OptionTypeDescription
formulaModeFormulaModeHow to read formula cells. CACHED (default) uses the last cached value; TEXT returns the formula string. See Formulas.
caseInsensitiveHeadersbooleanWhen true, header "Name" matches record field name or NAME. Default false.
headerRowIndexint?0-based index of the header row. Default 0. Set to () for input with no header row. See Headerless sheets.
dataStartRowIndexint0-based index where data starts. Defaults to headerRowIndex + 1. See Selecting a sheet and locating the header row.
rowCountint?Maximum number of data rows to read. Default () reads all rows.
allowDataProjectionrecord|falseControls projection when the record covers only a subset of columns. Set to false to require an exact match. The record form has nilAsOptionalField and absentAsNilableType boolean fields. Default {}.
enableConstraintValidationbooleanWhen true, parsed records are validated against any @constraint annotations. Default true.
failSafeFailSafeOptions?Skips and logs invalid rows instead of aborting the read. See Fail-safe processing.

In Ballerina code, options are passed as the third argument to parseSheet, after the path and the sheet selector:

import ballerina/xlsx;

type Employee record {|
    string name;
    int age;
|};

public function main() returns error? {
    Employee[] employees = check xlsx:parseSheet("report.xlsx", "Staff", {
        headerRowIndex: 2,
        caseInsensitiveHeaders: true,
        rowCount: 100
    });
}

Reading and writing Excel tables​

An Excel Table (ListObject) is a named, structured range with its own header and data region. Tables are unique by name across the entire workbook, so no sheet specifier is needed. For one-shot flows, use the tier-1 functions xlsx:parseTable() and xlsx:writeTable(). By default writeTable resizes the table's data range to fit the data exactly, growing or shrinking it.

  1. Define the record type. Create a record named Employee with fields name (string) and age (int). For details, see Types.

  2. Read the table. Click + and select Call Function. Search for parseTable under xlsx. Configure:

    • Path*: data.xlsx
    • Table Name*: EmployeeTable
    • Result*: employees
    • T*: Employee[]

  3. Write the table back. Call writeTable under xlsx with the updated rows, the same path, and the table name. The data range resizes to fit.

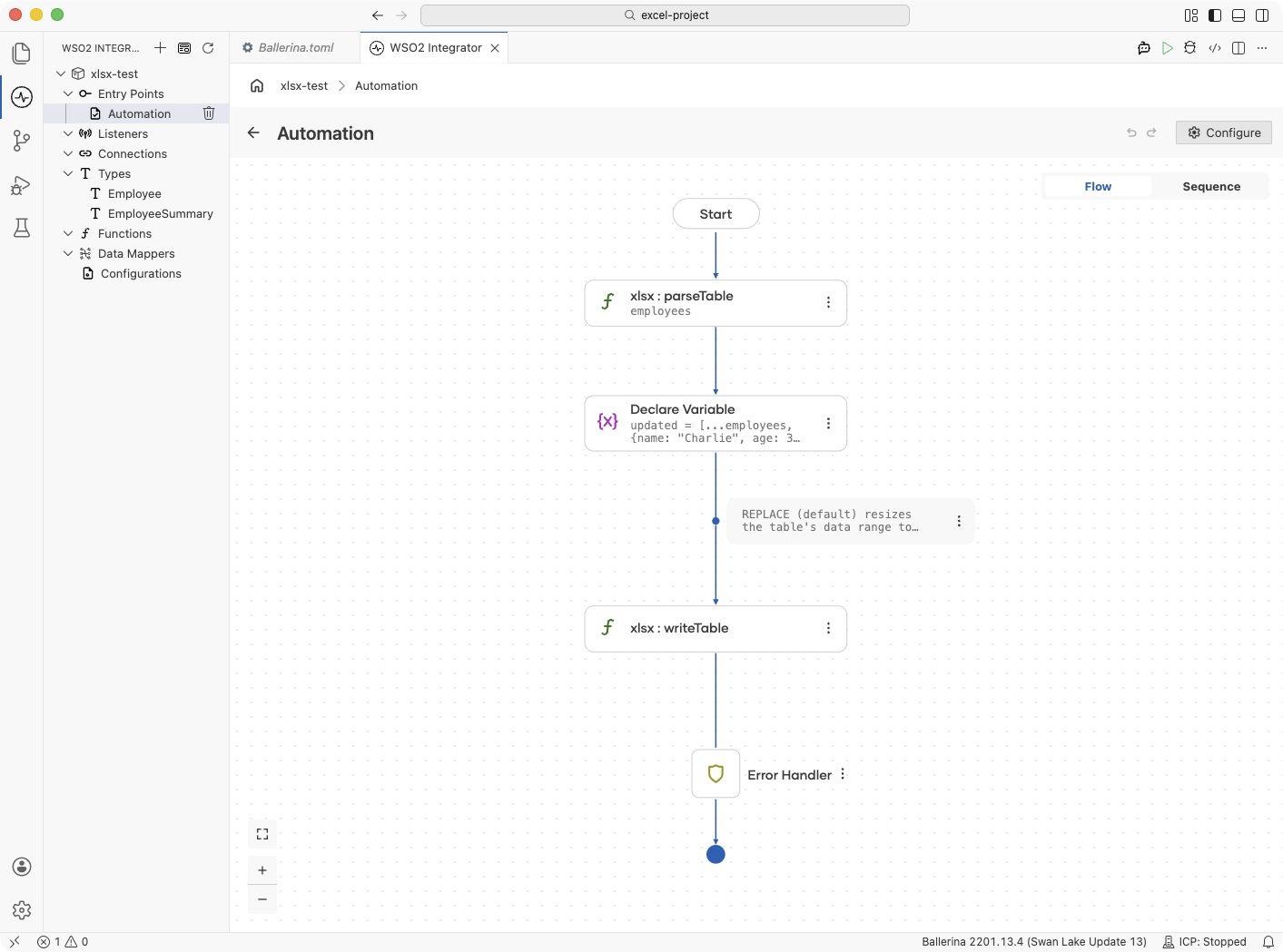

    Flow designer showing a parseTable and writeTable flowFlow designer showing a parseTable and writeTable flow

For richer operations, such as reading a totals row or renaming or resizing a table, reach the same table through the Workbook API and use the Table class. Write these in code (see Working with multiple sheets); the full method list is in the Table methods reference.

import ballerina/xlsx;

type Employee record {|
    string name;
    int age;
|};

public function main() returns error? {
    xlsx:Workbook wb = check xlsx:fromFile("data.xlsx");
    xlsx:Table empTable = check wb.getTable("EmployeeTable");

    Employee[] employees = check empTable.getRows();
    if check empTable.hasTotalRow() {
        map<xlsx:CellValue> totals = check empTable.getTotalRow();
        // Inspect the totals row.
    }

    Employee[] updated = [...employees, {name: "Charlie", age: 35}];
    check empTable.putRows(updated);

    check wb.save();
    check wb.close();
}

Selecting a sheet and locating the header row​

XLSX is a binary format, so there are no delimiters or encodings to configure. Instead, the controls that matter are which sheet to read and where the header and data rows sit. Pass a sheet name or a 0-based index as the second argument to parseSheet. When a sheet has a title banner or blank rows above the data, set headerRowIndex to the row that holds the column names and dataStartRowIndex to the first data row. Both are 0-based.

  1. Define the record type. Create a record named Sale with fields product (string) and price (decimal). For details, see Types.

  2. Select the sheet. Call parseSheet under xlsx and set Sheet to the sheet name (for example, "Q1") or a 0-based index.

  3. Point to the header and data rows. Under Advanced Configurations → Options (see Read options), set:

    • headerRowIndex: 2
    • dataStartRowIndex: 3

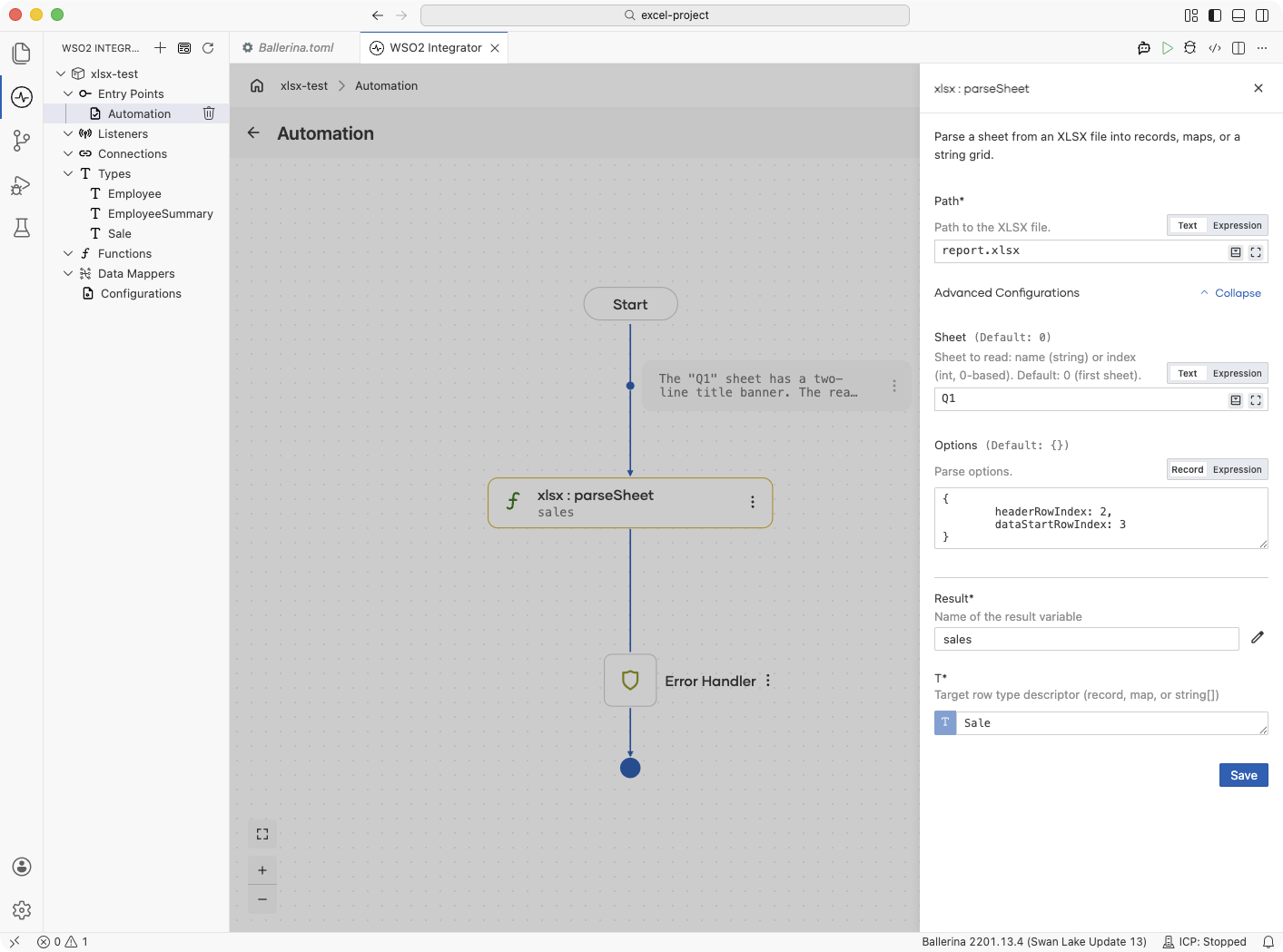

    Flow designer showing sheet selection and header-row optionsFlow designer showing sheet selection and header-row options

Reading and writing dates and times​

The binder uses the target field type to decide what shape to produce for a date or time cell. Declare a field as time:Civil for a date-time value, time:Date for a date-only value, or time:TimeOfDay for a time-only value. Declare it as string to get an ISO 8601 string instead. Writing the records back produces date-formatted cells, not text cells.

  1. Define the record type. Create a record named Transaction with fields id (int), timestamp (time:Civil), settledOn (time:Date), and amount (decimal). For details, see Types.

  2. Parse the sheet. Call parseSheet under xlsx with the file path and Transaction[] as the target type. Date cells bind to the declared time types automatically.

  3. (Optional) Write back. Call writeSheet under xlsx with the same records to produce date-formatted cells.

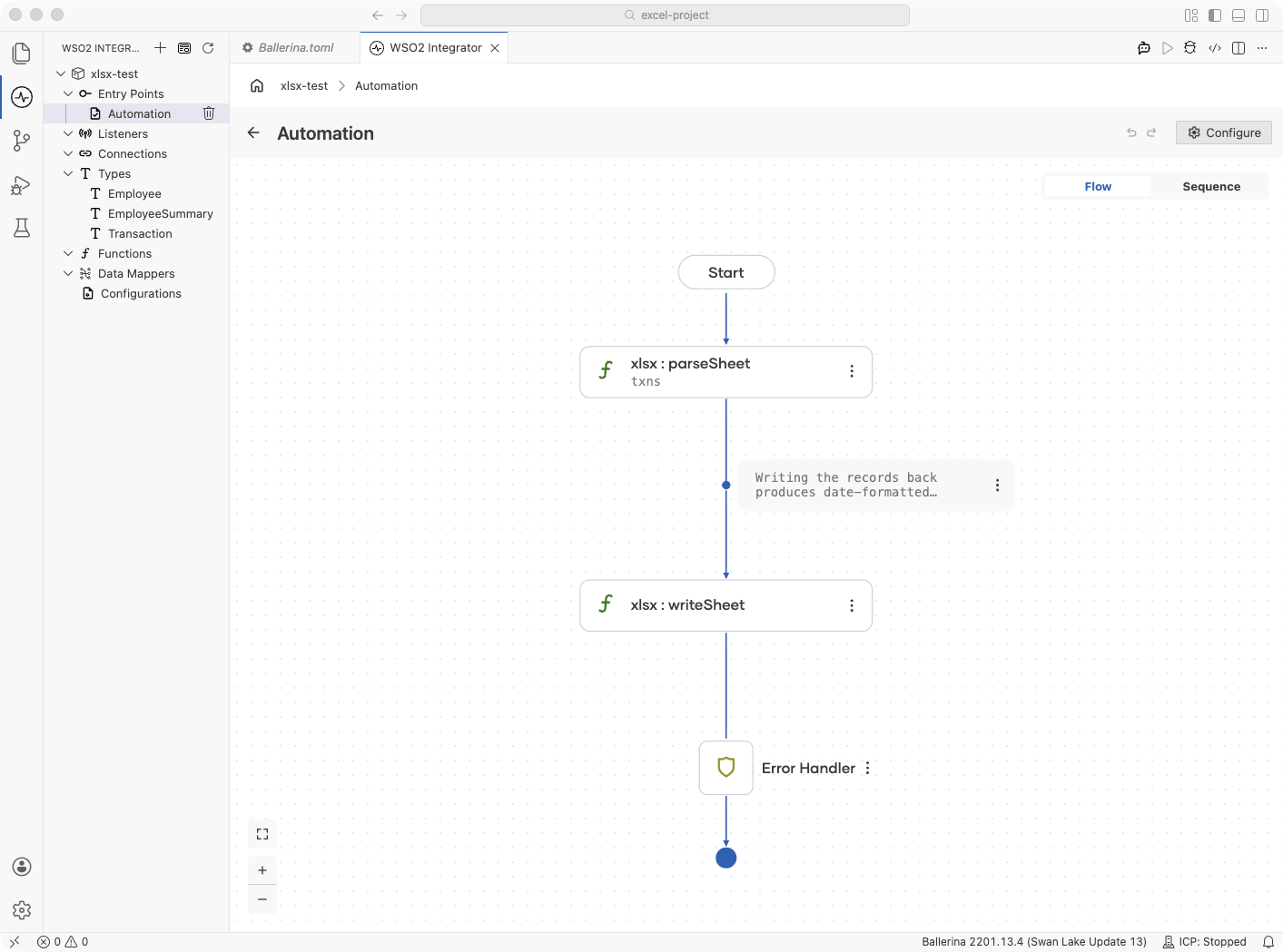

    Flow designer showing date and time binding to time typesFlow designer showing date and time binding to time types

Headerless sheets​

At its most general, a sheet is just a grid of cells, and the universal representation of that grid is a 2D string array (string[][]): one inner array per row, one string per cell. The module supports this raw form directly, but the preferred representation is record[], which gives you typed fields and named columns instead of positional indexing.

When a sheet has no header row, you have two options:

  • Read into string[][] and access cells by index. Raw mode is lossless, so every row is returned as data. Use this when you don't have a fixed schema or the column order is unreliable.
  • Read into a typed record[] by setting headerRowIndex to (). The columns are then exposed as col0, col1, and so on, which you map onto record fields with @xlsx:Name.

  1. Read as a raw grid. Call parseSheet under xlsx with T set to string[][]. Every row, including any that look like a header, is returned as string cells you access by index.

  2. (Alternative) Read into typed records. Define a record whose fields use @xlsx:Name to map the generated col0, col1, and so on. Under Advanced Configurations → Options (see Read options), set headerRowIndex to (), and set T to your record array.

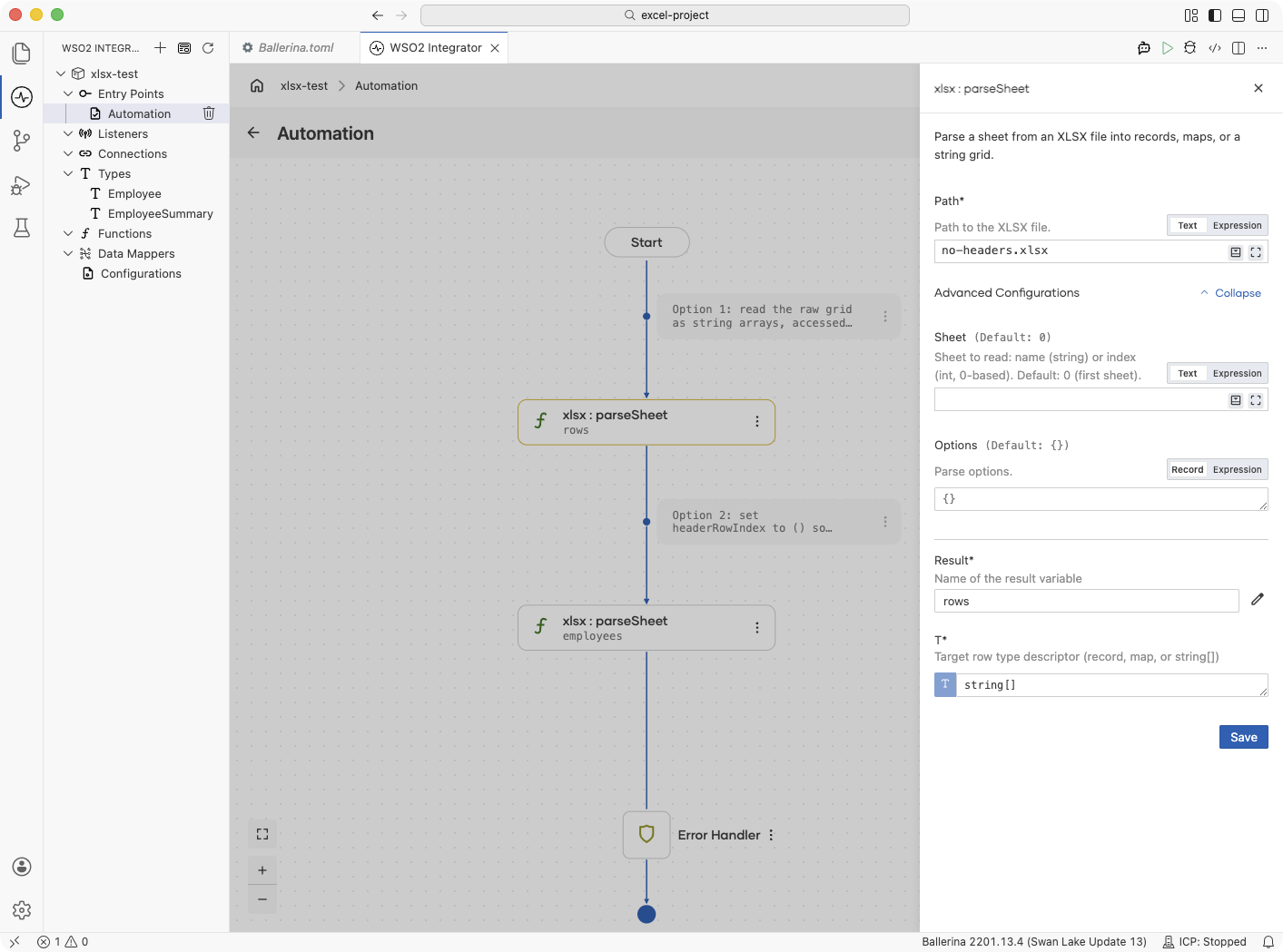

    Flow designer showing headerless sheet parsing into string arraysFlow designer showing headerless sheet parsing into string arrays

Fail-safe processing​

By default, xlsx:parseSheet() is strict. The read stops at the first row that doesn't match the target record type, such as a value that can't be coerced to the declared type, and returns an error. The whole batch is rejected, even if every other row would have parsed cleanly.

Fail-safe processing inverts that behavior. Bad rows are skipped, the offending row data and error are captured, and the read returns only the rows that parsed successfully. Use it for batch jobs and data integration pipelines where partial data is more useful than no data. Fail-safe applies to bulk reads only (parseSheet, parseTable, Sheet.getRows, Table.getRows); single-row reads are fail-fast.

Enable fail-safe by setting the failSafe option. It can log to the console, to a file, or both, with control over what to record and whether to append or overwrite.

  1. Define the record type. Create a Book record with fields name (string), author (string), price (decimal), and publishDate (string).

  2. Enable fail-safe options. Under Advanced Configurations → Options (see Read options), set:

    {
        "failSafe": {
            "enableConsoleLogs": true
        }
    }

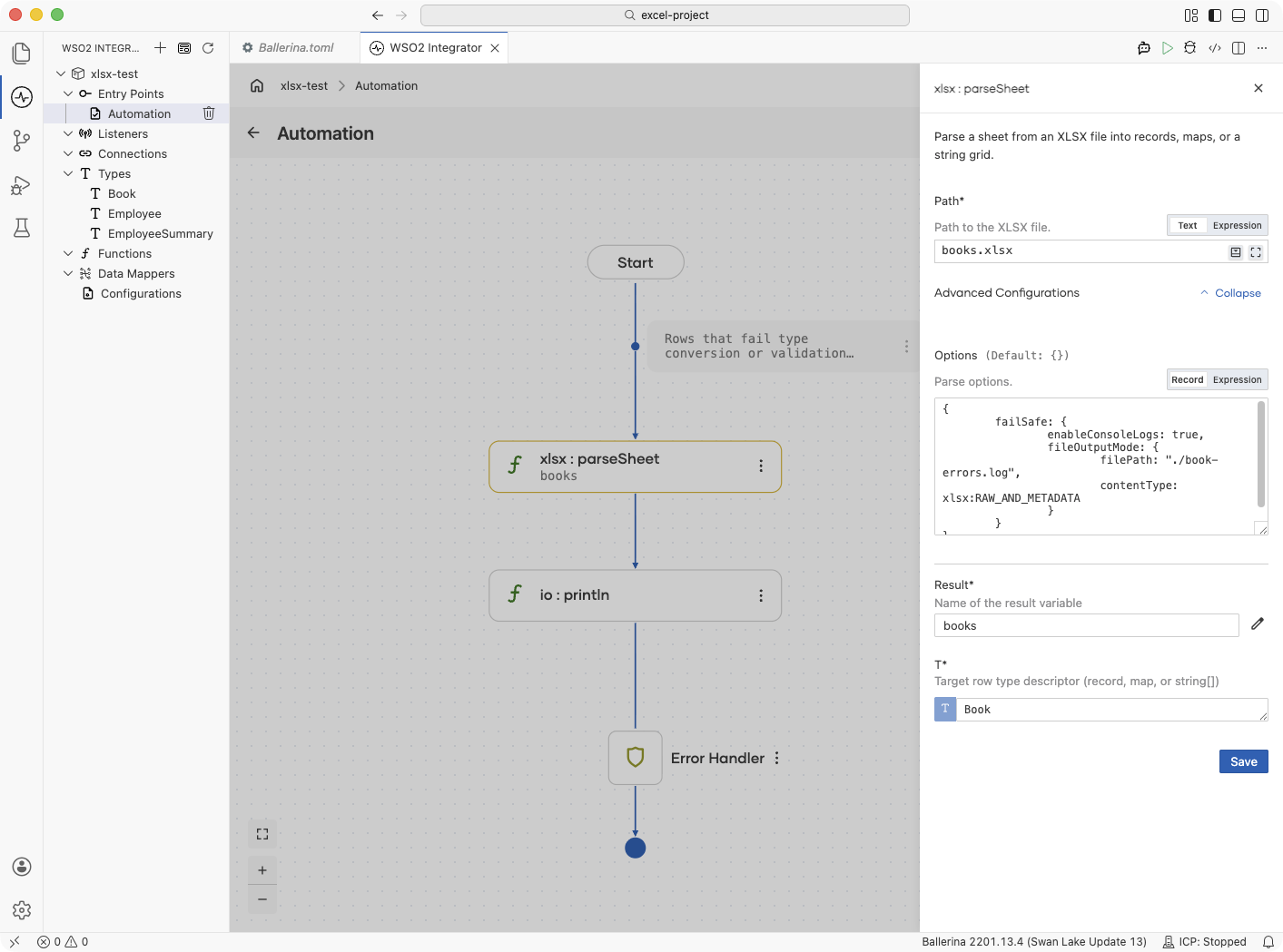

    Flow designer showing fail-safe sheet parsing configurationFlow designer showing fail-safe sheet parsing configuration

Working with multiple sheets​

The Workbook API gives you a stateful workbook with an explicit lifecycle, so you can read from one sheet, create another, and save the whole file in a single flow. Open an existing file with xlsx:fromFile(), read or modify sheets, then save() and close(). Construct an empty workbook with new and use saveAs() to write it to a new path.

note

These steps use the Workbook API (xlsx:fromFile, getSheet, getRows, createSheet, putRows, and save), which is not available from the + menu. Implement them using code from the Ballerina Code tab. Once they exist in the source, you can find the read, create-sheet, and save flow on the canvas.

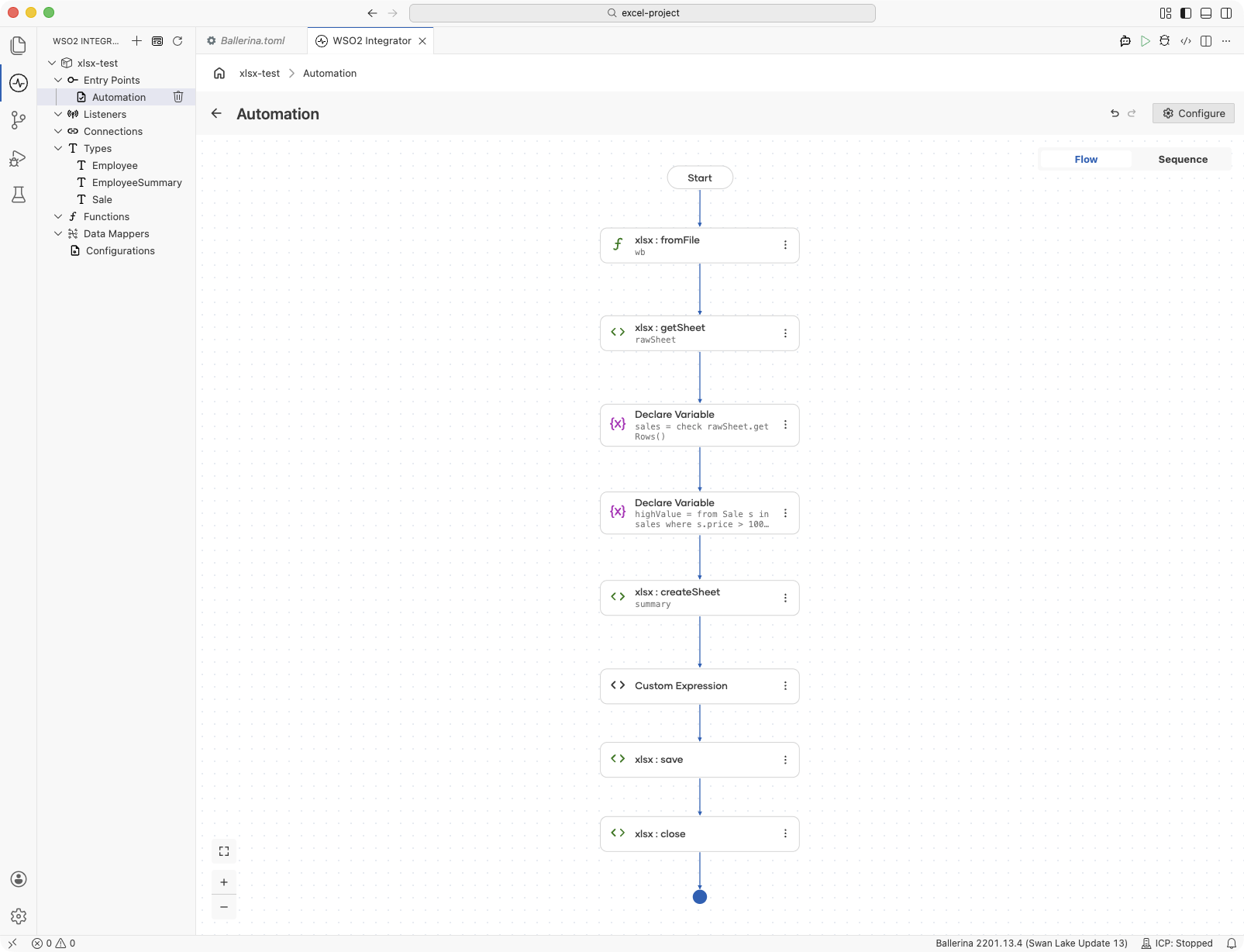

Designer rendering the Workbook flow from codeDesigner rendering the Workbook flow from code

Working with large workbooks​

The ballerina/xlsx module uses a DOM model. It loads the entire workbook into memory before returning, and there is no streaming or incremental-read API. For workbooks up to the tens of megabytes this is usually fine. For very large files, the memory footprint matters.

The file path and the byte path have different costs. Reading from a file path with xlsx:fromFile() runs at roughly the size of the workbook's in-memory representation. The byte path with xlsx:fromBytes() sustains roughly 1.5 to 2.5 times that, because the underlying parser inflates every zip entry up front and holds the source bytes for the workbook's lifetime. When a large payload arrives in memory, stage it to a temporary file and open it from the path (Workbook API, so write it in code) to keep the footprint close to the file-path cost.

import ballerina/file;
import ballerina/io;
import ballerina/xlsx;

type DataRow record {|
    int id;
    string value;
|};

// Stage a large in-memory payload to disk, then open it from the file path
// so memory stays close to the workbook's in-memory size.
function processLargePayload(byte[] payload) returns DataRow[]|error {
    string tempPath = "./staged-workbook.xlsx";
    check io:fileWriteBytes(tempPath, payload);

    xlsx:Workbook wb = check xlsx:fromFile(tempPath);
    xlsx:Sheet sheet = check wb.getSheet(0);
    DataRow[] rows = check sheet.getRows();
    check wb.close();

    // Remove the staged file once the data is read.
    check file:remove(tempPath);
    return rows;
}

Edge cases​

Large integer identifiers​

Excel stores numeric cells as IEEE-754 doubles, which represent integers exactly only up to 2^53 (about 9 followed by 15 digits). The module writes all integers as numeric cells, so an integer with an absolute value greater than 2^53 loses precision silently on write, the same behavior as Apache POI, openpyxl, and Excel itself.

To preserve a 16-digit-or-longer identifier such as an account number, order ID, or transaction reference, declare the field as string. The value is then written as a text cell and every digit round-trips exactly.

import ballerina/xlsx;

type Order record {|
    string orderId;   // a 19-digit ID, preserved exactly as text
    string customer;
    decimal amount;
|};

public function main() returns error? {
    Order[] orders = [
        {orderId: "4929187654321098765", customer: "Acme", amount: 99.99d}
    ];

    // Declaring orderId as string writes it as a text cell, so every digit round-trips.
    check xlsx:writeSheet(orders, "orders.xlsx");
}

Formulas​

Formula cells are read according to the formulaMode option. CACHED (the default) returns the formula's last cached value, and TEXT returns the formula string such as "=SUM(A1:A10)". Formula authoring on write is not supported: a string that starts with = is written as plain text, not as a formula cell, and there is no formula re-evaluation mode.

What's next​
