Building an HR Knowledge Base with RAG

Build a complete HR retrieval-augmented generation pipeline in the WSO2 Integrator visual designer. You'll create two artifacts in one integration: an Automation that ingests HR policy documents into a vector knowledge base, and an HTTP Service that answers employee questions over HTTP, grounded in the ingested chunks.

What you'll learn:

• How to load and ingest documents into a vector knowledge base.
• How to configure a vector store, embedding provider, and chunker visually.
• How to retrieve relevant chunks and ground an LLM response with them.
• How to expose the result over HTTP as a reusable service.

Time: 30 minutes

Prerequisites

• An HR policy document in plain-text form (for example, a leave policy or code of conduct). A short .md file is enough to follow the tutorial.

What you'll build

The Automation flow walks documents through a chunker, embedding model, and vector store. The query flow walks an employee question through retrieval, augmentation, generation, and a JSON response.

Step 1: Open the integration

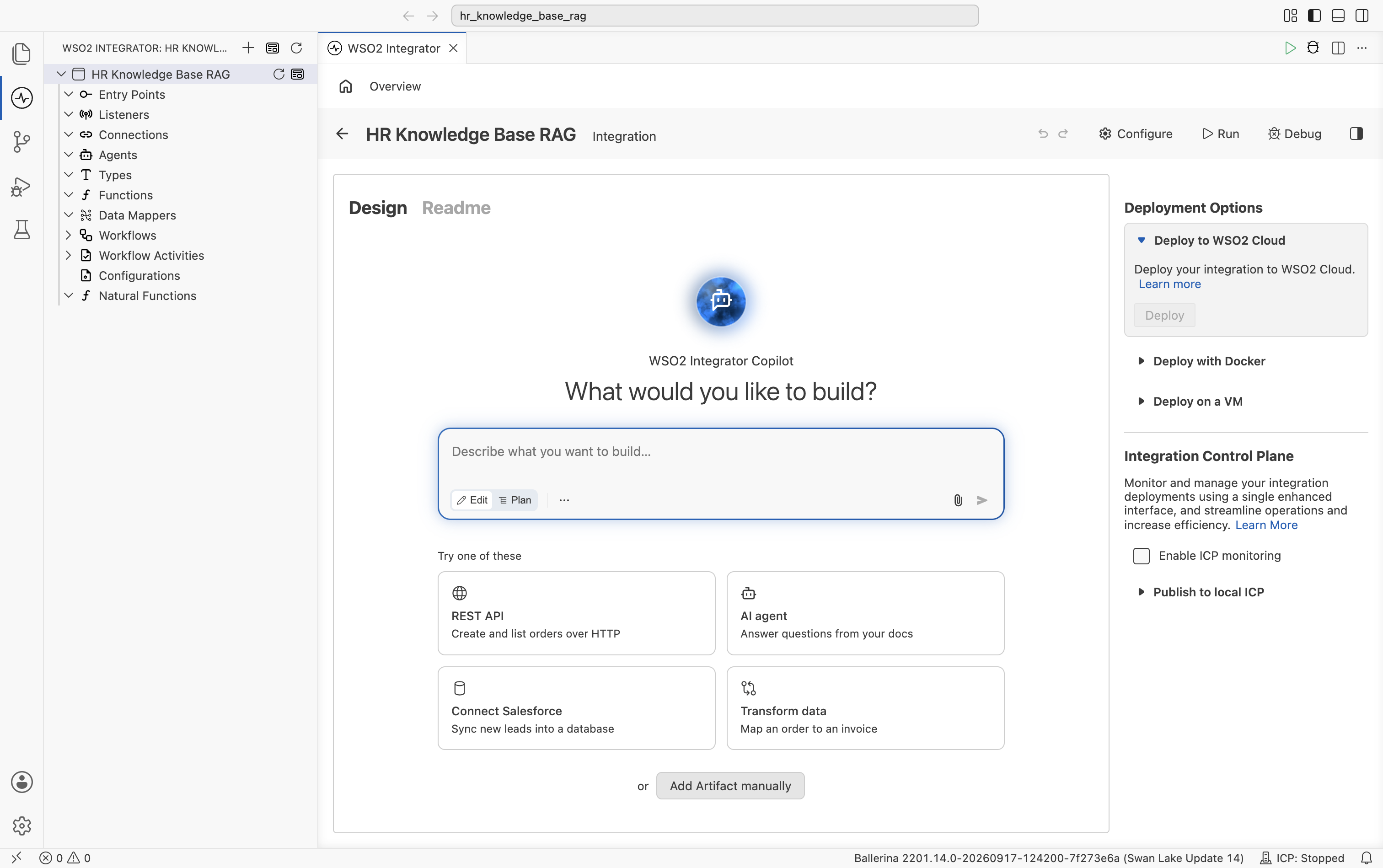

Open or create an integration project in WSO2 Integrator. On the Design tab of a new, empty project, select Add Artifact manually below the WSO2 Integrator Copilot's quick-start cards.

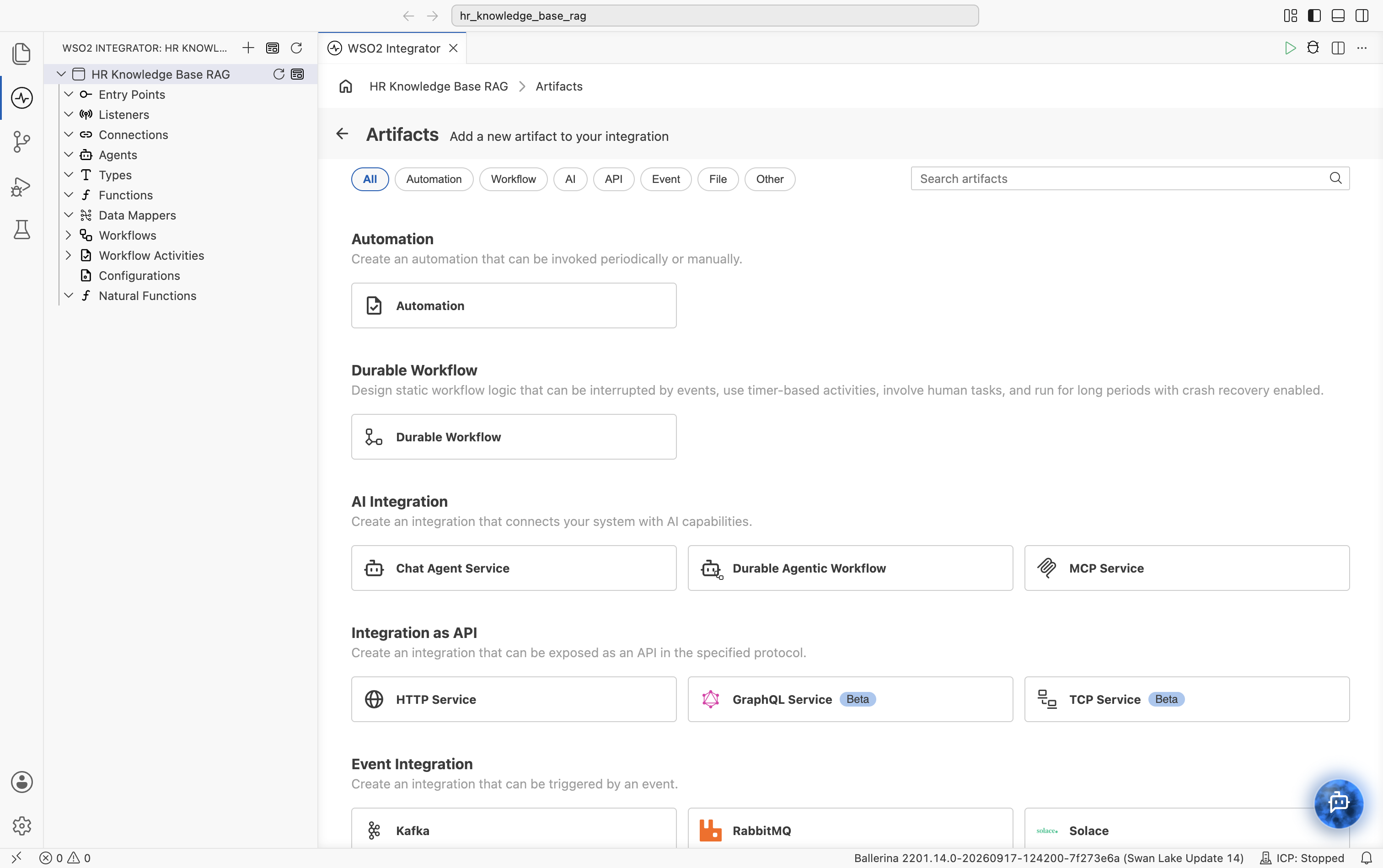

The Artifacts page opens, grouping the artifact types by category.

You will create two artifacts in this project. An Automation (under Automation) for ingestion, then an HTTP Service (under Integration as API) for querying.

Step 2: Create the ingestion automation

2.1 Pick the automation artifact

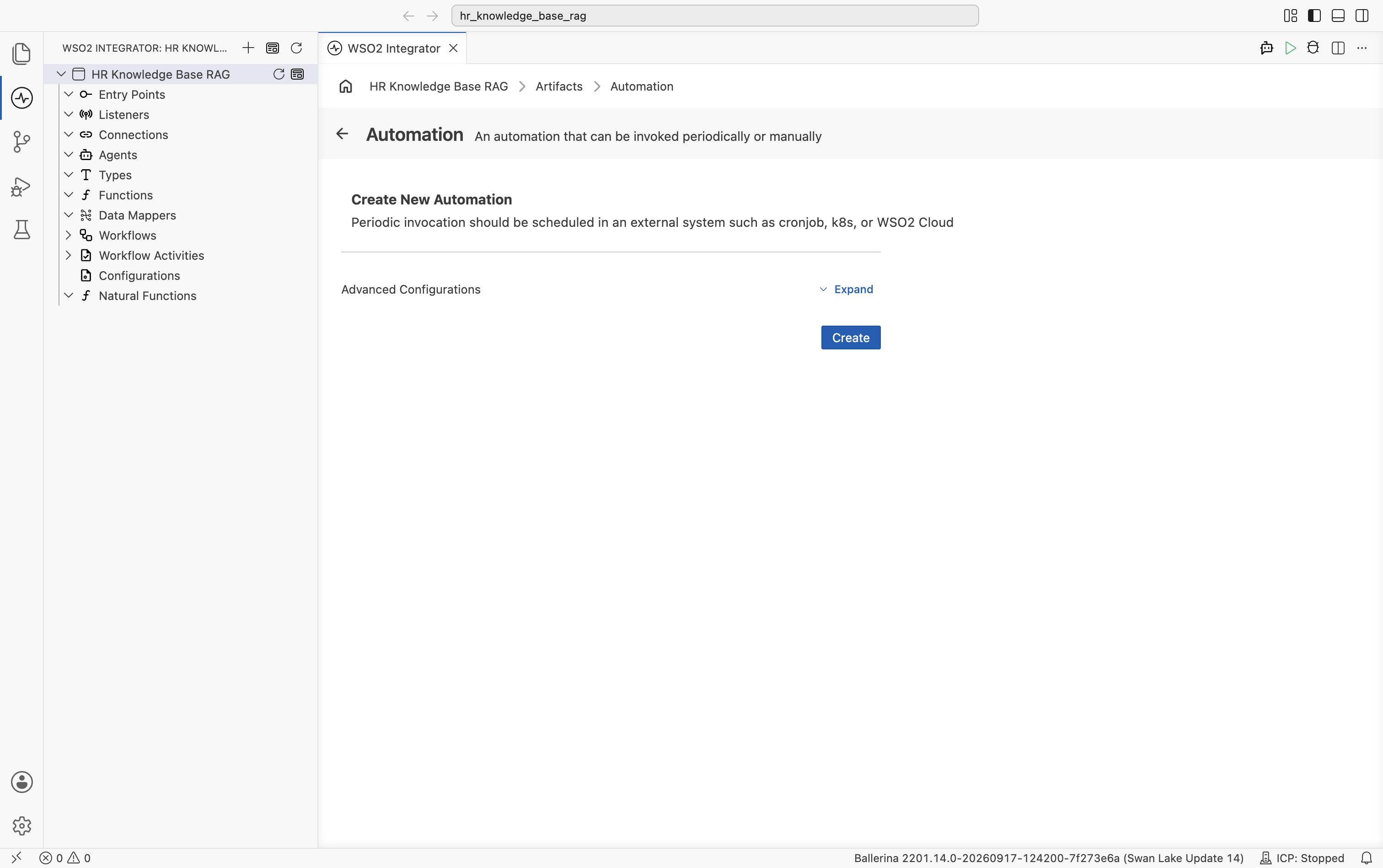

Select the Automation card. The Create New Automation dialog opens. Accept the defaults and select Create.

The automation flow editor opens with an empty Start node and an Error Handler end node. Select + on the connector between them to open the node palette.

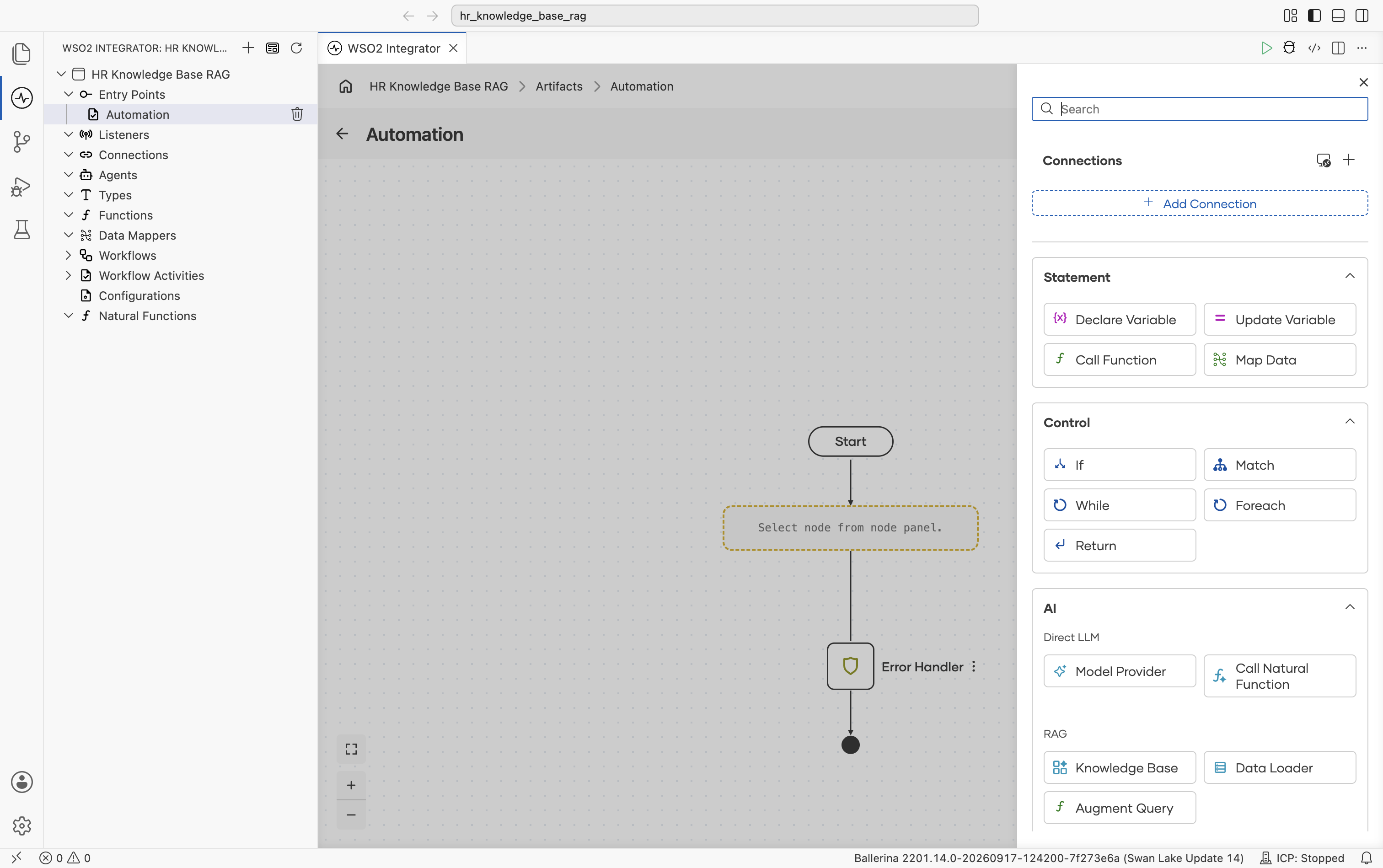

The palette groups every node type, including Statement (Declare/Update Variable, Call Function, Map Data), Control (If, Match, While, Foreach, Return), and AI, split into Direct LLM (Model Provider, Call Natural Function) and RAG (Knowledge Base, Data Loader, Augment Query).

2.2 Add a data loader

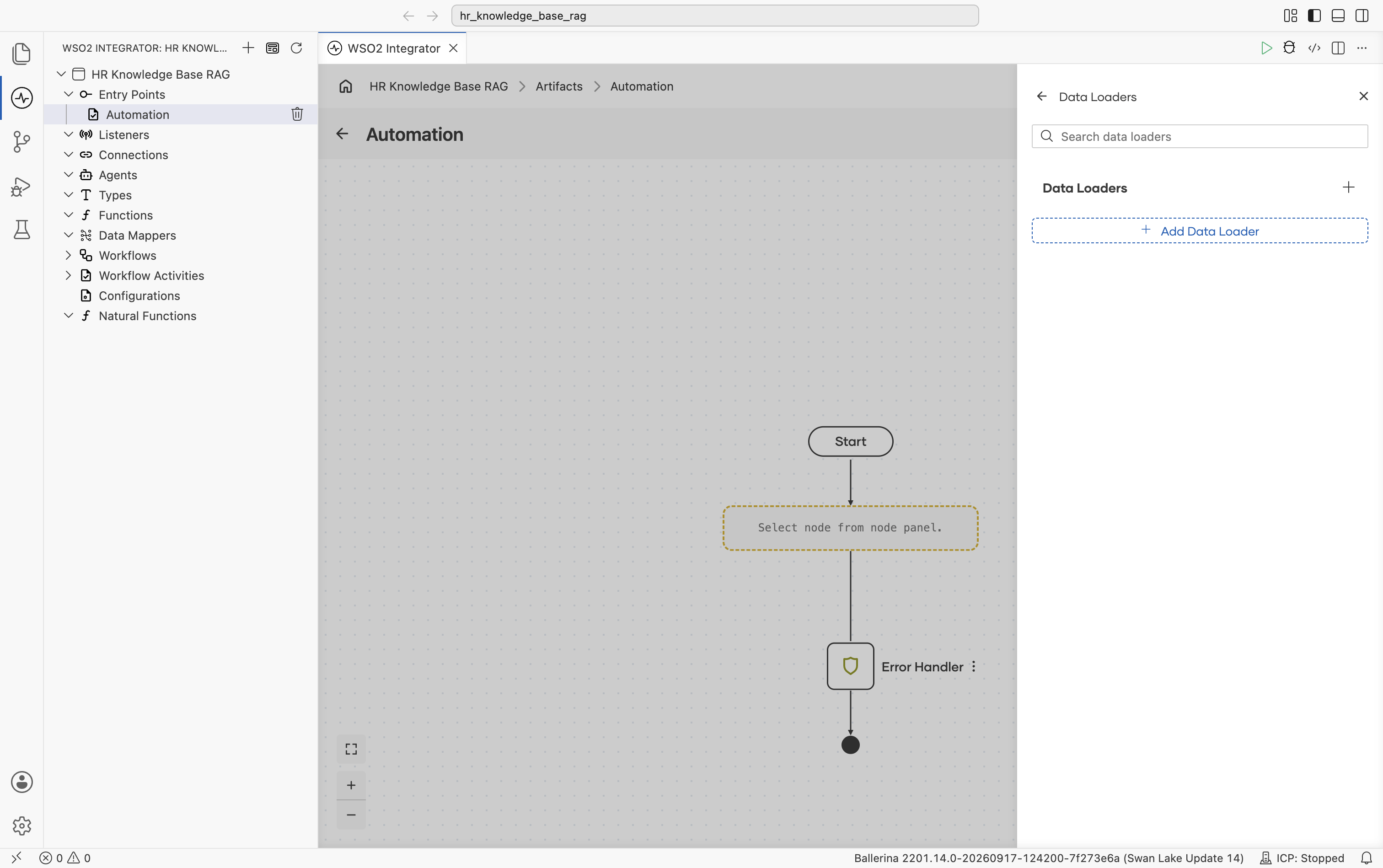

Under AI > RAG, select Data Loader. The Data Loaders panel opens.

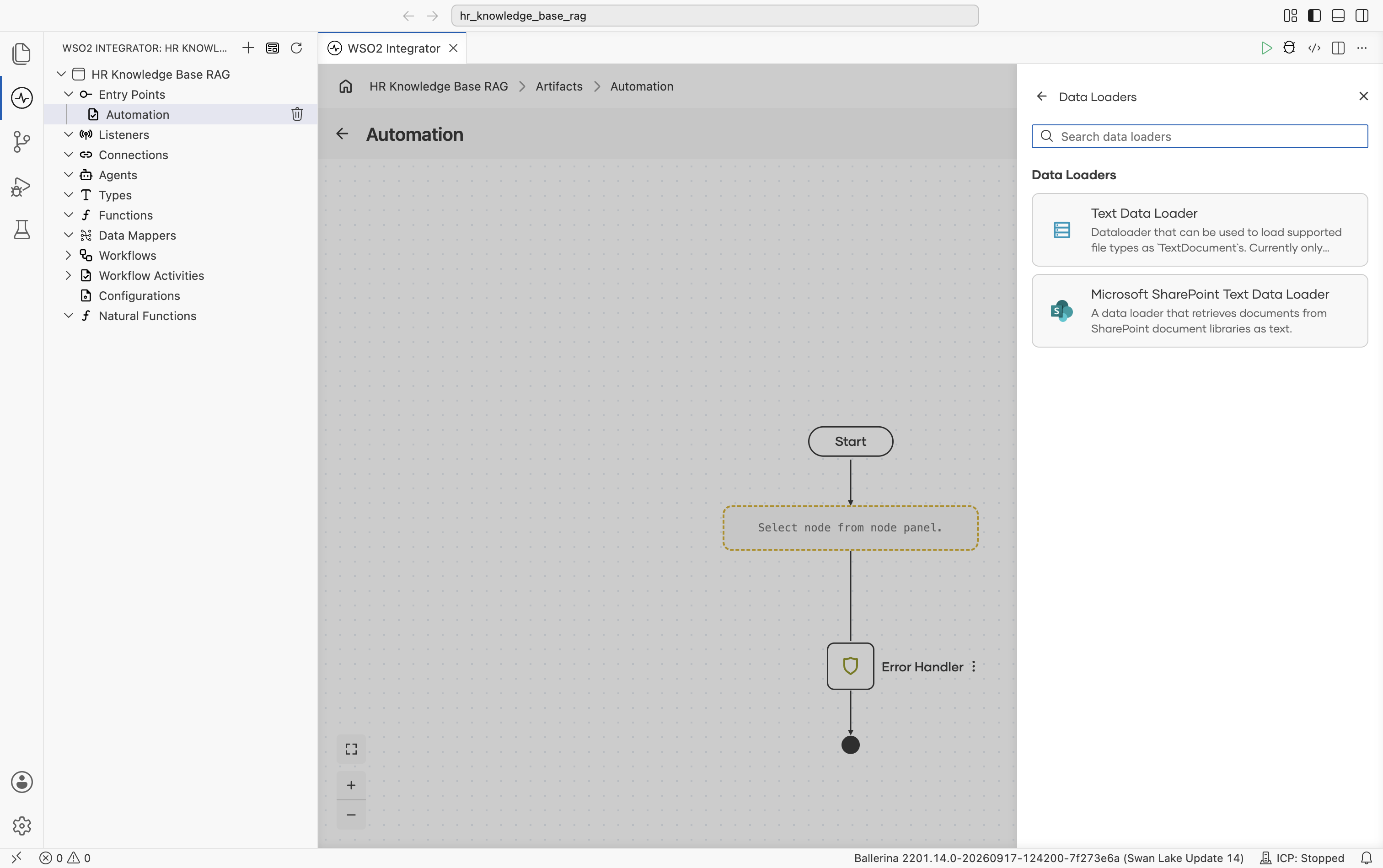

Select + Add Data Loader. The picker lists the available loader types, Text Data Loader and Microsoft SharePoint Text Data Loader. Pick Text Data Loader.

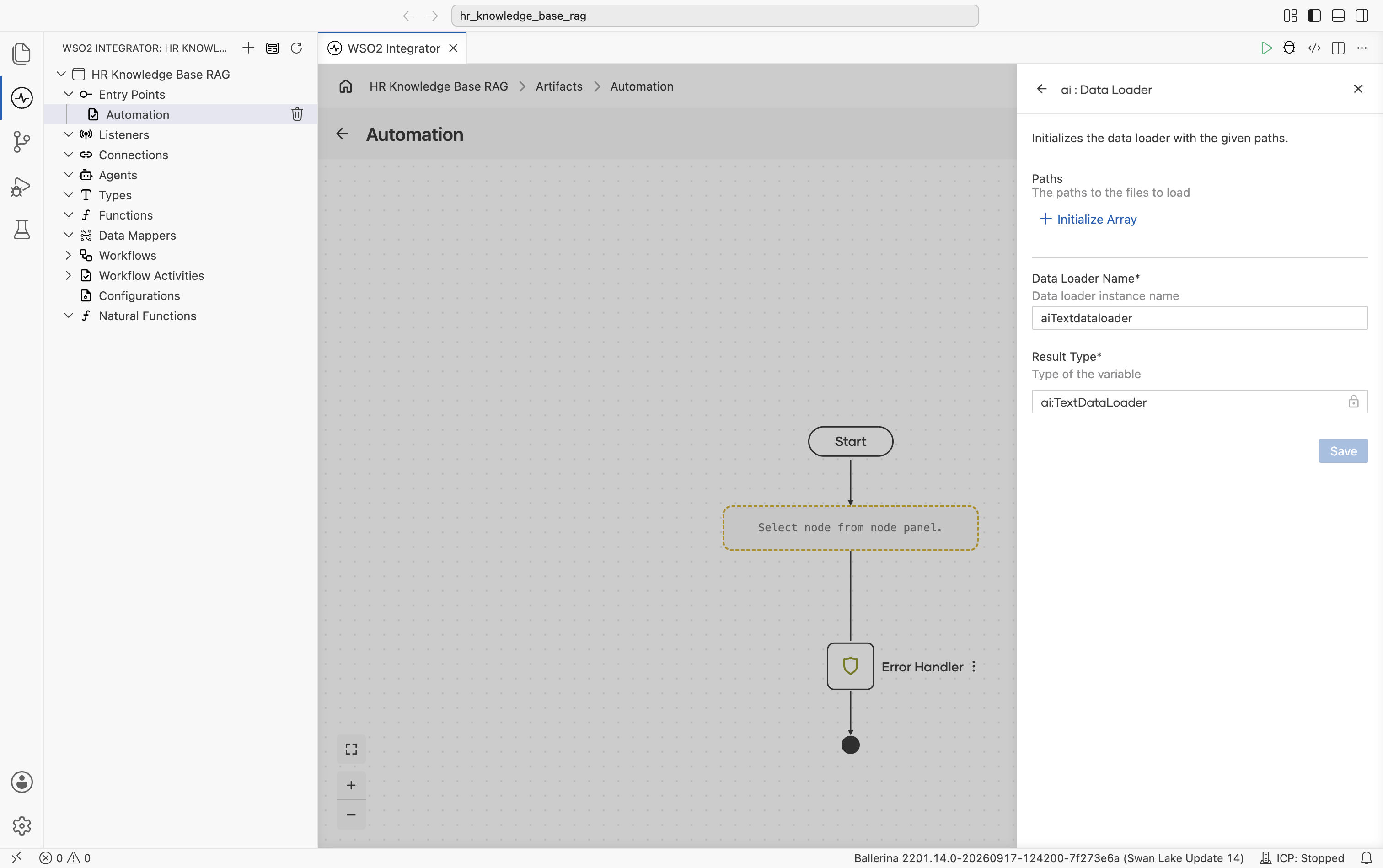

The ai : Data Loader side panel opens with a default name already filled in. Rename Data Loader Name to textDocumentLoader. Result Type stays at the auto-filled ai:TextDataLoader.

Configure the Paths field with a configurable so the file path can be changed without editing the flow:

1. Select + Initialize Array under Paths, then select into the new path expression to open the helper pane with Inputs, Variables, and Configurables.

2. Select Configurables, then select + New Configurable.

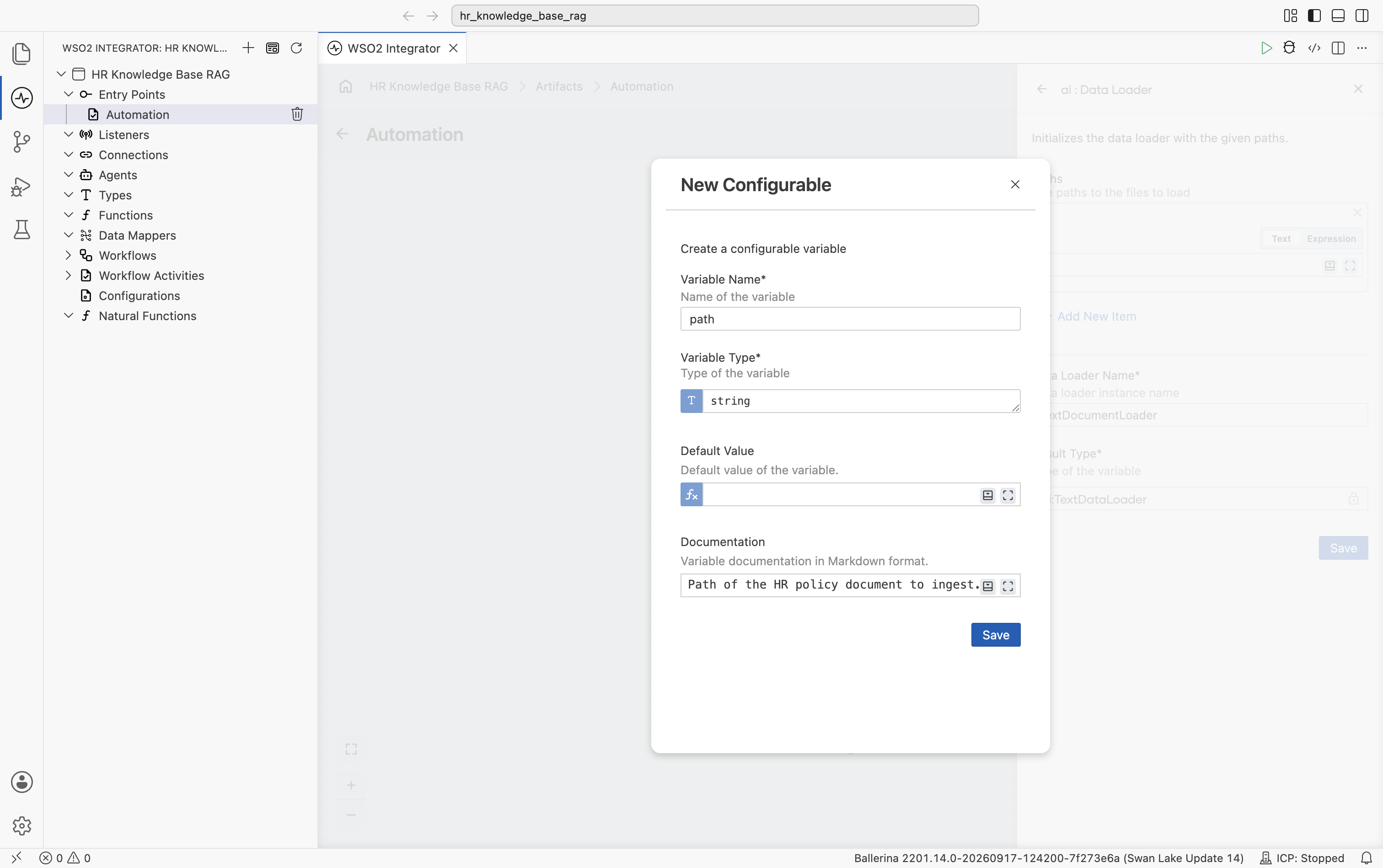

3. In the New Configurable dialog, fill in:

   • Variable Name: path
   • Variable Type: string
   • Documentation: Path of the HR policy document to ingest.


4. Select Save.

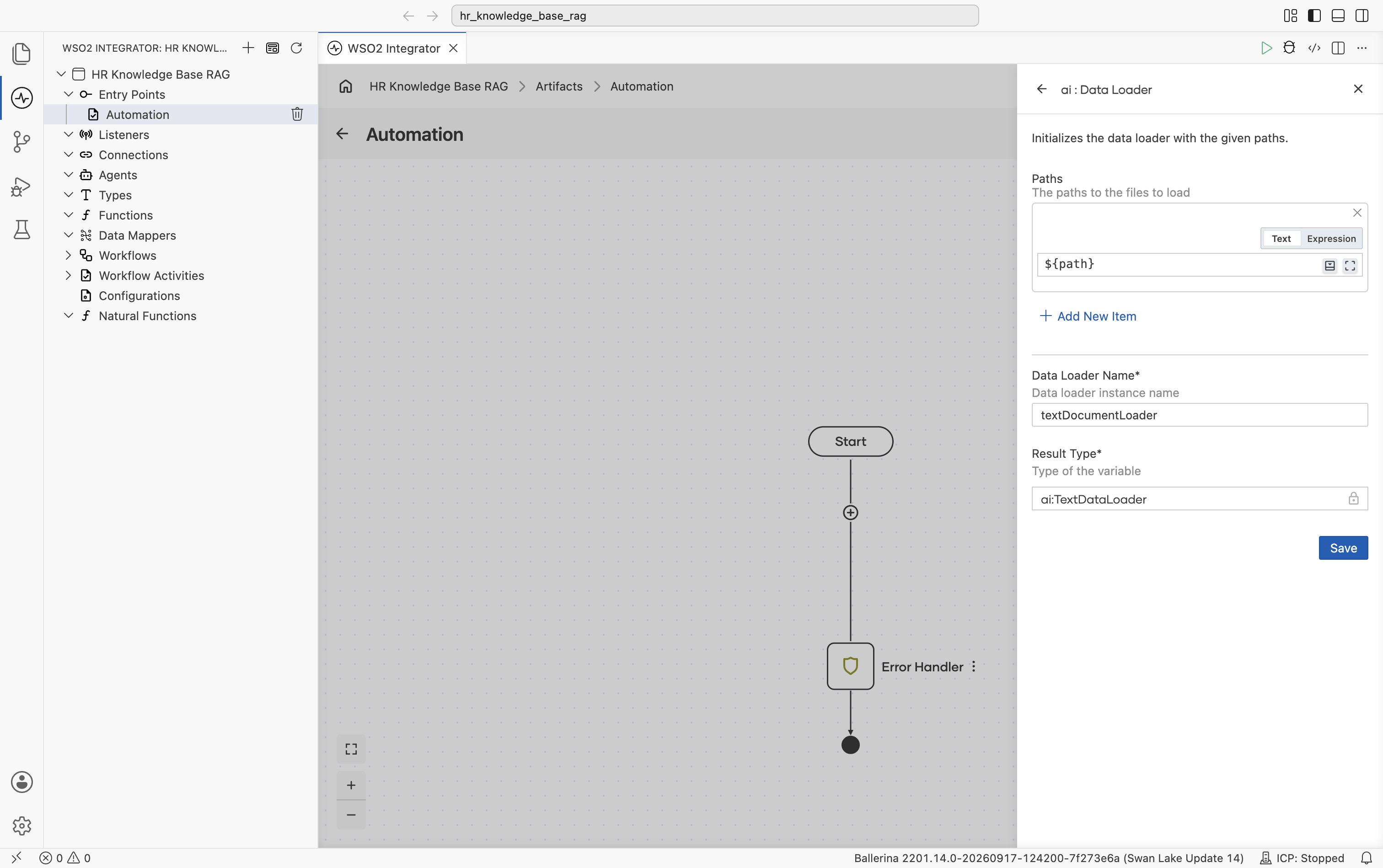

The Data Loader form is now complete:

• Paths: path (uses the configurable)
• Data Loader Name: textDocumentLoader
• Result Type: ai:TextDataLoader

Select Save.

Ingesting more than one document

The Paths field is an array of file paths, not a folder. To ingest several HR documents, add another path expression to the array for each file you want to load.

2.3 Add the ai : load node

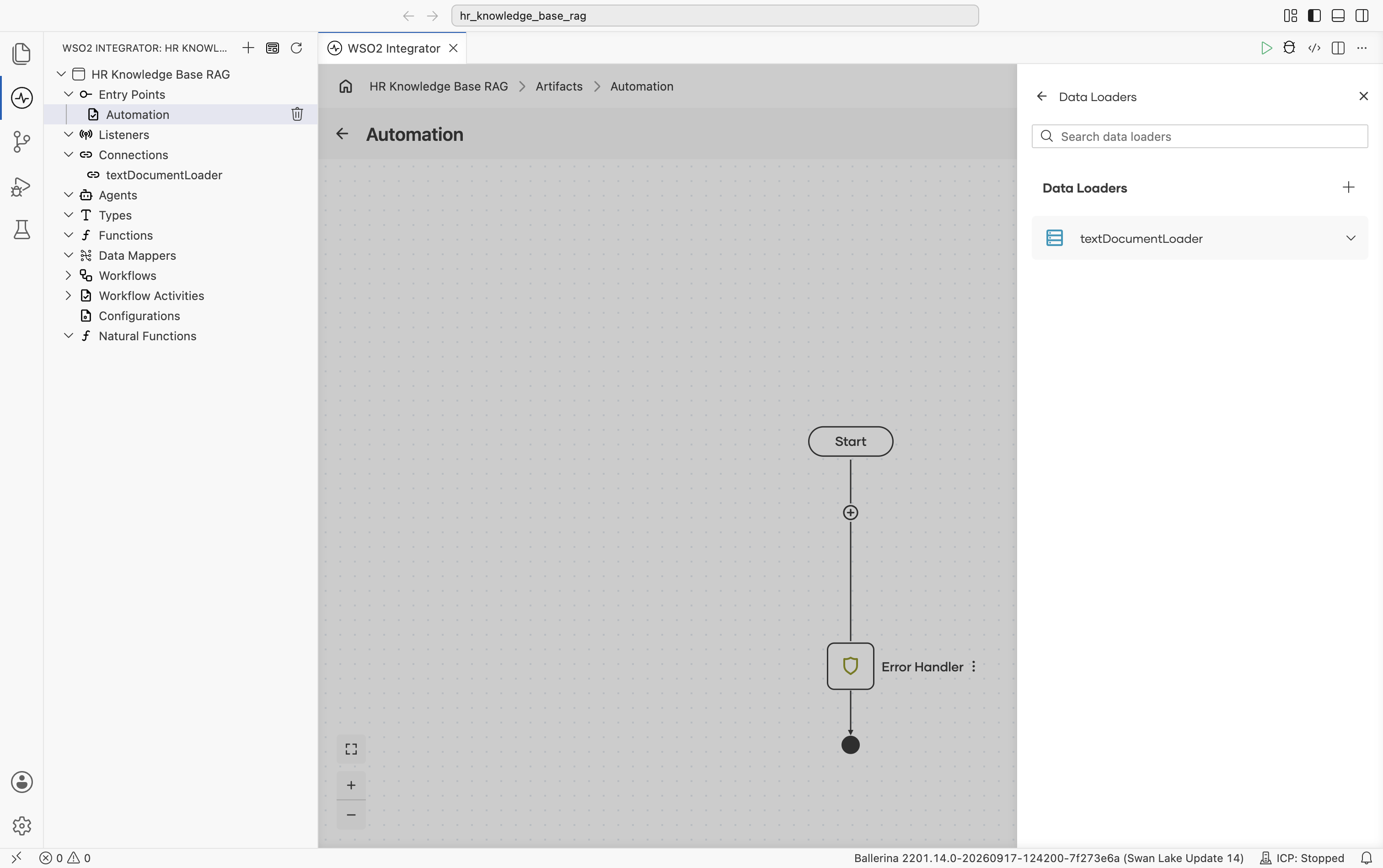

After you save the data loader, the Data Loaders panel reopens and lists the textDocumentLoader connection you just created.

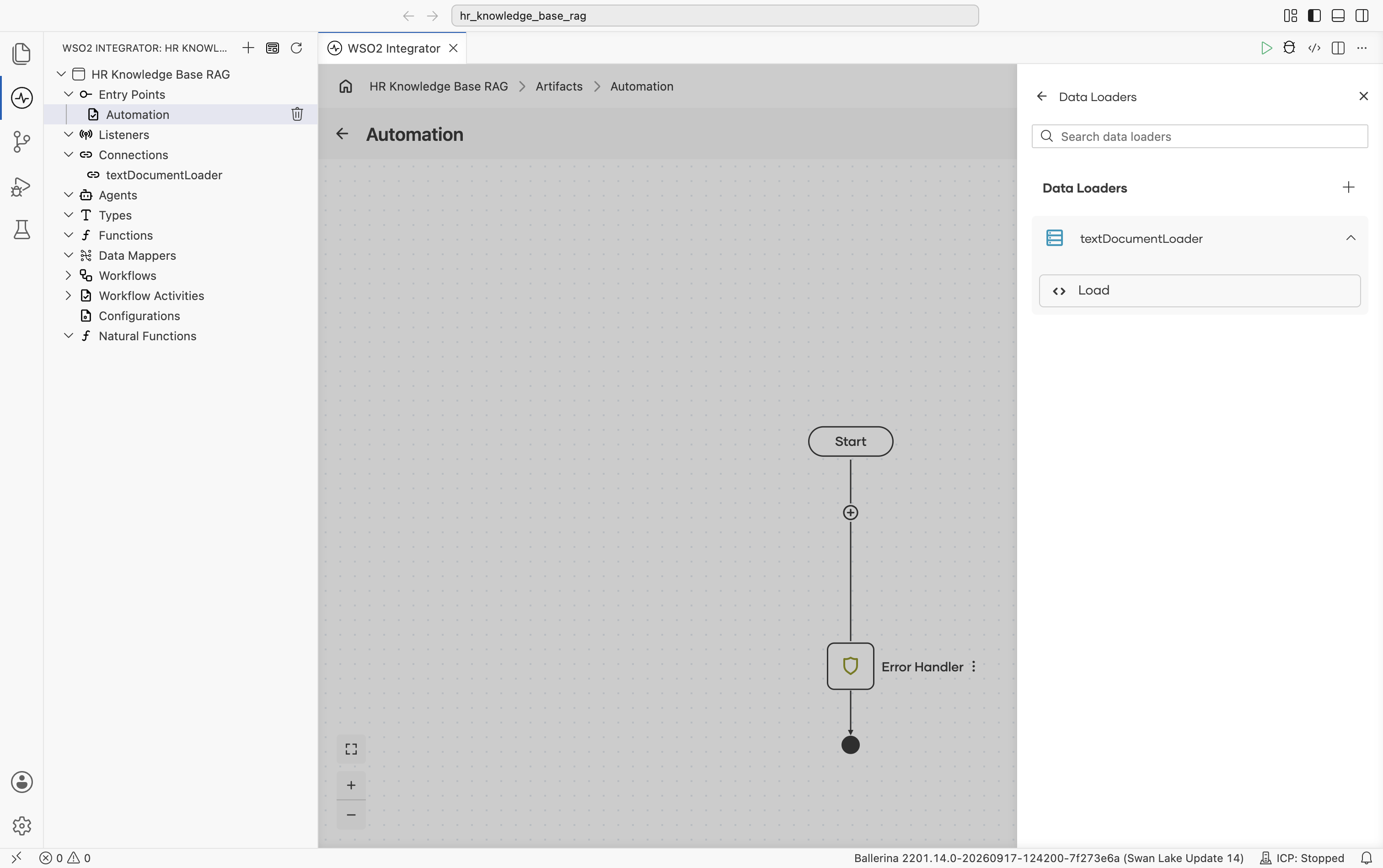

Select textDocumentLoader to expand it and reveal its Load action, "Loads documents as TextDocuments from a source." Select Load.

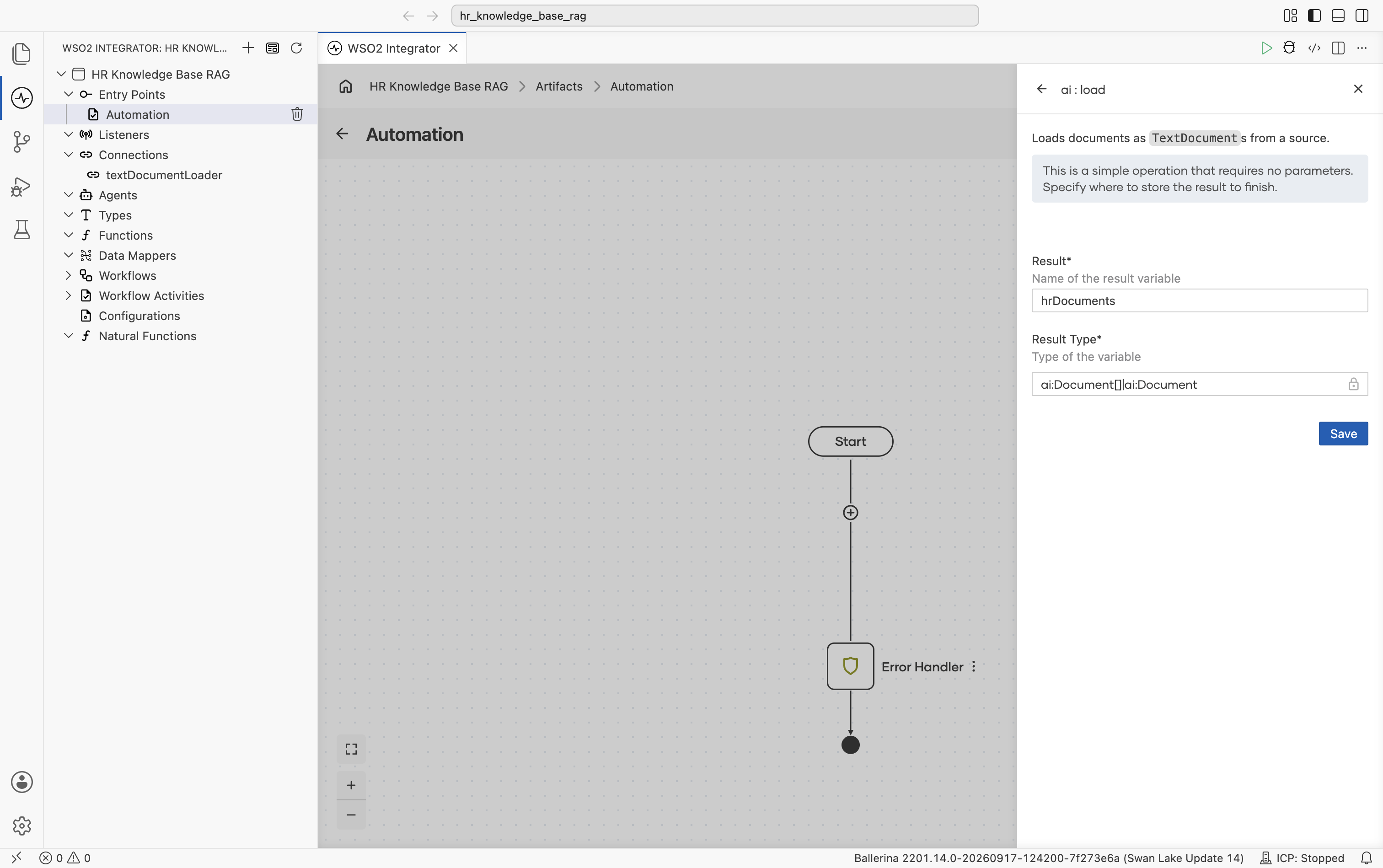

The ai : load form opens. Set:

• Result: hrDocuments
• Result Type: ai:Document[] | ai:Document

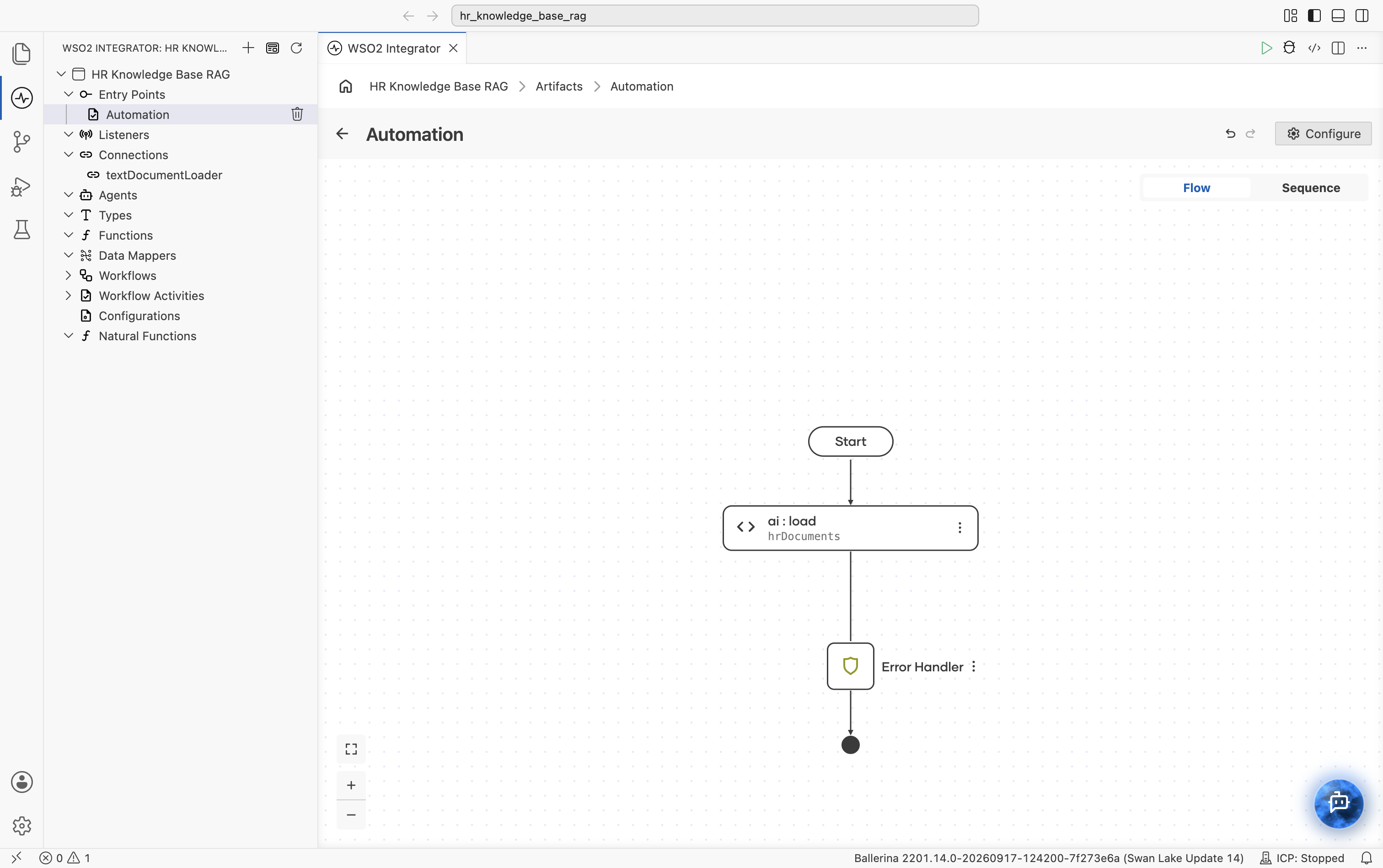

Select Save. The ai:load node is added to the flow between the Start node and the Error Handler.

2.4 Create the vector knowledge base

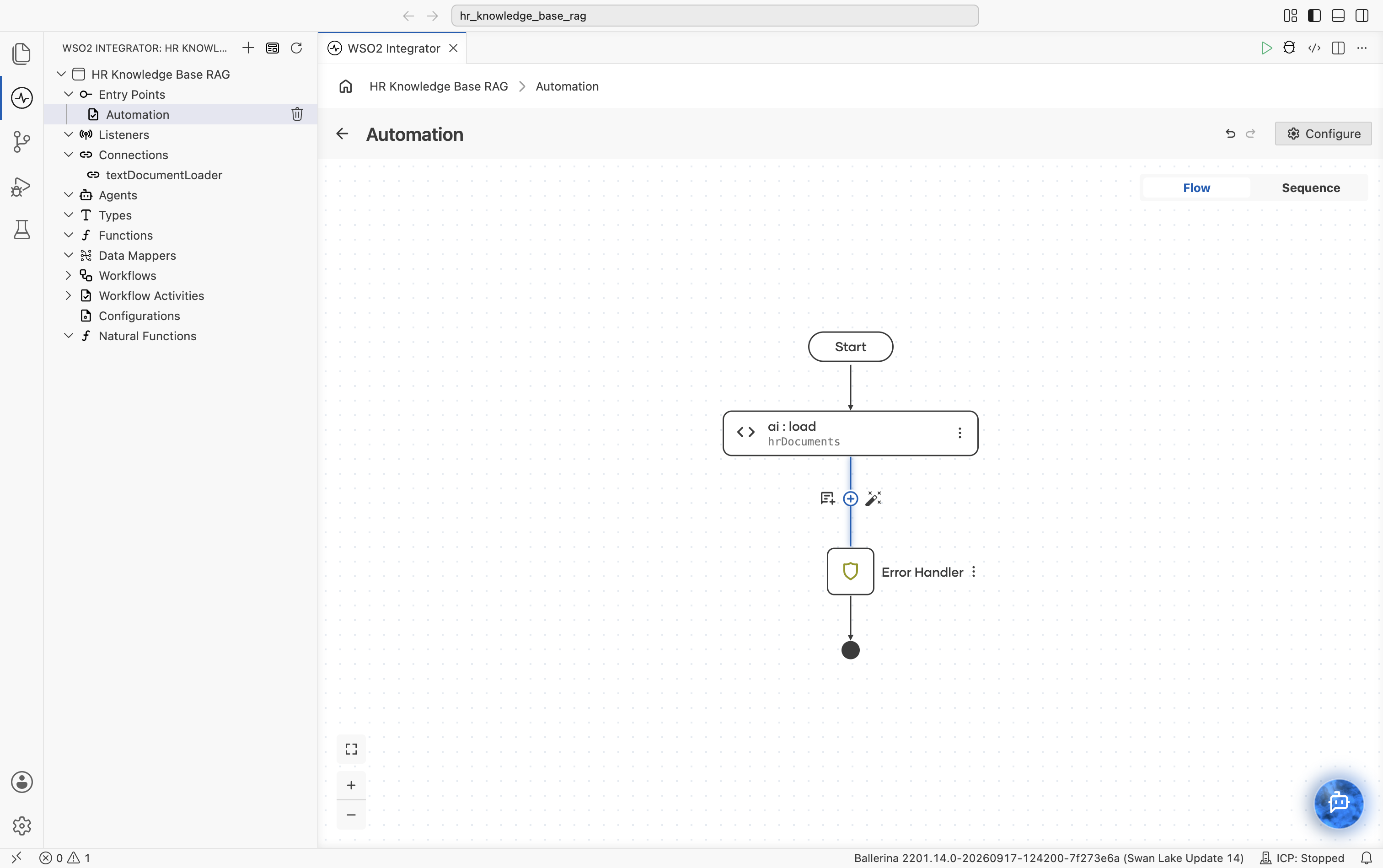

Select + below the ai:load node to add the next node.

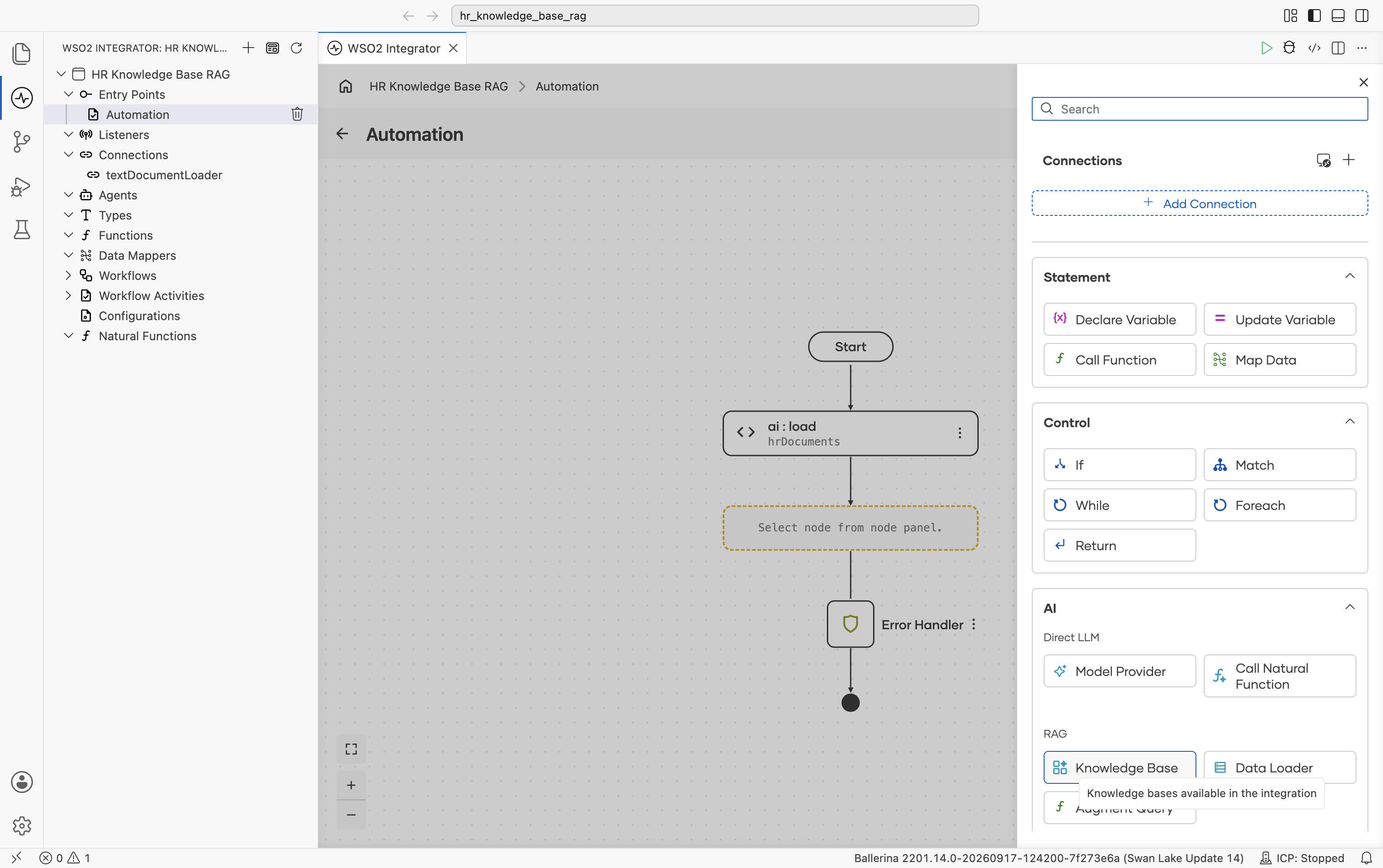

The node palette opens. Under AI > RAG, select Knowledge Base.

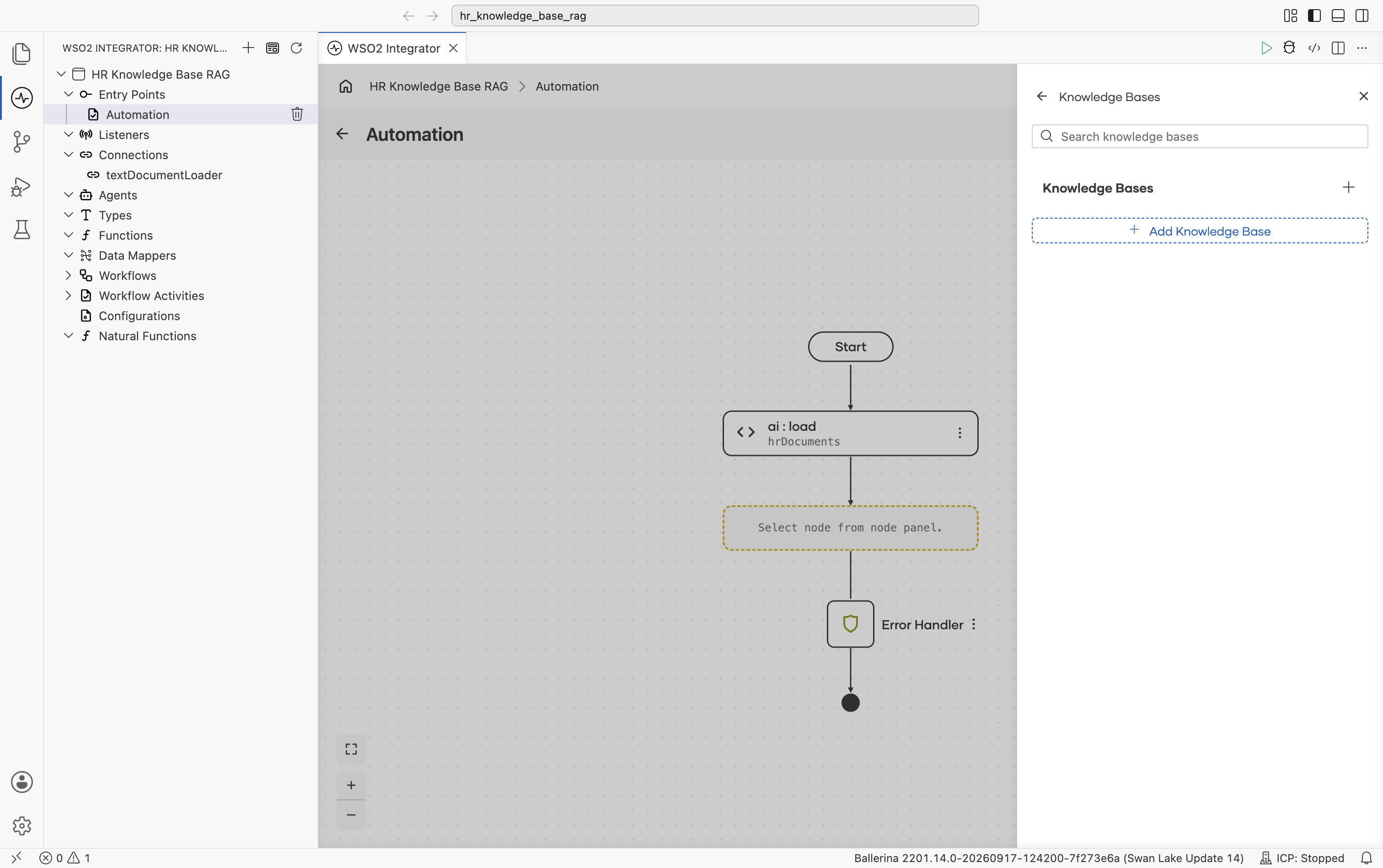

The Knowledge Bases panel opens. Select + Add Knowledge Base.

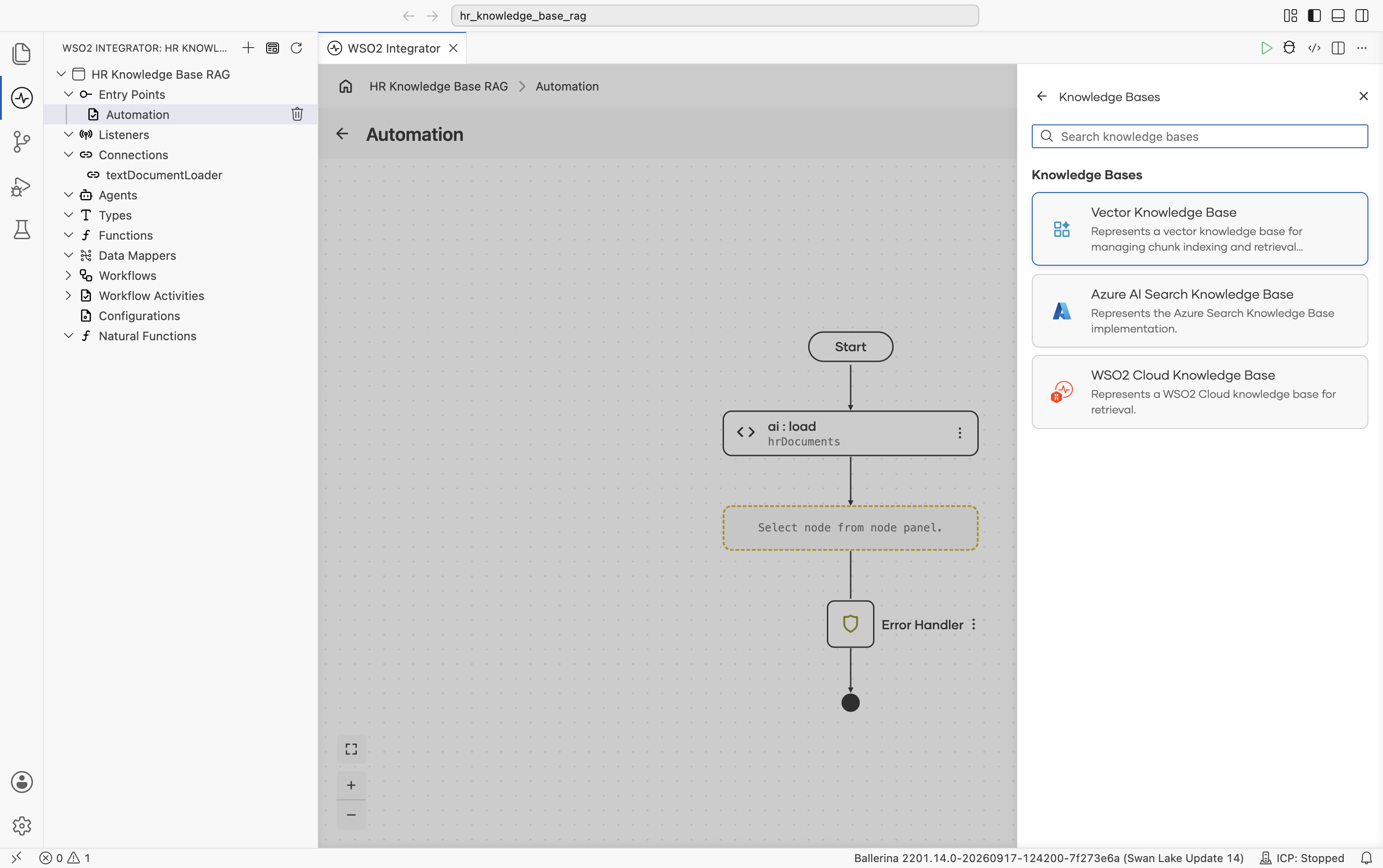

The picker lists the supported knowledge base types, Vector Knowledge Base, Azure AI Search Knowledge Base, and WSO2 Cloud Knowledge Base. Pick Vector Knowledge Base.

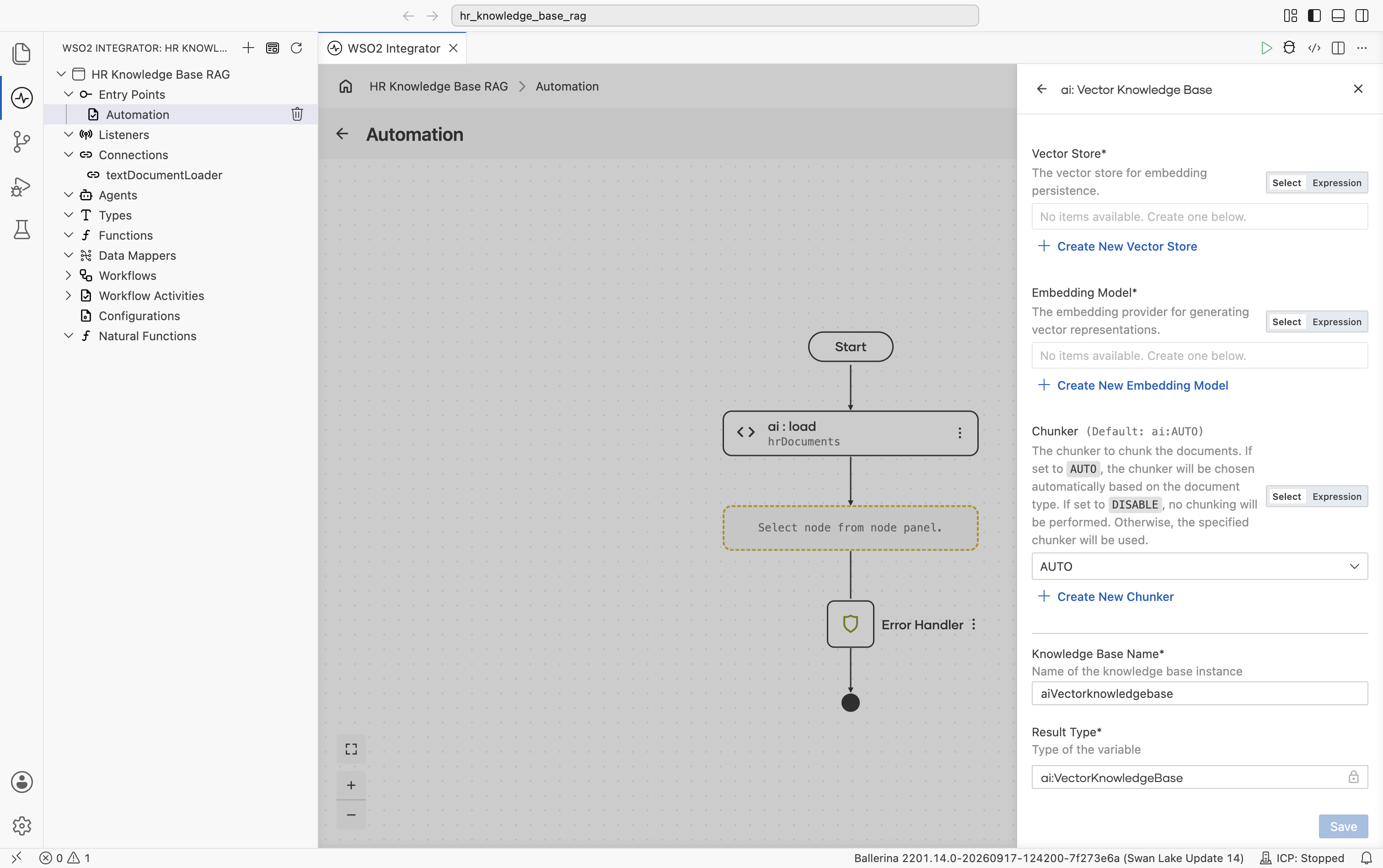

The ai : Vector Knowledge Base form opens with all fields empty. It has three required building blocks, Vector Store, Embedding Model, and Chunker. Each can be created inline.

Build them one at a time.

2.4.1 Create the vector store

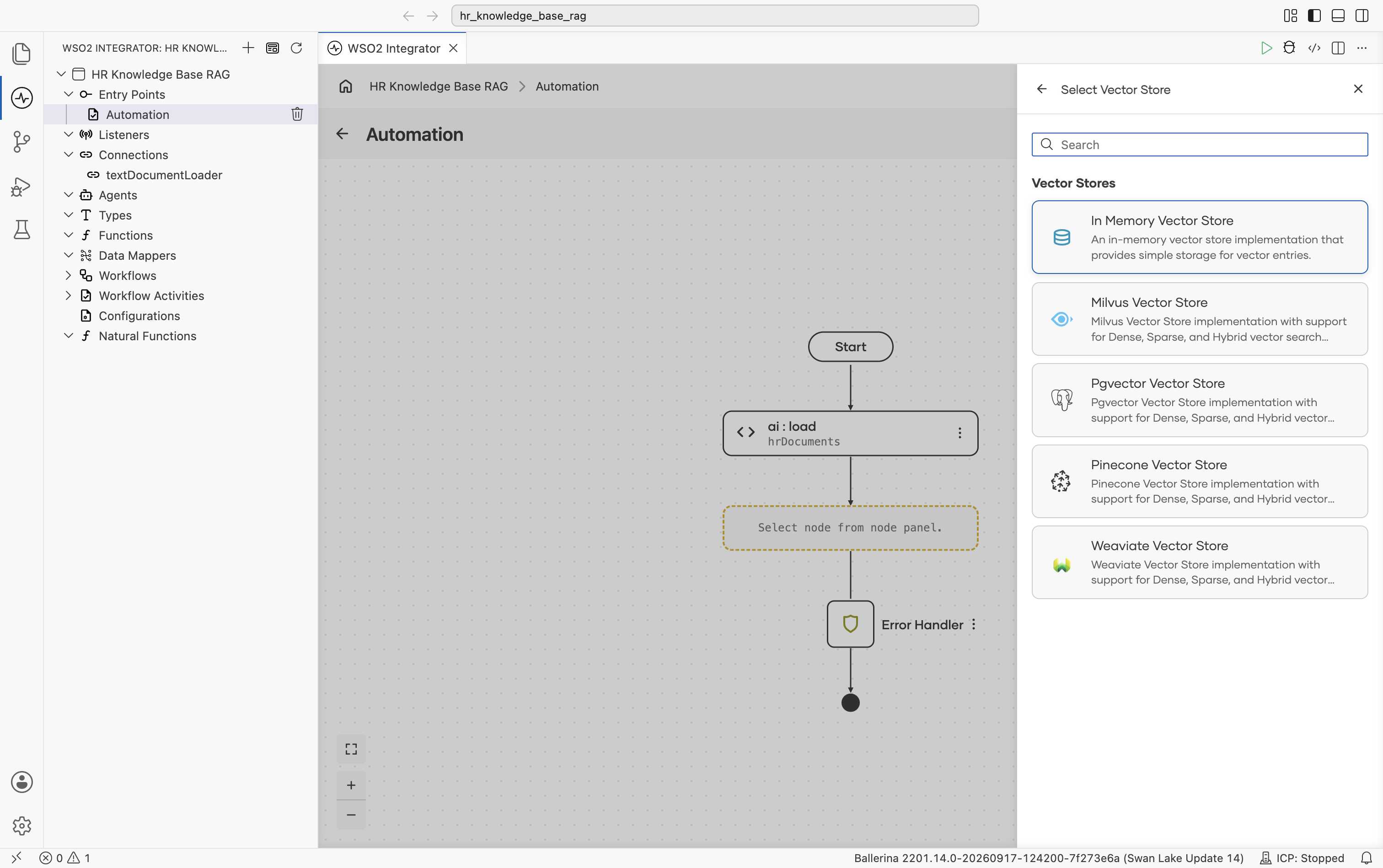

Select + Create New Vector Store. The supported vector store types are listed, In Memory Vector Store, Milvus, Pgvector, Pinecone, and Weaviate.

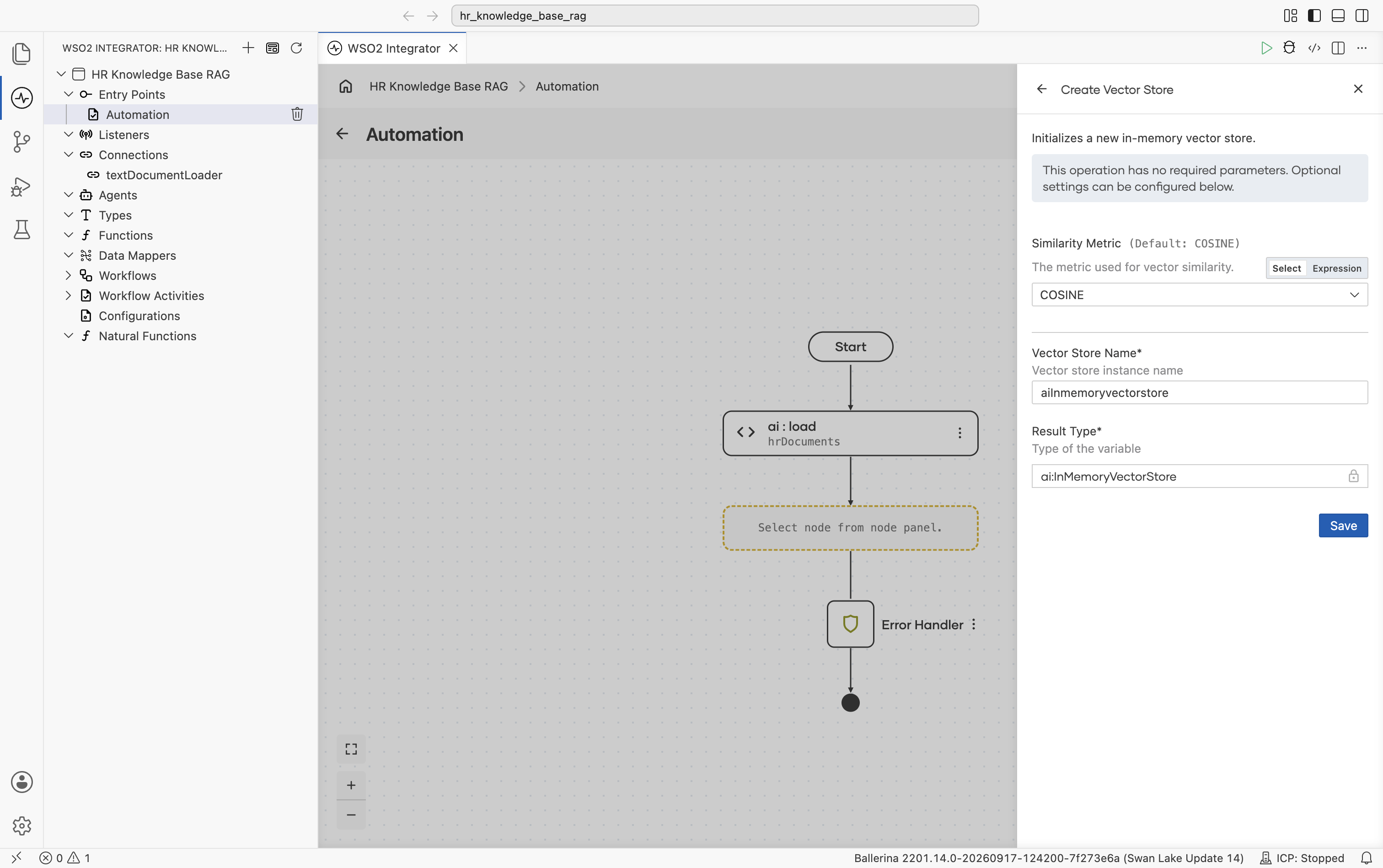

Pick In Memory Vector Store. No external infrastructure is required for this tutorial. The Create Vector Store form opens. Fill in:

• Vector Store Name: aiInmemoryvectorstore
• Result Type: ai:InMemoryVectorStore

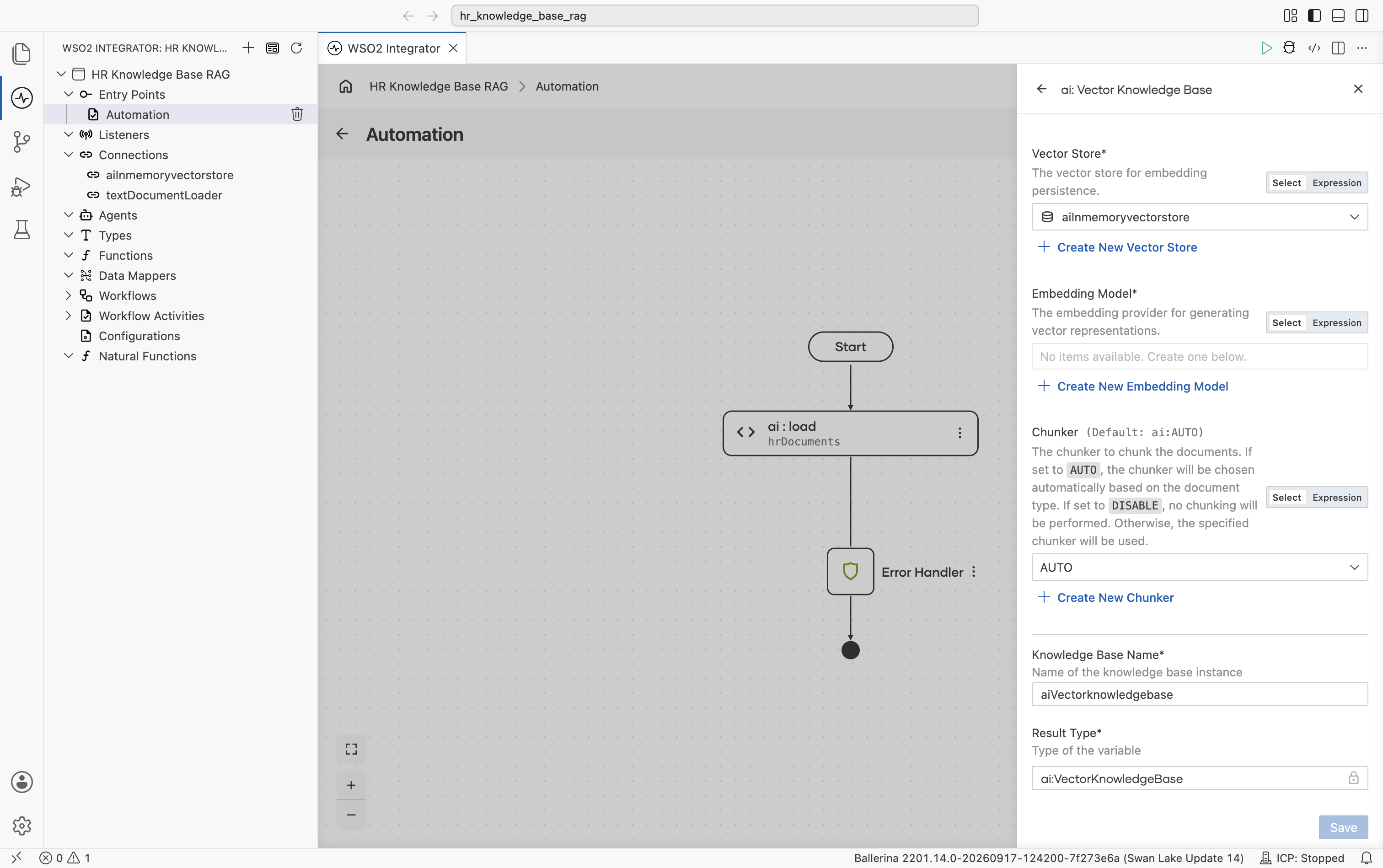

Select Save. You are returned to the ai : Vector Knowledge Base form with the Vector Store field now filled with aiInmemoryvectorstore. The new connection also appears in the left Connections tree.

2.4.2 Create the embedding provider

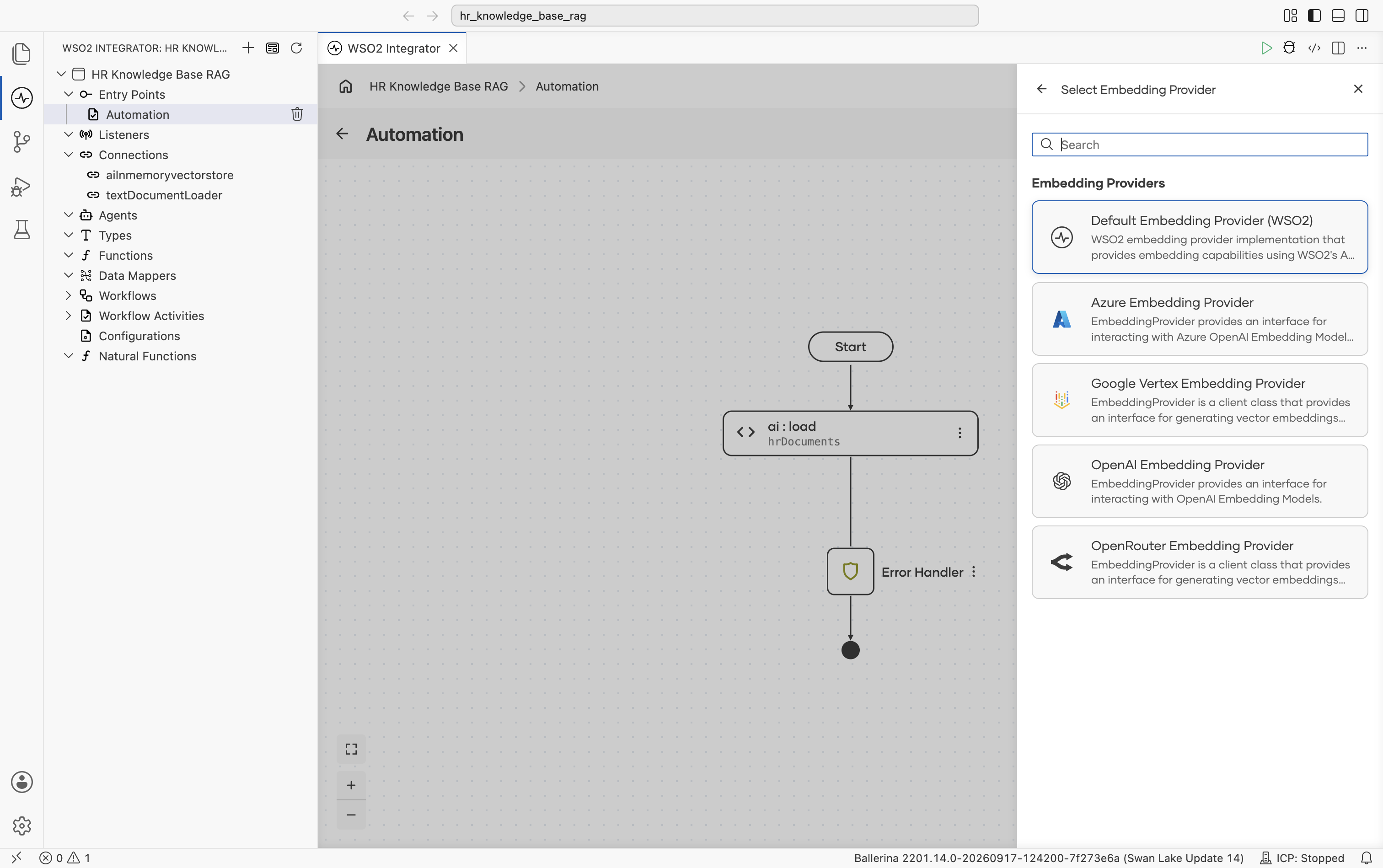

Back on the Vector Knowledge Base form, select + Create New Embedding Model. The supported embedding providers are listed, including Default Embedding Provider (WSO2), Azure OpenAI, Google Vertex, OpenAI, and OpenRouter.

Pick Default Embedding Provider (WSO2). It is provisioned through your Copilot login, so no API key is required.

Default model and embedding providers

The default WSO2 model provider and embedding provider share the same access token. WSO2 Integrator prompts you to run Ballerina: Configure default WSO2 model provider from the Command Palette (Cmd+Shift+P / Ctrl+Shift+P) the first time you create either provider in a flow. Sign in with your WSO2 account when prompted, and WSO2 Integrator wires the configuration into your project automatically.

The access token expires after a few hours. If a request to the default model provider or embedding provider starts failing, rerun Ballerina: Configure default WSO2 model provider from the Command Palette to refresh the token.

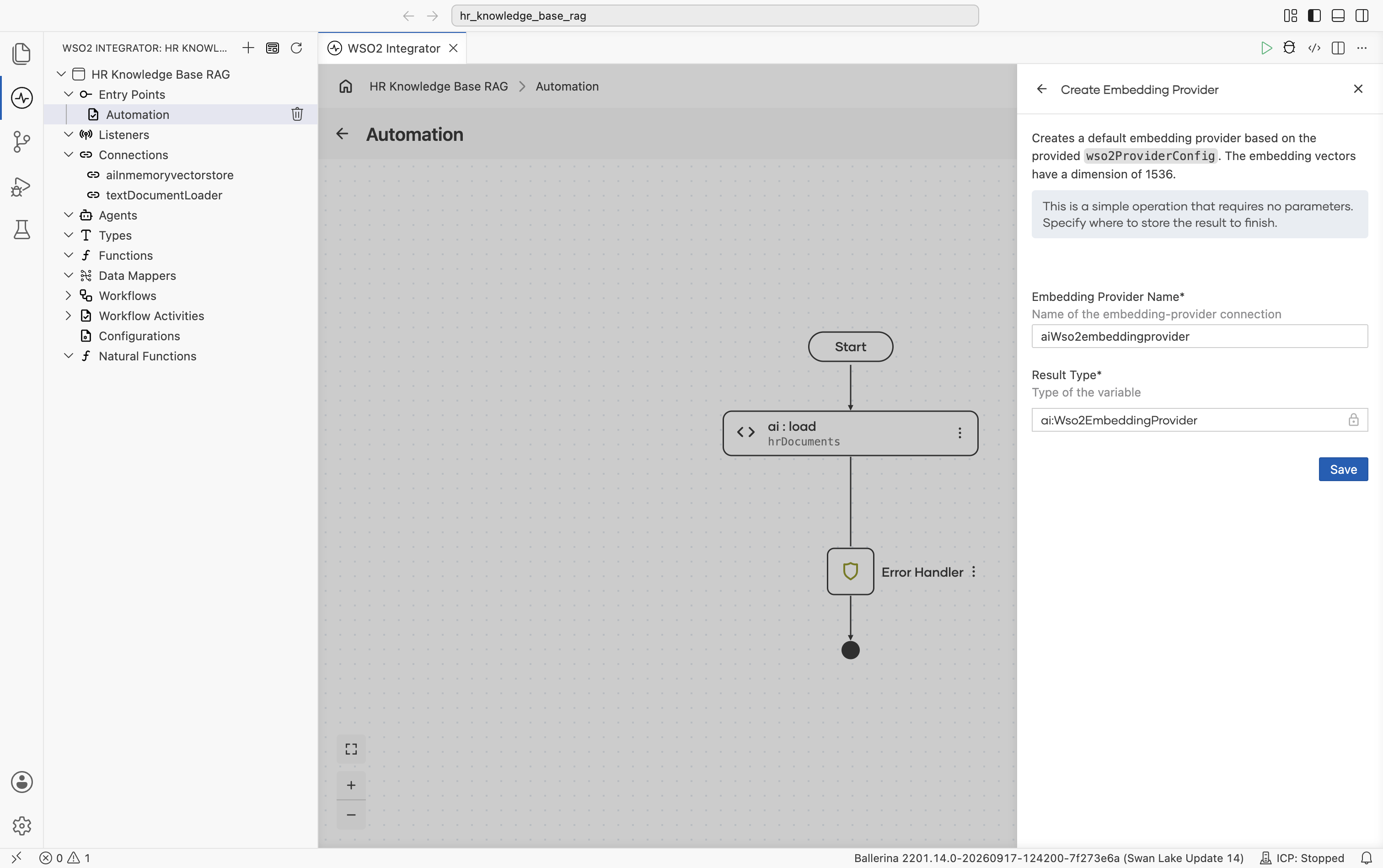

The Create Embedding Provider form opens. Fill in:

• Embedding Provider Name: aiWso2embeddingprovider
• Result Type: ai:Wso2EmbeddingProvider

Select Save. You are returned to the ai : Vector Knowledge Base form with the Embedding Model field now filled with aiWso2embeddingprovider. The new connection also appears in the left Connections tree.

2.4.3 Pick (or create) a chunker

Back on the Vector Knowledge Base form, the Chunker field defaults to AUTO. The runtime selects a chunker based on document type. For most HR text documents this is fine.

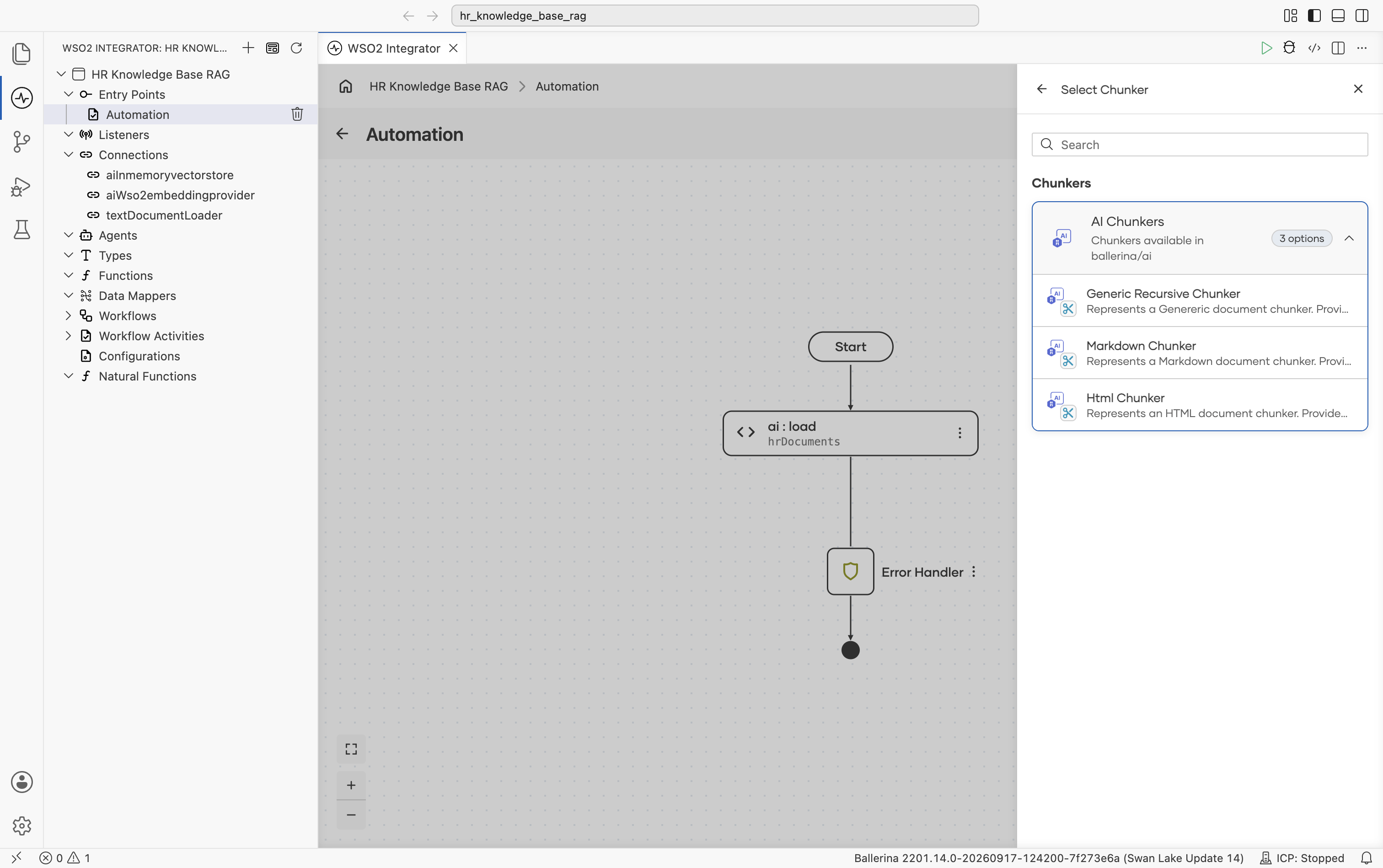

If you want to control chunking explicitly, select + Create New Chunker. The supported chunker types are listed, Generic Recursive Chunker, Markdown Chunker, and Html Chunker.

For this tutorial, leave the chunker at AUTO.

2.4.4 Save the knowledge base

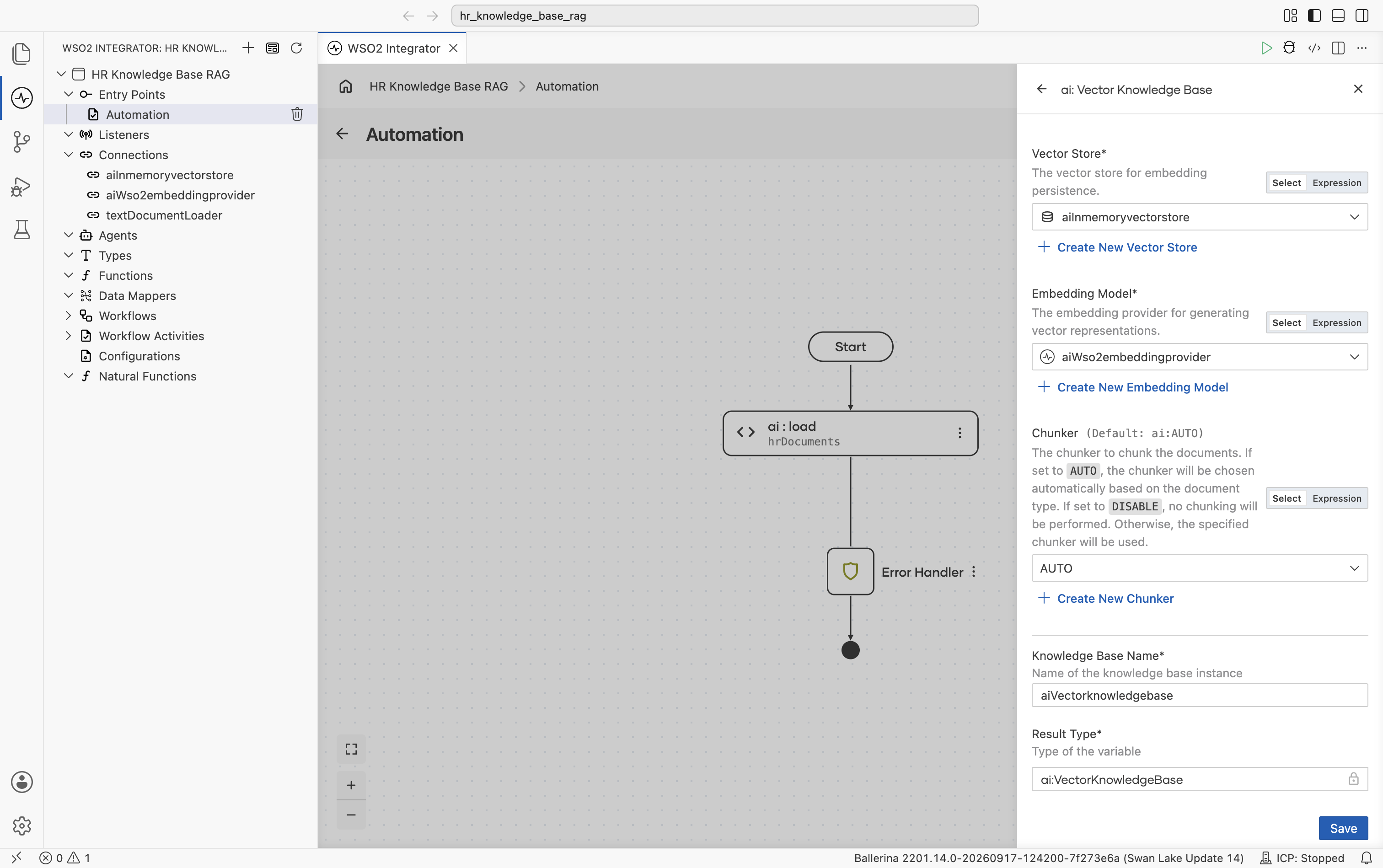

The Vector Knowledge Base form is now fully populated:

• Vector Store: aiInmemoryvectorstore
• Embedding Model: aiWso2embeddingprovider
• Chunker: AUTO
• Knowledge Base Name: aiVectorknowledgebase
• Result Type: ai:VectorKnowledgeBase

Select Save. The left Connections tree now lists aiInmemoryvectorstore, aiWso2embeddingprovider, and aiVectorknowledgebase. These connections are reusable from any artifact in the project.

2.5 Add the ai : ingest node

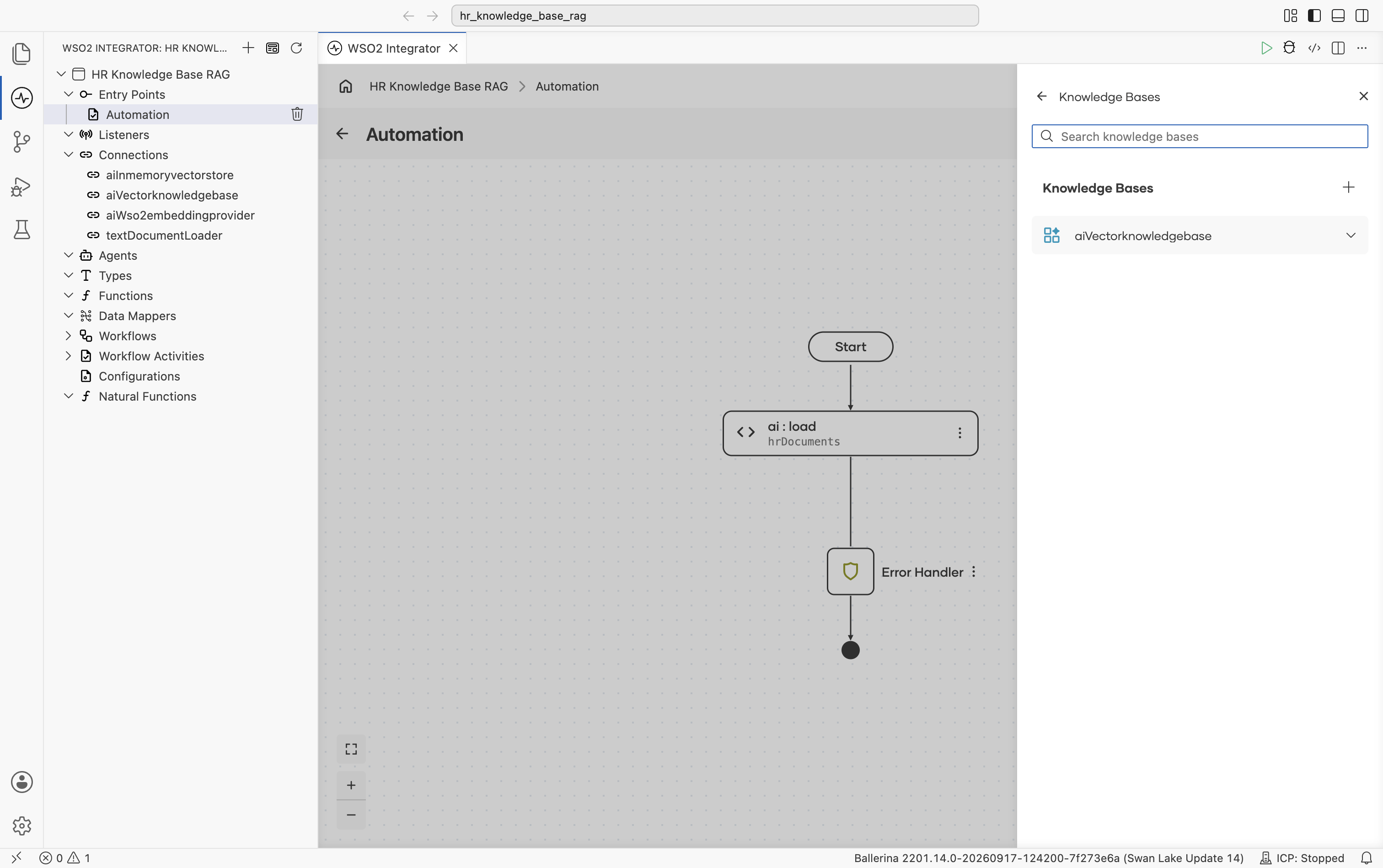

After you save the Vector Knowledge Base form, the Knowledge Bases panel reopens and lists the aiVectorknowledgebase connection you just created.

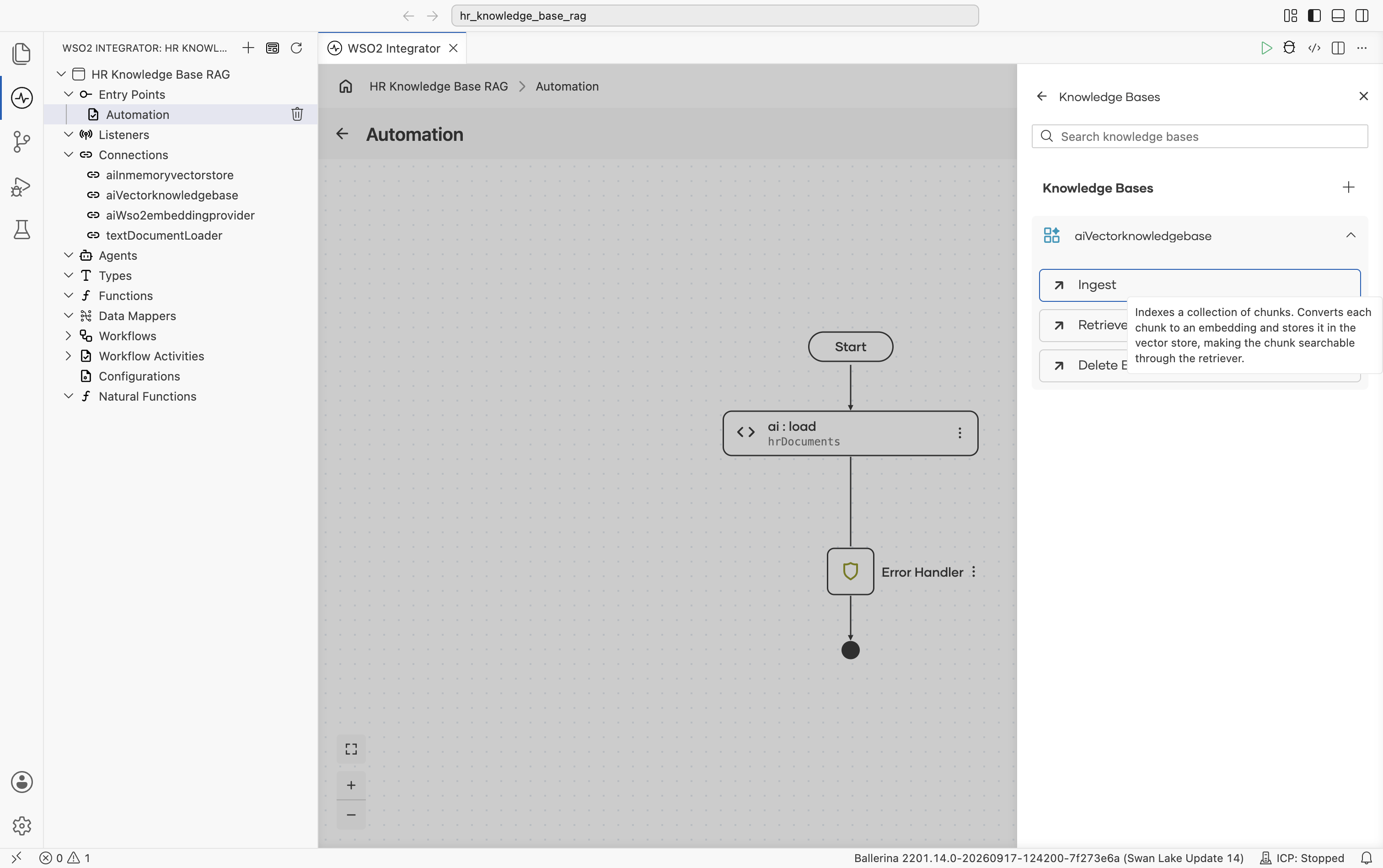

Select aiVectorknowledgebase to expand it and reveal its actions, Ingest, Retrieve, and Delete By Filter. Select Ingest. The description reads "Indexes a collection of chunks. Converts each chunk to an embedding and stores it in the vector store, making the chunk searchable through the retriever."

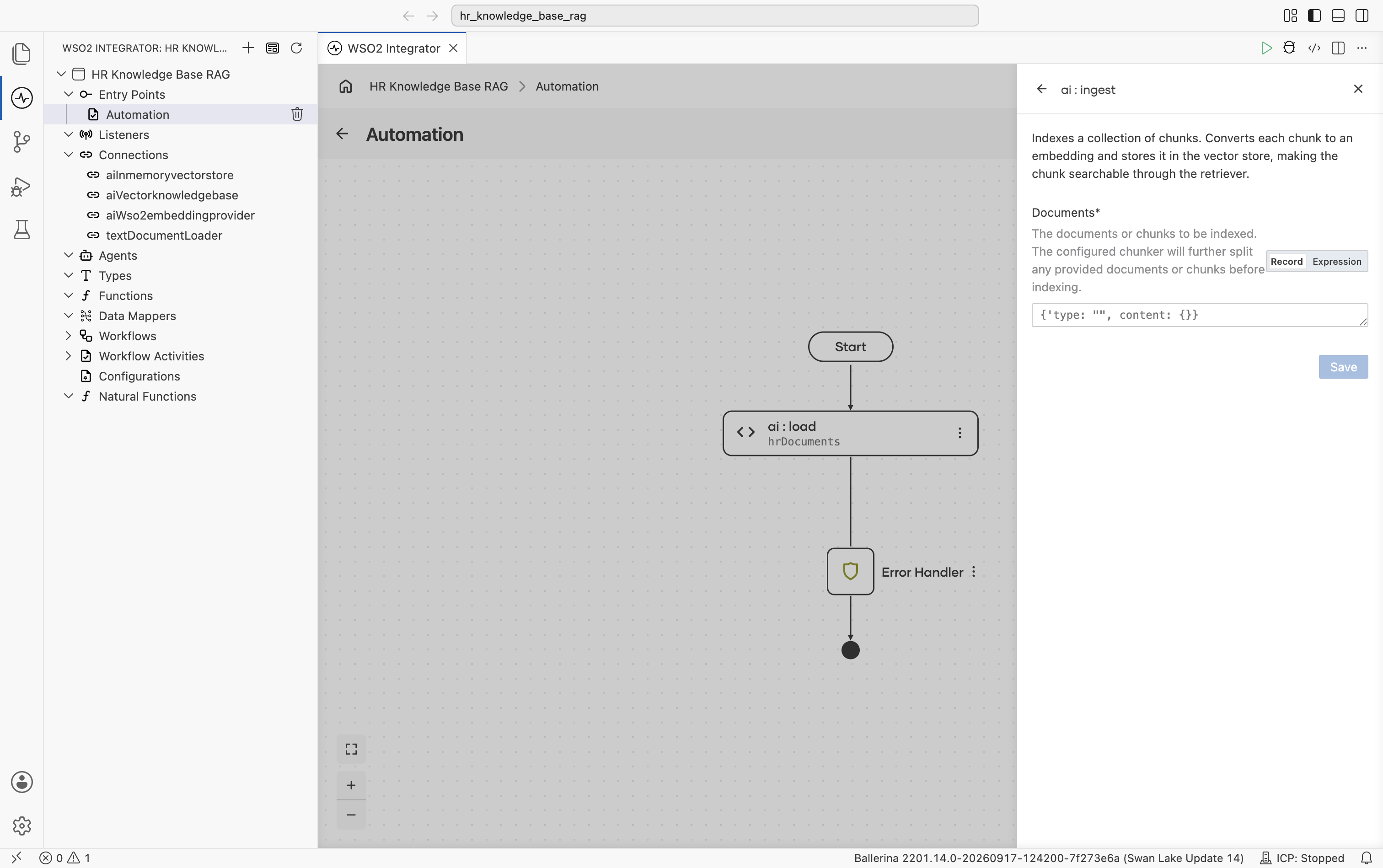

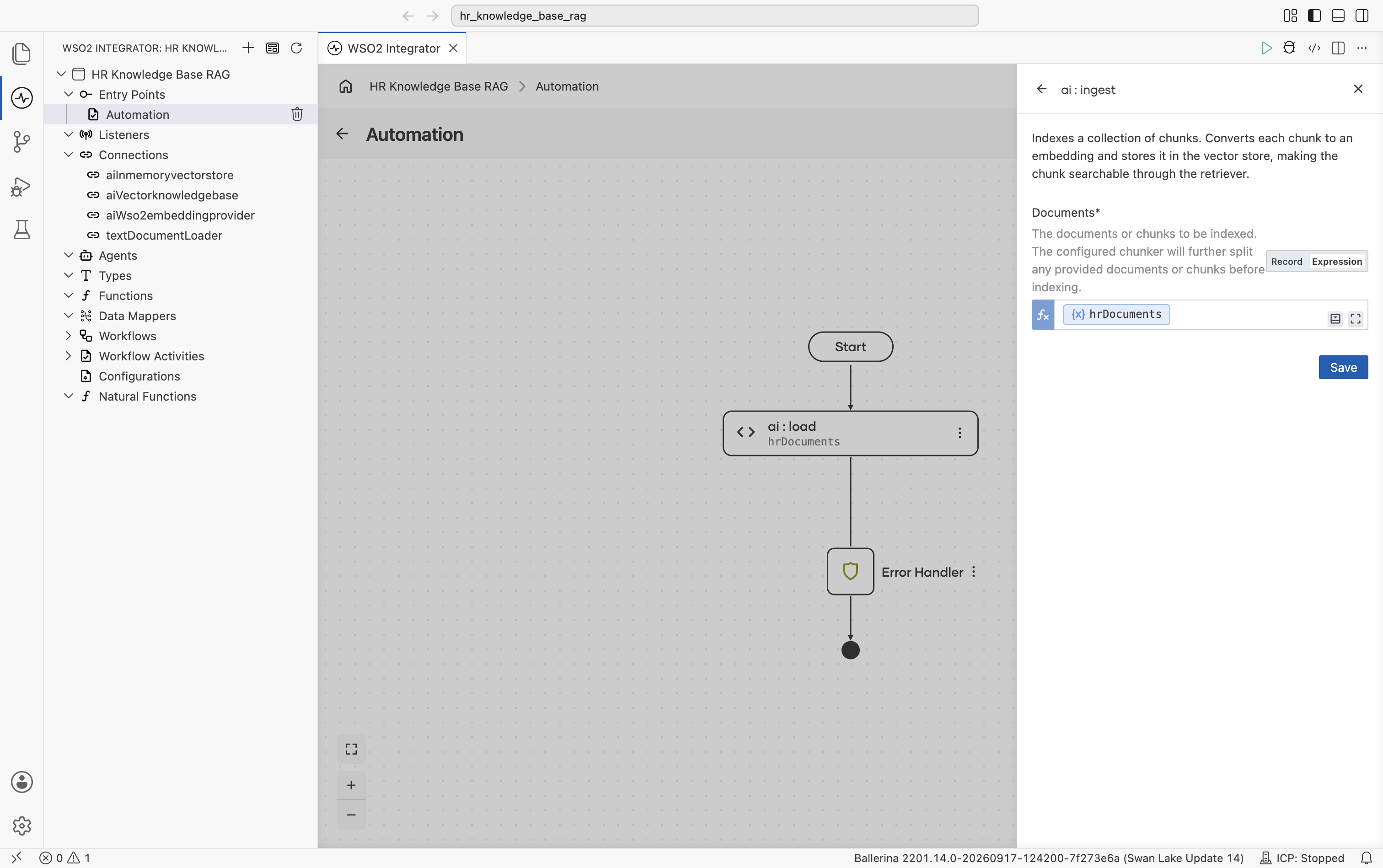

The ai : ingest form opens. The Documents field defaults to Record mode with an empty record shape.

Switch the Documents field to Expression mode, then select into it and pick Variables > hrDocuments from the helper pane.

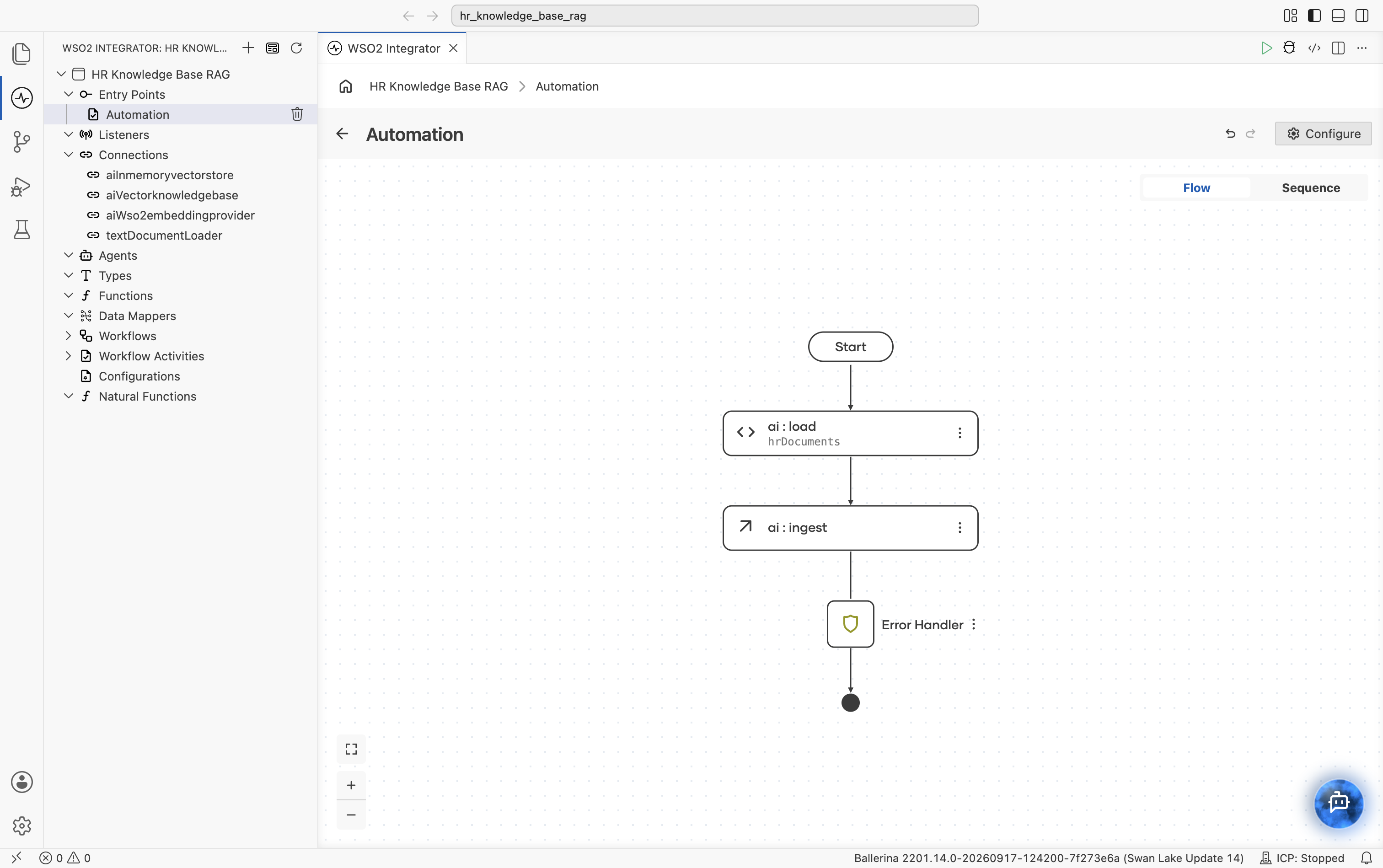

Select Save. The ai:ingest node is added to the flow between ai:load and the Error Handler.

2.6 Log completion (optional)

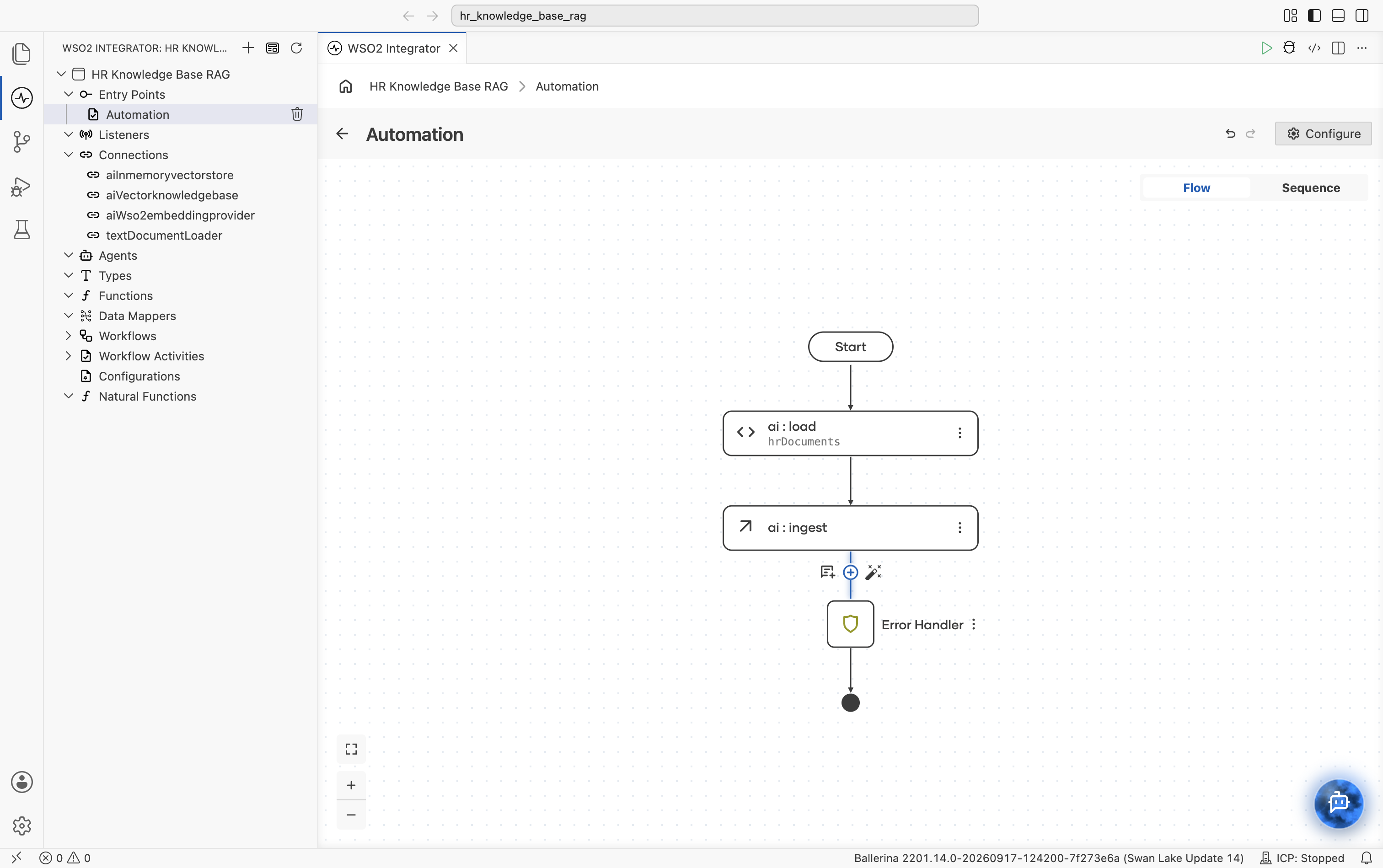

Select + below the ai:ingest node.

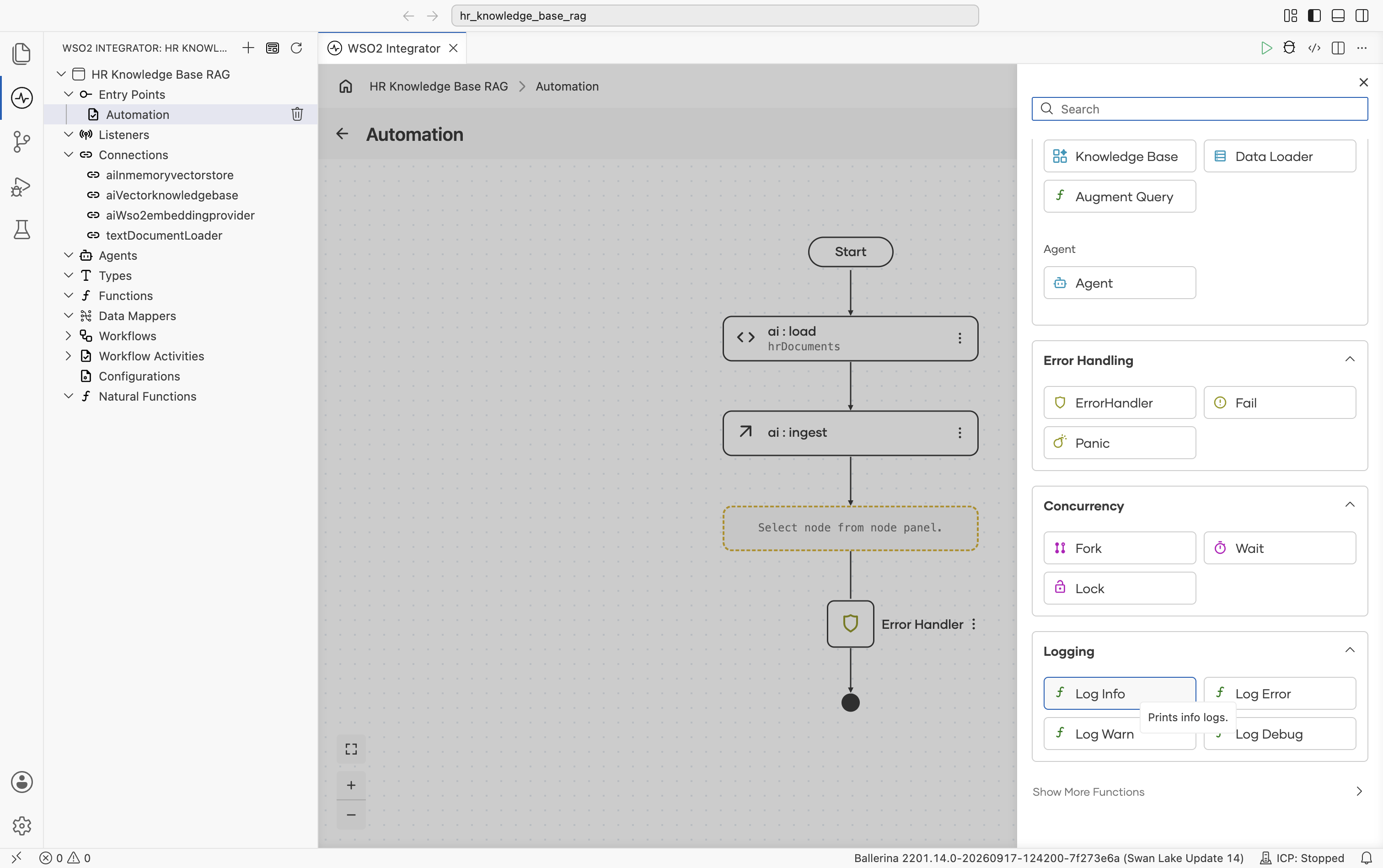

The node palette opens. Under Logging, select Log Info.

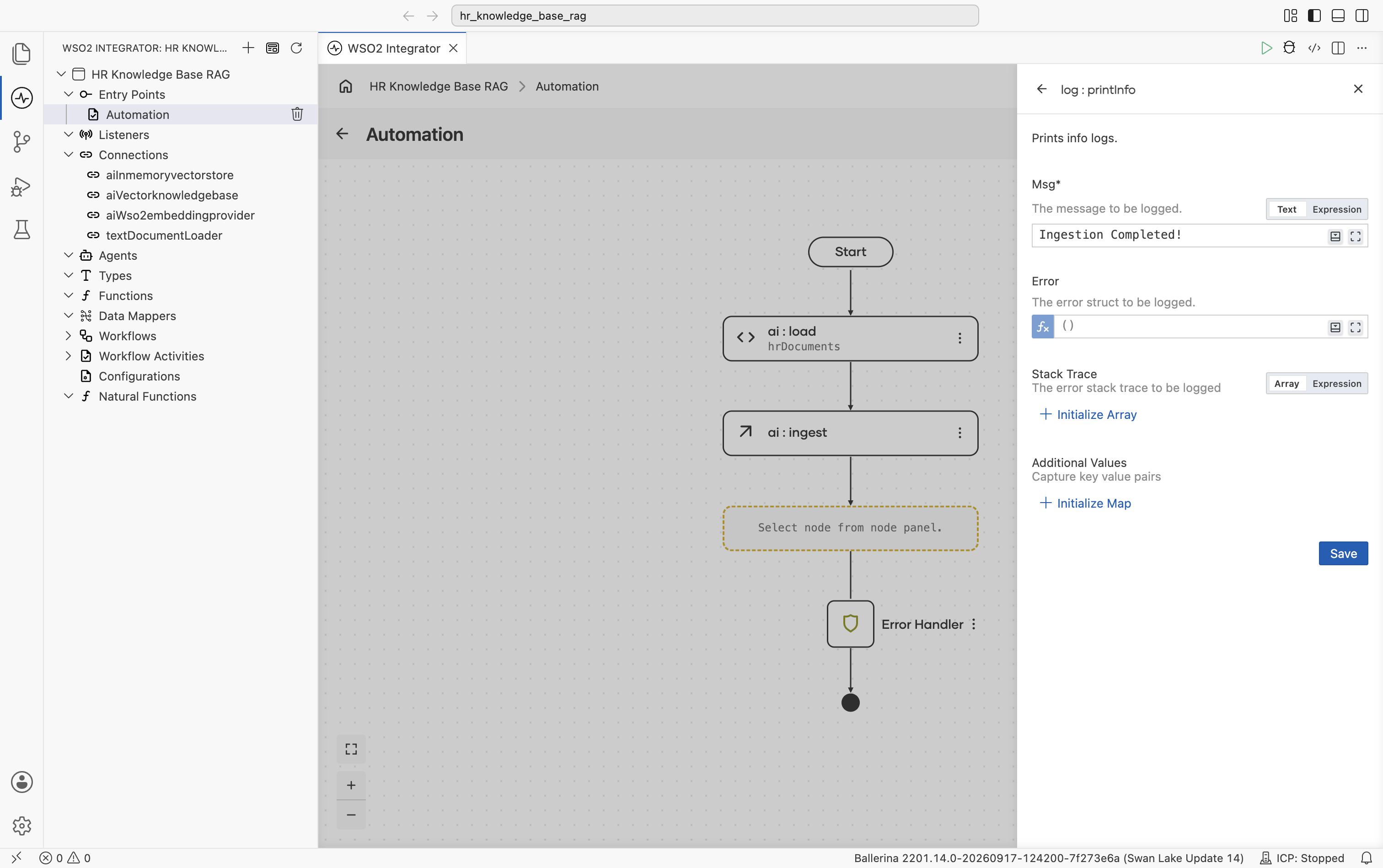

The log : printInfo form opens. Set Msg to Ingestion Completed! so you can confirm in the run log when ingestion has actually finished. This is useful before kicking off any queries against the store. Select Save.

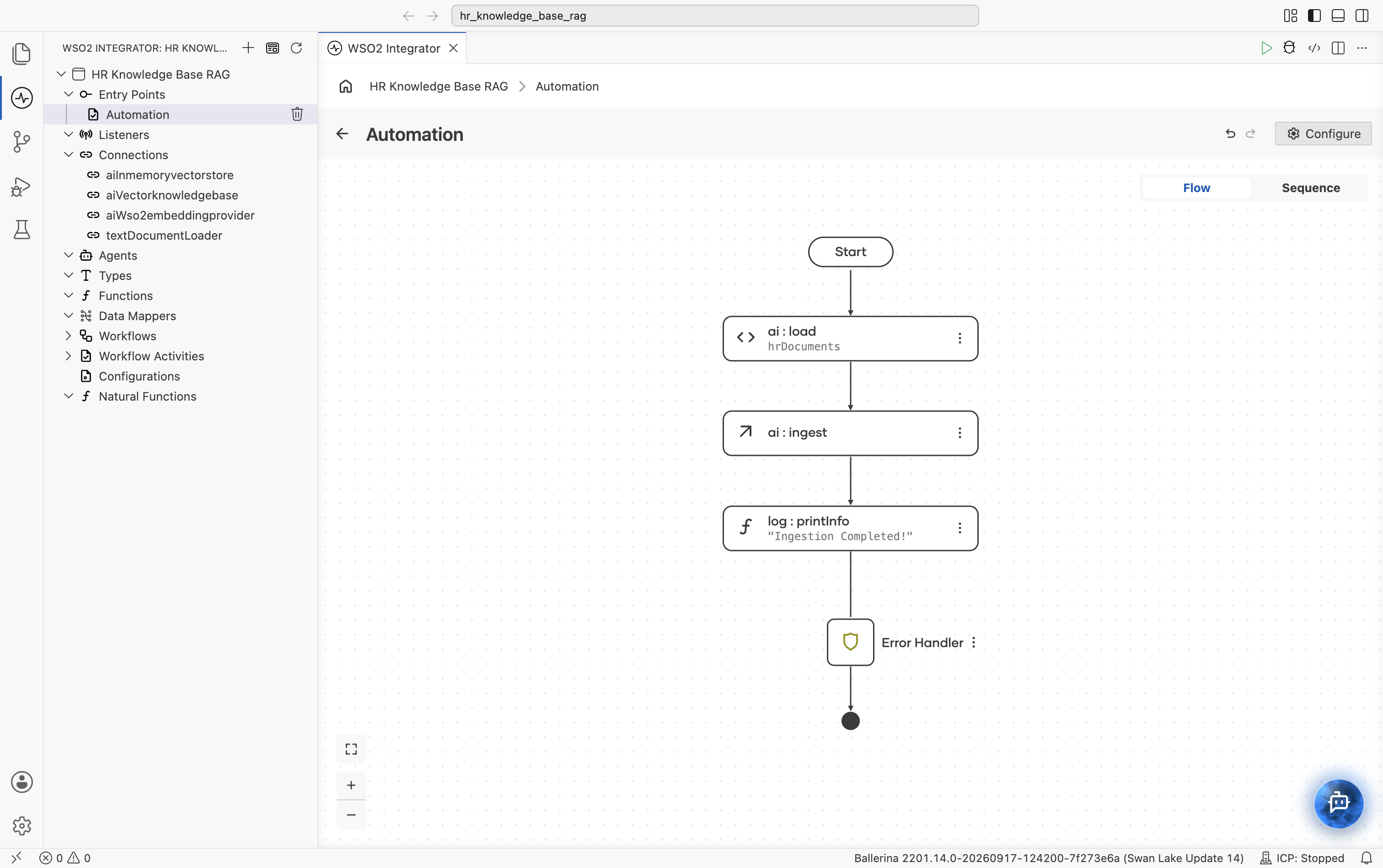

2.7 Review the completed ingestion flow

When the automation runs, it loads the file at path, chunks it, embeds it, and populates aiInmemoryvectorstore. You'll run it together with the HTTP Service at the end of the tutorial.

In-memory store is volatile

Restart the runtime and you must re-ingest. For a persistent store, swap the vector store for Pinecone, Milvus, Pgvector, or Weaviate. The rest of the flow stays the same.

Step 3: Create the query HTTP service

3.1 Add the HTTP service artifact

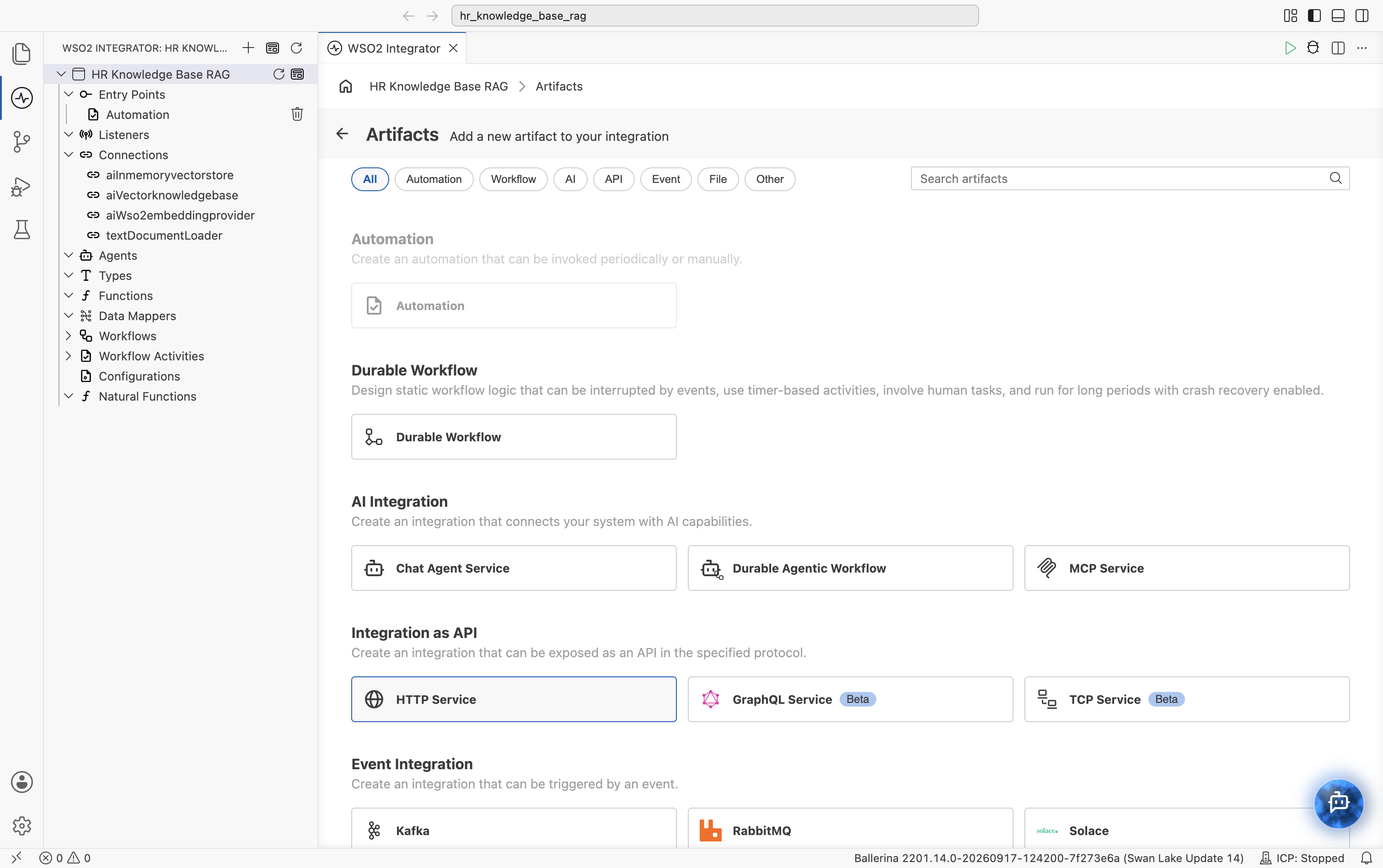

Go back to the project overview and select + Add Artifact. Since the project already has an artifact, this button opens the Artifacts page directly rather than the Copilot's quick-start cards. Under Integration as API, pick HTTP Service.

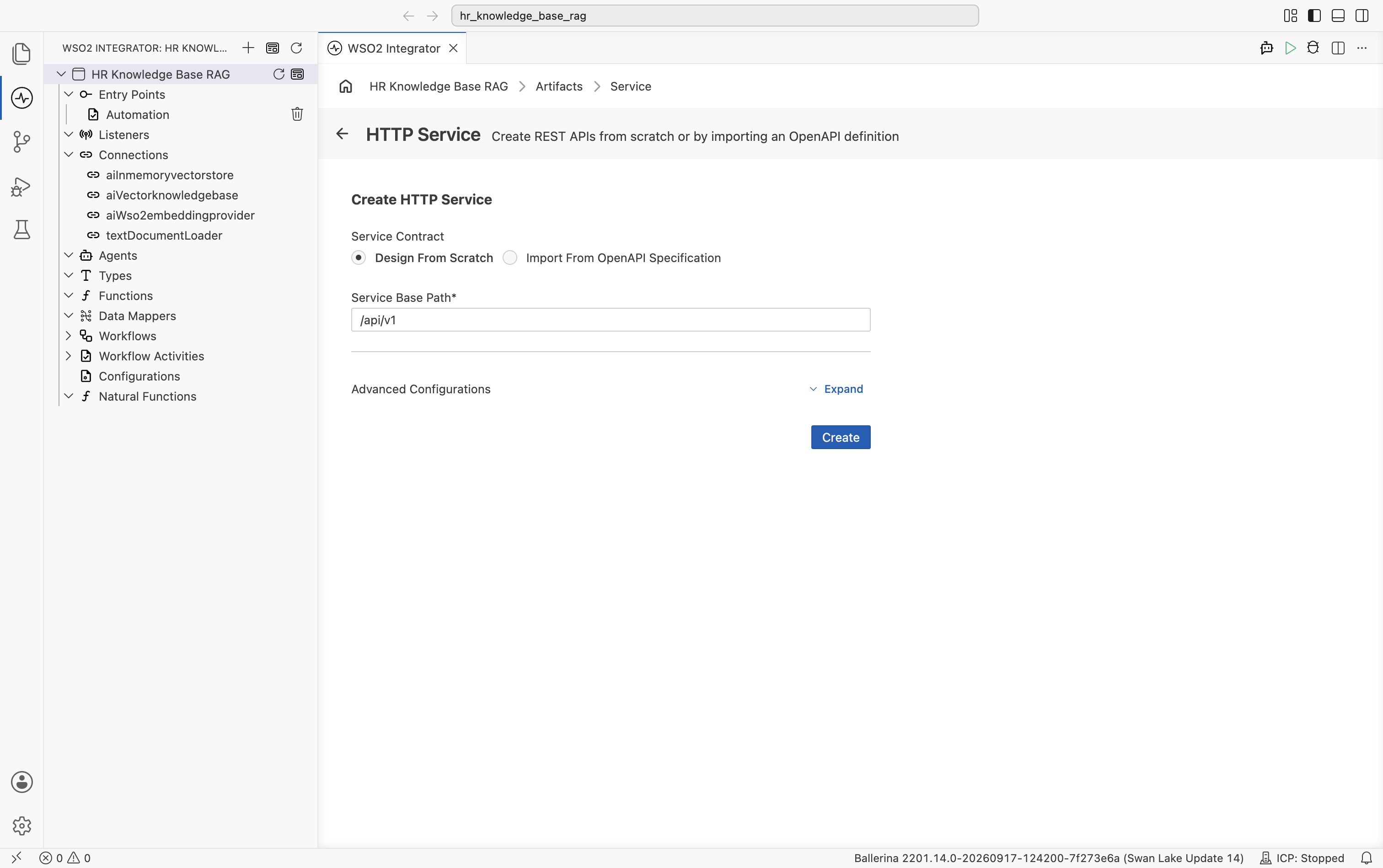

The Create HTTP Service form opens. Keep Service Contract at Design From Scratch and set Service Base Path to /api/v1. Select Create.

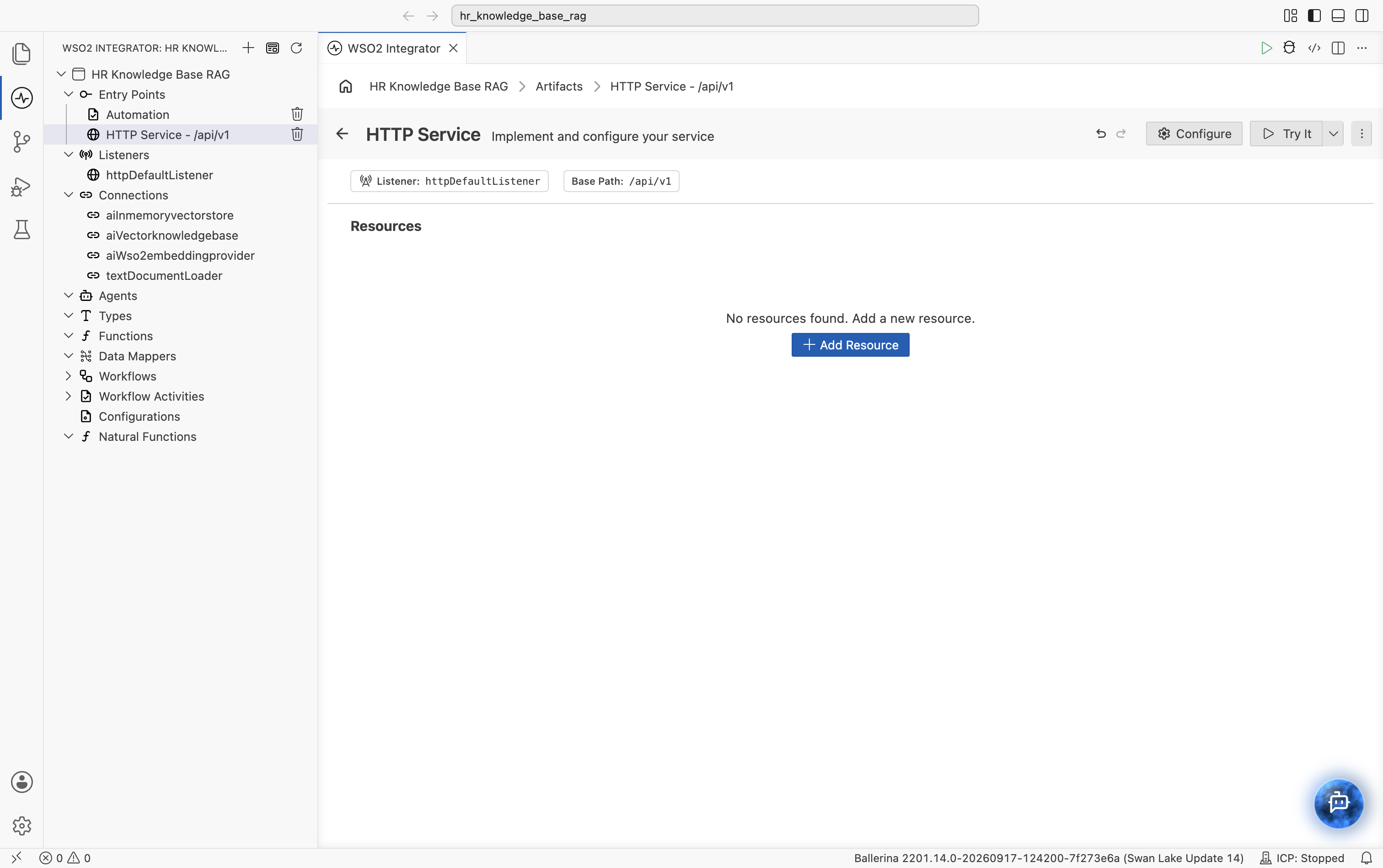

The HTTP Service designer opens with the default listener httpDefaultListener and your base path /api/v1. The Resources section is empty.

3.2 Add the query resource

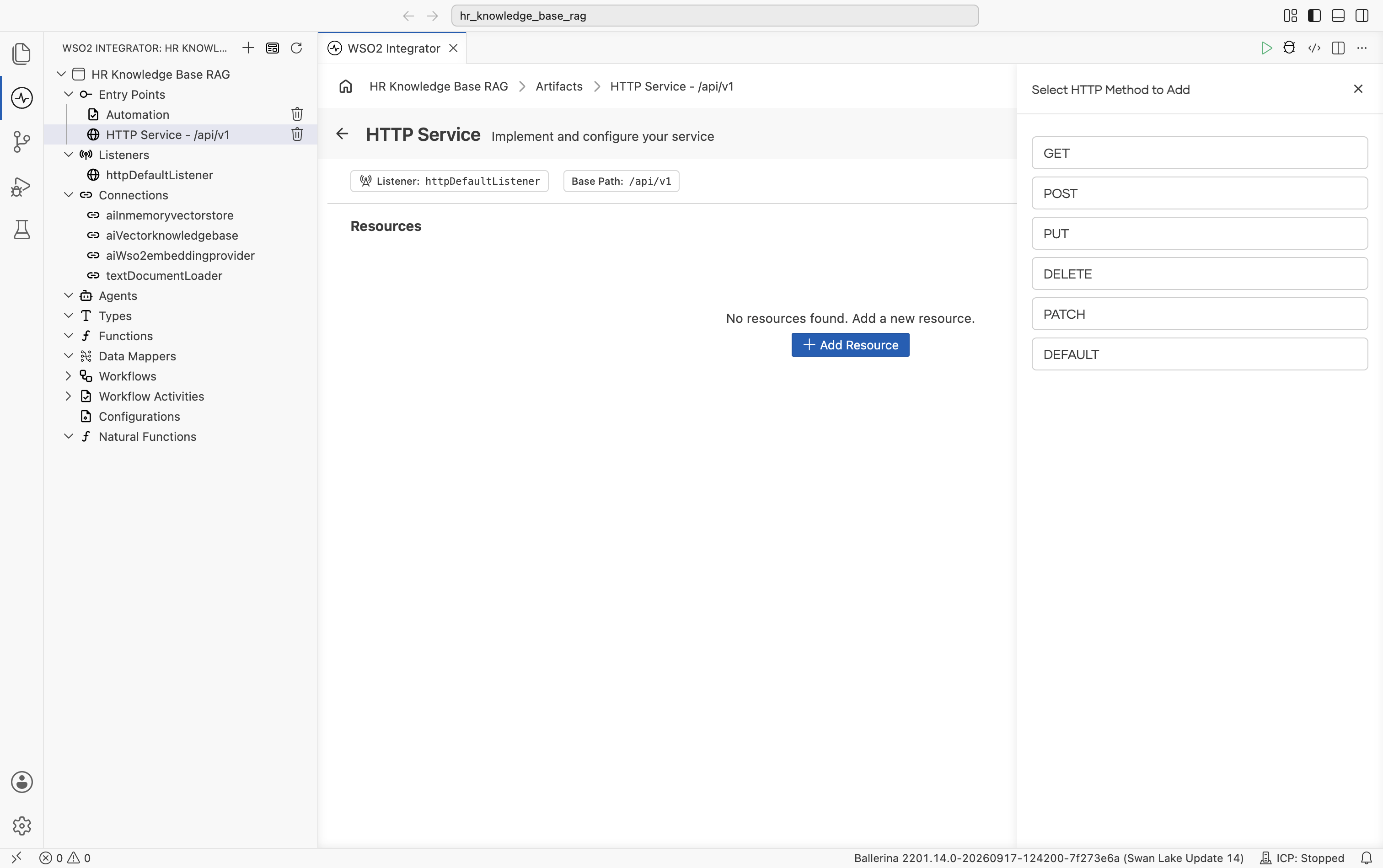

Select + Add Resource. The Select HTTP Method to Add panel opens. Pick POST.

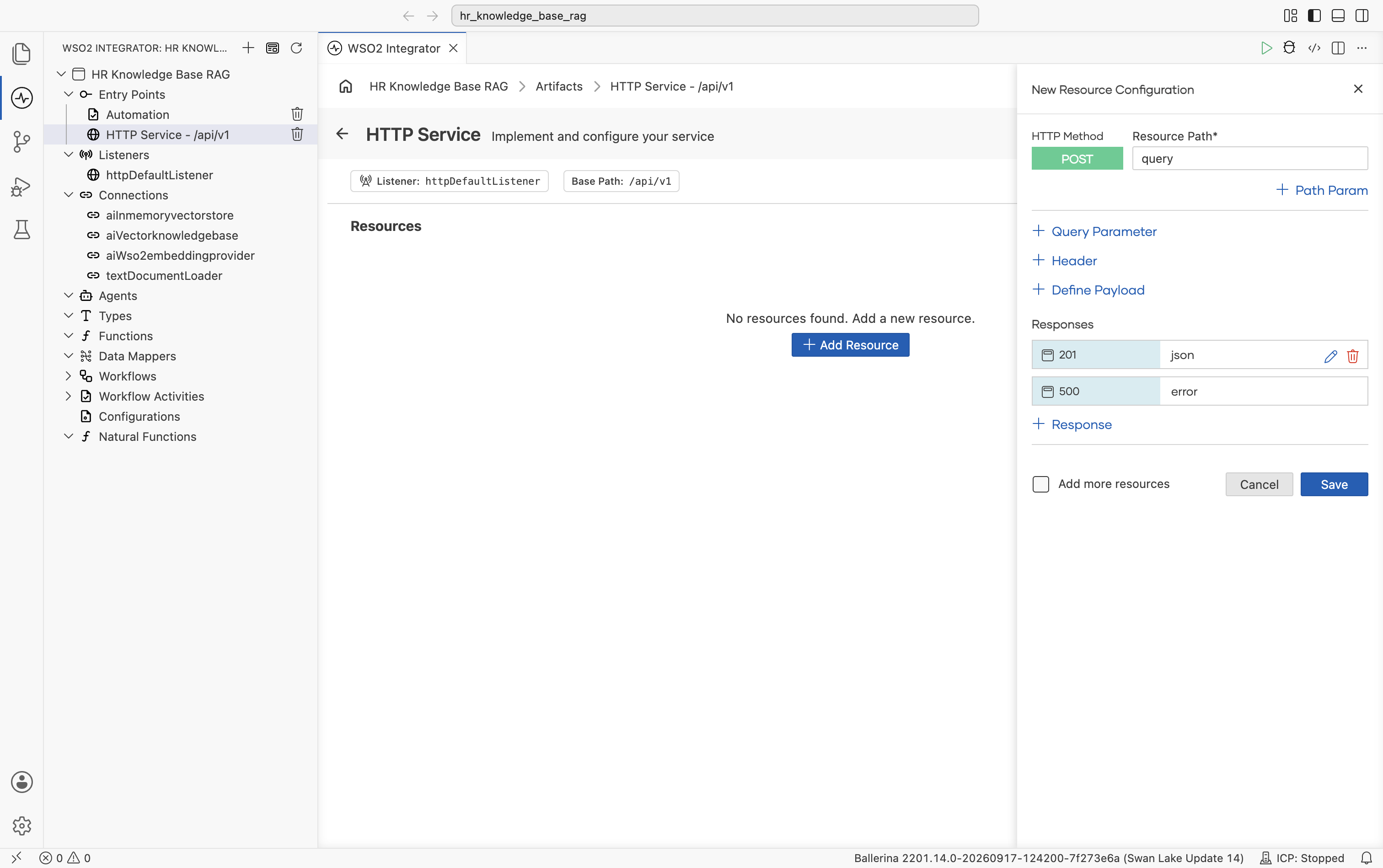

The New Resource Configuration panel opens with HTTP Method set to POST. Set:

• Resource Path: query
• Responses: keep the default 201 returning json and 500 returning error

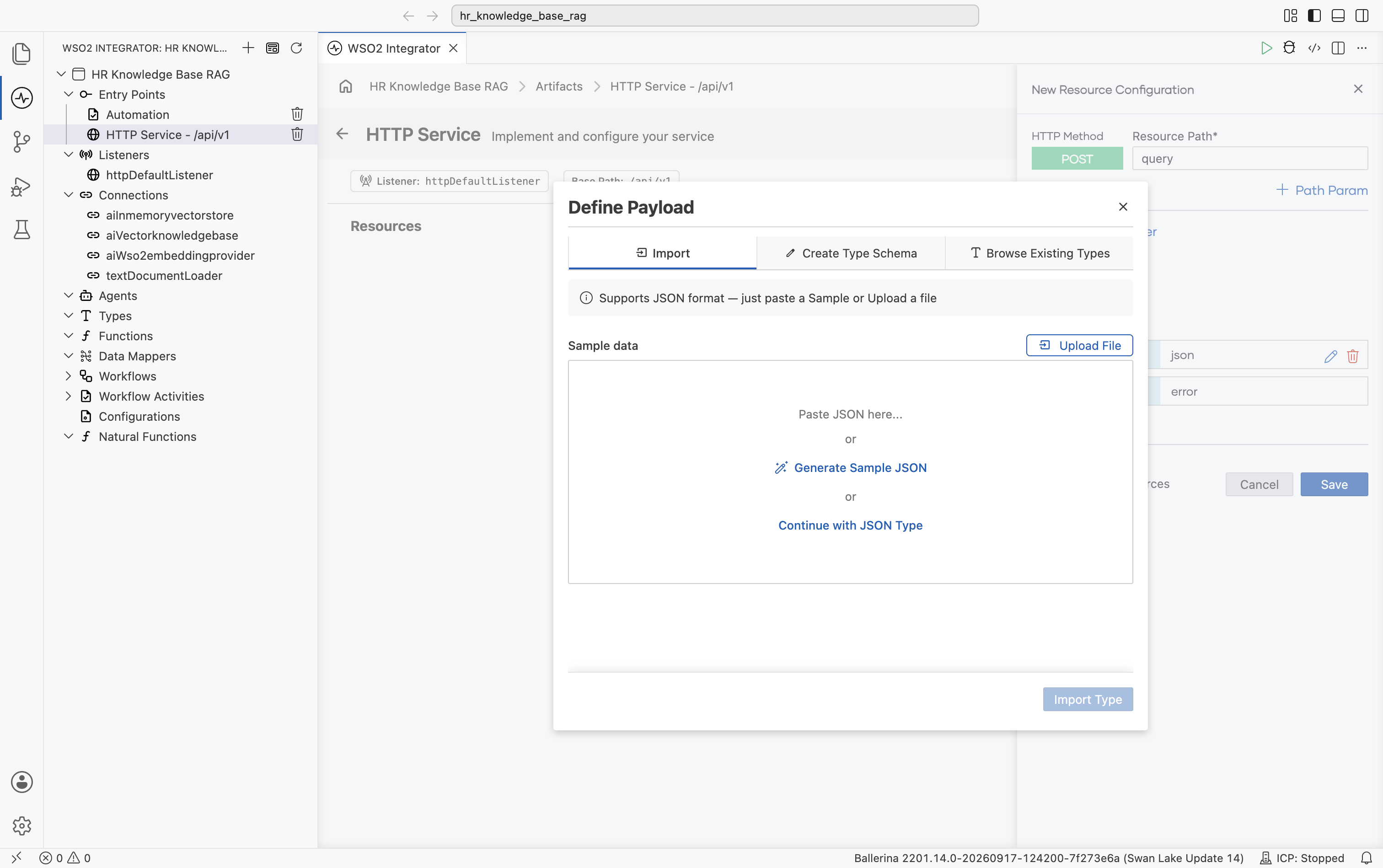

Select + Define Payload. The Define Payload dialog opens on the Import tab, with options to paste sample JSON, upload a file, generate sample JSON, or continue with a JSON type.

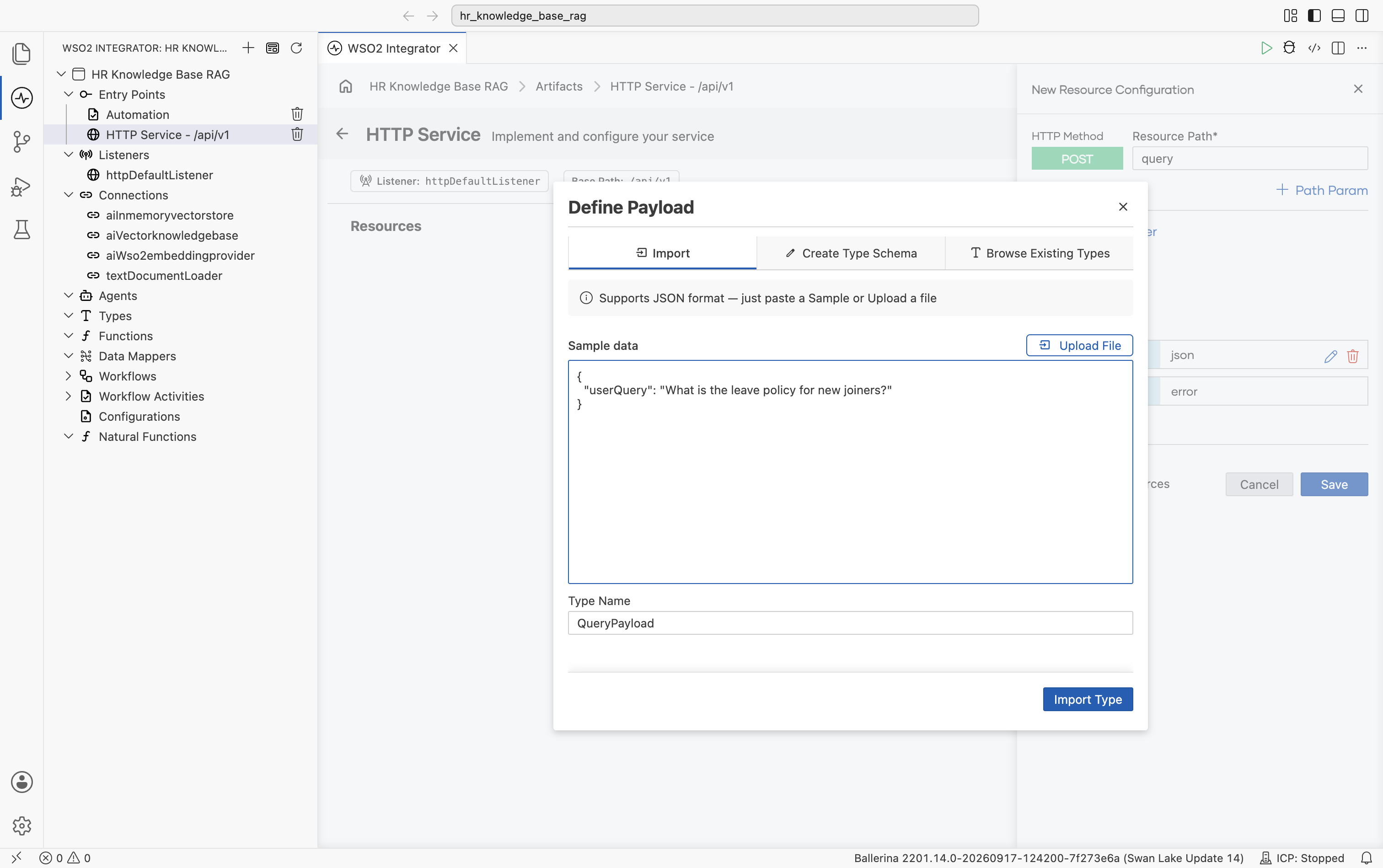

Paste the following JSON sample into Sample data and set Type Name to QueryPayload.

{
  "userQuery": "What is the leave policy for new joiners?"
}

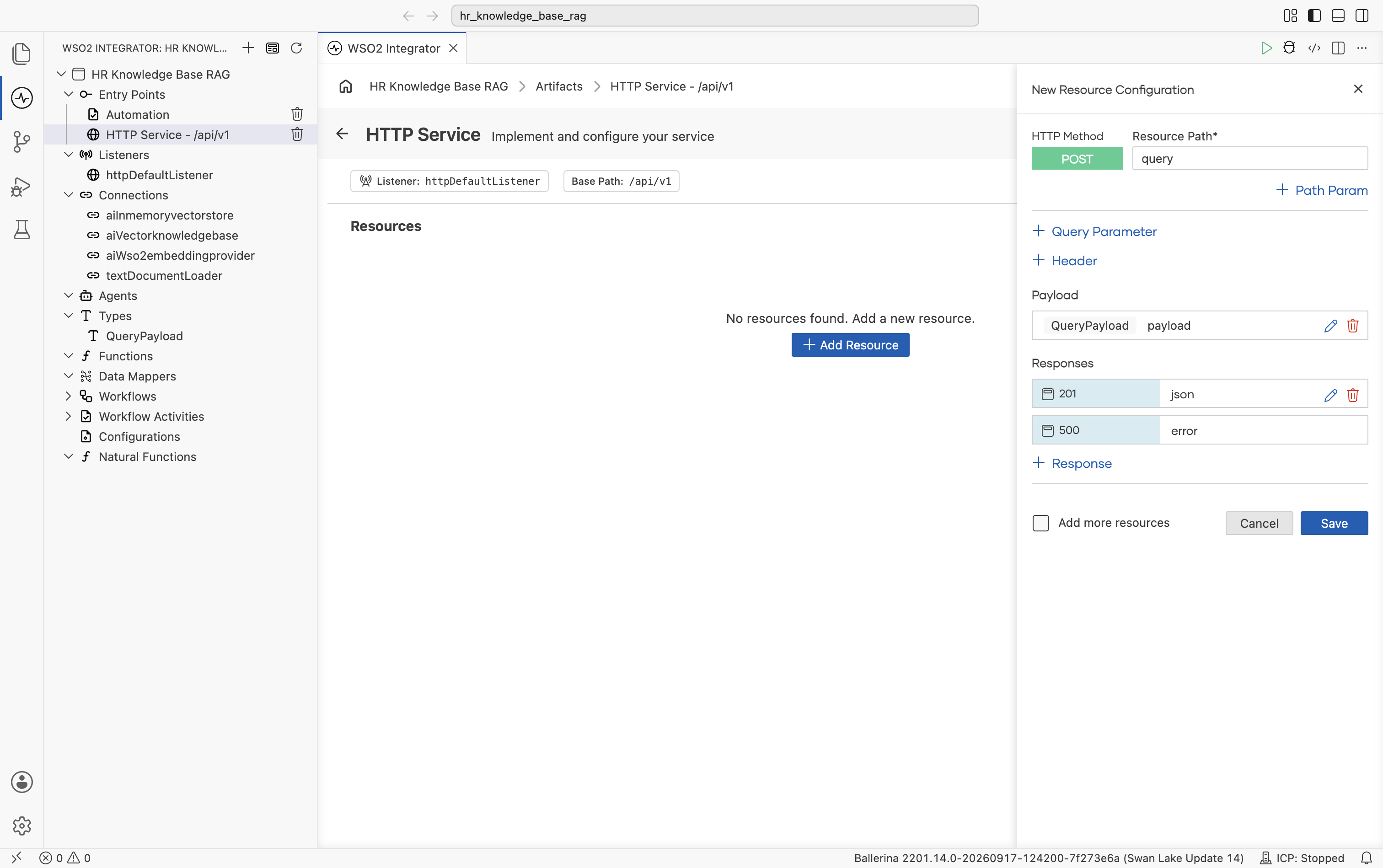

Select Import Type. The payload is added as QueryPayload payload, and the new QueryPayload record type appears under Types in the left tree.

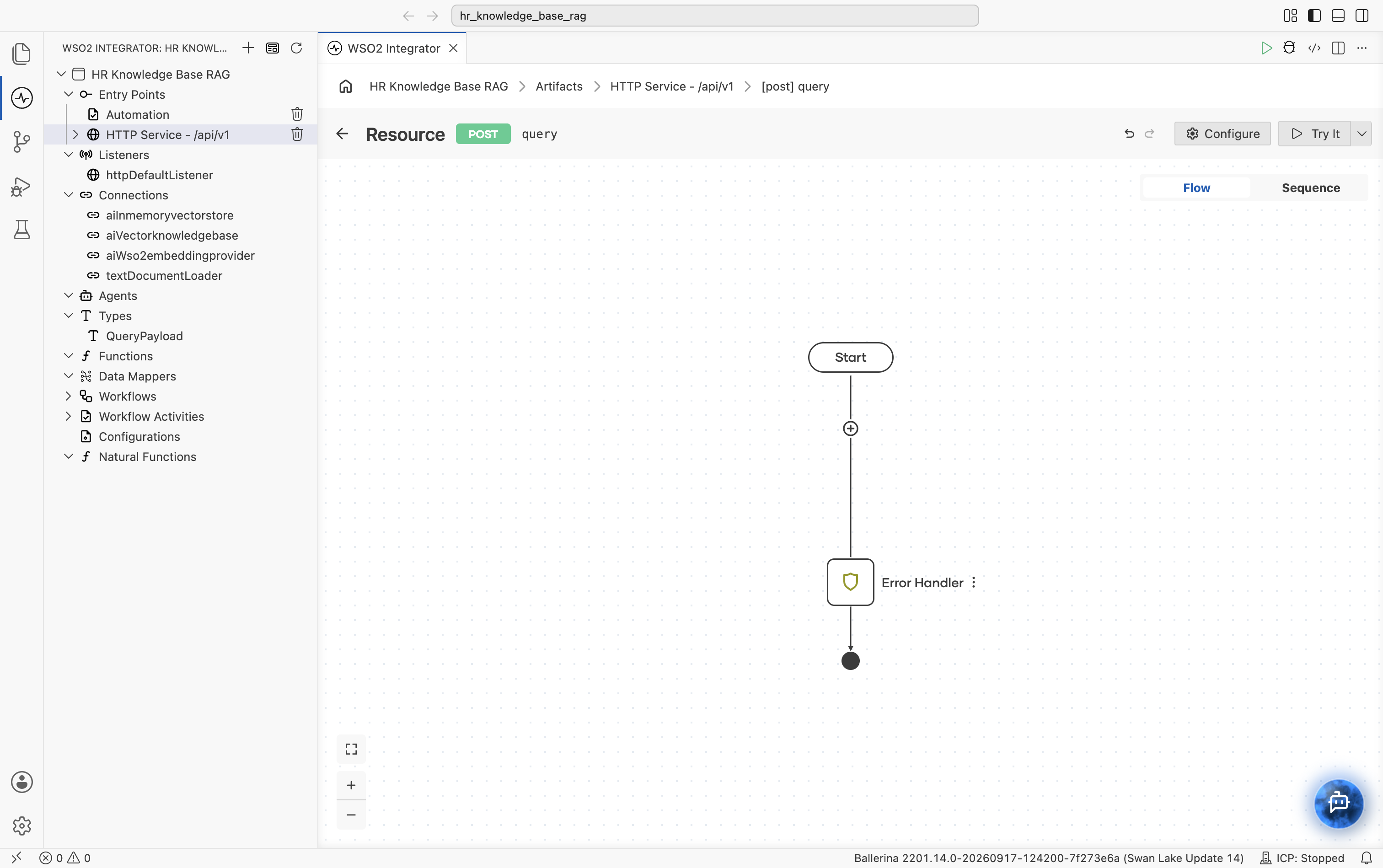

Select Save on the New Resource Configuration panel. The resource flow editor opens with an empty Start node and an Error Handler end node. The user's question is available inside the flow as payload.userQuery.

3.3 Retrieve relevant chunks

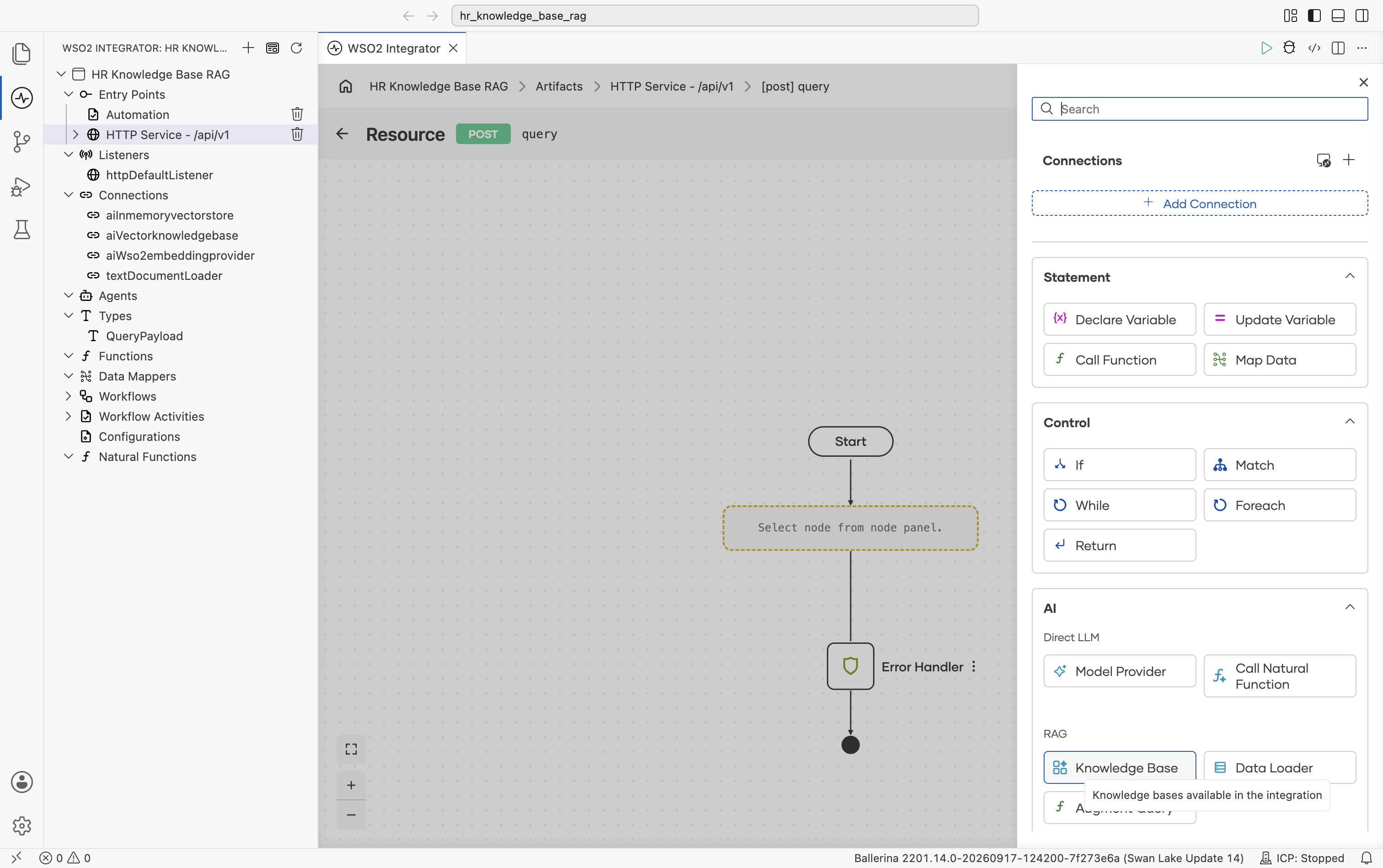

Select + in the resource flow. The node palette opens. Under AI > RAG, select Knowledge Base.

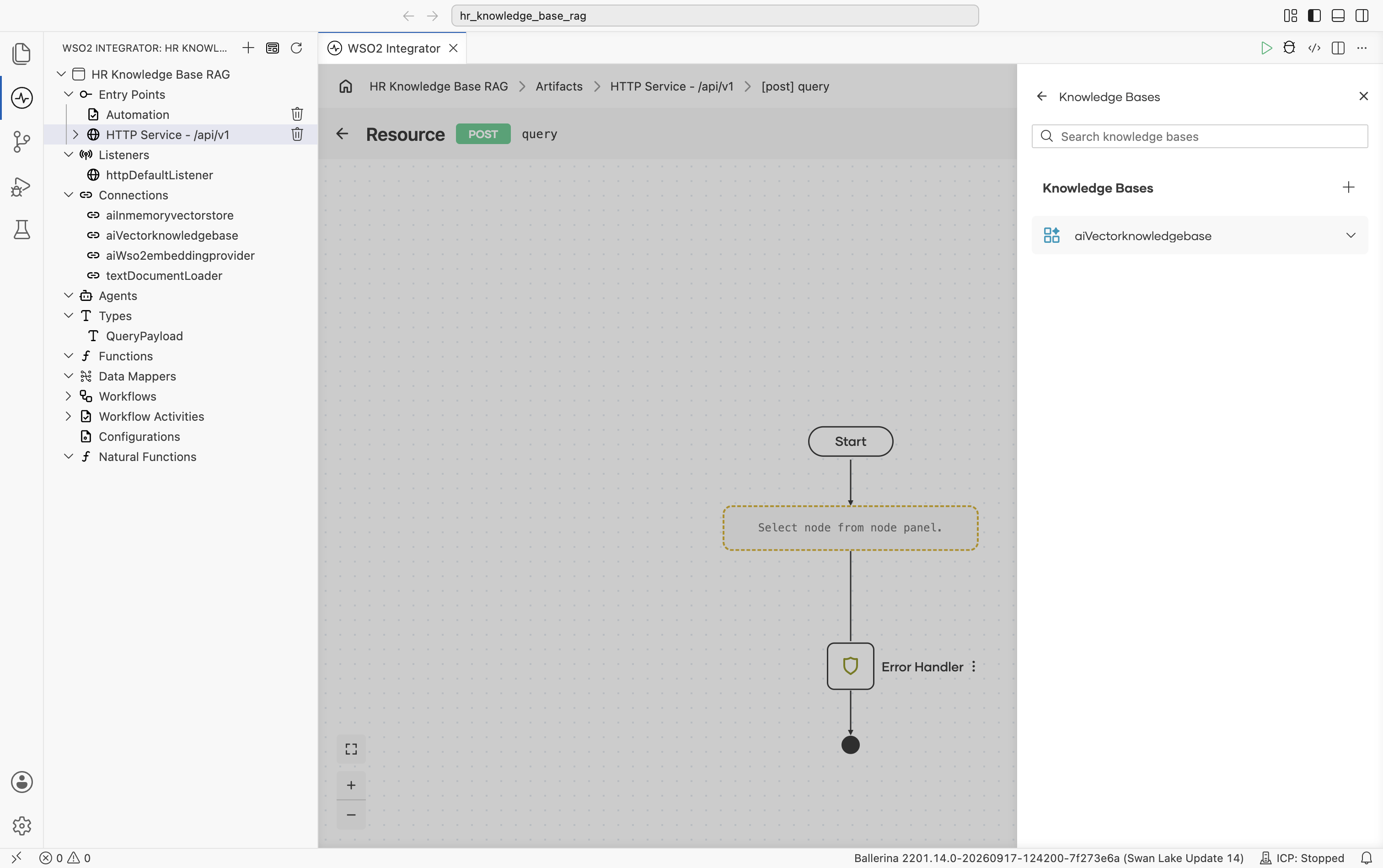

The Knowledge Bases panel lists aiVectorknowledgebase (the same connection you created in the Automation).

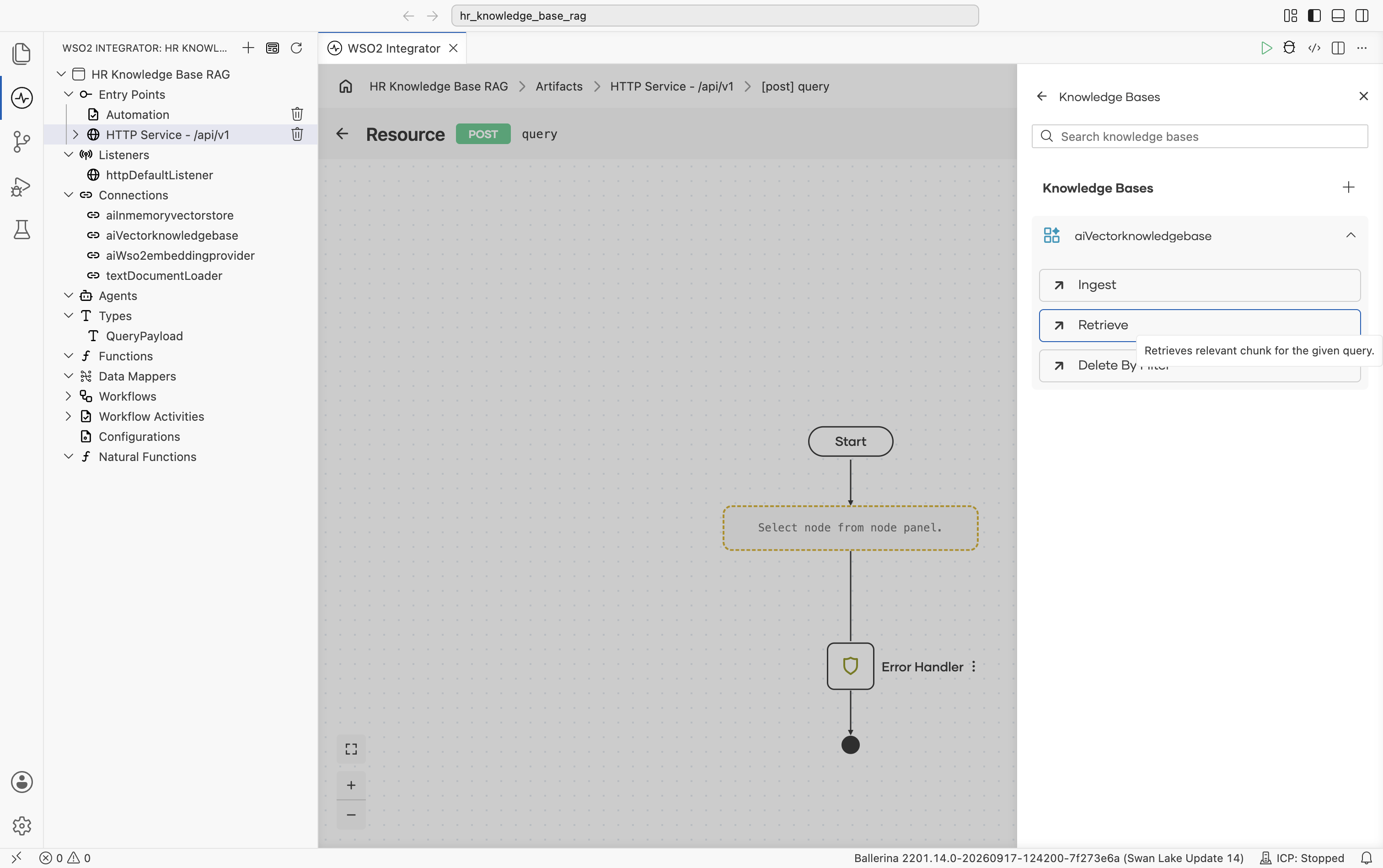

Select aiVectorknowledgebase to expand it and reveal its actions. Select Retrieve, "Retrieves relevant chunk for the given query."

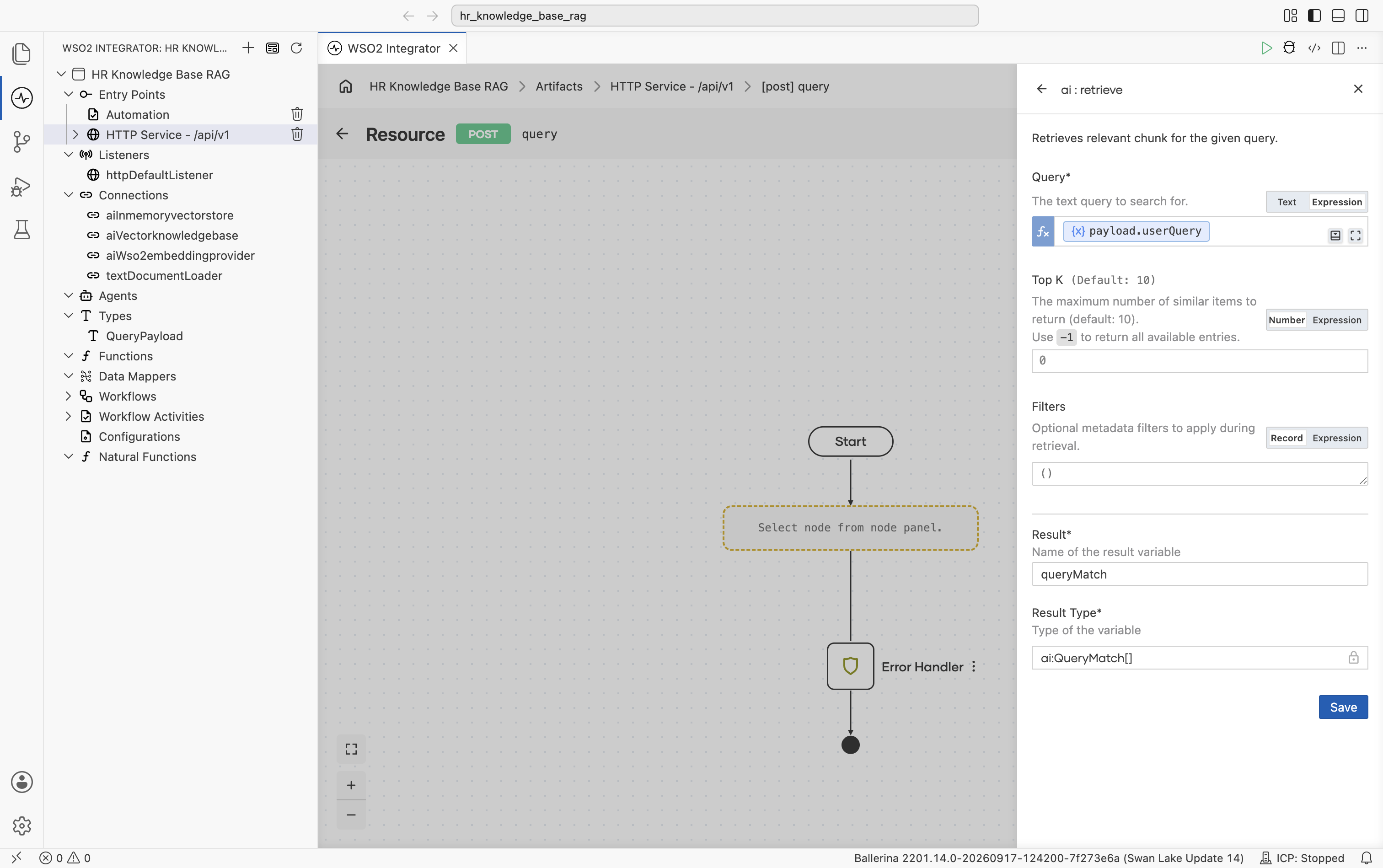

The ai : retrieve form opens, with Top K defaulting to 10 and an optional Filters field for metadata filtering. Select into the Query field, then pick Inputs > payload > userQuery from the helper pane.

Set Result to queryMatch. Result Type stays at the auto-filled ai:QueryMatch[].

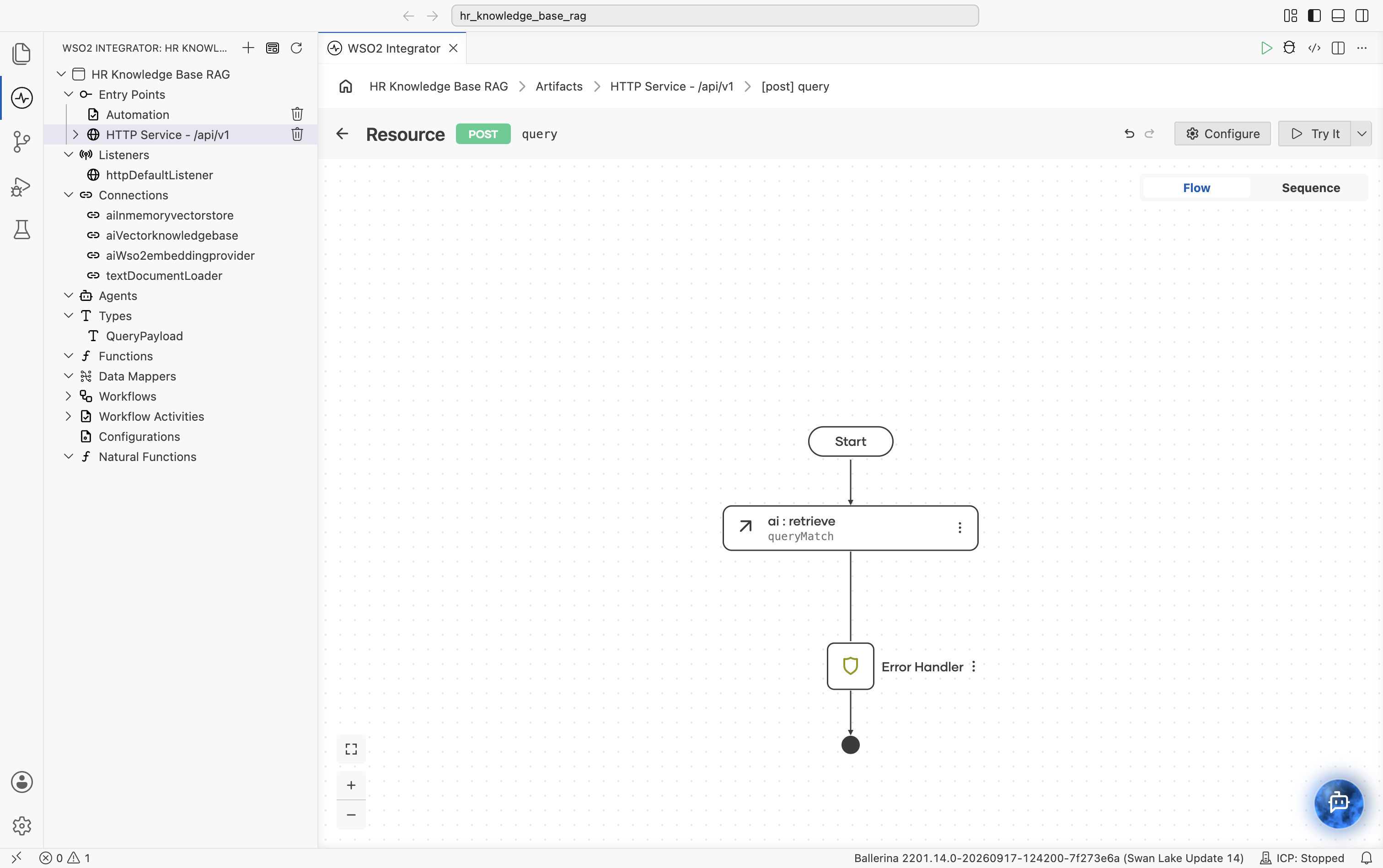

Select Save. The ai:retrieve node is added to the flow.

3.4 Augment the user query

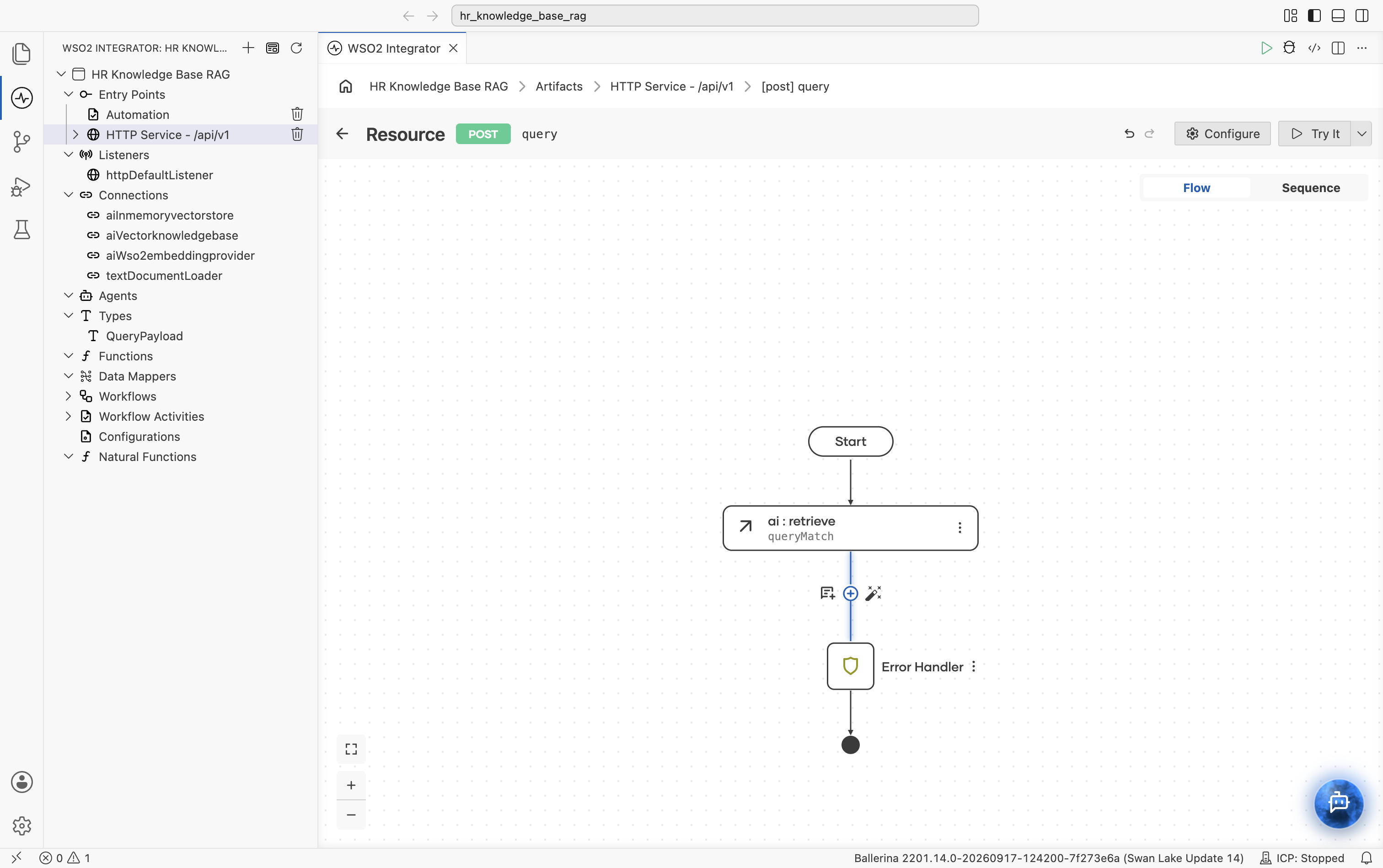

Select + below the ai:retrieve node to add the next node.

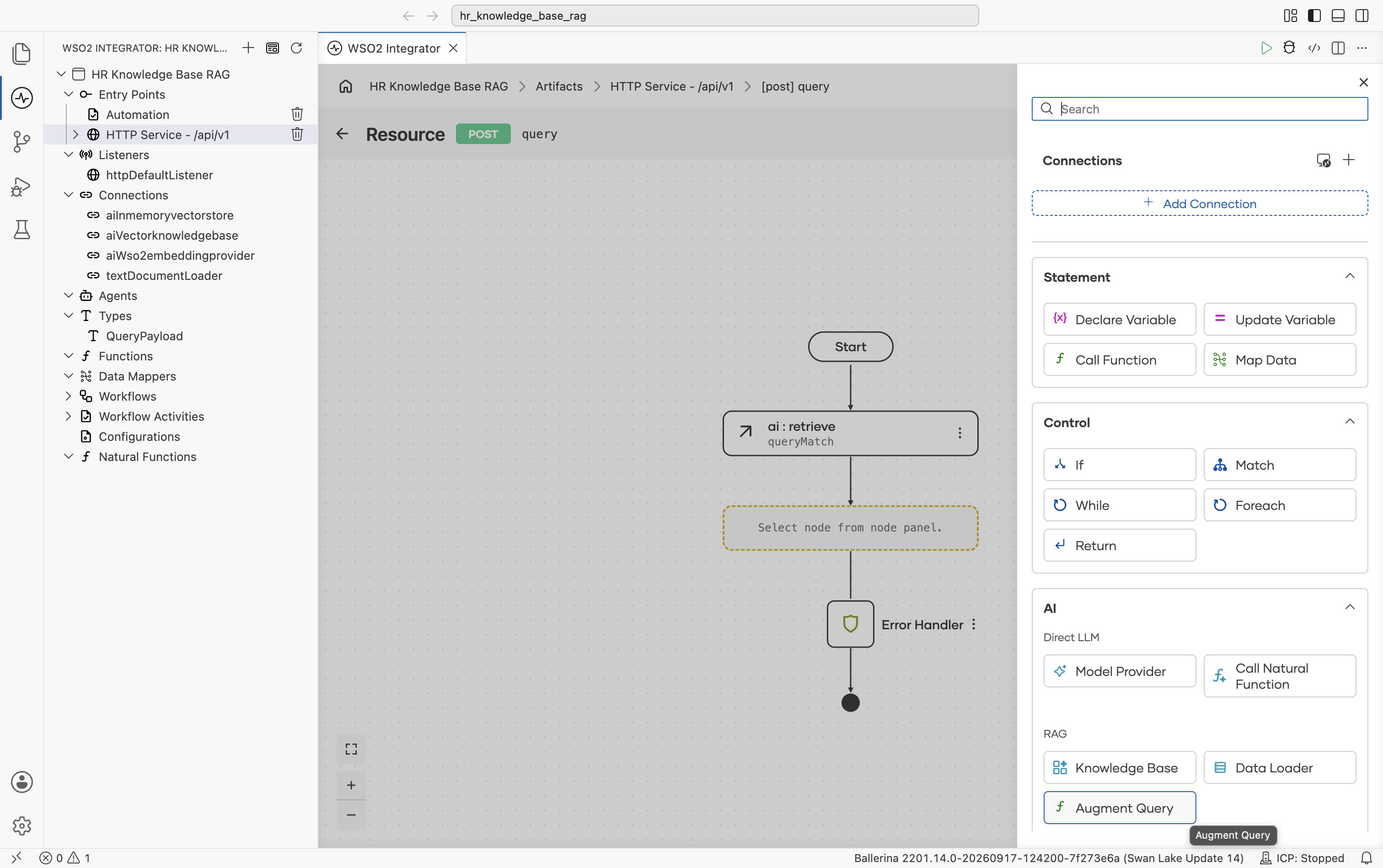

The node palette opens. Under AI > RAG, select Augment Query. It packages the employee's question together with the retrieved chunks into a ChatUserMessage ready for the LLM, with no manual prompt templating required.

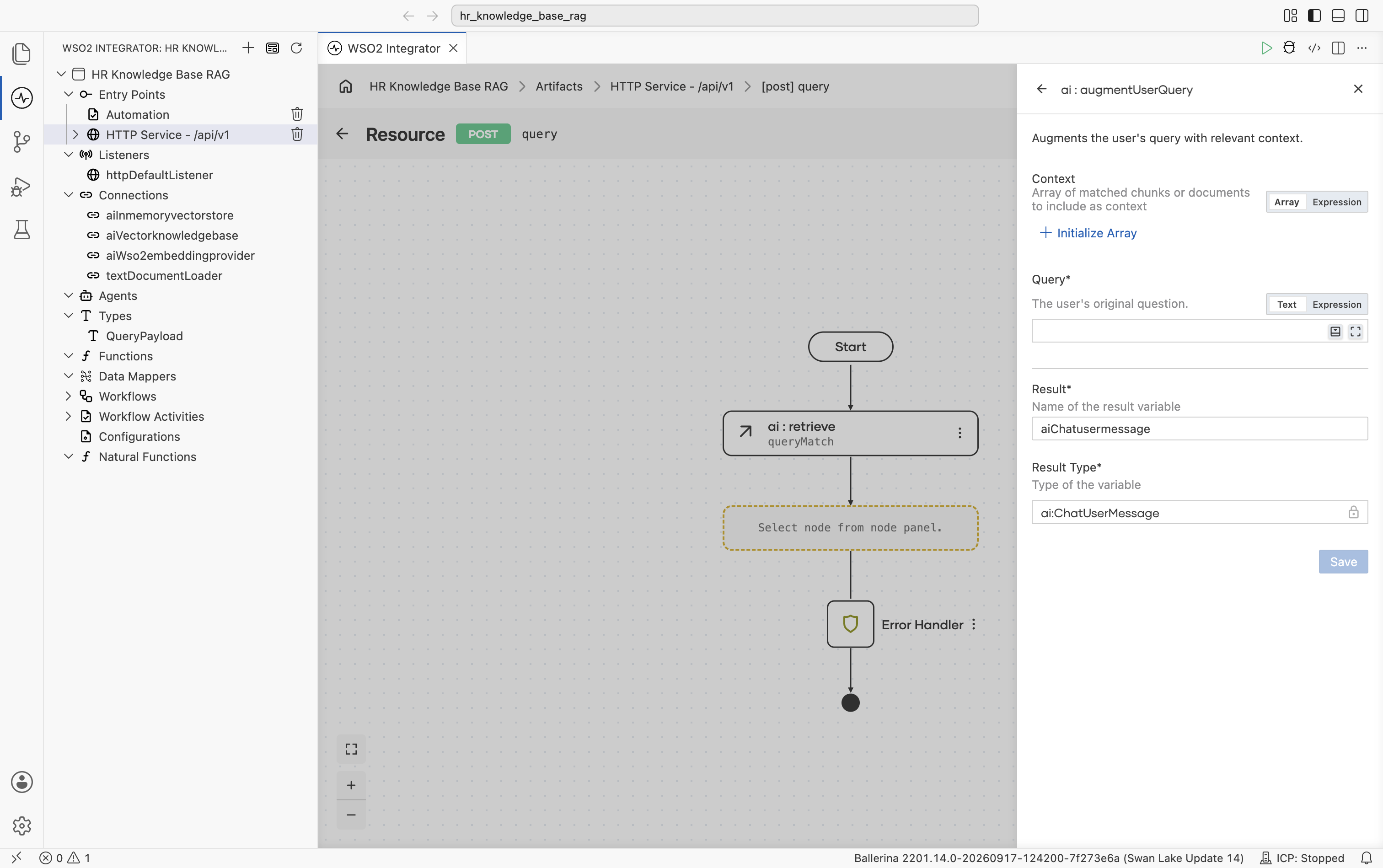

The ai : augmentUserQuery form opens. Result is pre-filled with aiChatusermessage and Result Type with ai:ChatUserMessage. The Context field defaults to Array mode.

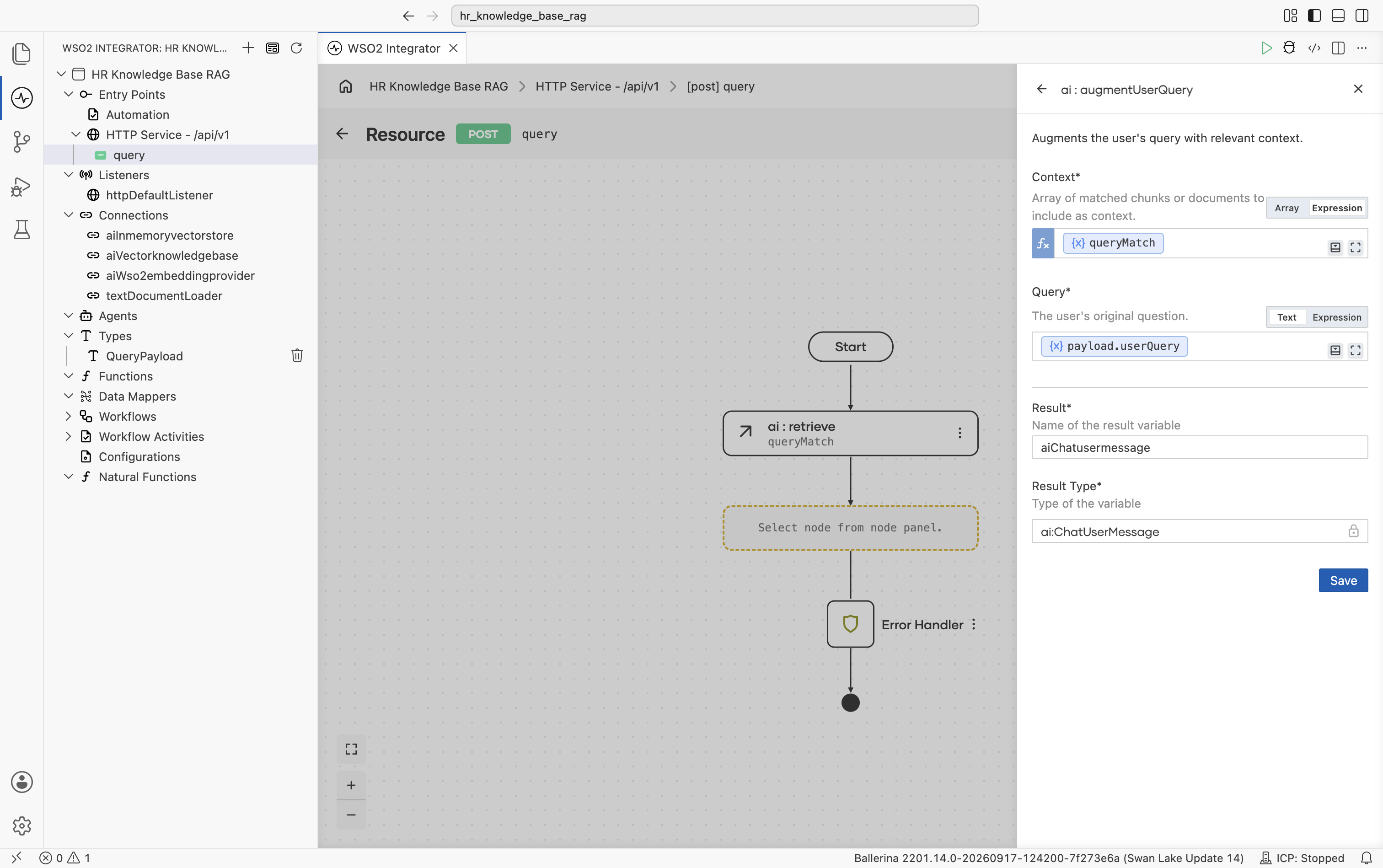

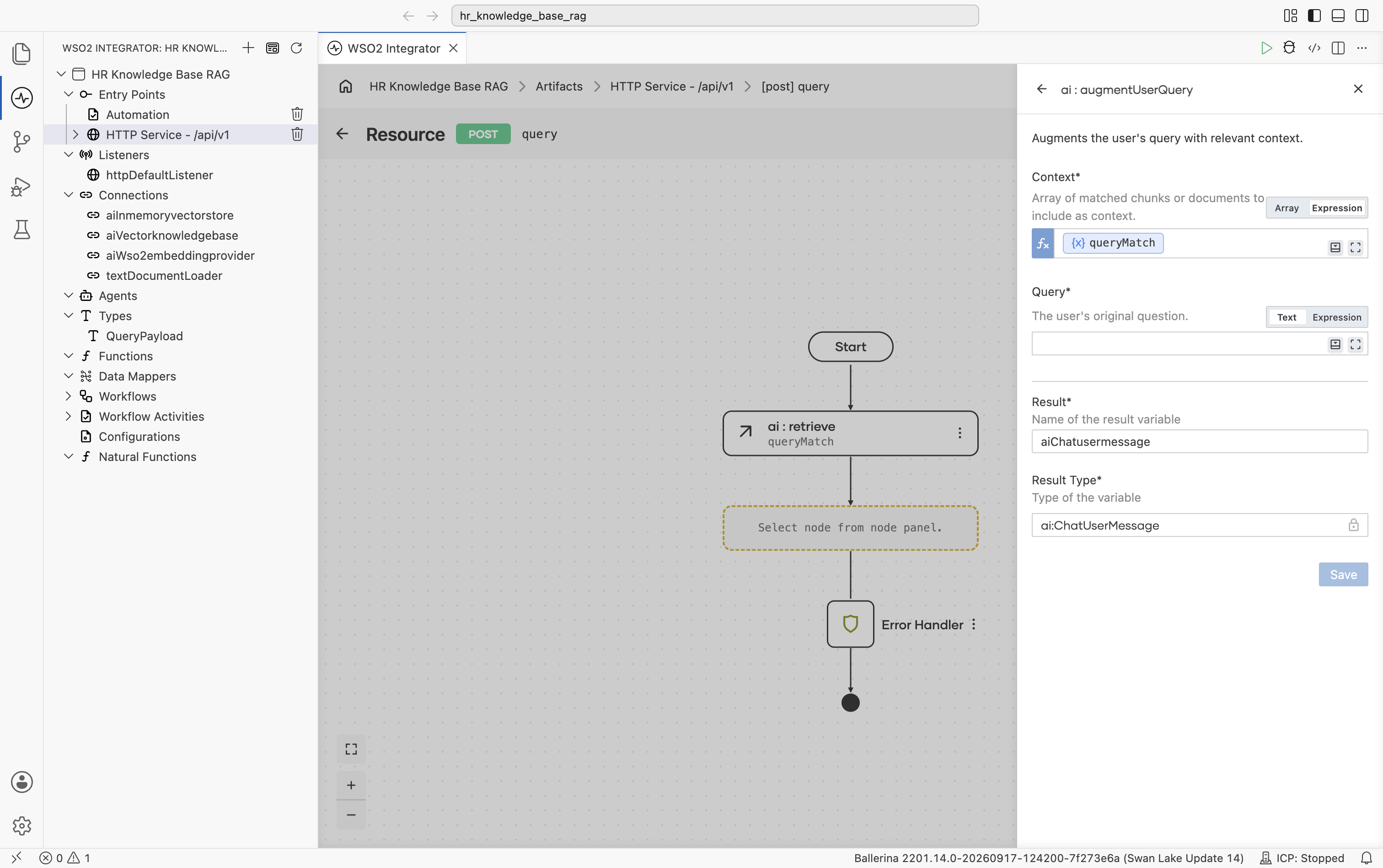

Switch the Context field to Expression mode, then select into it and pick Variables > queryMatch from the helper pane.

Select into the Query field and pick Inputs > payload > userQuery from the helper pane. Both fields are now populated.

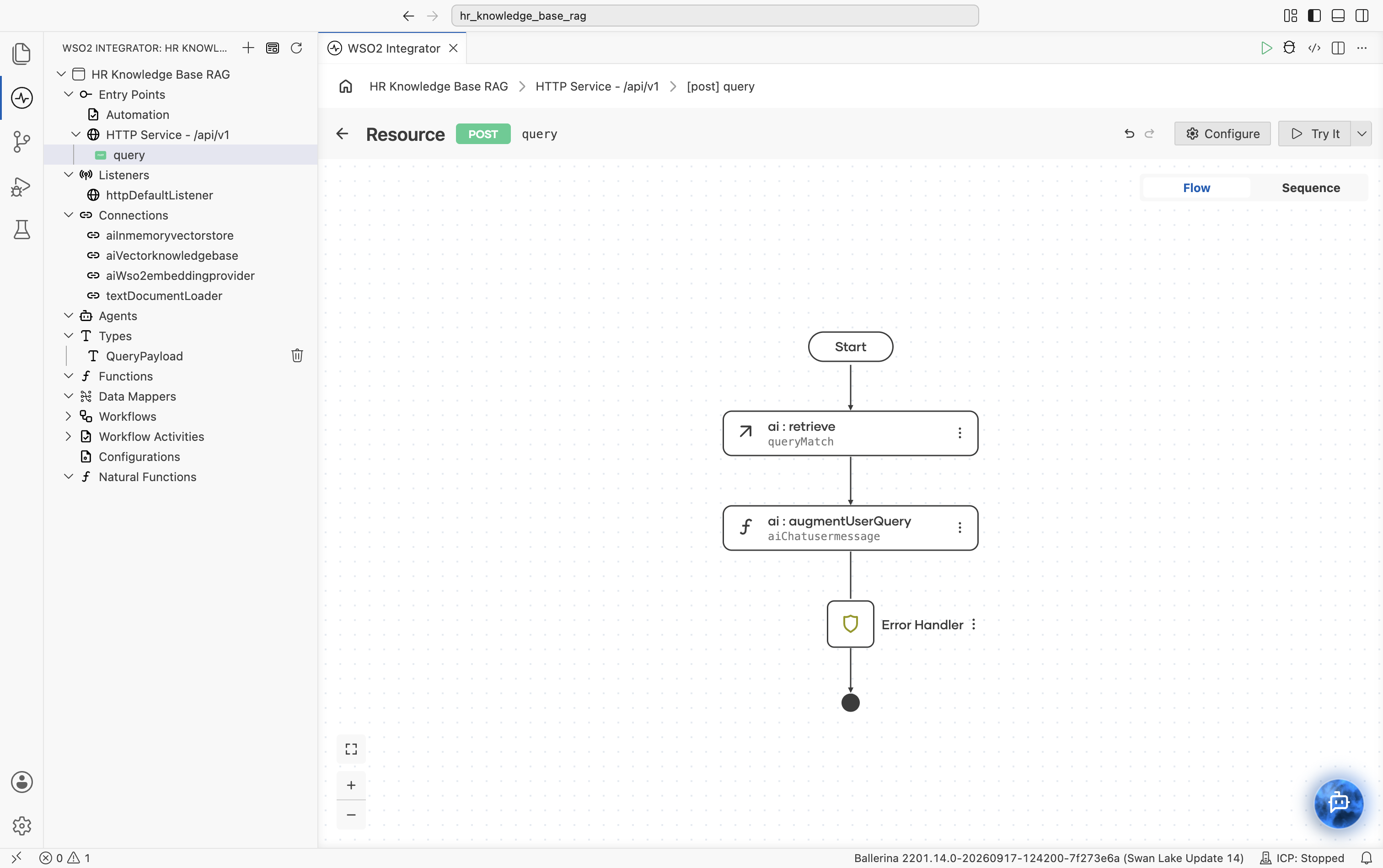

Select Save. The ai:augmentUserQuery node is added to the flow.

3.5 Add a model provider

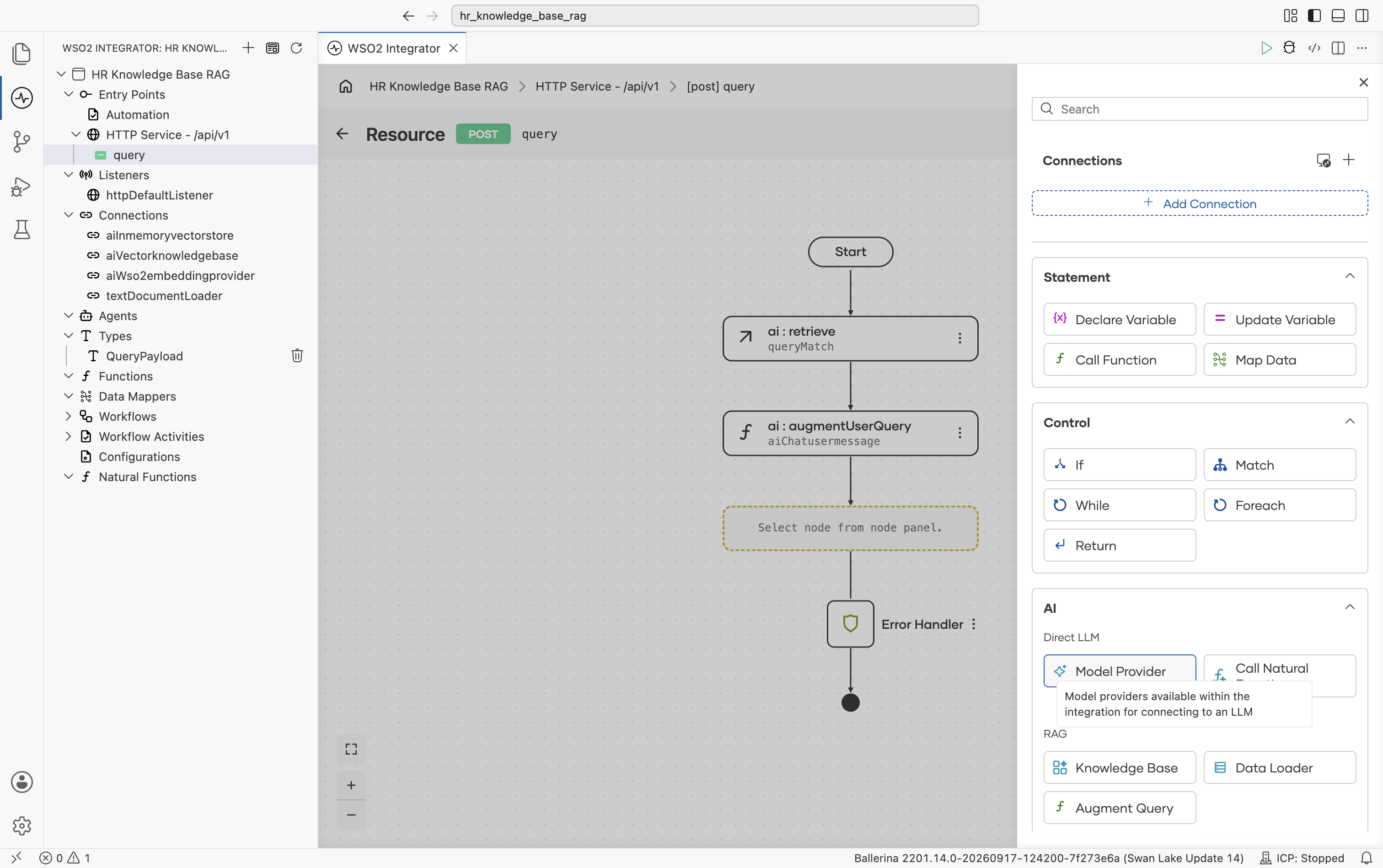

Select + below the ai:augmentUserQuery node to add the next node. Under AI > Direct LLM, select Model Provider.

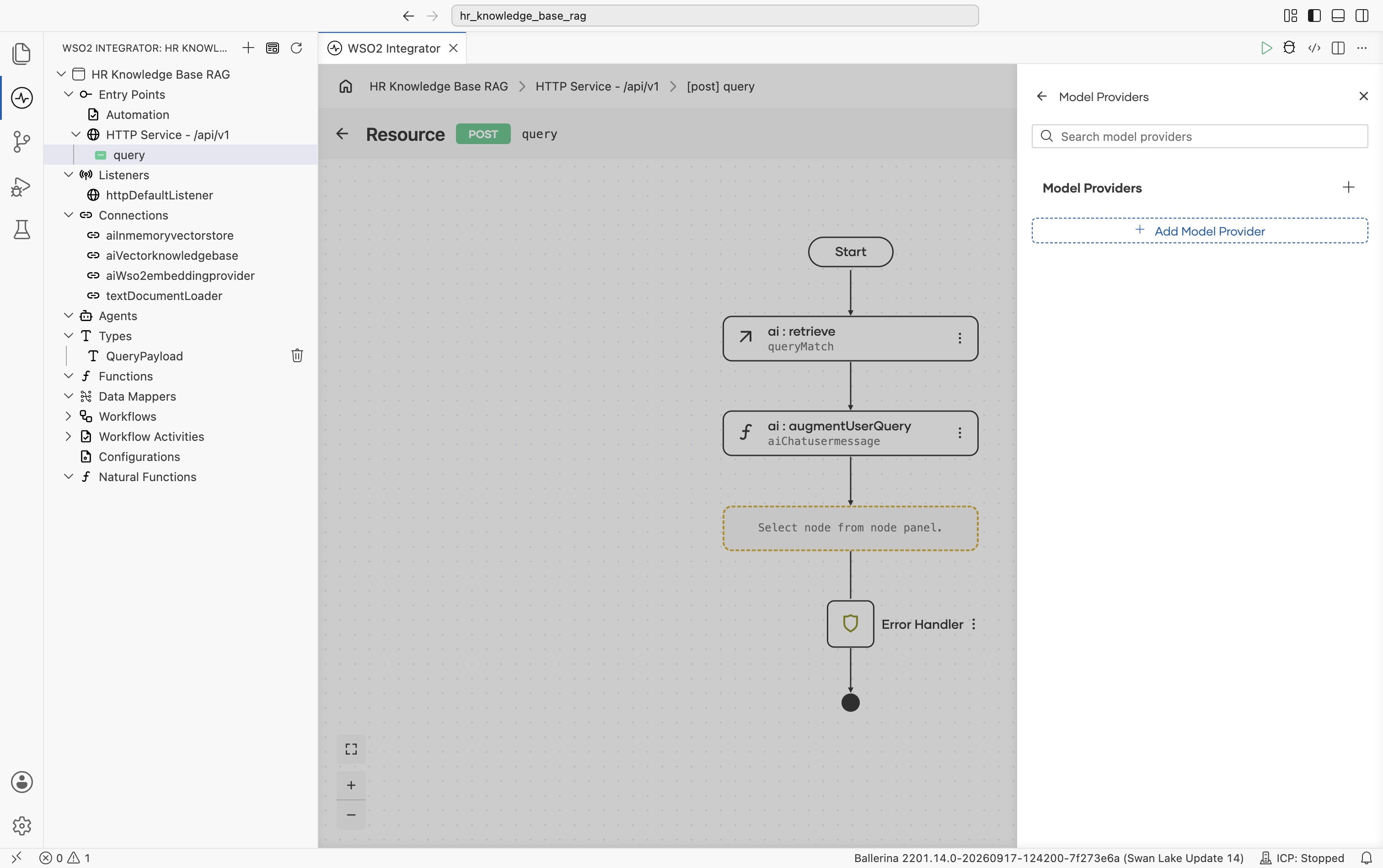

The Model Providers panel opens with no existing connections. Select + Add Model Provider.

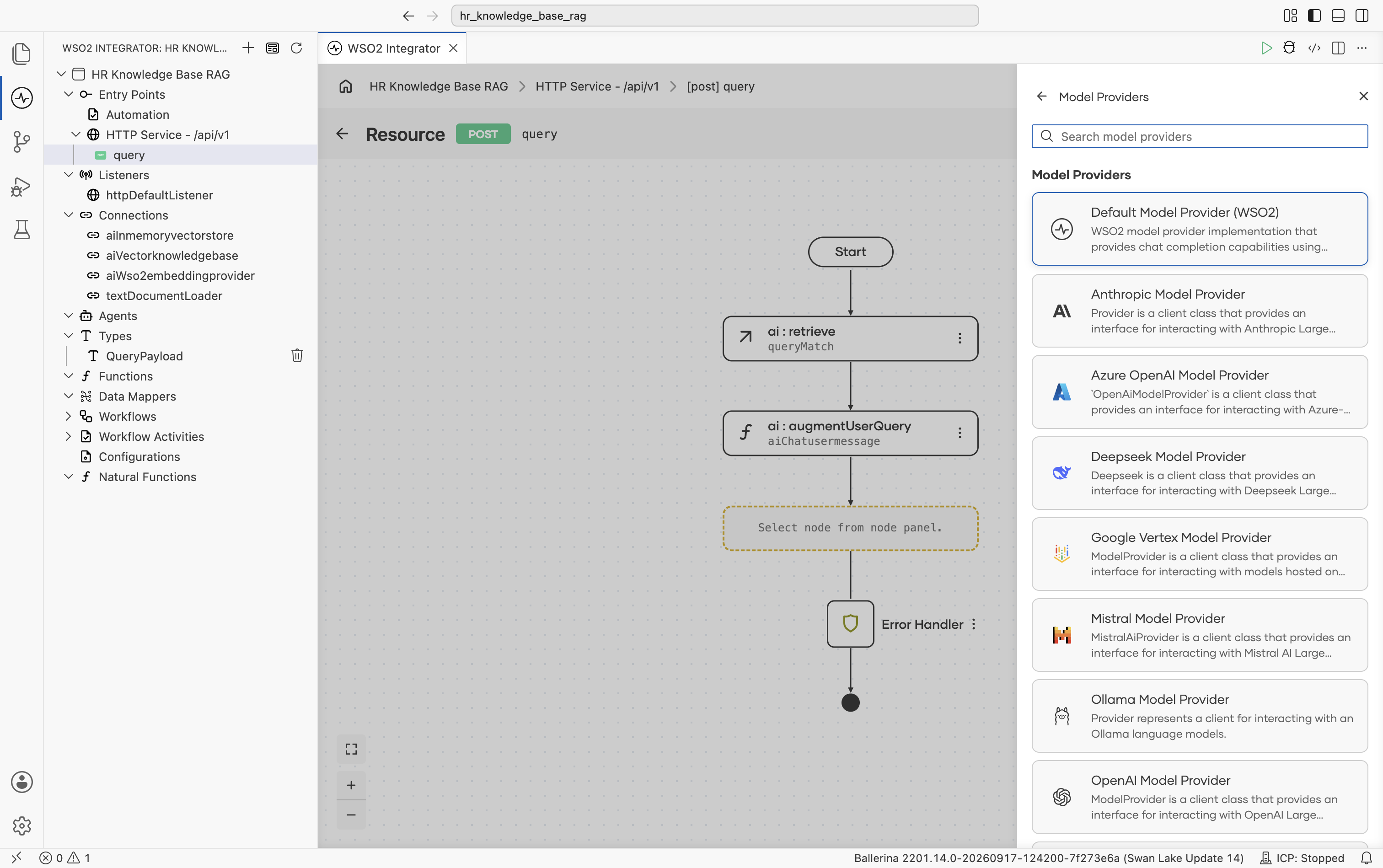

The supported model providers are listed. Pick Default Model Provider (WSO2).

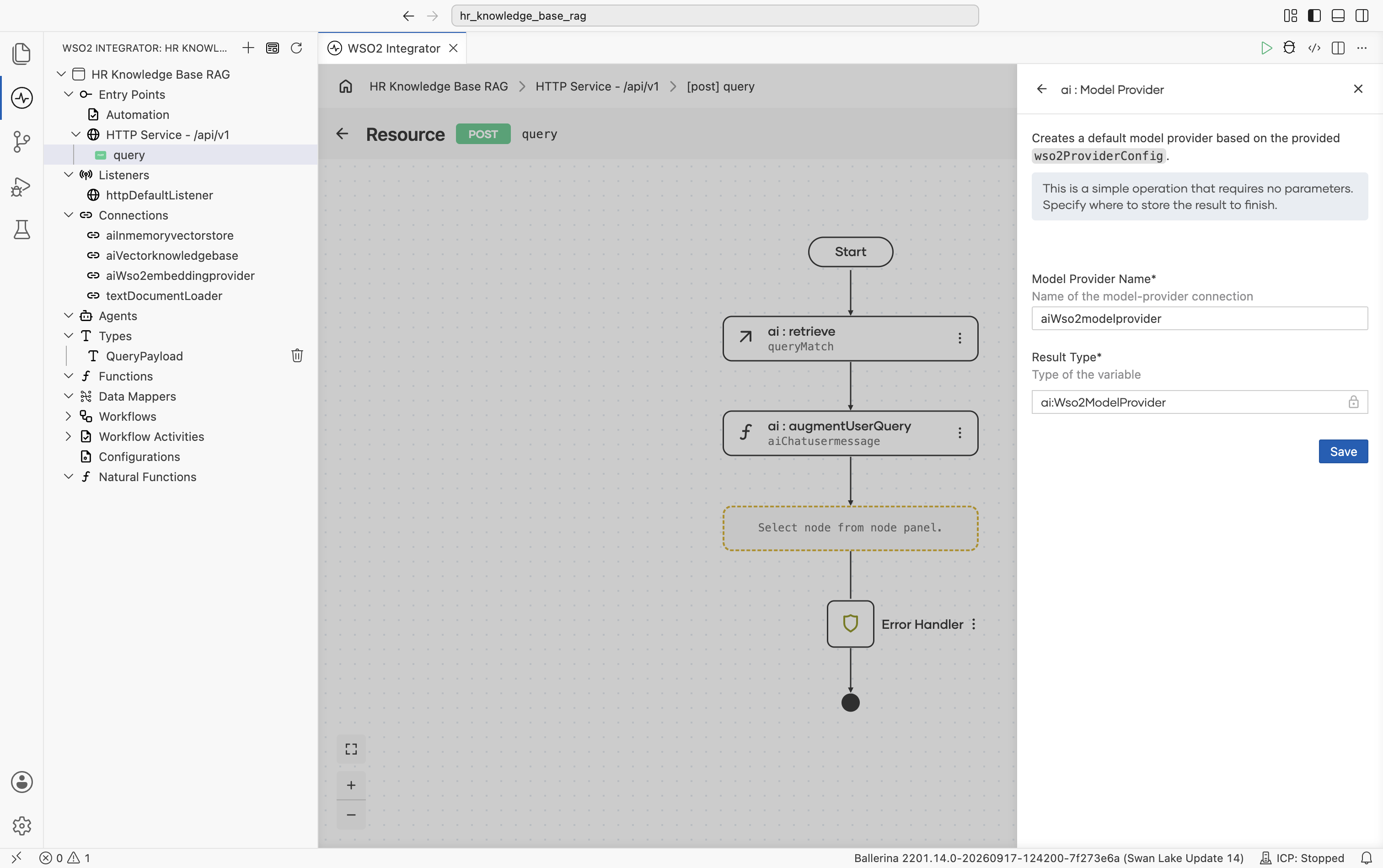

The ai : Model Provider form opens, describing itself as "Creates a default model provider based on the provided wso2ProviderConfig. This is a simple operation that requires no parameters. Specify where to store the result to finish." Fill in:

• Model Provider Name: aiWso2modelprovider
• Result Type: ai:Wso2ModelProvider

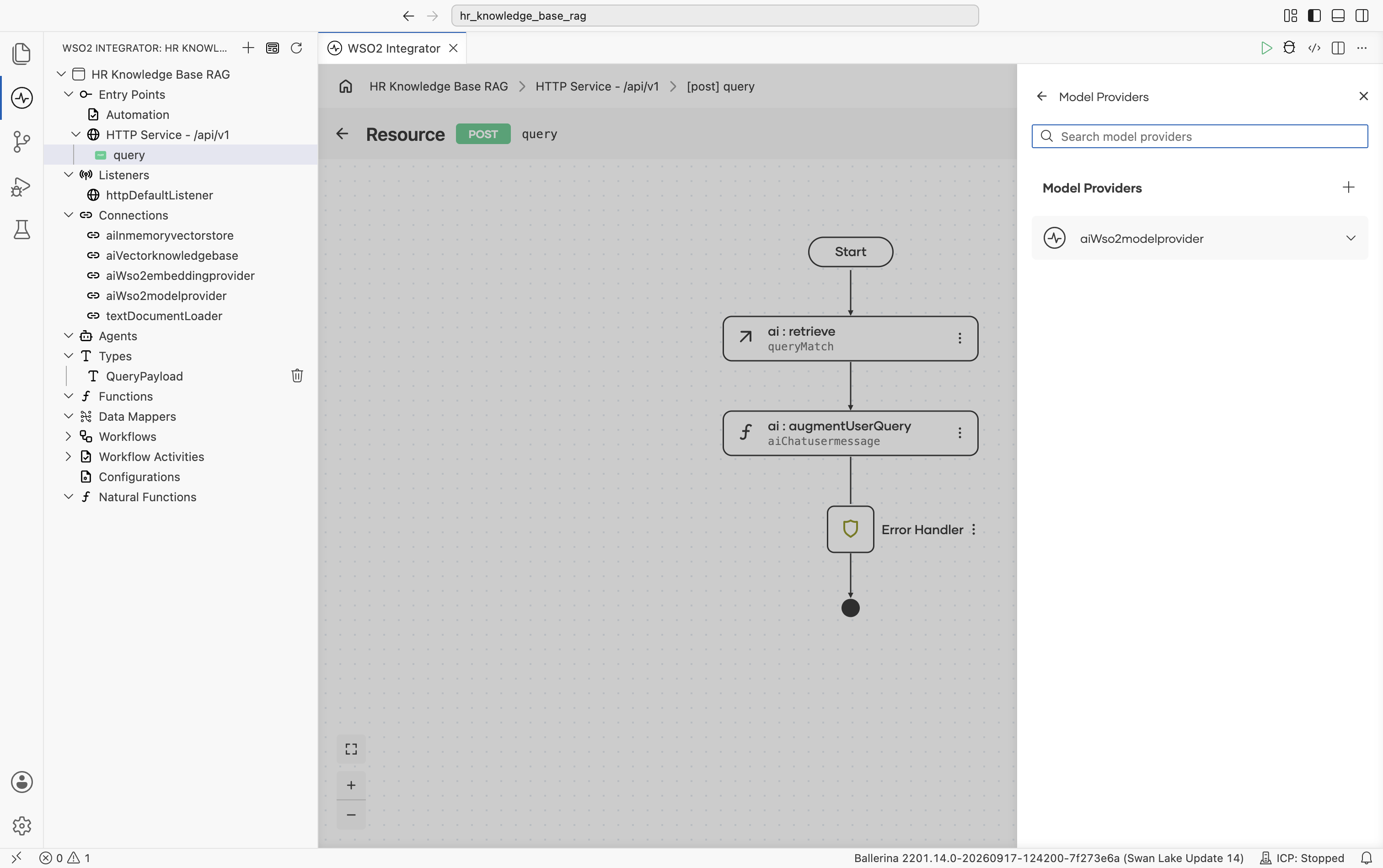

Select Save. You are returned to the Model Providers panel with aiWso2modelprovider listed. The new connection also appears in the left Connections tree.

Sign in to use the default WSO2 model provider

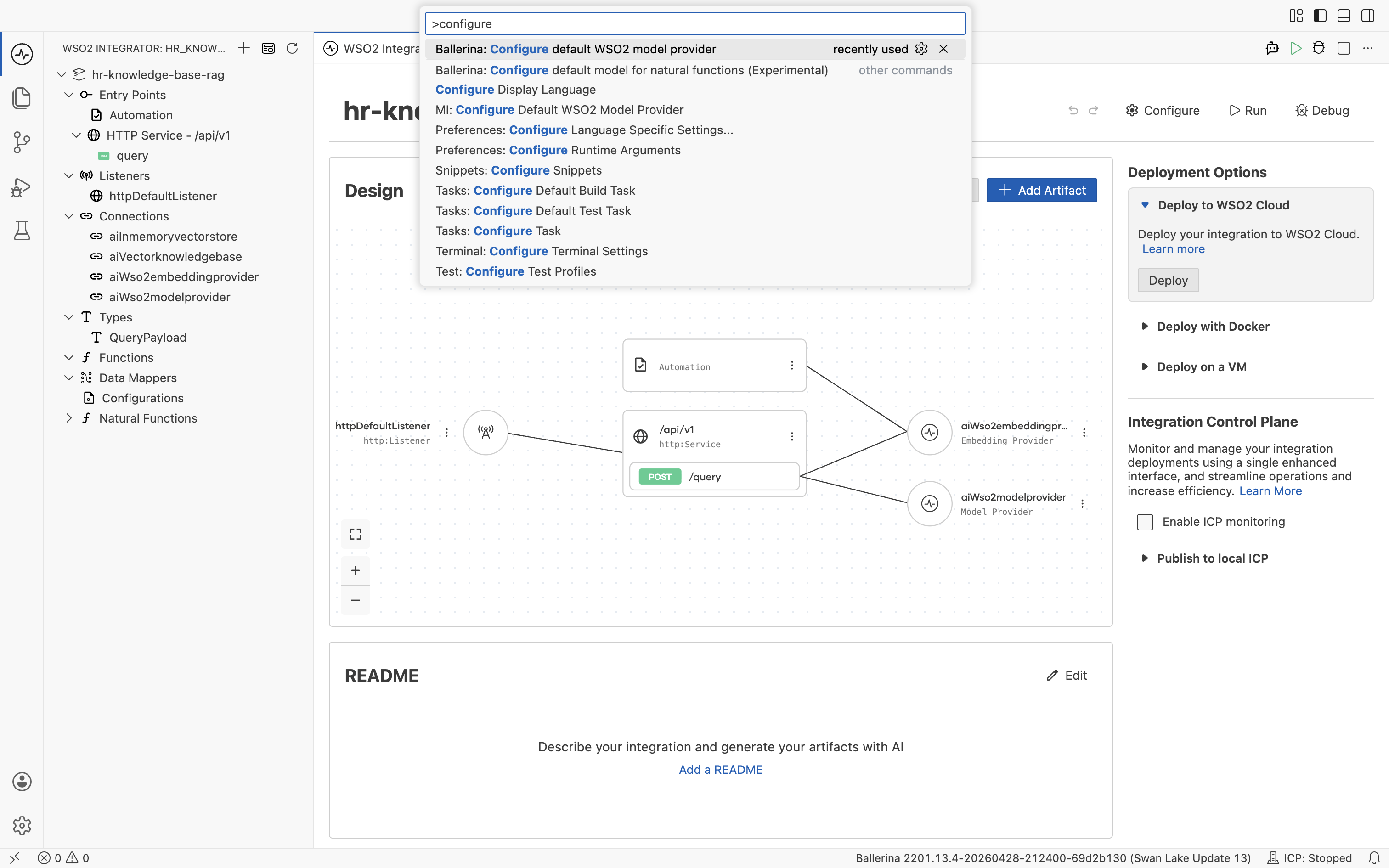

If you have not signed into WSO2 Integrator Copilot yet, a sign-in prompt appears at this point. Sign in so the Copilot can configure the default model provider.

3.6 Generate the answer

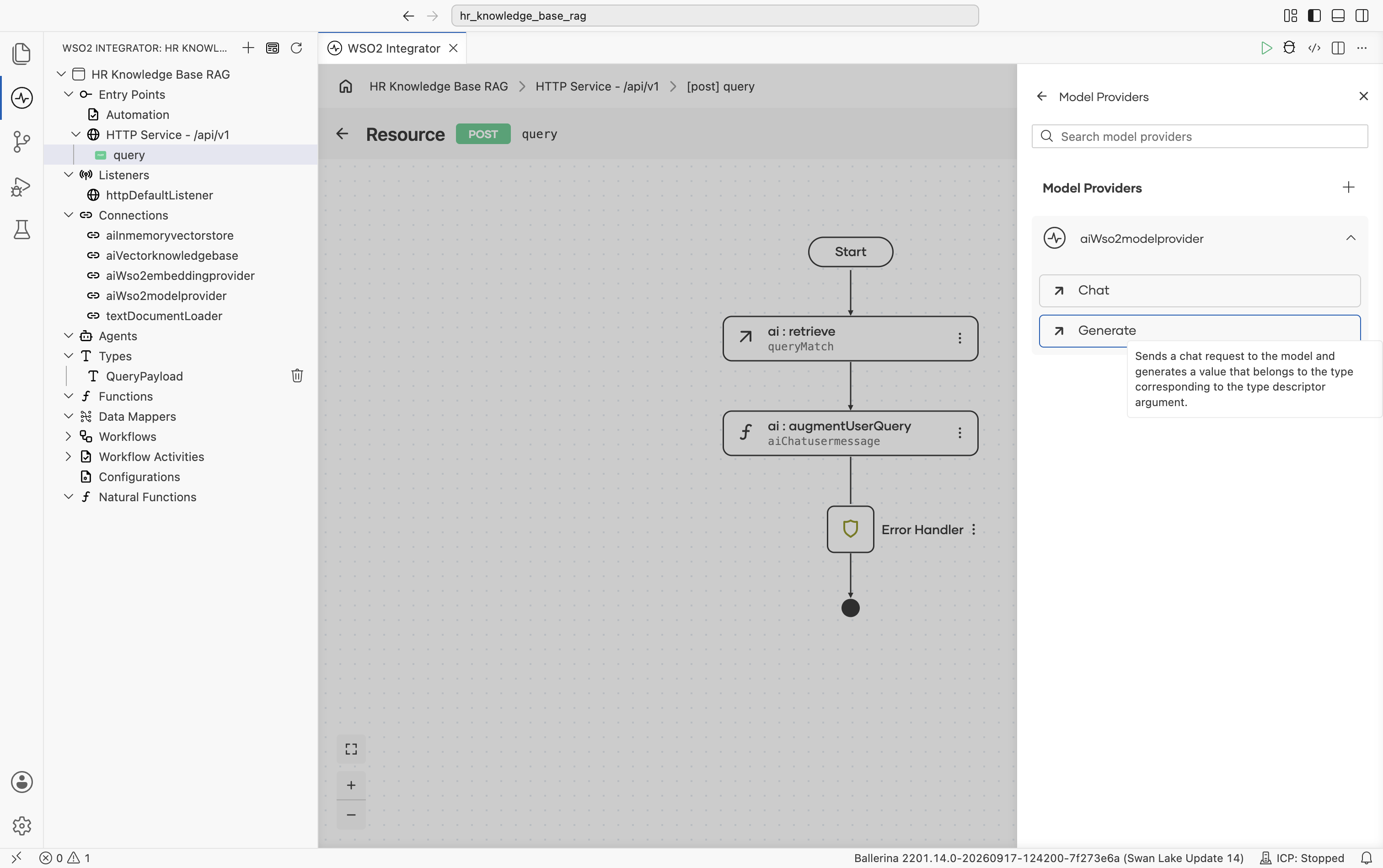

Select aiWso2modelprovider to expand it and reveal its actions, Chat and Generate. Select Generate, "Sends a chat request to the model and generates a value that belongs to the type corresponding to the type descriptor argument."

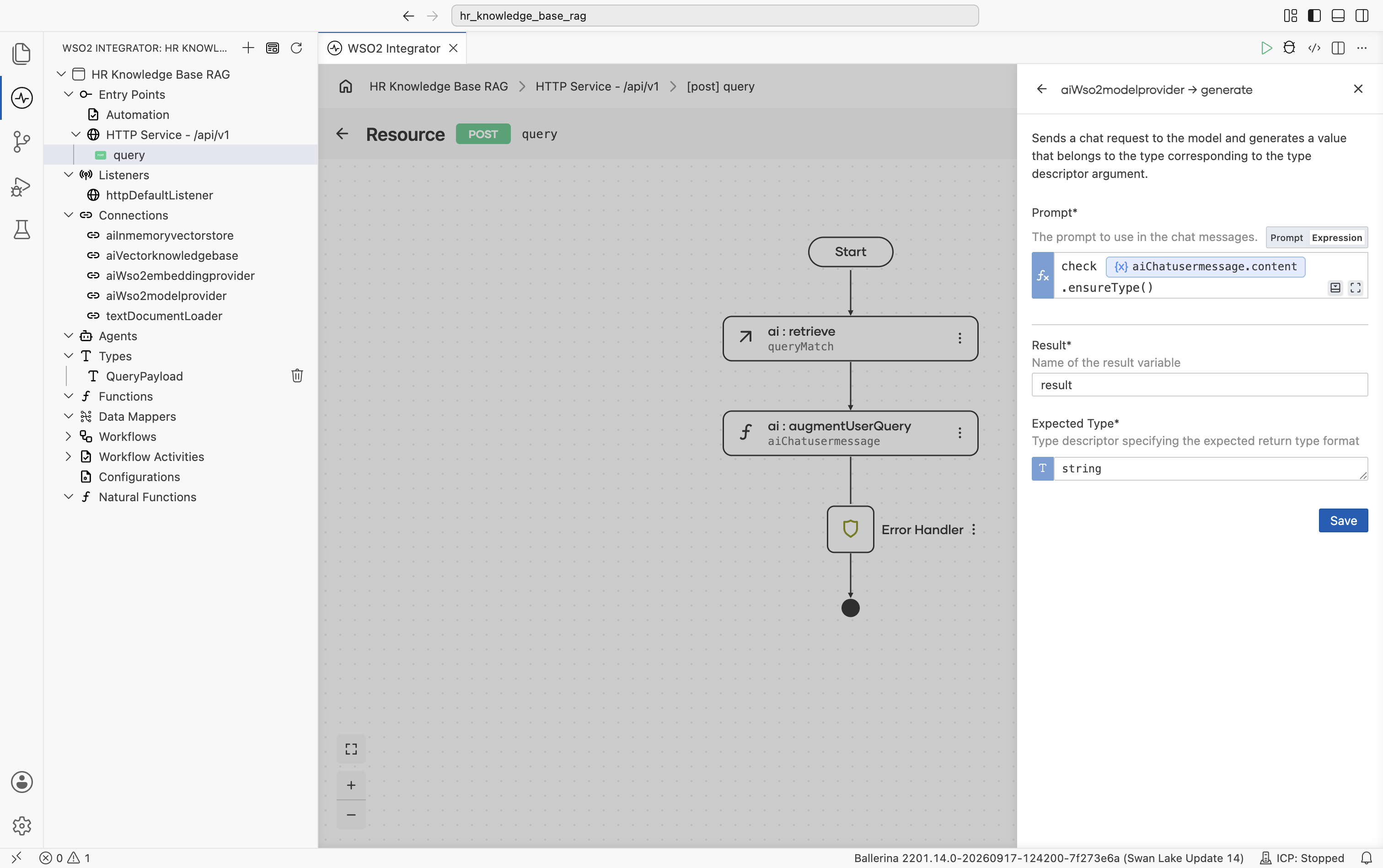

The generate form opens. Fill in:

• Prompt (Expression mode):

  check aiChatusermessage.content.ensureType()

  The content field on ai:ChatUserMessage is typed as string|ai:Prompt. ai:augmentUserQuery populates it with one or the other depending on the augmentation strategy. The generate node's Prompt expects a Ballerina template literal (string-compatible), so use ensureType() to assert the string branch at runtime. check propagates any conversion error to the resource's error handler.
• Result: result
• Expected Type: string

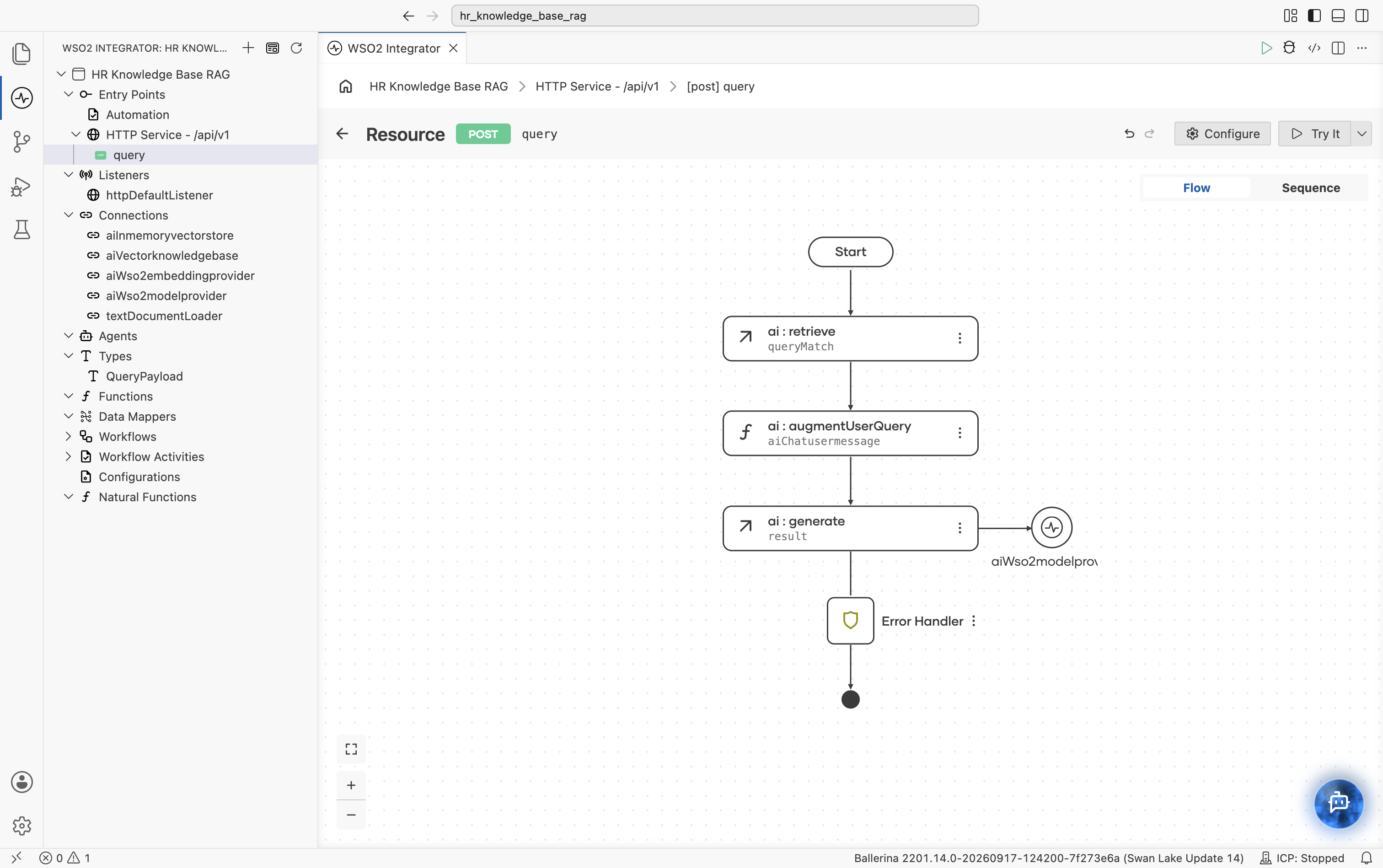

Select Save. The ai:generate node is added to the flow, with the aiWso2modelprovider connection shown alongside it.

3.7 Return the answer

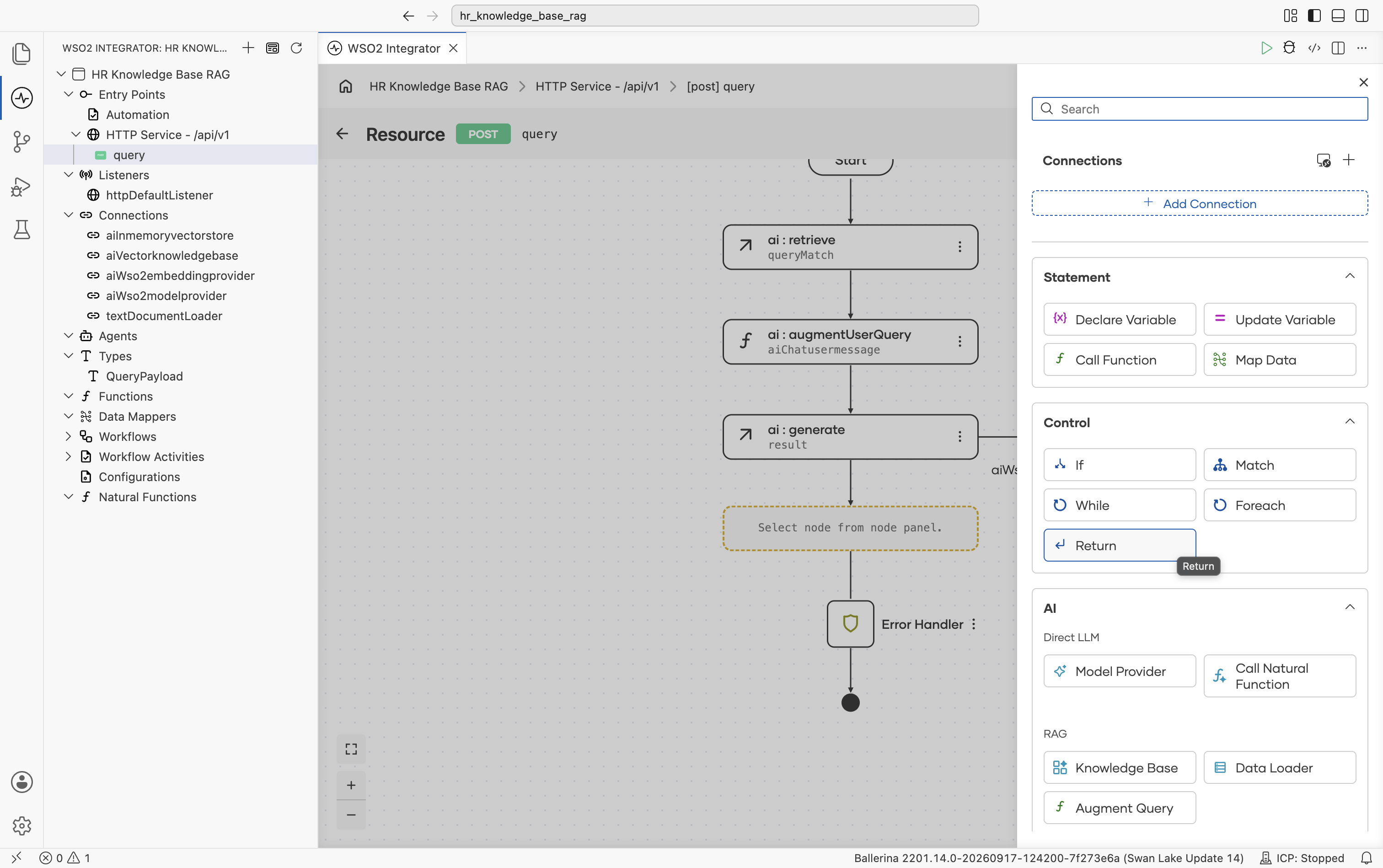

Select + below the ai:generate node. The node palette opens. Under Control, select Return.

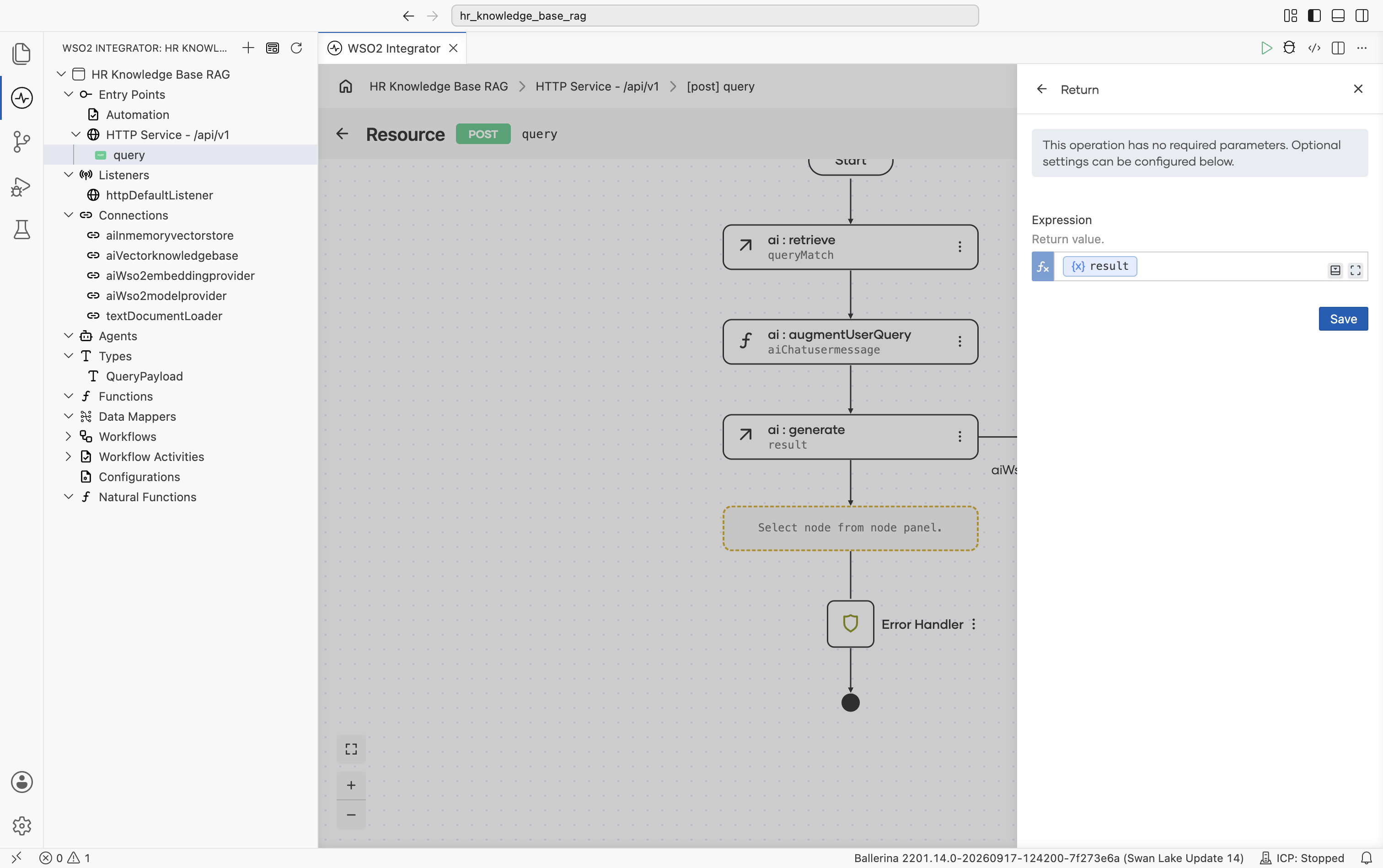

The Return form opens, noting the operation has no required parameters. Select into the Expression field and pick Variables > result from the helper pane.

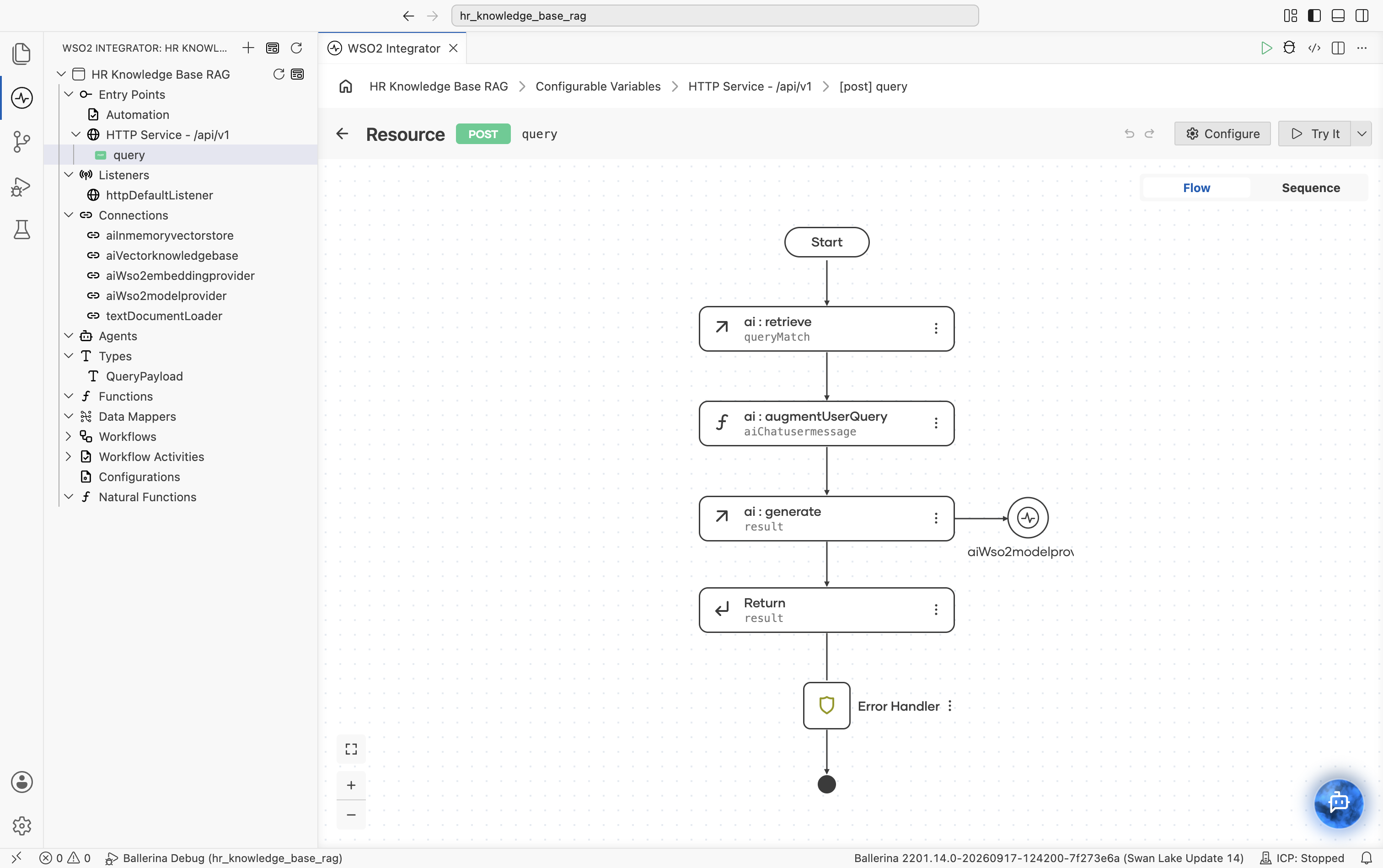

Select Save. The completed query flow walks the request through ai:retrieve, ai:augmentUserQuery, ai:generate, and finally returns result.

Step 4: Run and try it

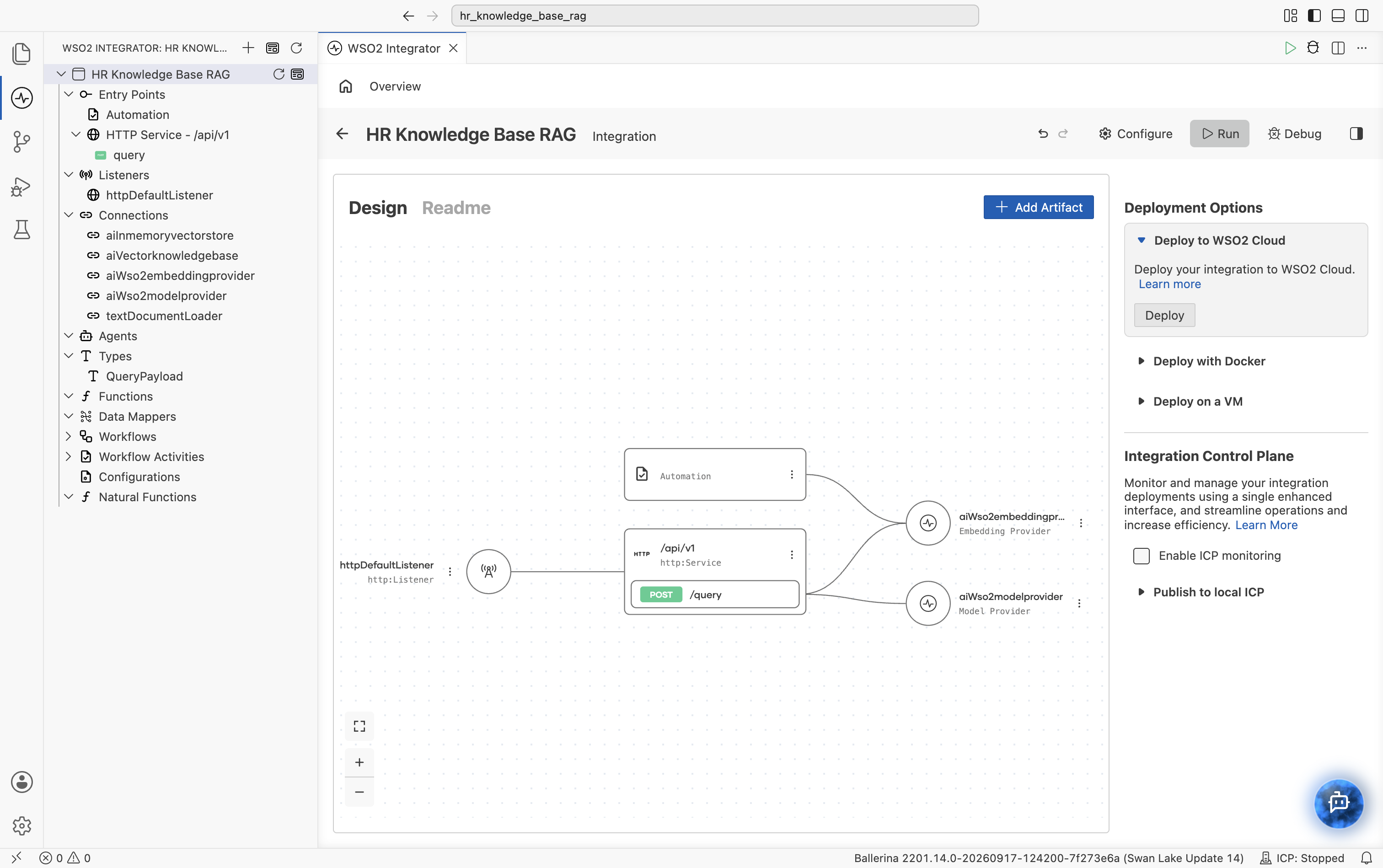

Open the project overview. The integration shows the Automation, the HTTP Service with the [POST] /query resource, and all the connections wired together. Select Run in the top right.

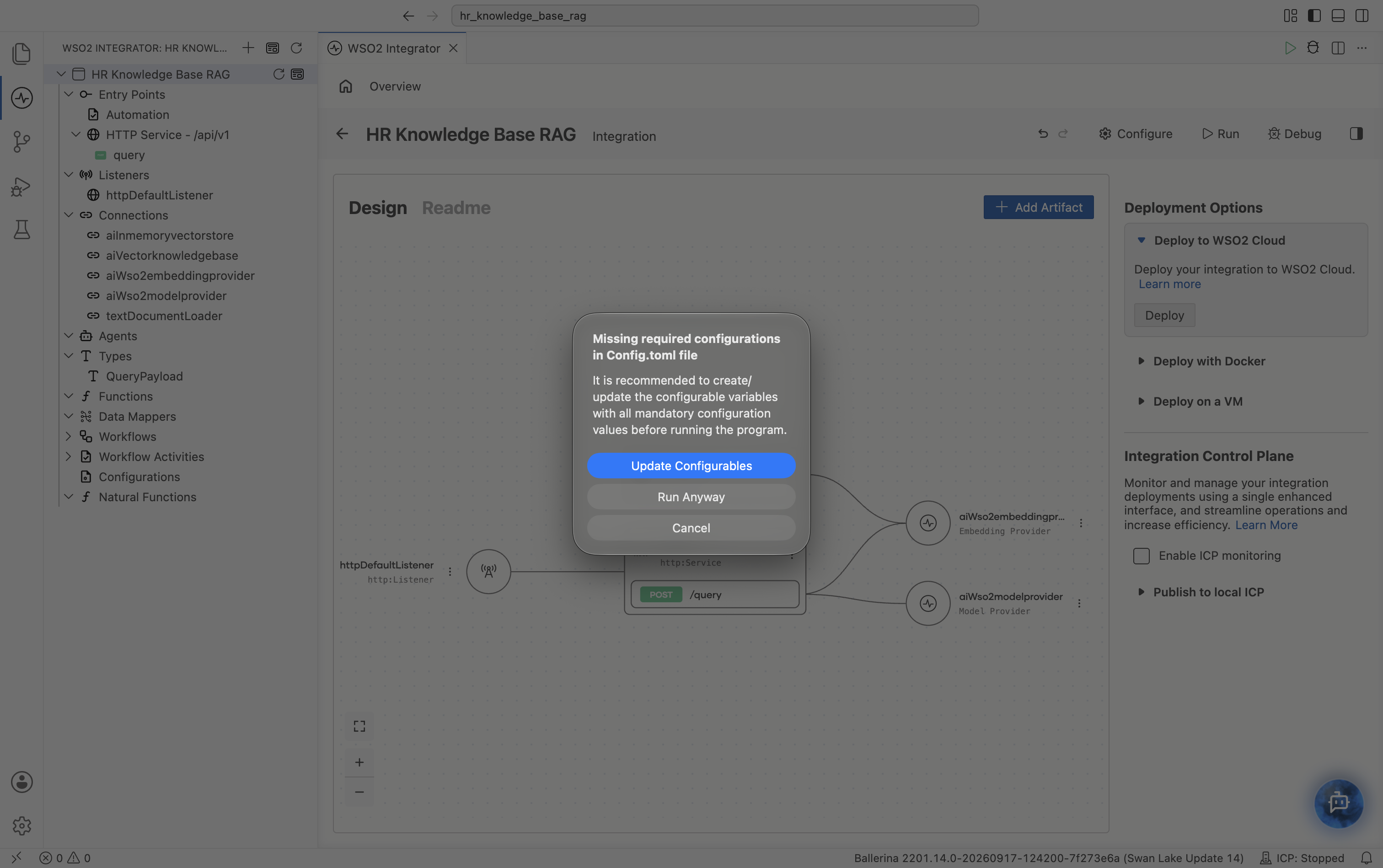

WSO2 Integrator detects that the path configurable has no value yet and shows a Missing required configurations in Config.toml file dialog. Select Update Configurables.

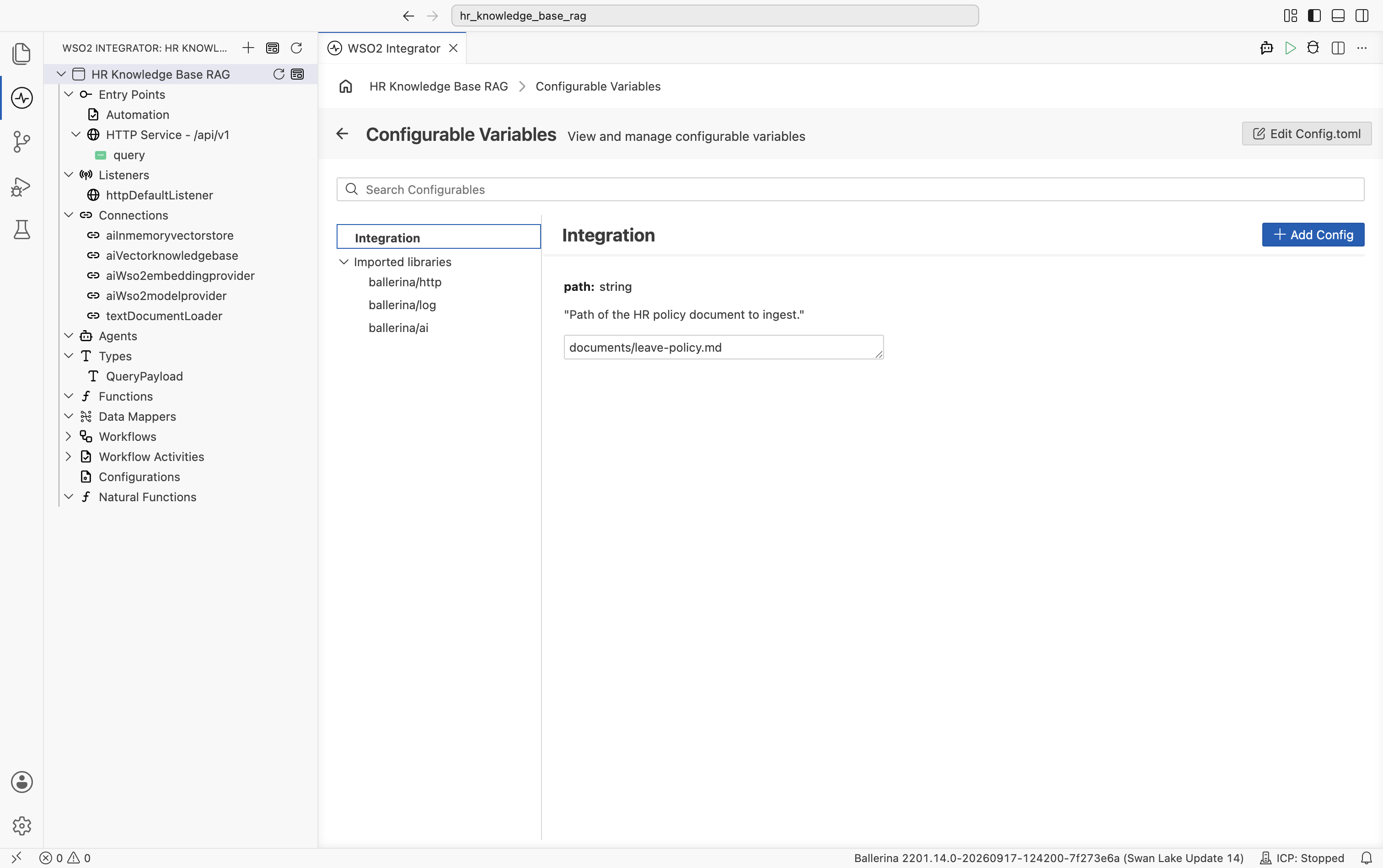

The Configurable Variables view opens. Set path to your HR policy document file, for example documents/leave-policy.md.

Save the configuration and select Run again. The Automation runs first and populates the in-memory vector store. Wait for the Ingestion Completed! log line before continuing. The HTTP Service then starts on httpDefaultListener (port 9090 by default).

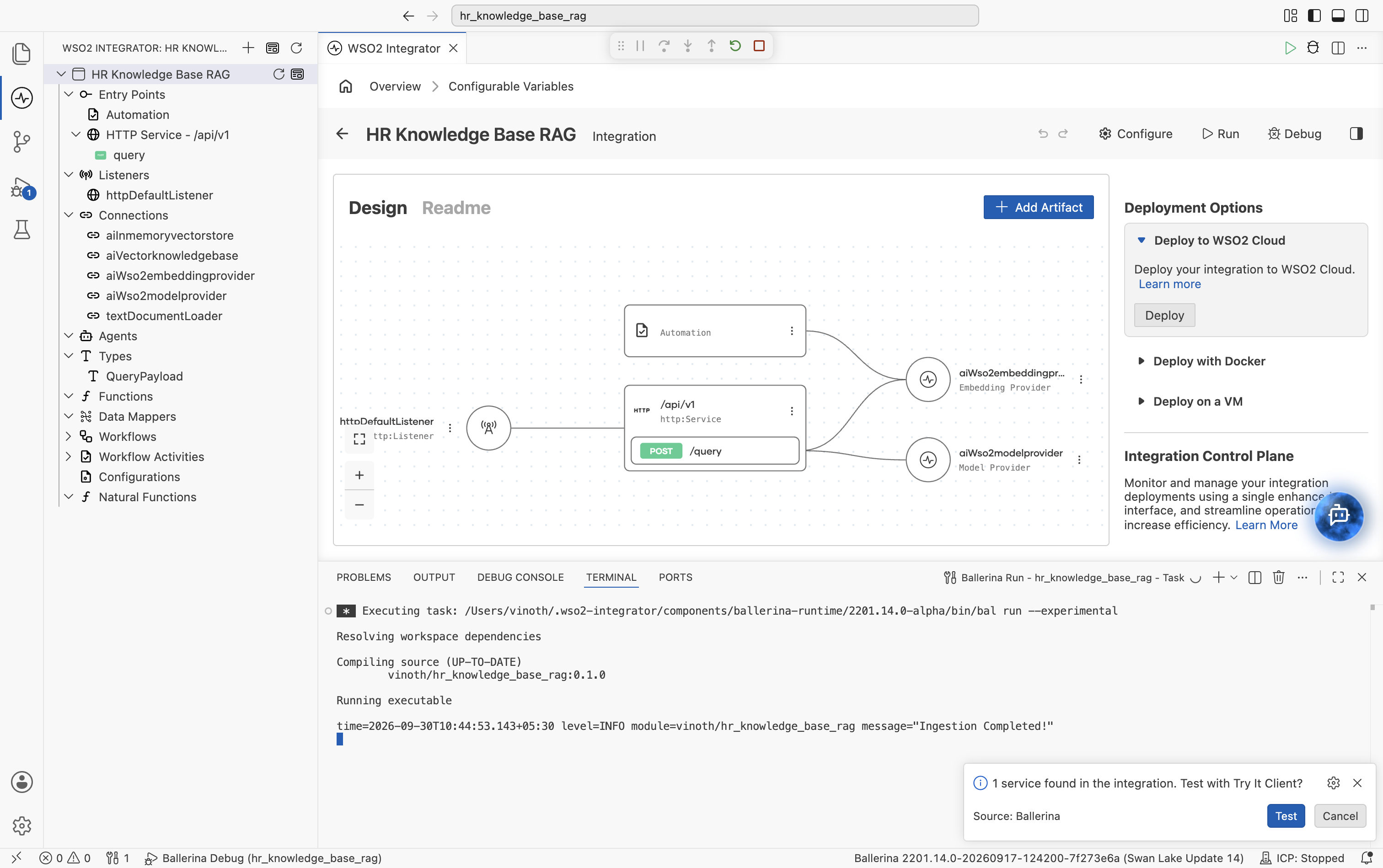

A prompt appears at the bottom right, "1 service found in the integration. Test with Try It Client?" Select Test.

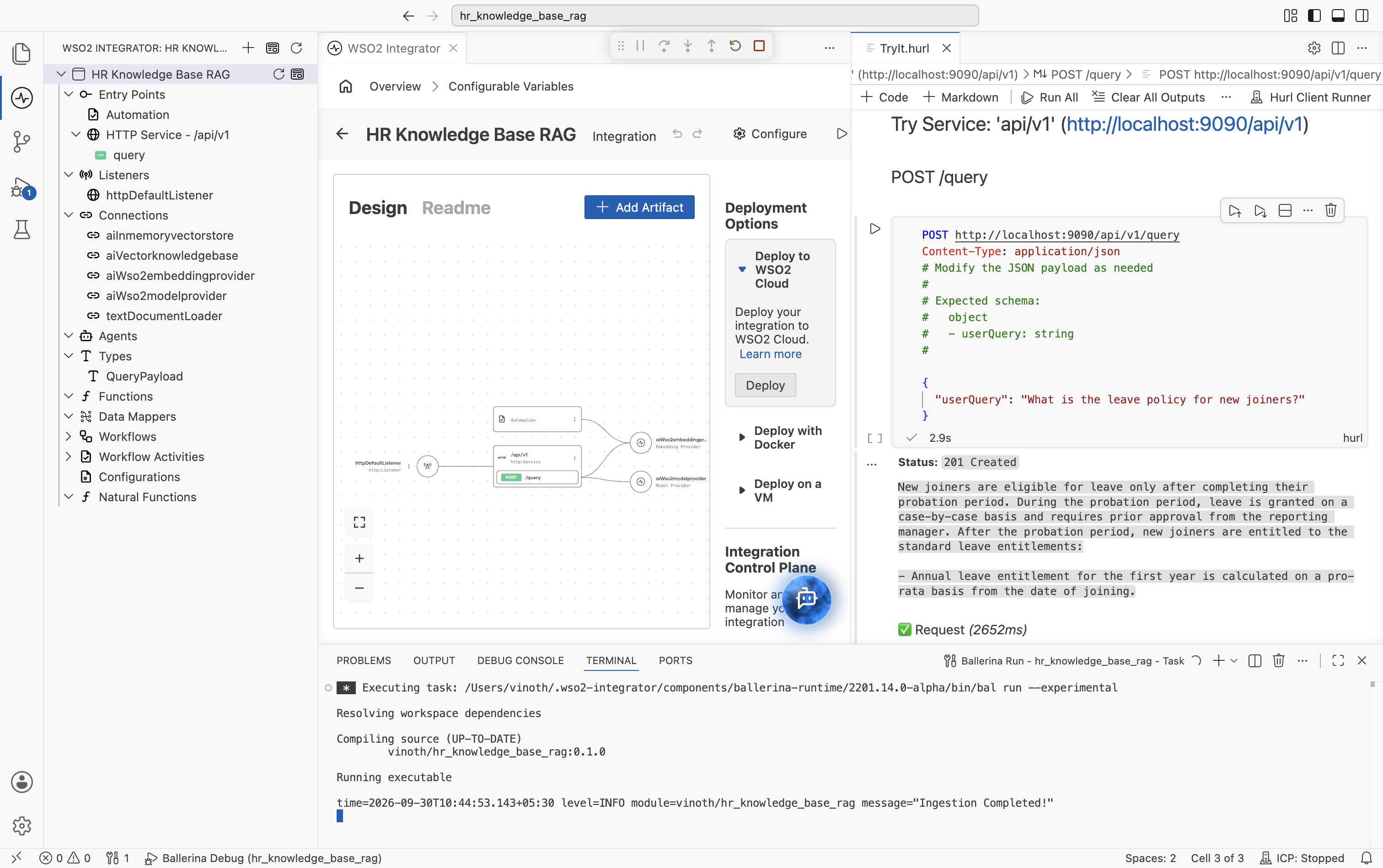

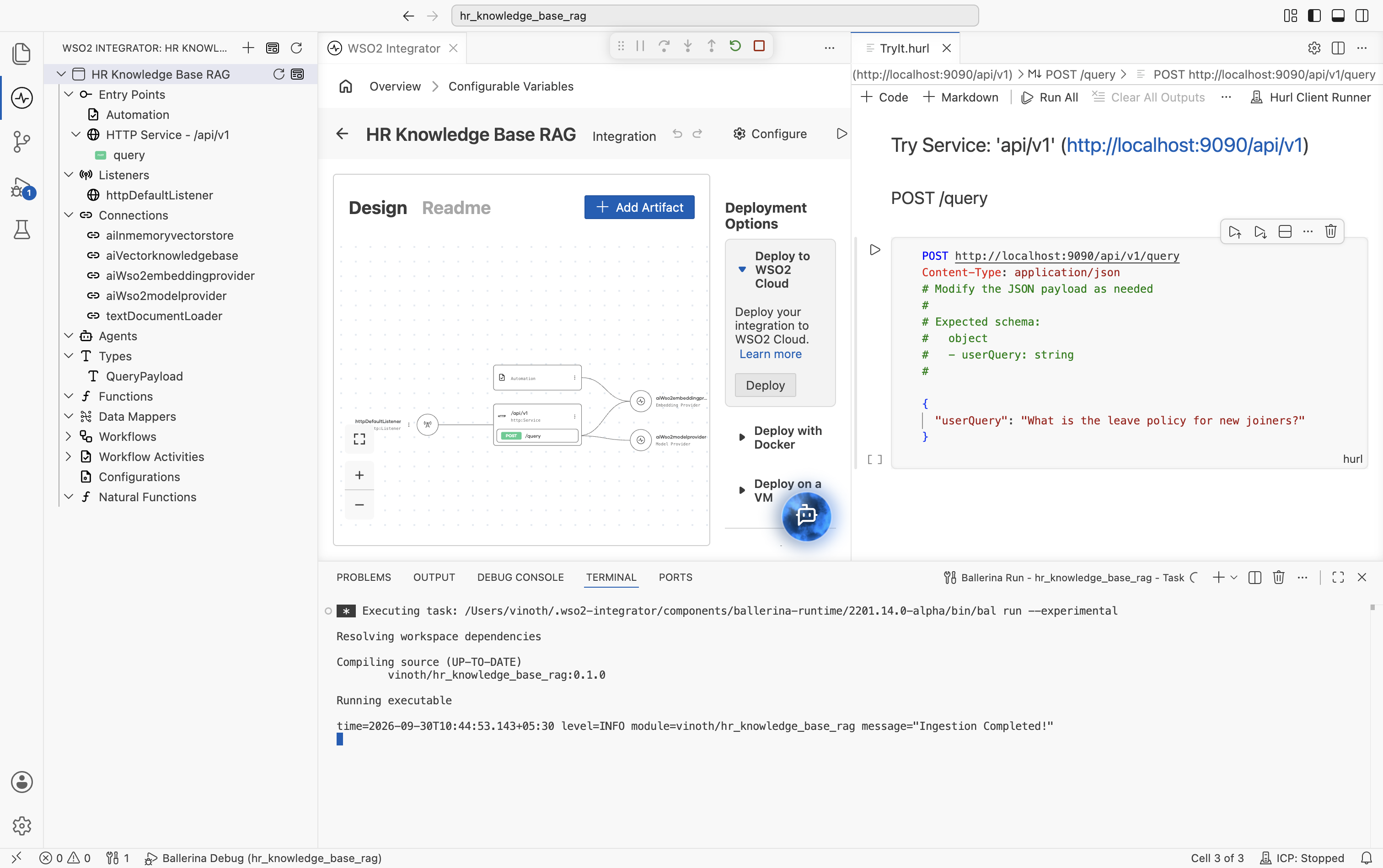

A TryIt.hurl file opens in a new tab via the Hurl Client Runner, prefilled with a POST /query request, a comment block describing the expected schema, and the sample JSON body from Step 3.2.

Update the JSON body if you want to ask about a different topic in the documents you ingested, then select the run icon next to the request to send it. The response appears inline below the request, showing Status: 201 Created and the LLM's answer grounded in the chunks retrieved from your HR knowledge base.

If the answer comes back as "I don't have that information", double-check that the Automation finished ingesting and that the question matches a topic actually present in the source documents.

You can also test from the command line with curl:

curl -X POST http://localhost:9090/api/v1/query \
  -H "Content-Type: application/json" \
  -d '{"userQuery": "What is the leave policy for new joiners?"}'

Summary

You now have a fully visual HR RAG pipeline that grounds an LLM in your actual policies, with no glue code. Every connection is reusable across other artifacts in the same project.

Component	Where	Purpose
path (Configurable)	Configurations	HR document file to ingest
textDocumentLoader (Data Loader)	Automation	Reads the HR document at path
aiInmemoryvectorstore (Vector Store)	Connections	Stores embeddings
aiWso2embeddingprovider (Embedding Model)	Connections	Generates vector representations
aiVectorknowledgebase (Vector Knowledge Base)	Connections	Combines store, embedder, and chunker
aiWso2modelprovider (Model Provider)	Connections	Calls the LLM
ai:load / ai:ingest	Automation	Loads, chunks, embeds, and writes documents
ai:retrieve	HTTP Service	Top-K vector search
ai:augmentUserQuery	HTTP Service	Builds the grounded chat message
ai:generate	HTTP Service	Generates the typed answer

What's next

• Vector stores — Swap the in-memory store for a persistent backend (Pinecone, Milvus, Pgvector, Weaviate).
• Chunkers — Tune chunk size and overlap, or plug in a custom chunker.
• How RAG works — Customize retrieval (top-K, filters, hybrid search).
