Vector Stores

A vector database stores vector embeddings and enables similarity search over them, forming the foundation for semantic search and RAG applications.

A Vector Store is WSO2 Integrator's abstraction over these databases, exposing a common interface for every supported backend.

It is the storage half of a Knowledge Base. The Embedding Provider produces the vectors, and the Vector Store abstracts where and how they are persisted and retrieved at query time.

Available actions

Every vector store exposes the same three actions. You don't usually call them directly. The Knowledge Base uses them under the hood.

Action	What it does	Required parameters
Add	Persists vector entries (embeddings + their source chunks). Replaces existing entries with the same id.	Entries (the vectors to add).
Query	Returns the most similar entries for a given query embedding and/or metadata filter.	Query (an embedding and/or filters, plus topK).
Delete	Deletes entries by id.	IDs (a single id or list).

Query input fields

When something calls Query on a vector store, the request carries these fields:

Field	Default	Available values	What it controls
Embedding	optional	A vector	The vector to use for similarity search. If omitted, the search returns by filter only.
Filters	optional	Metadata filters	Restrict the search by metadata fields. See Metadata filters.
Top K	10	Any positive integer or -1 (all)	Max number of items to return.

Metadata filters

Most stores support filtering vectors by their metadata using standard operators:

Operator	Meaning
==	Equal
!=	Not equal
> < >= <=	Greater than / less than (and equal)
in	Value is in the given list
nin	Value is not in the given list

Multiple filters can be combined with AND or OR. Each connector handles the exact wire-format mapping (Pinecone uses $eq, pgvector compiles to JSONB, Weaviate uses GraphQL Equal, and Milvus has its own filter syntax). You write filters the same way regardless of store.

Query modes

Some stores support more than just dense vector search. The mode you pick when you create the store determines what kind of embeddings it accepts:

Mode	When to use	Supported by
DENSE	Standard semantic search using dense vectors. The default everywhere.	All stores
SPARSE	Keyword/lexical-style search using sparse vectors.	Pinecone, pgvector
HYBRID	Combine dense and sparse vectors.	Pinecone

Similarity metrics

Local stores let you choose the metric. Hosted stores manage it themselves (you pick when you create the index/collection in their UI).

Metric	Measures
COSINE	Cosine of the angle between vectors. Most common for semantic search.
EUCLIDEAN	Straight-line distance between vector points.
DOT_PRODUCT	Directional similarity, magnitude-sensitive. Not supported on pgvector.
MANHATTAN	Sum of absolute differences (pgvector only).

Where to find vector stores

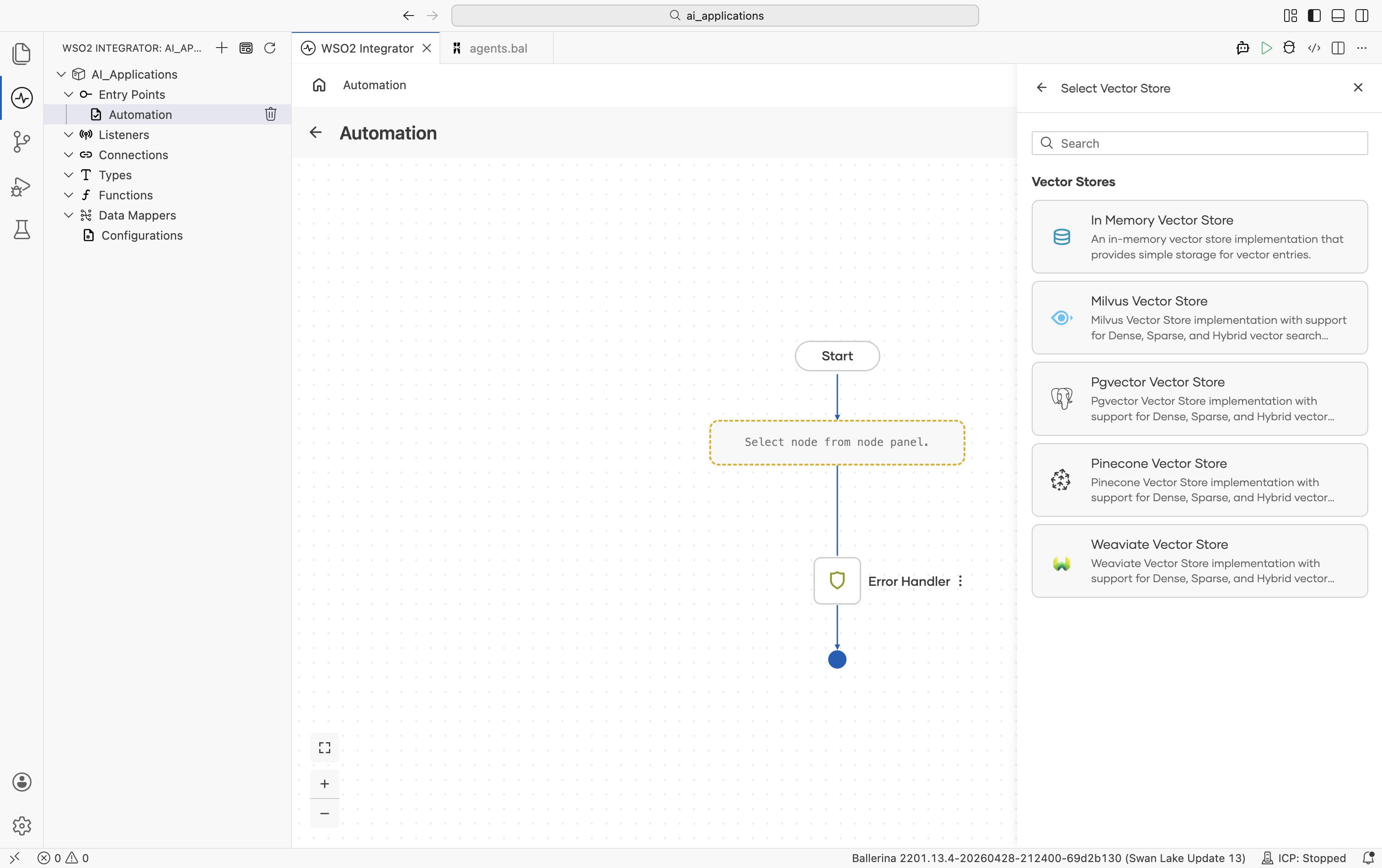

Inside the Create Vector Knowledge Base form click + Create New Vector Store, or open the Vector Stores panel from any flow editor. The Select Vector Store picker shows the supported stores:

Implementations overview

Store	Module	Modes supported	Hosted/local
In-Memory	ballerina/ai	DENSE	Local (process memory)
Milvus	ballerinax/ai.milvus	DENSE	Hosted or self-hosted
pgvector	ballerinax/ai.pgvector	DENSE, SPARSE	Self-hosted PostgreSQL
Pinecone	ballerinax/ai.pinecone	DENSE, SPARSE, HYBRID	Hosted
Weaviate	ballerinax/ai.weaviate	DENSE	Hosted or self-hosted

In-memory vector store

Embeddings live in the running integration's process memory. The store loses all data on restart, so it is not durable. Use it for development, testing, and small datasets.

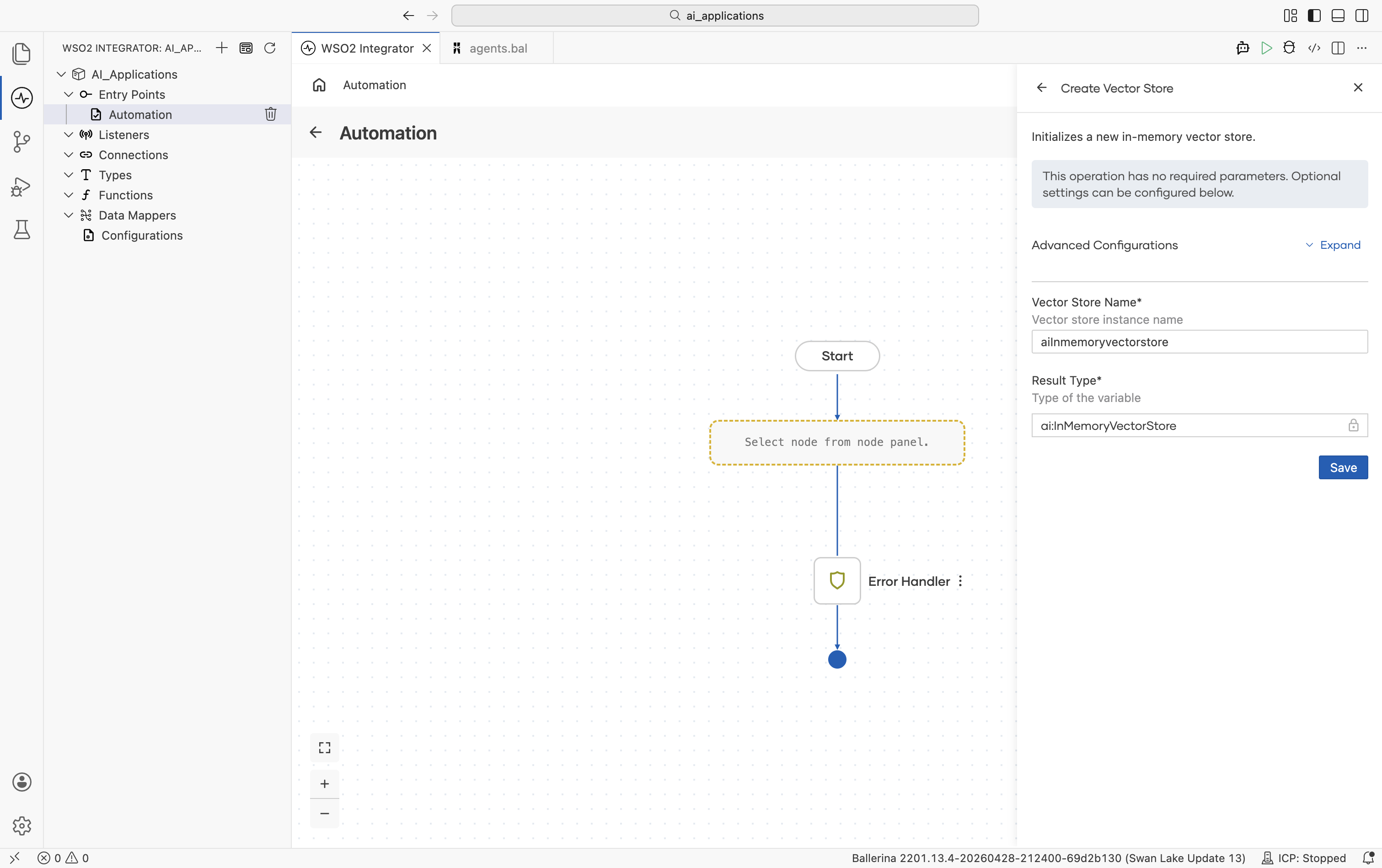

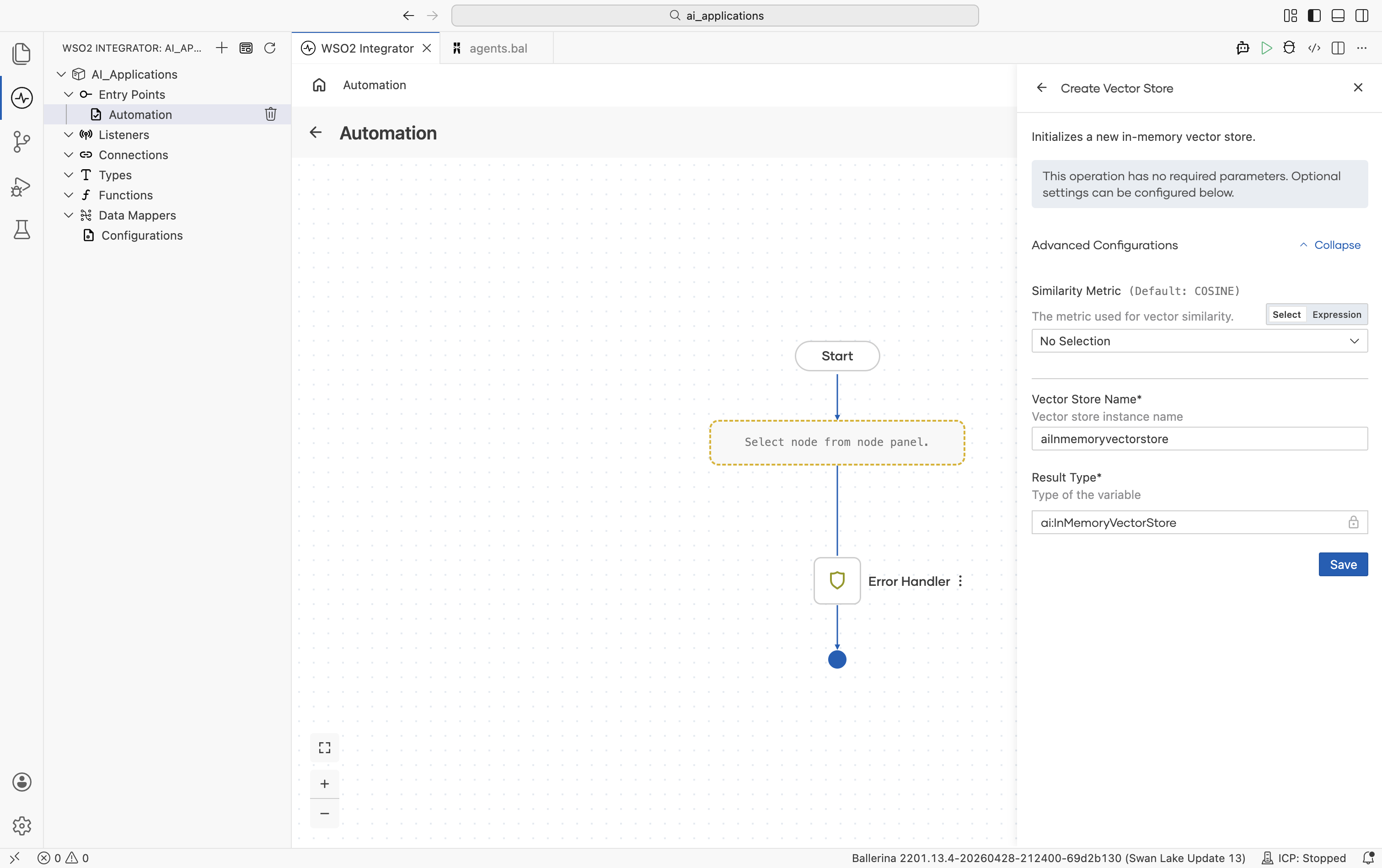

Create form

No required fields.

Advanced configurations

Field	Default	Available values	What it controls
Similarity Metric	COSINE	COSINE, EUCLIDEAN, DOT_PRODUCT	Metric used for vector similarity.

warning

Supports dense vectors only. Adding sparse or hybrid vectors raises an error.

Milvus

Milvus is an open-source vector database optimized for very large datasets. The collection (and its schema and index) must exist before the connector can use it.

Official website: Milvus documentation.

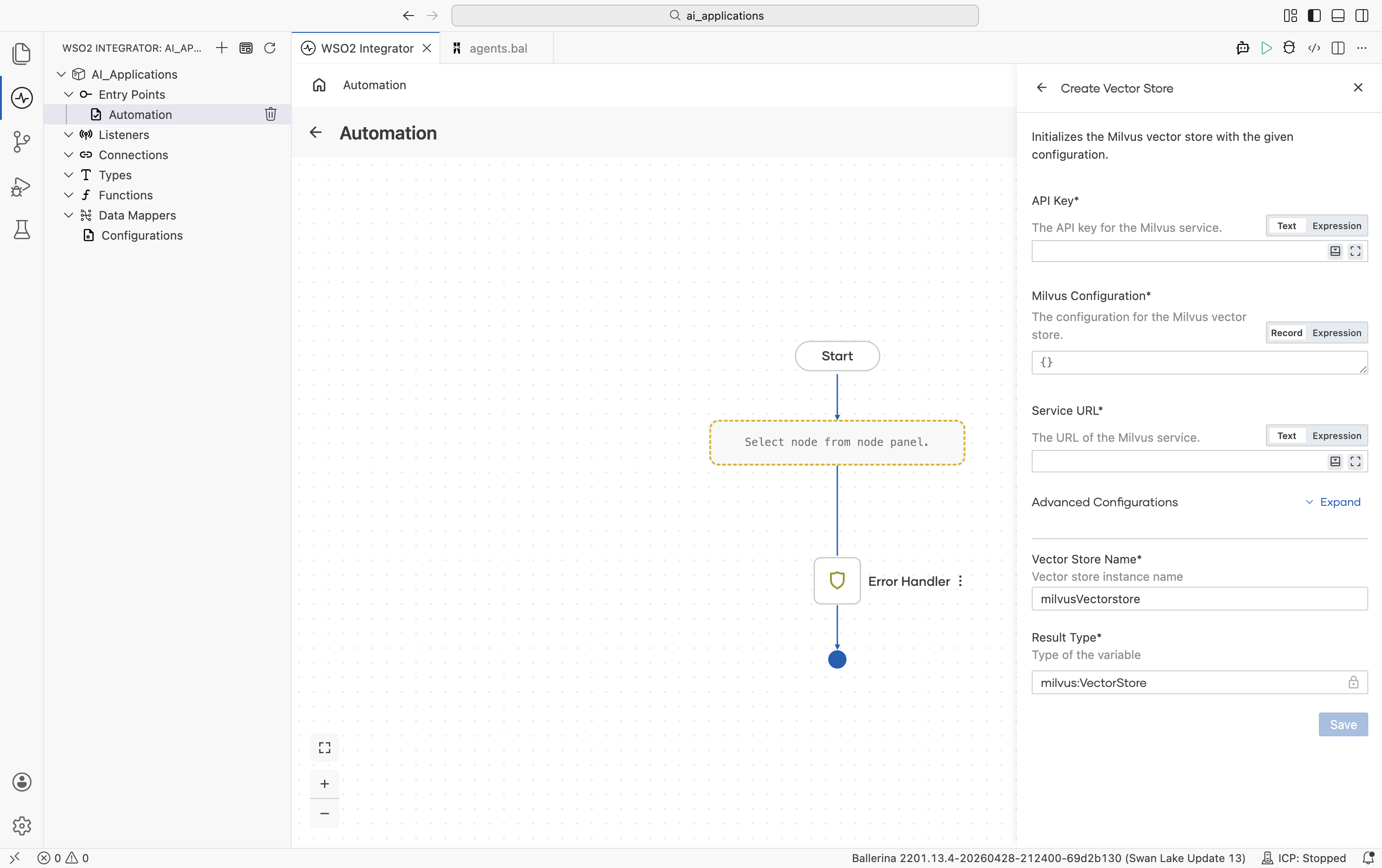

Create form

Field	Required	Default	Available values
API Key	Yes	—	Milvus API key (sent as a bearer token).
Milvus Configuration	Yes	{}	Record with collection settings. Collection Name (default "default"): the Milvus collection to use. Chunk Field Name (optional): the field on the collection that holds the chunk content. Primary Key Field (default "id"): the collection's primary-key field. Additional Fields (default []): extra fields to include in search results, on top of content, type, vector, metadata.
Service URL	Yes	—	The Milvus service URL.

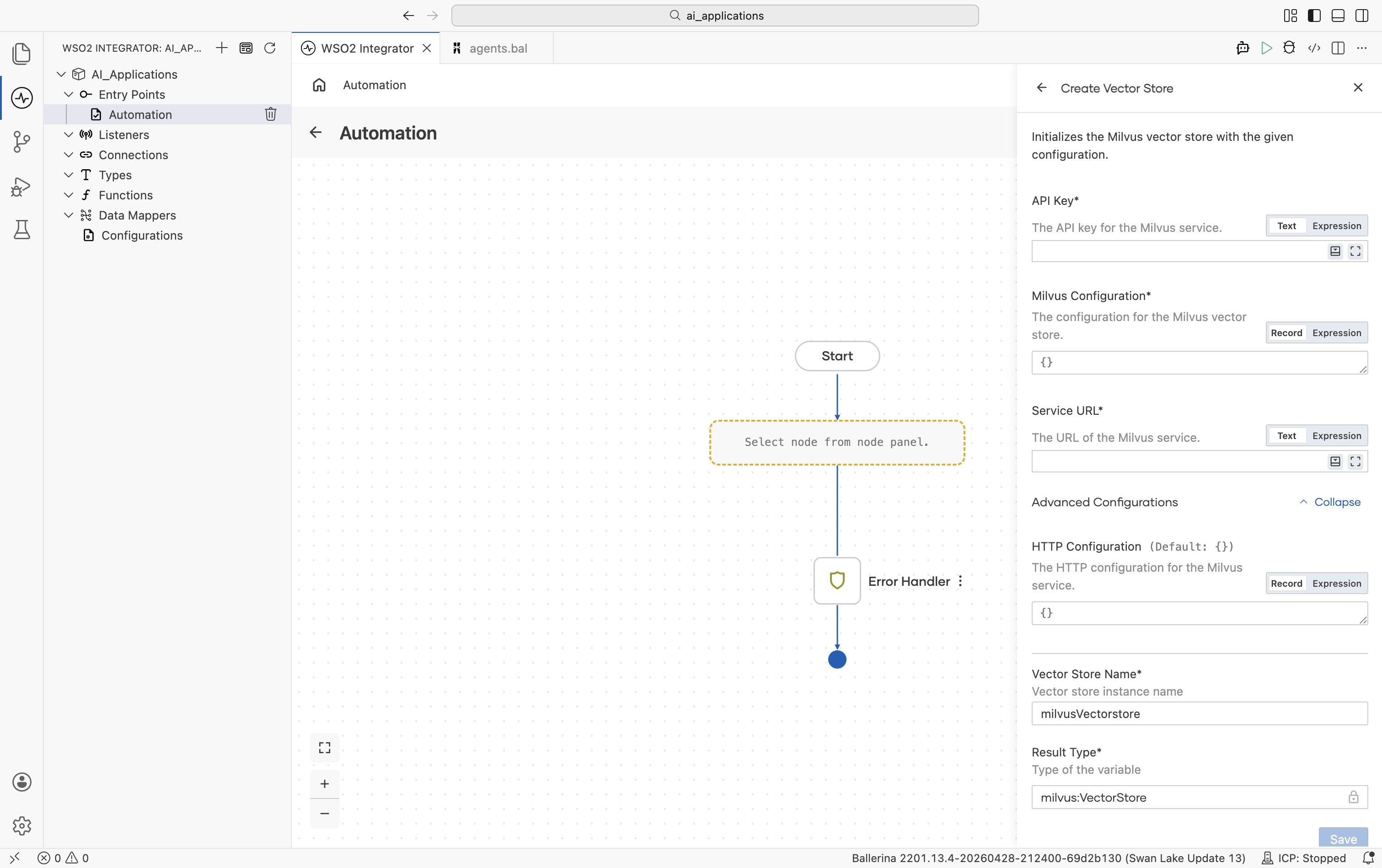

Advanced configurations

Field	Default	Available values	What it controls
HTTP Configuration	{}	Record	Standard HTTP knobs. Same fields as Standard HTTP advanced configurations.

info

The connector loads the collection into memory automatically before each search. Milvus converts IDs to integers for the primary key field.

pgvector

The pgvector extension enables vector search inside PostgreSQL. The connector creates the table and an HNSW index automatically on first use.

Official website: pgvector on GitHub.

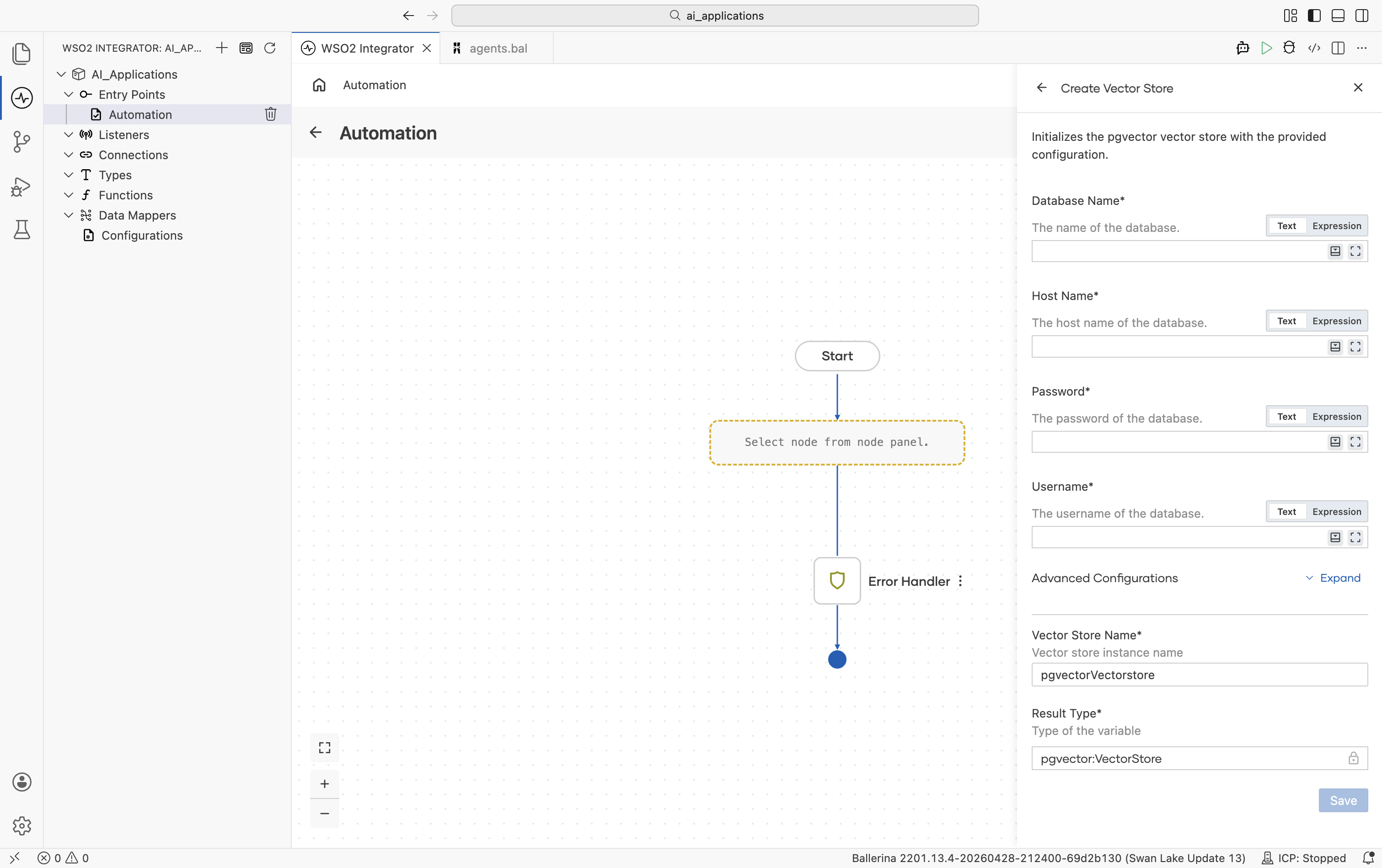

Create form

Field	Required	Default	Available values
Database Name	Yes	—	PostgreSQL database name.
Host Name	Yes	—	Database host, for example localhost.
Password	Yes	—	Database password.
Username	Yes	—	Database user.

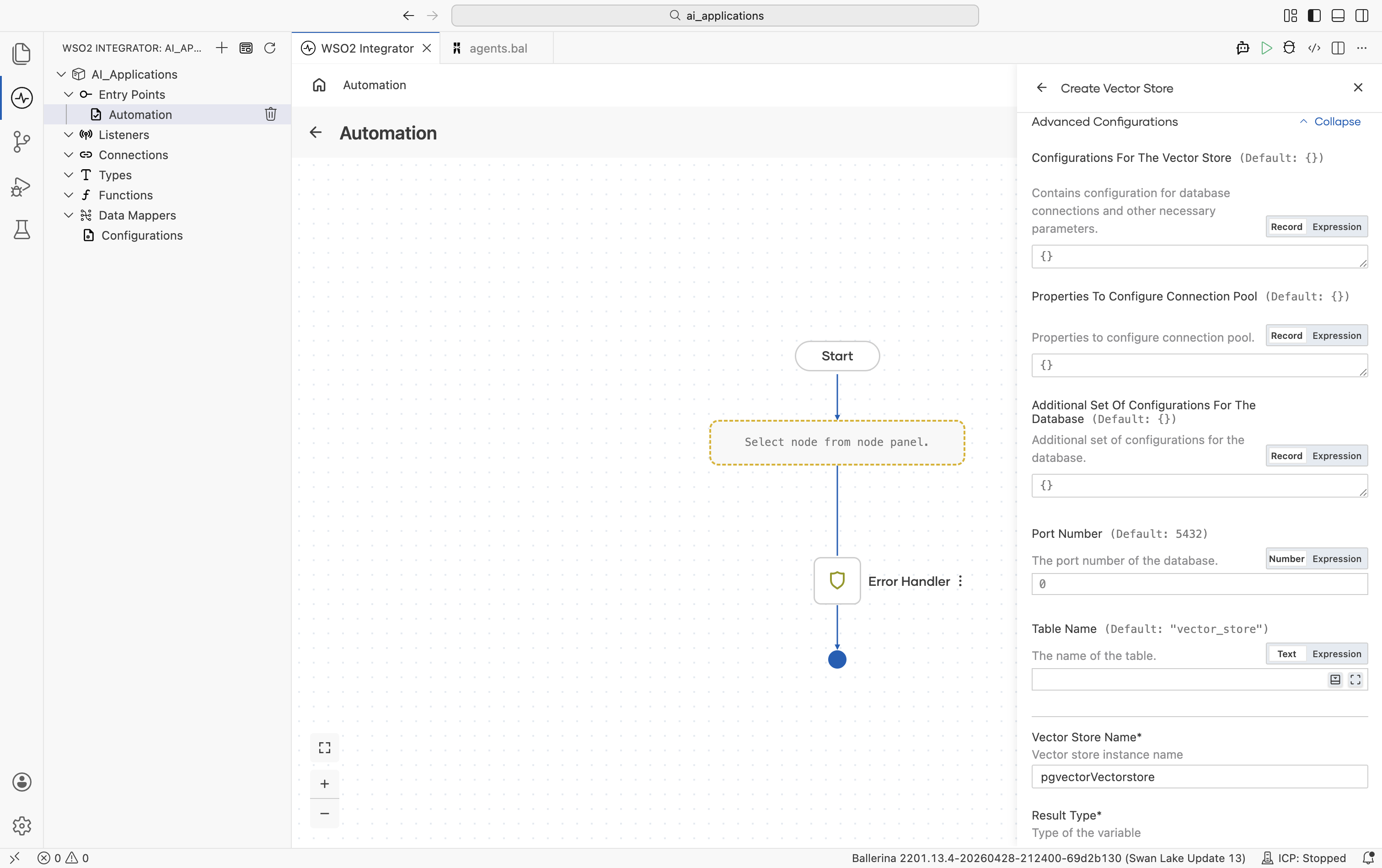

Advanced configurations

Field	Default	Available values	What it controls
Configurations For The Vector Store	{}	Record (embeddingType, vectorDimension, similarityMetric)	Embedding Type: ai:DENSE (default) or ai:SPARSE. Picks the column type (vector vs sparsevec). Vector Dimension: 1536 by default; must match your embedding provider's output dimension. Similarity Metric: COSINE (default), EUCLIDEAN, or MANHATTAN.
Properties To Configure Connection Pool	{}	Record	Connection pool settings.
Additional Set Of Configurations For The Database	{}	Record	Extra PostgreSQL options (SSL mode, connect timeout, and so on).
Port Number	5432	Any positive integer	Database port.
Table Name	"vector_store"	String	Table to store vectors in. Created on first use if missing.

info

Auto-created table schema: id VARCHAR PRIMARY KEY, content TEXT, embedding vector|sparsevec, metadata JSONB. The connector creates an HNSW index automatically for fast similarity search.

Pinecone

Pinecone is a hosted vector database with native dense, sparse, and hybrid support. It provides multi-tenancy through namespaces.

Official website: Pinecone documentation.

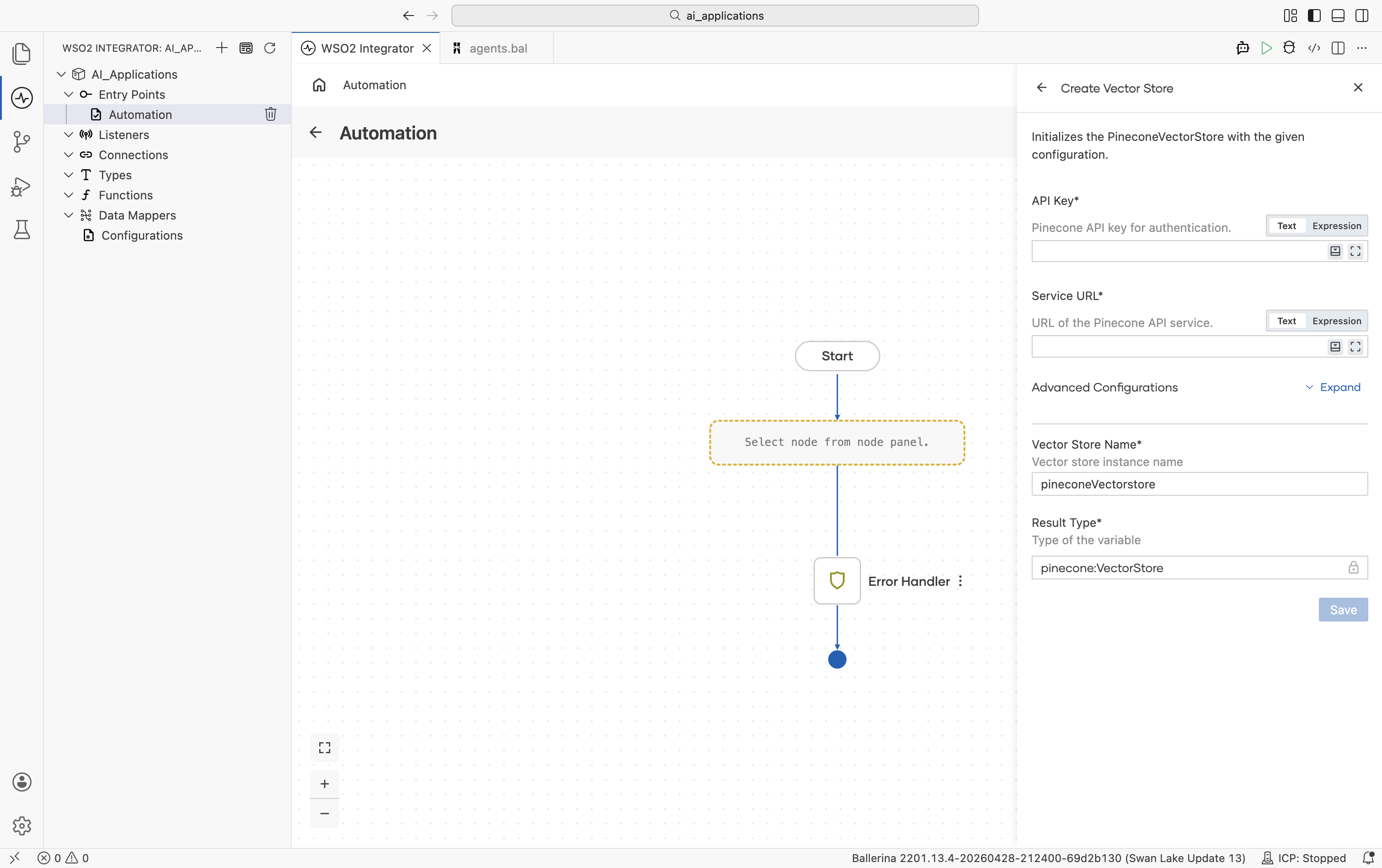

Create form

Field	Required	Default	Available values
API Key	Yes	—	Pinecone API key.
Service URL	Yes	—	URL of the Pinecone index endpoint.

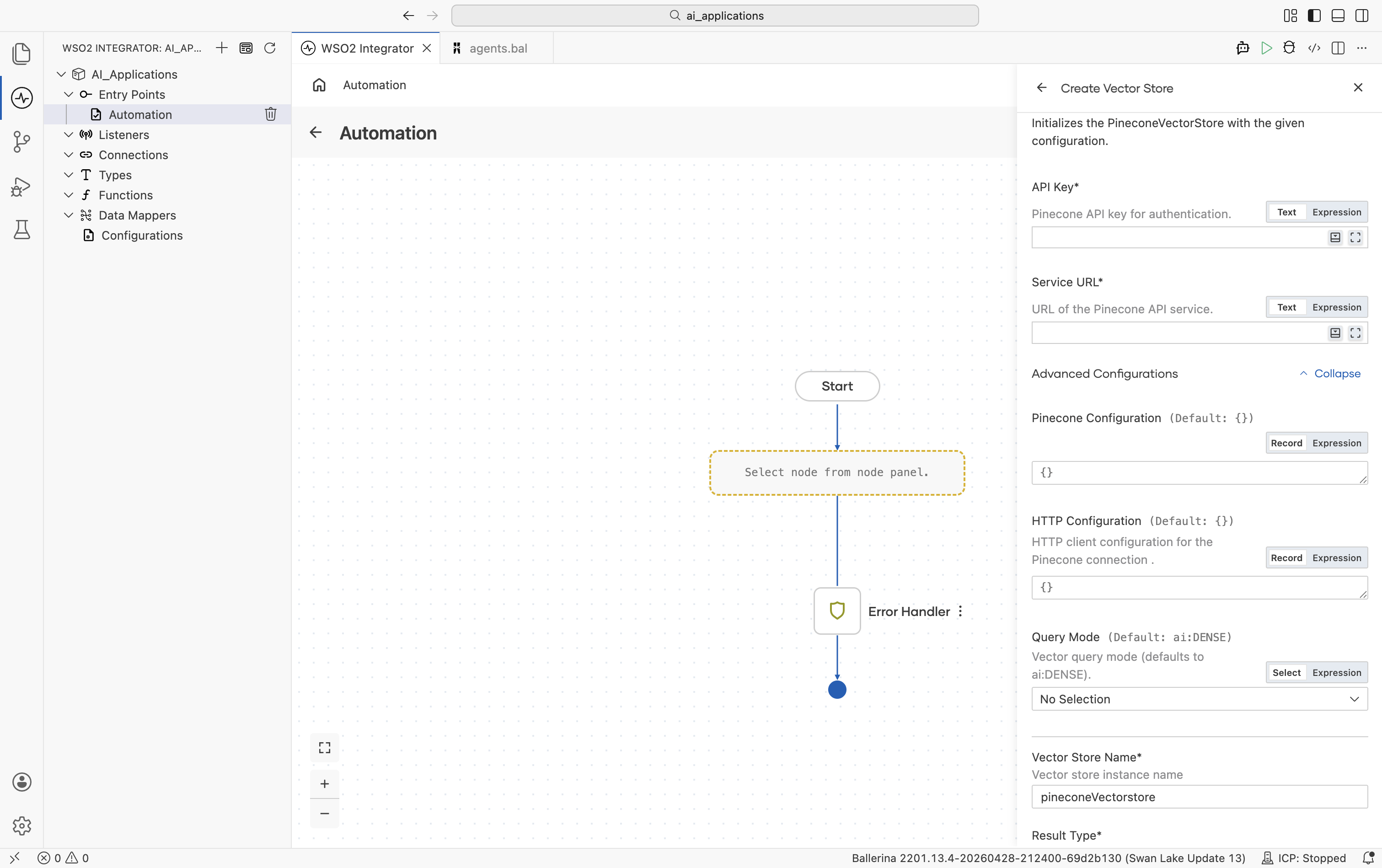

Advanced configurations

Field	Default	Available values	What it controls
Pinecone Configuration	{}	Record (namespace, filters, sparseVector)	Pinecone-specific settings. Namespace isolates vectors for multi-tenancy. Filters sets default metadata filters applied on every query. Sparse Vector is needed for hybrid search.
HTTP Configuration	{}	Record	Standard HTTP knobs. Same fields as Standard HTTP advanced configurations.
Query Mode	ai:DENSE	ai:DENSE, ai:SPARSE, ai:HYBRID	Search mode.

info

topK must be in the range 1–10000.

Weaviate

Weaviate is an open-source vector database with structured filtering and a GraphQL query layer. The connector queries pre-existing collections. Create the collection (with its schema) in Weaviate before connecting.

Official website: Weaviate documentation.

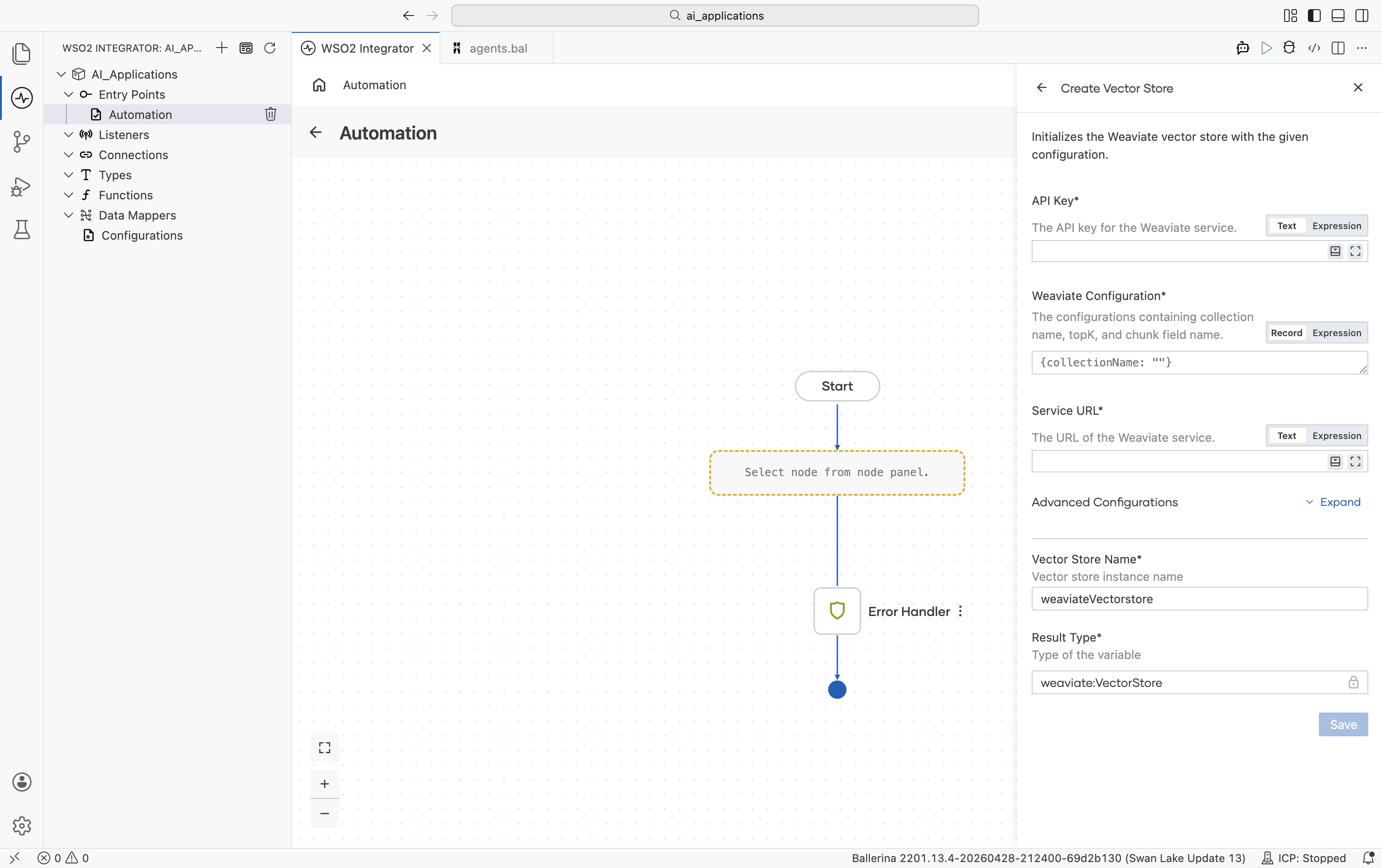

Create form

Field	Required	Default	Available values
API Key	Yes	—	Weaviate API key (sent as a bearer token).
Weaviate Configuration	Yes	{collectionName: ""}	Record with collection-level config. Collection Name (required): the Weaviate collection to use; must already exist. Chunk Field Name (optional, default "content"): the field on the collection that holds the chunk content.
Service URL	Yes	—	The Weaviate endpoint URL.

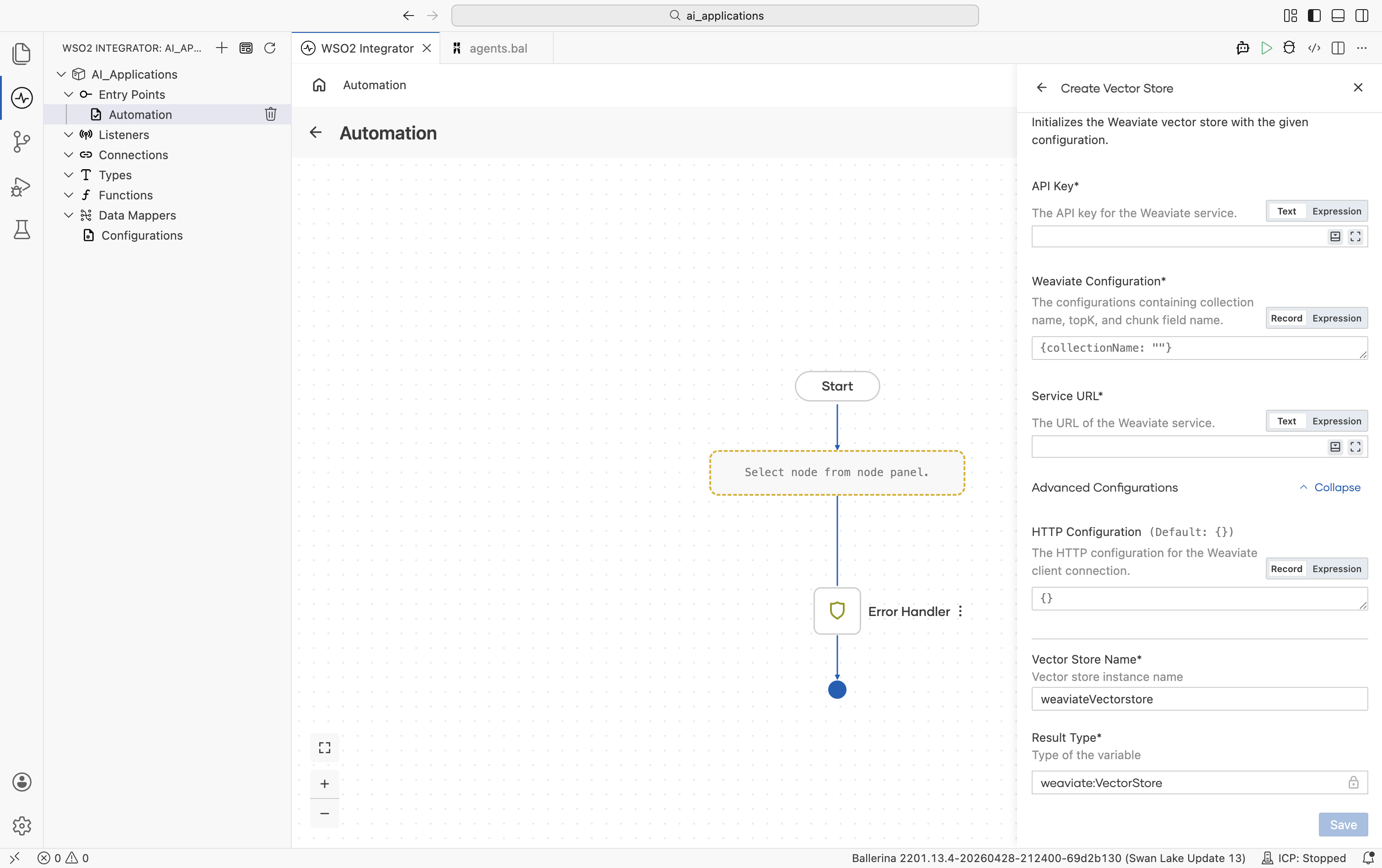

Advanced configurations

Field	Default	Available values	What it controls
HTTP Configuration	{}	Record	Standard HTTP knobs. Same fields as Standard HTTP advanced configurations.

info

This connector supports dense vectors only. Weaviate maps the certainty score to the similarityScore field in the response.

Selecting a store

Situation	Recommended
Prototyping; tiny dataset; tests	In-Memory. No infrastructure required.
Already running PostgreSQL	pgvector. Keeps vectors next to your existing data.
Want hosted, multi-tenant by default	Pinecone.
Want open-source plus rich filtering & GraphQL	Weaviate.
Very large datasets, k8s-native	Milvus.

Selection is based on operational concerns (where your data already lives, what your team already runs). All five satisfy the same Vector Store contract. The rest of the project does not change when you swap.
