SMB

SMB file integrations poll a directory on a network share and process files as they arrive. Use them when the files you need already live on a Windows file server, a NAS appliance, or a Samba host, rather than on an FTP endpoint.

The listener speaks SMB dialects 2.0.2 through 3.1.1 and authenticates with NTLMv2 credentials or Kerberos. It can optionally require message signing and encrypt data in transit.

Creating an SMB service

Visual Designer

1. Select + Add Artifact in the canvas, or select + next to Entry Points in the sidebar.

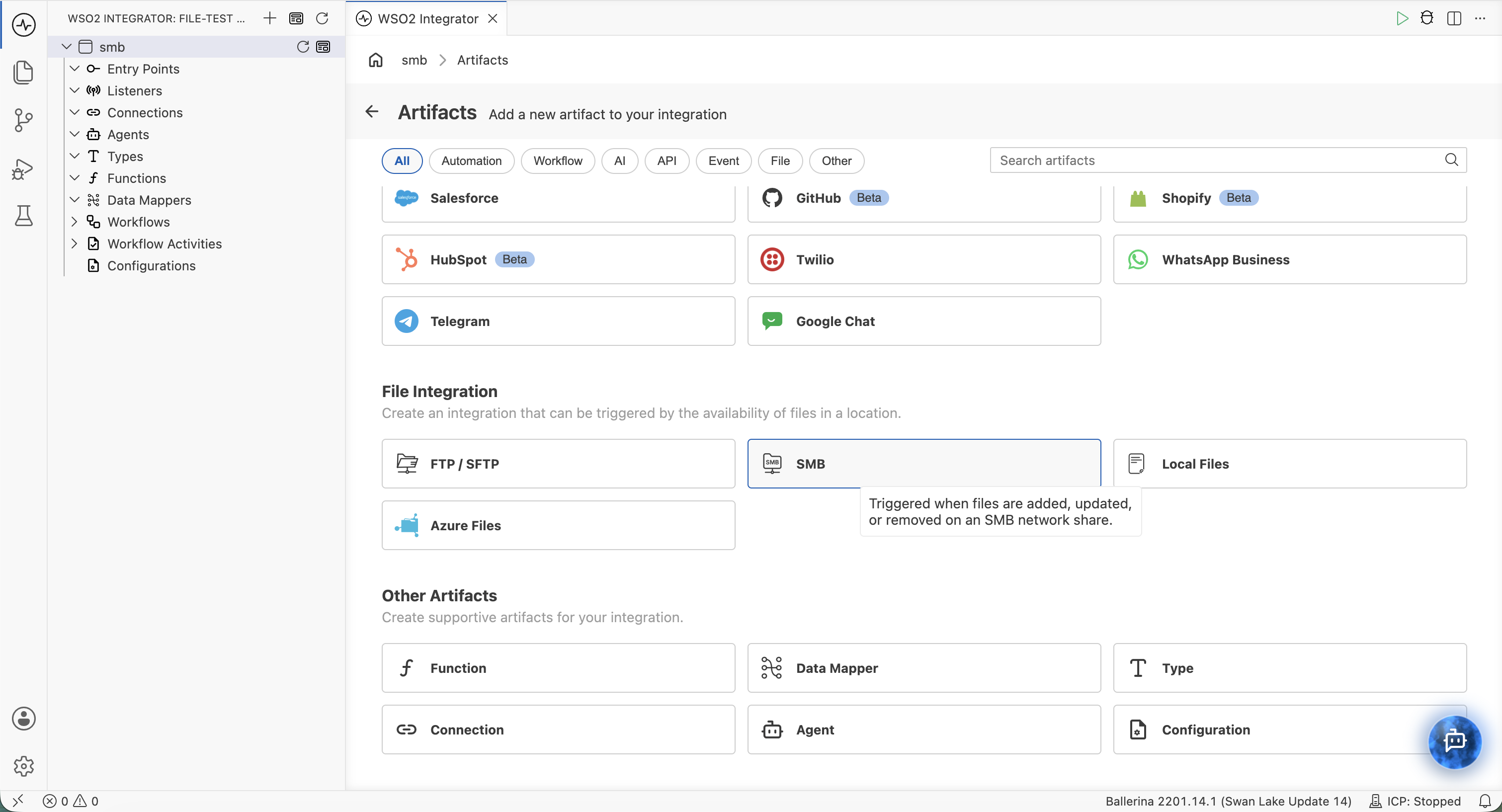

2. In the Artifacts panel, select SMB under File Integration.

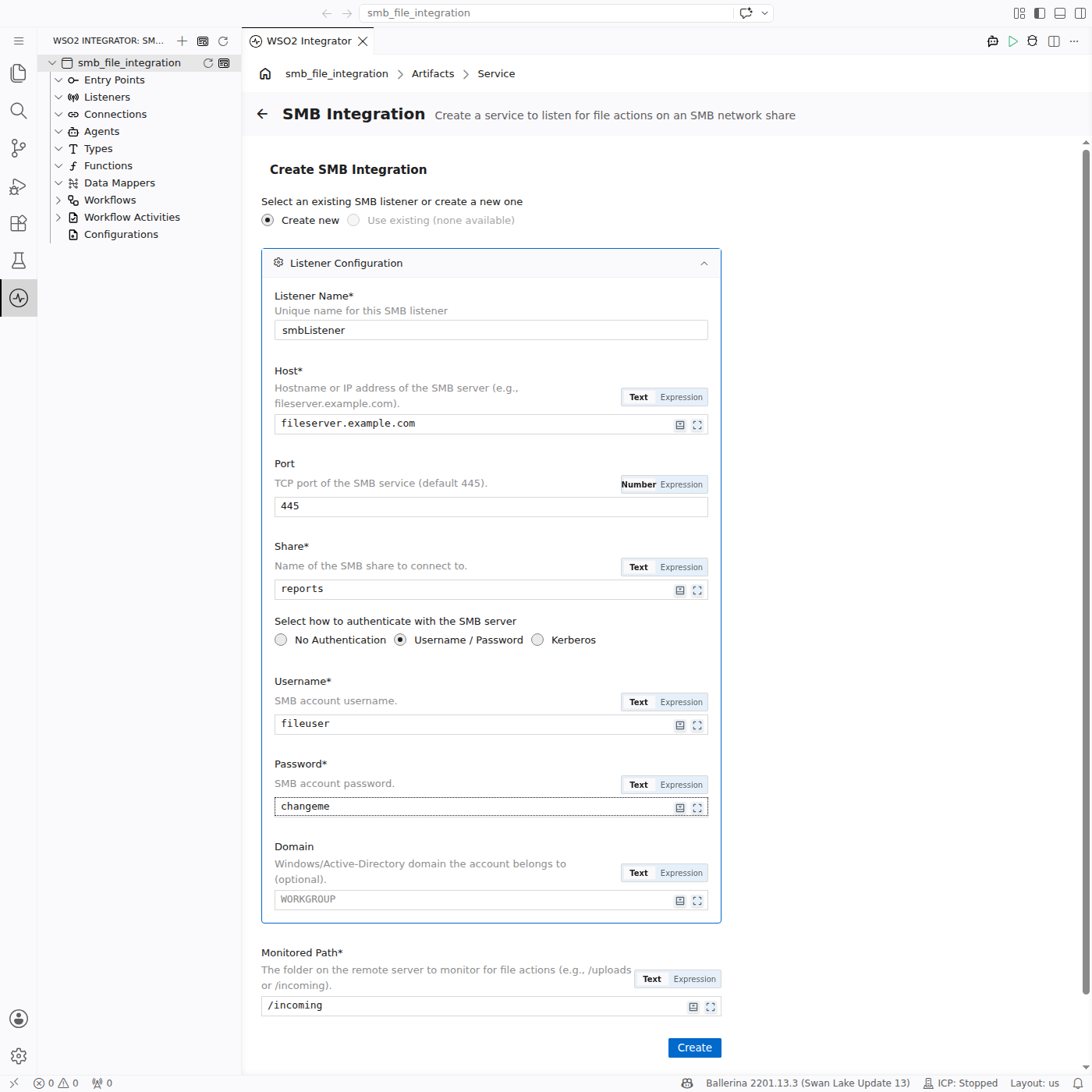

3. In the Create SMB Integration form, keep Create new selected to define a listener. Choose Use existing instead to attach the service to a listener the project already has.



4. Fill in the Listener Configuration:

   Field	Description
   Listener Name	Identifier for this listener (e.g., smbListener).
   Host	Hostname or IP address of the SMB server (e.g., fileserver.example.com).
   Port	TCP port of the SMB service. Defaults to 445.
   Share	Name of the share to connect to (e.g., reports). Every path is resolved inside this share.

5. Choose an authentication method:

   Option	Fields revealed	Use when
   No Authentication	—	The share allows guest access.
   Username / Password	Username, Password, Domain	NTLMv2 — the usual choice for Windows and Samba. Leave Domain at WORKGROUP for standalone servers, or set the Active Directory domain.
   Kerberos	Principal and keytab settings	The domain requires mutual authentication.

6. Enter the Monitored Path — the directory inside the share to poll (e.g., /incoming). Defaults to /.

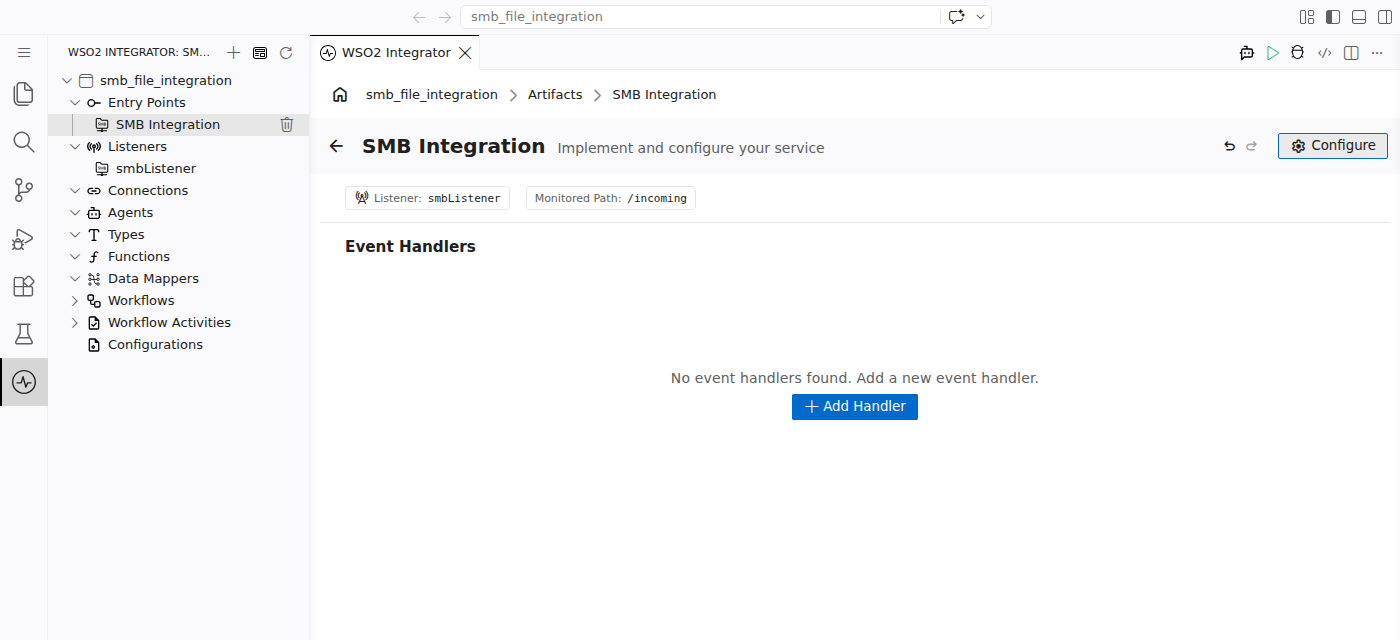

7. Select Create. WSO2 Integrator opens the service with its listener and monitored path shown at the top.



8. Select + Handler to define how incoming files are processed.

Tip: Bind Username and Password to configurable variables instead of typing literals. Switch the field to Expression and reference a configurable so credentials never reach source control.

Ballerina Code

SMB with NTLMv2 credentials:

import ballerina/smb;

configurable string host = ?;
configurable string share = ?;
configurable string username = ?;
configurable string password = ?;

listener smb:Listener smbListener = new (
    host = host,
    port = 445,
    share = share,
    auth = {credentials: {username, password, domain: "WORKGROUP"}}
);

@smb:ServiceConfig {
    path: "/incoming"
}
service smb:Service on smbListener {
    remote function onFileText(string content, smb:FileInfo fileInfo) returns error? {
        // Process text file content
    }
}

SMB with Kerberos:

import ballerina/smb;

listener smb:Listener smbListener = new (
    host = "fileserver.example.com",
    share = "reports",
    auth = {
        kerberosConfig: {
            principal: "[email protected]",
            keytab: "/etc/security/alice.keytab",
            configFile: "/etc/krb5.conf"
        }
    }
);

@smb:ServiceConfig {
    path: "/incoming"
}
service smb:Service on smbListener {
    remote function onFileText(string content, smb:FileInfo fileInfo) returns error? {
    }
}

Note: An SMB service declares its type explicitly — service smb:Service on smbListener — unlike FTP, where the type is inferred.

File handlers

A file handler is a remote function the runtime calls each time a polling cycle detects a file event in the monitored directory. A service can declare any combination of the three handler kinds:

Handler	Trigger
On Create (onFileText / onFileJson / onFileXml / onFileCsv / onFile)	A new file appears in the monitored directory. The function name depends on the content format — one variant per format.
On Delete (onFileDelete)	A previously seen file is no longer present on the share.
On Error (onError)	The runtime could not map incoming content to a typed handler — for example, a JSON handler received malformed JSON.

Adding a file handler

Visual Designer

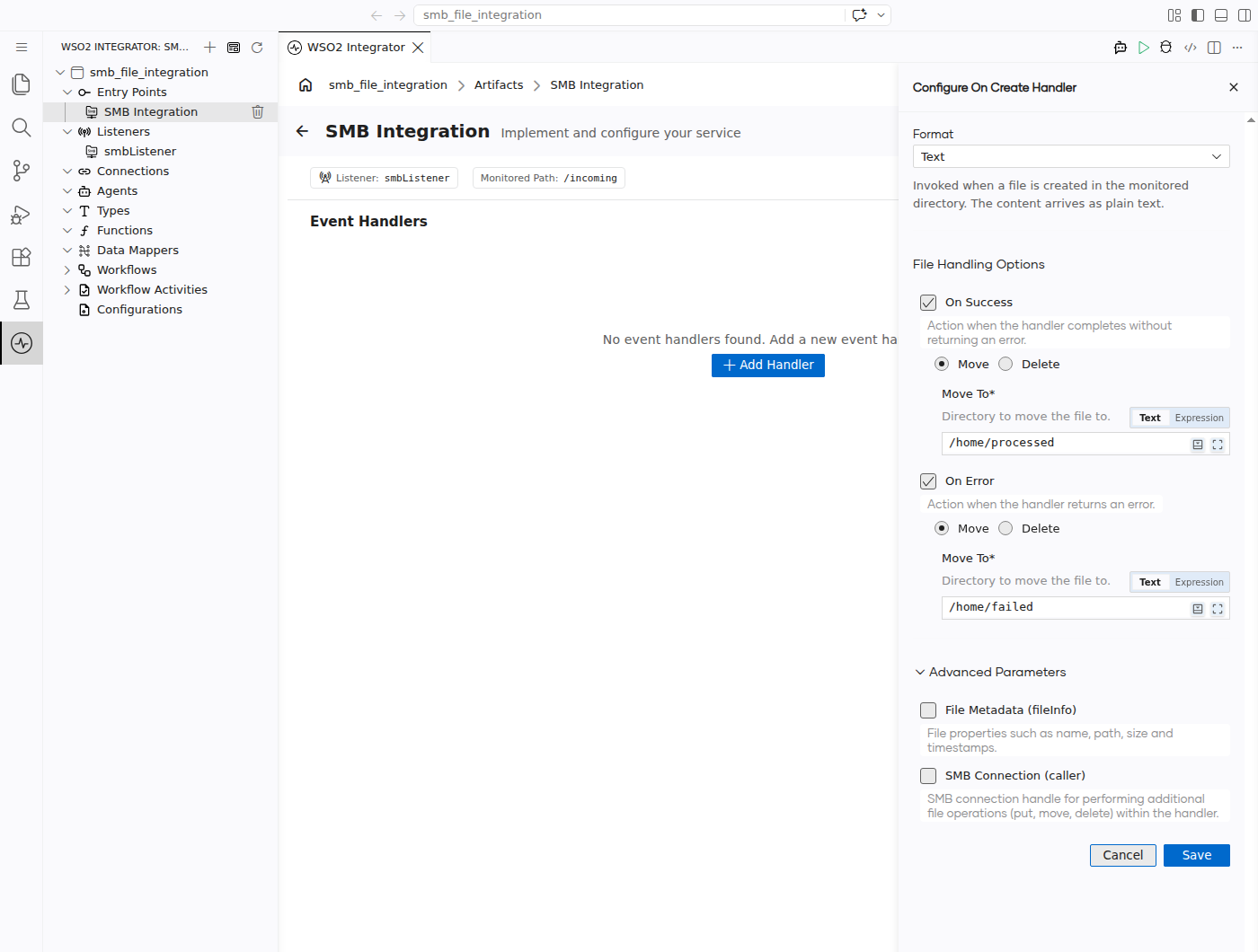

In the service designer, select + Handler, then pick On Create, On Delete, or On Error. The handler configuration panel opens on the right.

Field	Description
Format	(On Create only) The format of incoming files. Determines the handler function name and the type of the content parameter. Options: Text, JSON, XML, CSV, Raw Bytes. See Content types.
+ Define Content Schema	(JSON, XML only) Binds the document to a record type you build in a form. See Data binding.
+ Define Row Schema	(CSV only) Binds each row to a record type you build in a form. See Data binding.
Stream (Large Files)	(CSV, Raw Bytes only) Hands the handler the file a piece at a time instead of loading it all into memory. See Streaming large files.
On Success	Action to take when the handler completes without returning an error: Move the file to another directory, or Delete it. See Post-processing.
On Error	Action to take when the handler returns an error. Same choices as On Success.
Move To	Destination directory, required when Move is selected.

Expand Advanced Parameters for optional handler parameters:

Field	Description
File Metadata (fileInfo)	Adds an smb:FileInfo parameter carrying the file's name, path, size, and timestamps. See FileInfo.
SMB Connection (caller)	Adds an smb:Caller parameter for read and write operations on the same share. See Caller operations.

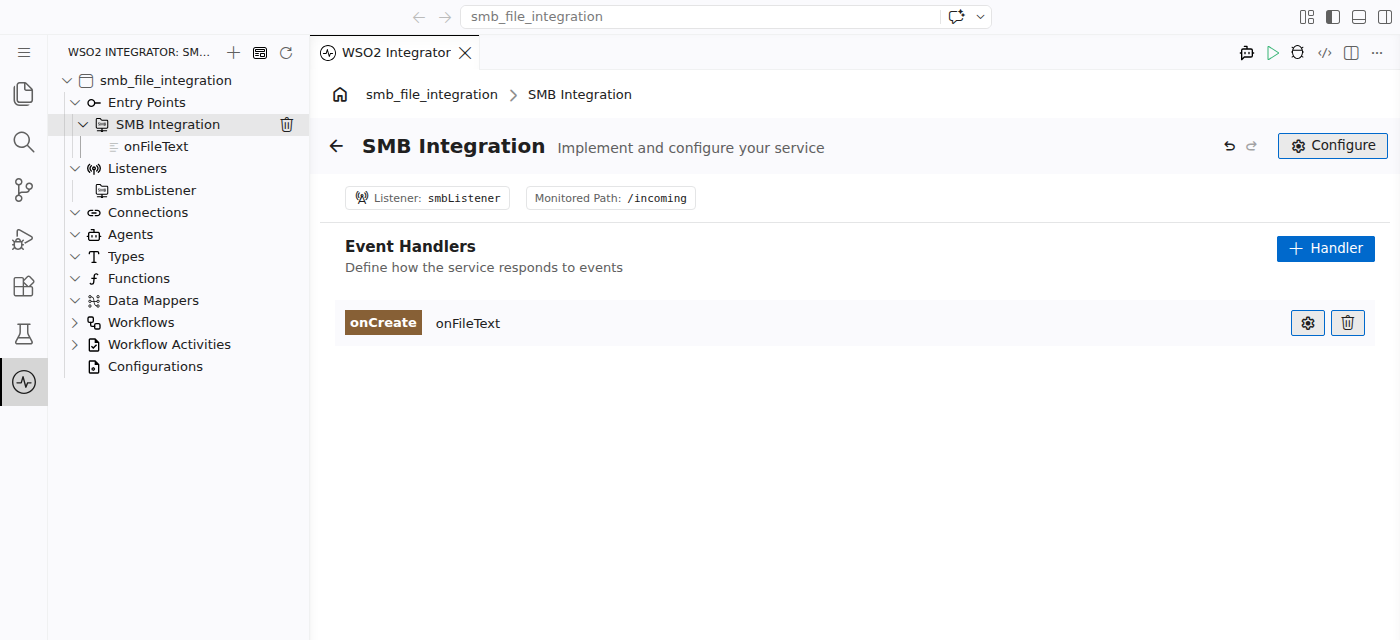

Select Save to add the handler. It appears in the Event Handlers list, tagged with its kind.

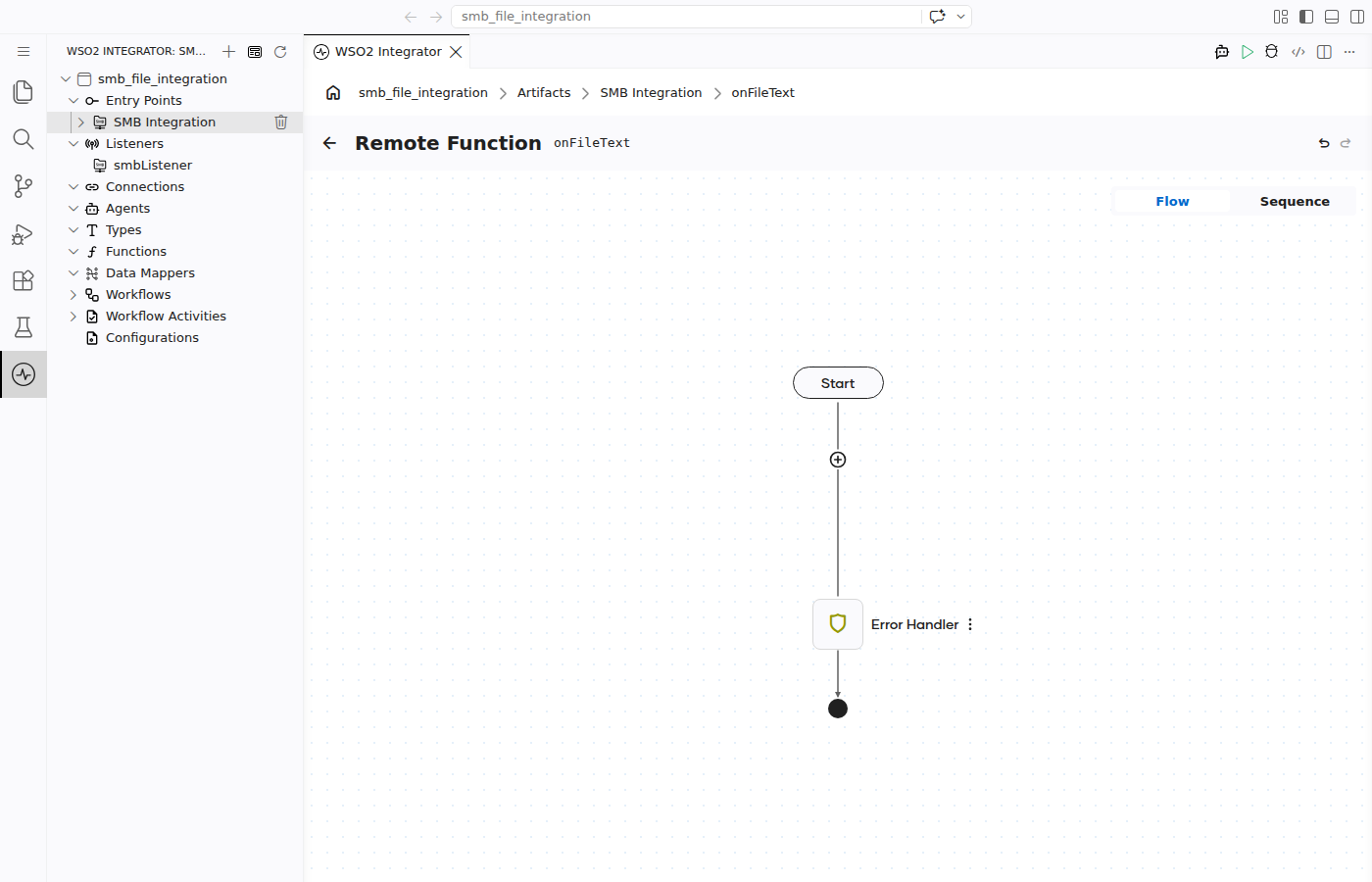

Select the handler to implement its body in the flow designer.

Ballerina Code

File handlers are typed remote function declarations inside the service. The runtime routes events by function name; the content parameter type determines deserialization.

Text file handler:

remote function onFileText(string content, smb:FileInfo fileInfo) returns error? {
    // content contains the full file text
}

JSON file handler (bound to a record type):

type Order record {|
    string orderId;
    string product;
    int quantity;
|};

remote function onFileJson(Order 'order, smb:FileInfo fileInfo) returns error? {
    // 'order is deserialized from JSON
}

CSV streaming handler (large files):

remote function onFileCsv(stream<string[], error?> content, smb:FileInfo fileInfo) returns error? {
    check content.forEach(function(string[] row) {
        // Process each row without loading the whole file into memory
    });
}

Binary file handler:

remote function onFile(byte[] content, smb:FileInfo fileInfo) returns error? {
    // content is the raw file bytes
}

Delete handler:

remote function onFileDelete(string deletedFile) returns error? {
    // deletedFile is the path of the file that disappeared from the monitored directory
}

Error handler:

remote function onError(smb:Error smbError) returns error? {
    log:printError("file processing error", 'error = smbError);
}

Content types

The Format chosen on an On Create handler determines the function name and the type of the content parameter.

Format	Handler function	Content type	Use when
Text	onFileText	string	Files are plain text (logs, EDI, custom formats).
JSON	onFileJson	json or a record type	Files are JSON documents.
XML	onFileXml	xml or a record type	Files are XML documents.
CSV	onFileCsv	string[][], a record array, or a stream variant	Files are comma-separated values. Define a row schema to bind each row to a record type.
Raw Bytes	onFile	byte[] or stream<byte[], error?>	Binary files, or when you need raw byte access.

Post-processing: moving or deleting files

Once a handler finishes — successfully or with an error — the runtime can move the file elsewhere on the same share or delete it. Configure this on the handler form; switch to the Ballerina Code tab only to review the generated annotation.

Visual Designer

The File Handling Options section has two independent toggles:

Event	Ticked by default?	Action picker	Extra input
On Success	Yes	Move or Delete	Move To destination, required when Move is chosen
On Error	Yes	Move or Delete	Move To destination, required when Move is chosen

Common combinations:

• Move on success, move on error — archive processed files and quarantine failures in separate directories.
• Delete on success, move on error — discard files that processed cleanly, keep failures for review.
• Leave the file in place — clear On Success or On Error to skip the action for that outcome.

Ballerina Code

The form writes an @smb:FunctionConfig annotation on the handler. Each of afterProcess and afterError takes either a move record or the bare constant smb:DELETE:

@smb:FunctionConfig {
    fileNamePattern: ".*\\.csv",
    afterProcess: {
        moveTo: "/processed"
    },
    afterError: smb:DELETE
}
remote function onFileText(string content, smb:FileInfo fileInfo) returns error? {
}

@smb:FunctionConfig fields:

Field	Type	Description
fileNamePattern	string?	Regex a file name must match for this handler to run. Narrows the listener-level pattern.
afterProcess	smb:MOVE|smb:DELETE?	Action when the handler returns without error. Omit to leave the file in place. For a move, use {moveTo: <path>}.
afterError	smb:MOVE|smb:DELETE?	Action when the handler returns an error. Same shape as afterProcess.

The move record also accepts preserveSubDirs, which defaults to true and recreates the file's subdirectory structure under the destination:

afterProcess: {
    moveTo: "/processed",
    preserveSubDirs: false
}

Data binding

A handler can take the file content in a generic shape (json, xml, or a list of raw CSV values), or bound to a record type you define. Binding to a record type is what lets you refer to order.quantity in the handler instead of picking values out of a raw document, and it catches misspelled fields and wrong value types before the integration ever runs.

New to record types? A record type is just a named shape for your data — a list of the fields it holds and the kind of value in each. If your CSV has the columns orderId, product, and quantity, the record type names those three fields and says which holds text and which holds a number. You build it from a form in the Visual Designer, so there is nothing to write by hand. For the language-level detail, see Type System & Records.

Visual Designer

On the Add File Handler form, the Format you pick decides which button appears:

Format	Button	What it does
JSON	+ Define Content Schema	Builds a record type for the whole JSON document. Skip it and the handler receives plain json.
XML	+ Define Content Schema	Builds a record type for the whole XML document. Skip it and the handler receives plain xml.
CSV	+ Define Row Schema	Builds a record type for one row; each row of the file then arrives as one filled-in record. Skip it and every row arrives as a list of raw text values.
Text, Raw Bytes	—	Nothing to define — the content is always plain text or raw bytes.

The button opens a record builder. Add one field at a time, giving each a name and a type:

Pick this type	For values like
string	Text — names, IDs, reference codes
int	Whole numbers — quantities, counts
decimal	Numbers with a fractional part — prices, rates
boolean	True/false flags
Another record	A nested object inside the document

Field names have to match what is in the file — the JSON keys, the XML element names, or the CSV column headers. Once you save the schema the handler is rewritten to use it, and the fields become available by name in the expression editor everywhere you use the content.

Ballerina Code

CSV rows bound to a record:

type Order record {|
    string orderId;
    string product;
    int quantity;
|};

remote function onFileCsv(Order[] orders, smb:FileInfo fileInfo) returns error? {
    foreach Order 'order in orders {
        // field access is type-checked: 'order.orderId, 'order.quantity, ...
    }
}

A JSON document bound to a record:

type OrderBatch record {|
    string batchId;
    Order[] orders;
|};

remote function onFileJson(OrderBatch batch, smb:FileInfo fileInfo) returns error? {
    // batch.batchId and batch.orders are typed
}

An onFileXml handler binds the same way. Leave the parameter as json, xml, or string[][] to skip binding altogether.

Streaming large files

The runtime normally reads the whole file into memory before calling the handler. For a large file — a multi-gigabyte CSV export, say — that can exhaust the memory the integration has to work with. Streaming avoids it: the runtime hands the handler the file a piece at a time and the handler works through the pieces in order.

Visual Designer

Tick Stream (Large Files) on the Add File Handler form. The option only appears for the CSV and Raw Bytes formats:

Format	What the handler receives when streaming is on
CSV	One row at a time. Combine it with + Define Row Schema and each row arrives as a filled-in record.
Raw Bytes	The file in 64 KB blocks.

JSON and XML offer no streaming option — both have to be read in full before they can be parsed.

Two things to keep in mind:

• Leave the option off unless the files really are large. A handler that gets the whole content is simpler to build.
• Streamed content can only be read once, start to finish. If the handler needs to go over the content twice, or look at the end before the beginning, don't stream it.

Ballerina Code

Streaming turns the content parameter into a stream<T, error?>. Iterate it with forEach:

Streaming CSV rows:

remote function onFileCsv(stream<Order, error?> orders, smb:FileInfo fileInfo) returns error? {
    check orders.forEach(function(Order 'order) {
        // process each row as it arrives
    });
}

Use stream<string[], error?> instead when you have not defined a row schema — each row then arrives as an array of raw column values.

Streaming raw bytes:

remote function onFile(stream<byte[], error?> content, smb:FileInfo fileInfo) returns error? {
    check content.forEach(function(byte[] chunk) {
        // process each chunk
    });
}

Chunks are a fixed 64 KB for the listener; the listener's bufferSize setting does not affect them, as it governs client-side reads and writes.

When a row fails to parse

A bad row (malformed CSV or wrong type) stops the stream right there. The handler returns an error, so the file takes the On Error path you configured under Post-processing. Anything your handler already did for earlier rows (database writes, API calls, published messages) stays.

When you retry the file, those rows run again. To stay safe, make your handler idempotent (check before you write) or track which rows you've already processed per file. To skip malformed rows instead of failing the entire file, enable CSV fault tolerance.

FileInfo

Enable File Metadata (fileInfo) to receive an smb:FileInfo parameter describing the incoming file.

Field	Type	Description
name	string	File name without path
path	string	Path within the share
size	int	File size in bytes
modifiedAt	time:Utc	Last-modified time
createdAt	time:Utc	Creation time
accessedAt	time:Utc	Last-accessed time
writtenAt	time:Utc	Last-written time
isDirectory	boolean	true if the entry is a directory
extension	string	File extension
isExecutable	boolean	true if the file is marked executable
isHidden	boolean	true if the file is marked hidden
isWritable	boolean	true if the file is writable
uri	string	Full URI of the file

Caller operations

For most cases the content parameter and the post-processing annotation are enough. When you need more control — reading a related file, writing output elsewhere, or managing files yourself — enable SMB Connection (caller) to add an smb:Caller parameter. It reuses the listener's session.

Reading files:

Operation	Return type	Description
caller->getText(path)	string|Error	Read a file as plain text
caller->getBytes(path)	byte[]|Error	Read a file as a byte array
caller->getJson(path)	json|Error	Read and parse JSON
caller->getXml(path)	xml|Error	Read and parse XML
caller->getCsv(path)	string[][]|Error	Read and parse CSV
caller->getBytesAsStream(path)	stream<byte[], error?>|Error	Read as a byte stream for large files
caller->getCsvAsStream(path)	stream<string[], error?>|Error	Read CSV as a stream for large files

Writing files:

Write operations take an smb:FileWriteOption — smb:OVERWRITE (default) or smb:APPEND.

Operation	Description
caller->putText(path, content, option)	Write a string to a file
caller->putBytes(path, content, option)	Write a byte array to a file
caller->putJson(path, content, option)	Serialize and write JSON
caller->putXml(path, content, option)	Serialize and write XML
caller->putCsv(path, content, option)	Write CSV from string[][] or a record array
caller->putBytesAsStream(path, stream, option)	Write a byte stream to a file
caller->putCsvAsStream(path, stream, option)	Write CSV from a stream
caller->patch(path, content, offset)	Overwrite part of a file at a byte offset

File management:

Operation	Return type	Description
caller->list(path)	FileInfo[]|Error	List files and directories
caller->mkdir(path)	Error?	Create a directory
caller->rmdir(path)	Error?	Remove a directory
caller->rename(origin, destination)	Error?	Rename a file or directory
caller->move(source, destination)	Error?	Move a file
caller->copy(source, destination)	Error?	Copy a file
caller->exists(path)	boolean|Error	Check whether a path exists
caller->size(path)	int|Error	Get a file's size in bytes
caller->isDirectory(path)	boolean|Error	Check whether a path is a directory
caller->delete(path)	Error?	Delete a file

Service configuration

The @smb:ServiceConfig annotation controls what the service monitors.

Visual Designer

In the service designer, select Configure to edit the service's settings. The Monitored Path shown beside the listener name at the top of the designer reflects the annotation's path field.

Ballerina Code

@smb:ServiceConfig {
    path: "/incoming/orders"
}
service smb:Service on smbListener {
}

@smb:ServiceConfig fields:

Field	Type	Default	Description
path	string?	Service name	Directory inside the share to monitor. Paths are relative to the share root.

Listener configuration

The listener controls how to connect — host, share, authentication, dialects, and polling behaviour. One listener represents one connection to one share. Open its configuration by selecting the listener name (for example, smbListener) under Listeners in the sidebar.

Visual Designer

Field	Description	Default
Host	Hostname or IP address of the SMB server.	localhost
Port	TCP port of the SMB service.	445
Share	Name of the share to connect to. Required.	—
Auth	NTLMv2 credentials or a Kerberos configuration.	—
File Name Pattern	Regex a file name must match to trigger any handler.	—
Polling Interval	Seconds between directory polls.	60
Dialects	SMB protocol dialects to negotiate, in order of preference.	All dialects
Sign Required	Whether SMB message signing is required.	false
Encrypt Data	Whether to encrypt data in transit.	false
Enable DFS	Whether to follow Distributed File System referrals.	false
Buffer Size	Read and write buffer size in bytes.	65536
Connect Timeout	Connection timeout in seconds.	30.0
Lax Data Binding	When true, data-binding errors yield () instead of surfacing as an error.	false
CSV Fail Safe	Skip malformed CSV rows rather than rejecting the whole file.	—

Ballerina Code

Listener configuration maps to the smb:ListenerConfiguration record passed when constructing the listener:

listener smb:Listener smbListener = new (
    host = "fileserver.example.com",
    port = 445,
    share = "reports",
    auth = {credentials: {username: "fileuser", password: "changeme"}},
    fileNamePattern = ".*\\.csv",
    pollingInterval = 30,
    dialects = [smb:SMB_3_1_1, smb:SMB_3_0_2],
    signRequired = true
);

smb:ListenerConfiguration fields:

Field	Type	Default	Description
host	string	"localhost"	Hostname or IP address of the SMB server.
port	int	445	Port number of the SMB service.
share	string	""	Share name to connect to. Required in practice.
auth	smb:AuthConfiguration?	—	NTLMv2 credentials or a kerberosConfig.
fileNamePattern	string?	—	Regex a file name must match to trigger any handler.
pollingInterval	decimal	60	Seconds between directory polls.
dialects	smb:Dialect[]	All dialects	Dialects to negotiate, in order of preference: SMB_3_1_1, SMB_3_0_2, SMB_3_0, SMB_2_1, SMB_2_0_2.
signRequired	boolean	false	Whether SMB message signing is required.
encryptData	boolean	false	Whether to encrypt data in transit.
enableDfs	boolean	false	Whether to follow Distributed File System referrals.
bufferSize	int	65536	Read and write buffer size in bytes.
connectTimeout	decimal	30.0	Connection timeout in seconds.
laxDataBinding	boolean	false	When true, data-binding errors yield () instead of an error.
csvFailSafe	smb:FailSafeOptions?	—	Skip malformed CSV rows instead of failing the file.

smb:AuthConfiguration carries one of two records:

Field	Type	Description
credentials	smb:Credentials?	username, password, and domain (defaults to WORKGROUP).
kerberosConfig	smb:KerberosConfig?	principal in user@REALM form, plus an optional keytab and configFile.

What's next

• CSV fault tolerance — skip malformed rows instead of failing the whole file
• FTP / SFTP — poll a remote FTP, SFTP, or FTPS server instead of a network share
• Local files — monitor a local directory
• SMB connector — call SMB operations from an integration instead of being triggered by them
• Data Mapper — transform incoming file payloads between formats
