Syncing Gateway-Created AI Artifacts to the AI Workspace¶

Overview¶

When you create an AI artifact directly on the AI Gateway - an LLM Provider Template, LLM Provider, LLM Proxy, or MCP Proxy - it is automatically synced up to the AI Workspace, where it appears as a read-only copy you can view and monitor.

This is the reverse of the usual top-down flow:

	You create it in…	The AI Workspace copy is…
Top-down	the AI Workspace, then it's pushed to the gateway	editable - you own it
This guide (bottom-up)	the gateway, then it's synced up to the AI Workspace	read-only - the gateway owns it

Because the gateway owns these artifacts, they keep serving traffic even if the AI Workspace is temporarily unavailable, and any change you make on the gateway is synced up automatically.

Table of Contents¶

Prerequisites
Enabling the sync
How the sync works
Supported artifacts
Create the artifacts on the gateway
View them in the AI Workspace
What you can and can't change in the AI Workspace
Updating and deleting
If the AI Workspace is temporarily unavailable
Immutable gateways
Troubleshooting

Prerequisites¶

A gateway that is registered with, and can reach, your AI Workspace.
Syncing enabled on the gateway (see Enabling the sync - it is on by default).
For LLM Proxies and MCP Proxies, which belong to a project: the project they reference must already exist in your organization in the AI Workspace.

Enabling the sync¶

Syncing is controlled by a single gateway setting, deployment_sync_enabled, which is on by default. It controls syncing in both directions between the gateway and the AI Workspace.

File: config.toml

[controller.controlplane]
gateway_name = "default"
insecure_skip_verify = true

# Sync artifacts with the AI Workspace (on by default).
deployment_sync_enabled = true

Restart the gateway after changing the setting. When it is turned off, the gateway neither syncs its artifacts up nor receives artifacts from the AI Workspace.

How the sync works¶

When you create or update an artifact on the gateway:

Create on the gateway ─┬─▶ takes effect immediately (starts serving traffic)
                       └─▶ synced to the AI Workspace ─▶ appears as a read-only copy

The sync happens automatically in the background - you don't trigger it. A few things to know:

Matched by name. Each artifact is identified by the name you give it (metadata.name). Re-creating an artifact with the same name on the gateway updates the same AI Workspace copy instead of creating a duplicate.
References use names. An LLM Provider names its template, and an LLM Proxy names its provider. Create them in order - template → provider → proxy - so each reference resolves. MCP Proxies stand on their own.
Most recent deployment wins. If the same artifact is deployed on more than one gateway, the AI Workspace shows the version from the most recent deployment.

Supported artifacts¶

Four AI artifact kinds sync from the gateway to the AI Workspace. You create them through the gateway's management API, under the base path /api/management/v1 (default port 9090):

Kind	Management API endpoint	Belongs to a project?
`LlmProviderTemplate`	`/api/management/v1/llm-provider-templates`	No (organization level)
`LlmProvider`	`/api/management/v1/llm-providers`	No (organization level)
`LlmProxy`	`/api/management/v1/llm-proxies`	Yes
`Mcp`	`/api/management/v1/mcp-proxies`	Yes

All manifests use apiVersion: gateway.api-platform.wso2.com/v1. Project-scoped kinds name their project in an annotation using the project handle:

metadata:
  annotations:
    "gateway.api-platform.wso2.com/project-id": "default"

Calling the management API¶

The examples below use these conventions:

Base URL: http://localhost:9090/api/management/v1
Content type: Content-Type: text/yaml (the API also accepts JSON)
Auth: HTTP Basic, using a user configured under [[controller.auth.basic.users]] in config.toml. Pass your own credentials - don't hard-code them:
```
export GW_USER='<username>' GW_PASSWORD='<password>'
```
Body: --data-binary '@<file>.yaml' uploads a manifest file as-is.

Create the artifacts on the gateway¶

This walkthrough builds a complete LLM Proxy together with the artifacts it depends on - an LLM Provider Template and an LLM Provider - then adds a standalone MCP Proxy. Each curl creates the artifact on the gateway; it starts serving immediately and is synced to the AI Workspace.

Create them in dependency order so each reference resolves:

LlmProviderTemplate ──(spec.template)──▶ LlmProvider ──(spec.provider.id)──▶ LlmProxy

The LLM Proxy and MCP Proxy reference the project default - make sure that project exists in your organization in the AI Workspace first.

Step 1 - Create the LLM Provider Template¶

The provider references a template by name, so create the template first. llm-provider-template.yaml:

apiVersion: gateway.api-platform.wso2.com/v1
kind: LlmProviderTemplate
metadata:
  name: my-llm-provider-template
spec:
  displayName: Custom OpenAI Template
  promptTokens:     { location: payload, identifier: $.usage.inputTokens }
  completionTokens: { location: payload, identifier: $.usage.outputTokens }
  totalTokens:      { location: payload, identifier: $.usage.totalTokens }
  # ... see gateway/examples/llm-provider-template.yaml for the full manifest

curl --location 'http://localhost:9090/api/management/v1/llm-provider-templates' \
  --header 'Content-Type: text/yaml' \
  --user "$GW_USER:$GW_PASSWORD" \
  --data-binary '@llm-provider-template.yaml'

Step 2 - Create the LLM Provider¶

The provider links to the LLM provider template above via spec.template. llm-provider.yaml:

apiVersion: gateway.api-platform.wso2.com/v1
kind: LlmProvider
metadata:
  name: my-llm-provider
spec:
  displayName: WSO2 My LLM Provider
  version: v1.0
  context: /openai-dp-1
  template: my-llm-provider-template   # ← must match the template's metadata.name
  vhost: api.my-llm-provider.local
  upstream:
    url: https://httpbin.org/anything/v1
    auth: { type: api-key, header: Authorization, value: api_key_abc123 }
  # ... accessControl + policies omitted; see gateway/examples/llm-provider.yaml

curl --location 'http://localhost:9090/api/management/v1/llm-providers' \
  --header 'Content-Type: text/yaml' \
  --user "$GW_USER:$GW_PASSWORD" \
  --data-binary '@llm-provider.yaml'

Step 3 - Create the LLM Proxy¶

The proxy belongs to a project (the project-id annotation) and links to the LLM provider via spec.provider.id. llm-proxy.yaml:

apiVersion: gateway.api-platform.wso2.com/v1
kind: LlmProxy
metadata:
  name: wso2con-assistant
  annotations:
    "gateway.api-platform.wso2.com/project-id": "default"   # ← must be an existing project
spec:
  displayName: WSO2 Con Assistant
  version: v1.0
  context: "/project-1/assistant"
  provider:
    id: my-llm-provider   # ← must match the provider's metadata.name
    auth: { header: X-API-Key, type: api-key, value: adminfoobar }
  # ... policies omitted; see gateway/examples/llm-proxy.yaml

curl --location 'http://localhost:9090/api/management/v1/llm-proxies' \
  --header 'Content-Type: text/yaml' \
  --user "$GW_USER:$GW_PASSWORD" \
  --data-binary '@llm-proxy.yaml'

Step 4 - Create an MCP Proxy¶

An MCP Proxy also belongs to a project but stands on its own (no template or provider prerequisite). mcp-proxy.yaml:

apiVersion: gateway.api-platform.wso2.com/v1
kind: Mcp
metadata:
  name: everything-mcp-v1.0
  annotations:
    "gateway.api-platform.wso2.com/project-id": "default"
spec:
  displayName: Everything
  version: v1.0
  context: "/project-1/everything"
  specVersion: "2025-06-18"
  upstream:
    url: https://.../mcp-everything-server/v1.0
    auth: { header: X-Api-Key, type: header, value: admin }
  # ... policies omitted; see gateway/examples/mcp-proxy.yaml

curl --location 'http://localhost:9090/api/management/v1/mcp-proxies' \
  --header 'Content-Type: text/yaml' \
  --user "$GW_USER:$GW_PASSWORD" \
  --data-binary '@mcp-proxy.yaml'

View them in the AI Workspace¶

The gateway syncs each artifact up automatically. Shortly after you create them, all four appear in the AI Workspace as read-only copies, each keeping the name you gave it on the gateway.

Open the AI Workspace for the organization your gateway is registered with, then find each artifact in its section of the sidebar.

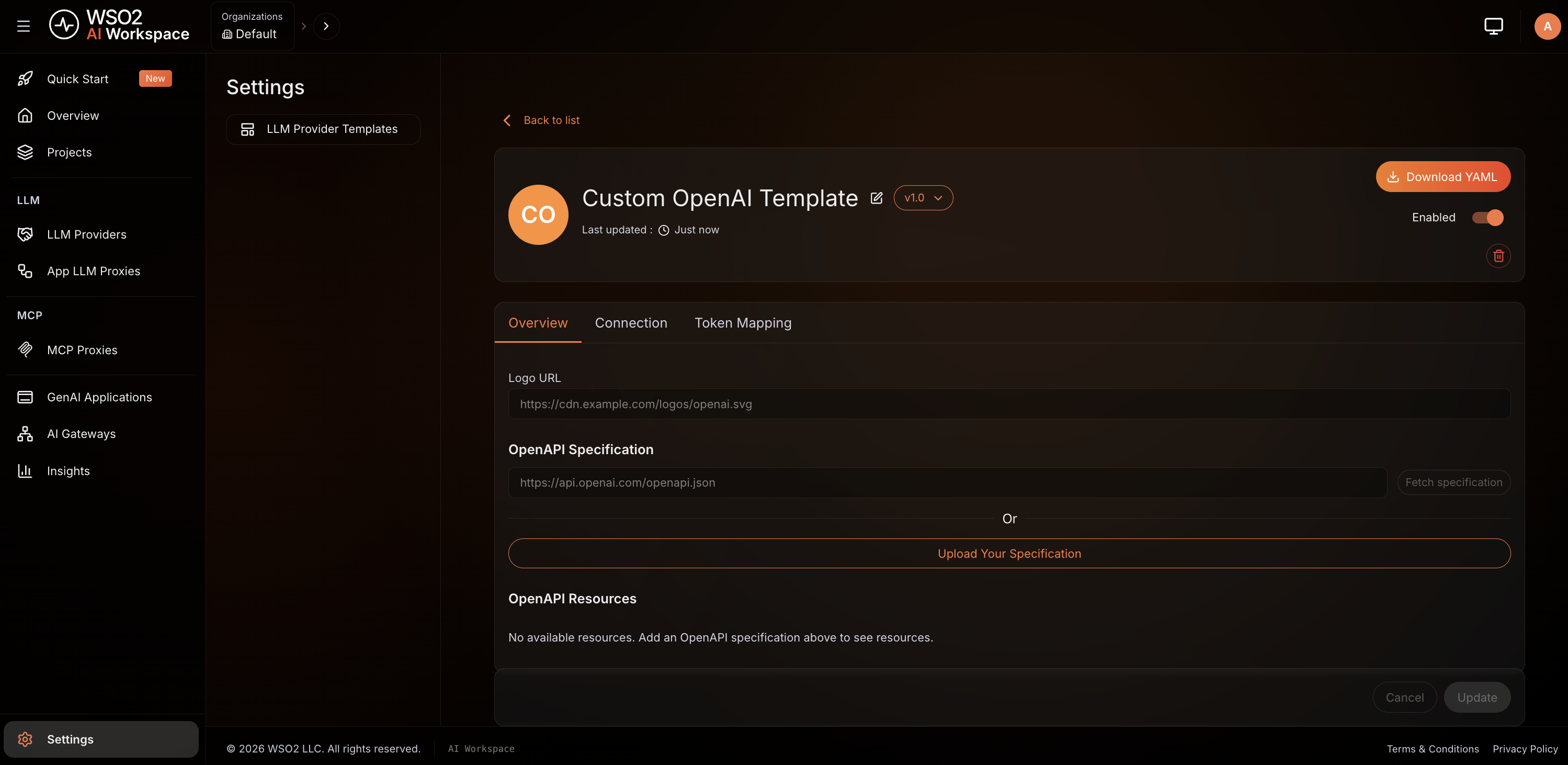

LLM Provider Template¶

Under Settings → LLM Provider Templates:

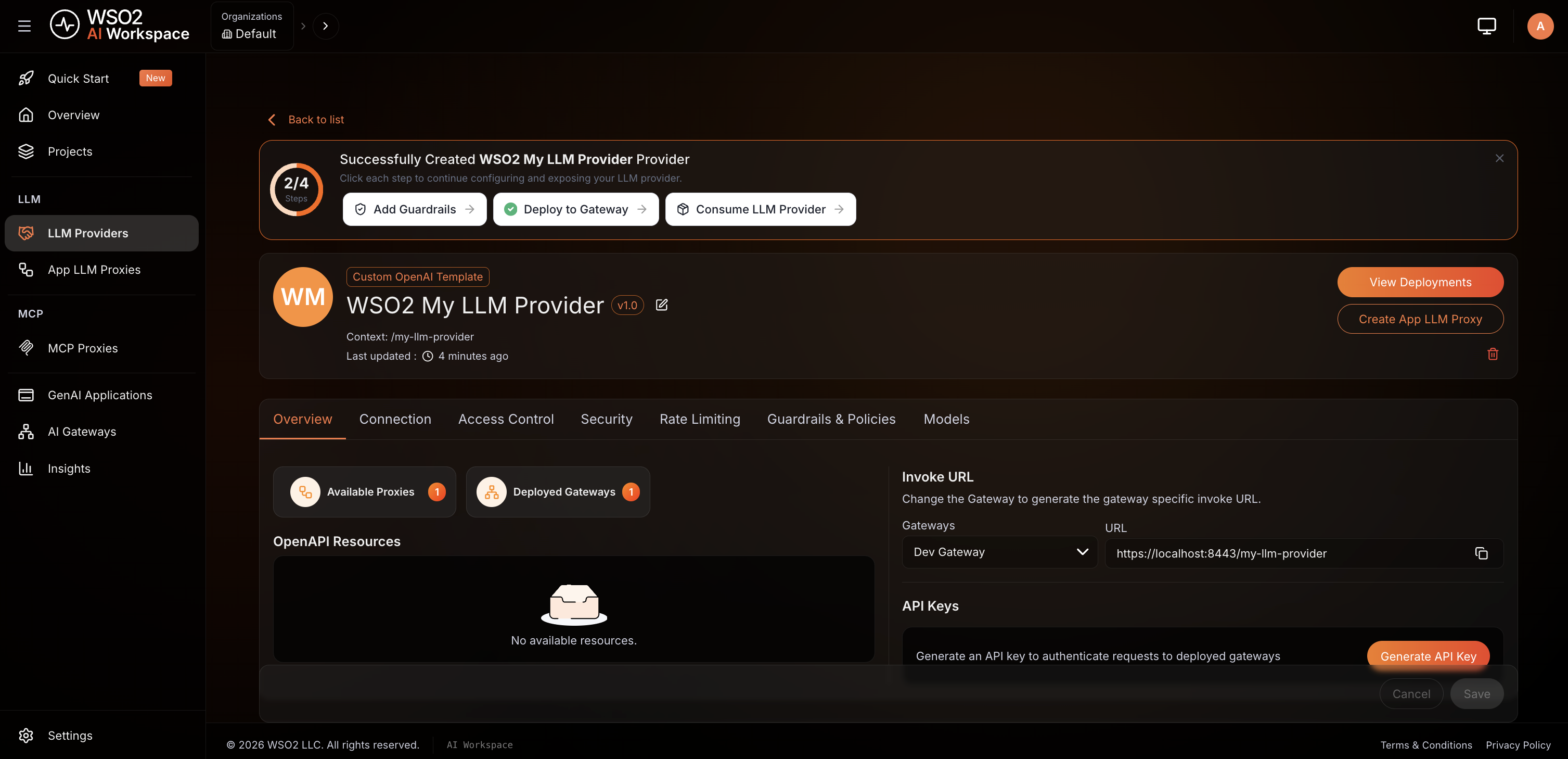

LLM Provider¶

Under LLM → LLM Providers:

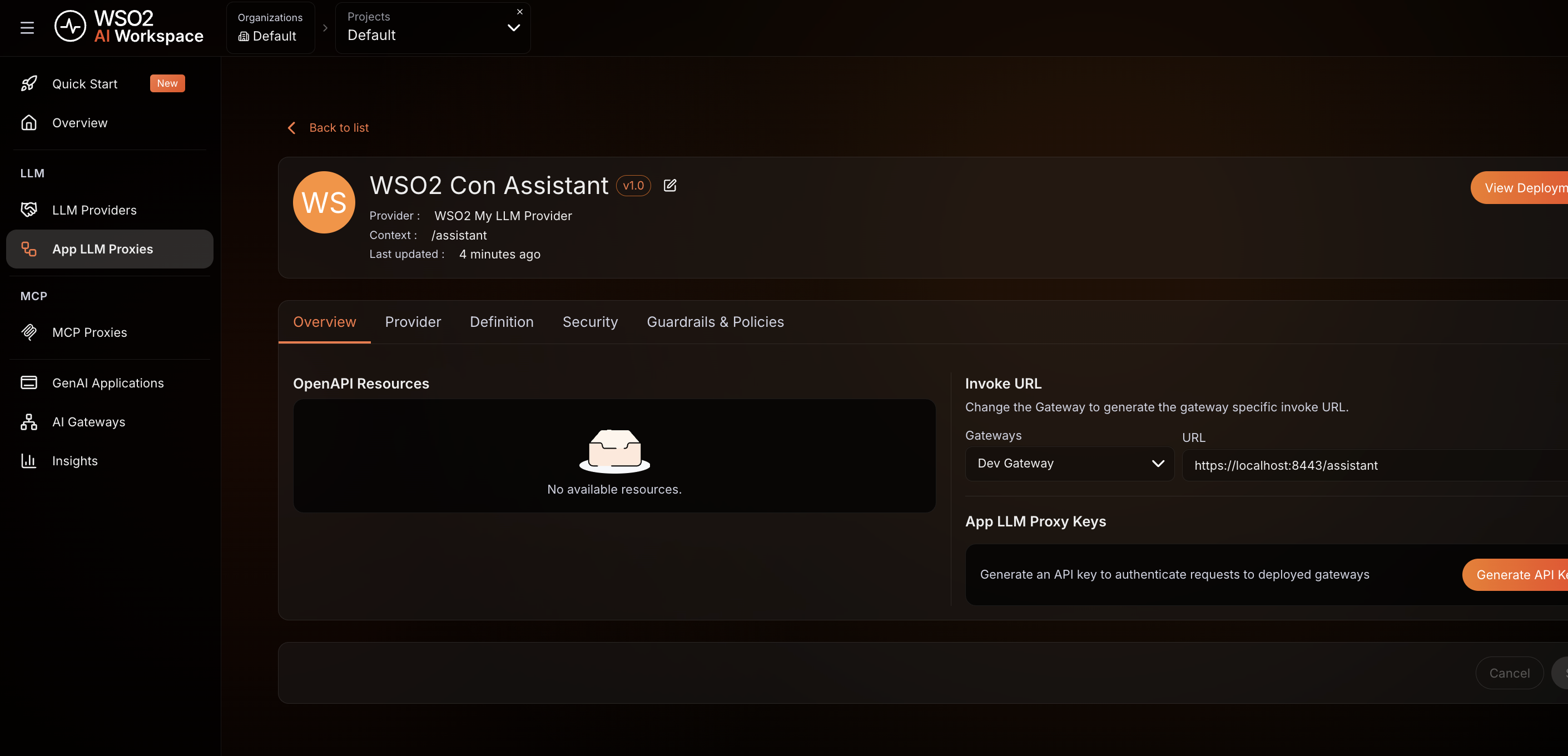

LLM Proxy¶

Under LLM → App LLM Proxies (in the Default project):

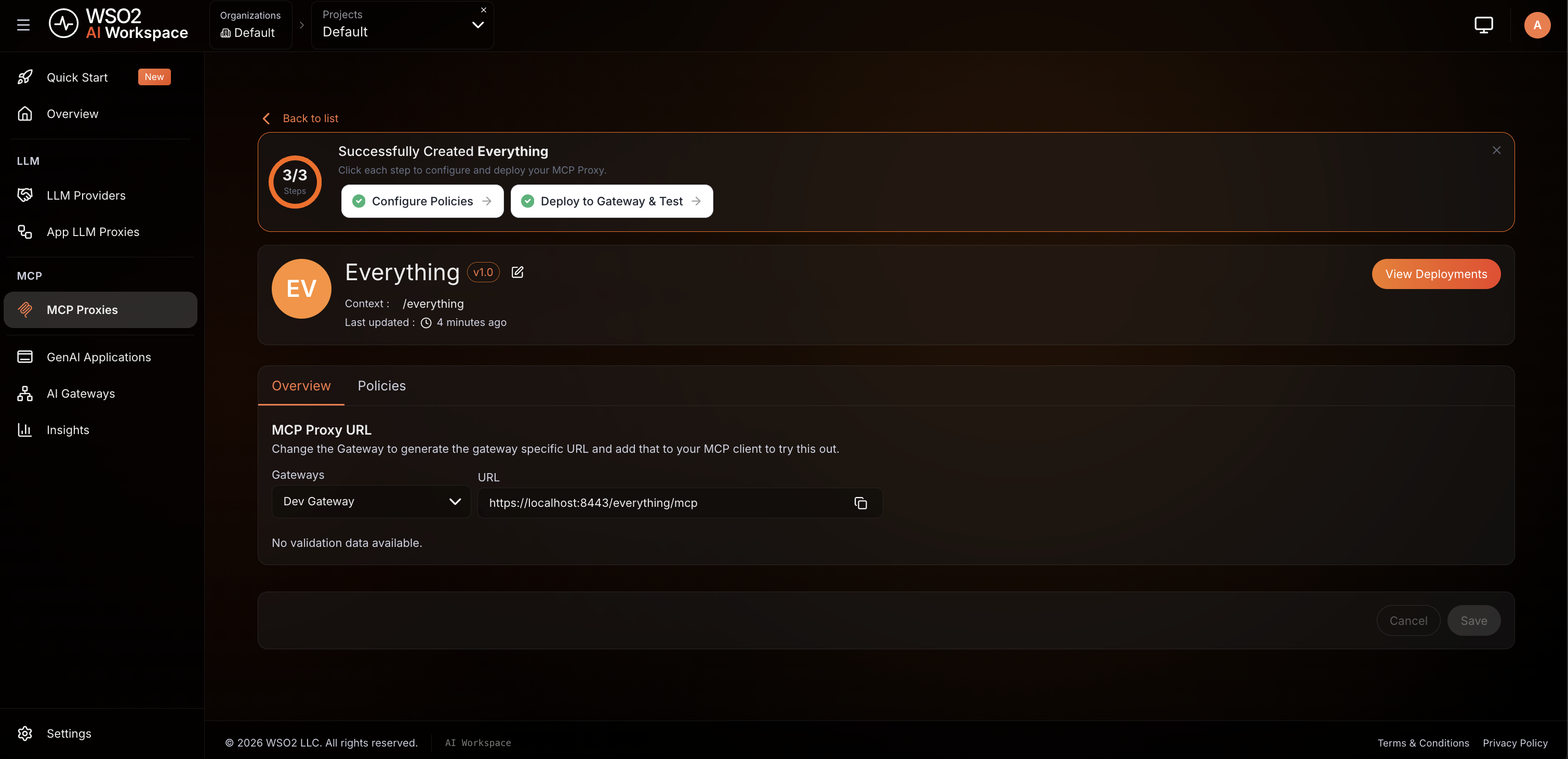

MCP Proxy¶

Under MCP → MCP Proxies (in the Default project):

Open any of them to browse the full configuration. It opens in a read-only view - the edit and deploy actions are unavailable because the gateway owns the artifact.

If an artifact hasn't appeared after a short wait, see Troubleshooting.

What you can and can't change in the AI Workspace¶

A gateway-created artifact is read-only in the AI Workspace because the gateway owns it. "Read-only" applies to anything the gateway uses to run the artifact - everything else stays editable.

You can change things that don't affect how the gateway runs the artifact (these stay in the AI Workspace only):

Its description and display name
Documentation and API (OpenAPI) definitions
For an LLM Provider Template: its connection details (endpoint URL, auth type/header), logo, and OpenAPI spec

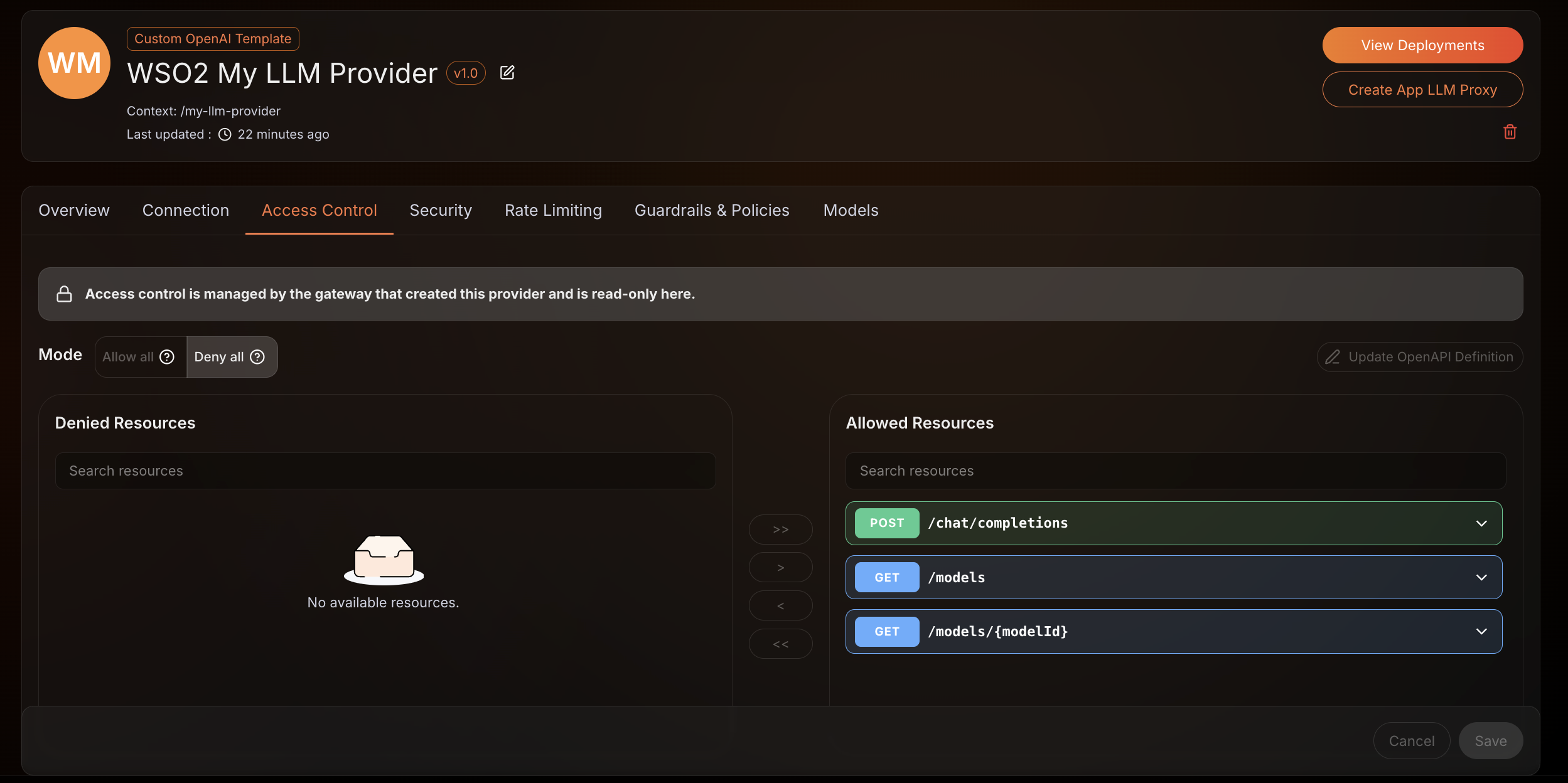

You can't change what the gateway uses to run the artifact. Make those changes on the gateway instead - they sync up automatically. This includes:

Upstreams, the auth/routing used to serve traffic, and policies

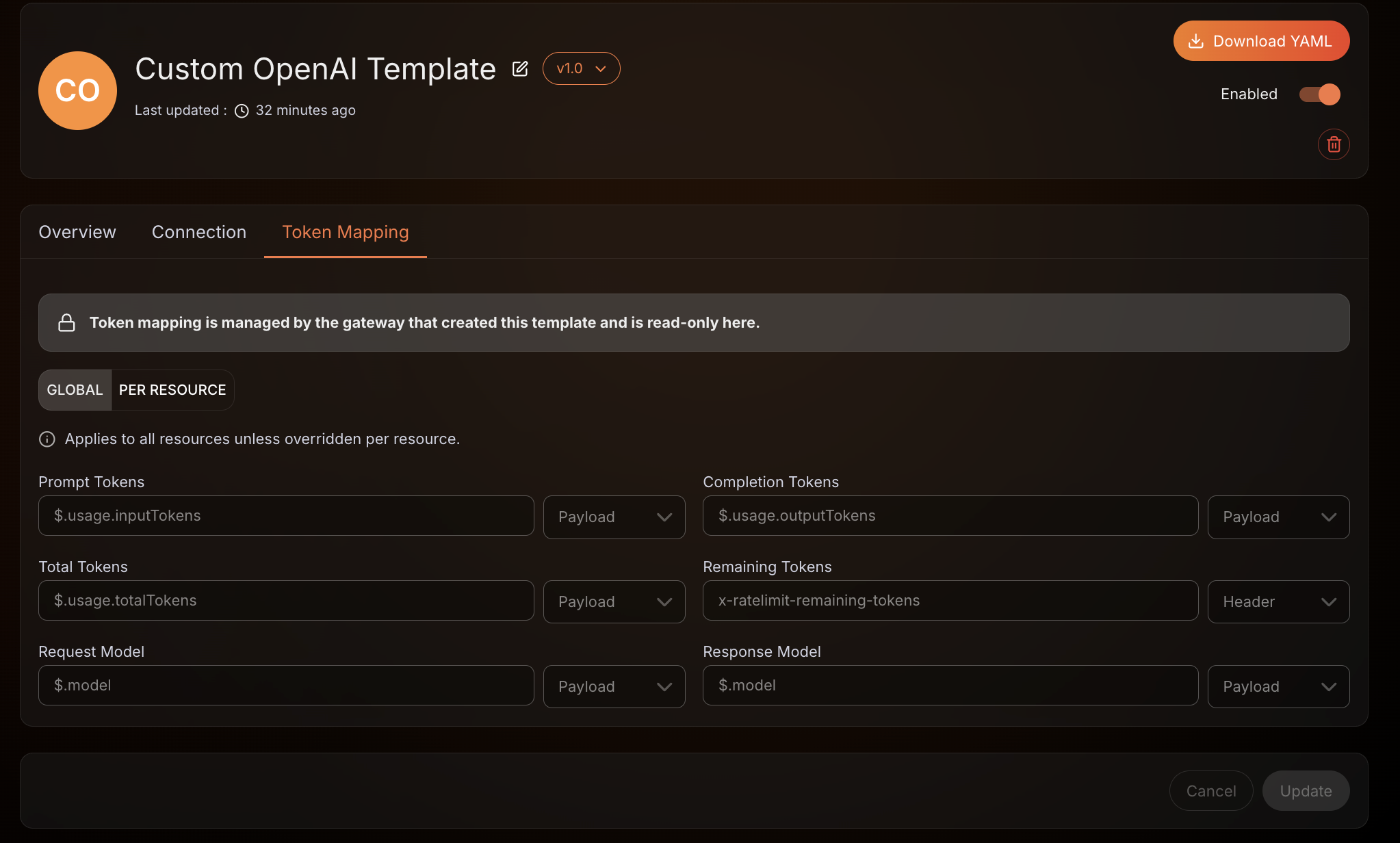

An LLM Provider Template's token-tracking settings

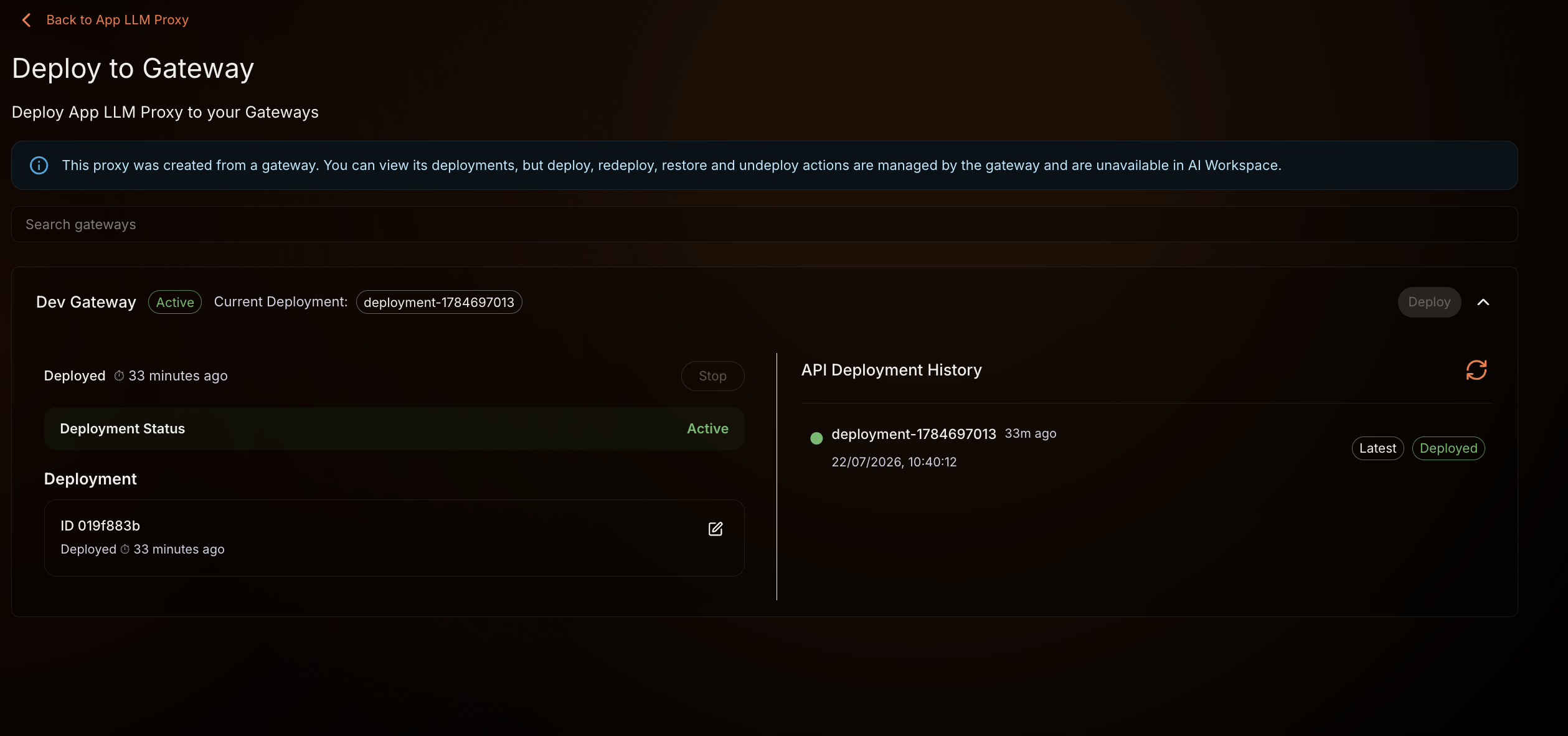

Deploying, redeploying, or undeploying the artifact
Deleting it while it is still deployed on a gateway (undeploy it from all gateways first)

The AI Workspace simply won't offer the actions it can't perform, and will decline an edit that would change how the gateway runs the artifact.

Updating and deleting¶

On the gateway you…	In the AI Workspace…
Update the artifact	the read-only copy refreshes automatically
Delete the artifact	the copy is kept (not removed) and shown as no longer deployed on that gateway, preserving a record of it

To re-sync an artifact after a hiccup, re-apply it on the gateway with the same definition.

If the AI Workspace is temporarily unavailable¶

Syncing is resilient. If the AI Workspace can't be reached when you create or change an artifact:

The artifact still takes effect on the gateway and keeps serving traffic.
The gateway retries the sync automatically.
When the connection is restored, everything that hasn't synced yet is pushed up - no manual action needed.

You can create artifacts on a gateway while it is disconnected, and they reconcile up on their own once it reconnects. This applies to all four artifact kinds.

Immutable gateways¶

Some gateways run in immutable mode, where artifacts are loaded from on-disk configuration at startup rather than created through the management API (see Immutable Gateway).

The sync behaves exactly the same for these gateways: artifacts loaded from files are synced up to the AI Workspace just like ones created through the management API, with the same read-only copies and the same automatic reconciliation - no extra configuration. An immutable, file-driven gateway is still fully visible in the AI Workspace.

Troubleshooting¶

An artifact I created on the gateway doesn't appear in the AI Workspace¶

Syncing is turned off. Set deployment_sync_enabled = true in the gateway's config.toml and restart the gateway.
The AI Workspace can't be reached. The artifact still works on the gateway; the sync retries automatically and catches up once the connection is restored. Check that the gateway is connected to the AI Workspace.
The project doesn't exist (LLM Proxy or MCP Proxy). These belong to a project. Create the project named in the artifact's project-id annotation in your organization, then re-apply the artifact on the gateway:
```
metadata:
  annotations:
    "gateway.api-platform.wso2.com/project-id": "Project 1"
```
A referenced artifact isn't there yet. An LLM Provider needs its template, and an LLM Proxy needs its provider. Create them in order (template → provider → proxy); the dependent artifact catches up on its own once the one it references has synced.

I can't edit, deploy, or delete a gateway-created artifact in the AI Workspace¶

This is expected - the gateway owns it, so it is read-only in the AI Workspace.

Make configuration and deployment changes on the gateway; they sync up automatically.
You can still edit runtime-neutral details (description, display name, documentation, OpenAPI definitions, and - for LLM Provider Templates - connection details and logo).
To delete it from the AI Workspace, first undeploy it from all gateways it was deployed to, then delete.

See What you can and can't change for the full list.
