Develop Your First Event Integration¶

An event handle executes predefined actions in response to specific events. Devant simplifies the process of developing such integrations.

This guide walks you through the steps to develop an event integration using WSO2 Integrator:BI and Devant.

In this guide, you will build a simple event integration that monitors RabbitMQ for new messages and displays them once they become available.

Prerequisites¶

GitHub account: Create a GitHub account if you don't have one already.
If signing in to Devant for the first time, create an organization to begin with.
VS Code: Install VS Code if you don't have it installed already.
Set up RabbitMQ:
- Use an existing RabbitMQ instance or start a new RabbitMQ instance on a server that can be accessed via the internet.
- Obtain the host, port, username, and password from the RabbitMQ instance.

Import a new repository to begin your integration. Refer Import a Repository for more details.
Select the Technology as WSO2 Integrator: BI.
Choose the Integration Type as Event Integration and click Create.

This redirects you to the Create New Integration in VS Code page.

Install WSO2 Integrator: BI extension. Refer Install and Set Up WSO2 Integrator: BI for more details.
Click Develop in WSO2 Integrator: BI. This will clone your integration project and open it in BI.

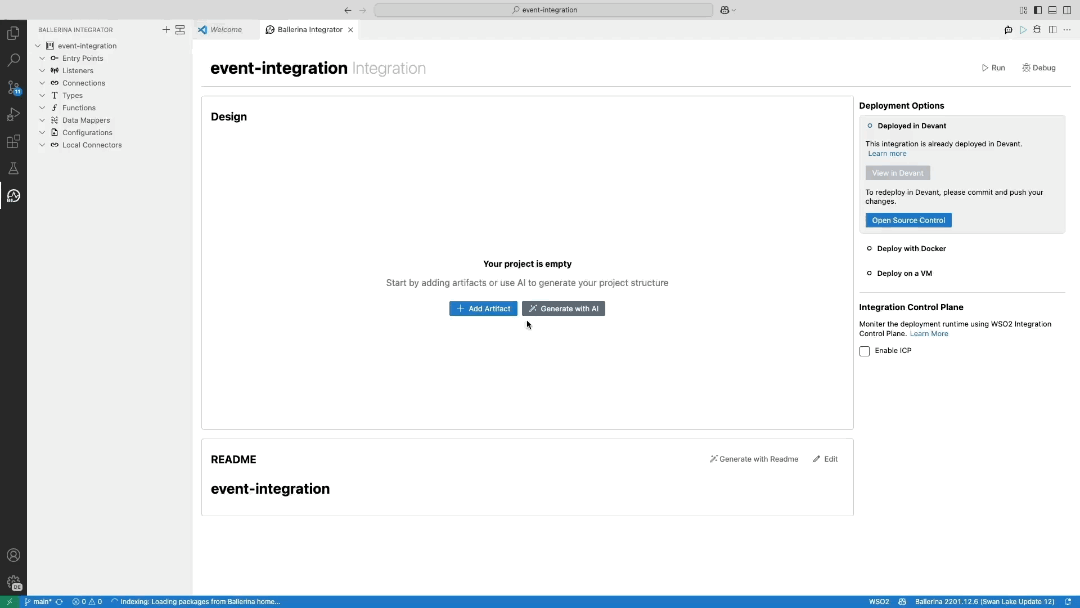

From the left side panel, click + on the Configurations, and add the following configurables.

Configurable Type

host string

port int

username string

password string

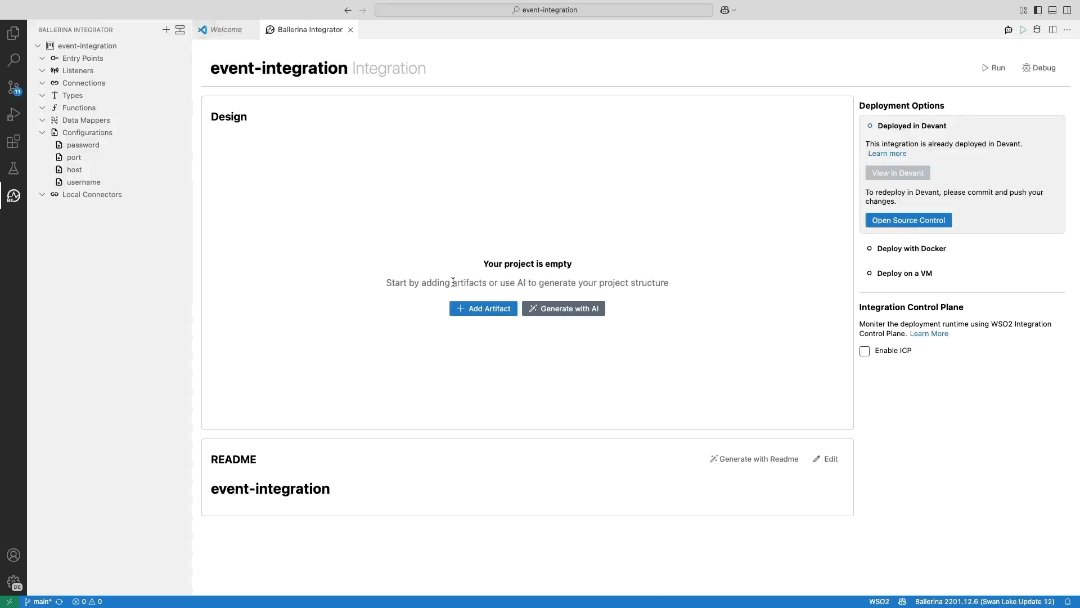

Go to the Design View by clicking the Home icon on the top left corner and click Add Artifact.
Select RabbitMQ Event Handler. Choosing the Event Integration from the Devant console disables the other options.
Provide the name of the RabbitMQ Configuration as eventListener.
Select previously defined host and port configuration variables for the Host and Port.
Then, expand the Advanced Configurations and enter the following configurables. Then click Next.

Field Value

username username

password password
Add Orders as the Queue Name and click Create. If there is no queue named Orders in RabbitMQ server, this will create a new queue with this name.

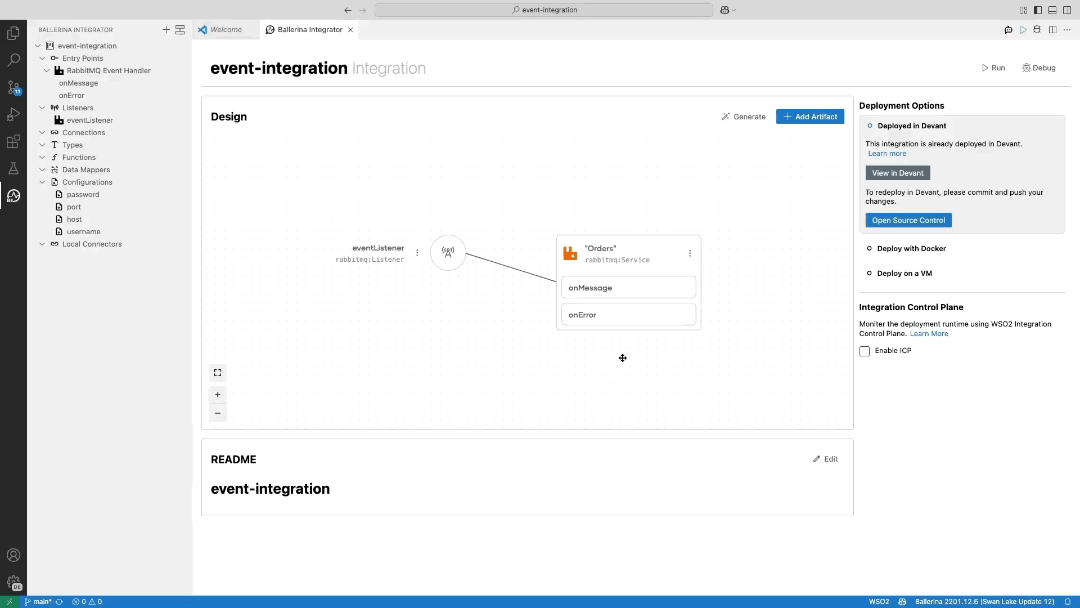

In the Design view, click the onMessage function box. It will redirect you to the flow diagram view.
Click the plus icon after the Start node to open the node panel.
Add a Log Info node with the Msg as message.toString().

Click the Source Control icon on the sidebar.
Click + to stage all changes.
Add an appropriate commit message and commit.
Click Sync Changes to push the changes to remote.
Go back to the Design view using the back arrow in the top left corner.
From the right side panel, click the View in Devant to view this integration in Devant.

Once you push the changes, the overview page of the Devant File Integration will automatically refresh and show you the Latest Commit and automatically build and show the Build Status.

Note

The build process may take some time. Once complete, the build status changes to Success. You can see the Build History by clicking Build in the left navigation.
Once the Build Status shows Build completed, click on Configure to Continue and details of RabbitMQ instance.

Send a sales order message to the Orders on the RabbitMQ server. You can send a sample sales order message similar to the following:

{
    "order_id": "12345",
    "customer_name": "John Doe",
    "product": "Widget",
    "quantity": 10,
    "total_amount": 100.00
}

Observe the logs:
- You can view the order message in the logs pane of the development card.
After successfully testing, you can promote your event integration to production by clicking the Promote button.

Now you have gained hands-on experience in creating, configuring, deploying, and testing an event integration.
