Develop Your First File Integration

Overview

In this guide, you will:

• Create an FTP listener that fetches recent weather data.
• Use WSO2 Integrator: BI to develop the File integration.
• Push the File Integration to Devant from WSO2 Integrator: BI, which will automatically build and deploy it into the development environment.
• Test the File Integration.
• Promote it to the production environment and use it as an API.

Prerequisites

1. GitHub account: Create a GitHub account if you don't have one already.
2. If signing in to Devant for the first time, create an organization to begin with.
3. VS Code: Install VS Code if you don't have it installed already.

Step 1: Create the new integration

1. Import a new repository to begin your integration. Refer Import a Repository for more details.
2. Select the Technology as WSO2 Integrator: BI.
3. Choose the Integration Type as File Integration and click Create.

This redirects you to the Create New Integration in VS Code page.

Step 2: Install the WSO2 Integrator: BI extension and open the integration

1. Install WSO2 Integrator: BI extension. Refer Install and Set Up WSO2 Integrator: BI for more details.
2. Click Develop in WSO2 Integrator: BI. This will clone your integration project and open it in BI.

Step 3: Develop File Integration in WSO2 Integrator: BI

1. From the left side panel, click + on the Configurations, and add the following configurables.

   Configurable	Type
   host	string
   username	string
   password	string
   path	string
   pattern	string



2. Go to the Design View by clicking the Home icon on the top left corner and click Add Artifact.

3. Select FTP Service. Choosing the File Integration from the Devant console disables the other options.
4. Provide the name of the Listener Configuration as weatherListener.

5. Then expand the Advanced Configurations and enter the following configurables:

   Field	Value
   Host	host
   Auth	{ credentials: { username: username, password: password }}
   Path	path
   FileNamePattern	pattern

6. Click Next, and you will see the created listener with the name weatherListener.

7. Then click on Create. It will redirect you to the Service Designer view.

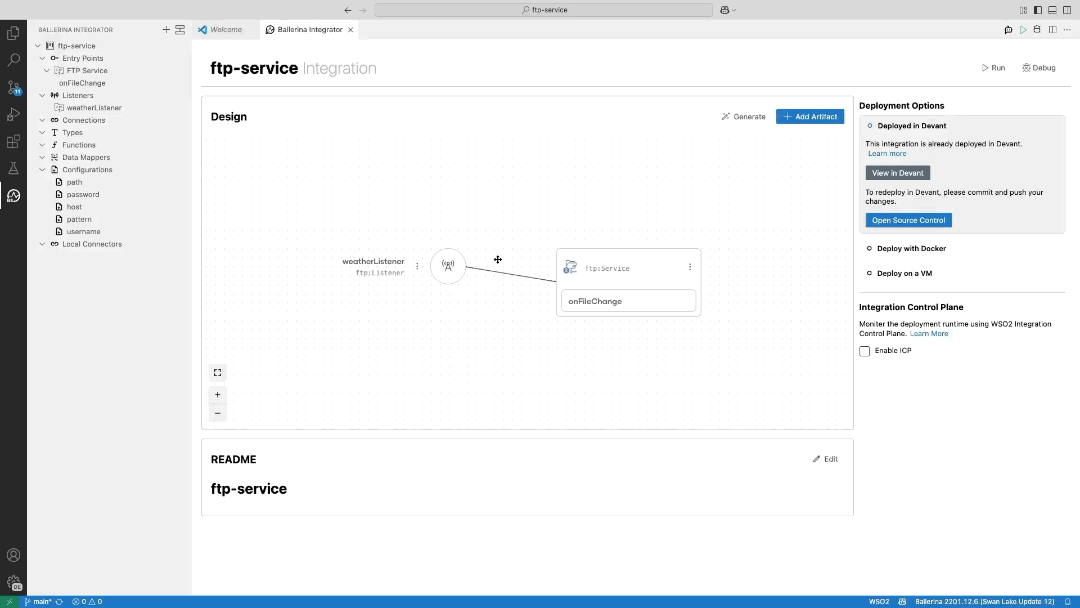

8. In the Design view, click the onFileChange function box. It will redirect you to the flow diagram view.

9. Click the plus icon after the Start node to open the node panel.

10. Select Foreach and enter the following values in relevant fields:

    Field	Value
    Variable Name	addedFile
    Variable Type	var
    Collection	event.addedFiles

11. Under the Foreach node, add a Log Info node with the Msg as "File added:" + addedFile.name.



Step 4: Push to Devant

1. Click the Source Control icon on the sidebar.
2. Click + to stage all changes.
3. Add an appropriate commit message and commit.
4. Click Sync Changes to push the changes to remote.
5. Go back to the Design view using the back arrow in the top left corner.
6. From the right side panel, click the View in Devant to view this integration in Devant.

Step 5: Test File Integration

1. Once you push the changes, the overview page of the Devant File Integration will automatically refresh and show you the Latest Commit and automatically build and show the Build Status.

   Note

   The build process may take some time. Once complete, the build status changes to Success. You can see the Build History by clicking Build in the left navigation.

2. Once the Build Status shows Build completed, click on Configure to Continue and add the sample FTP service details.

   Configurable	Value
   host	tgftp.nws.noaa.gov
   username	anonymous
   password	""
   path	/data/observations/metar/decoded/
   pattern	(.*).TXT

3. Once the deployment is successful, you can view the logs printed by the weather listener in the development card.

4. After successfully testing, you can promote your File Integration to production by clicking the Promote button.
5. Once deployed to production, you can access your File Integration through the API endpoints and embed it in your applications.
