FTP / SFTP

FTP, SFTP, and FTPS file integrations poll remote file servers for new files and process them as they arrive. Use them for ETL pipelines, batch processing, and B2B integrations where partners exchange data as CSV, XML, JSON, or binary files.

Protocol	Description	Transport security	Authentication
FTP	Standard file transfer protocol with no encryption. Suitable for internal networks or non-sensitive data.	None	Anonymous or username/password
SFTP	File transfer over an SSH tunnel. Use this for secure transfers when the remote server supports SSH.	SSH	Username/password or private key
FTPS	FTP extended with SSL/TLS encryption. Use this when the remote server requires FTP with certificate-based security.	SSL/TLS	Username/password with certificate verification

Creating an FTP service

Use this flow for plain (unencrypted) FTP. Default port: 21. Supports anonymous connections and username/password authentication.

Visual Designer

1. Click + Add Artifact in the canvas or click + next to Entry Points in the sidebar.

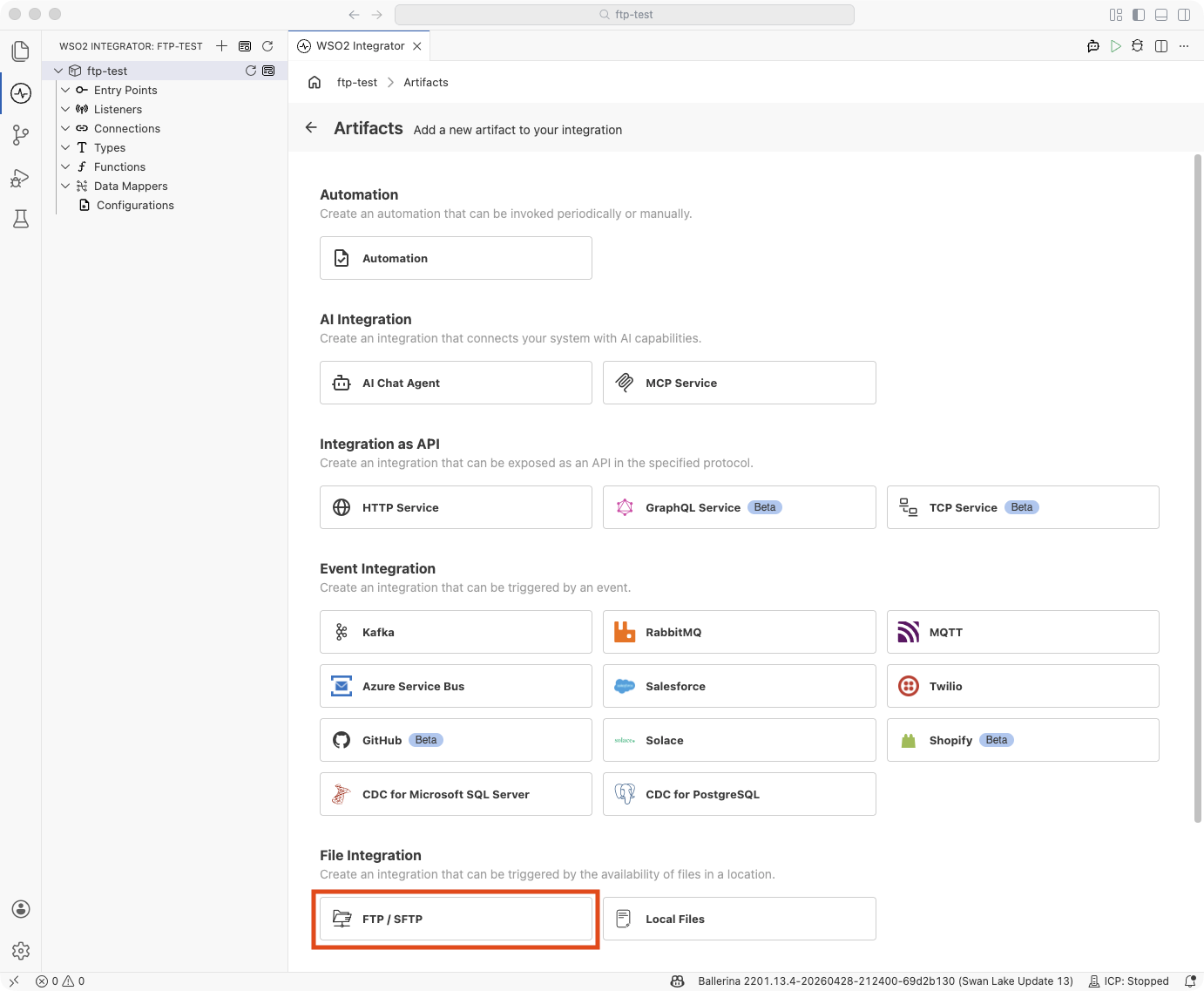

2. In the Artifacts panel, select FTP / SFTP under File Integration.

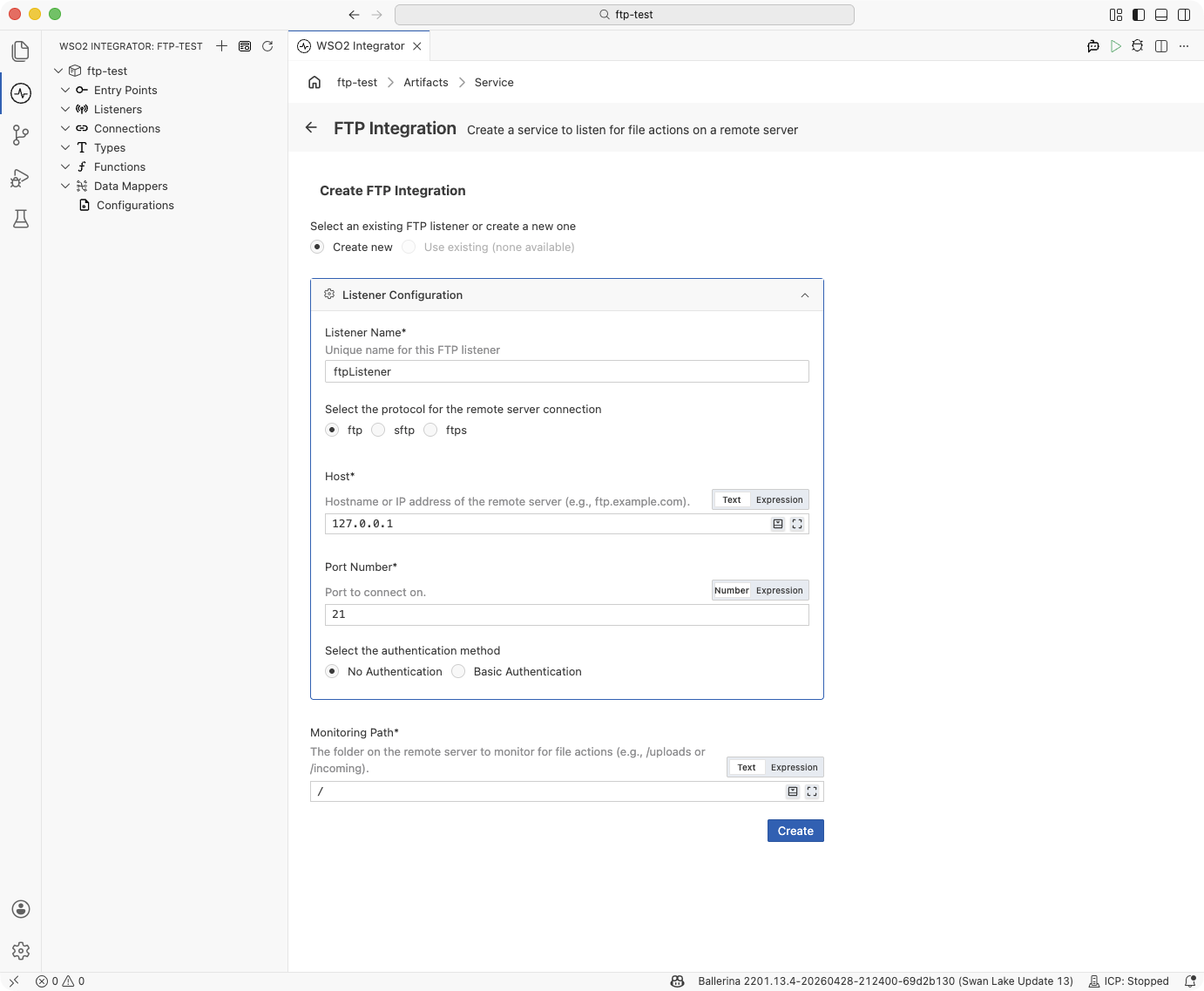

3. In the Create FTP Integration form, keep Protocol set to ftp.



4. Fill in the Listener Configuration:

   Field	Description
   Listener Name	Identifier for this listener (e.g., ftpListener).
   Host	Hostname or IP address of the remote server (e.g., ftp.example.com).
   Port Number	Port to connect on. Set to 21 for standard FTP.

5. Choose an authentication method:

   Option	Fields revealed	Use when
   No Authentication	—	The server accepts anonymous logins or a username alone without a password.
   Basic Authentication	Username, Password	The server requires a username and password.

6. Enter the Monitoring Path — the directory on the remote server to poll for new files (e.g., /uploads). Defaults to /.

7. Click Create. WSO2 Integrator opens the service in the Service Designer with the listener pill attached.



8. Click + Add File Handler to define how incoming files are processed.

Ballerina Code

FTP with anonymous access:

import ballerina/ftp;

listener ftp:Listener ftpListener = check new ({
    protocol: ftp:FTP,
    host: "ftp.example.com",
    port: 21
});

@ftp:ServiceConfig {
    path: "/incoming"
}
service on ftpListener {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Process text file content
    }
}

FTP with username and password:

import ballerina/ftp;

configurable string host = "ftp.example.com";
configurable int port = 21;
configurable string username = ?;
configurable string password = ?;

listener ftp:Listener ftpListener = check new ({
    protocol: ftp:FTP,
    host: host,
    port: port,
    auth: {credentials: {username, password}}
});

@ftp:ServiceConfig {
    path: "/incoming"
}
service on ftpListener {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Process text file content
    }
}

Creating an FTPS service

Use this flow for FTP over SSL/TLS. Default port: 21 (explicit FTPS) or 990 (implicit FTPS). The listener performs a TLS handshake before any credentials are exchanged, so certificate material is always part of the configuration.

Visual Designer

1. Click + Add Artifact → FTP / SFTP under File Integration.

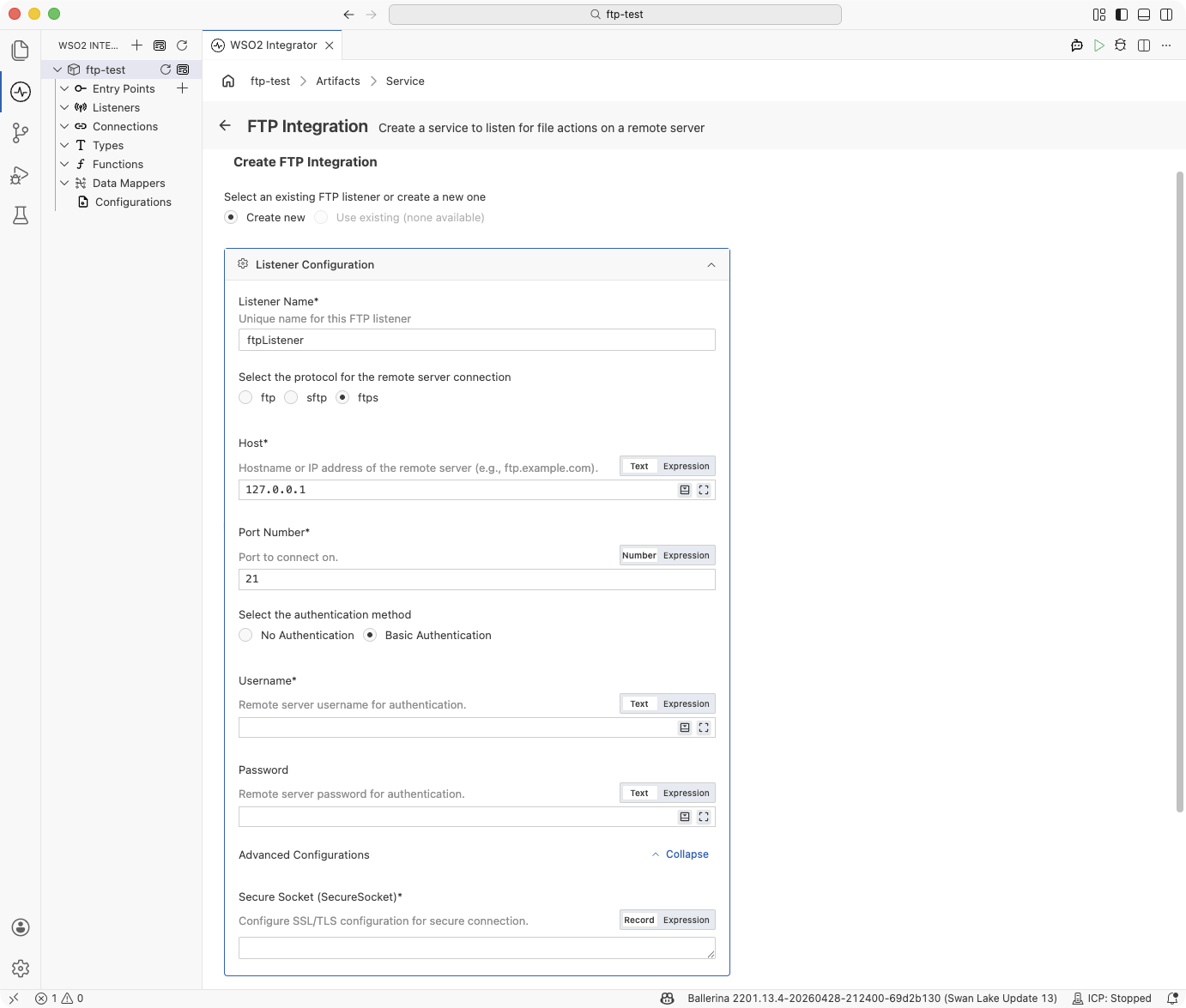

2. In the Create FTP Integration form, select Protocol → ftps.



3. Fill in the Listener Configuration:

   Field	Description
   Listener Name	Identifier for this listener (e.g., ftpsListener).
   Host	Hostname or IP address of the remote server (e.g., ftps.example.com).
   Port Number	Port to connect on. Set to 21 for explicit FTPS or 990 for implicit FTPS.

4. Choose an authentication method:

   Option	Fields revealed	Use when
   No Authentication	—	The server accepts anonymous TLS connections.
   Basic Authentication	Username, Password	The server requires credentials over the encrypted channel. Typical for FTPS.

5. Expand Advanced Configurations. The Secure Socket field is required for FTPS. Click Record and supply the SSL/TLS configuration — at minimum a truststore or certificate path so the client can verify the server:

   {
       cert: {path: "/path/to/truststore.jks", password: "changeit"}
   }

   See SSL/TLS configuration for the full field set, including mutual TLS and protocol-version pinning.

6. Enter the Monitoring Path and click Create.

7. Click + Add File Handler in the Service Designer to define how incoming files are processed.

Ballerina Code

FTPS with username and password and a truststore:

import ballerina/ftp;

configurable string host = "ftps.example.com";
configurable int port = 21;
configurable string username = ?;
configurable string password = ?;

listener ftp:Listener ftpsListener = check new ({
    protocol: ftp:FTPS,
    host: host,
    port: port,
    auth: {
        credentials: {username, password},
        secureSocket: {
            cert: {
                path: "/path/to/truststore.jks",
                password: "changeit"
            }
        }
    }
});

@ftp:ServiceConfig {
    path: "/incoming"
}
service on ftpsListener {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Process text file content
    }
}

The cert field accepts either a crypto:TrustStore record (JKS) or a path to a PEM certificate. For the full schema, see SSL/TLS configuration (FTPS).

Creating an SFTP service

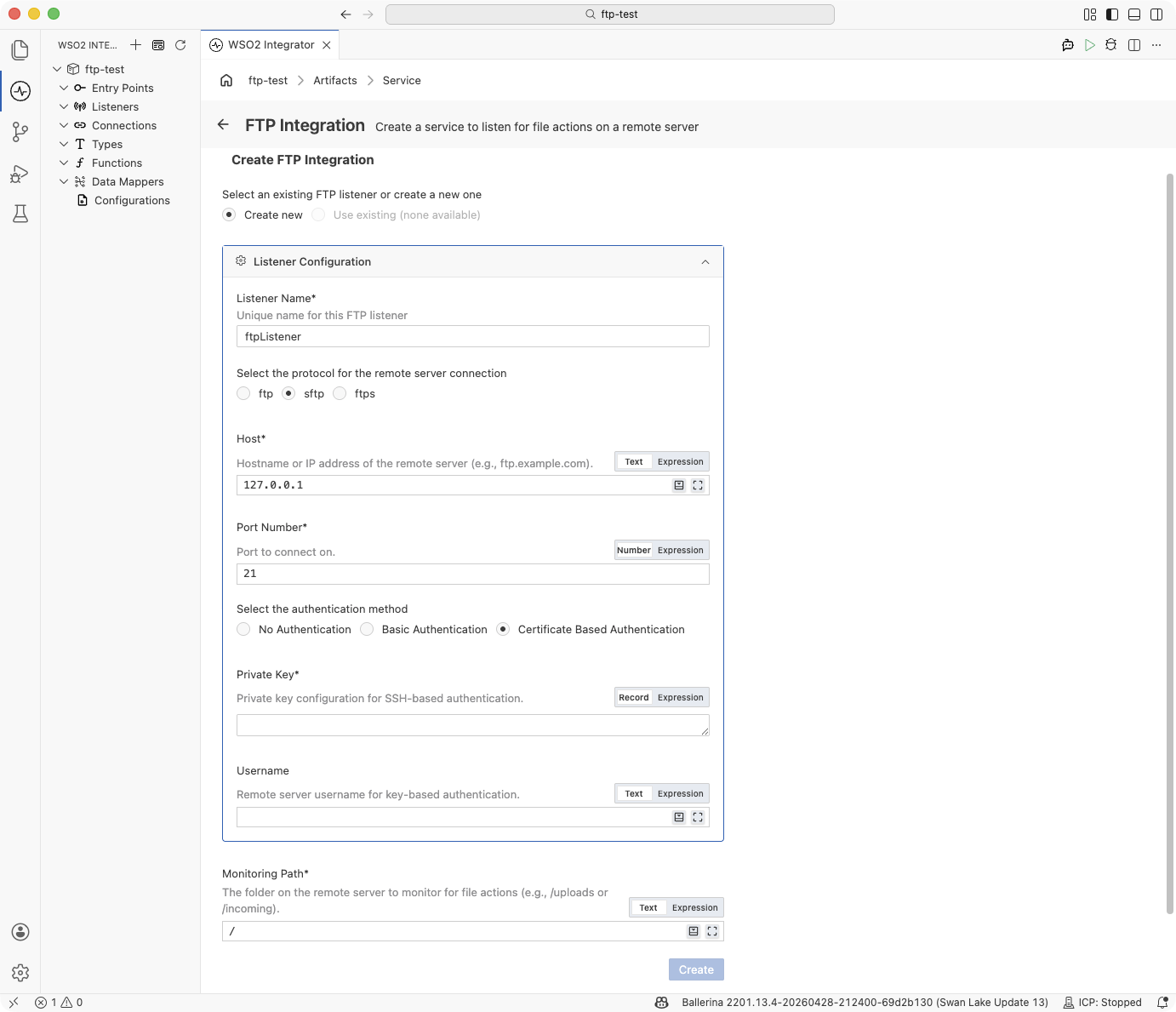

Use this flow for SFTP (FTP over SSH). Default port: 22. The form collects the SSH private key material and matching username. For username/password SFTP authentication, use the Ballerina Code tab below.

Visual Designer

1. Click + Add Artifact → FTP / SFTP under File Integration.

2. In the Create FTP Integration form, select Protocol → sftp.



3. Fill in the Listener Configuration:

   Field	Description
   Listener Name	Identifier for this listener (e.g., sftpListener).
   Host	Hostname or IP address of the remote server (e.g., sftp.example.com).
   Port Number	Port to connect on. Set to 22 for SFTP.

4. Choose Certificate-Based Authentication under authentication method. This reveals the Private Key and Username fields.

5. Enter the Private Key record. Click Record on the field and supply:

   {path: "/path/to/private_key"}

   If the private key is passphrase-protected, include the passphrase in the record:

   {path: "/path/to/private_key", password: "my-passphrase"}

6. Enter the Username that matches the configured private key and the Monitoring Path.

7. Click Create. Then click + Add File Handler in the Service Designer.

Ballerina Code

SFTP with username and password:

import ballerina/ftp;

configurable string host = "sftp.partner.com";
configurable int port = 22;
configurable string username = ?;
configurable string password = ?;

listener ftp:Listener sftpListener = check new ({
    protocol: ftp:SFTP,
    host: host,
    port: port,
    auth: {credentials: {username, password}}
});

@ftp:ServiceConfig {
    path: "/data/inbound"
}
service on sftpListener {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Process text file content
    }
}

SFTP with a private key:

import ballerina/ftp;

configurable string host = "sftp.partner.com";
configurable int port = 22;
configurable string username = ?;
configurable string privateKeyPath = ?;

listener ftp:Listener sftpListener = check new ({
    protocol: ftp:SFTP,
    host: host,
    port: port,
    auth: {
        credentials: {username},
        privateKey: {path: privateKeyPath}
    }
});

@ftp:ServiceConfig {
    path: "/data/inbound"
}
service on sftpListener {
    remote function onFileCsv(string[][] content, ftp:FileInfo fileInfo) returns error? {
        // Process CSV rows
    }
}

SFTP with a passphrase-protected private key:

listener ftp:Listener sftpListener = check new ({
    protocol: ftp:SFTP,
    host: host,
    port: port,
    auth: {
        credentials: {username},
        privateKey: {path: privateKeyPath, password: keyPassphrase}
    }
});

File handlers

A file handler is a remote function that WSO2 Integrator calls each time the listener's polling cycle detects a file event in the monitored directory. A service can declare any combination of the three handler types:

Handler	Trigger
onCreate (onFileText / onFileJson / onFileXml / onFileCsv / onFile)	A new file matching the service's fileNamePattern appears on the remote server. The function name depends on the content type — one variant per file format.
onFileDelete	A previously seen file is no longer present on the remote server.
onError	The runtime could not map incoming content to a typed onCreate handler — for example, a JSON handler received malformed JSON.

At least one onCreate or onFileDelete handler is required — a service with only an onError handler is not valid.

onFileDeleted is also supported as a legacy/deprecated delete callback. Prefer onFileDelete for new services.

Adding a file handler

Visual Designer

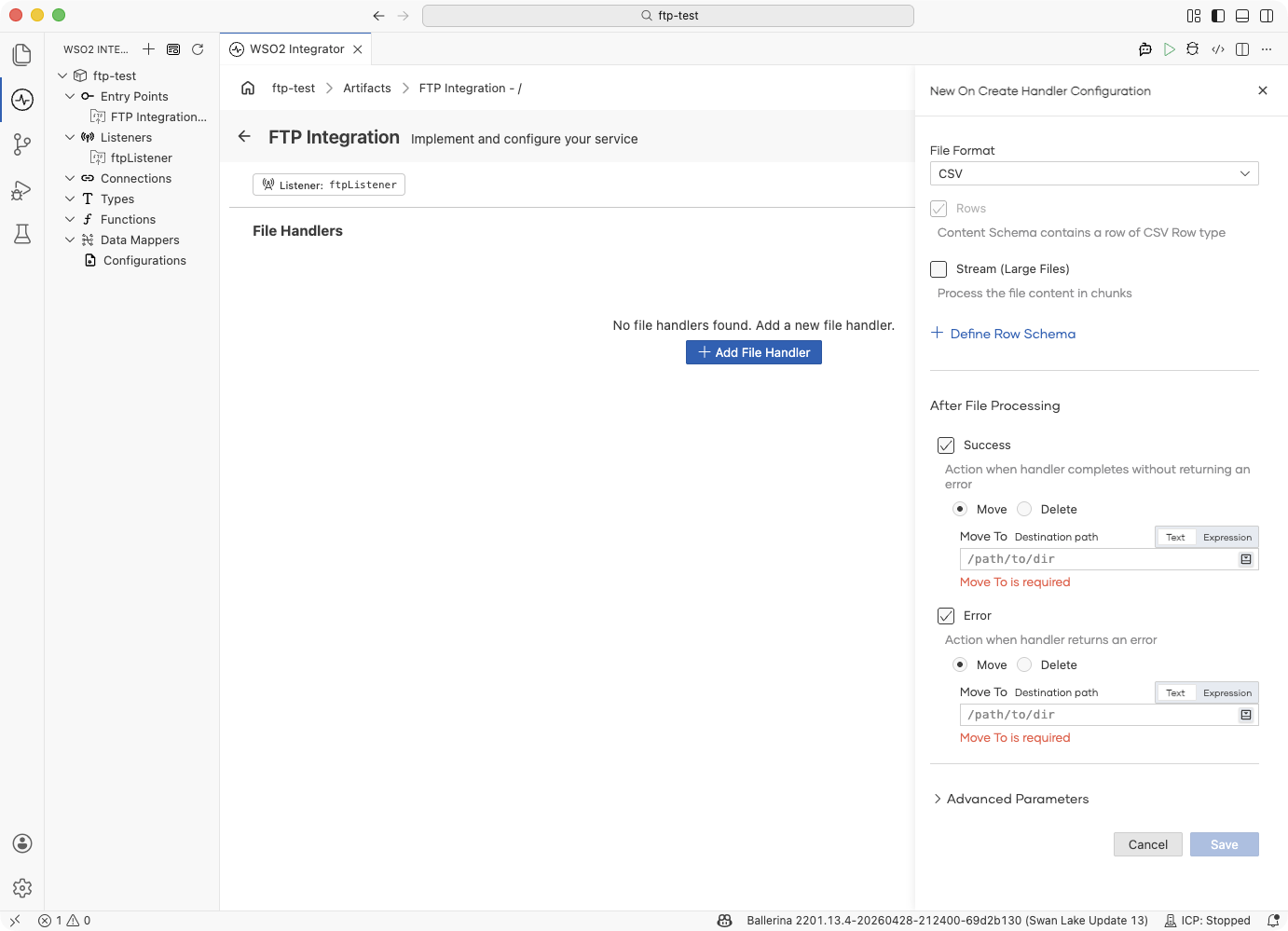

In the Service Designer, click + Add File Handler and pick onCreate, onDelete, or onError. The handler configuration panel opens on the right.

Field	Description
File Format	(onCreate only) The format of incoming files. Determines the handler function name and the type of the content parameter. Options: TEXT, JSON, XML, CSV, RAW. See Content types.
Rows	(CSV only) The content schema is defined per row — each CSV row maps to a record type (Row schema).
Stream (Large Files)	(CSV and RAW) Process the file content in chunks instead of loading it all into memory. See Typed content and streaming.
+ Define Row Schema	(CSV only) Map CSV rows to a typed record. See Typed content and streaming.
+ Define Content Schema	(JSON, XML only) Map the document to a typed record. See Typed content and streaming.
After File Processing — Success	Action to take when the handler completes without error: Move to a destination path or Delete the file. See Post-processing.
After File Processing — Error	Action to take when the handler returns an error: Move to an error directory or Delete the file.

Expand Advanced Parameters for optional handler parameters:

Field	Description
File Metadata (fileInfo)	Include ftp:FileInfo as a parameter in the handler function, giving access to file name, path, size, and other metadata. See FileInfo.
FTP Connection (caller)	Include ftp:Caller as a parameter, giving access to read/write operations on the same server. See Caller operations.

Click Save to add the handler.

Ballerina Code

File handlers are typed remote function declarations inside the service. WSO2 Integrator routes events to handlers by function name; the content parameter type determines deserialization.

Text file handler:

remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
    // content contains the full file text
}

JSON file handler (typed record):

type Order record {|
    string orderId;
    string product;
    int quantity;
|};

remote function onFileJson(Order order, ftp:FileInfo fileInfo) returns error? {
    // order is deserialized from JSON
}

CSV streaming handler (large files):

remote function onFileCsv(stream<string[], error?> content, ftp:FileInfo fileInfo) returns error? {
    check content.forEach(function(string[] row) returns error? {
        // Process each row without loading the whole file into memory
    });
}

Binary file handler:

remote function onFile(byte[] content, ftp:FileInfo fileInfo) returns error? {
    // content is the raw file bytes
}

Delete handler:

remote function onFileDelete(string deletedFile) returns error? {
    // deletedFile is the name of the file that was removed
}

Error handler — fires when content cannot be mapped to a typed handler (for example, a JSON handler receiving malformed JSON):

remote function onError(ftp:Error ftpError) returns error? {
    log:printError("file processing error", 'error = ftpError);
}

Content types

The File Format chosen on an onCreate handler determines the function name and the type of the content parameter.

File Format	Handler function	Content type	Use when
TEXT	onFileText	string	Files are plain text (logs, EDI, custom formats).
JSON	onFileJson	json or a typed record	Files are JSON documents.
XML	onFileXml	xml or a typed record	Files are XML documents.
CSV	onFileCsv	string[][], record[], or a stream variant	Files are comma-separated values. Use a typed record to map rows automatically. Enable Stream for large files.
RAW	onFile	byte[] or stream<byte[], error?>	Binary files or when you need raw byte access. Enable Stream for large files.

Post-processing: moving or deleting files

Once a handler finishes — whether successfully or with an error — the runtime can move the file to another directory on the same server or delete it outright. You configure this directly on the Add File Handler form; switch to the Ballerina Code tab only when you need to review or adjust the generated annotation.

Visual Designer

The Add File Handler form's After File Processing section has two independent toggles:

Event	Ticked by default?	Action picker	Extra input
Success	Yes	Move or Delete	Move To destination path (required when Move is chosen)
Error	Yes	Move or Delete	Move To destination path (required when Move is chosen)

Common combinations:

• Move on success, move on error — archive processed files and quarantine failures. Set separate destinations like /processed and /errors.
• Delete on success, move on error — discard successfully processed files, keep failures for review.
• Leave the file alone for this outcome — untick Success or Error to skip the action for that side.

The choices update the handler's @ftp:FunctionConfig annotation as you toggle; switch to the Ballerina Code tab to review the generated annotation.

Ballerina Code

The form writes an @ftp:FunctionConfig annotation on the handler. Each of afterProcess and afterError takes one of two values — ftp:MOVE (a ftp:Move record) for move, or the bare constant ftp:DELETE for delete:

@ftp:FunctionConfig {
    afterProcess: {
        moveTo: string `/processed`
    },
    afterError: ftp:DELETE
}
remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
    check processFile(fileInfo.name, content);
}

@ftp:FunctionConfig fields:

Field	Type	Description
fileNamePattern	string?	Regex to filter which files this handler processes. Overrides the service-level pattern for this handler.
afterProcess	ftp:MOVE|ftp:DELETE?	Action to take when the handler returns without error. Omit the field to leave the file in place. For move, use { moveTo: <path> }.
afterError	ftp:MOVE|ftp:DELETE?	Action to take when the handler returns an error. Same shape as afterProcess.

Typed content and streaming

CSV, JSON, and XML handlers can receive their payload as a free-form type (string[][], json, xml) or as a typed record you define. CSV and RAW can additionally deliver the content as a stream<T, error?> so the handler never holds the whole file in memory. Both options are set on the Add File Handler form.

Visual Designer

Map the payload to a typed record. Click the button exposed by the selected File Format:

File Format	Button	What it does
CSV	+ Define Row Schema	Opens a record builder for a single CSV row; the handler's content parameter becomes YourRow[].
JSON	+ Define Content Schema	Opens a record builder for the whole JSON document; the handler's content parameter becomes YourRecord.
XML	+ Define Content Schema	Same as JSON — the handler receives a typed record mapped from the XML document.
TEXT, RAW	—	Content is always a string or byte[]; no schema to define.

The record builder lets you add fields one at a time. Each field gets a name and a Ballerina type (string, int, decimal, boolean, or another record). Saving the schema updates the handler signature so you get type-checked field access inside the body.

Stream the content for large files. On CSV and RAW handlers, tick Stream (Large Files). The content parameter becomes a stream<T, error?> and the runtime pipes the file to the handler incrementally — iterate with content.forEach(...) instead of holding the whole payload.

Stream combines with Define Row Schema (CSV) — ticking both produces stream<YourRow, error?>. JSON and XML always parse the entire document at once and do not offer streaming.

Ballerina Code

Typed CSV rows:

type Order record {|
    string orderId;
    string product;
    int quantity;
|};

remote function onFileCsv(Order[] orders, ftp:FileInfo fileInfo) returns error? {
    foreach Order 'order in orders {
        // typed field access: 'order.orderId, 'order.quantity, ...
    }
}

Typed JSON document:

type OrderBatch record {|
    string batchId;
    Order[] orders;
|};

remote function onFileJson(OrderBatch batch, ftp:FileInfo fileInfo) returns error? {
    // batch.batchId and batch.orders are typed
}

Streaming CSV rows:

remote function onFileCsv(stream<Order, error?> orders, ftp:FileInfo fileInfo) returns error? {
    check orders.forEach(function(Order 'order) {
        // process each row as it arrives
    });
}

Streaming raw bytes:

remote function onFile(stream<byte[], error?> content, ftp:FileInfo fileInfo) returns error? {
    check content.forEach(function(byte[] chunk) {
        // process each chunk
    });
}

FileInfo

Each handler receives an ftp:FileInfo parameter with metadata about the incoming file.

Field	Type	Description
name	string	File name without path
path	string	Relative path on the remote server
pathDecoded	string	Normalized absolute path — use this for all caller-> operations
size	int	File size in bytes
lastModifiedTimestamp	int	Last-modified time as UNIX epoch milliseconds
extension	string	File extension
isFile	boolean	true if the entry is a file
isFolder	boolean	true if the entry is a directory

Caller operations

For most use cases, the typed handler parameters (string, json, xml, records, streams) and @ftp:FunctionConfig post-processing actions are sufficient. When you need additional control — such as reading a related file, writing output to a different path, or managing files manually — add the ftp:Caller parameter to your handler. It provides typed read and write operations on the connected server using the same session.

Reading files:

Operation	Return type	Description
caller->getText(path)	string|Error	Read file as plain text
caller->getBytes(path)	byte[]|Error	Read file as a byte array
caller->getJson(path, typedesc)	T|Error	Read and deserialize JSON; pass a typed record typedesc to get a typed result
caller->getXml(path, typedesc)	T|Error	Read and deserialize XML; pass a typed record typedesc to get a typed result
caller->getCsv(path, typedesc)	T|Error	Read and parse CSV; pass string[][] or a record array typedesc
caller->getBytesAsStream(path)	stream<byte[], error?>|Error	Read as a byte stream for large files
caller->getCsvAsStream(path, typedesc)	stream<T, error?>|Error	Read CSV as a stream for large files

Writing files:

All write operations accept a ftp:FileWriteOption third argument to control overwrite behaviour (OVERWRITE or APPEND).

Operation	Description
caller->putText(path, content, option)	Write a string to a file
caller->putBytes(path, content, option)	Write a byte array to a file
caller->putJson(path, content, option)	Serialize and write JSON
caller->putXml(path, content, option)	Serialize and write XML
caller->putCsv(path, content, option)	Serialize and write CSV (string[][] or record[])
caller->putBytesAsStream(path, stream, option)	Write a byte stream to a file

File management:

Operation	Return type	Description
caller->delete(path)	Error?	Delete a file
caller->mkdir(path)	Error?	Create a directory
caller->exists(path)	boolean|Error	Check whether a path exists on the server

Service and listener

Every FTP/SFTP integration you see in the project tree is built from two pieces:

Construct	Role
Listener	The connection to the remote server. Holds the protocol, host, port, credentials, and how often to poll. Each listener represents one server.
Service	The processing logic for a single directory on that server. Holds the monitoring path, file filters, and the file handlers that run when a file arrives.

You can reuse either side of the pair. The same listener can feed several services (for example, different directories on one server that need different handling), and a single service can draw from several listeners (for example, a primary and a backup server feeding the same integration). Three topologies cover the common cases:

Topology	When to use
One listener ↔ one service	The default. One remote server, one integration handling one directory.
One listener ↔ many services	One remote server with multiple directories that need different handlers (for example, /orders and /invoices on the same FTP server). Create one listener and attach several services to it.
One service ↔ many listeners	One integration that drains two (or more) remote servers — typical for HA/failover setups or for consolidating identical file feeds from multiple partners.

One listener ↔ many services

Visual Designer

Under Entry Points, each service appears as its own FTP Integration - <path> item. Under Listeners, you'll see a single listener shared by all of them:

This is the default path: every FTP service you add after the first one starts on the Use existing option, so new services reuse the listener unless you opt out. See Reusing an existing listener when creating a service.

Ballerina Code

Declare the listener once, then write each service against the same listener name:

listener ftp:Listener ftpListener = new (
    host = "ftp.example.com",
    auth = {credentials: {username: ftpUser, password: ftpPassword}},
    pollingInterval = 30
);

@ftp:ServiceConfig { path: "/orders", fileNamePattern: ".*\\.csv" }
service on ftpListener {
    remote function onFileCsv(string[][] content, ftp:FileInfo fileInfo) returns error? {
        // Process order CSVs
    }
}

@ftp:ServiceConfig { path: "/invoices", fileNamePattern: ".*\\.xml" }
service on ftpListener {
    remote function onFileXml(xml content, ftp:FileInfo fileInfo) returns error? {
        // Process invoice XMLs
    }
}

One service ↔ many listeners

Visual Designer

A single FTP Integration - <path> entry lists both (or all) of its listeners under Attached Listeners in the FTP Integration Configuration panel:

Build this topology by opening the service's Configure panel and clicking + Attach Listener — see Attaching an additional listener to an existing service.

Ballerina Code

Declare each listener separately, then attach the same service to all of them:

listener ftp:Listener primaryListener = new (
    host = "ftp-primary.example.com",
    auth = {credentials: {username: ftpUser, password: ftpPassword}}
);

listener ftp:Listener backupListener = new (
    host = "ftp-backup.example.com",
    auth = {credentials: {username: ftpUser, password: ftpPassword}}
);

@ftp:ServiceConfig { path: "/incoming" }
service on primaryListener, backupListener {
    // One handler fires regardless of which server the file arrived on.
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Process the file
    }
}

For the general concept, see Services and listeners.

Attaching listeners to services

Once the integration has at least one listener, two flows wire up the topologies described under Service and listener. Sharing a listener is the default when you create a second FTP service from the Create FTP Integration form; attaching an additional listener to an existing service is an explicit action on the Service Configuration panel.

Reusing an existing listener when creating a service

Use this flow to build the one listener ↔ many services topology. After the first FTP service is saved, the Create FTP Integration form defaults to Use existing when you open it again — every subsequent service attaches to an existing listener unless you explicitly switch to Create new.

Visual Designer

1. Click + Add Artifact → FTP / SFTP under File Integration to open the Create FTP Integration form.

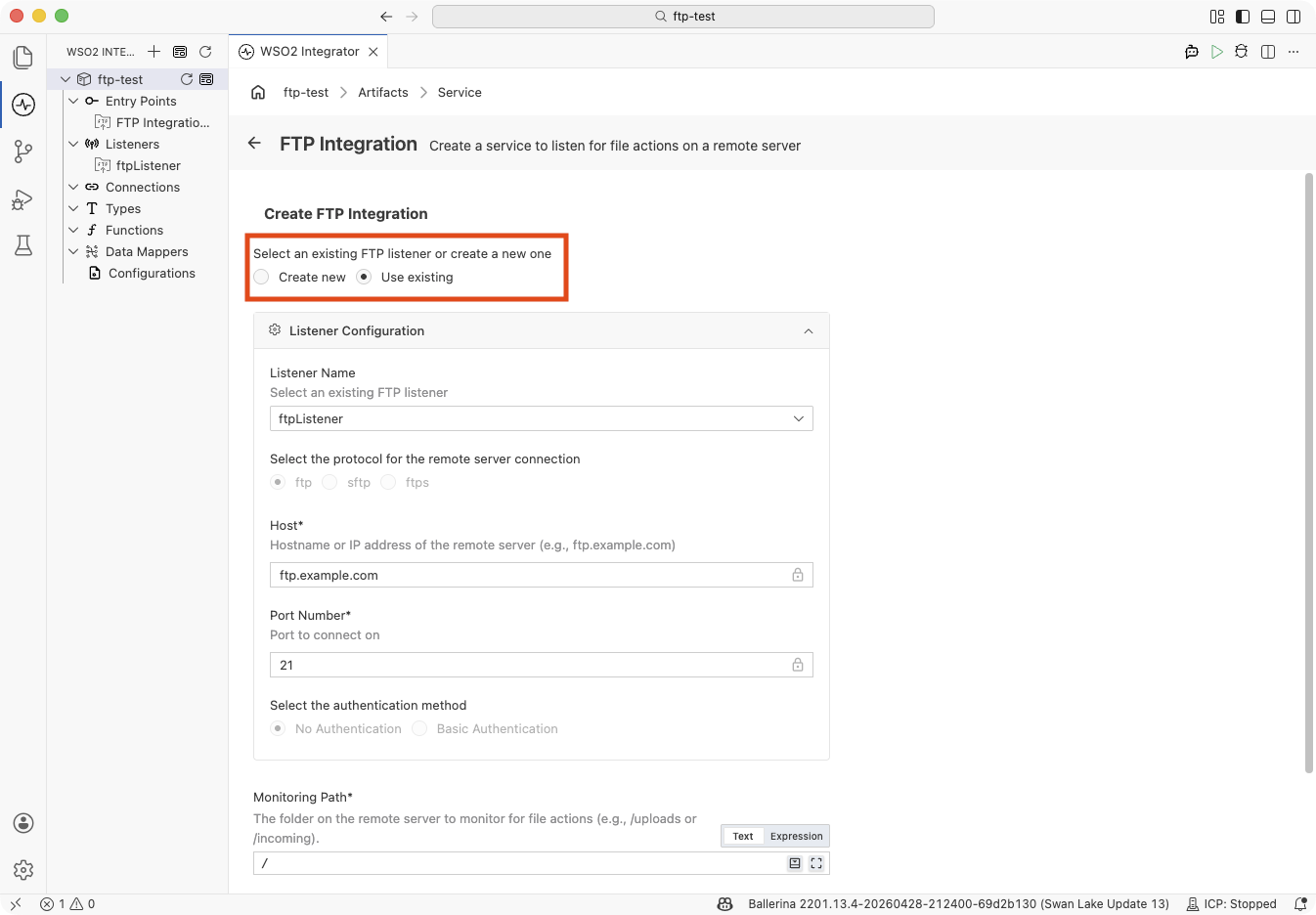

2. When the integration already has at least one FTP listener, the Select an existing FTP listener or create a new one picker at the top of the form defaults to Use existing. Sharing a listener is the encouraged flow for the second and subsequent services. (Create new should only be used when you want a dedicated listener for this service.)

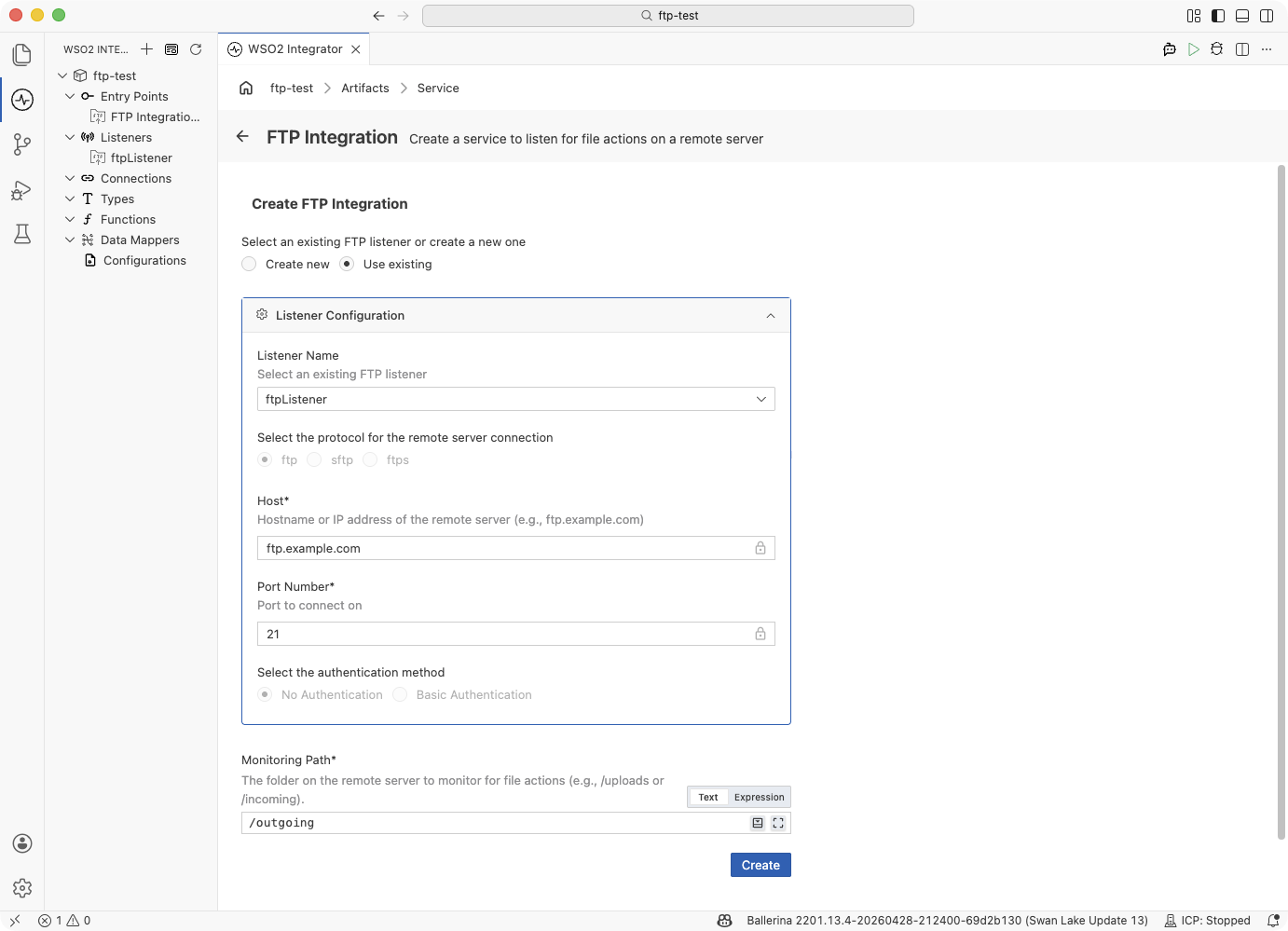

3. The Listener Name field is a dropdown prefilled with the first available listener. Pick a different one if needed. Protocol, Host, Port Number, and the authentication method are locked (they belong to the listener, not to this service) so you can see the settings the new service will inherit but cannot change them here.



4. Enter the Monitoring Path for the new service (this is service-level, so it stays editable even under Use existing) and click Create.

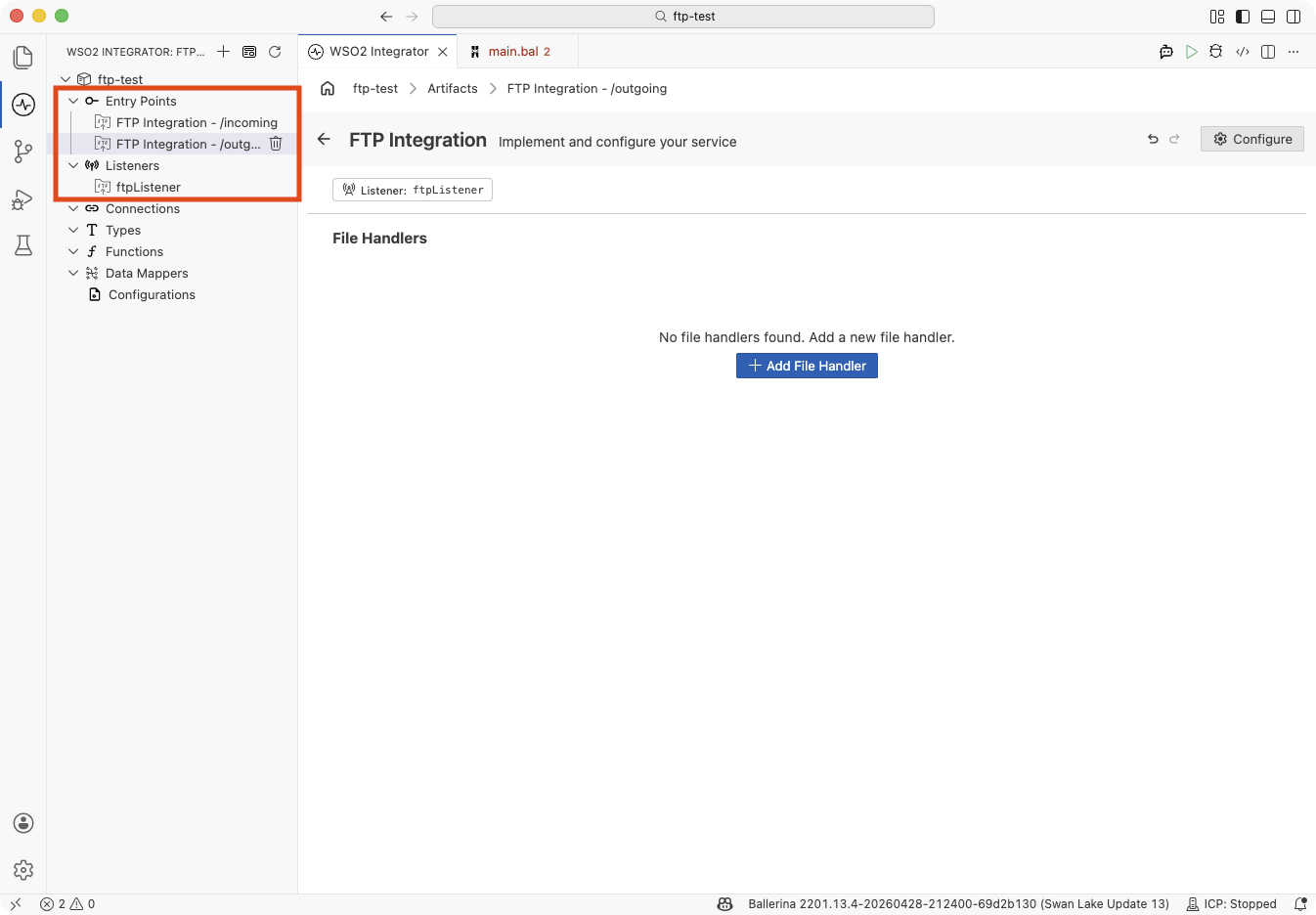

5. The project tree now shows both services under Entry Points and the single shared listener under Listeners:



Ballerina Code

Declare the listener once, then add another service on block referring to the same listener variable:

import ballerina/ftp;

listener ftp:Listener ftpShared = new (
    protocol = ftp:FTP,
    host = "ftp.example.com",
    port = 21
);

@ftp:ServiceConfig { path: "/incoming" }
service on ftpShared {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Handle files in /incoming
    }
}

@ftp:ServiceConfig { path: "/outgoing" }
service on ftpShared {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Handle files in /outgoing
    }
}

Both services poll the same remote server through the same connection and authentication — only the monitoring path and handler logic differ.

Attaching an additional listener to an existing service

Use this flow to build the one service ↔ many listeners topology. It attaches a second (or third) listener to a service that is already saved, so a single handler implementation processes files from every attached listener.

Visual Designer

1. Open the service you want to extend — click the FTP Integration - <path> entry in the project tree.

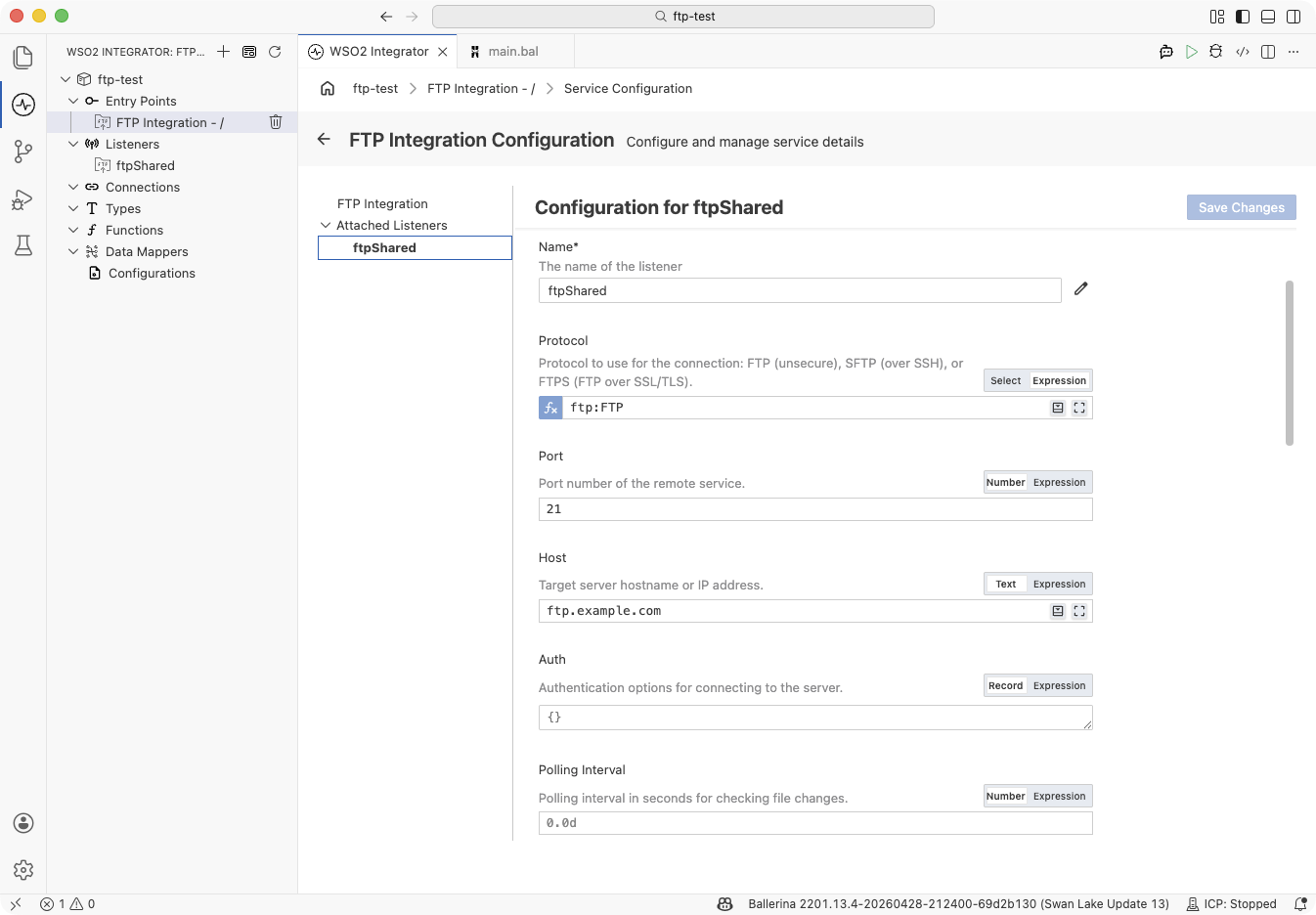

2. In the Service Designer, click Configure to open the FTP Integration Configuration panel. The left-hand nav pane lists the service's current listeners under Attached Listeners.

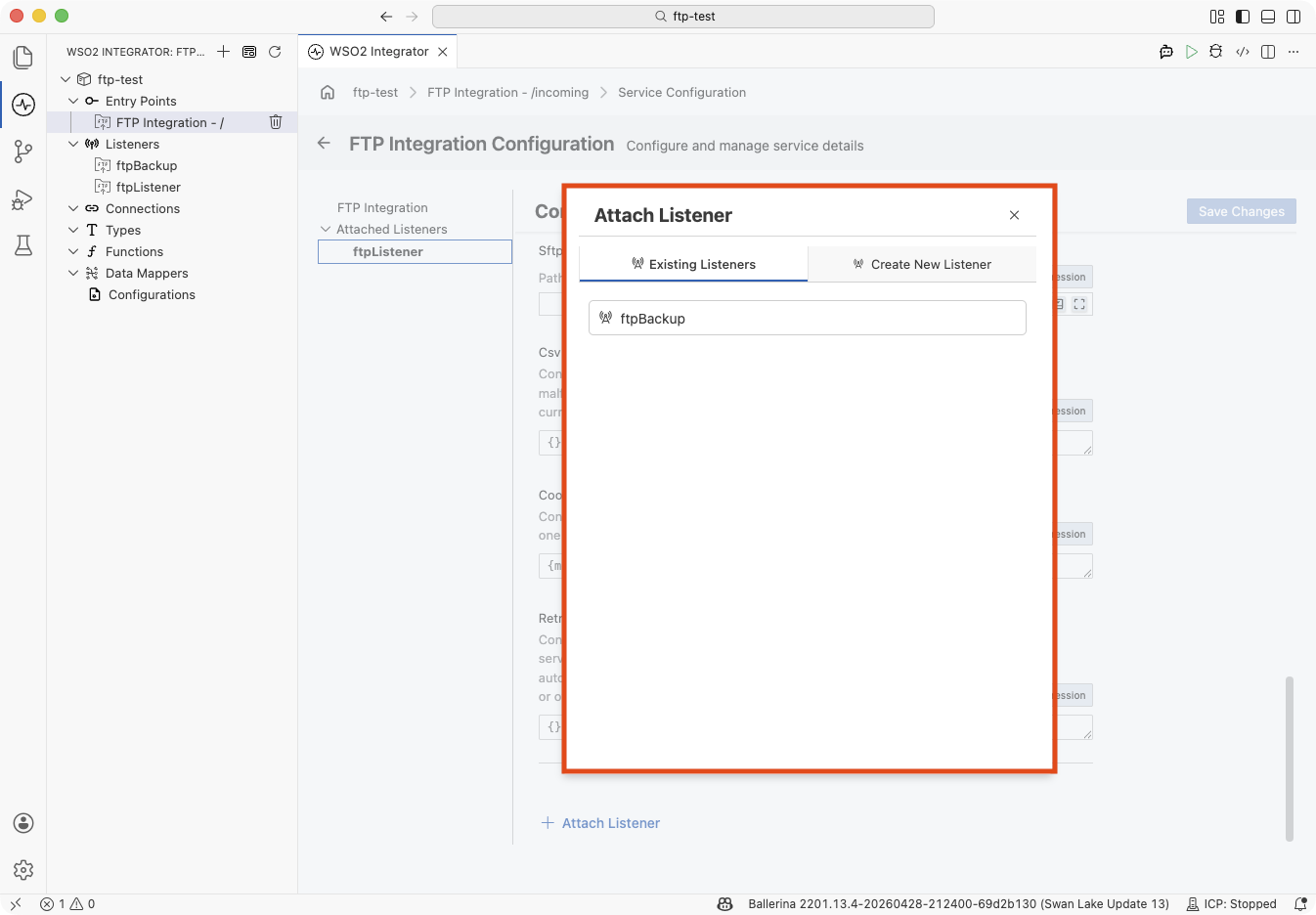

3. Scroll to the bottom of the panel and click + Attach Listener. The Attach Listener side panel opens with two tabs:



   Tab	Use when
   Existing Listeners	You already have another listener defined in the integration. Click its name to attach it. Listeners already bound to this service are omitted from the list.
   Create New Listener	You want to spawn a new listener inline — same field set as the Create FTP Integration form's listener section.

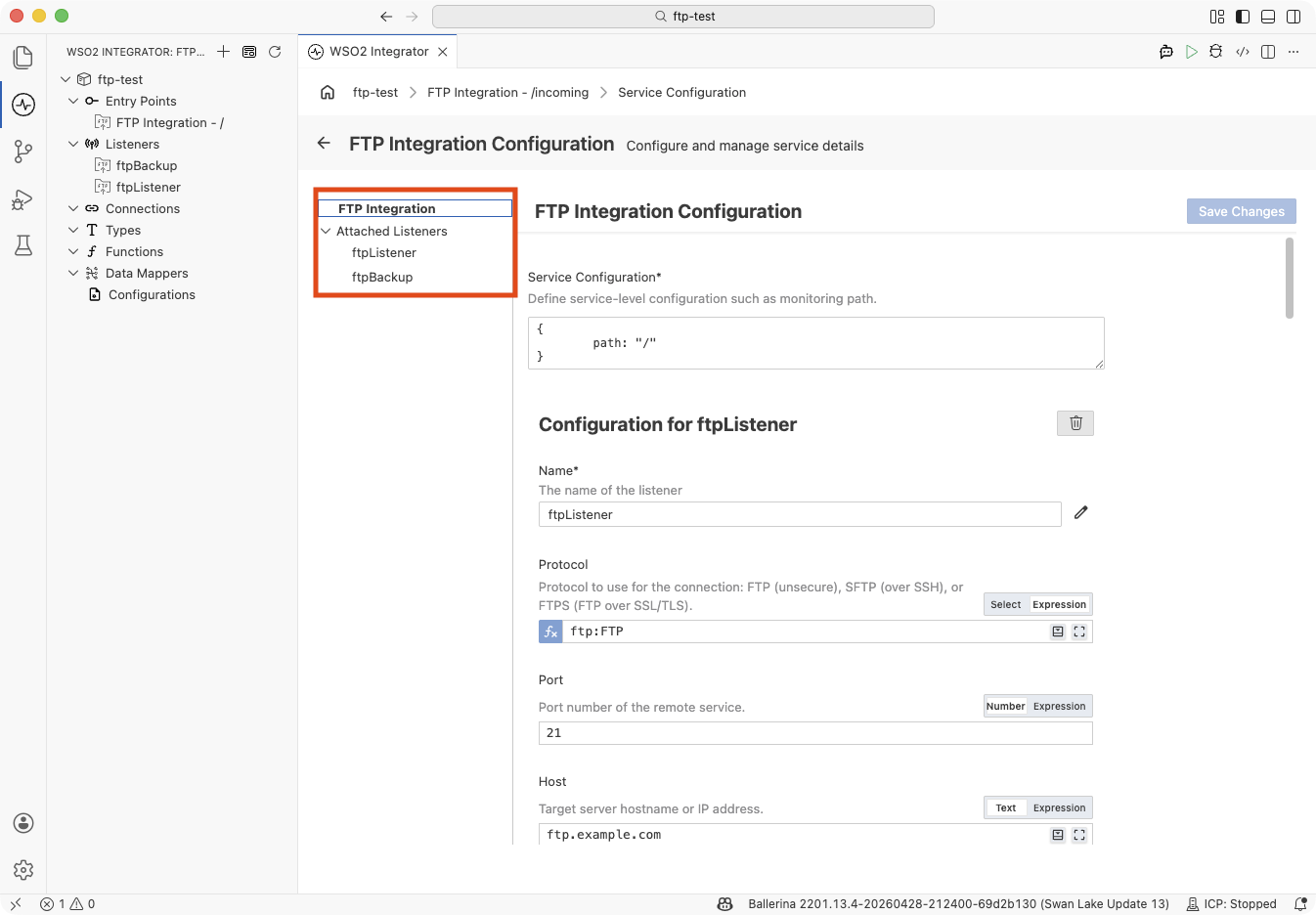

4. Pick the listener to attach. The panel closes and the Attached Listeners list in the left nav now includes both listeners:



   Click any listener name in this list to edit its configuration inline on the right.

Ballerina Code

Declare each listener separately, then attach them all to a single service with a comma-separated service on list:

import ballerina/ftp;

listener ftp:Listener ftpShared = new (
    protocol = ftp:FTP,
    host = "ftp.example.com",
    port = 21
);

listener ftp:Listener ftpBackup = new (
    protocol = ftp:FTP,
    host = "backup.example.com",
    port = 2121
);

@ftp:ServiceConfig { path: "/incoming" }
service on ftpShared, ftpBackup {
    remote function onFileText(string content, ftp:FileInfo fileInfo) returns error? {
        // Fires for every file that arrives on either server, using the
        // same handler implementation.
    }
}

The order of listeners in service on a, b does not imply priority — each listener polls independently and dispatches events to the shared handler as they occur.

Service configuration

The @ftp:ServiceConfig annotation controls what the service monitors — the directory path, file filters, age constraints, and dependency conditions.

Visual Designer

In the Service Designer, click Configure to open the FTP Integration Configuration panel. The panel has a left-hand navigation that lists the service (FTP Integration) and every listener under Attached Listeners. Clicking a name pivots the right pane between the service's own configuration fields and the inline configuration for the selected listener — headed Configuration for <listenerName>.

Field	Description
Service Configuration	Service-level settings. Accepts an @ftp:ServiceConfig record literal such as { path: "/incoming", fileNamePattern: ".*\\.csv" }. Click the full-screen icon on the field to open the guided Record Configuration builder with checkboxes for optional fields. path is required; the other fields are optional.

Ballerina Code

@ftp:ServiceConfig {
    path: "/incoming/orders",
    fileNamePattern: ".*\\.csv",
    fileAgeFilter: {
        minAge: 30,
        maxAge: 3600
    }
}
service on ftpListener {
}

@ftp:ServiceConfig fields:

Field	Type	Default	Description
path	string	"/"	Directory on the remote server to monitor for new files.
fileNamePattern	string?	—	Regex to filter which files trigger handlers. Only matching files are processed.
fileAgeFilter	FileAgeFilter?	—	Age bounds to skip files that are too new (still uploading) or too old (stale). See File dependency and trigger conditions.
fileDependencyConditions	FileDependencyCondition[]?	—	Conditions that block processing until related files exist. See File dependency and trigger conditions.

The Attached Listeners list in the left nav pane shows every listener this service is attached to. Click a listener name to edit that listener's configuration inline on the right. To attach another listener, click + Attach Listener at the bottom of the panel — see Attaching listeners to services.

Listener configuration

The listener controls how to connect — protocol, host, authentication, polling interval, and connection behaviour. One listener represents one connection to one remote server. Open the Ftp Listener Configuration view by clicking the listener name (for example, ftpListener) under Listeners in the sidebar, or by clicking the listener name under Attached Listeners inside the FTP Integration Configuration panel.

Visual Designer

Field	Description	Default
Name	Identifier for the listener, used to attach services to it. Required.	—
Protocol	Connection protocol: ftp, sftp, or ftps.	ftp
Host	Hostname or IP address of the remote server.	127.0.0.1
Port	Port number of the remote server.	21
Auth	Authentication record carrying credentials, a private key, and/or an SSL/TLS secureSocket. See the per-protocol sections above for the typical shapes.	—
Polling Interval	Seconds between directory polls.	60
User Dir Is Root	When true, treats the login home directory as / and suppresses directory-change commands. Set this for chrooted or jailed servers.	false
Lax Data Binding	When true, data-binding errors on the handler's content parameter return () instead of surfacing as an error.	false
Connect Timeout	Connection timeout in seconds.	30.0
Socket Config	Socket read/write timeouts. See ftp:SocketConfig reference.	—
Proxy	Proxy configuration for SFTP connections (SFTP only).	—
File Transfer Mode	BINARY or ASCII. Use ASCII only for text-only files on servers that require line-ending conversion.	BINARY
SFTP Compression	SSH compression algorithms to negotiate with the server (SFTP only).	—
SFTP SSH Known Hosts	Path to an SSH known_hosts file (SFTP only).	—
CSV Fail Safe	Fail-safe options for CSV content processing. Malformed records are skipped and written to a side file in the working directory.	—
Retry Config	Retry configuration for transient failures during polling or file retrieval. For the retry-with-backoff mechanics and field reference, see ftp:RetryConfig.	—
Coordination	Distributed coordination for multi-instance deployments. See High availability.	—

Ballerina Code

Listener configuration maps to the ftp:ListenerConfiguration record passed when constructing the listener:

listener ftp:Listener ftpListener = new (
    protocol = ftp:FTP,
    host = "ftp.example.com",
    port = 21,
    auth = {credentials: {username: "user1", password: "pass456"}},
    pollingInterval = 30
);

ftp:ListenerConfiguration fields:

Field	Type	Default	Description
protocol	ftp:Protocol	ftp:FTP	Connection protocol (FTP, SFTP, or FTPS).
host	string	"127.0.0.1"	Hostname or IP address of the remote server.
port	int	21	Port number of the remote server.
auth	ftp:AuthConfiguration?	—	Credentials, private key, and/or secureSocket. See ftp:AuthConfiguration reference.
pollingInterval	decimal	60	Interval in seconds between directory polls.
userDirIsRoot	boolean	false	Treat the login home directory as root and prevent directory-change commands.
laxDataBinding	boolean	false	When true, data binding errors return () instead of an error.
connectTimeout	decimal	30.0	Connection timeout in seconds.
socketConfig	ftp:SocketConfig?	—	Socket timeout configuration. See ftp:SocketConfig reference.
fileTransferMode	ftp:FileTransferMode	BINARY	File transfer mode (BINARY or ASCII). Use ASCII only for text-only files on servers that require line-ending conversion.
retryConfig	ftp:RetryConfig?	—	Retry configuration for failed polling attempts. See ftp:RetryConfig.
coordination	ftp:CoordinationConfig?	—	Distributed coordination for multi-instance deployments. See High availability.

What's next

• Local files — monitor a local directory instead of a remote server
• Connections — reuse FTP connection credentials across services
• Data Mapper — transform incoming file payloads between formats
