CDC for PostgreSQL

PostgreSQL CDC integrations capture row-level changes from PostgreSQL tables in real time using Debezium-based Change Data Capture. Use them for data synchronization, audit logging, and event-driven workflows that must react to database inserts, updates, deletes, and truncates without polling. This page covers creating the integration, configuring the service and listener, and adding event handlers for insert, update, delete, truncate and read events.

Prerequisites

Logical replication must be enabled on the PostgreSQL server (wal_level = logical), and each table you want to track must have REPLICA IDENTITY FULL (required for the before row in onUpdate and onDelete), before creating this integration. See the CDC connector setup guide for step-by-step instructions.

Create a CDC service for PostgreSQL

Visual Designer

1. Click + Add Artifact in the canvas or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select CDC for PostgreSQL under Event Integration.

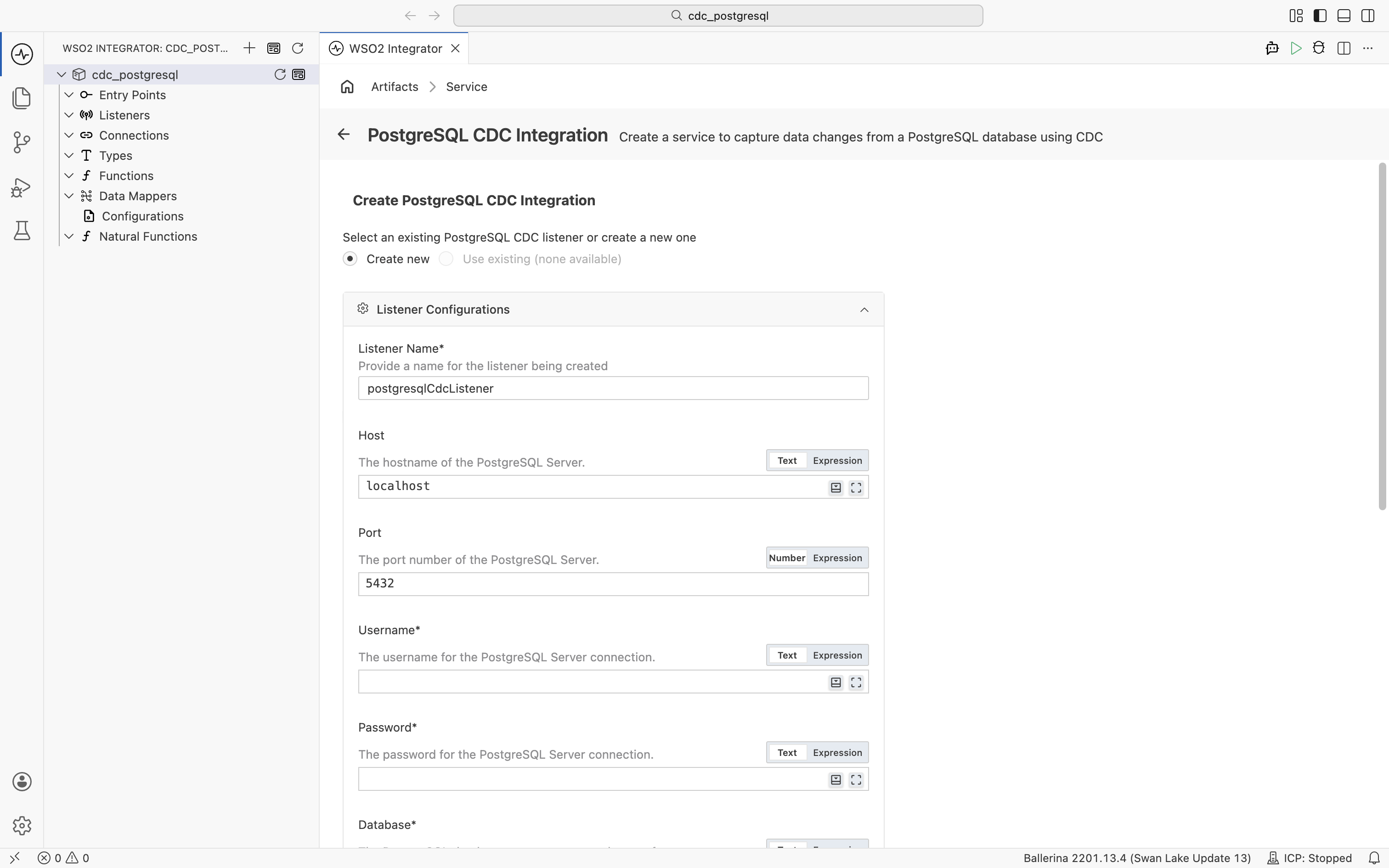

3. In the creation form, select Create new to configure a new listener.



   Under Listener Configurations, fill in the following fields:

   Field	Description	Default
   Listener Name	Identifier for the listener created with this service.	postgresqlCdcListener
   Host	Hostname of the PostgreSQL server.	localhost
   Port	Port number of the PostgreSQL server.	5432
   Username	Username for the PostgreSQL connection.	Required
   Password	Password for the PostgreSQL connection.	Required
   Database	Name of the database to capture changes from.	Required
   Schemas	Regular expressions matching schema names to capture changes from. Click + Add Item to add each pattern.	—

   Expand Advanced Configurations for additional settings:

   Field	Description	Default
   Secure Socket	SSL/TLS configuration for a secure connection.	—
   Options	Additional options for the CDC engine as a record expression. Common keys include snapshotMode (for example, cdc:NO_DATA to skip the initial snapshot) and skippedOperations (for example, [cdc:TRUNCATE, cdc:UPDATE, cdc:DELETE] to skip truncate, update, and delete events; note that snapshot reads still trigger onRead unless snapshotMode is also set to cdc:NO_DATA).	—

   Under Table, enter the fully qualified table name to capture events from in the format <database>.<schema>.<table> (for example, mydb.public.customers).

4. Click Create.

5. WSO2 Integrator creates the empty service and opens it in the Service Designer. The canvas shows the attached listener pill and the table name pill. The service has no handlers yet.



Ballerina Code

import ballerina/log;
import ballerinax/cdc;
import ballerinax/postgresql;
// Bundles the Debezium PostgreSQL connector; required for CDC to work.
import ballerinax/postgresql.cdc.driver as _;

// Credentials and target table loaded from Config.toml at startup.
configurable string username = ?;
configurable string password = ?;
configurable string database = ?;
configurable string tableName = ?;

// CDC listener that connects to PostgreSQL and streams row-level changes.
listener postgresql:CdcListener postgresqlCdcListener = new (database = {
    hostname: "localhost",
    port: 5432,
    username,
    password,
    databaseName: database,
    includedSchemas: ["public"]
});

// Typed record that mirrors the columns of the tracked table.
// Declare a matching record so handlers receive a typed value and can
// access fields directly (for example, `after.id`) instead of working
// with an untyped `record {}`.
type Customer record {|
    int id;
    string name;
    string email;
|};

// Routes change events for this fully qualified table to the service.
@cdc:ServiceConfig {
    tables: tableName
}
service cdc:Service on postgresqlCdcListener {

    // Fires when a new row is inserted. The inserted row is bound to `after` as a `Customer`.
    remote function onCreate(Customer after) returns error? {
        log:printInfo("Row inserted", id = after.id, name = after.name);
    }

    // Fires when a row is updated. Both states are bound to `Customer` records,
    // so you can compare fields directly (for example, `before.email != after.email`).
    remote function onUpdate(Customer before, Customer after) returns error? {
        log:printInfo("Row updated",
                id = after.id,
                oldEmail = before.email,
                newEmail = after.email);
    }

    // Fires when a row is deleted. The deleted row is bound to `before`.
    remote function onDelete(Customer before) returns error? {
        log:printInfo("Row deleted", id = before.id);
    }

    // Fires when the listener encounters a processing error.
    remote function onError(error err) returns error? {
        log:printError("CDC error", 'error = err);
    }
}

To accept any row shape without defining a record type, declare handler parameters as record {}. With a typed record like Customer, the runtime binds the change-event payload to your record fields automatically.

Service configuration

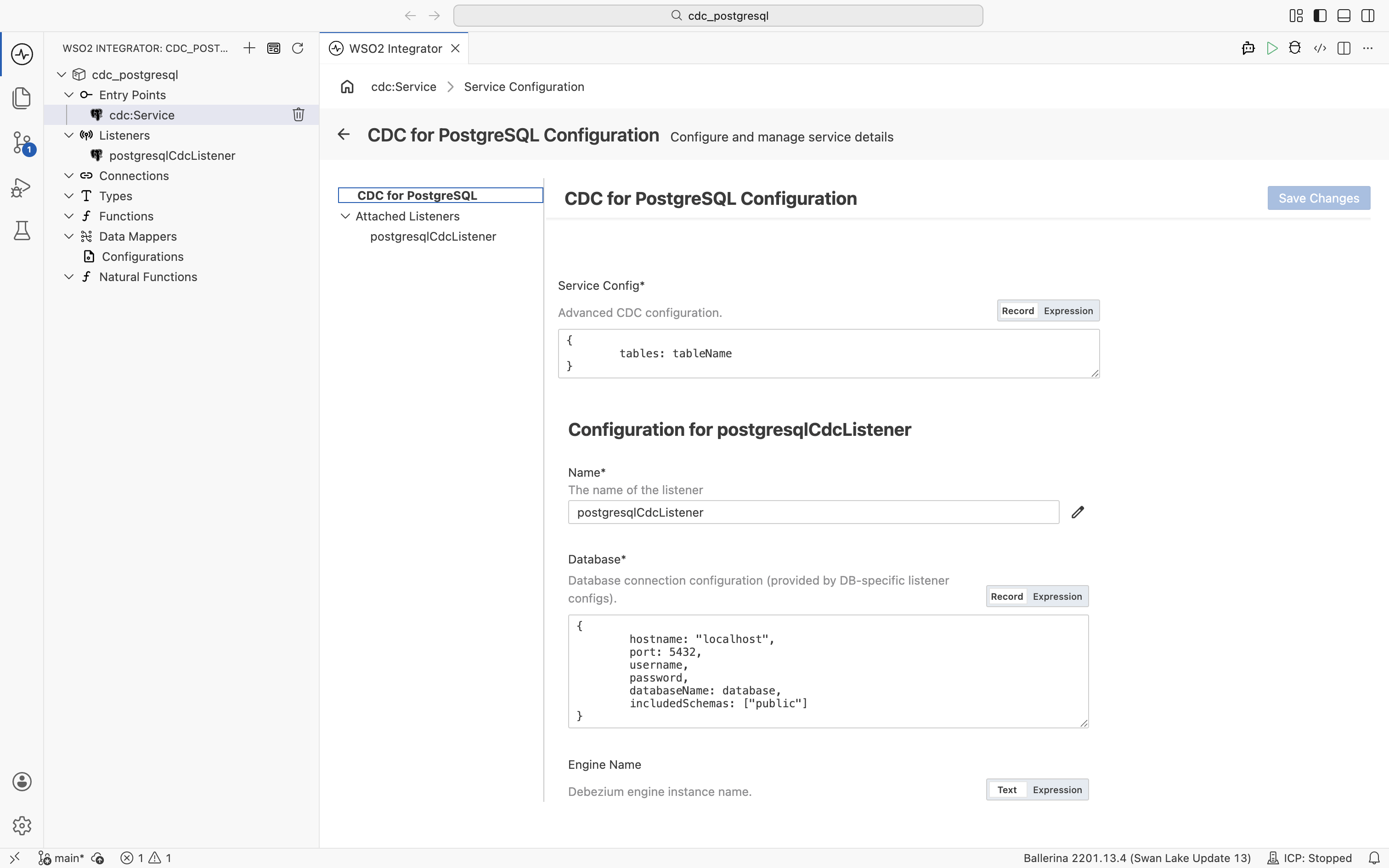

In the Service Designer, click the Configure icon in the header to open the CDC for PostgreSQL Configuration panel. Select CDC for PostgreSQL in the left panel.

Visual Designer

Field	Description
Service Config	Advanced CDC configuration as a record expression. The tables field sets the table(s) whose change events are routed to this service, using the fully qualified format <database>.<schema>.<table>. Provide a single table as a string (for example, "mydb.public.customers"), or multiple tables as a string array (for example, ["mydb.public.customers", "mydb.public.orders"]).

Ballerina Code

The tables field accepts either a single table name as a string or multiple tables as a string array.

// Single table: the service receives change events only for `customers`.
@cdc:ServiceConfig {
    tables: "mydb.public.customers"
}
service cdc:Service on postgresqlCdcListener {
    remote function onCreate(record {} after) returns error? {
        log:printInfo("Row inserted", data = after.toString());
    }
}

// Multiple tables: the service receives events for both `customers` and `orders`,
// and the same handlers run for each.
@cdc:ServiceConfig {
    tables: ["mydb.public.customers", "mydb.public.orders"]
}
service cdc:Service on postgresqlCdcListener {
    remote function onCreate(record {} after) returns error? {
        log:printInfo("Row inserted", data = after.toString());
    }
}

Listener configuration

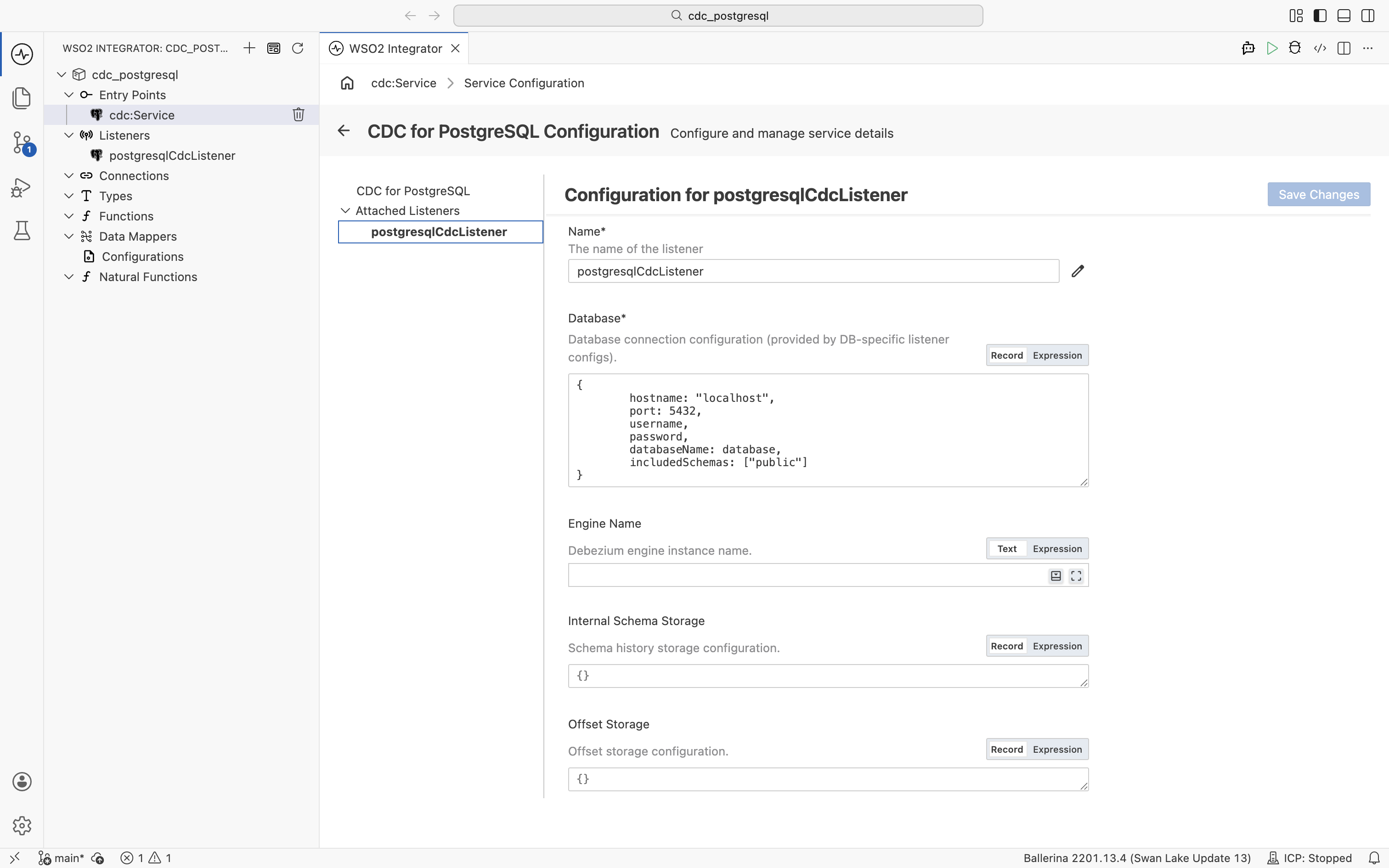

In the CDC for PostgreSQL Configuration panel, select postgresqlCdcListener under Attached Listeners to configure the listener.

A CDC service can be attached to only one listener.

Visual Designer

Field	Description	Default
Name	Identifier for the listener.	postgresqlCdcListener
Database	Database connection configuration as a record expression with hostname, port, username, password, and databaseName fields.	Required
Engine Name	Debezium engine instance name.	ballerina-cdc-connector
Internal Schema Storage	Schema history storage configuration.	{fileName: "tmp/dbhistory.dat"}
Offset Storage	Offset storage configuration for tracking CDC progress.	{fileName: "tmp/debezium-offsets.dat"}
Liveness Interval	Interval in seconds for checking CDC listener liveness.	60.0
Options	Additional connector options as a record expression.	{}

Click Save Changes to apply updates.

Replication slot and publication

The connector uses a logical replication slot and a publication on the source database. The defaults (debezium and dbz_publication) work for most cases. To change them or to control auto-creation, set replicationConfig and publicationConfig inside the Database field.

Ballerina Code

// Listener configuration: connection details for the PostgreSQL instance
// and the database and schemas to track.
listener postgresql:CdcListener postgresqlCdcListener = new (database = {
    hostname: "localhost",
    port: 5432,
    username,
    password,
    databaseName: "mydb",        // Database to capture changes from.
    includedSchemas: ["public"]  // Restrict CDC to the `public` schema.
});

postgresql:PostgresListenerConfiguration accepts the following top-level fields:

Field	Type	Default	Description
database	postgresql:PostgresDatabaseConnection	Required	Database connection (see fields below)
engineName	string	"ballerina-cdc-connector"	Debezium engine instance name
internalSchemaStorage	cdc:InternalSchemaStorage	{fileName: "tmp/dbhistory.dat"}	Schema history storage configuration
offsetStorage	cdc:OffsetStorage	{fileName: "tmp/debezium-offsets.dat"}	Offset storage configuration
livenessInterval	decimal	60.0	Liveness check interval in seconds
options	postgresql:PostgreSqlOptions	{}	PostgreSQL-specific CDC options

The database value (postgresql:PostgresDatabaseConnection) has these fields:

Field	Type	Default	Description
hostname	string	"localhost"	PostgreSQL hostname
port	int	5432	PostgreSQL port
username	string	Required	Database username
password	string	Required	Database password
databaseName	string	Required	Database to capture changes from
includedSchemas	string|string[]?	—	Regex patterns for schemas to capture
excludedSchemas	string|string[]?	—	Regex patterns for schemas to exclude
includedTables	string|string[]?	—	Regex patterns for tables to capture
excludedTables	string|string[]?	—	Regex patterns for tables to exclude
secure	cdc:SecureDatabaseConnection?	—	SSL/TLS connection configuration
replicationConfig	postgresql:ReplicationConfiguration?	—	Logical decoding plugin and slot configuration
publicationConfig	postgresql:PublicationConfiguration?	—	Publication name and autocreate mode
tasksMax	int	1	Maximum connector tasks. The PostgreSQL connector always uses a single task, so this value is ignored
connectTimeout	decimal?	—	Connection timeout in seconds

For the full set of fields (including messageKeyColumns, includedColumns, excludedColumns, and streamingConfig), see the ballerinax/postgresql package on Ballerina Central.

Event handlers

Adding an event handler

Visual Designer

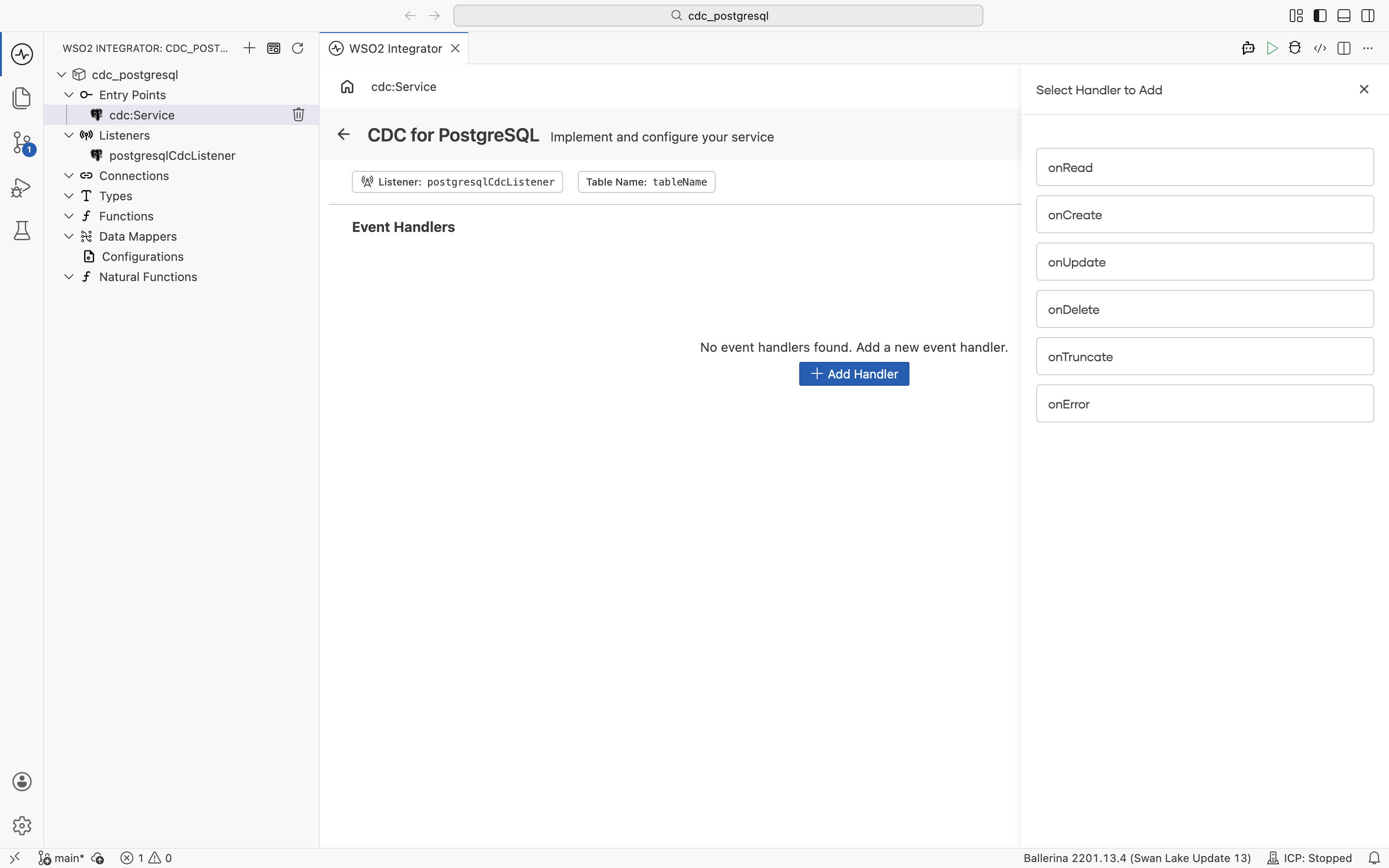

In the Service Designer, click + Add Handler. The Select Handler to Add panel lists onRead, onCreate, onUpdate, onDelete, onTruncate, and onError.

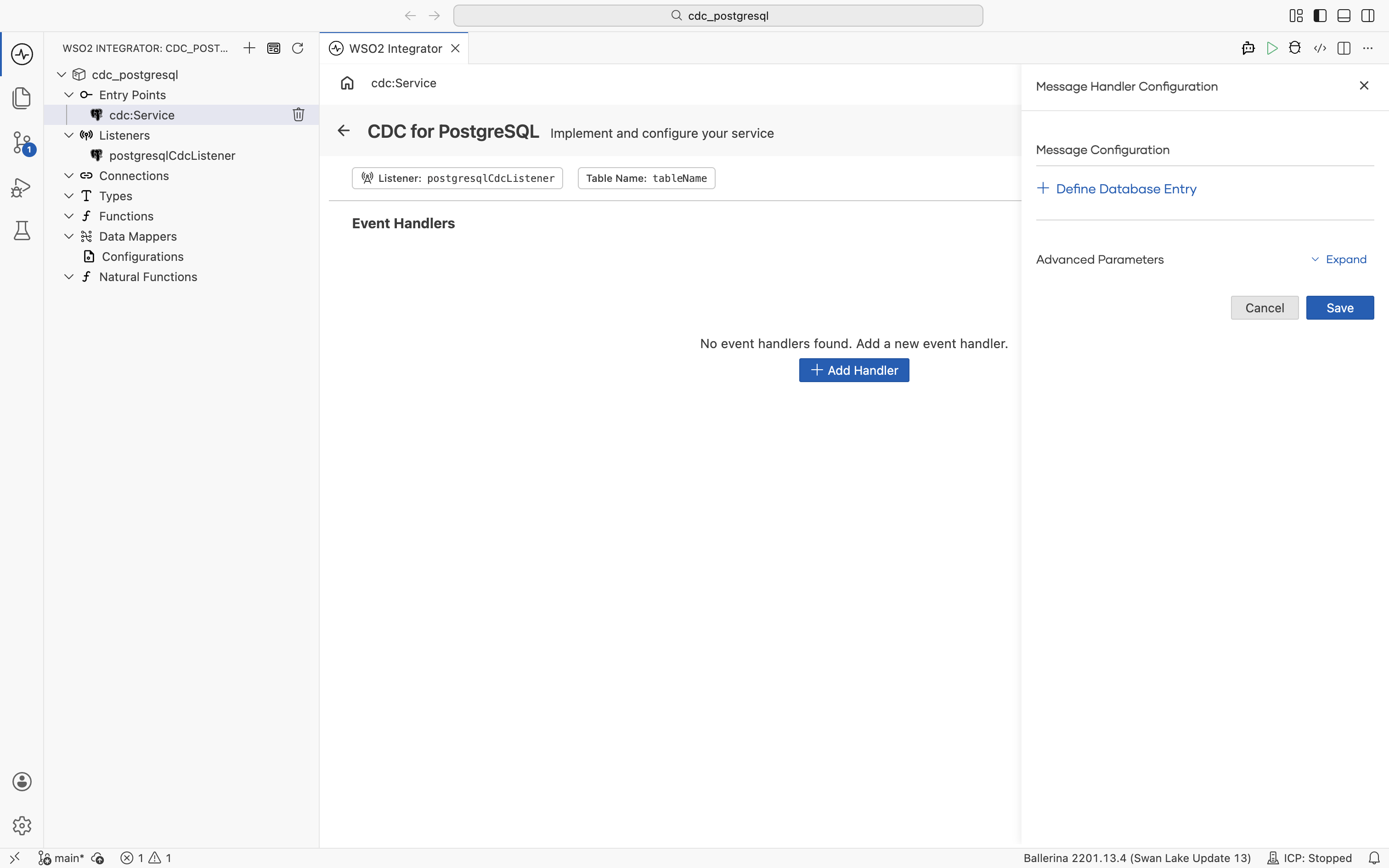

onRead, onCreate, onUpdate, and onDelete each open a Message Handler Configuration panel for the row payload. onTruncate and onError are added directly without additional configuration.

The configuration panel exposes the following fields:

Field	Description
+ Define Database Entry	Defines the record type representing one row of the tracked table. The handler receives this record at runtime with values from the change event.
Advanced Parameters > TableName	Adds a string parameter to the handler that receives the name of the table the change event came from. It does not filter events.

Click Save to add the handler.

Truncate events

By default, TRUNCATE operations are in the skippedOperations list, so onTruncate is not invoked. To receive truncate events, remove cdc:TRUNCATE from skippedOperations (for example, set it to []) in Options.

Ballerina Code

// Typed record that mirrors the columns of the `customers` table.
// Declaring the type lets handlers work with fields like `after.id`
// instead of a raw `record {}` value.
type Customer record {|
    int id;
    string name;
    string email;
|};

@cdc:ServiceConfig {
    tables: "mydb.public.customers"
}
service cdc:Service on postgresqlCdcListener {

    // Snapshot read handler: fires once per row during the initial snapshot.
    remote function onRead(Customer after) returns error? {
        log:printInfo("Initial snapshot row", data = after.toString());
    }

    // Insert handler: the newly inserted row arrives as `after`.
    remote function onCreate(Customer after) returns error? {
        log:printInfo("Row inserted", data = after.toString());
        check syncToDownstream("INSERT", after);
    }

    // Update handler: receives both the previous (`before`) and new (`after`) row state.
    remote function onUpdate(Customer before, Customer after) returns error? {
        log:printInfo("Row updated",
                before = before.toString(),
                after = after.toString());
        check syncToDownstream("UPDATE", after);
    }

    // Delete handler: only `before` is available, since the row no longer exists.
    remote function onDelete(Customer before) returns error? {
        log:printInfo("Row deleted", data = before.toString());
        check syncToDownstream("DELETE", before);
    }

    // Truncate handler: fires when the tracked table is truncated. Receives the table name.
    remote function onTruncate(string tableName) returns error? {
        log:printInfo("Table truncated", tableName = tableName);
    }

    // Error handler: invoked when the listener fails to process a change event.
    remote function onError(error err) returns error? {
        log:printError("CDC processing error", 'error = err);
    }
}

// Placeholder for your own downstream integration logic.
function syncToDownstream(string operation, Customer row) returns error? {
    log:printInfo("Syncing change", operation = operation, id = row.id);
}

The onCreate, onUpdate, onDelete, and onRead handlers receive the row data as record {} (or a typed record matching your table columns, as shown by Customer above). onTruncate accepts no parameters, or a single string tableName parameter that holds the name of the truncated table.

Handler types

Handler	Triggered when	Use when
onRead	A row is read during the initial snapshot of the table	Bootstrapping downstream systems with existing data
onCreate	A row is inserted into the tracked table	Syncing new records to downstream systems
onUpdate	A row is updated in the tracked table	Propagating field changes
onDelete	A row is deleted from the tracked table	Removing records from downstream systems
onTruncate	The tracked table is truncated (PostgreSQL only; skipped by default)	Clearing or resetting downstream data
onError	A CDC processing error occurs	Logging failures and sending alerts
