Solace (JMS)

Solace (JMS) event integrations consume messages from a Solace PubSub+ queue or topic and trigger event handlers as each message arrives. The trigger is built on the standard Java Message Service (JMS) 2.0 API. Use it when you want portable, spec-compliant JMS session semantics — SQL-92 message selectors, standard JMS acknowledgement modes, and session-transacted messaging — instead of Solace's native JCSMP API used by the Solace event integration.

Creating a Solace (JMS) events service

Visual Designer

1. Click + Add Artifact in the canvas or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select Solace (JMS) under Event Integration.

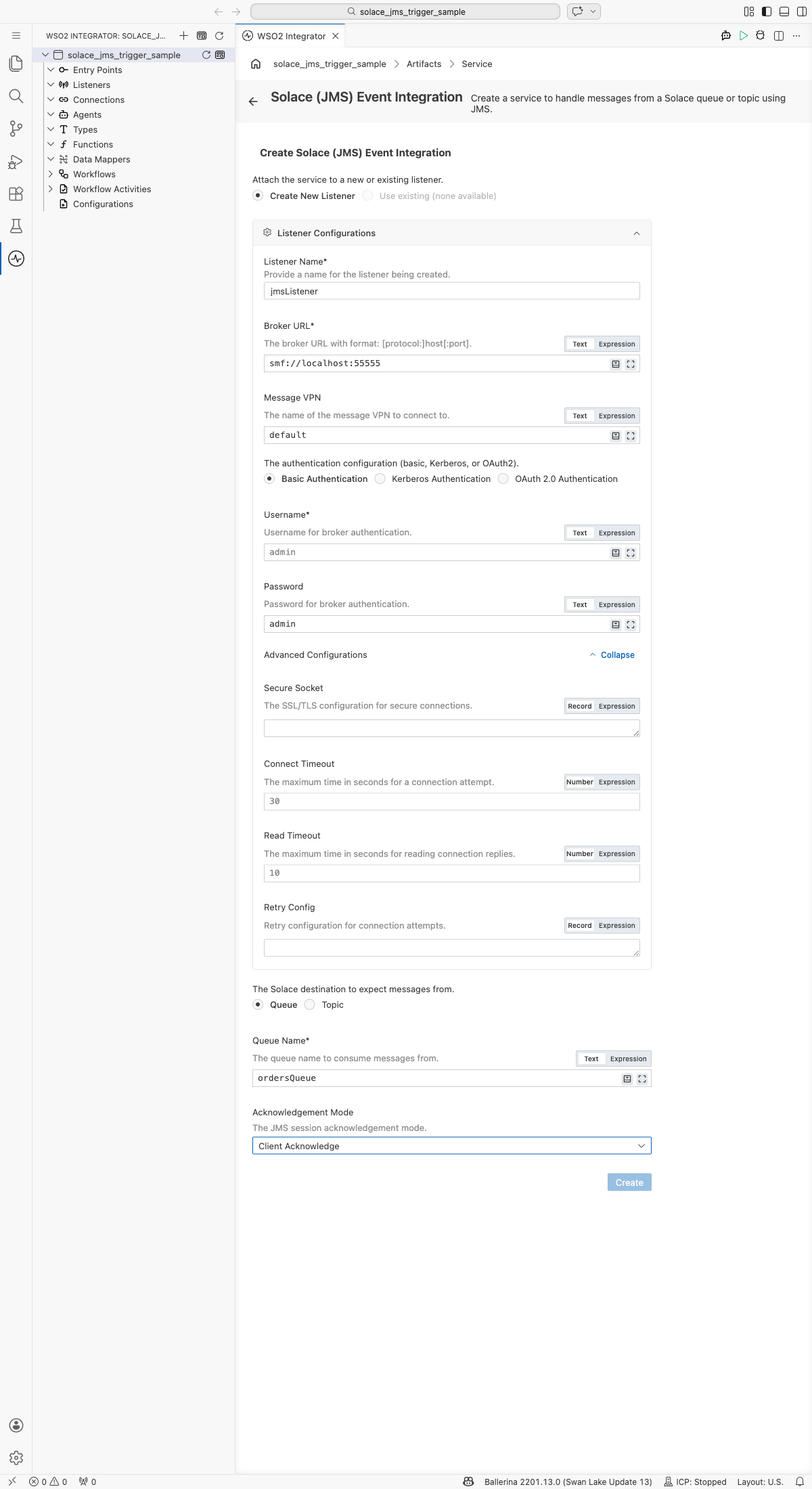

3. In the creation form, fill in the following fields:



   Field	Description	Default
   Listener Name	Identifier for the listener created with this service.	jmsListener
   Broker URL	The Solace broker URL in the format [protocol:]host[:port]. Supported schemes: smf (plain-text) and smfs (TLS).	smf://localhost:55555
   Message VPN	The message VPN to connect to.	default
   Authentication configuration	How to authenticate with the broker. Select Basic Authentication, Kerberos Authentication, or OAuth 2.0 Authentication.	Basic Authentication
   Destination	Whether to consume from a Queue or a Topic.	Queue
   Acknowledgement Mode	The JMS session acknowledgement mode. Options: Auto Acknowledge, Client Acknowledge, Duplicates OK Acknowledge, Session Transacted.	Auto Acknowledge

   Basic Authentication fields:

   Field	Description
   Username	Username for broker authentication.
   Password	Password for broker authentication.

   Kerberos Authentication fields:

   Field	Description	Default
   Service Name	Kerberos service name.	solace
   JAAS Login Context	JAAS login context name.	SolaceGSS
   Mutual Authentication	Enable Kerberos mutual authentication.	Disabled
   JAAS Config File Reload Enabled	Enable automatic reload of the JAAS configuration file.	Disabled

   OAuth 2.0 Authentication fields:

   Field	Description
   Issuer	OAuth 2.0 issuer identifier URI.
   Access Token	OAuth 2.0 access token. Provide this or an OIDC token.
   OIDC Token	OpenID Connect ID token. Provide this or an access token.

   When Destination is Queue:

   Field	Description
   Queue Name	The durable queue to consume messages from. The queue must already exist on the broker unless Enable Dynamic Durables is on.

   When Destination is Topic:

   Field	Description	Default
   Topic Name	The topic to subscribe to.	Required
   Durability	Temporary for a non-durable subscription, or Durable for a durable topic subscription.	Temporary
   Subscriber Name	The durable subscription name. Required when Durability is Durable.	—

   Expand Advanced Configurations to set secureSocket, clientName, clientDescription, enableDynamicDurables, directTransport, directOptimized, compressionLevel, localhost, connectTimeout, readTimeout, retryConfig, transportWindowSize, ackThreshold, and ackTimer. The last three only apply when directTransport is off.

4. Click Create.

5. WSO2 Integrator opens the service in the Service Designer. The canvas shows the attached listener pill, the queue or topic name pill, and an empty Event Handlers section.



6. Click + Add Handler to add event handlers.

Ballerina Code

import ballerinax/solace.jms;
import ballerina/log;

configurable string brokerUrl = "smf://localhost:55555";
configurable string msgVpn = "default";
configurable string username = "admin";
configurable string password = "admin";

listener jms:Listener jmsListener = check new (
    brokerUrl,
    messageVpn = msgVpn,
    auth = {
        username: username,
        password: password
    }
);

type OrderMessage record {|
    string orderId;
|};

type Message record {|
    *jms:Message;
    OrderMessage payload;
|};

@jms:ServiceConfig {
    queueName: "test-queue",
    ackMode: jms:AUTO_ACKNOWLEDGE
}
service jms:Service on jmsListener {

    remote function onMessage(Message message, jms:Caller caller) returns jms:Error? {
        log:printInfo("Message received", orderId = message.payload.orderId);
    }

    remote function onError(jms:Error err) returns jms:Error? {
        log:printError("Solace JMS error", 'error = err);
    }
}

Service configuration

In the Service Designer, click the Configure icon in the header to open the Solace (JMS) Event Integration Configuration panel. Select Solace (JMS) Event Integration in the left panel.

Visual Designer

The ServiceConfig field accepts a record expression that sets the destination and message handling options.

Queue service configuration fields:

Field	Description	Default
queueName	Name of the queue to consume from.	Required
ackMode	JMS session acknowledgement mode: AUTO_ACKNOWLEDGE, CLIENT_ACKNOWLEDGE, DUPS_OK_ACKNOWLEDGE, or SESSION_TRANSACTED.	AUTO_ACKNOWLEDGE
messageSelector	JMS SQL-92 message selector expression.	—

Topic service configuration fields:

Field	Description	Default
topicName	Name of the topic to subscribe to.	Required
durability	TEMPORARY for a non-durable subscription, or DURABLE for a durable topic subscription.	TEMPORARY
subscriberName	Durable subscription name. Required when durability is DURABLE.	—
ackMode	JMS session acknowledgement mode: AUTO_ACKNOWLEDGE, CLIENT_ACKNOWLEDGE, DUPS_OK_ACKNOWLEDGE, or SESSION_TRANSACTED.	AUTO_ACKNOWLEDGE
messageSelector	JMS SQL-92 message selector expression. Not supported on a direct (non-directTransport: false) topic subscription.	—

Ballerina Code

// Queue subscription
@jms:ServiceConfig {
    queueName: "orders",
    ackMode: jms:CLIENT_ACKNOWLEDGE
}
service jms:Service on jmsListener {
    remote function onMessage(jms:Message message, jms:Caller caller) returns jms:Error? {
        check caller->ack(message);
    }
}

// Topic subscription
@jms:ServiceConfig {
    topicName: "trades",
    durability: jms:TEMPORARY,
    ackMode: jms:AUTO_ACKNOWLEDGE
}
service jms:Service on jmsListener {
    remote function onMessage(jms:Message message) returns jms:Error? {
    }
}

Listener configuration

In the Solace (JMS) Event Integration Configuration panel, select jmsListener under Attached Listeners to configure the listener.

Visual Designer

Field	Description	Default
Name	Identifier for the listener.	jmsListener
Url	The Solace broker URL in the format [protocol:]host[:port]. Supported schemes: smf (plain-text) and smfs (TLS).	smf://localhost:55555
Message Vpn	The name of the message VPN to connect to.	default
Auth	Authentication configuration. Supports basic authentication, Kerberos, and OAuth 2.0.	Required
Secure Socket	TLS/SSL configuration for secure connections.	—
Client Name	Client identifier reported to the broker. A unique name is generated when omitted.	—
Client Description	Human-readable description of the client connection.	Ballerina Solace JMS Connector
Enable Dynamic Durables	Automatically provision durable destinations that don't already exist on the broker.	Disabled
Direct Transport	Consume over direct (at-most-once) transport. Turn off for session-transacted services or flow-control tuning.	Enabled
Direct Optimized	Optimize the session for direct messaging throughput.	Enabled
Compression Level	ZLIB compression level. Valid range is 0–9, where 0 disables compression.	0
Localhost	Local interface IP address to bind for outbound connections.	—
Connect Timeout	Connection timeout, in seconds.	30.0
Read Timeout	Read timeout, in seconds.	10.0
Retry Config	Reconnection retry configuration.	—
Transport Window Size	Maximum number of guaranteed messages in flight, unacknowledged (1–255). Only applies when Direct Transport is off.	—
Ack Threshold	Percentage of Transport Window Size consumed before an automatic acknowledgement is sent (1–75). Only applies when Direct Transport is off.	60
Ack Timer	Maximum time in seconds to hold an unacknowledged message before sending an automatic acknowledgement (0.02–1.5). Only applies when Direct Transport is off.	—

Click + Attach Listener to attach an additional listener to the same service.

Click Save Changes to apply updates.

Ballerina Code

listener jms:Listener jmsListener = check new (
    "smf://localhost:55555",
    messageVpn = "default",
    auth = {
        username: username,
        password: password
    },
    clientName = "my-client",
    directTransport = true,
    compressionLevel = 0
);

jms:ListenerConfiguration fields:

Field	Type	Default	Description
url (constructor parameter)	string	Required	Solace broker URL
messageVpn	string	"default"	Message VPN name
auth	jms:BasicAuthConfiguration|jms:KerberosConfiguration|jms:OAuth2Configuration	Required	Authentication configuration
secureSocket	jms:SecureSocket?	—	TLS/SSL configuration
clientName	string?	—	Client identifier
clientDescription	string	"Ballerina Solace JMS Connector"	Client description
enableDynamicDurables	boolean	false	Automatically provision durable destinations that don't already exist
directTransport	boolean	true	Consume over direct (at-most-once) transport
directOptimized	boolean	true	Optimize the session for direct messaging throughput
compressionLevel	int	0	ZLIB compression level (0–9)
localhost	string?	—	Local interface IP address
connectTimeout	decimal	30.0	Connection timeout in seconds
readTimeout	decimal	10.0	Read timeout in seconds
retryConfig	jms:RetryConfiguration?	—	Reconnection retry configuration
transportWindowSize	int?	—	Maximum in-flight unacknowledged messages (1–255); only when directTransport is false
ackThreshold	int	60	Percentage of transportWindowSize before an automatic ack (1–75); only when directTransport is false
ackTimer	decimal?	—	Maximum time to hold an unacknowledged message (0.02–1.5s); only when directTransport is false

Event handlers

Adding an event handler

Visual Designer

In the Service Designer, click + Add Handler. The Select Handler to Add panel lists onMessage and onError.

onMessage — opens a configuration panel before saving:

Option	Description
Define Value	Define the expected payload type of the incoming message, either by creating a new type schema or reusing an existing one.

Click Save to add the handler.

onError — added directly without additional configuration.

Ballerina Code

onMessage handler — called for each message received:

type TradeEvent record {|
    string tradeId;
    string symbol;
    decimal price;
    int quantity;
|};

type TradeMessage record {|
    *jms:Message;
    TradeEvent payload;
|};

function executeTrade(TradeEvent trade) returns error? {}

@jms:ServiceConfig {
    queueName: "trades",
    ackMode: jms:CLIENT_ACKNOWLEDGE
}
service jms:Service on jmsListener {

    remote function onMessage(TradeMessage message, jms:Caller caller) returns jms:Error? {
        do {
            log:printInfo("Trade received",
                          tradeId = message.payload.tradeId,
                          symbol = message.payload.symbol);
            check executeTrade(message.payload);
            check caller->ack(message);
        } on fail error e {
            return error("unhandled error", e);
        }
    }
}

onError handler — called when message receipt or data binding fails:

@jms:ServiceConfig {
    queueName: "trades"
}
service jms:Service on jmsListener {

    remote function onMessage(jms:Message message) returns error? {
    }

    remote function onError(jms:Error err) returns jms:Error? {
        log:printError("Solace JMS error", 'error = err);
    }
}

Handler types

Handler	Triggered when	Use when
onMessage	A new message arrives from the queue or topic	Processing incoming messages
onError	A message receipt or data-binding error occurs	Logging failures and triggering alerts
