Telegram

Telegram event integrations receive webhook updates from the Telegram Bot API and trigger handler functions as messages, callback queries, and other update types arrive. Use them to build chatbots, handle inline keyboard interactions, and automate replies without polling getUpdates.

note

The Telegram webhook listener must be reachable over HTTPS from the internet. For local development, use a tunneling tool such as ngrok to create a public HTTPS URL for your local port.

Create a bot and get a token by messaging @BotFather on Telegram and sending /newbot. See the setup guide for details.

Creating a Telegram listener

Visual Designer

1. Click + Add Artifact in the canvas or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select Telegram under Event Integration.

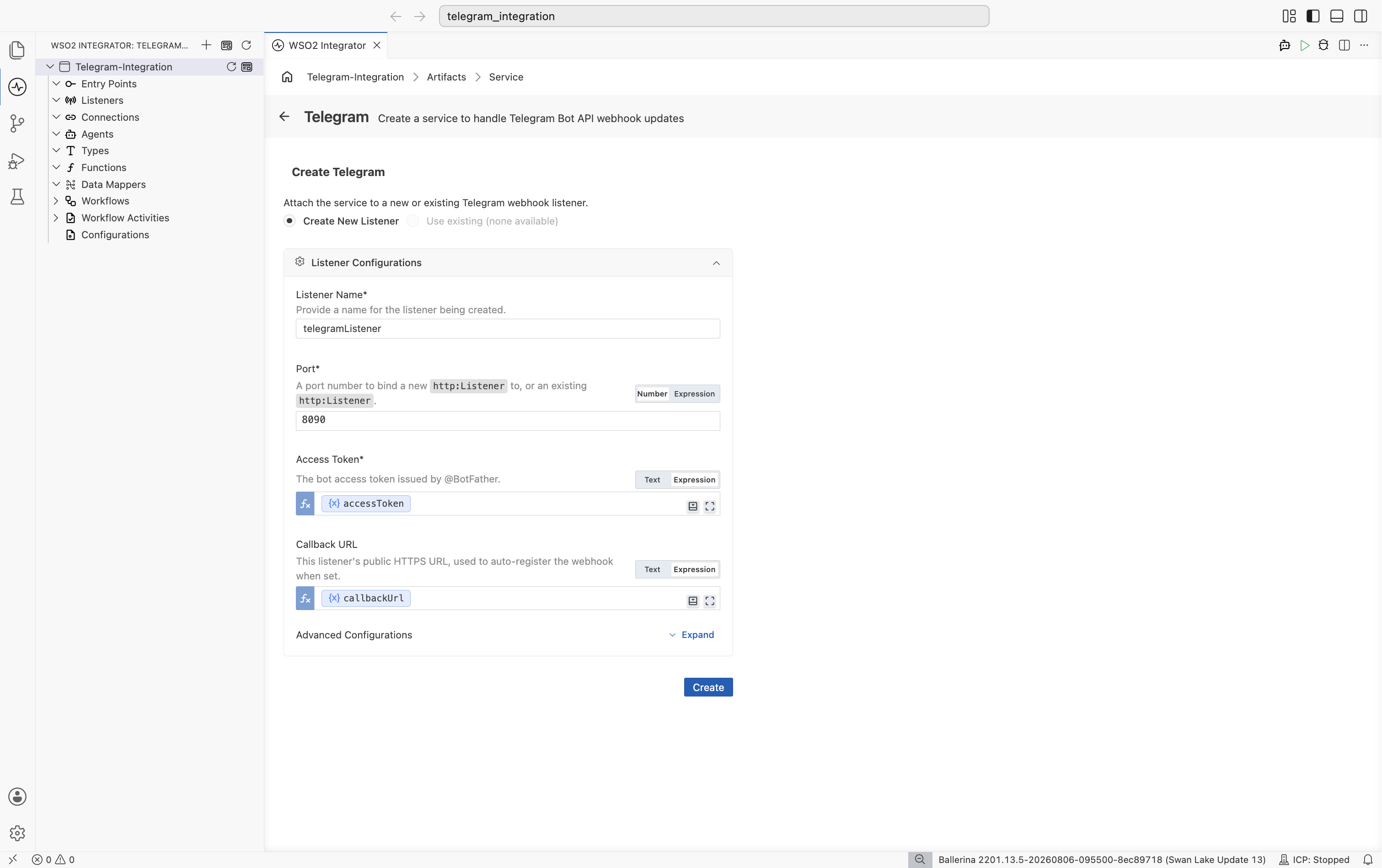

3. In the creation form, fill in the following fields:



   Field	Description	Default
   Listener Name	Identifier for the listener created with this service.	telegramListener
   Port	The port on which the webhook listener accepts incoming HTTP requests.	8090
   Access Token	The bot access token issued by @BotFather. Used both to derive the webhook secret token and, together with Callback URL, to auto-register the webhook.	Required
   Callback URL	This listener's public HTTPS URL, used to auto-register the webhook when set.	()

   Expand Advanced Configurations to override the Telegram Bot API base URL.

   Field	Description	Default
   Service URL	The Telegram Bot API base URL.	https://api.telegram.org

4. Click Create.

5. WSO2 Integrator opens the service in the Service Designer. The canvas shows the attached listener pill and an empty Event Handlers section.

6. Click + Add Handler to define how incoming updates are processed.

Ballerina Code

import ballerinax/telegram;
import ballerina/log;

configurable string accessToken = ?;
configurable string callbackUrl = ?;
configurable int listenerPort = 8090;

listener telegram:Listener telegramListener = new (listenerPort, accessToken = accessToken, callbackUrl = callbackUrl);

service telegram:TelegramService on telegramListener {

    remote function onMessage(telegram:Message message) returns error? {
        log:printInfo("Telegram message received", chatId = message.chat.id, text = message.text);
    }

    remote function onCallbackQuery(telegram:CallbackQuery callbackQuery) returns error? {
        log:printInfo("Telegram callback query received", queryId = callbackQuery.id, data = callbackQuery.data);
    }
}

Save this as main.bal and run bal run from the project directory. Passing both accessToken and callbackUrl registers the webhook automatically when the listener starts. No separate Client->setWebhook call is needed.

Service configuration

Service configuration controls the service name and the Telegram listener it is attached to.

Visual Designer

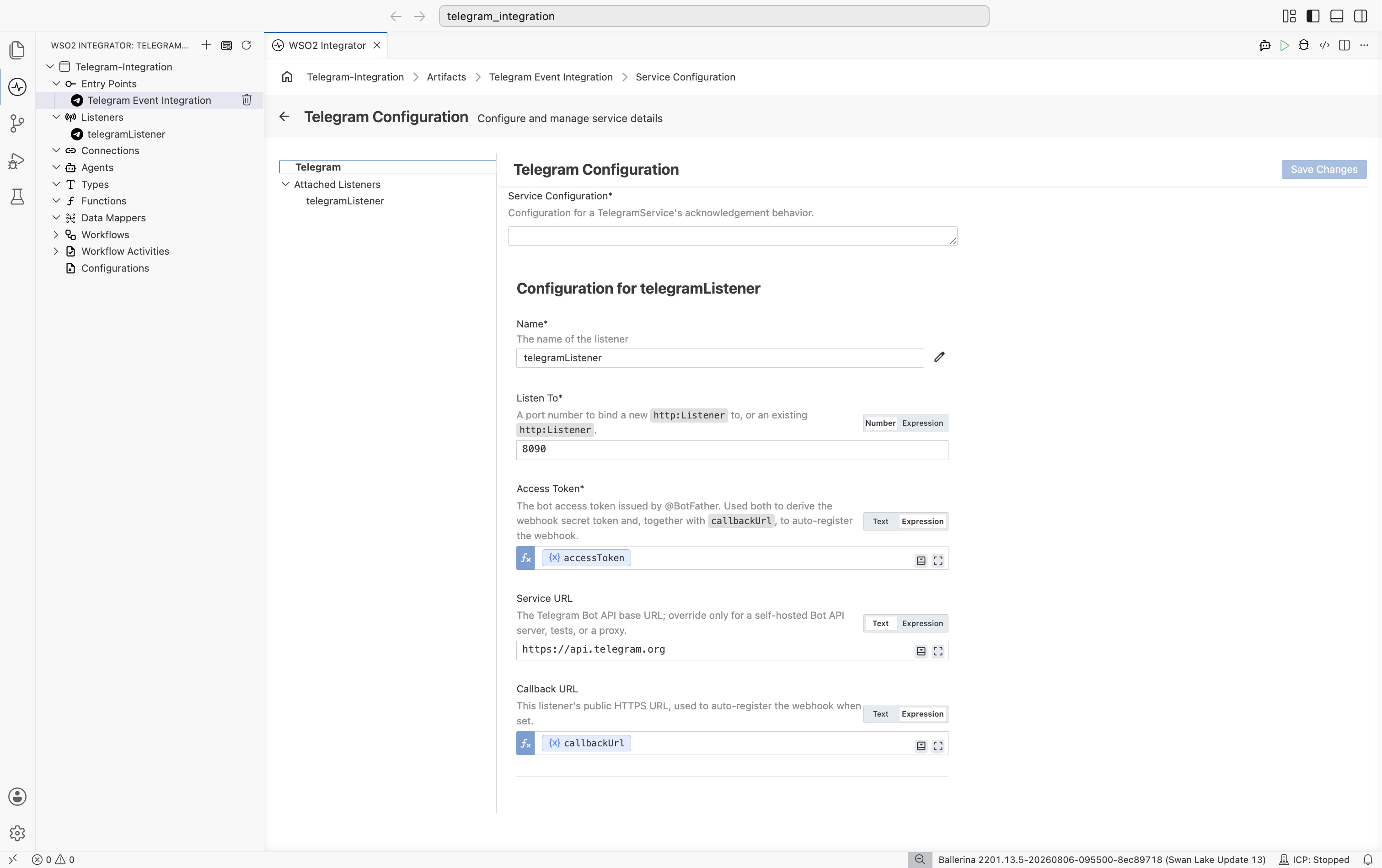

In the Service Designer, click Configure to open the Telegram Configuration panel.

The panel shows a Service Configuration field for the service's acknowledgement behavior, and an Attached Listeners list. Pick a listener under Attached Listeners to configure its connection settings.

Service configuration

Field	Description
Service Configuration	Advanced acknowledgement settings as a @telegram:ServiceConfig record expression (e.g., { autoAck: false }). Defaults to autoAck: true, acknowledging automatically. See Manual acknowledgement.

Main configurations

Field	Description
Name	The name of the listener. Required.
Listen To	A port number to bind a new http:Listener to, or an existing http:Listener. Required.
Access Token	The bot access token issued by @BotFather. Used both to derive the webhook secret token and, together with Callback URL, to auto-register the webhook.
Service URL	The Telegram Bot API base URL; override only for a self-hosted Bot API server, tests, or a proxy. Defaults to https://api.telegram.org.
Callback URL	This listener's public HTTPS URL, used to auto-register the webhook when set.

Click Attach Listener to attach an additional listener to the same service.

Click Save Changes to apply updates.

Ballerina Code

Service configuration maps to the telegram:ListenerConfig passed when constructing the listener, which requires accessToken. The @telegram:ServiceConfig annotation placed before the service declaration sets the acknowledgement mode:

listener telegram:Listener telegramListener = new (
    listenerPort,
    accessToken = accessToken,
    callbackUrl = callbackUrl
);

@telegram:ServiceConfig {
    autoAck: false
}
service on telegramListener {
    // handlers
}

telegram:ListenerConfig fields:

Field	Type	Default	Description
accessToken	string	Required	The bot access token issued by @BotFather. Used both to derive the webhook secret token and, together with callbackUrl, to auto-register the webhook.
callbackUrl	string?	()	This listener's public HTTPS URL, used to auto-register the webhook when set.
serviceUrl	string	https://api.telegram.org	The Telegram Bot API base URL; override only for a self-hosted Bot API server, tests, or a proxy.

@telegram:ServiceConfig fields:

Field	Type	Default	Description
autoAck	boolean	true	When false, updates must be manually acknowledged using telegram:Caller. See Manual acknowledgement.

Event handlers

An event handler is a remote function that WSO2 Integrator calls for each Telegram Bot API update received.

Adding an event handler

Visual Designer

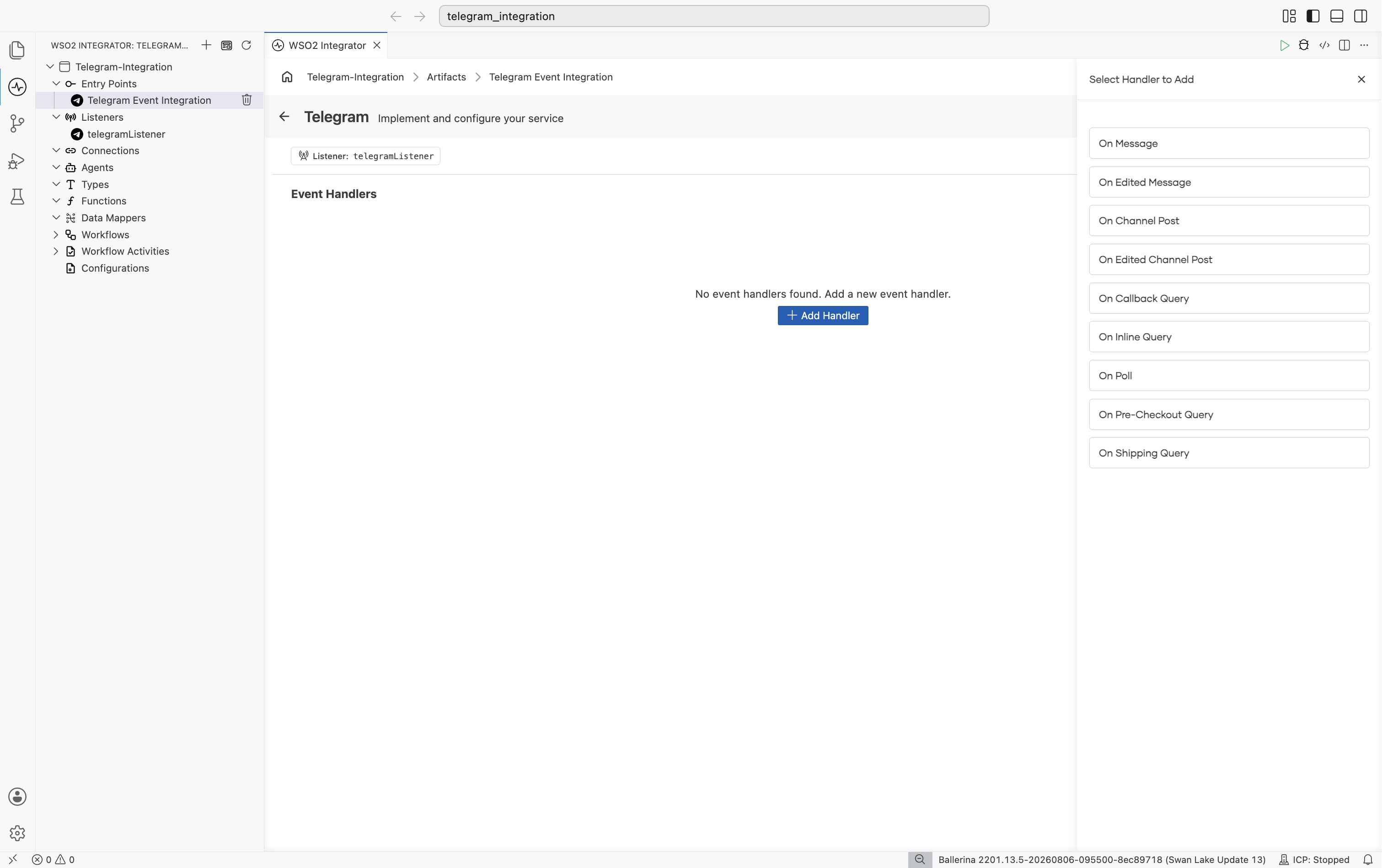

In the Service Designer, click + Add Handler. A Select Handler to Add panel opens on the right listing the available update types.

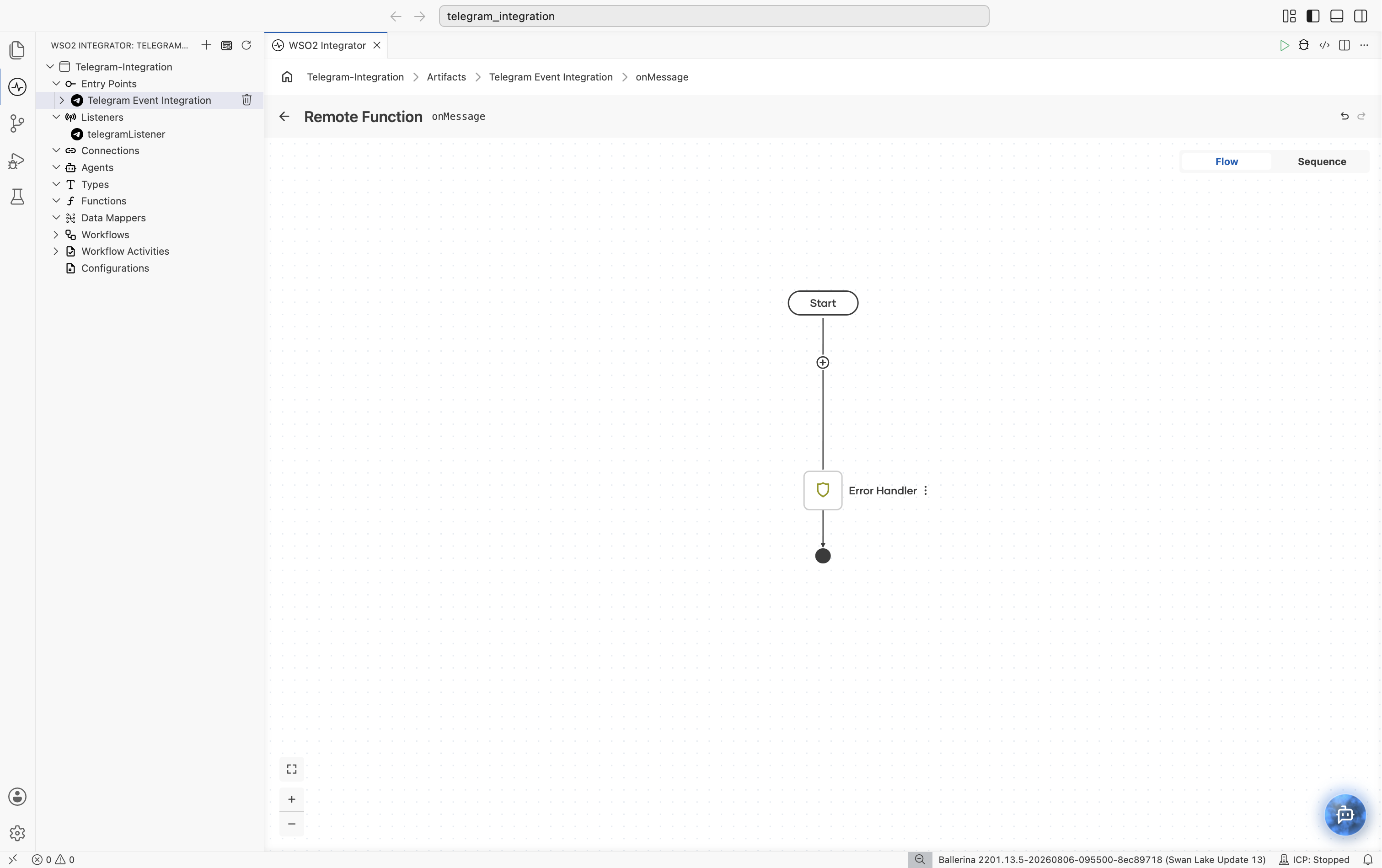

Pick On Message, then click Save. This opens the Flow Designer for onMessage.

Use the flow canvas to add integration steps such as database writes, HTTP calls, and transformations. Repeat these steps to add the other handlers you need.

Ballerina Code

onMessage handler — called for each new incoming message:

service telegram:TelegramService on telegramListener {

    remote function onMessage(telegram:Message message) returns error? {
        log:printInfo("Telegram message received", chatId = message.chat.id, text = message.text);
    }
}

onCallbackQuery handler — called when a user presses an inline keyboard button:

service telegram:TelegramService on telegramListener {

    remote function onCallbackQuery(telegram:CallbackQuery callbackQuery) returns error? {
        log:printInfo("Telegram callback query received", queryId = callbackQuery.id, data = callbackQuery.data);
    }
}

Manual acknowledgement

By default, the listener acknowledges (200 OK) each update automatically, before any handler runs. Telegram requires a fast 2xx and retries otherwise, so this is the safe default for slow handlers. Annotate the service @telegram:ServiceConfig {autoAck: false} to decide exactly when an update is acknowledged instead, and declare a handler's optional second parameter as a telegram:Caller:

@telegram:ServiceConfig {
    autoAck: false
}
service telegram:TelegramService on telegramListener {

    remote function onMessage(telegram:Message message, telegram:Caller caller) returns error? {
        check persistMessage(message);
        check caller->complete();
    }
}

If a handler declared with a Caller never calls caller->complete(), the listener never sends its own 200 OK for that request, and Telegram's own retry behavior treats the resulting failure the same as any other failed delivery. Telegram may redeliver an update if the acknowledgement is slow, dropped, or never sent, under either autoAck setting, not just false, so make handler processing idempotent, or deduplicate using update_id.

Handler types

This listener supports nine Telegram update types, one per TelegramService handler. All are optional. Implement only the ones your bot needs. Telegram's allowed_updates already keeps unsupported update types from reaching your webhook; among the nine supported types, an update whose handler you didn't declare is acknowledged and ignored.

Handler	Triggered when
onMessage	A new incoming message arrives.
onEditedMessage	An existing message is edited.
onChannelPost	A new channel post is published.
onEditedChannelPost	An existing channel post is edited.
onCallbackQuery	A user presses an inline keyboard button.
onInlineQuery	A user sends a new inline query.
onPoll	A poll's state changes.
onPreCheckoutQuery	A user confirms a payment, just before it's charged.
onShippingQuery	A user provides a shipping address for an invoice with flexible pricing.
