Alerts Overview

This section explains how you can configure alerts for your Choreo components. Setting up alerts allows you to proactively monitor your components ecosystem and take corrective measures when necessary.

Tip

Setting up alerts in only available in the component level.

Alert Types

Choreo supports the following types of alerts to help you monitor and manage your components effectively:

• Latency alerts
• Traffic alerts
• Resource alerts
• Log alerts
• Build failure alerts
• Status code alerts

Latency Alerts

Latency alerts notify you if the response latency of a component exceeds a predefined threshold in a given time period. This is useful for components that need to meet specific SLAs and for proactively identifying slow components.

Configurable parameters

Parameter	Description
Metric	99th, 95th, 90th, or 50th percentile.
Threshold	Latency in milliseconds (e.g.: 1800).
Period	Duration the threshold must be exceeded (e.g.: 5 minutes).

Traffic Alerts

Traffic alerts notify you when the request count of a component exceeds a predefined threshold. This is useful for managing components with backend traffic limits or monetized backends that require proactive scaling based on incoming traffic.

Configurable parameters

Parameter	Description
Threshold	Requests per minute (e.g.: 200).
Period	Monitoring window (e.g.: 5 minutes).

Resource Alerts

Resource alerts notify you when your component’s CPU or memory usage exceeds the defined thresholds. This ensures you can fix the resources allocations early to avoid performance issues or downtimes.

Configurable parameters

Parameter	Description
Metric	CPU or Memory.
Threshold	mCPU for CPU and MiB for Memory(e.g.: 1000).
Period	Duration the threshold must be exceeded (e.g.: 5 minutes).

Tip

• CPU: mCPU (milliCPU) measures CPU usage in fractions of a core, where 1000m = 1 full core.
• Memory: MiB (Mebibyte) measures memory in binary units, where 1 MiB = 2²⁰ bytes.

Log Alerts

Log alerts trigger notifications when a specific phrase appears a specific number of times in your component logs within a defined Time window. This helps to identify recurring issues or critical errors quickly, enabling faster troubleshooting.

Configurable parameters

Parameter	Description
Search Phrase	Keyword or phrase to look for to trigger the alert (e.g.: failed).
Count	Minimum number of occurrences to trigger the alert (e.g.: 10).
Interval	Time window for counting occurrences (e.g.: 5 minutes).

Build Failure Alerts

Build failure alerts inform you if a build failure occurs for your component. This is essential for maintaining smooth development workflows.

Status Code Alerts

Status code alert triggers when your component returns specific HTTP error(s) (e.g.: 403 Forbidden, 500 Internal Error). These alerts help to detect issues affecting your component’s availability.

Configurable parameters

Parameter	Description
Status Code	Error code or series (e.g.: 400:Bad Request).
Count	Minimum number of occurrences (e.g.: 5).
Interval	Time window (e.g.: 5 minutes).

Note

Status code alerts are only supported for API proxy component types.

Configure Alert

Follow these steps to configure an alert:

1. Navigate to the component you wish to configure alerts for.

   Info

   You need to have a scope of Choreo DevOps or Choreo Platform Engineer inorder to create Alerts.

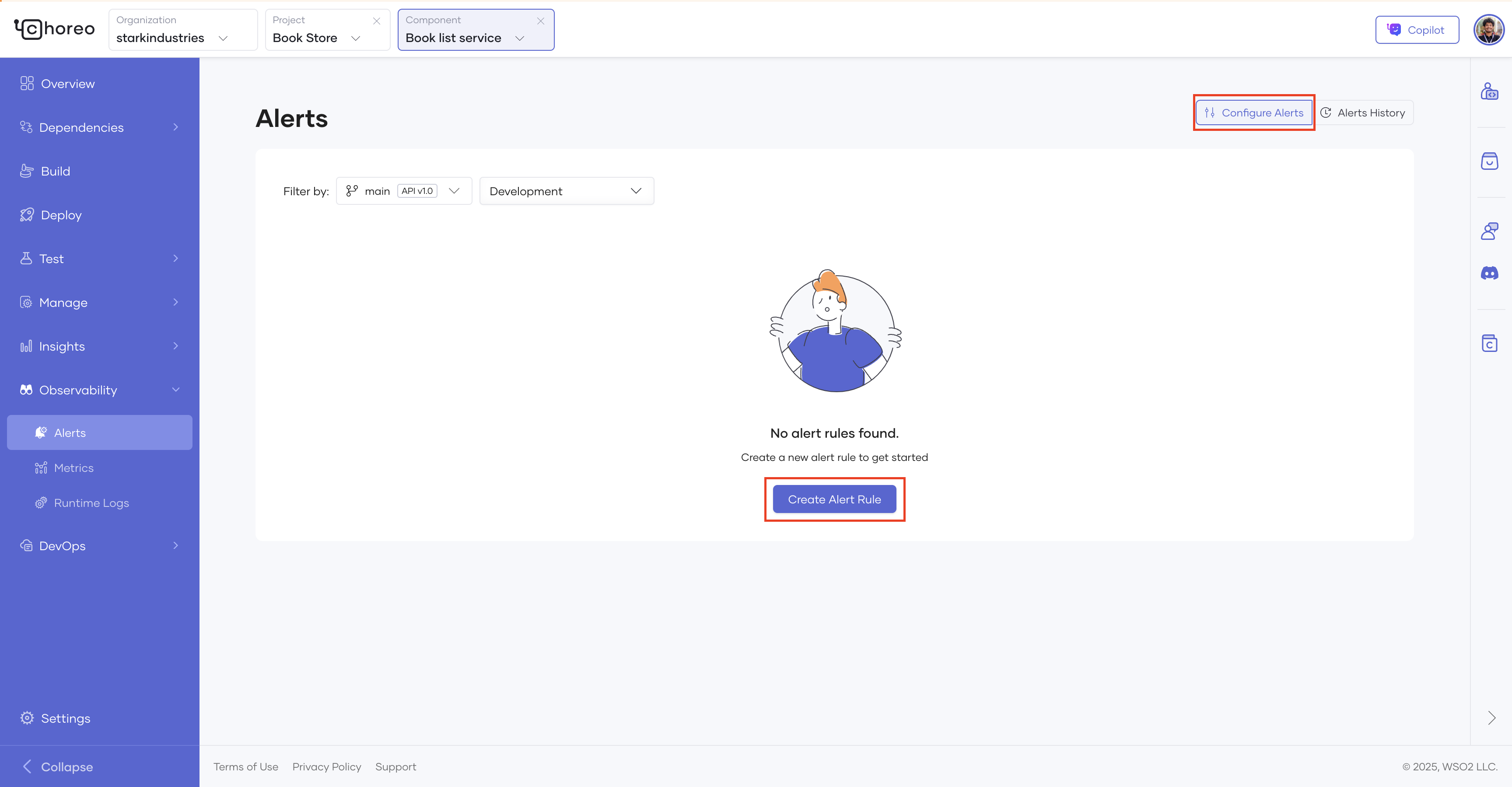

2. In the Choreo left menu, click Observability and then click Alerts.

3. Click Create Alert Rule to create a new alert rule.



4. Select the Alert Type you want to create.

5. Select the Environment you want to create the alert for.
6. Select the Deployment Track or Version as required for the component.
7. Configure the remaining fields specific to your selected alert type.

8. In the Emails field, specify the list of emails that should be notified when the alert is triggered.

   Note

   • When adding an email, enter the required email and press enter to add it.
   • You can add a maximum of 5 email addresses per alert.

9. You can configure additional parameters in Advanced Configurations dropdown as needed, which vary based on your alert type.

10. The Explanation window provides a concise summary of the configured alert based on your alert configurations.

11. Click Create to save and activate your alert rule.

    Info

    • You can configure a maximum of 10 alerts per component.

12. Once successfully added, your alert will be listed in the Configure Alerts pane alongside any existing alerts for the component.

13. Each alert can be edited, removed and disabled or enabled via this pane.

    Note

    when editing an alert, you can't edit the Alert Type, Environment and Deployment Track.

Alert History & Notifications

View Alert History

You can check the past alerts that have triggered for your component when you click the Alerts History pane in Choreo Alerts. You can filter the alert history by Alert Type, Environment, Deployment Track or Version and Time Range.

Note

When filtering, API Proxy components show a Version filter and other components display a Deployment Track filter, based on their monitoring context.

You can click on an alert to expand it and see more details of the triggered alert.

Email Notifications

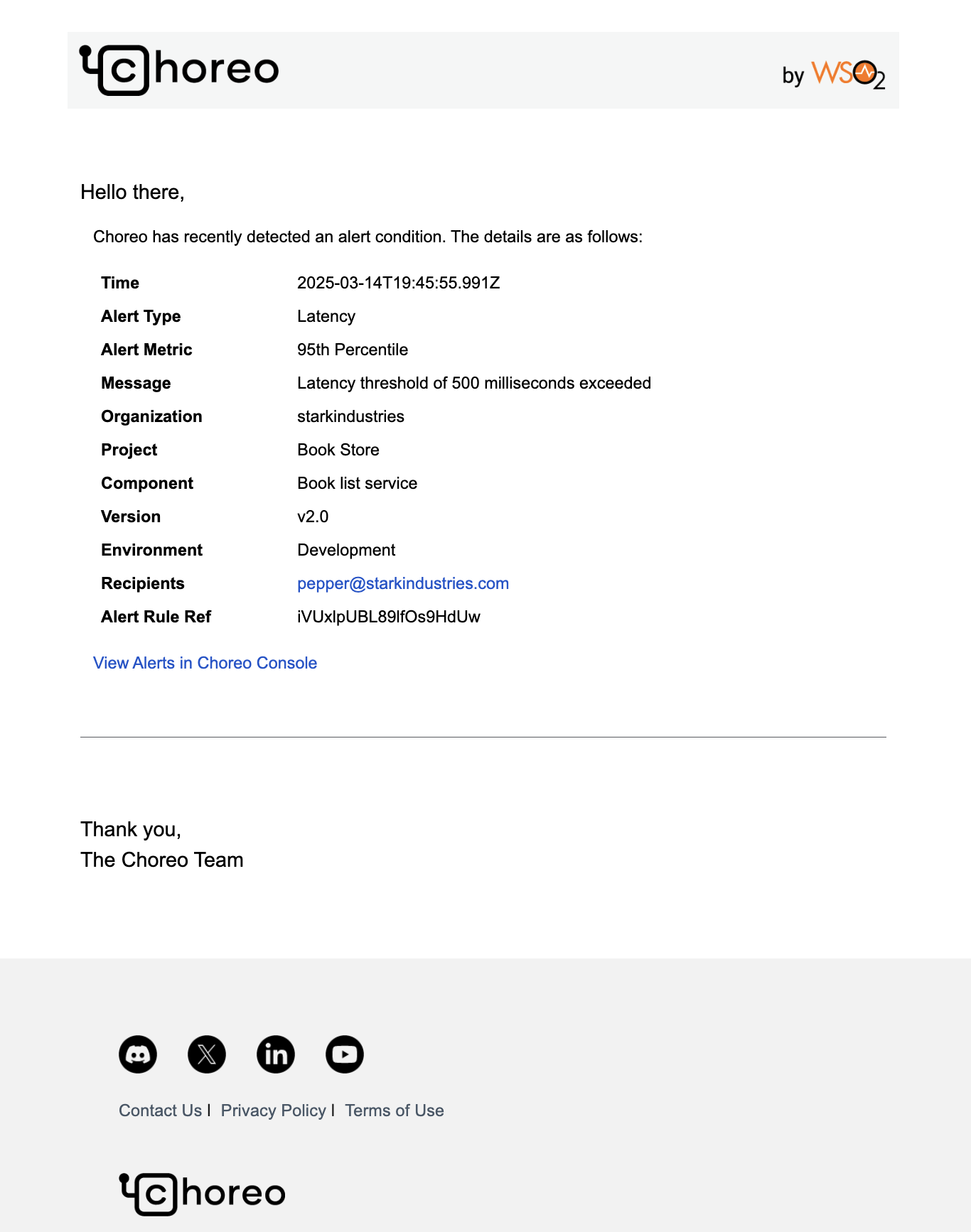

When an alert is triggered, recipients added to the alert rule receive an email with alert details including a direct Alert View link to Choreo console.
