POP3/IMAP4

Poll email inboxes for incoming messages and trigger integration logic when new emails arrive. WSO2 Integrator supports both the POP3 and IMAP4 protocols through polling-based listeners that check for new messages at a configurable interval.

Protocol	Description	Default port
POP3	Downloads messages from the server; messages are typically removed after retrieval	995 (SSL)
IMAP4	Synchronizes with the server; messages remain on the server after retrieval	993 (SSL)

Creating a POP3 listener

Visual Designer

note

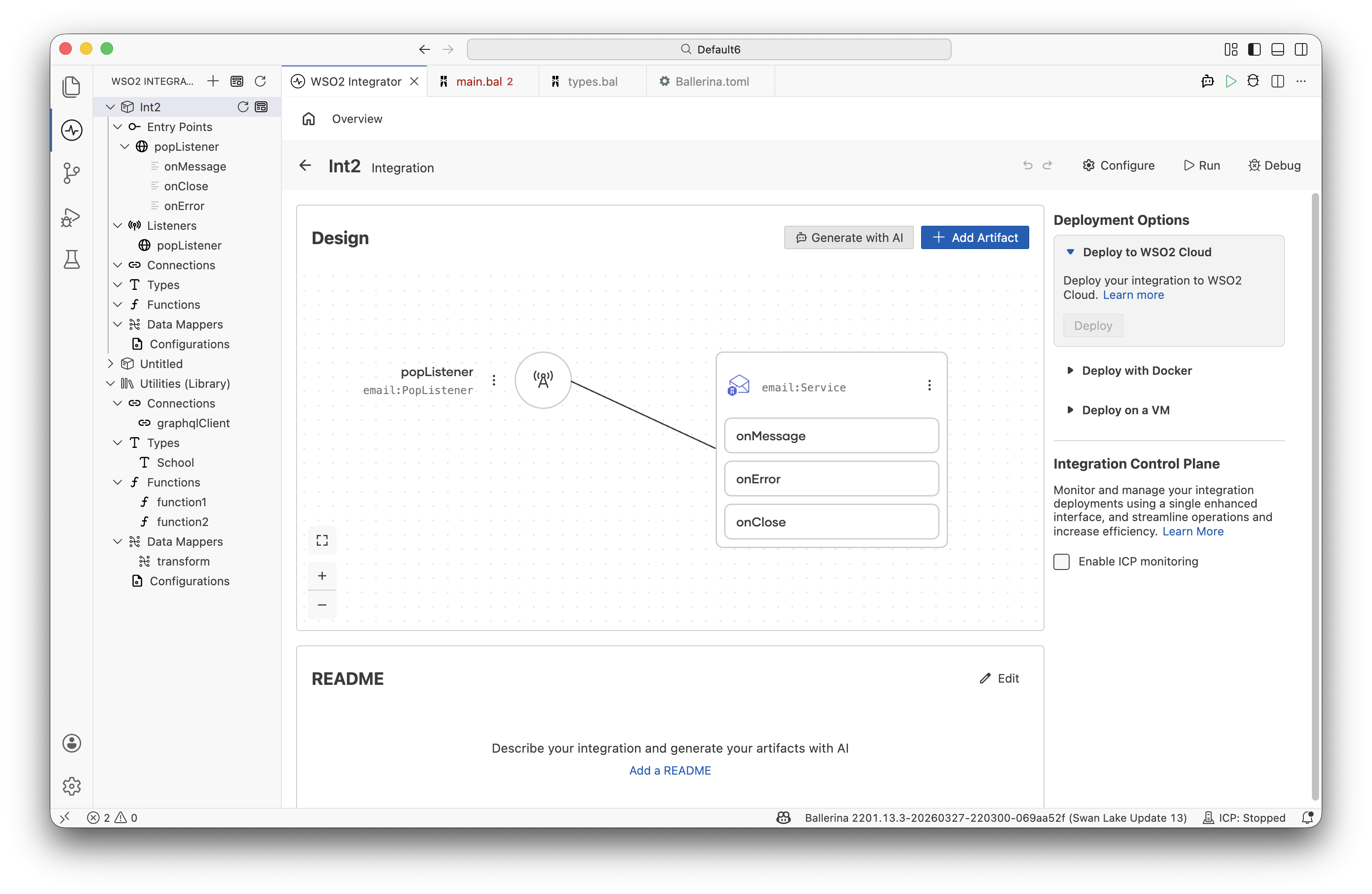

Creating a POP3 listener requires Ballerina code. Once the listener exists, it appears in the Entry Points sidebar and on the design canvas.

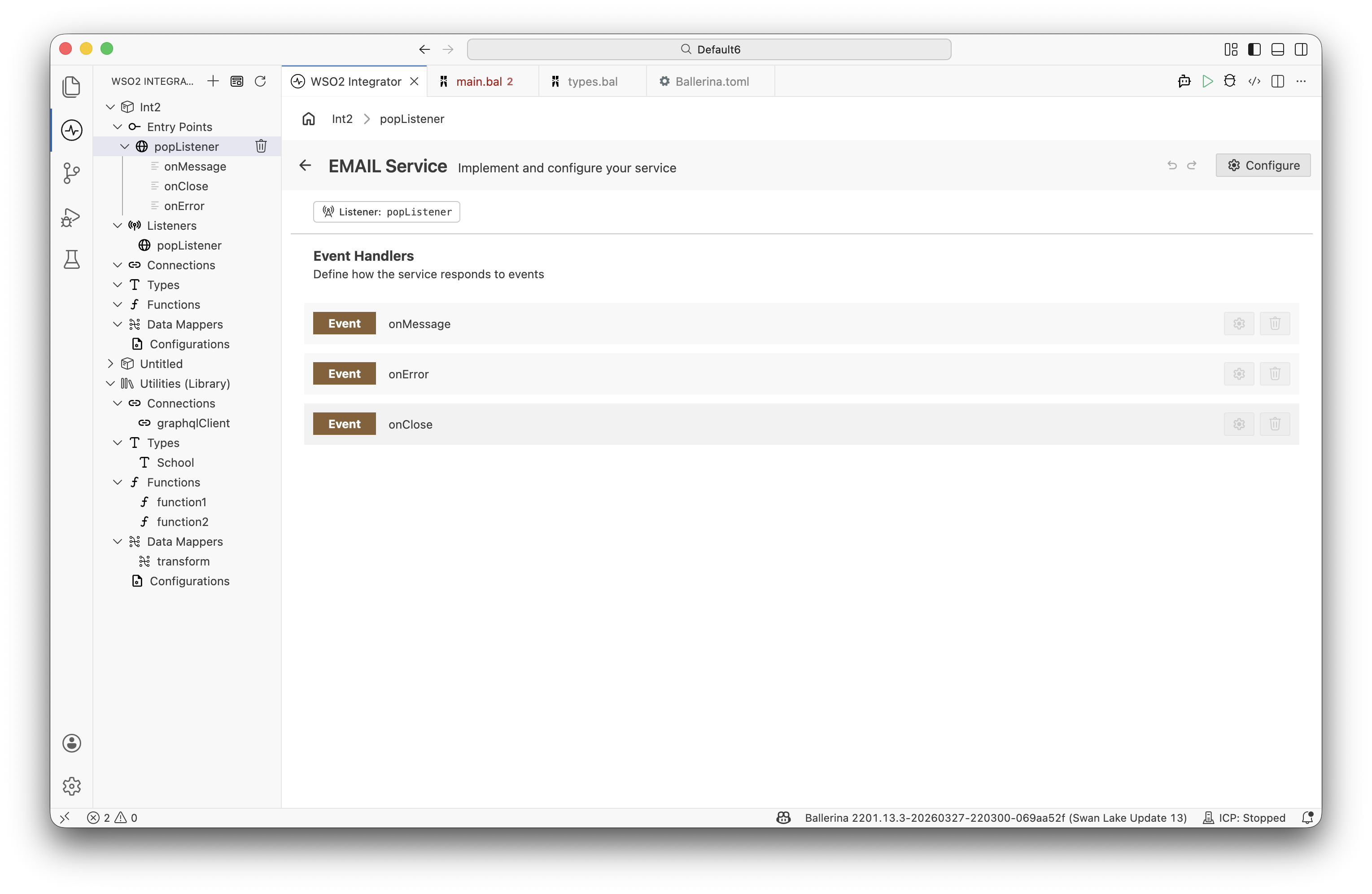

Click the service node (or the service name in the sidebar) to open the Email Listener Designer, which lists the event handlers.

Ballerina Code

import ballerina/email;

configurable string host = "pop.example.com";
configurable string username = "[email protected]";
configurable string password = ?; // app password after enaling pop3/imap4 protocol for the email address

listener email:PopListener popListener = check new ({
    host: host,
    username: username,
    password: password,
    pollingInterval: 60,
    port: 995
});

service on popListener {

    remote function onMessage(email:Message msg) returns error? {
        string sender = msg.'from ?: "(unknown sender)";
        string subject = msg.subject;
        string body = msg.body ?: "";

        log:printInfo("Email received", sender = sender, subject = subject);
    }

    remote function onError(email:Error err) {
        // Handle polling errors
    }

    remote function onClose(email:Error? closeError) {
        // Handle listener shutdown
    }
}

Creating an IMAP4 listener

IMAP4 keeps messages on the server after retrieval and supports multiple mailbox folders.

Visual Designer

note

Creating an IMAP4 listener requires Ballerina code. Once the listener exists, it appears in the Entry Points sidebar and on the design canvas.

Click the service node (or the service name in the sidebar) to open the Email Listener Designer, which lists the event handlers.

Ballerina Code

import ballerina/email;

configurable string host = "imap.example.com";
configurable string username = "[email protected]";
configurable string password = ?; // app password after enaling pop3/imap4 protocol for the email address

listener email:ImapListener imapListener = check new ({
    host: host,
    username: username,
    password: password,
    pollingInterval: 60,
    port: 993
});

service on imapListener {

    remote function onMessage(email:Message msg) returns error? {
        string sender = msg.'from ?: "(unknown sender)";
        string subject = msg.subject;
        string body = msg.body ?: "";

        log:printInfo("Email received", sender = sender, subject = subject);
    }

    remote function onError(email:Error err) {
        // Handle polling errors
    }

    remote function onClose(email:Error? closeError) {
        // Handle listener shutdown
    }
}

Listener configuration

Both email:PopListenerConfiguration and email:ImapListenerConfiguration share the following fields.

Field	Type	Description
host	string	Email server hostname
username	string	Email account username
password	string	Email account password or app-specific token
pollingInterval	decimal	Seconds between polling cycles. Default: 30.
port	int	Server port. Default: 995 for POP3, 993 for IMAP4.
security	email:Security	Transport security mode. Default: SSL. Options: SSL, START_TLS_AUTO, START_TLS_ALWAYS, START_TLS_NEVER.
secureSocket	email:SecureSocket?	SSL/TLS configuration for the connection.

Event handler configuration

Handler	Trigger	Typical use
onMessage	New email arrives during a polling cycle	Parse subject and body, route to a downstream system
onError	A polling cycle fails	Log the error, alert on repeated failures
onClose	Listener shuts down	Release resources, flush in-flight state

Implementing email processing

Visual Designer

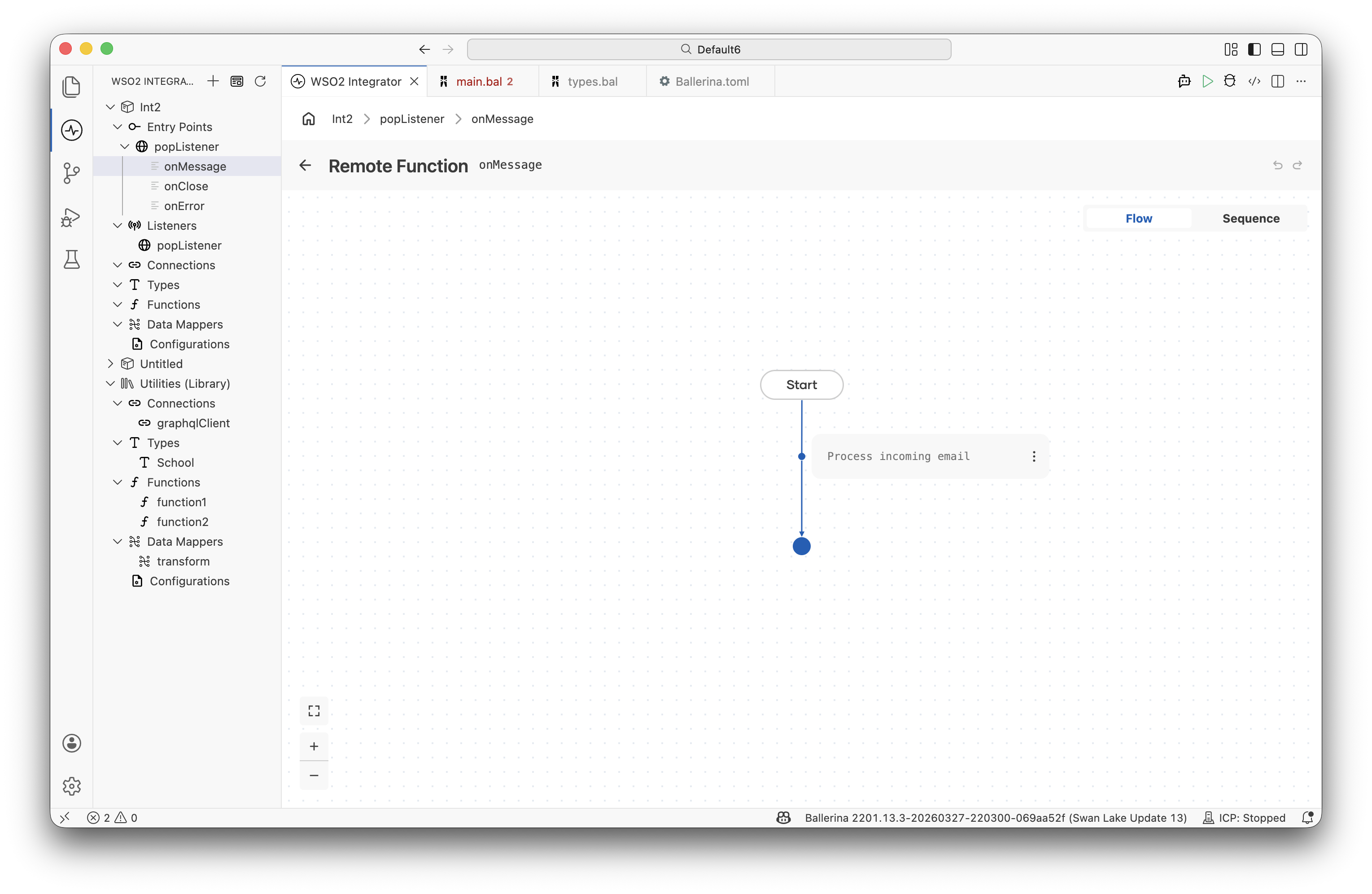

Click the onMessage handler row to open its flow designer view, where you can define the integration logic visually.

note

Not all listener configuration options are available through the visual designer. For full control — including SSL/TLS and polling interval settings — use Ballerina code directly.

Ballerina Code

The onMessage handler receives an email:Message record containing the full message:

remote function onMessage(email:Message msg) returns error? {
    string sender = msg.'from ?: "(unknown sender)";
    string subject = msg.subject ?: "(no subject)";
    string body = msg.body ?: "";

    log:printInfo("Email received", sender = sender, subject = subject);

    if subject.includesMatch(re `[Oo]rder`) {
        check processOrderEmail(sender, body);
    } else if subject.includesMatch(re `[Ss]upport`) {
        check createSupportTicket(sender, subject, body);
    }
}

email:Message fields:

Field	Type	Description
to	string|string[]	Primary recipients (required)
subject	string	Email subject line (required)
'from	string?	Sender address
body	string?	Plain text body
htmlBody	string?	HTML body
cc	string|string[]?	CC recipients
bcc	string|string[]?	BCC recipients
replyTo	string|string[]?	Reply-To addresses
sender	string?	Envelope sender (may differ from 'from)
contentType	string?	Content type of the body (e.g., "text/plain")
attachments	mime:Entity|email:Attachment|(mime:Entity|email:Attachment)[]?	File attachments or MIME entities
headers	map<string>?	Additional email headers
