Twilio

Twilio event integrations receive webhook callbacks from the Twilio platform and trigger handler functions as call or message status changes occur. Use them to track call progress, monitor SMS delivery, and build real-time communication workflows without polling the Twilio API.

Creating a Twilio events service

note

The Twilio webhook listener must be reachable from the internet. For local development, use a tunneling tool such as ngrok to create a public URL for your local port. In production, deploy the integration to a publicly accessible host.

After starting the integration, configure the webhook URL in the Twilio Console under your phone number settings:

• For SMS status callbacks: set the A MESSAGE COMES IN webhook to http://<your-host>:<port> with method HTTP POST.
• For call status callbacks: set the STATUS CALLBACK URL to http://<your-host>:<port> with method HTTP POST.

Visual Designer

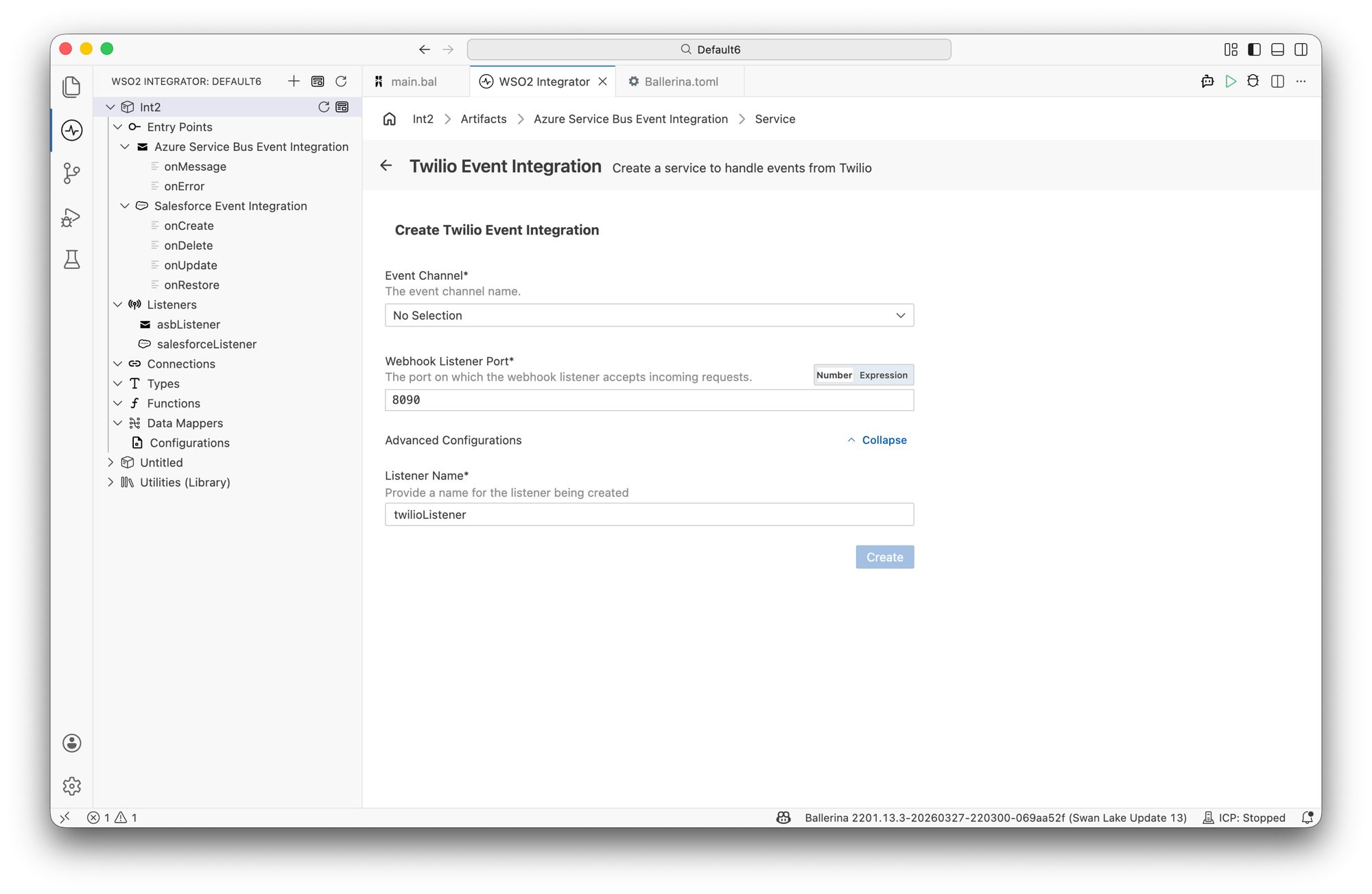

1. Click + Add Artifact in the canvas or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select Twilio under Event Integration.

3. In the creation form, fill in the following fields:



   Field	Description	Default
   Event Channel	The Twilio event channel to subscribe to. Select CallStatusService to handle call status events or SmsStatusService to handle SMS status events.	Required
   Webhook Listener Port	The port on which the webhook listener accepts incoming requests from Twilio.	8090

   Expand Advanced Configurations to set the listener name.

   Field	Description	Default
   Listener Name	Identifier for the listener created with this service.	twilioListener

4. Click Create.

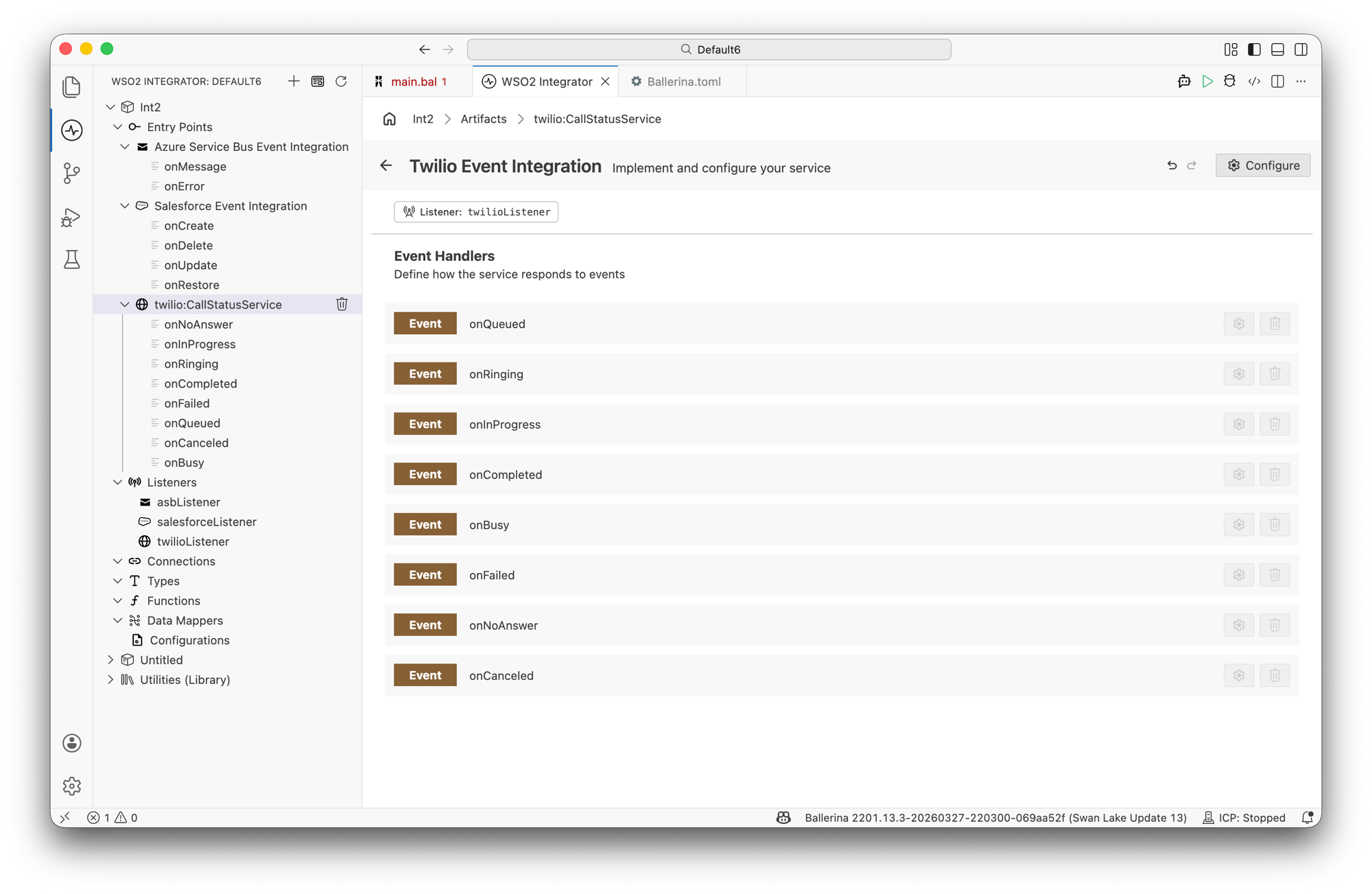

5. WSO2 Integrator opens the service in the Service Designer. The canvas shows the attached listener pill and the Event Handlers section with all handlers for the selected channel pre-added.



   All event handlers for the selected channel are added automatically. Click any handler to open it in the flow diagram view and implement the logic.

Ballerina Code

import ballerinax/trigger.twilio;
import ballerina/log;

configurable int port = 8090;

listener twilio:Listener twilioListener = new (port);

service twilio:CallStatusService on twilioListener {

    remote function onQueued(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call queued", callSid = event.CallSid ?: "");
    }

    remote function onRinging(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call ringing", callSid = event.CallSid ?: "");
    }

    remote function onInProgress(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call in progress", callSid = event.CallSid ?: "");
    }

    remote function onCompleted(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call completed",
                      callSid = event.CallSid ?: "",
                      duration = event.CallDuration ?: "");
    }

    remote function onBusy(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call busy", callSid = event.CallSid ?: "");
    }

    remote function onFailed(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call failed", callSid = event.CallSid ?: "");
    }

    remote function onNoAnswer(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call no answer", callSid = event.CallSid ?: "");
    }

    remote function onCanceled(twilio:CallStatusEventWrapper event) returns error? {
        log:printInfo("Call canceled", callSid = event.CallSid ?: "");
    }
}

Service and listener configuration

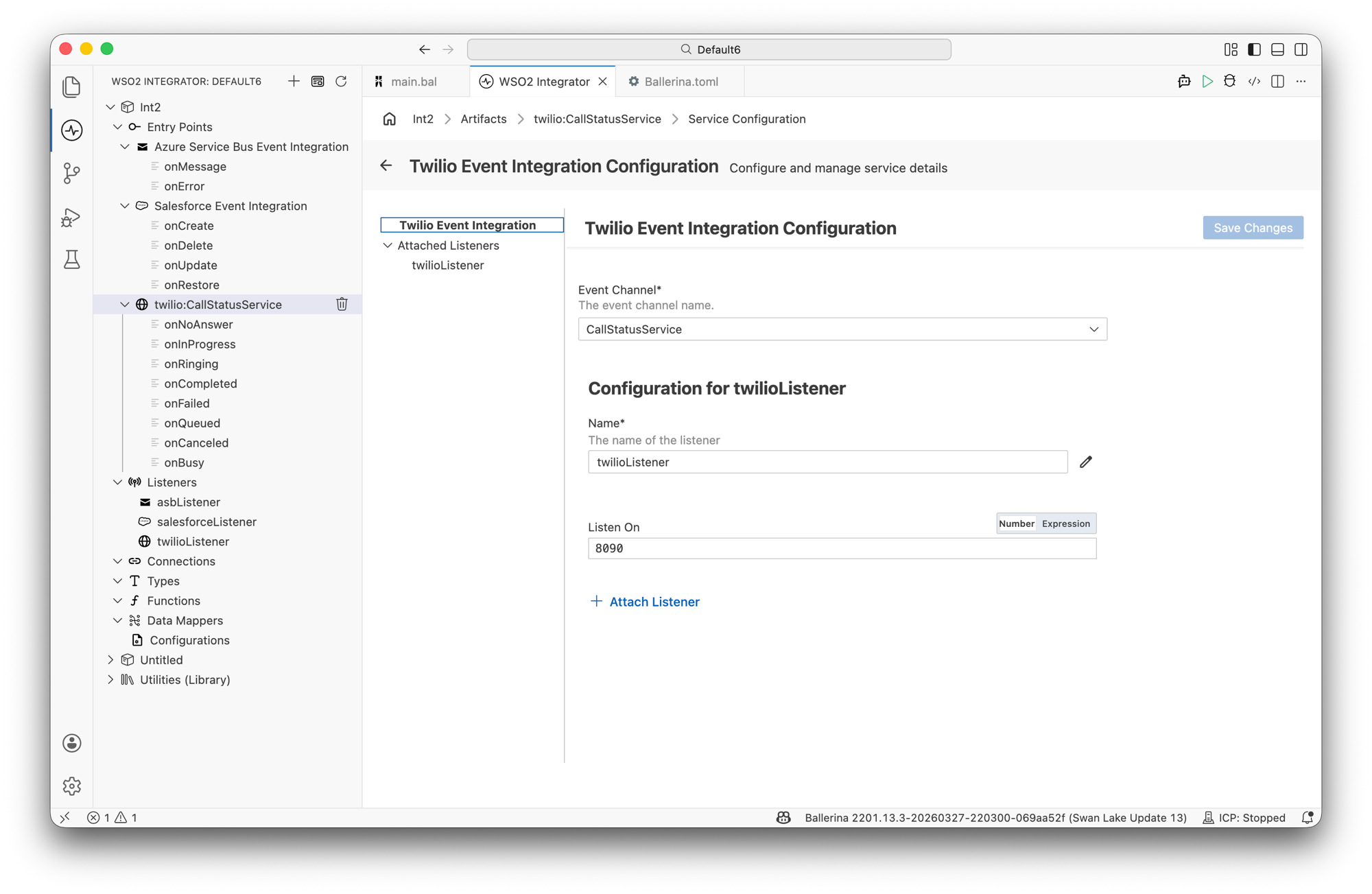

In the Service Designer, click the Configure icon in the header to open the Twilio Event Integration Configuration panel.

Visual Designer

The configuration panel has two sections. The top section configures the service and the bottom section configures the attached listener.

Service configuration:

Field	Description
Event Channel	The Twilio event channel this service handles. Select CallStatusService or SmsStatusService.

Listener configuration (under Configuration for twilioListener):

Field	Description	Default
Name	Identifier for the listener.	twilioListener
Listen On	Port on which the listener accepts incoming webhook requests.	8090

Click + Attach Listener to attach an additional listener to the same service.

Click Save Changes to apply updates.

Ballerina Code

listener twilio:Listener twilioListener = new (8090);

twilio:Listener accepts a port number as its argument. The listener starts an HTTP server on that port to receive Twilio webhook callbacks.

For SmsStatusService:

service twilio:SmsStatusService on twilioListener {

    remote function onAccepted(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS accepted", messageSid = event.MessageSid ?: "");
    }

    remote function onQueued(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS queued", messageSid = event.MessageSid ?: "");
    }

    remote function onSending(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS sending", messageSid = event.MessageSid ?: "");
    }

    remote function onSent(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS sent", messageSid = event.MessageSid ?: "");
    }

    remote function onFailed(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS failed", messageSid = event.MessageSid ?: "");
    }

    remote function onDelivered(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS delivered", messageSid = event.MessageSid ?: "");
    }

    remote function onUndelivered(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS undelivered", messageSid = event.MessageSid ?: "");
    }

    remote function onReceiving(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS receiving", messageSid = event.MessageSid ?: "");
    }

    remote function onReceived(twilio:SmsStatusChangeEventWrapper event) returns error? {
        log:printInfo("SMS received",
                      messageSid = event.MessageSid ?: "",
                      'from = event.From ?: "",
                      body = event.Body ?: "");
    }
}

Event handlers

When a Twilio Events service is created, WSO2 Integrator adds all handlers for the selected channel automatically. Click any handler in the Service Designer to open the flow diagram view and implement the processing logic.

CallStatusService handlers

The CallStatusService channel provides handlers for each Twilio call state.

Handler	Triggered when
onQueued	The call has been created and is waiting to be dialed
onRinging	The call is ringing at the destination
onInProgress	The call has been answered and is active
onCompleted	The call ended normally
onBusy	The destination returned a busy signal
onFailed	The call could not be connected
onNoAnswer	The destination did not answer
onCanceled	The call was canceled before it was answered

SmsStatusService handlers

The SmsStatusService channel provides handlers for each Twilio SMS delivery state.

Handler	Triggered when
onAccepted	Twilio has accepted the message request
onQueued	The message is queued for delivery
onSending	Twilio is in the process of sending the message
onSent	The message has been dispatched to the carrier
onFailed	The message could not be sent
onDelivered	The carrier confirmed delivery to the recipient
onUndelivered	The carrier received the message but could not deliver it
onReceiving	An inbound message has been received and is being processed
onReceived	An inbound SMS message was fully received

Error handling

Service callbacks return error?. If a handler returns an error, the listener returns a non-2xx HTTP response to Twilio, which triggers Twilio's retry mechanism. Handle expected failures within the callback and return () (nil) to acknowledge the event without triggering a retry.
