Implement login using the Device Authorization flow¶

See the instructions given below to implement login with OpenID Connect in your application by using the device authorization flow.

Refer how the device authorization flow work for more information.

Prerequisites¶

You need to have an application registered in Asgardeo. If you don't already have one, register a standard-based OIDC application.
Create a user account.

Get the required codes¶

First, your app must initiate a login request to the authorization endpoint of Asgardeo. After redirecting to Asgardeo, the user should be prompted with a login page if the user is not authenticated.

Device authorization endpoint

https://api.asgardeo.io/t/{organization_name}/oauth2/device_authorize

Request format

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'client_id=<CLIENT_ID>'
https://api.asgardeo.io/t/{organization_name}/oauth2/device_authorize

Request sample

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'client_id=bbwJEayR_OMwPkAgm9VOMzLnYLga'
https://api.asgardeo.io/t/bifrost/oauth2/device_authorize

Upon successful execution of the request, the Asgardeo returns the user_code, device_code and the verification_uri to the client device.

Sample response

{
    "user_code":"s2DqSN",
    "device_code":"d3fe0db1-2334-48fa-b7d9-821ecfad10d5",
    "interval":5000,
    "verification_uri_complete":"https://api.asgardeo.io/t/bifrost/authenticationendpoint/device.do?user_code=s2DqSN",
    "verification_uri":"https://api.asgardeo.io/t/bifrost/authenticationendpoint/device.do",
    "expires_in":3600
}

Authorize the client device¶

The client device shows the received codes and the verification URI to the user.

To authorize the client device:

The user accesses the verification_uri through a device with no input constraints.

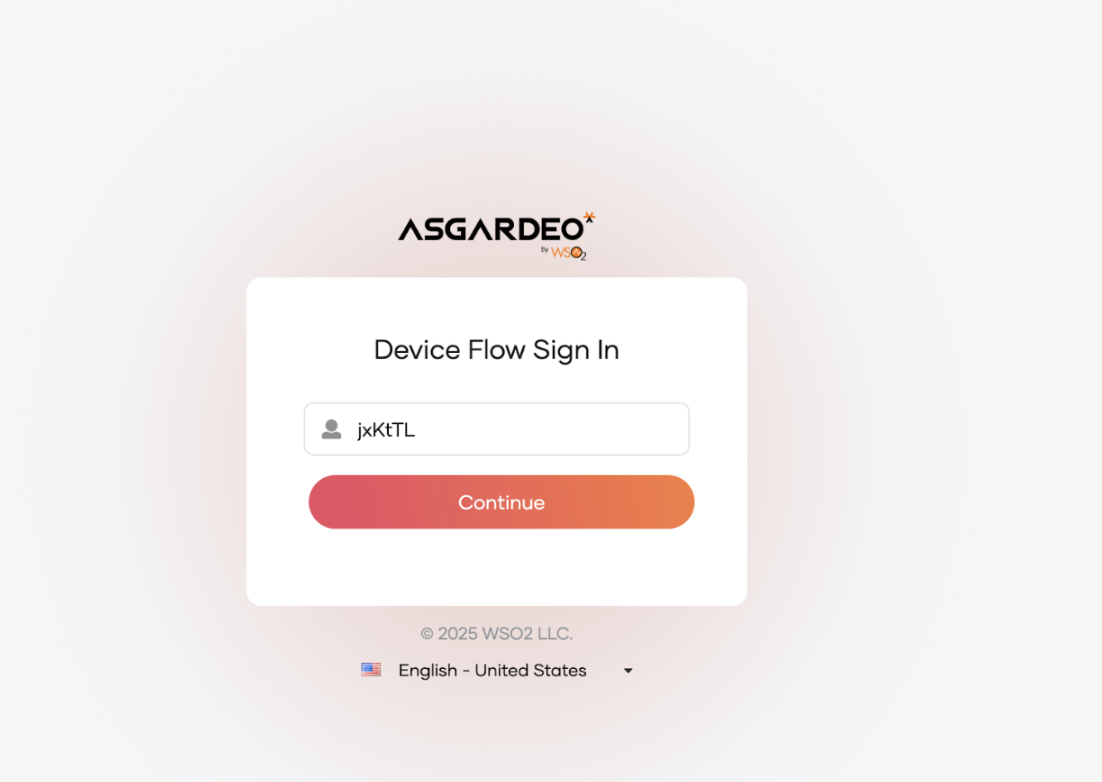

The user enters the user_code on the prompted window.

Note

The user code is for one-time use only. If your code is expired or if you have entered a wrong user code, get a new user code by following the previous steps.
If step 2 is successful, the user will be prompted to enter credentials. Enter credentials and click Continue.

Once you log in successfully, the user will be redirected to the configured callback URL of the service provider.

Get access token¶

While the user reviews the authorization request, the client device keeps polling the token endpoint.

Use the following cURL to obtain an access token

Token endpoint

https://api.asgardeo.io/t/{organization_name}/oauth2/token

Request format

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'grant_type=urn:ietf:params:oauth:grant-type:device_code'
--data-urlencode 'client_id=<CLIENT_ID>'
--data-urlencode 'device_code=<DEVICE_CODE>'
https://api.asgardeo.io/t/{organization_name}/oauth2/token

Request sample

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'grant_type=urn:ietf:params:oauth:grant-type:device_code'
--data-urlencode 'client_id=bbwJEayR_OMwPkAgm9VOMzLnYLga'
--data-urlencode 'device_code=7411f395-2f3a-4cb5-8562-d7059d69c66f'
https://api.asgardeo.io/t/bifrost/oauth2/token

Sample response

{
    "access_token":"74d610ab-7f4a-3b11-90e8-279d76644fc7",
    "refresh_token":"fdb58069-ecc7-3803-9b8b-6f2ed85eff19",
    "token_type":"Bearer",
    "expires_in":3042
}

Note

Find the default values related to the device authorization flow in the Asgardeo.

The length of the user code	6
The expiry time of the user code and the device code	10 min
The minimum delay of the client between each polling request to the token endpoint	5 seconds
The set of characters that is used to generate the user code	BCDFGHJKLMNPQRSTVWXYZbcdfghjklmnpqrstvwxyz23456789
