Try a B2B use case

The following guide is a complete end-to-end use case on how to manage B2B (Business-to-Business) applications in Asgardeo.

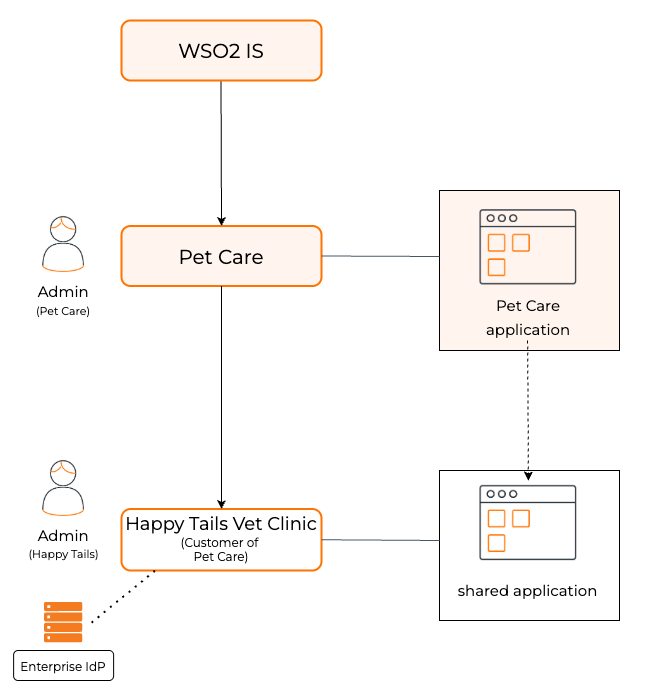

Scenario

• Happy Tails Veterinary Clinic is a veterinary institution that wants a unified platform to perform its internal operations, such as managing doctors and staff, and external operations, such as scheduling appointments and facilitating doctor channeling for pet owners.

• To meet these needs, Happy Tails uses the Pet Care application which has integrated Asgardeo to fulfill its identity and access management needs.

• Pet Care application supports personalized experiences based on the role assigned to the user.

  • Administrators can manage users, assign roles, configure enterprise Identity Providers (IdPs), and customize login flows for their organization.
  • Doctors can manage appointments, view pet information, update medical records, and communicate with pet owners.
  • Pet Owners can book appointments, manage their pets' profiles, and view their appointment history.



As an administrator of Pet Care, you are tasked with implementing this scenario. The following guides explain how you can use Asgardeo to achieve this.

Prerequisites

You should create a root organization. For this example, we have created a root organization named Pet Care.

Onboard the organization

Pet Care, as the service provider, is the root organization of this business. Happy Tails, as a customer of Pet Care, is a child organization of Pet Care.

Follow the create an organization guide and create this organization hierarchy.

Create the API resources

Pet Care application uses many API resources for its functionality. Users, based on the role, should be able to perform various actions on these API resources as permitted by the role. To provide correct access control to these API resources, we need to first define these API resources and actions in Asgardeo.

Note

Learn more about API authentization.

To do so,

1. On the Asgardeo Console, go to API Authorization.

2. Click New API Resource and add the following API resources and permissions (scopes).

   Display Name	Identifier	Permissions (Scopes)
   Channel Service	http://localhost:9091	list_doctors create_doctor view_doctor update_doctor delete_doctor list_bookings view_appointment view_profile create_bookings view_booking update_booking delete_booking view_org_info update_org_info
   Pet Management Service	http://localhost:9092	list_pets create_pet view_pet update_pet delete_pet view_user_settings update_user_settings
   Personalization Service	http://localhost:9093	create_branding update_branding delete_branding

Register the application

The next step is to integrate the Pet Care application with Asgardeo. To do so,

Step 1: Register the application

To register the application,

1. Log in to the root organization.

2. Register a standard-based application in your root organization with the following settings:

   Application Name	Add a name for the application. Pet Care App
   Protocol	The authentication protocol to use. OpenID Connect
   Authorized redirect URLs	Asgardeo sends the authorization code to this URL and once users logout, they will be redirected to this URL. http://localhost:3002/api/auth/callback/wso2isAdmin http://localhost:3002

Step 2: Share the application with organizations

When you share an application with your child organizations, Sign In with SSO appears as a login option in the application. Child organization users can then use this option to successfully log in to the application.

Follow the instructions in share applications with organizations and share the application with the Happy Tails organization.

Step 3: Configure the application

The following configurations are essential for the application to work seamlessly with child organization logins. You can find these settings by navigating to the Applications section and selecting the registered application.

Protocol Configurations

1. Go to the Protocol tab of the application, and configure the following values.

   Allowed Grant Types	Select the following grant type: Code Refresh Token Organization Switch
   Authorization Redirect URLs	The URLs to which the authorization code is sent upon authentication and where the user is redirected upon logout. http://localhost:3002/api/auth/callback/wso2isAdmin http://localhost:3002
   Allowed Origins	Enter the allowed origins. http://localhost:3002
   Public Client	Enable the application as a public client.
   Access Token Type	Select JWT as the access token type.

2. Click Update and take note of the client_id and client_secret generated for your application.

User Attribute Configurations

1. Go to the User Attributes tab of the application.

2. Mark the following attributes as mandatory so that users are required to have values for them. If not, users are asked to enter the values during log in:

   • Email
   • First Name
   • Last Name
   • Roles

3. Click Update to save the changes.

Authorize API Resources

In this step, we will provide access for the application to consume API resources. This includes the custom API resources we defined above and other standard API that is required for the functionality of the application.

1. Go to the API Authorization tab of the application.

2. Click on Authorize an API Resource.

3. Authorize the application to consume all the API resources and permissions that we defined in the Create the API resources step.

4. Additionally, authorize the application to consume the following standard APIs and all of the corresponding permissions (scopes).

   Important

   Standard APIs come in two types:

   • Management APIs govern B2C use cases.
   • Organization APIs govern B2B use cases.

   Be sure to select the corresponding organization API for the following APIs. Refer to the API documentation for more details.

   API Resource	Endpoint
   SCIM2 Users API	/o/scim/Users
   SCIM2 Roles API	/o/scim2/Roles
   SCIM2 Groups API	/o/scim2/Groups
   Identity Provider Management API	/o/api/server/v1/identity-providers
   Application Management API	/o/api/server/v1/applications
   Claim Management API	/o/api/server/v1/claim-dialects
   Branding Preference Management API	/o/api/server/v1/branding-preference
   Channel Service API	http://localhost:9091
   Pet Management Service API	http://localhost:9092
   Personalization Service API	http://localhost:9093

Role Configurations

The application should support three distinct roles: Administrator, Doctor, and Pet Owner. Each role will have different levels of access to API resources, ensuring that each user receives a personalized user experience tailored to their specific use cases.

Note

Learn more about roles in manage roles.

To create these roles,

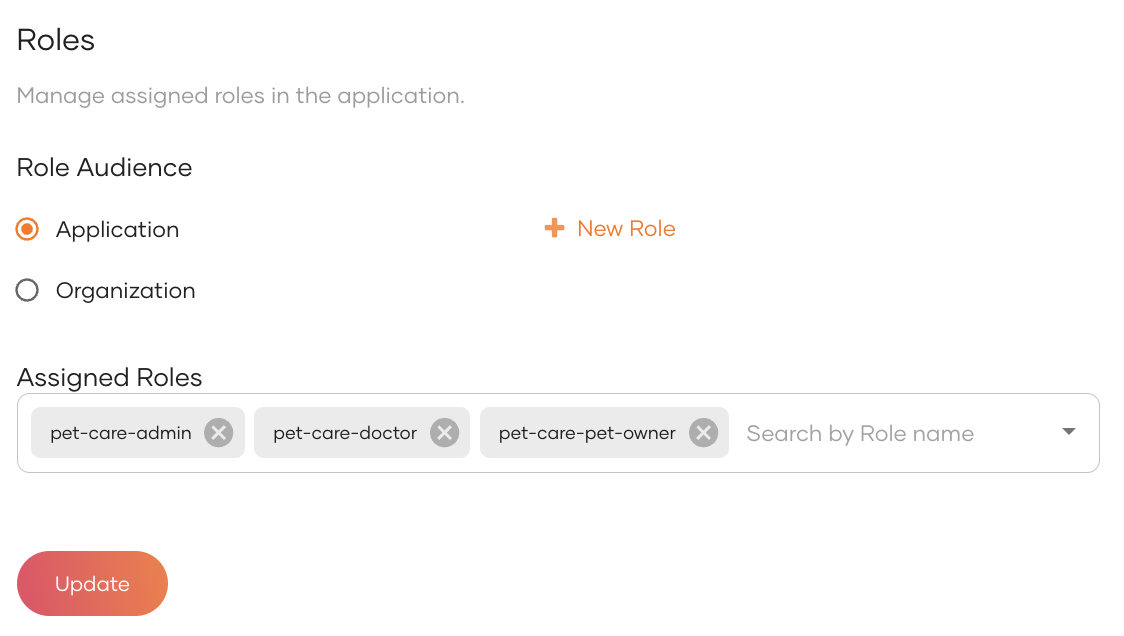

1. Navigate to the Roles tab of the application.

2. Select the Role Audience as Application and click New Role.



3. Create the following application roles and assign the corresponding permissions (scopes):

   Role Name	API Resource	Authorized Scopes
   pet-care-admin	SCIM2 Users API	All Scopes
   	SCIM2 Roles API	All Scopes
   	SCIM2 Groups API	All Scopes
   	Identity Provider Management API	All Scopes
   	Application Management API	All Scopes
   	Claim Management API	All Scopes
   	Branding Preference Management API	All Scopes
   	Channel Service API	list_doctors view_org_info update_org_info create_doctor
   	Personalization Service API	create_branding update_branding delete_branding
   pet-care-doctor	Channel Service API	view_profile list_bookings view_doctor update_doctor
   	Pet Management Service API	list_pets
   pet-care-pet-owner	Channel Service API	list_bookings list_doctors view_doctor create_bookings
   	Pet Management Service API	create_pet view_pet list_pets

4. After entering the role names and assigning the appropriate API resources and scopes, click Create.



5. Upon successful creation, the new application roles will appear under the Assigned Roles list.



Step 4: Create a user and assign the administrator role

Now that we have configured the application and have shared the application with the Happy Tails organization, it is time for us to create an administrator for the Happy Tails child organization. This administrator is responsible for managing the Happy Tails organization.

To do so,

1. On the Asgardeo Console, navigate to Organizations and switch to the Happy Tails organization.

2. On the organization Console, navigate to User Management > Users.

3. Click Add User and create a user.

   • Username: [email protected]
   • Email: [email protected]
   • Password: Set a secure password or use the autogenerated option.

4. Click Create.

5. From the organization Console, navigate to User Management > Roles.

6. Click on the pet-care-admin administrator role you created earlier and go to its Users tab.

7. Click Assign Users, select the created user and click Assign.

Now that we assigned the pet-care-admin role to the [email protected] user, this user can log in to the Pet Care admin portal and manage the Happy Tails organization's users, applications, and configurations.

Step 5: Configure Branding for the organization

The Happy Tails organization administrator can now customize the login screens of the organization to align with the Pet Care application's theme.

To do so,

1. On the Happy Tails organization's Console, navigate to Branding > Styles & Text.
2. Go to the Design tab.

3. Expand the Images section and set the following:

   • Logo URL:
     https://user-images.githubusercontent.com/35829027/241967420-9358bd5c-636e-48a1-a2d8-27b2aa310ebf.png

   • Logo Alt Text:
     Pet Care App Logo

   • Favicon URL:
     https://user-images.githubusercontent.com/1329596/242288450-b511d3dd-5e02-434f-9924-3399990fa011.png

4. Expand the Color Palette section and set:

   • Primary Color: #4f40ee

This customizes the login and self-service UIs to match the Pet Care application's branding.

Set up the client applications

Before you begin

• Install Ballerina 2201.5.0
• Install Node.js v16 LTS (Tested with v16.13.0)

Step 1: Clone the repository

Clone the samples-is GitHub repository to your local machine. The Pet Care sample application is available under the petcare-sample directory.

Step 2: Deploy the API Services

Let's now run each of the services of the Pet Care application. In each of the commands below, <SAMPLES_HOME> refers to the root directory of the cloned repository.

To do so, run each of the following services in a separate terminal:

1. To start the Channel Service, navigate to the <SAMPLES_HOME>/petcare-sample/b2b/web-app/petvet/apis/ballerina/channel-service directory and run,

   bal run


2. To start the Pet Management Service, navigate to the <SAMPLES_HOME>/petcare-sample/b2b/web-app/petvet/apis/ballerina/pet-management-service directory and run,

   bal run


3. To start the Personalization Service, navigate to the <SAMPLES_HOME>/petcare-sample/b2b/web-app/petvet/apis/ballerina/personalization-service directory and run,

   bal run


Note

By default, the services store data in memory. Alternatively, you can connect them to a MySQL database. To do so,

• Create a Config.toml file in the root folder of each service.

• Add the following DB configurations to each of the files:

  dbHost = "<DB_HOST>"
  dbUsername = "<DB_USERNAME>"
  dbPassword = "<DB_USER_PASSWORD>"
  dbDatabase = "<DB_NAME>"
  dbPort = "<DB_PORT>"


The SQL schemas are available at: <SAMPLES_HOME>/petcare-sample/b2b/web-app/petvet/dbscripts

Step 3: Set Up the Frontend Application

To set up the frontend application,

1. Navigate to the <SAMPLES_HOME>/petcare-sample/b2b/web-app/petvet/web/nextjs/apps/business-admin-app directory.

2. Create a .env file and add the following environment variables to it:

   NEXTAUTH_URL=http://localhost:3002
   BASE_URL=https://localhost:9443
   BASE_ORG_URL=https://localhost:9443/t/<PRIMARY_ORG_NAME>
   CHANNELLING_SERVICE_URL=http://localhost:9091
   PET_MANAGEMENT_SERVICE_URL=http://localhost:9092
   PERSONALIZATION_SERVICE_URL=http://localhost:9093
   HOSTED_URL=http://localhost:3002
   SHARED_APP_NAME="Pet Care App"
   CLIENT_ID=<CLIENT_ID_OF_PET_CARE_APP>
   CLIENT_SECRET=<CLIENT_SECRET_OF_PET_CARE_APP>
   NODE_TLS_REJECT_UNAUTHORIZED=0


Step 4: Start the Application

To start the application,

1. Navigate to <SAMPLES_HOME>/petcare-sample/b2b/web-app/petvet/web/nextjs directory which is the root directory of the frontend application.

2. Run the following commands:

   npm install


   npx nx serve business-admin-app


3. Visit the application at http://localhost:3002

Tip

Use the following URL to directly access the login page of an organization.:
http://localhost:3002?orgId=<suborg_Id>

Try it out

The following sections show how the application log in experience looks like and how the experience changes for users logging in with each of the three roles of the application; administrators, doctors, and pet owners.

Try out sign-in with SSO

Follow the steps below to see how organization login works for a user in the Happy Tails organization when accessing the Pet Care application.

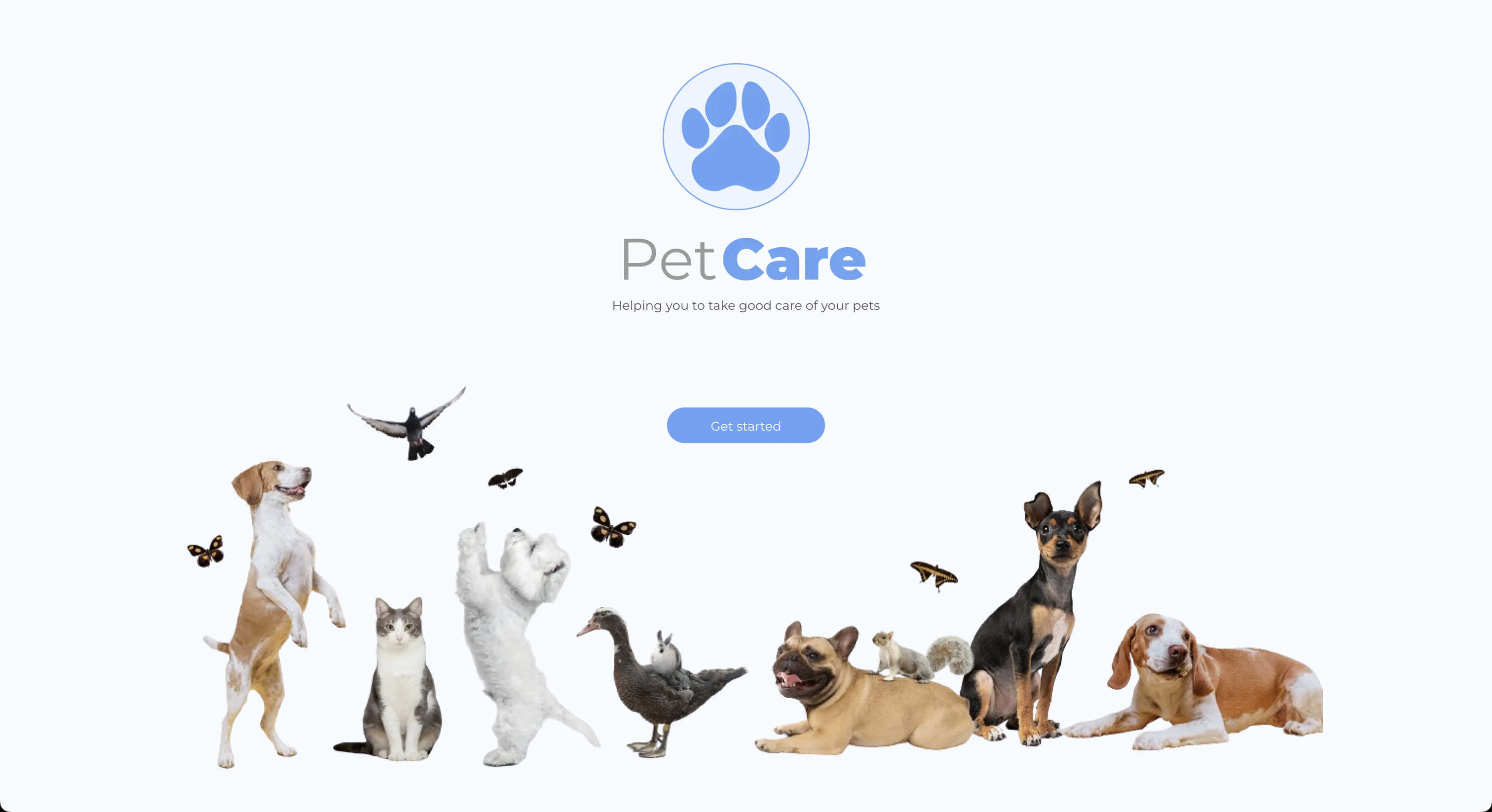

1. Open the application by copying the following URL to your browser:
   http://localhost:3002/



2. Click Sign In to navigate to the Asgardeo login screen.

3. Click Sign In with SSO to specify the organization to which you are signing in.

4. Enter Happy Tails as the organization name and click Submit.



5. Enter the username and password of a user onboarded to Happy Tails (e.g., [email protected] or a doctor/pet owner you created).

6. Click Sign In and provide the necessary consent.

You have now successfully logged into the Pet Care application as a user of the Happy Tails organization.

Try out the administration features

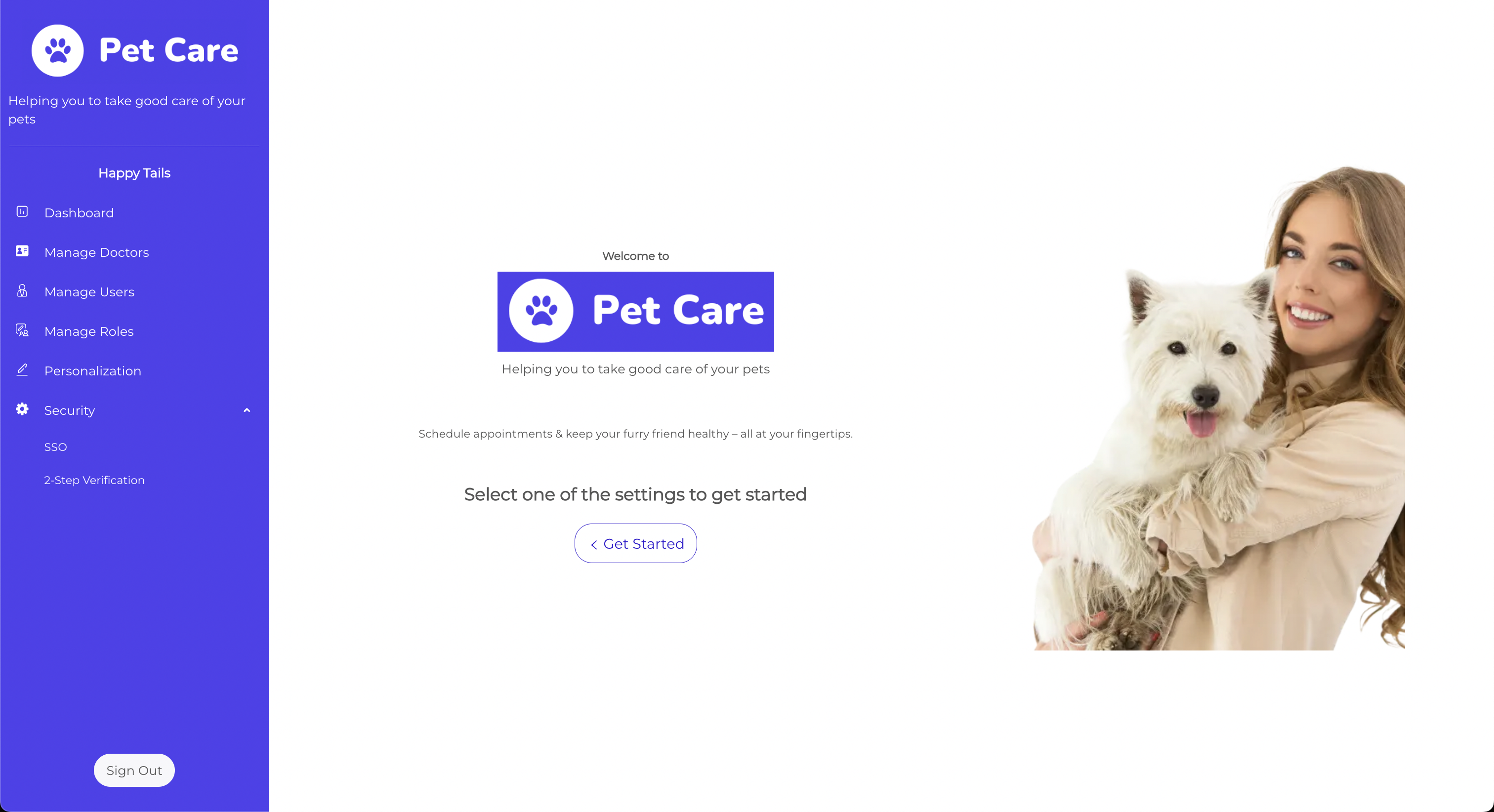

When a user assigned to the pet-care-admin role logs in, the user has access to administration features such as.

• Dashboard: View a summary of the organization activity and key metrics.
• Manage Doctors: Onboard, view, and update doctor profiles.
• Manage Users: Add, remove, or update users across roles (doctors, pet owners, etc.).
• Manage Roles: View and assign predefined application roles like pet-care-admin, pet-care-doctor, and pet-care-pet-owner.
• Personalization: Customize the organization's branding, including logo, color palette, and taglines.
• SSO: Configure federated login for the organization.

• 2-Step Verification: Enable or configure MFA options for users.



Note

Learn how to build an administration portal for your B2B application in the implement an administration portal section.

Try out the doctor experience

When a user with the pet-care-doctor role logs in, the user can access pages relevant to the daily veterinary tasks. These include:

• Profile: View and update personal details and specialty.
• Appointments: See upcoming appointments and manage personal schedule.
• Assigned Pets: Access a list of pets under the user's care, along with each pet's medical history and notes.

Doctors can view and manage information related to their appointments and the pets they treat. They don’t have access to administrative features such as user management or branding configurations.

Try out the pet owner experience

Users with the pet-care-pet-owner role, typically customers of the veterinary clinic, have access to pet-related services such as:

• Book Appointment: Find available doctors and schedule appointments for their pets.
• My Pets: Add, view, and manage details about their pets, including breed, age, and health records.
• Appointment History: Track past and upcoming appointments.
• Settings: Manage account details and preferences.

Pet owners see a simplified version of the app, designed to help them easily manage their pets’ information and interact with the clinic.
