Custom Authentication¶

Custom authentication allows you to extend the authentication functionality of Asgardeo by implementing a custom authentication service. This provides greater flexibility in handling diverse authentication requirements beyond the built-in authenticators.

Types of authenticators¶

In Asgardeo, authenticators play a crucial role in identifying and verifying users. There are several types:

Identification Authenticators:

These authenticators are responsible for identifying the user. Successful execution of this authenticator means the user is identified, either within Asgardeo for internal users or by the external system for federated users.
- Internal User Identification Authenticators: Authenticate users against the internal user stores (e.g., basic authentication with username and password).
- External(Federated) User Identification Authenticators: Delegate authentication to external systems like social login providers (e.g., Google, Facebook).
Verification Authenticators:

These authenticators provide additional security by verifying the already authenticated identity. They often involve multi-factor authentication (MFA) and are used to confirm that the user is truly who they claim to be (e.g., 2FA with a one-time password).

Asgardeo includes several built-in (system-defined) authenticators of both the Identification and Verification types. Custom authenticators (user-defined) are those that you create and configure to address specific or unique requirements that are not met by the system-defined authenticators. Custom authenticators can also be written for both Identification and Verification types.

How custom authentication service extension works¶

When a custom authenticator is configured and added to an application's login flow, the following execution sequence occurs:

When a user attempts to log in to an application, the application sends a login request to Asgardeo.
If the user is not already authenticated, Asgardeo presents the login page with the available authentication options configured for that application. At the relevant login step, if the user selects a custom authenticator, Asgardeo invokes the corresponding authentication service endpoint. This request includes the flowId, a unique identifier used to track the authentication flow.
The custom authentication service processes the request and either:
- Authenticates the user directly and returns the response to Asgardeo.
- If required inputs (e.g., user identifier, PIN) are missing, redirect the user to a designated URL where they can provide the necessary information. This URL is part of your custom authenticator's implementation..
If a redirect is needed, Asgardeo forwards the user to the provided URL.
The user directly interacts with the custom authentication service and authenticates.
Once authenticated, the external service redirects the user back to Asgardeo, including the previously assigned flowId in the request.
Asgardeo calls the custom authentication service endpoint again, with the flowId, to verify authentication completion.
The custom authentication service responds with the final authentication outcome, indicating whether authentication was successful or failed.

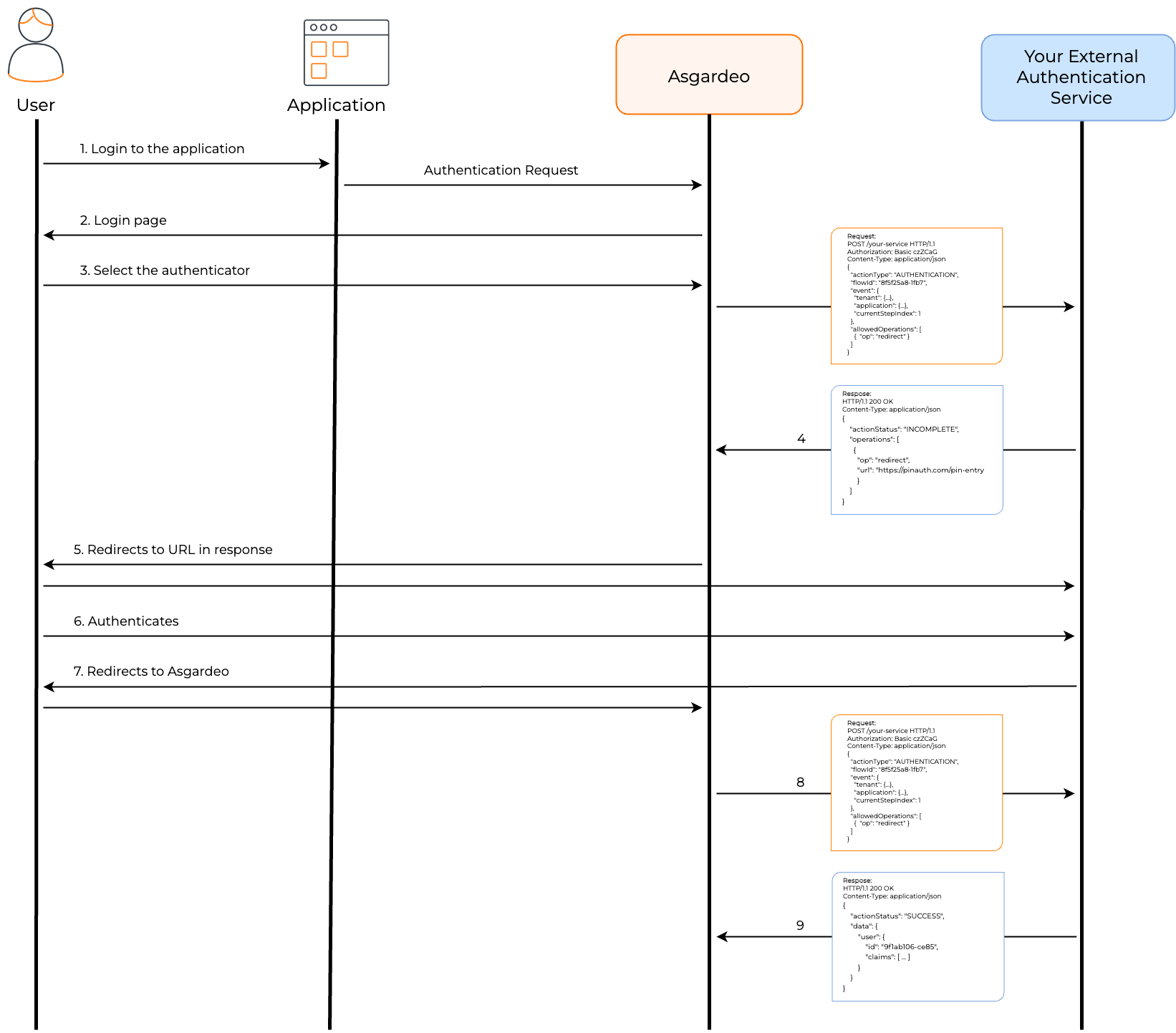

The following diagram illustrates the detailed authentication flow.

how-custom-authentication-work

The custom authentication API contract defines the request and response structures that your service must implement.

The request and response structure between Asgardeo and the external service varies based on the authenticator's invocation step and authentication type (e.g., external, internal, 2FA).

Tip

Utilize the sample custom authentication service to quickly experiment with custom authentication, understand its workflow, and familiarize yourself with the required request-response format for seamless implementation.

Configuring a custom authenticator¶

This guide provides a step-by-step approach to configure a custom authenticator in Asgardeo to integrate your use case with unique authentication logic.

Prerequisites¶

Ensure that you have:

Access to the Asgardeo console.
Facility to implement a web service or endpoint accessible to Asgardeo.

Implement the external service¶

Your external web service should implement the following to successfully integrate as a custom authenticator.

Tip

Utilize the sample custom authentication service to quickly experiment with custom authentication, understand its workflow, and familiarize yourself with the required request-response format for seamless implementation.

Expose an endpoint that accepts HTTP POST requests with JSON payloads. This endpoint should be deployed in a server accessible to Asgardeo.
To ensure successful integration, your external web service needs to adhere to the REST API contract, including correctly handling requests and responses. Refer to How custom authentication service extension works for an explanation of the invocation flow and Custom authentication API deep dive for detailed API contract information.
Implement one of the following authenticator types:
- External (Federated) User Authentication: Authenticate and provision federated users.
- Internal User Authentication: Authenticate user accounts stored within the organization’s connected user stores.
- 2FA Authentication: Provide an additional verification step during authentication flow.
For more details, refer to Types of authenticators.
Use one of the following methods to secure the communication between your external service and Asgardeo:
- Basic Authentication: Use HTTP Basic authentication to secure the endpoint.
- OAuth 2.0 Bearer Tokens: Implement OAuth 2.0 for token-based authentication.
- API Key Header: Secure the endpoint using an API key sent in the request header.
Tip

During the development phase, you may choose to invoke your external service without security for testing purposes. However, ensure that proper security measures are implemented before deploying the service in a production environment.

Configure the custom authenticator in Asgardeo¶

Follow the steps below to configure a custom authenticator.

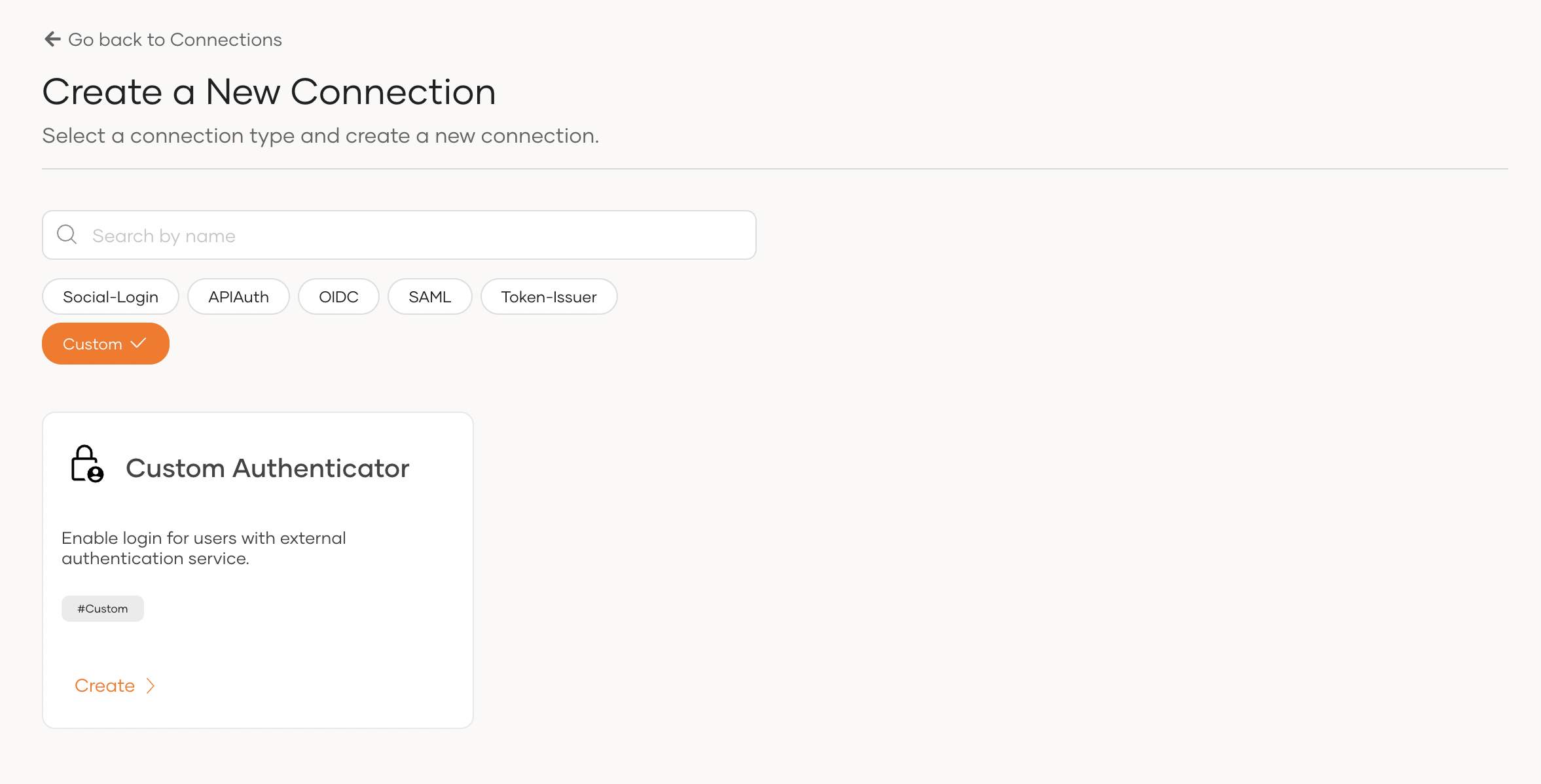

Select CustomAuthenticator and click Create.

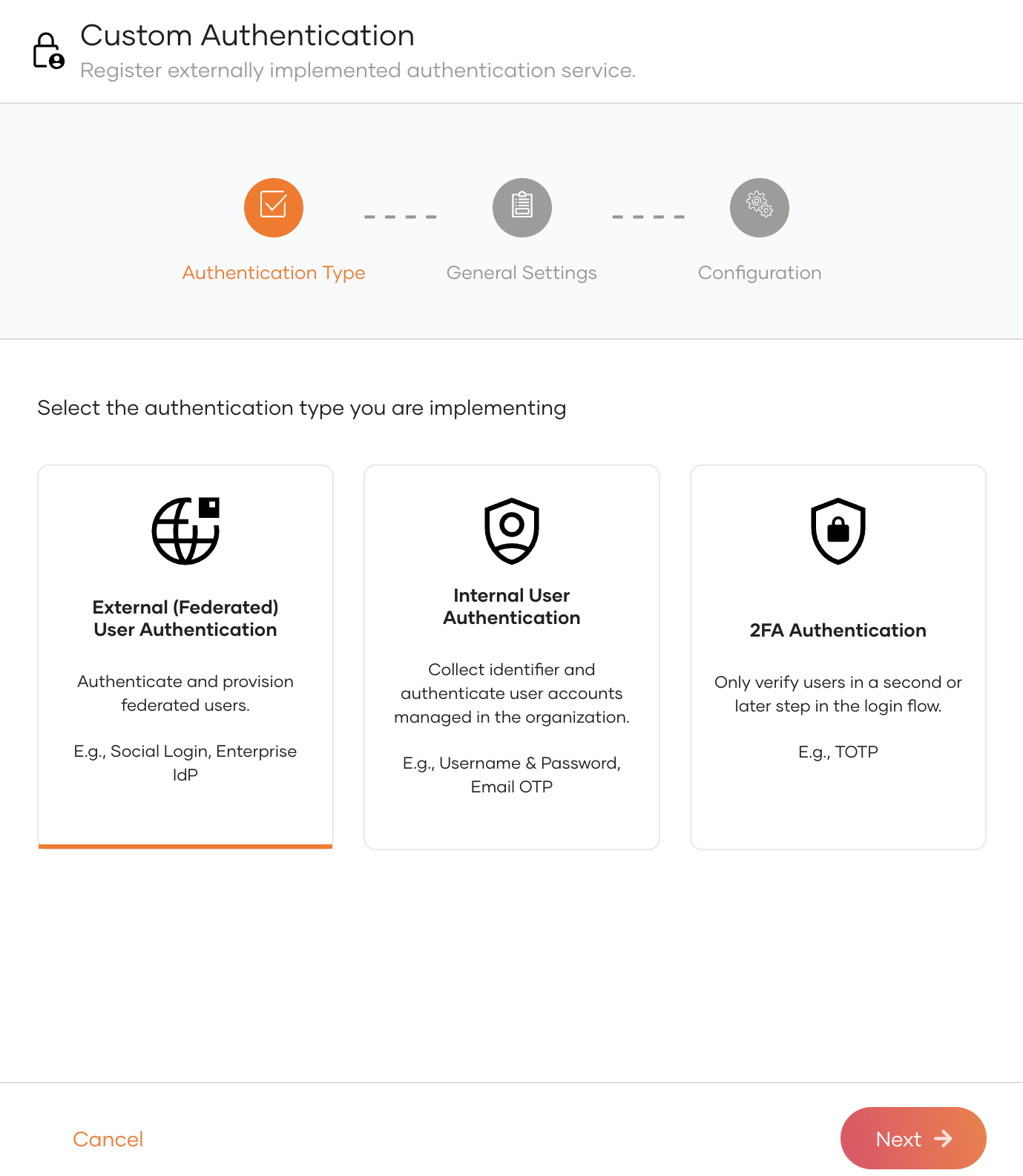

In the setup wizard, choose the appropriate authentication type and click Next. Refer to Types of authenticators for further clarification.
Under General Settings, specify an identifier for your authenticator and a display name to be shown on login pages.
In the Configuration section, fill in the following details and click Finish:
- Endpoint: Provide the URL of the web service endpoint you created.
- Authentication: Choose the authentication method required to invoke your endpoint and configure its properties accordingly.

  Note
  Once added, these authentication secret values will not be displayed again. You will only be able to reset them.
  - Basic - Provide a username and password.
  - Bearer - Provide a bearer token.
  - API Key - Provide the header name and the value.
  - No Authentication - No authentication (recommended only for testing purposes).
If you select External (Federated) User Authentication, ensure that JIT-User Provisioning is configured according to your requirements. Additionally, review and set up role assignments for user groups to ensure seamless integration.

Follow the steps below to integrate the custom authenticator into your application's login flow:

Open the Asgardeo Console and navigate to Applications.
Select the application you want to enable authentication using the custom authenticator.
Go to the Login Flow tab of the application.

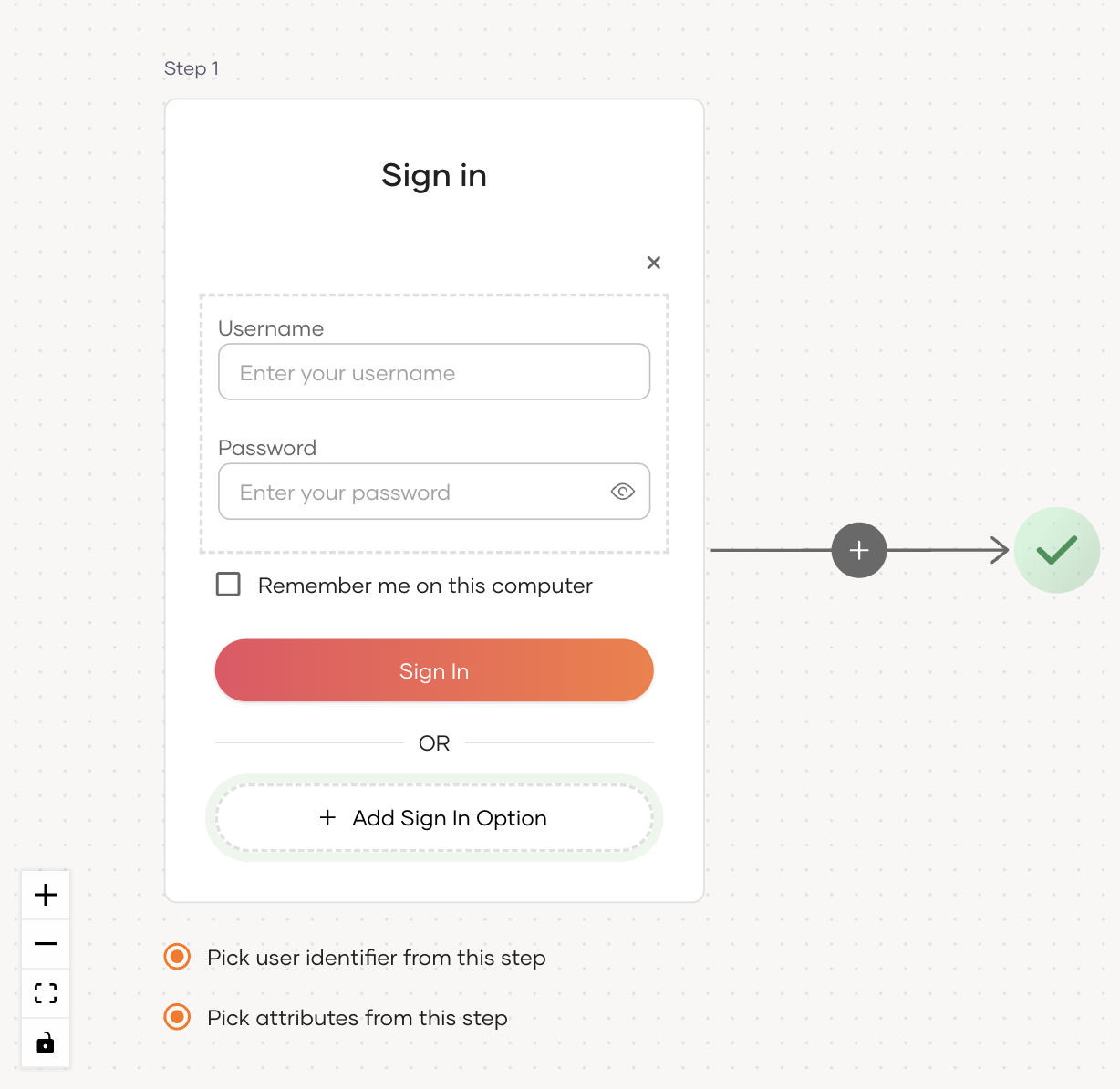

Click Add Sign-In Option in the step where you want to add the authenticator.
Select the authenticator you previously configured and click Add to engage the authenticator in the flow.

Note
You can include External and Internal User Authentication type authenticators at any stage of the login flow. In contrast, 2FA Authentication type authenticators are only allowed from the second step onwards.
Click Update to save your changes.

Test your custom authenticator¶

Follow the steps below to try out the created custom authenticator.

Start an authentication request from the application where you've configured your custom authenticator. This will trigger the login flow in Asgardeo.
Observe the Asgardeo login page. Your custom authenticator should now appear as an available option for the user to select.
Select your custom authenticator. Simultaneously, monitor your external authentication service to capture the incoming request from Asgardeo. This request will be in JSON format.
Carefully examine the captured JSON request payload. Verify that it matches the expected structure and includes necessary parameters like actionType, flowId, and the event object. The specific payload format will vary depending on the step where the authenticator is invoked. Refer to the Request from Asgardeo section for detailed information on request payload semantics and examples.
For initial testing, consider having your external service return a simple, predefined response (e.g., a SUCCESS response). This allows you to verify that Asgardeo receives and processes the response correctly.
Once you've verified basic connectivity and response handling, test with a variety of responses:
- INCOMPLETE: To ensure Asgardeo correctly redirects the user for further input.
- SUCCESS: With various user data and claims to ensure proper user provisioning and session creation in Asgardeo.
- FAILED: With different failureReason and failureDescription values to see how Asgardeo handles and displays error messages.
- ERROR: To test Asgardeo's behavior when your service encounters server-side errors.
After your service responds, carefully check how Asgardeo handles that response. Verify that:
- The authentication flow proceeds as expected based on the response.
- Users are correctly redirected, authenticated, or shown error messages.
- User data (claims, groups) is correctly processed in Asgardeo.
Refer to Expected Response from External Service for detailed expected response semantics and examples for different response types.

Troubleshoot issues¶

The following are some of the troubleshooting steps that you may take to resolve issues.

Ensure that your external service is up and running and that there are no connectivity issues.
Confirm that the request and response payloads conform to the expected formats as defined by the REST API contract.
Use diagnostic logs to capture detailed information during the troubleshooting process. For more information refer to the troubleshooting guide here.

Custom authentication API deep dive¶

This section delves into the specifics of the custom authentication API, providing a detailed look at the requests Asgardeo sends to your external authentication service and the responses it expects. Understanding these interactions is crucial for successfully implementing and integrating your custom authenticator.

Request from Asgardeo¶

The request from Asgardeo includes following in the JSON request payload:

Property	Description
actionType	Specifies the action being triggered, which in this case is `AUTHENTICATE`.
flowId	A unique correlation identifier, used to track the login flow throughout all requests and responses.
event	Contains context information relevant to authentication flow. Refer event section for details.
allowedOperations	Specify redirection is allowed. E.g., `"allowedOperations": [ { "op": "redirect" } ]`

event¶

Property Description

event.tenant

This property represents the tenant (root organization) under which the authentication request is being processed.

event.user

Contains details of the user currently authenticated in the flow. If the authenticator executes in the first step of login, this property is unavailable.

id	The unique numeric identifier of the user.
userIdentitySource	Denotes the source managing the user’s identity (`LOCAL` for internally managed user identities in userstores, `FEDERATED` for external identity providers).
sub	Subject identifier of the authenticating user.

event.userStore

This property indicates the user store in which the currently authenticated user's identity or profile is being managed.

event.organization

This property refers to the organization to which the authenticating user is trying to log into. Organizations represent partners/enterprise customers in Business-to-Business (B2B) use cases.

currentStepIndex

Indicates the current authentication step at which the authenticator is invoked.

authenticatedSteps

Lists the authenticators executed in each step up to the current step.

E.g.,

"authenticatedSteps": [
    {
      "index": 1,
      "name": "BasicAuthenticator"
    }
  ]

Example requests from Asgardeo:¶

The following examples demonstrate requests sent from Asgardeo to external services, showcasing different authentication types in action.

Request for a custom authenticator engaged in the first step:

POST authservice/api/authenticate HTTP/1.1
Authorization: Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW
Content-Type: application/json

{
  "actionType": "AUTHENTICATION",
  "flowId": "75919d4d-026b-4b7b-87e1-3f32986f6d97",
  "event": {
    "request": {},
    "tenant": {
      "id": "12",
      "name": "example.com"
    },
    "application": {
      "id": "634f9b10-5fb9-49e3-96cd-43ccaa92564c",
      "name": "example.app"
    },
    "currentStepIndex": 1
  },
  "allowedOperations": [
    {
      "op": "redirect"
    }
  ]
}

Request for a custom authenticator in the second or later step:

POST authservice/api/authenticate HTTP/1.1
Authorization: Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW
Content-Type: application/json

{
  "actionType": "AUTHENTICATION",
  "flowId": "8f5f25a8-1fb7-4c93-9e86-2c328beac833",
  "event": {
    "request": {},
    "tenant": {
      "id": "12",
      "name": "example.com"
    },
    "user": {
      "id": "afb93858-18c8-4c65-9d08-86609d4eeee3",
      "userIdentitySource": "FEDERATED",
      "sub": "[email protected]"
    },
    "userStore": {},
    "application": {
      "id": "57c3a037-571f-4597-97e8-91a3bb1042d7",
      "name": "example.app"
    },
    "currentStepIndex": 1
  },
  "allowedOperations": [
    {
      "op": "redirect"
    }
  ]
}

Expected Response from External Service:¶

When Asgardeo invokes your external authentication service, it expects a response that adheres to the defined API contract.

This response determines the authentication status and the authenticated user from your custom authenticator.

Here’s a breakdown of the expected response:

The response can have four possible states: INCOMPLETE, SUCCESS, FAILED and ERROR.

INCOMPLETE: Insufficient input to complete authentication. The service requires additional input and must redirect the user to a specified endpoint for further interaction.

SUCCESS: The authentication request was successfully processed, and the user has been authenticated.

FAILED: Authentication failed due to credential validation errors or other business rules defined by the external service. The application receives an error response formatted as per the authentication protocol, including the failure message from the external service.

ERROR: A processing failure occurred, usually due to server-side issues. The application receives a server error response generated by Asgardeo, indicating an internal system failure.

Response for INCOMPLETE state:¶

When the external authentication service returns a 200 status code with an INCOMPLETE state, it indicates that authentication has not been completed. Asgardeo will redirect the user to the endpoint specified in the response to continue the authentication process.

Http Status Code: 200

Property	Description
actionStatus	Represents the outcome of the request. For incomplete authentication, this should be `INCOMPLETE`.
operations	Specifies the operation to be performed. In this case, it is the redirect operation.

Below is an example of an incomplete response at custom authentication.

HTTP/1.1 200 OK
Content-Type: application/json

{
    "actionStatus": "INCOMPLETE",
    "operations": [
      {
        "op": "redirect",
        "url": "https://pinauth.com/pin-entry
        }
    ]
}

This response prompts Asgardeo to redirect the user to the specified url, allowing them to complete the authentication process with the external service.

Response for SUCCESS state:¶

When the external service responds with a 200 status code and a SUCCESS state, it indicates that the request was processed successfully and the user has been authenticated.

The expected response format varies based on the authentication type implemented by the external service.

Http Status Code: 200

Property	Description
actionStatus	Represents the outcome of the request. For successful authentication of any type, this property applies. The value should be `SUCCESS`.
data.user	Required if the authentication type is External (Federated) User Authentication or Internal User Authentication, which function as identification authenticators. The validation process differs based on the type. For 2FA Authentication, this property is ignored, as the authentication process only verifies an already authenticated user.

Response from an external service implementing External (Federated) User Authentication:

HTTP/1.1 200 OK
Content-Type: application/json

{
  "actionStatus": "SUCCESS",
  "data": {
    "user": {
      "id": "9f1ab106-ce85-46b1-8f41-6a071b54eb56",
      "claims": [
        {
          "uri": "http://wso2.org/claims/username",
          "value": "johnd"
        },
        {
          "uri": "http://wso2.org/claims/emailaddress",
          "value": "[email protected]"
        }
      ],
      "groups": [
        "gold-tier"
      ]
    }
  }
}

When an external identity provider (IdP) authenticates a user, the user's profile information is sent to Asgardeo. This information is represented as claims. These claims can include any standard claim available in the WSO2 claim dialect: http://wso2.org/claims.

The groups attribute indicates the user groups to which the user belongs within the external IdP.

Since this user is treated as an external user, you can configure JIT-User Provisioning to automatically create a corresponding user account in Asgardeo. Additionally, you can set up role assignments for external user groups included in the response.

Response from an external service implementing Internal User Authentication:

HTTP/1.1 200 OK
Content-Type: application/json

{
  "actionStatus": "SUCCESS",
  "data": {
    "user": {
      "id": "9f1ab106-ce85-46b1-8f41-6a071b54eb56",
      "claims": [
        {
          "uri": "http://wso2.org/claims/username",
          "value": "emily"
        },
        {
          "uri": "http://wso2.org/claims/emailaddress",
          "value": "[email protected]"
        }
      ],
      "userStore": {
        "id": "UFJJTUFSWQ==",
        "name": "PRIMARY"
      }
    }
  }
}

Here, the claims represent the attributes of the internal user being authenticated. In this scenario, Asgardeo verifies the existence of a user with the provided id within its internal user stores. If the http://wso2.org/claims/username claim is included in the response, the username value must match the username associated with the given id in the internal user store. The claims payload can include any claim defined in the http://wso2.org/claims dialect.

Response from an external service implementing 2FA Authentication:

HTTP/1.1 200 OK
Content-Type: application/json

{
   "actionStatus": "SUCCESS"
}

For 2FA authenticators, user identification is assumed to have occurred in a preceding authentication step. Therefore, these authenticators are only responsible for verifying the existing identity and reporting a SUCCESS or FAILED status.

Response for FAILED state:¶

When the external service returns a 200 status code with a FAILED state, it means the authentication has failed.

The response body must be a JSON object containing the following properties:

Http Status Code: 200

Property	Description
actionStatus	Indicates the outcome of the request. For a failed operation, this should be set to `FAILED`.
failureReason	Provides the reason for failing to authenticate the user. This value is included in the error response the application receives.
failureDescription	Offers a detailed explanation of the failure. This value is included in the error response the application receives.

Below is an example of a failed response due to invalid credentials.

Response from external service:

HTTP/1.1 200 OK
Content-Type: application/json

{
  "actionStatus": "FAILED",
  "failureReason": "auth-failed",
  "failureDescription": "Unable to find user for given credentials"
}

This will result in the following error response being sent to an application implementing OIDC that initiated the login request.

Error response to the application:

HTTP/1.1 400
Content-Type: application/json

{
  "error": "auth-failed",
  "error_description": "Unable to find user for given credentials"
}

Response for ERROR state:¶

When the external service responds with an ERROR state, it can return an HTTP status code of 400, 401, or 500, indicating either a validation failure or an issue processing the request.

Http Status Code: 400, 401 or 500

Property	Description
actionStatus	Indicates the outcome of the request. For an error operation, this should be set to `ERROR`.
errorMessage	Describes the cause of the error..
errorDescription	A detailed description of the error..

If the external service returns an error response (either defined or undefined) or fails to respond entirely, it will be treated as an error in authentication. In any of these cases, the application that initiated the login request will receive an error state.

Below is an example of an error response returned by the service implementing the authenticator.

Response from external service:

HTTP/1.1 500
Content-Type: application/json

{
  "actionStatus": "ERROR",
  "errorMessage": "Server error",
  "errorDescription": "Error while processing request."
}

Note

Currently, the errorMessage or errorDescription from the external service’s ERROR response is not directly included in the error response sent back to the application.

Custom Authentication¶

Types of authenticators¶

How custom authentication service extension works¶

Configuring a custom authenticator¶

Prerequisites¶

Implement the external service¶

Configure the custom authenticator in Asgardeo¶

Add to an application login flow¶

Test your custom authenticator¶

Troubleshoot issues¶

Custom authentication API deep dive¶

Request from Asgardeo¶

event¶

Example requests from Asgardeo:¶

Expected Response from External Service:¶

Response for INCOMPLETE state:¶

Response for SUCCESS state:¶

Response for FAILED state:¶

Response for ERROR state:¶
