Self-register Flow Builder

Preview

Note

The self-registration Flow Builder is currently in Preview. Some features may be subject to changes in future releases.

The self-registration Flow Builder provides administrators with a powerful tool to create fully customizable user registration experiences. Whether you're building a simple registration form or a complex, multi-step flow, the builder gives you complete control over the design and process.

It includes a variety of starter templates, widgets, steps, and components, allowing you to define exactly how users will interact with your registration process.

---

Pre-requisites

You need to enable self-registration inorder to try this out.

Note

Learn how administrators can enable self-registration in an organization.

Get Started

Enabling the flow builder

Warning

Enabling the self-registration Flow Builder will override the exitsing self-registration experience in your organization. You can always revert back to previous experience.

To enable the self-registration Flow Builder, you have two options:

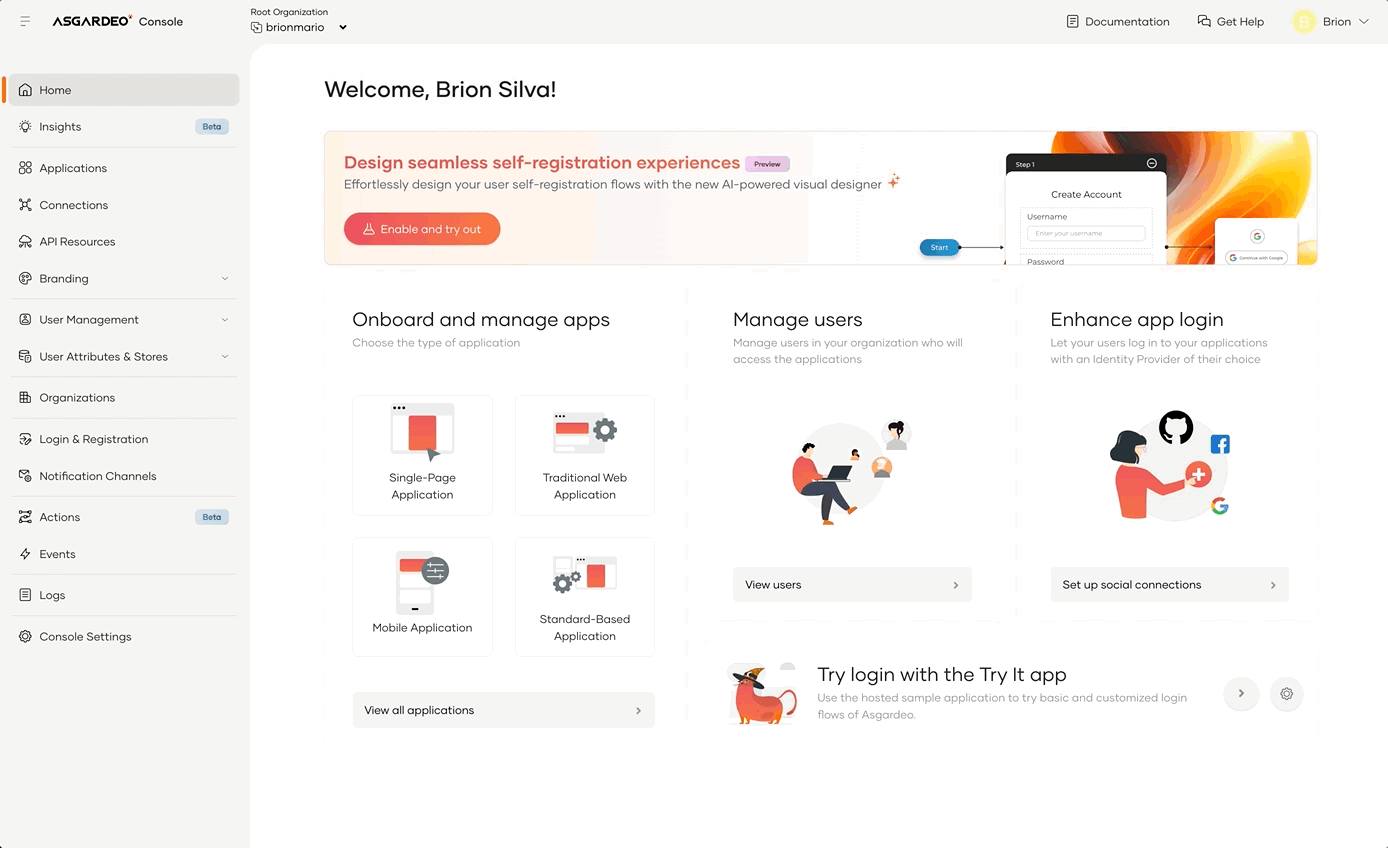

Option 01: Enable from the Home page

1. Navigate to the Home page.
2. Click on the Enable and try out button inside the banner.
3. In the feature preview dialog, toggle the feature status switch to Enabled mode and close the dialog.
4. Click on the Try out button in the banner to access the Flow Builder.

Option 02: Enable from the Feature Preview

1. Click on the user dropdown in the top right corner.
2. Select Feature Preview.
3. In the feature preview dialog, toggle the feature status switch to Enabled mode and close the dialog.
4. Go to Login & Registration.
5. Click on the Registration Flow card.

Building your first flow

The self-registration Flow Builder is designed to make creating user registration flows intuitive and efficient. With AI ✨ support, you can describe your ideal flow in natural language and let the builder generate it for you.

Alternatively, you can start with pre-defined templates or build from scratch using the drag-and-drop interface. This flexibility allows you to create new flows or extend existing ones effortlessly.

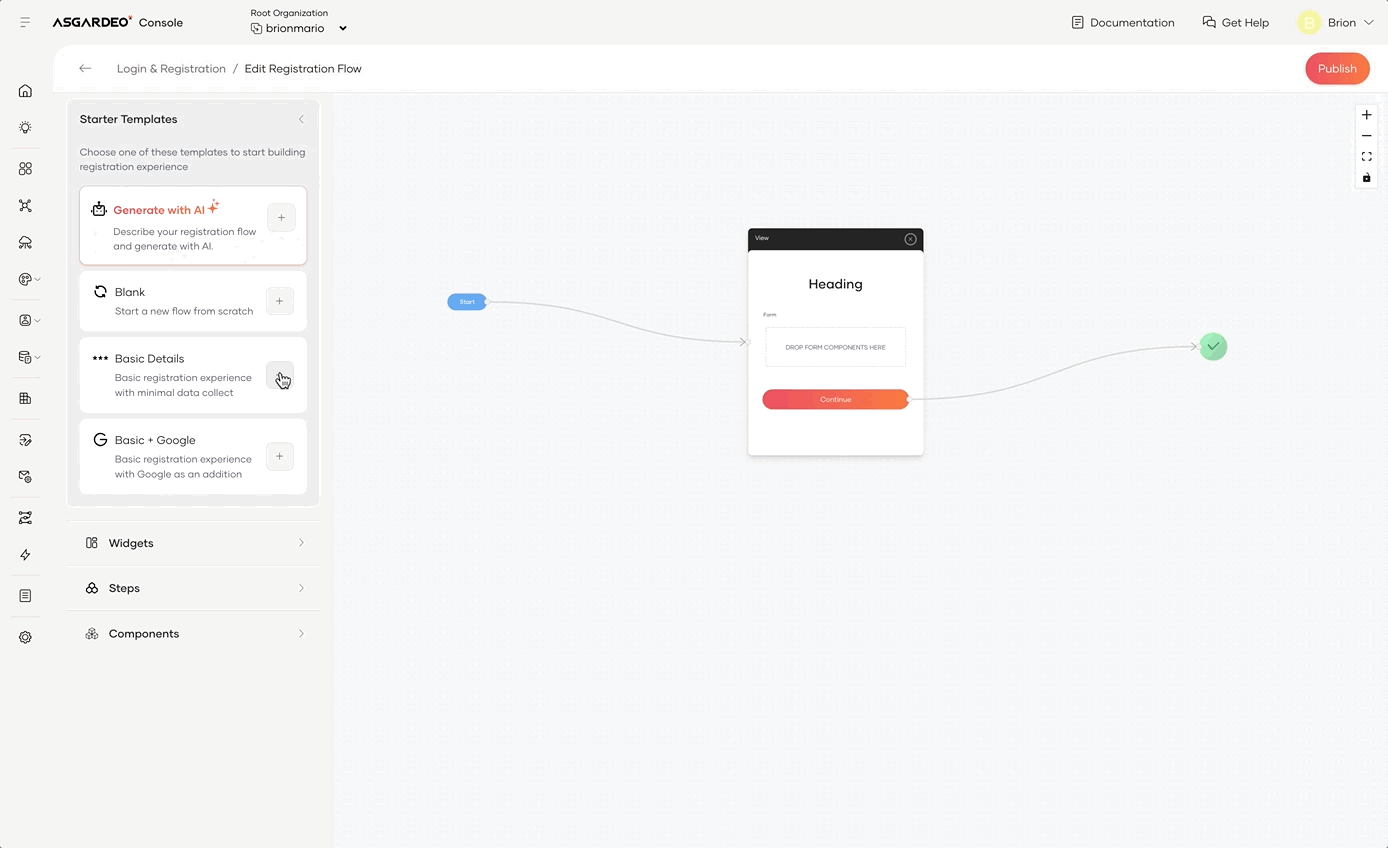

Starter Templates

Starter templates give you a quick start with pre-defined flows that are easily customizable. You can click on the + button next to the template to add it to the flow.

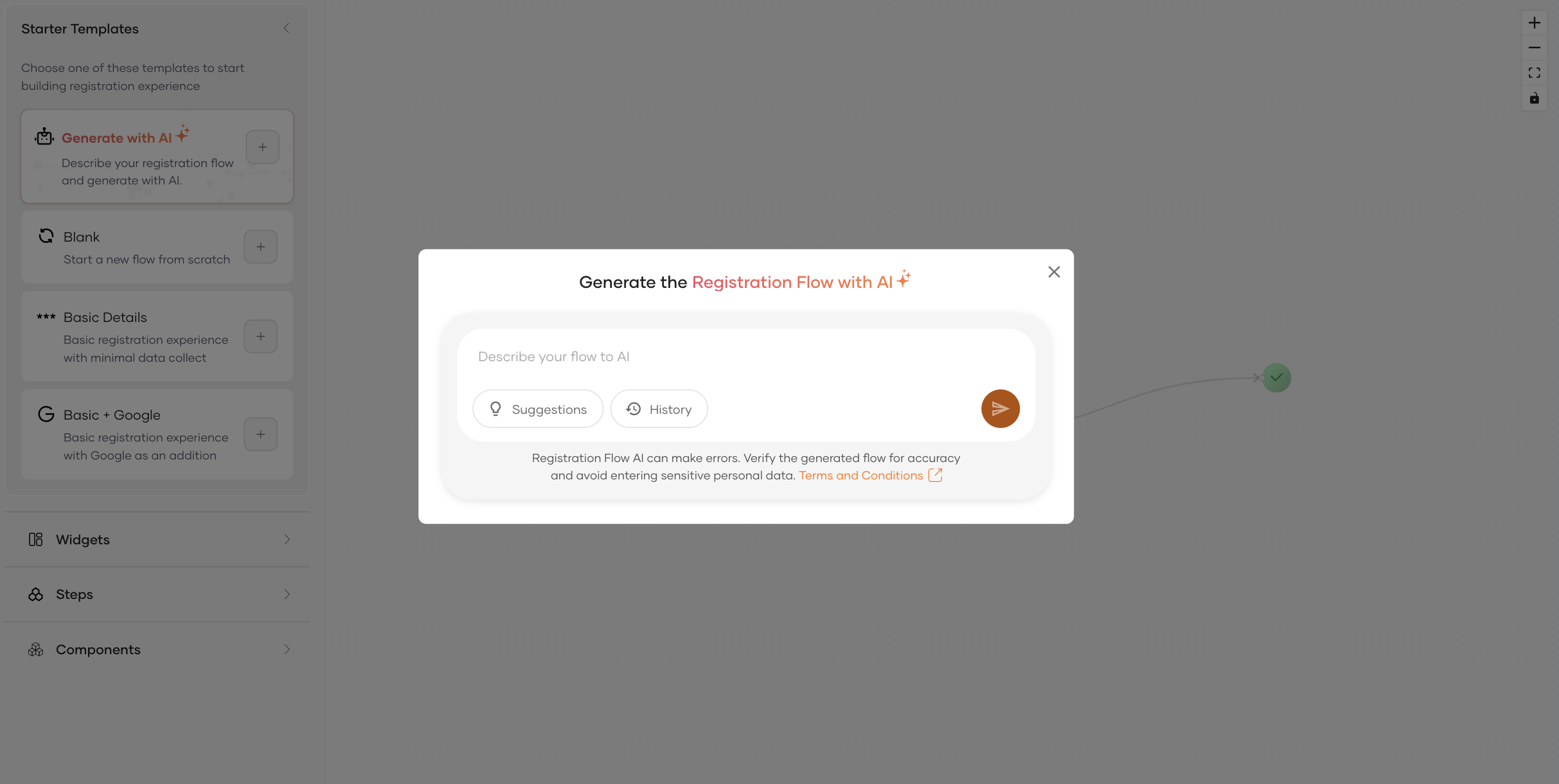

• Generate with AI ✨
  Describe your ideal registration flow in natural language, and Asgardeo will automatically generate a customized flow for you.



• Blank Start from scratch for full flexibility.

• Basic Details
  Collect only basic user details such as name, email, and password.

• Basic + Google
  Combine a basic form with Google sign-up for users preferring existing credentials.

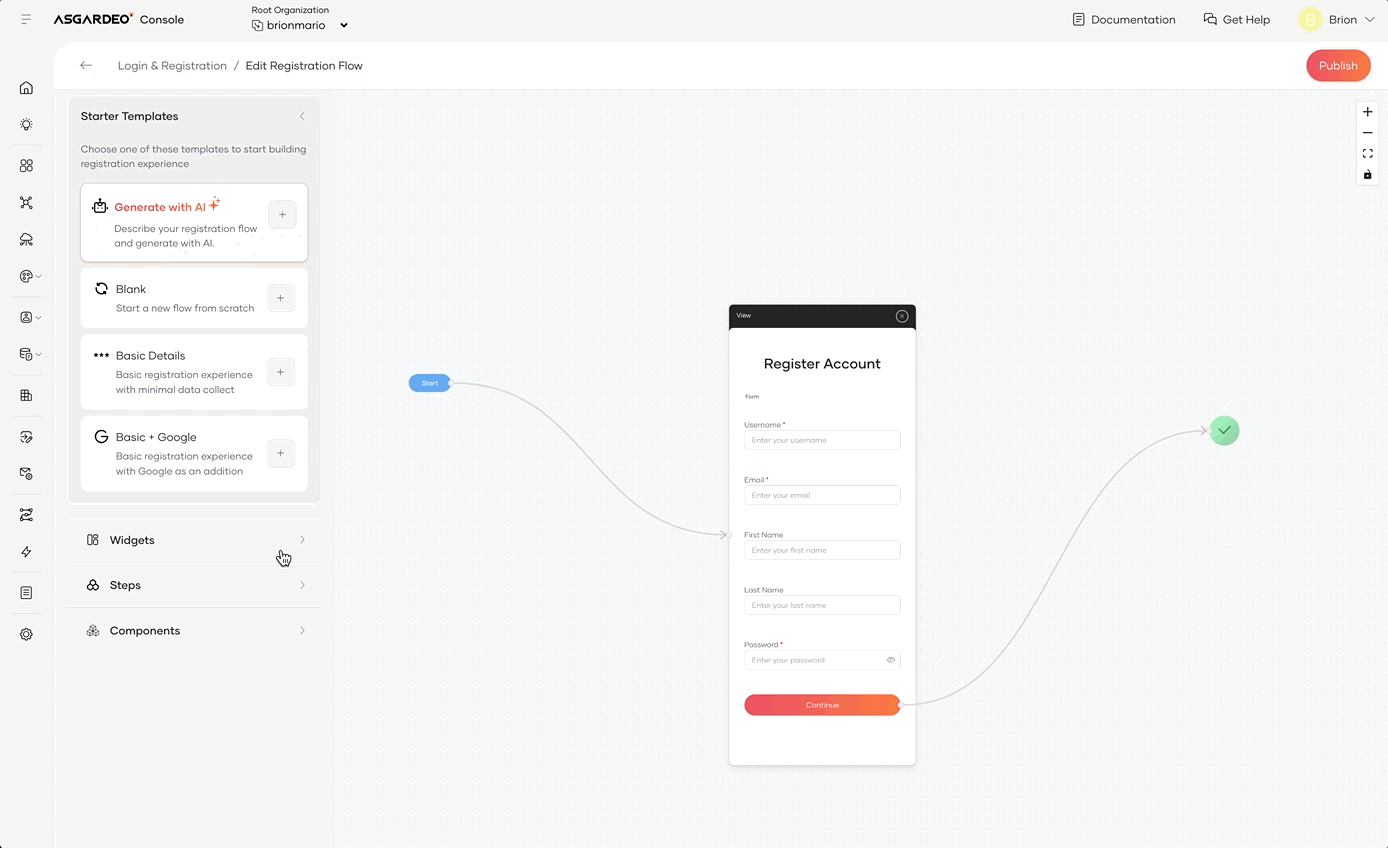

Widgets

Widgets are reusable components that enhance the registration flow. You can drag and drop widgets into your desired view to build a flow.

• Username + Password
  Traditional signup with username and password.

• Continue with Email OTP
  Sign up with email and verify using a One-Time Password.

• Continue with Google
  Sign up using Google credentials.

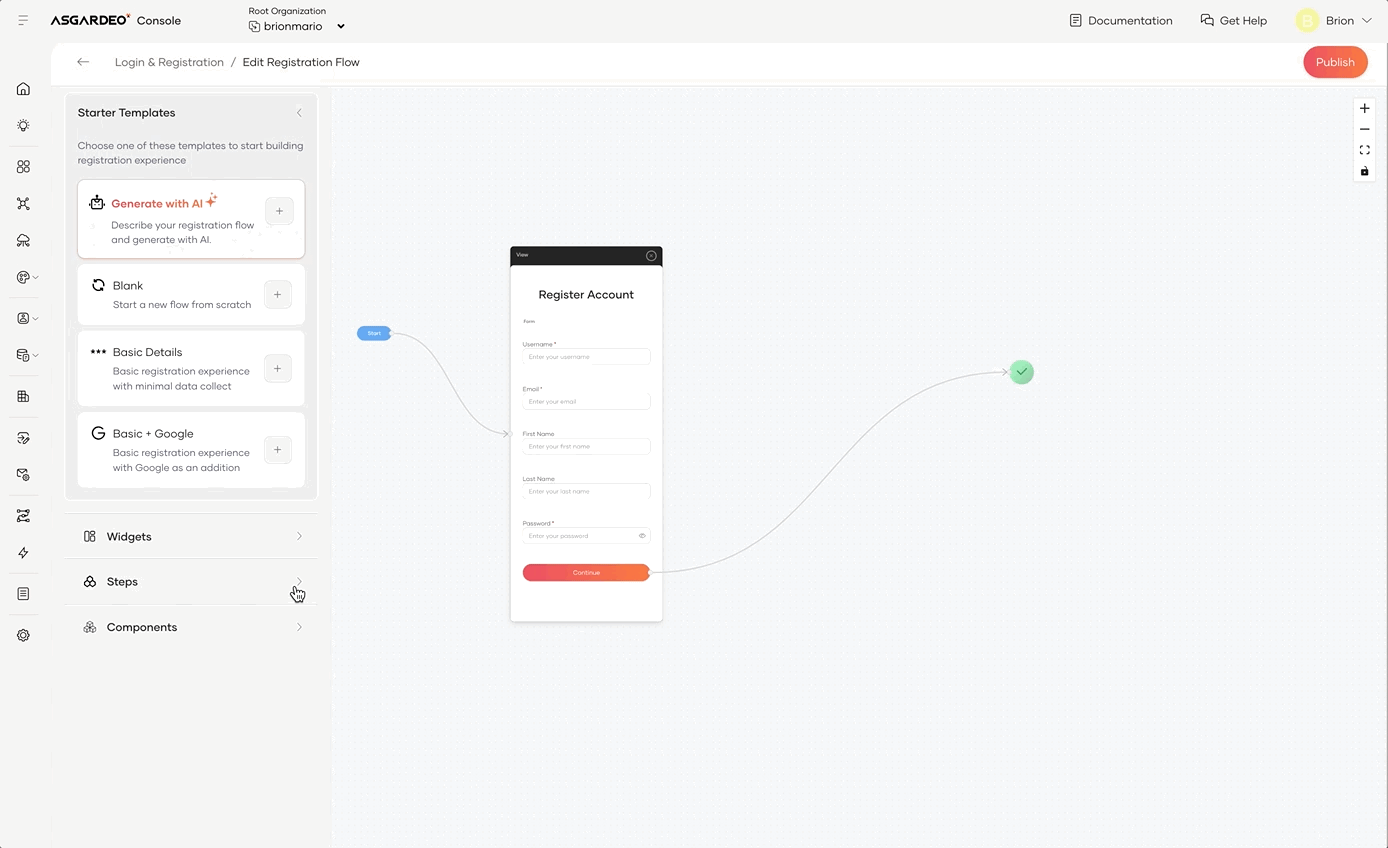

Steps

Steps are the core building blocks of a registration flow. You can drag and drop steps to create a multi-step registration flow.

• View
  Each step acts as a view or section of the registration process.

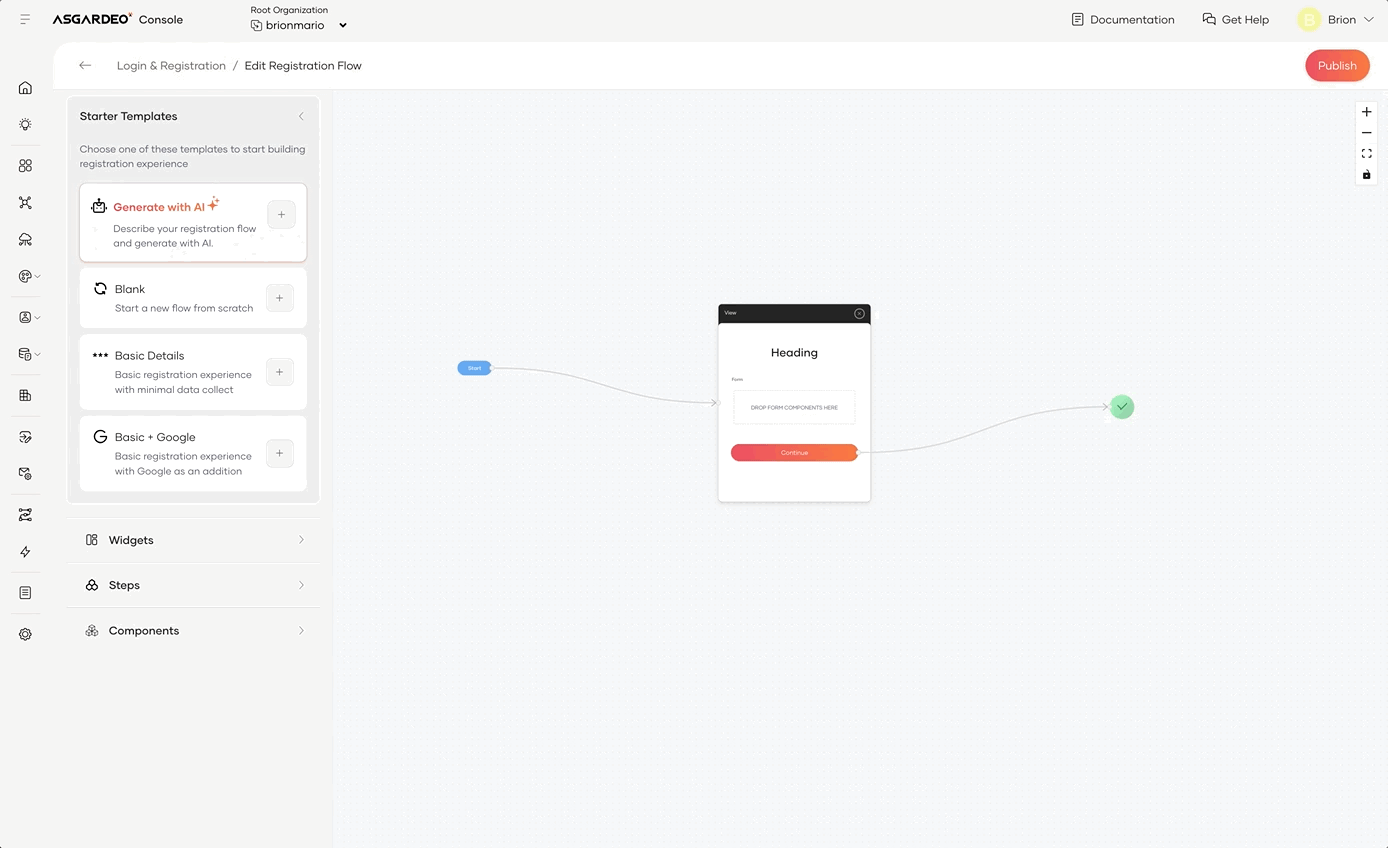

Components

Components are atomic UI elements added to steps. You can drag and drop components inside a step.

Note

Field components such as Text Inputs, Email Inputs, etc. has the following constraints:

• They should be added inside a Form component.
• They should be mapped to a user Attribute. This can be done by clicking on the pensil icon on the element action panel and selcting the relevant attribute from the Attribute dropdown. Only attributes set as display on Self-Registration profile in the Attribute Configurations will be available for mapping.

• Form – Group fields for registration details
• Text Input – Basic input for names/usernames
• Password Input – Hidden input for passwords
• Email Input – Field for email addresses
• Phone Input – Collect phone numbers
• Number Input – For numeric values
• Date Input – Collect dates
• OTP Input – Enter One-Time Passwords
• Checkbox – For agreements like terms and conditions
• Button – Triggers actions (e.g., submit)
• Text – Add static instructions/explanations
• Divider – Visually separate sections
• Image – Add images like logos/icons

Revert back to previous experience

If you want to revert back to the previous self-registration experience, you can disable the self-registration Flow Builder by following these steps:

1. Click on the user dropdown in the top right corner.
2. Select Feature Preview.
3. In the feature preview dialog, toggle the feature status switch to Disabled mode and close the dialog.
